BRIG Eagle 6 User manual

2378G.01
OWNER'S MANUAL
English
Rigid Inflatable Boat
MODEL: Eagle 6
Design category (2013/53/EU): C
ISO 6185-3: Type VIII

2018 — 2 — "BRIG" inflatable boats
CONTENTS:
DANGERLEVELS 5
INTRODUCTION 5
IDENTIFICATIONPLATE 6
SAFETY REGULATIONS 7
BEAUFORT Wind Scale 8
Boat Design Categories 8
REMEMBERFIREDANGERALWAYS 9
TECHNICALSPECIFICATIONS 10
COMPLETESET 11
THEMAINDIMENSIONS 13
BOATDESIGN 14
RIGIDHULL 16
REINFORCEDBUOYANCYTUBE 17
SKIMAST 18
STEERINGCONSOLE 18
FUELSYSTEM 20
DRAINSYSTEM 21
SHOWER KIT 23
WIRING DIAGRAM 24
PREPARATIONFOREXPLOITATION 25
INFLATION/DEFLATIONBOAT TUBE 25
STORAGE BATTERY INSTALLATION 26
BOAT TRANSPORTATION BY TRAILER 26
REBOARDINGMEANS 28
HOW TO INSTALL SUNDECK 29
MAINTENANCE 30
OPERATING REGULATIONS 31

— 3 —
EAGLE 6 2378G.01
Foryousafetyandforthevalidityoftheguaranteeexpertandauthorisedpersonnel
mustinstallthemotorandinspectandcheckthesystems.Allonboardsystemsmust
be completed and inspected.
CHECK, THAT THE CHECKS HAVE BEEN MADE AND THAT THE PLANTS HAVE
BEEN COMPLETED BEFORE DELYVERY.
BRIG Ltd declines any responsibility for systems and accessories that have not
been installed and checked by expert and authorised personnel.
Themanualandallitsenclosuresshouldbestoredcarefully,andthemanualshould
always be kept aboard. If the craft is resold, the manual and all its enclosures must
behandedover to thenewowner.

2018 — 4 — "BRIG" inflatable boats
CE Certification and Main Features
TheCEmarkingindicatesthattheinflatableboatmeetstherequirementsofthe
RecreationalCraftDirective2013/53/EU
Certifying Body:
INTERNATIONALMARINECERTIFICATIONINSTITUTE
RueAbbeCuypers3/B-1040Bruxelles/Belgique
Notified Body : 0609
www.imci.org
Name of Manufacture:
BRIGLtd.
Lozovskaya88,Dergachy62303
Kharkovskayaobl.
UKRAINE
www.brig-ribs.com

— 5 —
EAGLE 6 2378G.01
INTRODUCTION.
This manual was written to help you to use your boat safely. It contains information on the boat, its equipment (supplied
or installed),operation and maintenance.
DANGERLEVELS.
The manual contains warnings, identified as follows:
A note like this indicates that there is serious risk, that is likely to cause death or
permanentseriousinjury,if appropriate precautionsarenottaken.
A note like this indicates the existence of risk that may cause death or injury, if
appropriateprecautionsarenottaken.
A note like this indicates reference to the application of safety or environmental
protectionpractices,ordrawsattentiontounsafebehaviourthatmightcauseinjuryto
persones or damage to the craft, its components or the environment.
Before using your boat, read this MANUAL carefully and ensure that you have
understoodall the proceduresit describes.Beforetaking commandof your boat,be
suretohaveacquiredexperience andconfidenceinitsoperation.

2018 — 6 — "BRIG" inflatable boats
It is fundamental for the plates to be aboard the boat, since they are only form of
recognition and identification. Without them the boat does not comply with the legislation
in effect. The plates must never be removed. Any tampering or removal not authorised by
the manufacturer is the full responsibility of the owner.
IDENTIFICATIONPLATE.
Builder's Plate:
Plate with identification number: UA-QRK12345A000
Maximum propulsion
power rating for the
boat
Boat Design Category
according to
Directive 2013/53/EU
The rated tube
pressure value
Passengers capacity
Eagle 6 VIII
3?
110 150 10
1125 2480
Manufacturer’srecommendedmaximumload,
includingthe mass ofthe outboard engine(s)but
excluding the mass of the contents of fixed fuel
and water tanks when full

— 7 —
EAGLE 6 2378G.01
SAFETYREGULATIONS.
This manual contains recommendations and basic rules of conduct for using the boat in complete safety.Although it is not
possible to offer safety information for all potential situations, in general it is recommended that you :
Regularly check which safety requirements are in force.
Maintain the boat and the onboard plants in optimum condition.
Have the boat inspected by the dealer where it was purchased or by an authorised
mechanic at least once every year for your own safety and for maintaining the guarantee.
Always check weather and seagoing conditions before setting out.
Forsafe navigation,compare thedesigncategoryofyourboatwiththetablebelow.
When the tank is installed by the yard, the plant is prepared with a ground plait. The
installationofthemotorMUSTFORESEE APLAINT CONNECTIONtotheboatgroundplait.
Failure to connect (or failed maintenance) can result in the tank perforating leading to a
serious risk of fire / explosion caused by leaking fuel.
Max number of transportable persones is referred to an established weight of 75 kg per
person (ISO 6185), so always make reference to total maximum transportable weight.
The max weight of the installable motors indicates the maximum overall weight applicable
on the stern board, including any emergency motors. NEVER exceed the stated value.

2018 — 8 — "BRIG" inflatable boats
BEAUFORTWindScaleandCorrespondingStateoftheSea,AfterFewHoursofWind,AwayFromtheCoast.
BoatDesignCategories(Directive2013/53/EU):
NOTE: The significant wave height is the mean height of the highest one-third of the waves, which approximately
corresponds to the wave height estimated by an experienced observer. Some waves will be double this height.
State of the sea
Force Denomination Knots Km/h m/sec and wave height in meters
0Calm <1 <1 0-0.2 Calm 0
1Light Air 1-3 1-5 0.3-1.5 Calm 0
2Light Breeze 4-6 6-11 1.6-3.3 Almost calm 0.2
3Gentle Breeze 7-10 12-19 3.4-5.4 Almost calm 0.2
4Moderate Breeze 11-16 20-28 5.5-7.9 Small waves 0.5
5Strong Breeze 17-21 29-38 8.0-10.7 Large waves 1.25
6Fresh Wind 22-27 39-49 10.8-13.8 Large waves 2.0
7Strong Wind 28-33 50-61 13.9-17.1 Very large waves 2.5
8Gale 34-40 62-74 17.2-20.7 Rough sea 4
9Strong Gale 41-47 75-88 20.8-24.4 Very rough sea 6
10 Storm 48-55 89-102 24.5-28.4 Heavy 9
11 Violent Storm 56-63 103-117 28.5-32.6 Very heavy 14
12 Hurricane 64 and over 118 and over 32.7and over Stormy 14 and over
Design category
"A"-"Ocean"
"B"-"Offshore"
"C"-"Inshore"
"D"- "Sheltered waters"
Wind force
(Beaufort scale)
exceeding 8
up to,and including, 8
up to,and including, 6
up to,and including, 4
Significantwave height
exceeding 4
up to,and including, 4
up to,and including, 2
up to,and including, 0.3

— 9 —
EAGLE 6 2378G.01
ALWAYSREMEMBERABOUTFIREDANGER.
Fire may be caused by:
Crew negligence when smoking, the presence aboard of flammable liquids, electrical contacts, propulsion motor, errors in fueling, or if
maintenance has not been performed as required.
Once again, it is important that the crew behave correctly and that the boat is kept in order to avoid serious damage to it and to persons.
However, if a fire does occur aboard, stop motor, disconnect the batteries immediately, check to see if it is an electrical component or any case
a small-scale fire that does not involve flammable liquids, in which case use a suitable fire extinguisher to try and put the fire out completely.
Easily flammable products must not be kept aboard.
BATTERY:thebatterymaycausesparksorexplosions.Itmustbestoredinanappropriate
container,easilyreachedandwellaired,AWAYFROMFUELORINFLAMMABLEPRODUCTS.
Periodically check that the clips are tight and protect them with appropriate insulation in
order to prevent sparks or the spread of current.
Extinguisher or any other fire-fighting equipment must not be kept in compartments with
key lock, but in easily accessible and clearly indicated locations.
Extinguisher or any other fire-fighting equipment should be checked periodically and
replaced with the same or superior types if expired or inefficient.
Equip the boat with fire-fighting equipment before launch and use.

2018 — 10 — "BRIG" inflatable boats
TECHNICALSPECIFICATIONS.
The basic parameters and dimensions of the boat EAGLE 6 comply with the data specified in the following table. All
dimensions measurments indicated have a tolerance of +/- 3%, weight measurments indicated have a tolerance of +/- 5%.
5.95 m
2.4 m
1.7m
0.51 m
4.15 m
1.3 m
17°
20°
495mm
5
0.15 bar / 2.2 psi
10
135HP / 99.3kW
150HP / 110 kW
285kg
20" (Long)
121L
550kg
1270kg
850kg
970kg
1125kg
1820kg
Parameter Eagle 6
Length (without engine)
Beam
Height
Inflatable tube diameter, max.
Cockpit dimensions:
- length
- width
Deadrise angle on transom
Deadrise angle in middle section
Transom height
Number of independent air-tight chambers
Nominal pressure
Passengers capacity
Recommended engine power
Maximum engine power*
Maximum engine weight (including controls and battery)
Engine shaft length
Built-in fuel tank capacity
Weight of empty boat (with steering console with driver seat, without engine,
without fuel)
Maximum load capacity of empty boat (ISO method)
Displacement in Light Craft Condition (LCC)
Maximum total load (ML)
Maximum recommended load (including weight of the
max engine(s), passengers and cargo onboard, but excluding
the mass of the contents of fixed fuel and water tanks when full )
Loaded displacement mass
* When the boat is fitted with an engine with maximum recommended power it must be use with extreme care.
This application is directed at experienced users using their boats for very specific purposes.

— 11 —
EAGLE 6 2378G.01
COMPLETESET.
1Inflatable boat pcs. 1
2Foot pump pcs. 1
3Paddle pcs. 2
Set of spare parts and repair kit:
4- mooring line m18
5- coated fabric for repair m20.06
6- glue set for repair set 1
7Bag pcs. 1
8Owner's manual pcs. 1
9Built-in fuel tank pcs. 1(121L)
10 Steering console with installation kit pcs. 1
Steering console equipment:
11 Mechanical steering system pcs. 1
12 Mechanical steering system cable pcs. 1
13 Hydraulic steering system set 1 (variant)
14 Steering wheel pcs. 1
15 Fuel level clock pcs. 1
16 Switches of electrical equipment pcs. 5
17 Socket 12V with fuse pcs. 1
18 Compass pcs. 1
19 Speedometer pcs. 1
20 Tachometer pcs. 1
21 Electric horn pcs. 1
22 Driver seat with installation kit pcs. 1
23 Front locker removable cushion pcs. 1
No Description Unit of Eagle 6
measure
The table shows the maximum possible complete set, which may differ from your boat.

2018 — 12 — "BRIG" inflatable boats
Note. Perfection of the design and improvement of quality of our products is the fundamental production policy of our company.
Therefore, alternations may be made to the complete set (and as the components become available).
24 Mast for navigation lights with installation kit pcs. 1
Mast equipment:
25 Anchor light (white) pcs. 1
26 Bow step-plate with navigation lights (red and green) pcs. 1
27 Drain automatic bilge pump pcs. 1
28 Towing eye pcs. 1
29 Soft back of stern-part seat pcs. 1
Additional options:
Shower kit :
30 Water tank (39 litres) pcs. 1
31 External water fill pcs. 1
32 Shower handset pcs. 1
33 Shower pump pcs. 1
34 Box with cap for shower handset pcs. 1
35 Bow sun deck set with cushion pcs. 1
35 Foldable stainless steel ladder pcs. 1
36 Overall cover set 1
37 Steering console cover set 1
38 Driver seat cover set 1
39 Collapsible sun-top set 1
40 Battery container pcs. 1
41 Valve cap pressure gauge pcs. 1
No Description Unit of Eagle 6
measure

— 13 —
EAGLE 6 2378G.01

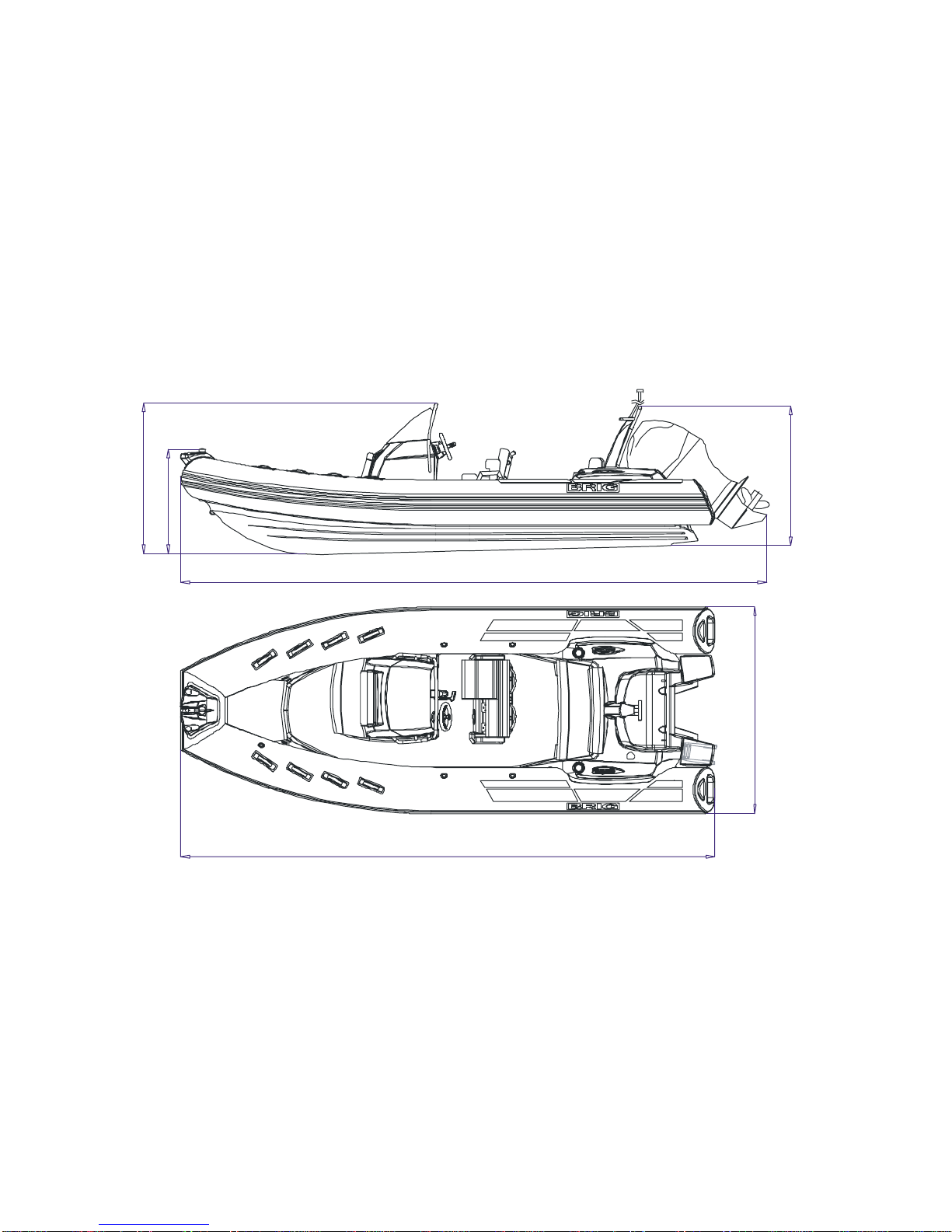

The main dimensions of Eagle 6 have tolerance of +/- 3%.
The length of the boat with the engine can vary depending on the model of the engine and the angle of its deviation. (See Fig. D0)
THEMAINDIMENSIONS.
Fig.D0
6.5 m
1.2 m
5.95 m
1.7 m
1.56 m
2.4 m

2018 — 14 — "BRIG" inflatable boats

— 15 —
EAGLE 6 2378G.01

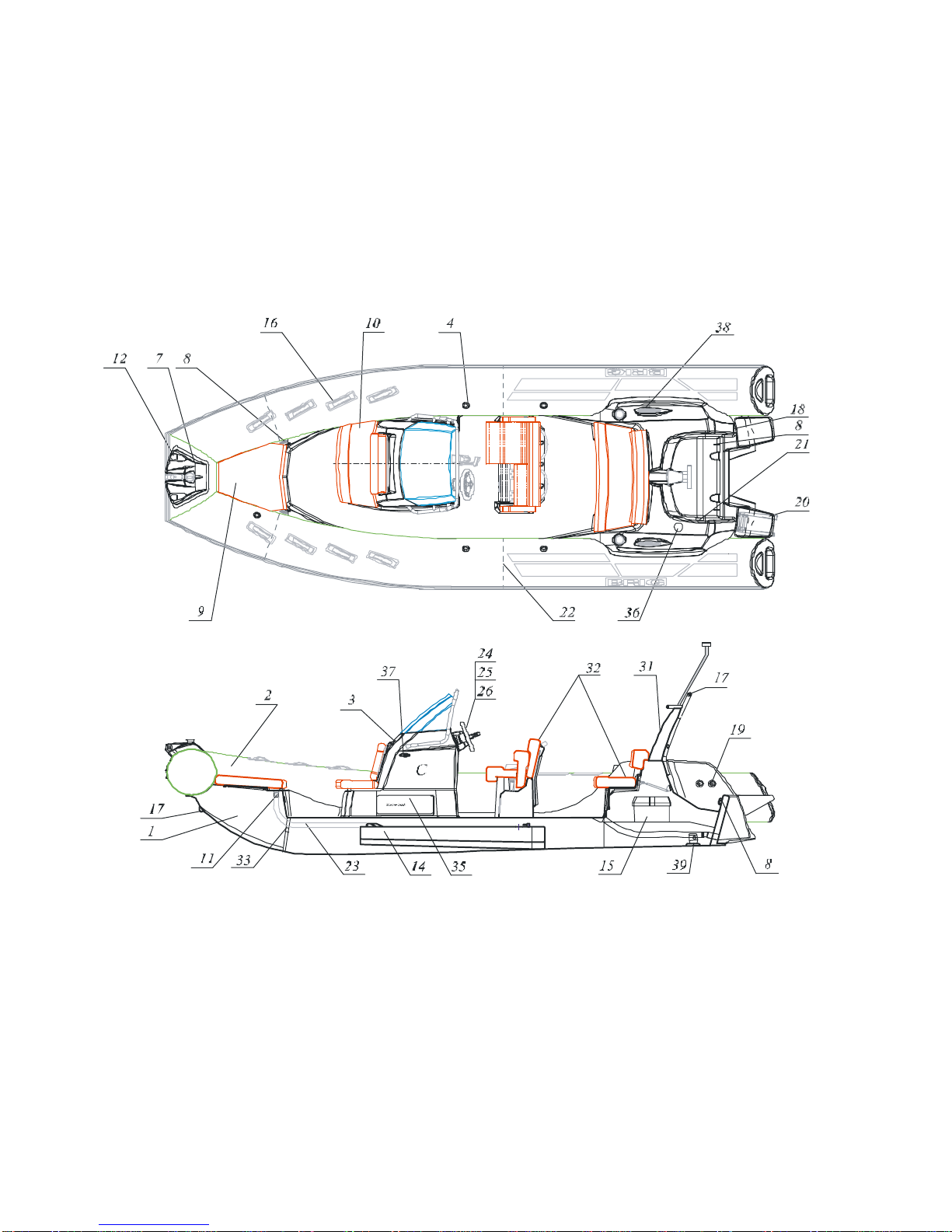

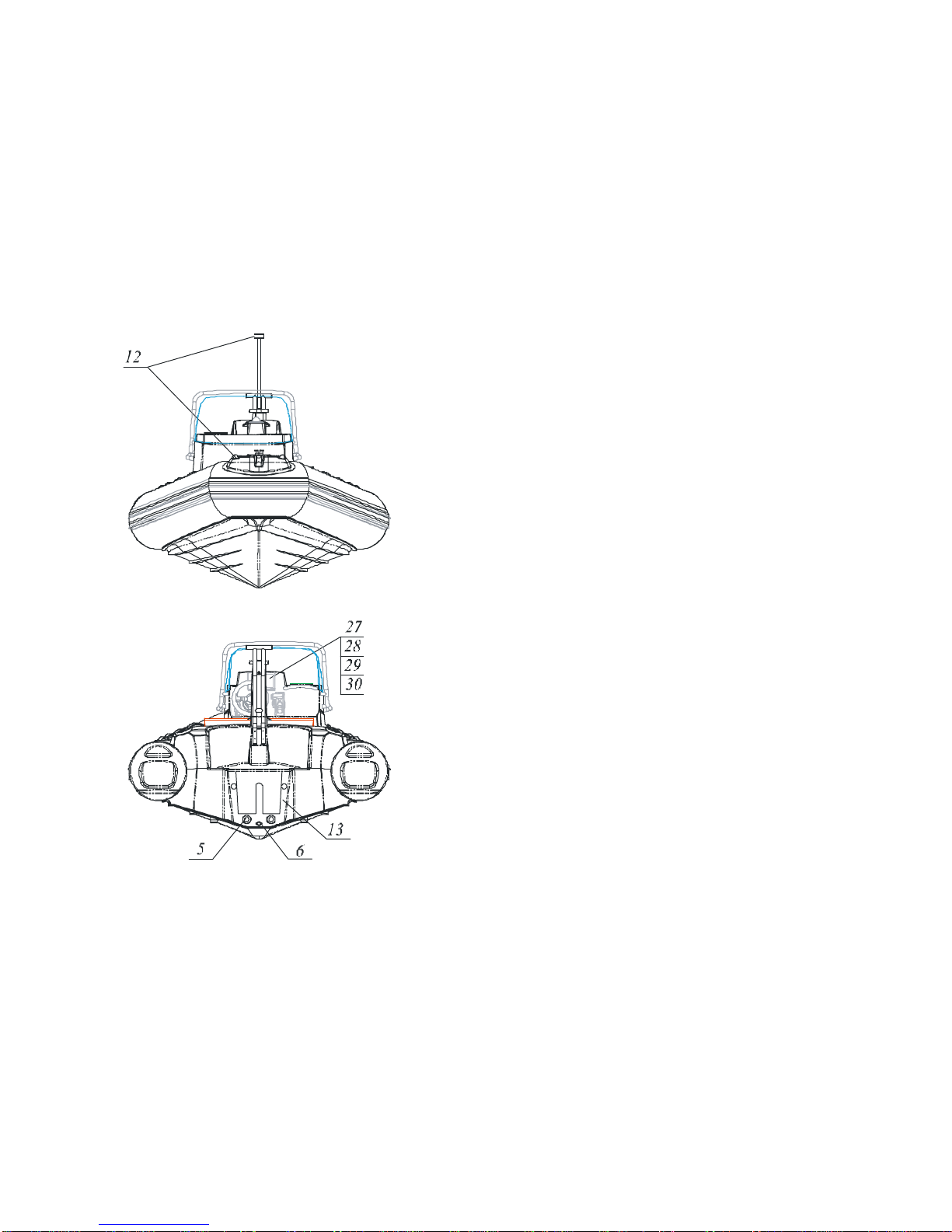

1 —Rigid hull
2 —Reinforced buoyancy tube
3 —Steering console
4 —Inflate valves
5 —Drain valves
6 —Bilge valve
7 —Bow plate
8 —Lifting eyes
9 —Bow removable curshion
10 —Locker with curshion
11 —Fuel tank neck
12 —Navigation lights
13 —Transom
14 —Fuel tank with fuel level sender
15 —Battery box
16 —Handle
17 —Towing eye
18 —HIN-code plate
19 —Outlet for remote control and steering cable
20 —Ladder
21 —Builder's plate
22 —Partition
23 —Fuel Hoses
24 —Steering mechanisme
25 —Steering wheel
26 —Steering cable
27 —Speedometer
28 —Tachometer
29 —Fuel level indicator
30 —Compass
31 —Ski mast
32 —Seats
33 —Fuel tank ventilation
34 —Rear step plate
35 —Fresh water tank
36 —Shower
37 —Horn
38 —Rear mooring cleat
39 —Bilge pump
BOATDESIGN ofEAGLE6(fig.D1).
Fig.D1

2018 — 16 — "BRIG" inflatable boats
lRIGID HULL.
The boat hull has "deep-V" shaped bottom with four longitudial steps.
The upper deck has a special moulded antiskid coating. There is three
specified sections (Fig. D2):
— bow locker (1) is intended for arrangement of anchor
and anchor chain/rope or for baggage arrangement;
—locker under the seat of steering console base part (2) is
intended for baggage arrangement;
—stern compartment (3).
Onto bow locker there is removable soft cushion (11, Fig. D1).
Ontothe stern compartment door there is soft seat (15, Fig. D1) and
soft back (16, Fig. D1).
The boat hull is arranged with the following components:
—bow towing eye (5, Fig.D2a);
—fuel tank (6);
—water tank (7);
—battery disconnector (at the stern part of the cockpit);
—cockpit drain system sockets (8, Fig. D2b, D2c);
—two stern lifting eyes (9);
—drain out of motor recess (10, Fig. D2d);
—drain automatic bilge pump (11, Fig. D2c);
—shower pump (12, Fig. D2b);
—two bow lifting eyes (13);
—outer neck for fuel fill (14);
—outer neck for water fill (15);
—inspection hatch (16);
—two stern cleats (17);
The fore part of the cockpit may be simply converted into the sundeck
by means of false decks and soft cushions.
D2
abc
a
d
8
3
5810
12 11
8
13 17
2
1
715 16
1
8
c
d
166
215 14 7
b
1714 13 3
10
9
9

— 17 —
EAGLE 6 2378G.01
lREINFORCEDBUOYANCYTUBE.
5 687
412 3
The boat buoyancy tube has U-shaped form. The tube is separated by
means of inner elastic partitions into five chambers of a similar volume,
each being provided with an air fill valve.
The air fill valve is intended for:
—filling the compartment with air from a standard pump or filling system
and maintaining pressure in the tube for prolonged time,
—adjustable drop of pressure in compartment.

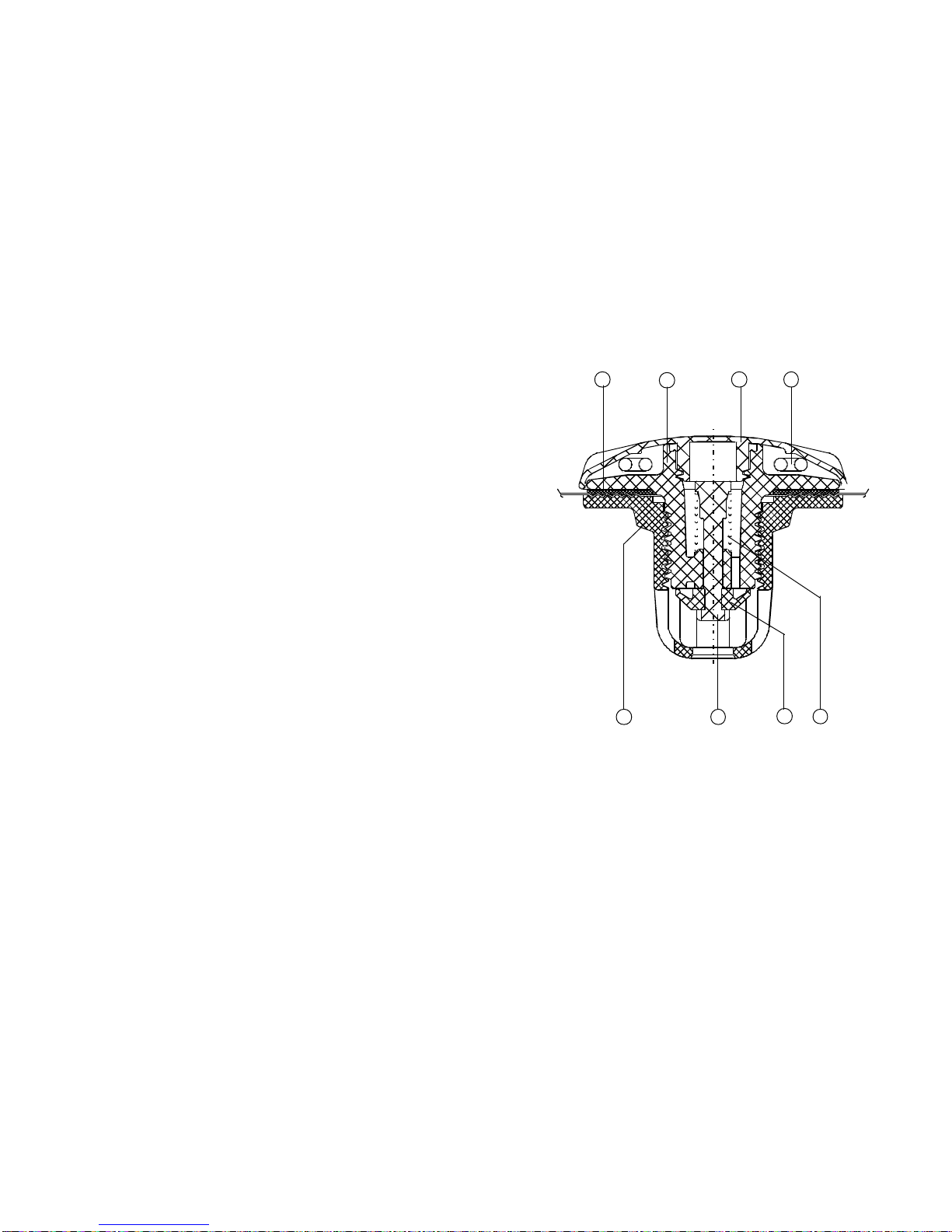

The air fill valve is designed as a tab-type non-return valve and consists
of the following components (Fig. D3):
—housing (1);
—cup (2) with strap (3);
—washer with gasket (4);
—nut (5);
—spindle (6) with spring (7) and cup diaphragm (8).
Also there are the following elements fitted on the tube (Fig. D1):
—doubled rubbing strake (3, Fig.D1);
—safety handles (4, Fig.D1);
—bow step-plate with a special moulded antiskid coating (6, Fig.D1).
D3

2018 — 18 — "BRIG" inflatable boats
lSTEERING CONSOLE.

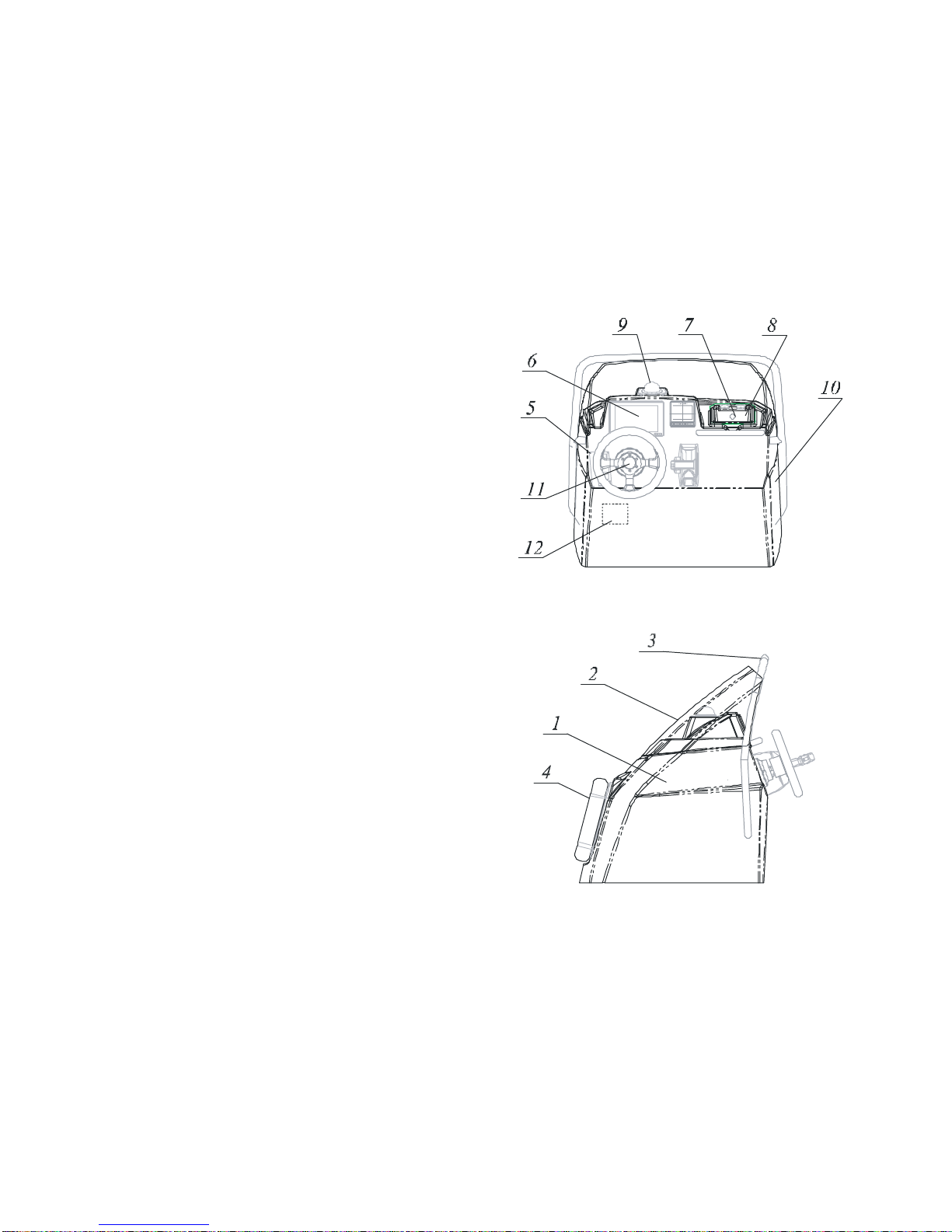

Steering console is located in the central part of the boat. The
console consists of the following components (Fig. D4):
—console base, integrated with the deck;
—console upper part (1);
—windscreen (2);
—stainless steel handrail (3);
—front soft backrest (4);
—switches (5);
—place for installation of analog or/and digital devices, (6);
—socket 12V (7);
— niche for small items (8);
— compass (9);
—electric horn (10);
—steering wheel (11);
— fuse holding box (located inside the console) (12).
Ski mast Mast (31, Fig.D1) is located in the stern part of the boat.
Mast is equipped with removable anchor white light ( 12), (Fig. D1).
lSKI MAST.
D4

— 19 —
EAGLE 6 2378G.01
Console equipment (Fig. D5):
Your boat can be equipped with:
—mechanical or hydraulic steering system;
—compass;
—fuel-level meter;
—speedometer;
—additional equipment (tachometer or multi-purpose meter,
trimmer, voltmeter, clock);
—socket 12V with fuse;

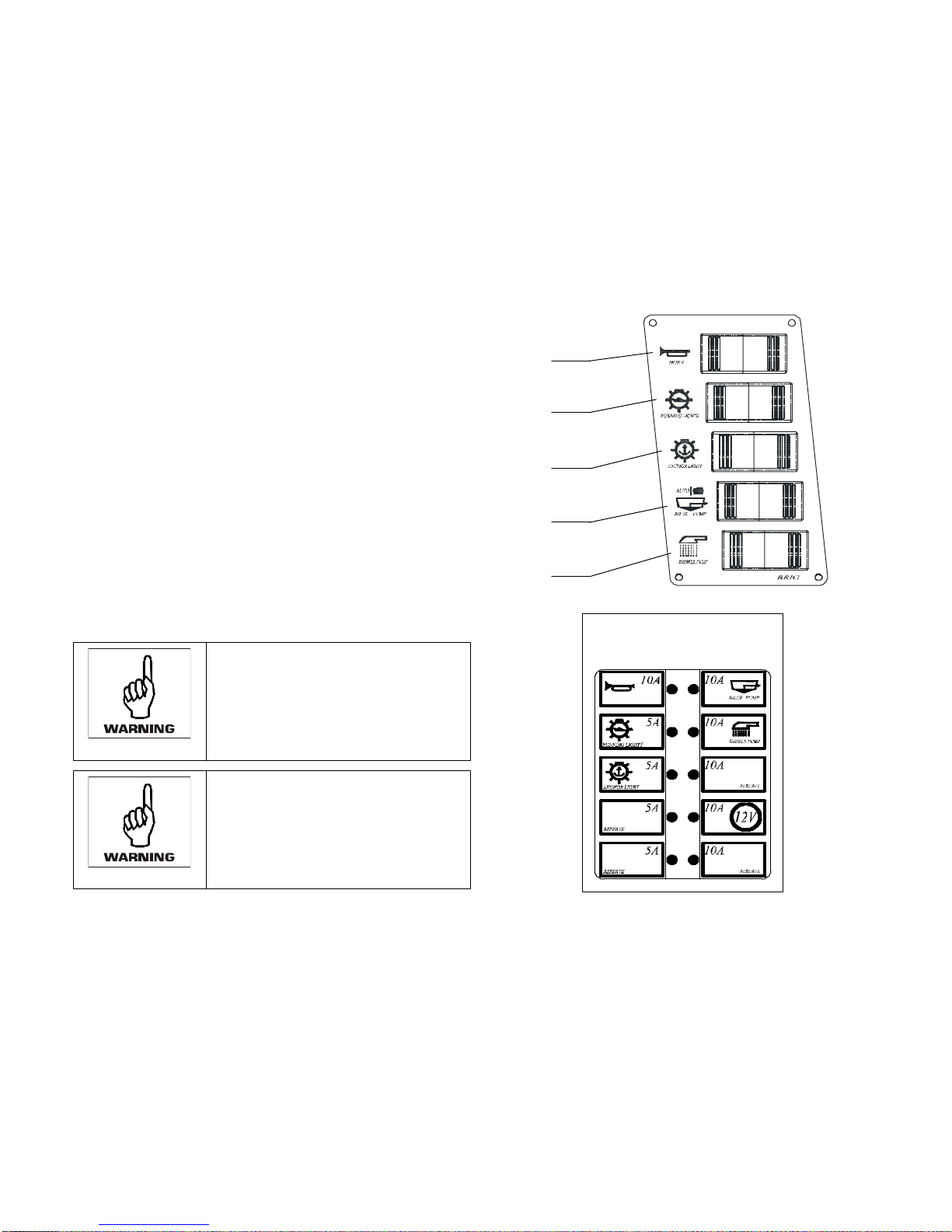

Switch functions:
—electric horn switch (1);
—running lights and meter lamp switch (2);
—anchor light switch (3);
—bilge pump switch (4);
—shower pump switch (5);
Fuse holding box with warning lights (inside of the steering
console on the left side)
Always keep a spare set the fuse in
an easily-accessible location.
Always check the fuse. Burning red
LED display on the fuse box warns of
faulty fuse
D5
Fuse holding box with
warning lights
5
4
10
9
3 8
61
HORN
27
2
3
4
1
5

2018 — 20 — "BRIG" inflatable boats
lFUELSYSTEM.

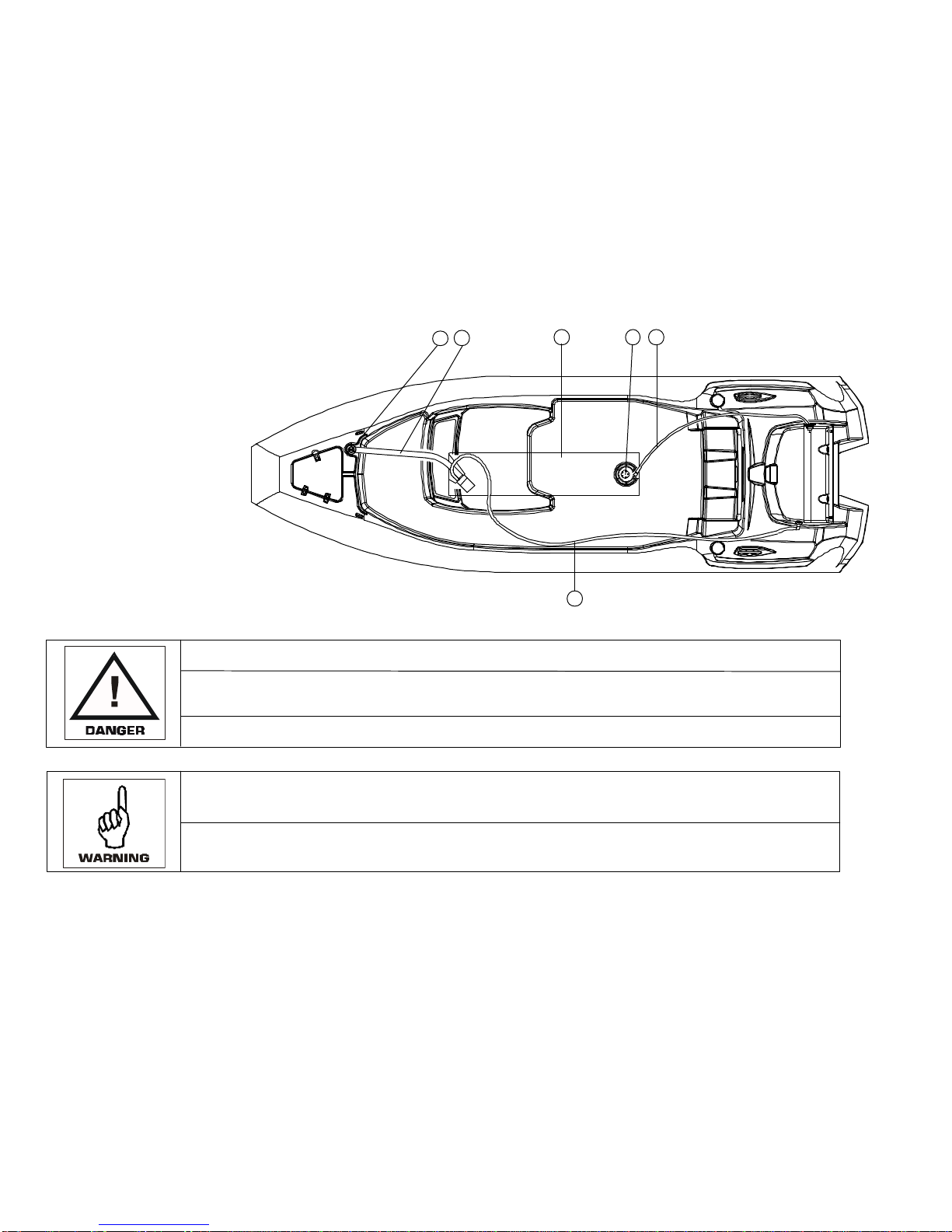

Fuel system consists of the following components (Fig. D6):
—built-in fuel tank 121L (1);
—electric fuel gauge (2);
—outer neck for fuel fill (3);
—fuel hose (from outer neck
for fuel fill to fuel tank) (4);
—fuel hose (from fuel tank
to outboard motor) (5);
—fuel venting hose (6).
Check that there are no leaks in the fuel systems
Pre-filter and fuel valve must be installed by authorized representative specialists only.
Do not modify fuel system. Any modification, repair and planned maintenance of the fuel
system may be made by authorized representative specialists only.
It is dangerous to pretend to be an expert. This may cause damages. Refer to expert and
authorized specialists for all types of maintenance and repair.
Do not smoke when refueling. Stop the engine and switch off any electric equipments
before refueling.
D6
12
34
6
5
