Raymarine ST70 Instrument User manual

S
T70 Instrument
User reference handbook
ST70InstrumentUserreference

Trademarksandregisteredtrademarks
Autohelm,HSB,RayTechNavigator,SailPilot,SeaTalkandSportpilotareUKregisteredtrademarksofRaymarineUKLimited.
PathnderandRaymarineareUKregisteredtrademarksofRaymarineHoldingsLimited.33STV,45STV,60STV,AST ,Autoadapt,
AutoGST,AutoSeastate,AutoTrim,Bidata,GSeries,HDFI,LifeT ag,MarineIntelligence,Maxiview,OnBoard,Raychart,Raynav,
Raypilot,RayTalk,Raystar,ST40,ST60+,Seaclutter,SmartRoute,Tridata,UniControl,Hybridtouch,andWaypointNavigationare
trademarksofRaymarineUKLimited.
Allotherproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
FairUseStatement
Youmayprintnomorethanthreecopiesofthismanualforyourownuse.Youmaynotmakeanyfurthercopiesordistributeorusethe
manualinanyotherwayincludingwithoutlimitationexploitingthemanualcommerciallyorgivingorsellingcopiestothirdparties.
Copyright©2010RaymarineUKLtd.Allrightsreserved.
ENGLISH
Documentnumber:81284-2
Date:03/2010

Chapter1:Importantinformation
Warning:Productinstallationand
operation
Thisproductmustbeinstalledandoperatedin
accordancewiththeRaymarineinstructionsprovided.
Failuretodosocouldresultinpersonalinjury,damage
toyourboatand/orpoorproductperformance.
Warning:Ensuresafenavigation
Thisproductisintendedonlyasanaidtonavigation
andmustneverbeusedinpreferencetosound
navigationaljudgment.Onlyofcialgovernment
chartsandnoticestomarinerscontainallthecurrent
informationneededforsafenavigation,andthe
captainisresponsiblefortheirprudentuse.Itisthe
user’sresponsibilitytouseofcialgovernmentcharts,
noticestomariners,cautionandpropernavigational
skillwhenoperatingthisoranyotherRaymarine
product.
Caution:Cleaning
Whencleaningthisproduct:
•DoNOTwipethedisplayscreenwithadrycloth,as
thiscouldscratchthescreencoating.
•DoNOTuseabrasive,oracidorammoniabased
products.
•DoNOTuseajetwash.
Caution:Serviceandmaintenance
Thisproductcontainsnouserserviceable
components.Pleasereferallmaintenanceandrepair
toauthorizedRaymarinedealers.Unauthorizedrepair
mayaffectyourwarranty.
Caution:Usethesuncovers
Toprotectyourproductagainstthedamagingeffects
ofultravioletlight,alwaystthesuncoverswhenthe
productisnotinuse.
EMCconformance
Raymarineequipmentandaccessoriesconformtotheappropriate
ElectromagneticCompatibility(EMC)regulationsforuseinthe
recreationalmarineenvironment.
CorrectinstallationisrequiredtoensurethatEMCperformanceis
notcompromised.
Technicalaccuracy
Tothebestofourknowledge,theinformationinthisdocumentwas
correctatthetimeitwasproduced.However,Raymarinecannot
acceptliabilityforanyinaccuraciesoromissionsitmaycontain.In
addition,ourpolicyofcontinuousproductimprovementmaychange
specicationswithoutnotice.Asaresult,Raymarinecannotaccept
liabilityforanydifferencesbetweentheproductandthisdocument.
Importantinformation5

Warrantyregistration
ToregisteryourST70instrumentownership,pleasetakeafew
minutestolloutthewarrantyregistrationcardfoundinthebox,or
visitwww.raymarine.comandregisteron-line.
Itisimportantthatyouregisteryourproducttoreceivefullwarranty
benets.Yourunitpackageincludesabarcodelabelindicatingthe
serialnumberoftheunit.Youshouldstickthislabeltothewarranty
registrationcard.
Wateringress
Wateringressdisclaimer
AlthoughthewaterproofratingcapacityofRaymarineproducts
exceedsthatcalledforbytheIPX6standard,waterintrusion
andsubsequentequipmentfailuremayoccurifanyRaymarine
equipmentissubjectedtocommercialhighpressurewashing.
Raymarinewillnotwarrantequipmentsubjectedtohighpressure
washing.
Productdisposal
DisposeofthisproductinaccordancewiththeWEEEDirective.
TheWasteElectricalandElectronicEquipment(WEEE)
Directiverequirestherecyclingofwasteelectricalandelectronic
equipment.WhilsttheWEEEDirectivedoesnotapplytosome
Raymarineproducts,wesupportitspolicyandaskyoutobeaware
ofhowtodisposeofthisproduct.
6ST70InstrumentUserreference

Chapter2:Introduction
Chaptercontents
•2.1Handbookinformationonpage8
•2.2ST70Introductiononpage9
Introduction7

2.1Handbookinformation
ThishandbookdescribesuseandsetupoftheST70Instrument.
Itincludesinformationtohelpyou:
•understandandusethefeaturesandcontrolsoftheST70
Instrument,
•setuptheinstrumentforusewithyoursensors,transducersand
otherdatasources,and
•congurethesystemtosuityourownpreferences.
ST70handbooks
ThefollowinghandbookscontaininformationassociatedwithST70
products.
AlldocumentsareavailabletodownloadasPDFsfrom
www.raymarine.com.
ST70Instrumenthandbooks
DescriptionPartnumber
ST70Instrument—Installationandcommissioning
Containsmounting,connection,commissioning,
maintenanceandtroubleshooting
87079
ST70Instrument—Userreference
Containsgeneraloperation,setupanduserpreferences
81284
ST70Instrument—Quickreference
Ashortguidetogeneraloperation
86139
ST70PilotControllerhandbooks
DescriptionPartnumber
ST70PilotController—Installation
Containsmountingandconnection.
87071
ST70PilotController—CommissioningforSPX
autopilotsystems
Containssystemcommissioning,maintenanceand
troubleshooting.
81287
ST70PilotController—Userreference
Containsgeneraloperation,setupanduserpreferences.
81288
ST70PilotController—Quickreference
Ashortguidetogeneraloperation.
81289
Additionalhandbooks
DescriptionPartnumber
SeaTalkngreferencemanual81300
BeforeusingtheST70
Beforeusingtheinstrumentunderwayitisimportantthatitis
properlysetup.
Firsttimestart—systemsettings
Atrsttimestartuponly,ST70provideson-screeninstructions
fortheinitialsetup.Ifyourinstrumenthasbeeninstalledbya
professionalinstaller,thisprocessmayalreadyhavebeencarried
out.
Thersttimesetupscreenswilltakeyouthroughthefollowing:
•Languageselection
•Timeanddatesetup
•Boattypeselection
8ST70InstrumentUserreference

Theinstrumentmayautomaticallyreceivesomeofthesesettings
fromotherinstruments(ifconnected)onthenetwork.Anything
receivedinthismannerwillbeomittedfromthesequence.
Calibrateessentialdata
BeforeusingtheST70fornavigationyoumustcalibrateessential
datatoensurethatthereadingsdisplayedareaccurate.
Usethetransducercalibrationmenutosetup:
•Wind
•Speed
•Depth
•T emperature
Youshouldperformtheaboveforanyinstallationaffectingthe
transducers.
Seealso
4.1Transducersetup
2.2ST70Introduction
TheST70Instrumentprovidesmultiplemarineinstrumentfunctions
inasingleunit.
Theinstrumentdisplaysinformationreceivedfromtransducers
andothersensorsaroundtheboat.Therearemultiplepagesof
informationavailable,whichyoucancustomizetosuityourneeds.
Introduction9

10ST70InstrumentUserreference

Chapter3:UsingtheST70
Chaptercontents
•3.1ST70instrumentcontrolsonpage12
•3.2Instrumentpagesonpage13
•3.3Customizingpagesonpage15

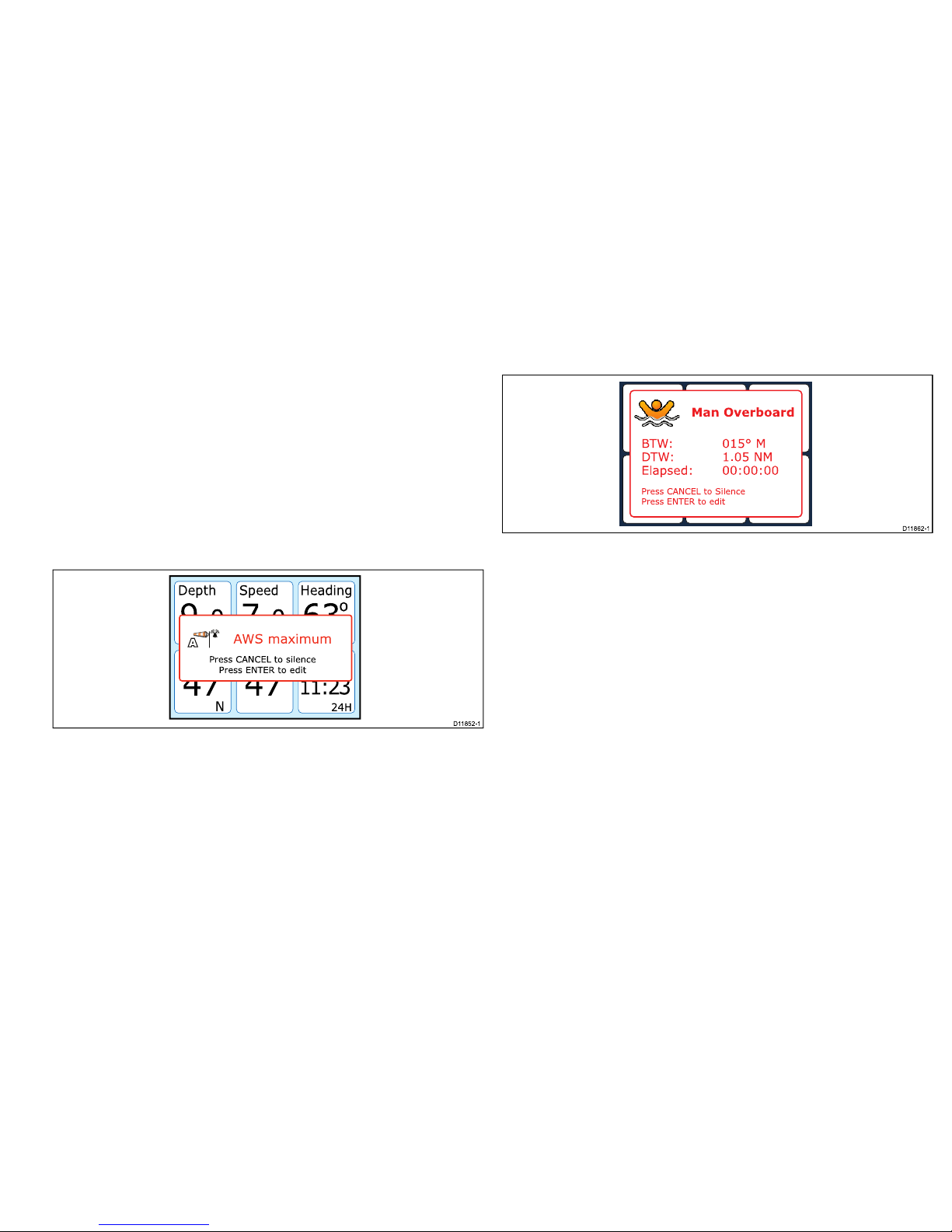

•3.4ST70Alarmsonpage17
UsingtheST7011

3.1ST70instrumentcontrols
ENTERCANCEL
MENU
D118 43 -1
5
4
3
1
2
1POWERbutton—Switchpoweronandoff,andaccessscreen
brightnesscontrol.
2MENUbutton—Accesstouserpreferencesandsystem
congurationmenus.
3UP/DOWNarrowbuttons:
•Selectbetweenavailableinstrumentpages.
•Selectoptionswithinthesetupmenus.
LEFT/RIGHTarrowbuttons:
•Selectoptionswithinthesetupmenus.
4ENTERbutton—Conrmmenuselections.
5CANCELbutton:
•Exitsetupwithoutmakinganychanges.
•Returntoprevioussetupmenuitem.
Instrumentpower
PoweringtheST70on
1.PressandholdthePOWERbuttonfor1second.
PoweringtheST70off
1.PressandholdthePOWERbuttonuntilthecountdownreaches
zero.
Displaybrightnessandcolor
Settingthescreenbrightness
1.PressthePOWERbuttontodisplaythebrightnesslevel.
D118 41 -1
55%
2.UsetheLEFT/RIGHTarrowstoadjustthescreenbrightness.
•Amomentarypresswillincrementthebrightnessby10%.
•Pressandholdforneadjustment.
3.PressENTERtoacceptthenewbrightnesssetting.
12ST70InstrumentUserreference

Choosingthescreencolors
Youcanchoosefromarangeofscreencolorpalettes,forexample
tosuitchangesintheavailablelightduringtheevening.

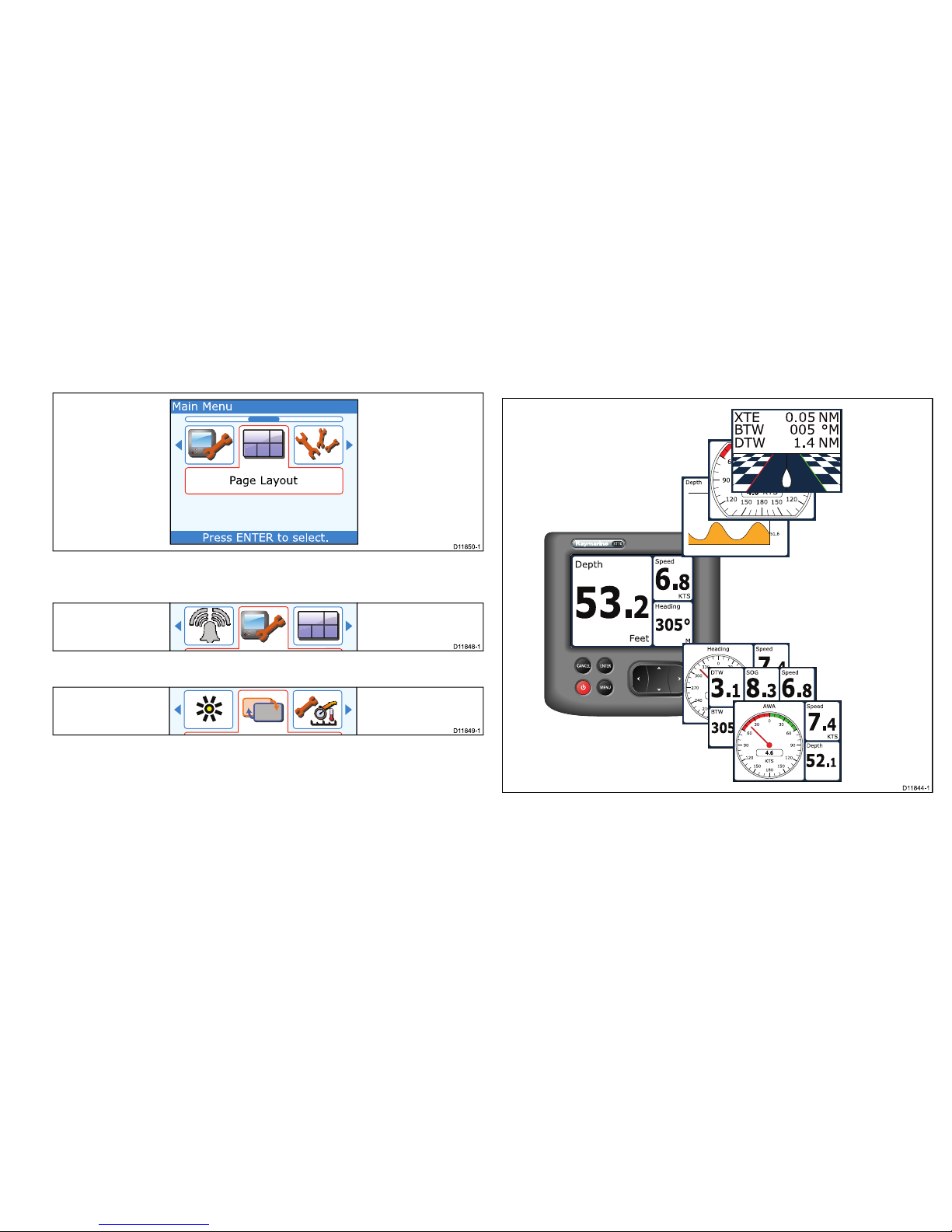

1.PressMENUbuttontodisplaythemainmenu.
Pr e s s ENTER t o s e le c t .
Ma in Me n u
Pa g e La y o u t
D118 50 -1
2.UsetheLEFT/RIGHTarrowstoselecttheDisplaySettings
option,thenpressENTER.
D118 48 -1
3.SelecttheColorsoption.
D118 49 -1
4.Selectfromthefollowingcolorpaletteoptions:
•Mode1-3—Forgeneraldaytimeuse.
•Red/Black—Fornight/lowlightuse.
•Inverse—Highcontrast,e.g.forracingandmastmounted
instruments.
5.PressENTERtosavetheselection.
6.PressCANCELtoexitthesetupmenu.
3.2Instrumentpages
TheST70presentsinstrumentdataonaseriesofpages.Youhave
upto8pagesavailable,eachofwhichcanbesetupwithdifferent
datatypesandlayouts.
Selectingpages
1.UsetheUP/DOWNarrowstoselectbetweentheavailable
pages.
UsingtheST7013

AlternativelyusetheRolloverfeaturewithinthesetupmenutocycle
throughthepagesautomatically.
Instrumentpageframes
Eachpieceofinformationisdisplayedinaframewithinthepage.
Theframessupportanumberofdifferentstylesandformatsfor
presentingthedata.
Digitalframes
D118 39 -1
Thedigitalframesprovidesdatainanumericalformat.
Analogframes
D118 38 -1
Analogframesprovidereal-timedataintheformofananaloggauge.
Analoggaugesareonlyavailableforfulland2/3screenframes.
Graphframes
D11840-1
Graphsprovideameansofshowinghowaparticularreadinghas
changedovertime.
Bargraphframes
D118 69 -1
Therudderbarisanexampleofabargraphframe.
Rollingroadframe
D
11861-1
Therollingroadprovideswaypointandcoursedeviationinformation.
14ST70InstrumentUserreference

Maximumandminimumindicators
Maximum,minimumandaveragevalueindicatorsaredisplayedon
analogspeed,windspeedandwindanglescreens.
D118 45 -1
18 0
15 015 0
12 0
9 09 0
6 06 0
3 03 0
0
12 0 3
2
1
1Minimumvalue
2Averagevalue
3Maximumvalueindictor
Resettingmax,minandtripdata
Thevaluesofsomedataareaccruedovertime.Theseinclude
informationsuchatripdistance,andmaximumandaveragespeed.
Thistypeofinformationcanberesetasandwhenrequired.
Withthedatatoberesetdisplayedontheinstrumentscreen:
1.PressMENU
TheResetdatamessageisdisplayed.
2.PressENTERtoresettherequireddata.
3.3Customizingpages
YoucanusethePageLayoutmenutochangeanyinstrumentpage
tosuityourrequirements.Youcan:
•Changethetypeofinformationdisplayedonanypage.
•Rebuildanypage.Thisallowsyoutochangethelayoutaswell
asselectingthetypeofinformationdisplayed.
Changingtheinformationonapage
Followthesestepstochangetheinformationwithinaninstrument
page.
1.PressMENUbuttontodisplaytheMainMenu.
2.UsetheLEFT/RIGHTarrowstoselectthePageLayoutoption,
thenpressENTER.
D118 47 -1
3.Selectthepageyouwanttochange.
4.SelecttheChangeanitemoption,thenselecttherequiredframe
withinthepage.
5.Selectagroup,fromwhichyouwillchoosethedatatobe
displayed.
Thevariousinformationavailablefordisplayisarrangedinto
groups;eachgroupcontainsseveralrelateditems.
6.Selecttherequireddataitemfromyourchosengroup.Data
itemsareavailableinoneormoreofthefollowingformats:
•Analog
•Digital
•Graph
7.PressENTERtoselectthedataandreturntotheframeselect
screen.
UsingtheST7015

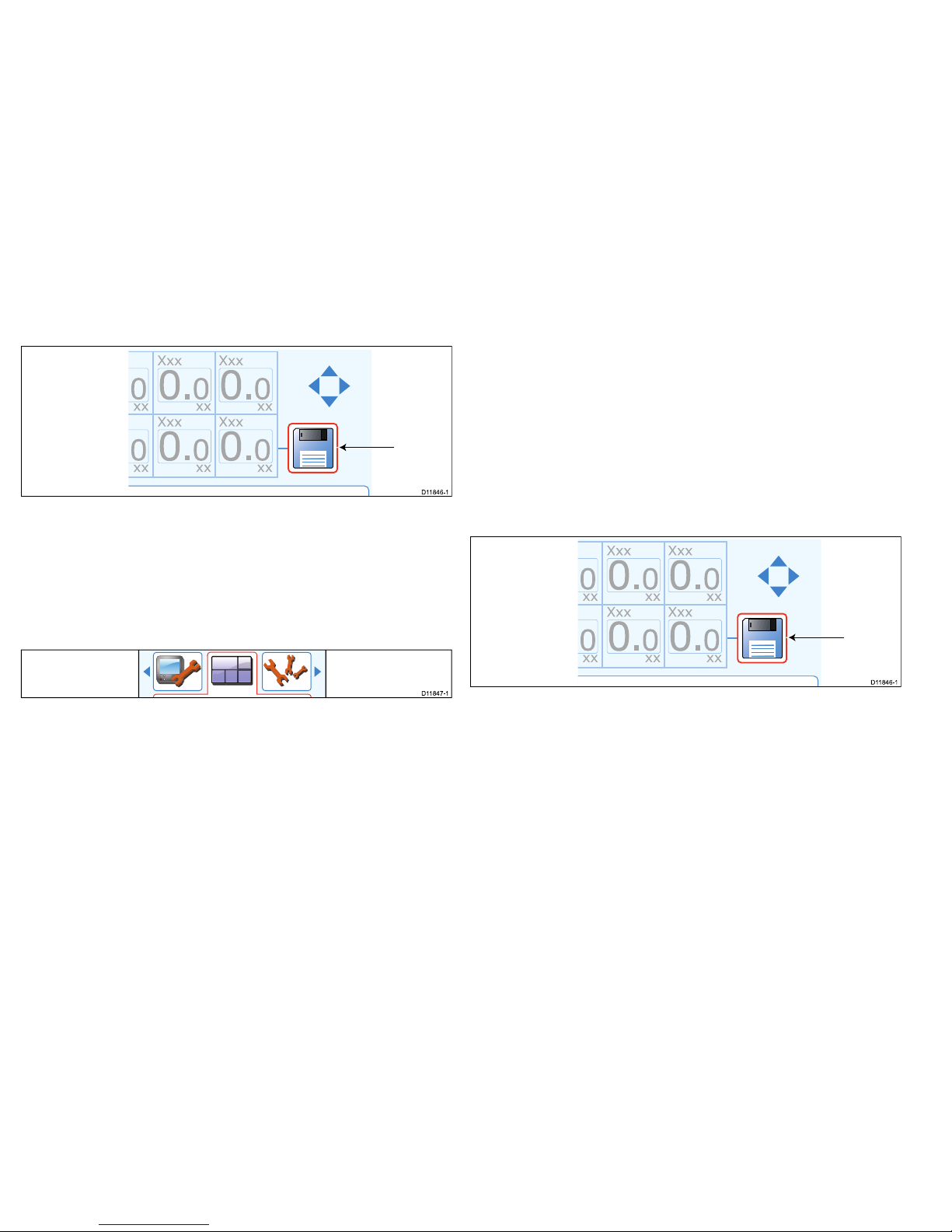

8.Whenyouhavemadealloftherequiredchanges,selectthe
diskicontosaveandexit.
D118 46 -1
i
Xx x
x x
0.0
Xx x
x x
0.0
Xx x
x x
0.0
Xx x
x x
0.0
Xx x
x x
0.0
Xx x
x x
0.0
Changingthelayoutofapage
ThefollowingstepsshowhowtousetheRebuildpagemenuoption
tochangeapagelayoutandthedisplayedinformation.
1.PressMENUbuttontodisplaytheMainMenu.
2.UsetheLEFT/RIGHTarrowstoselectthePageLayoutoption,
thenpressenter.
D118 47 -1
3.SelecttheRebuildpageoption,thenpressENTER.
4.Selecttherequiredpagetemplate.
Eachtemplateisapredenedarrangementofbetween1and6
instrumentelds.
5.Usethearrowbuttonstoselectaframewithinthepagebeing
built.
6.Selectagroup,fromwhichyouwillchoosethedatatobe
displayed.
Thevariousinformationavailablefordisplayisarrangedinto
groups;eachgroupcontainsseveralrelateditems.
7.Selecttherequireddataitemfromyourchosengroup.Some
dataitemsareavailableinmorethanoneofthefollowing
formats:
•Analogdial
•Numericvalue
•Graph
8.PressENTERtoselectthedataandreturntotheframeselect
screen.
9.Setupotherframesasrequired.
10.Whenyouhavemadealloftherequiredchanges,selectthe
diskicontosaveandexit.
D118 46 -1
i
Xx x
x x
0.0
Xx x
x x
0.0
Xx x
x x
0.0
Xx x
x x
0.0
Xx x
x x
0.0
Xx x
x x
0.0
16ST70InstrumentUserreference

3.4ST70Alarms
Alarmsareusedtoalertyoutoasituationorhazardrequiringyour
attention.
Someexamplesofalarmsare:
•Anchoralarm—Usedunderanchor,thisalertsyoutoachangein
depthwhichcouldmeanthatthechainlengthrequiresadjusting.
•Depthandspeedalarms—Thesealarmsalertyouwhenthe
depthorspeedexceedsaspeciedlimit,forexampleaminimum
depth.
•MOB(ManOverboard)alarm—ReceivedfromanMOBsystem.
Whenanalarmoccurs,amessageisdisplayedandanaudible
alarmmaysound.
De p t h
ft
9 . 0
La t
N
S p e e d
k t s
7 . 0
He a d in g
xx
6 3
Tim e
24H
11:23
o
4 7
o
Lon
4 7
AWS m a x im u m
Pr e s s ENTER t o e d it
Pre s s CANCEL t o s ile n c e
D118 52 -1
Youcaneither:
•Silencethealarm,or
•editthealarmsettings.
ManOverboardalarm
IntheeventofaManOverboard(MOB)alarm,theinstrument
providesarangeofinformationtohelpndtheMOBtarget.
•BTW:BearingtoMOBwaypoint.
•DTW:DistancetoMOBwaypoint.
•Elapsed:TimesincestartofMOBalarm.
BTWandDTWrequiredatafromothersourcessuchasaGPS
andmultifunctiondisplay.Ifthesearenotavailablethenonlythe
elapsedtimeisdisplayed.
UsingtheST7017

18ST70InstrumentUserreference

Chapter4:Transducercalibration
Chaptercontents
•4.1Transducersetuponpage20
•4.2DepthOffsetonpage20
•4.3Calibratingwatertemperatureonpage21
•4.4Windsetuponpage22
•4.5Speedcalibrationonpage22
Transducercalibration19

4.1Transducersetup
Wind,Depth,SpeedandTemperaturedataarederivedfrom
transducersandsensorsaroundtheboat.Youshouldcheckthe
accuracyofthedisplayedreadingsandcalibrateasnecessary.This
shouldbedonewheneveryouinstallanewinstrumentortransducer
aspartofthecommissioningprocess.
Settinguptransducers
TheTransducersetupmenuisusedtocalibratethetransducersand
sensorswhicharethesourceofmuchoftheinstrumentdata.
1.PressMENU.
2.SelectAdvancedoptions>Transducersetup.
TheST70willsearchfortransducersconnectedtothesystem
anddisplaytheresultsofthesearchasalist.
3.PressENTERtoproceedandsetuptheparametersforthe
transducersfound.
Therearesettingsavailablefor:
•Depth
•Speed
•Wind
•T emperature
•DST(DepthSpeed,T emperaturesmarttransducers)
•DT(Depth,T emperaturesmarttransducers)
4.2DepthOffset
Depthsaremeasuredfromthetransducertotheseabed,butyou
canapplyanoffsetvaluetothedepthdata,sothatthedisplayed
depthreadingrepresentsthedepthtotheseabedfromeitherthe
keelorthewaterline.
Beforeattemptingtosetawaterlineorkeeloffset,ndoutthe
verticalseparationbetweenthetransducerandeitherthewaterline
orthebottomofthekeelonyourvessel,asappropriate.Thenuse
thedepthinstrumenttosettheappropriateoffsetvalue.
D9343--2
123
1Waterlineoffset
2Zerooffset
3Keeloffset
Ifanoffsetisnotapplied,displayeddepthreadingsrepresentthe
distancefromthetransducertotheseabed.
20ST70InstrumentUserreference
