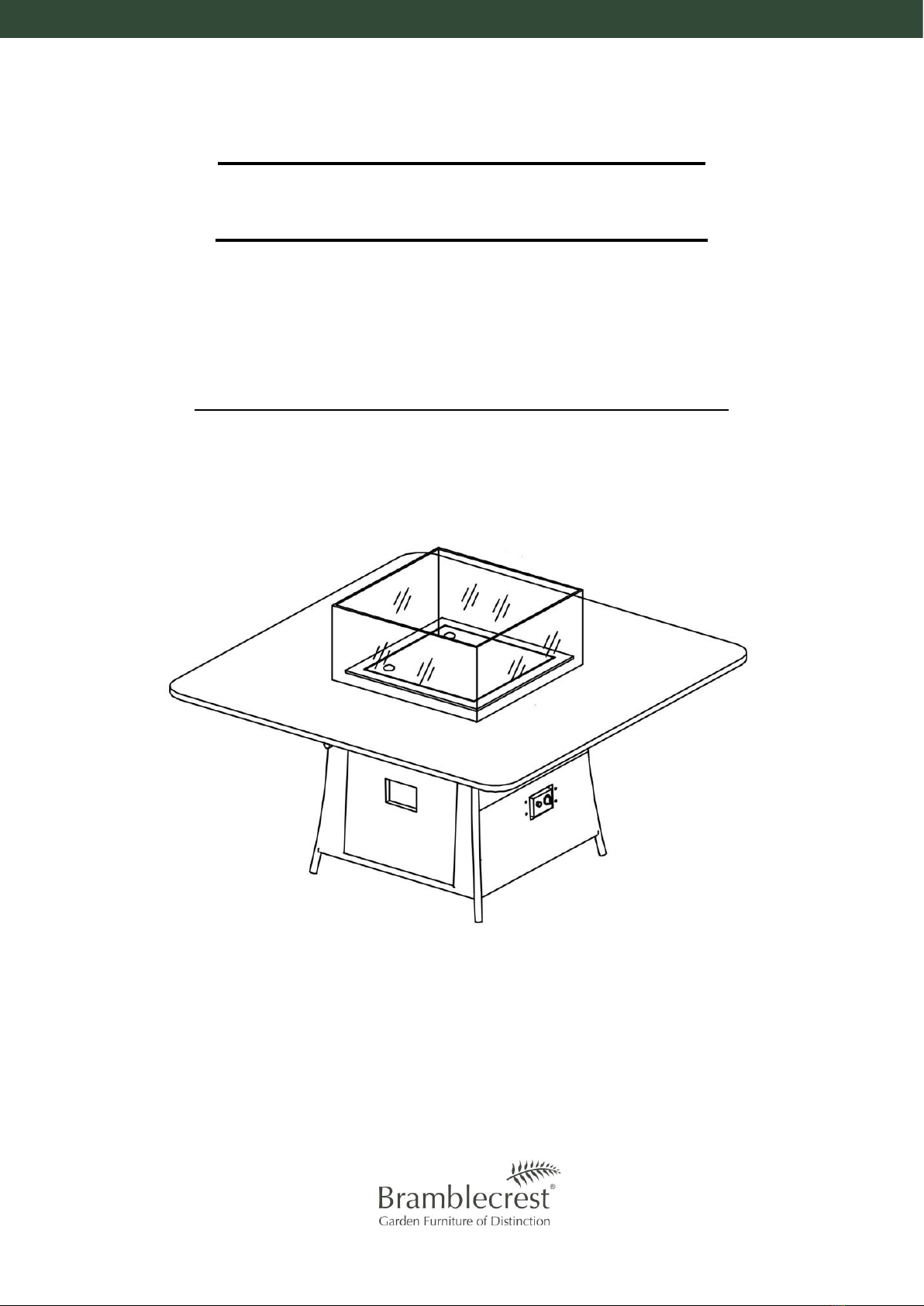

Square Casual Dining Table
with Ceramic Top & Firepit
REVCDT3FP/RKGTC3S/ALRCDT3FPC/AWPTCDT3CFP/LMMT4JCFP/ASMCDT3FPC/AWTUCDT3CFP/RKGMT2CJFP/
RCGCFPT1/RCWCFPT1/RMMT8CFPS/RAUMT1FP/RCHCFPT1/FWNMT1FP/RQMT1FP/RCTMT8CFP/RBLMT8CFP
ASSEMBLY INSTRUCTIONS AND SAFETY GUIDE
PLEASE READ THESE SAFETY INSTRUCTIONS
IN FULL BEFORE COMMENCING ASSEMBLY

www.bramblecrest.com/instructions
Contents
1. Gas Cylinder & Regulator
2. Safety Instructions
3. Assembly
4. Technical Data
5. Warnings
6. Lighting Instructions
7. Care and Maintenance
8. Storage
Your new Casual Dining Table with Ceramic Top & Firepit is made from the highest quality materials and produced
under strict manufacturing controls.
Please carefully read all instructions before assembling and using your firepit table.
For additional tips & troubleshooting please visit:
www.bramblecrest.com/instructions

www.bramblecrest.com/instructions
1.Gas Cylinder & Regulator
Gas: I3P/P Propane

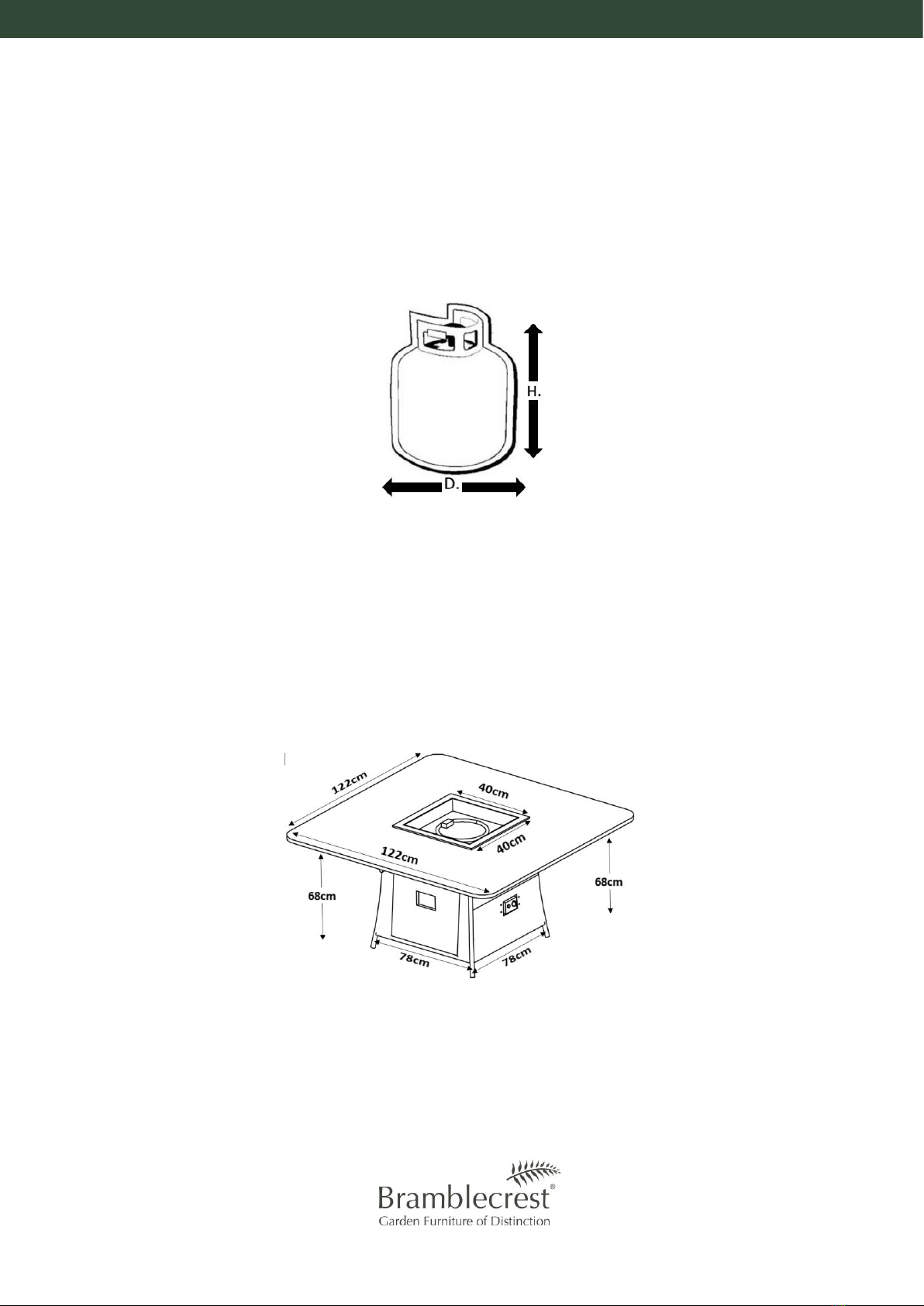

Gas Bottle: The maximum diameter (D.) for a Propane cylinder is 32cm.
The maximum height (H.) for a Propane cylinder is 39cm.
Weight: 5kg
Pressure: 37 mbar
Power: INPUT (Hs)=9.5Kw (678 gr/hr)
Injector 1.5mm
Ignition: Battery Power
Regulator: I3P/37mbar/CE0845

www.bramblecrest.com/instructions
2. Safety Instructions
To ensure your own safety when assembling the firepit table and the ongoing safety when it is in use or stored, the
following advice must be followed:
•Ensure that the unit has been assembled correctly according to the instructions (Section 3).
•Never loosen, or allow the gas connection to become loose. Should this happen, immediately ensure that
the gas is turned off, and then re-check the security of the connection.
•The appliance should be kept away from flammable materials.
•Read all instructions written on the firepits and refer to them whenever necessary.
•Never leave the firepit table unattended whilst in use.
•In the event of a gas leak, immediately turn off the gas supply at source.
•Keep children well clear while firepit is in use and after use until it has cooled.
•Keep all heated areas clear of combustible materials and/or liquids.
•Never obstruct free flow of air to the firepit table or alter/adapt the firepit table to suit any other situation.
•A hose conforming to the national standard must be connected at one end to the LPG regulator and at the
other to the firepit nipple using hose clips.
•Never change the air valve settings of the burner.
•Every time the gas connection is reconnected do a leak test.
•Those parts sealed by the manufacturer must not be altered by the user.
•Any modification of this gas firepit may be dangerous.
•Do not move firepit during use.
•Turn off the gas supply after use.
•Do not touch the lava rocks until they cool down.
•This appliance is intended for warming purposes.
•This appliance has a naked flame, a suitable guard should be used for the protection of young children, the
elderly and the infirm.
•When first used, turn the gas to the lowest setting and preheat the lava rocks for 15 minutes to burn out the
impurities and air in the natural lava rocks.
•If you use the Square Casual Dining Table with Ceramic Top & Firepit under a porch/veranda be sure that at
least 25% of the area is open in order to allow adequate ventilation.

www.bramblecrest.com/instructions
3. Assembly
Read these instructions through carefully before commencing assembly, and then follow them step-by-step.

www.bramblecrest.com/instructions
1.
Place the table top upside down on a soft level surface.
Attach the base with shelf onto the table top using the 4 screws and washers provided.
Tighten all screws then turn assembled table over.

www.bramblecrest.com/instructions
2.

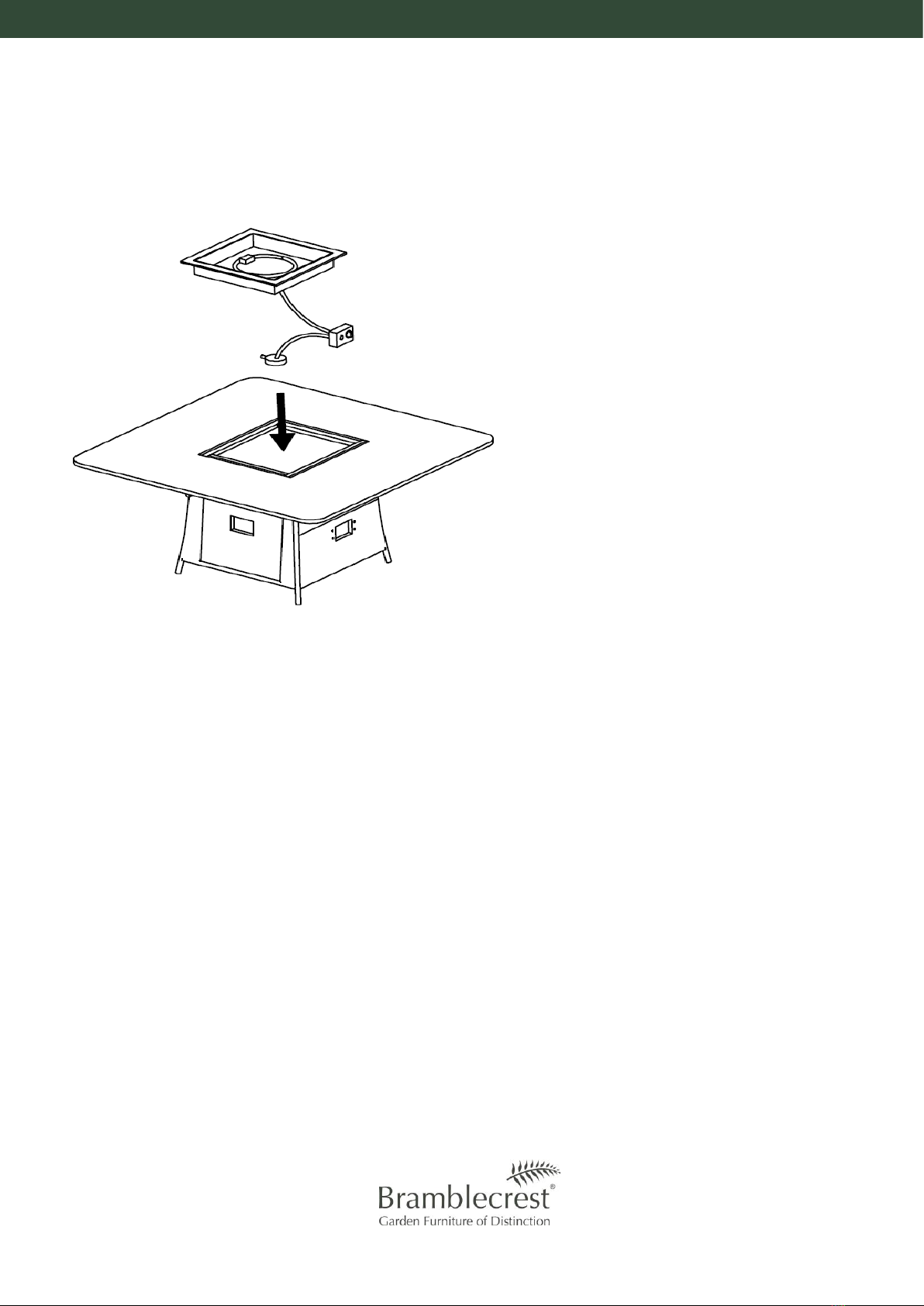

Align pre-assembled burner plate unit.
Feed connected pipes and wires through hole in the centre of the table.
Carefully place burner tray into the table top.
The burner plate and ignition unit comes as one
piece. Individual components should not be
replaced or tampered with.
Contact Bramblecrest for further details.

www.bramblecrest.com/instructions
3.
Remove drawer.
Gently manoeuvre switch plate into position (ensuring plate/external holes line up).
Push part ‘C’ through 4 x external holes.
Fasten part ‘D’ to the end of part ‘C’ from inside the table.
Tighten all screws.
4.
Gently place gas cylinder on shelf.
Attach the regulator to the gas cylinder ensuring tap is in the closed position.
When fitting the hose make sure that it is free from twists, kinks or sharp bends.
Do not allow the hose to touch any hot surface or sharp edges.

www.bramblecrest.com/instructions
5.
Once the firepit is in position, level and safely connected to the fuel supply, it is now time to install the lava rocks.

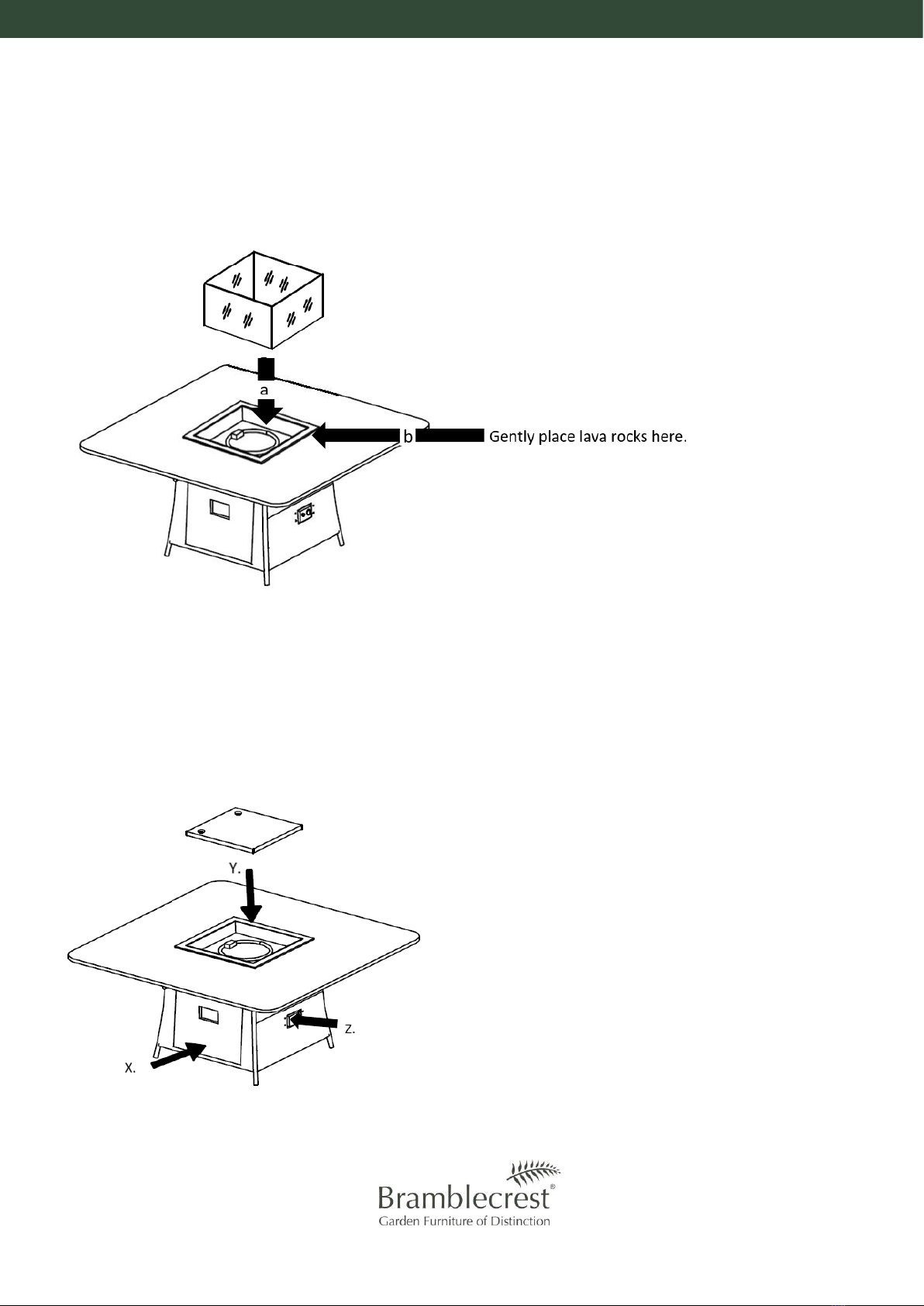

(Lava rocks (b) will be found inside a cardboard box marked ‘LAVA ROCKS’). This is also an essential part of the over-
all set-up as it will impact the way the unit burns if not properly installed.
Remove all packaging then layer all the lava rocks provided evenly across the burner plate to a level that is just over
the top of the ring but not obstructing the flame outlets.
Mandatory glass protective screen (a) can now be placed around burner tray.
6.
When not in use, ensure regulator tap is closed (X) and set control knob to ‘off’ (Z).
Be sure to allow ample time for the burner plate, burner element and lava rocks to cool before gently placing the
ceramic protective tile into place. Do not operate burner with protective tile in place (Y).

www.bramblecrest.com/instructions

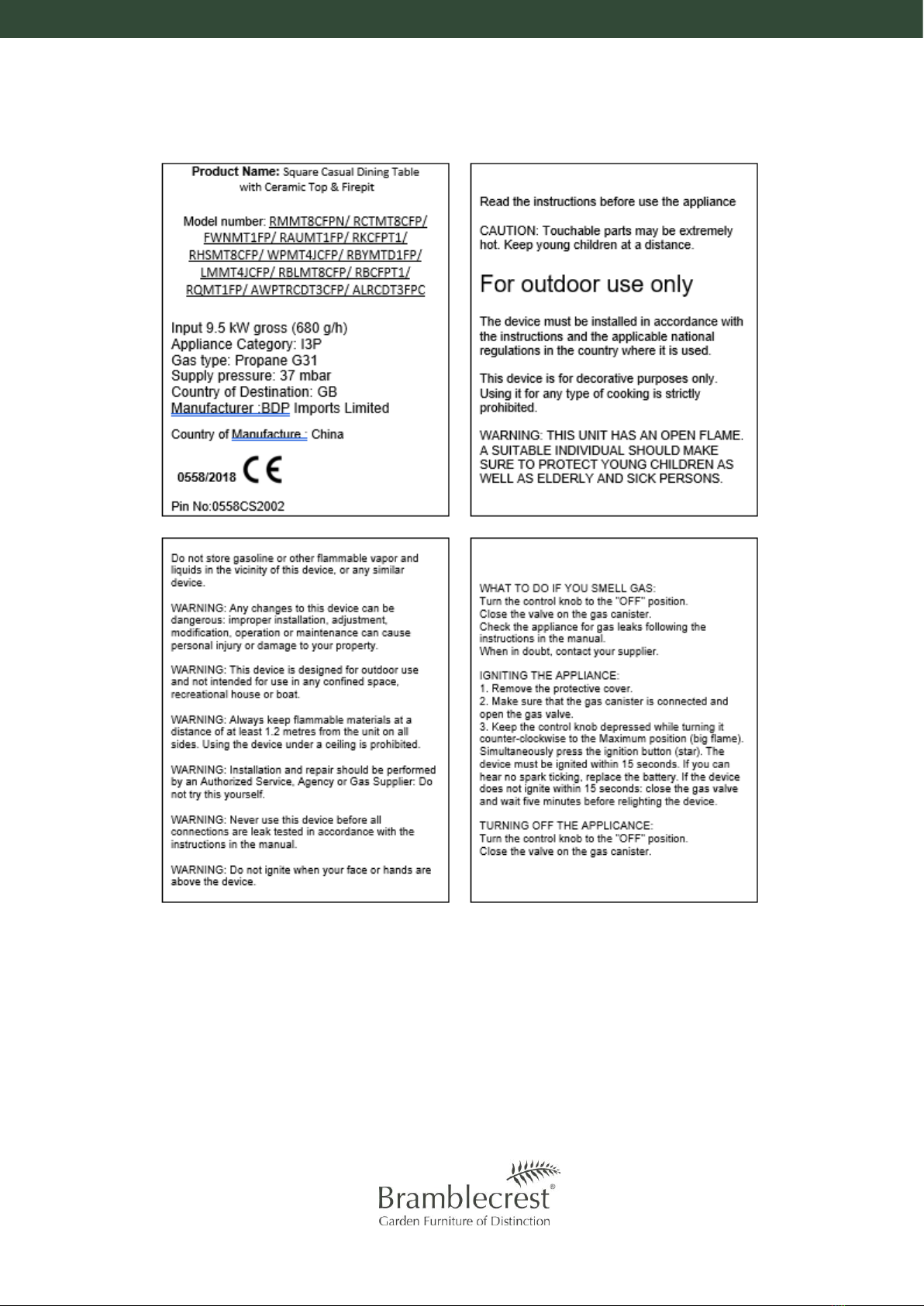

4. Technical Data

www.bramblecrest.com/instructions
5. Warnings
INSTALLATION AND OPERATION INSTRUCTIONS FOR OUTDOOR GAS FIREPITS WARNING:
If the information in these instructions is not followed exactly, a fire or explosion may result causing property dam-
age, personal injury or loss of life. Do not store or use gasoline or other flammable vapours and liquids in the vicinity
of this table.
WHAT TO DO IF YOU CAN SMELL GAS FUMES:
•Do not try to light any appliance.
•Do not touch any electrical switches.
•Close all valves.
•Seek advice from a registered gas appliance engineer.
WARNING:
•Ensure lava rocks are cold before approaching burner plate.
•Lava rocks must not be lit when wet.
•Always store lava rocks in a cool dry place when not in use for long periods of time.
•If used when wet, lava rocks may be subject to cracking or popping.
•After immediate use the burner plate (and its contents) will remain hot for a period of time.
•Always use fire resistant gloves when handling used lava rocks.
WARNING:
•For outdoor use only.
•Read the instructions before using the appliance.
•Accessible parts may be very hot. Keep young children away.
•Do not move the appliance during use.
WARNING:
•This unit is not for use with solid fuels.
WARNING:
•This appliance should be used ONLY outdoors in a well- ventilated space and should NOT be used inside a
building, garage, or any other enclosed area.
WARNING:
•This appliance is not approved as a cooking device (unless using the recommended Bramblecrest griddle)
and should not be used as such.
WARNING:
•Cylinders must be stored outdoors out of reach of children. Disconnected cylinders must not be stored in a
building, garage or any other enclosed area.
WARNING:
•Storage of this appliance indoors is permissible only if it has been disconnected from its fuel supply. Always
keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapours
and liquids.

www.bramblecrest.com/instructions
WARNING:
•Do not throw or discard rubbish into burner plate.
PLEASE NOTE:
•Minimum clearances: 1 metre to a combustible construction must be maintained.
•You must have clear and easy access to the on/off valve AFTER the appliance is installed and connected to
the gas supply in order to safely turn off the burner.
•The table must be placed on a firm surface.
PLEASE NOTE:
•If it is evident there is excessive abrasion or wear of any of the components, if the fuel supply hose is cut or
cracked, it must be replaced prior to the appliance being put into operation by a competent gas engineer.
•Children and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition.
•Young children should be carefully supervised when they are in the area of the appliance.
•Clothing or other flammable materials should not be hung from the appliance, or placed on or near the ap-
pliance.
•Any guard or other protective device removed for servicing the appliance must be replaced prior to operat-
ing the appliance.
•Inspect the fuel supply connection for signs of leakage before each use of the appliance.
TESTING FOR LEAKS:
•Ensure knob is OFF and open the regulator valve.
•Use a solution of half detergent and half water for leak testing. Brush solution on each connection and check
for bubbles.
•If a leak is present, turn off the gas supply and tighten the loose joint.
•If the leak persists, contact an authorized agent.

www.bramblecrest.com/instructions
6. Lighting Instructions
FOR YOUR SAFETY READ BEFORE LIGHTING:
•Before operating, smell all around the appliance area for gas odours and next to the floor because some
gases are heavier than air and will settle on the floor.
•Use only your hand to turn the manual gas control valve. Never use tools. If the valve will not turn by hand,
do not try to repair it. Call a qualified service technician. Force or attempted repair may result in a fire or ex-
plosion.
•Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect.
•Ensure all alien objects are not obstructing or near the Firepit Table when lighting.
LIGHTING YOUR FIREPIT TABLE:

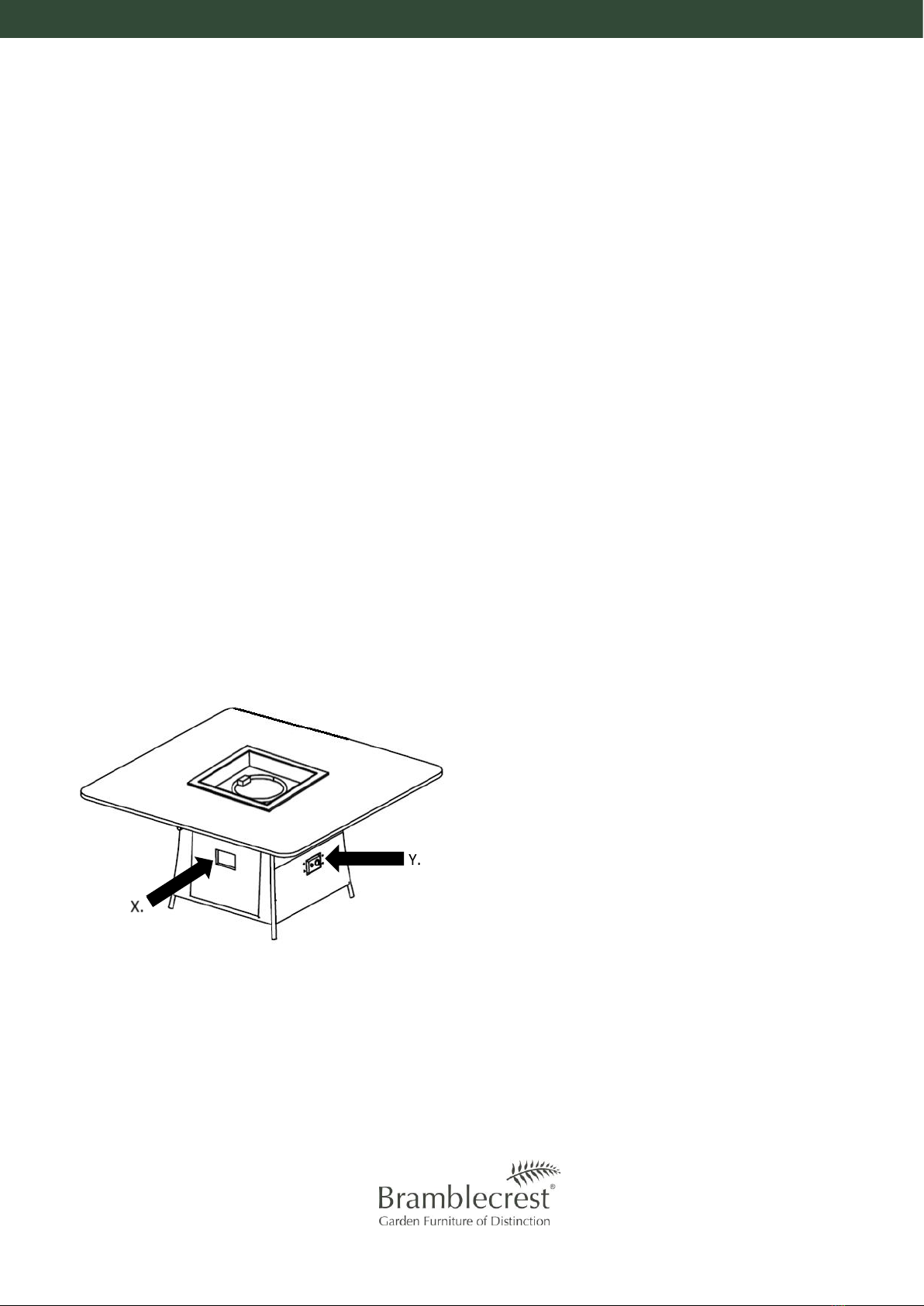

•Open drawer (X) then set gas regulator tap to Open.
•A small amount of air will be in the lines. When the first lighting the burner, it will take a few seconds for the
lines to purge themselves of this air.
•Lighting instructions (Y). Push and turn the knob to high.
•Hold ignitor to light the burner, release control knob after 45 seconds. If burner does not light, wait 5
minutes then repeat.
•Adjust control knob to achieve desired flame strength.

www.bramblecrest.com/instructions
7.Care and Maintenance
•The only replaceable part will be the assembled burner plate unit.
•Tampering is DANGEROUS and voids all warranties. If any component is found to be faulty, please return to
the retailer where you purchased the firepit.
•The appliance should be inspected and cleaned before use.
•Clean all loose debris from glass beads and burner.
•The recommended cleaning solution will be ¼ mild soap solution per litre.
•Periodically remove the lava rocks and examine the burner and its components for faults (Clean all port
holes in the burner, making sure there are no obstructions).
•Periodically check the hose connecting the cylinder to ensure it is not cracked or damaged in any way.
•To ensure you keep your hoses and tubing in tip-top condition, keep it away from bright sunlight, dampness,
abrasion and excessive loading. Supplies should be confirmed with a valid certification to BS3212 or
BSEB1763, and should also be manufactured under a quality system registered to BS EN ISO 9000. BS3212 or
BSEN1763. The hose should not exceed 150cm in length.
Propane has an odour like rotten eggs. This odour is added as a safety precaution, it makes it easy to detect in the
event of a leak. This odour also attracts insects. They will nest in and around the venturi tubes. They enter through
the air intake on the venturi tubes. Their nests or webs can cause a full or partial blockage of the venturi tube caus-

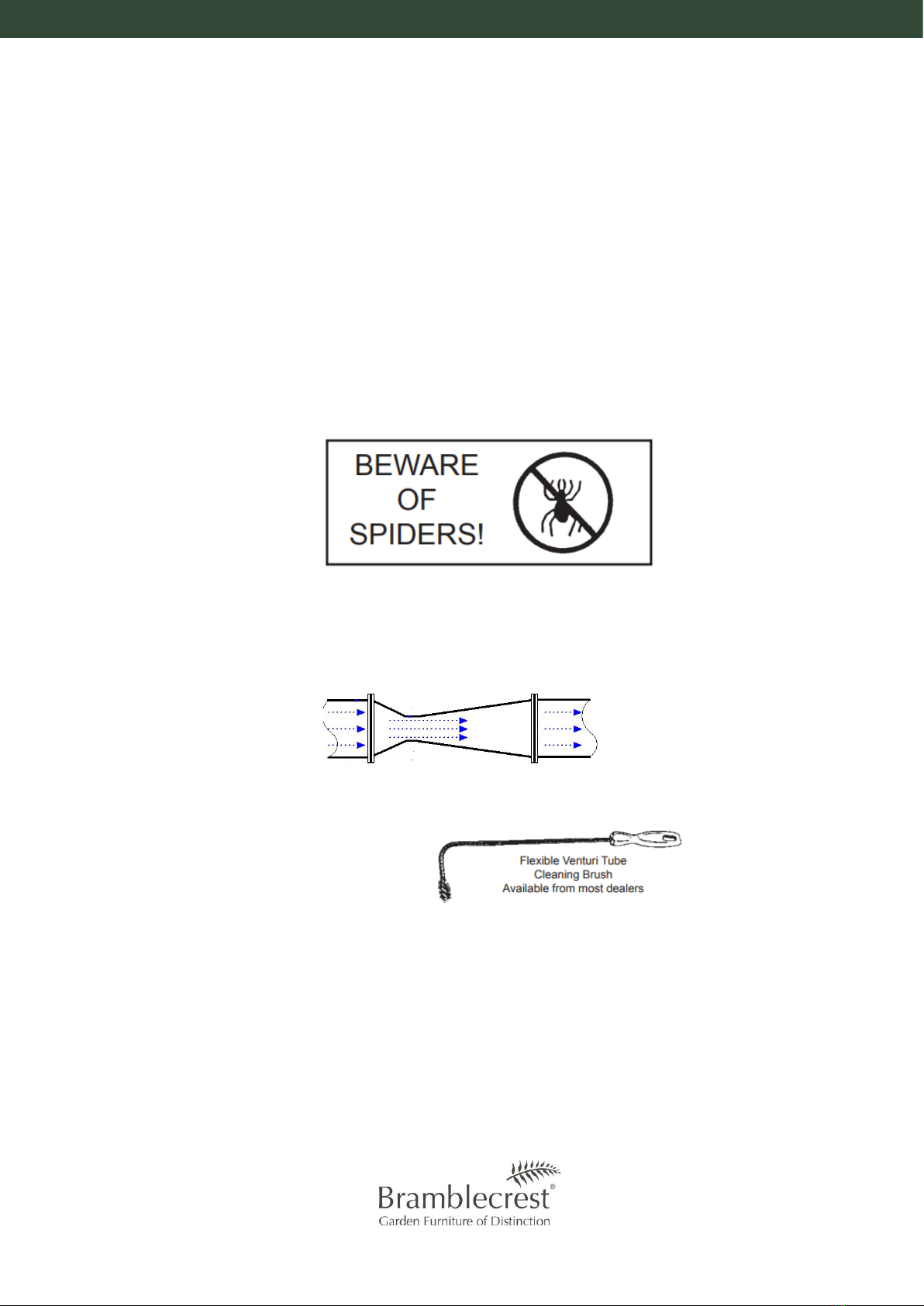

ing the gas to flow back out (see image below for a venturi tube).
CLEAN THE VENTURI TUBES OFTEN AND WHEN ANY OF THE FOLLOWING SYMPTOMS OCCUR:
•You smell gas.
•Your firepit does not reach temperature.
•Your firepit heats unevenly.
•Your burner makes popping noises.
Even a small blockage can cause a flashback or cause enough turbulence within the venturi tube to give an improper
air / gas mixture and therefore an improper flame. The webs or nests can be very small, but they are very strong!
IF IN DOUBT, CONTACT A QUALIFIED GAS TECHNICIAN

www.bramblecrest.com/instructions
8.Storage
•Regularly clean the firepit table between uses and especially after extended periods of storage.
•Ensure the firepit and its components are sufficiently cool before cleaning.
•Never douse the table with water when the surfaces are hot.
•Your gas bottle must be stored outdoors in a well ventilated area and must be disconnected from your Fire-
pit Table when not in use.
•Ensure that you are outdoors and away from any sources of ignition before attempting to disconnect your
gas bottle from your Firepit Table.
•During long periods of non-use, it is recommended that the firepit is covered to protect it against the ele-
ments. Before installing the cover make sure the unit is shut off, that the gas lines are disconnected and that
the unit has had sufficient time to cool.
