Dishwasher Features.................................... ...3
A Water Softener..................... ....................4、..
Attention before orafter loading the Dishwasher
Baskets..........................................................9
FilteringSystem.............................................15
Caring for the Dishwasher..................... .........16.

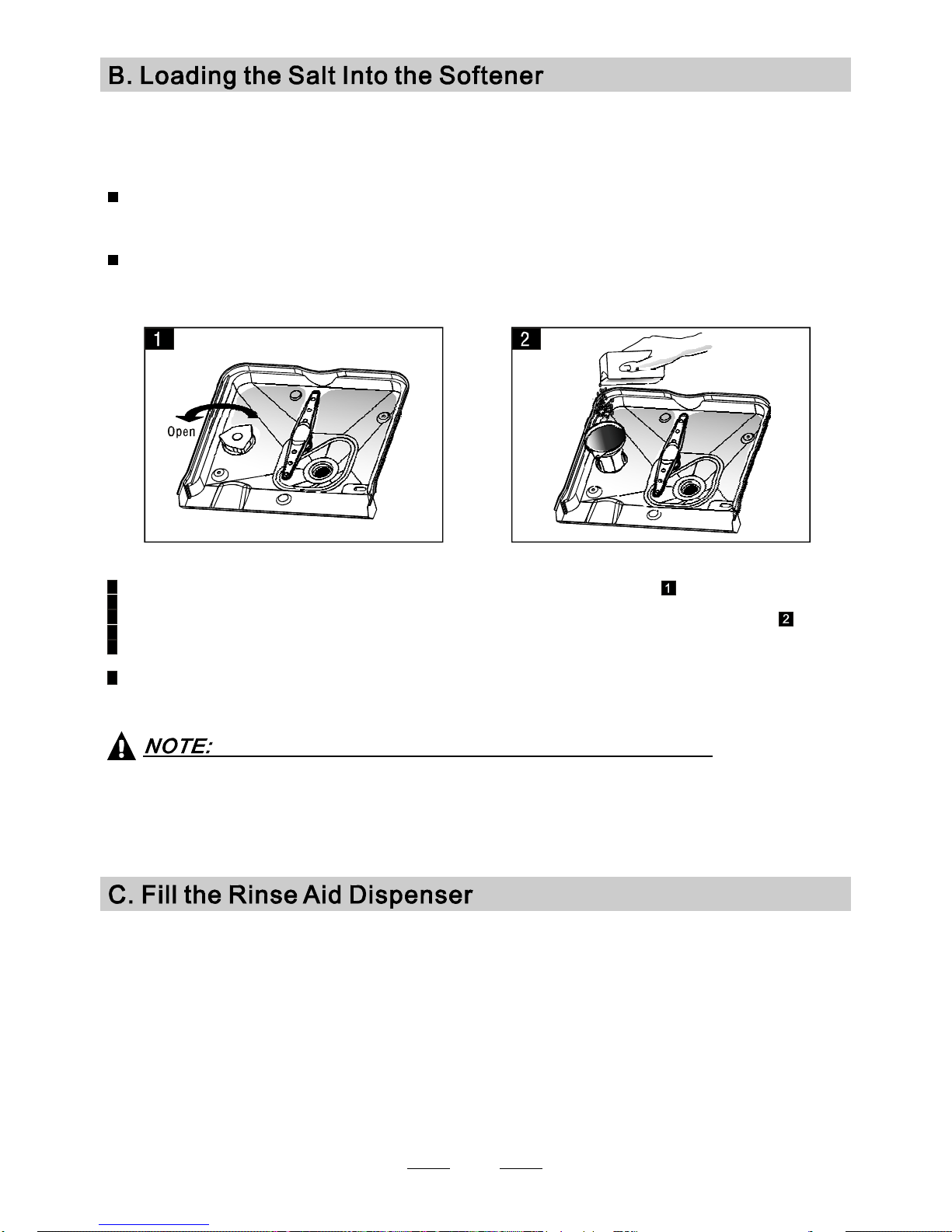

B Loading the Salt into the Softener.................5、
C Fill the RinseAid Dispenser.........................5、
Loadingthe upper ...............................10Basket
Loadingthe Lower ...............................10Basket
Cutlery Basket........................................... ...11
Therecommended method loading big
dishware.................................................... ...12
WashCycleTable...........................................13
Turning on theAppliance................................14
Change the Programme.............. ................14....
At the End of the Wash Cycle...........................14
ControlPanel...................................................3
................... ... .....17Installationpreparation .. .....
Water Connection.................................. .......23.
........... .......18
Aesthetic panel'sdimensions and
installation
................................. .
Start of dishwasher................................ .... .23.. ..
Before calling forservice........................... .....24.
Errorcodes.................................... ..............25.
Technical information.............................. .....26..
Tension adjustment of the door spring..............20
DrainhoseConnection...................................20
About Power Connection................................22
Dishwasherinstallationsteps.........................21
To review the section on troubleshooting Tips
will help youto solve some common problems
by yourself .
Dear Customer,
Please carefully read this manual before using the
dishwasher,it will help you to use and maintain the
dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions,
OperatingInstructions,InstallationInstructionsand
Troubleshooting Tips, etc.
The manufacturer, following apolicy ofconstant
developmentandupdatingof the product, may
make modifications without giving prior notice.
This usermanualshallalsobe got fromthe
manufactureror responsible vendor.
Keep it to refer to it at a later date.
If you can not solvethe problems by yourself ,
please ask for the help of professional technicians.

1-1
Thisapplianceis intended to beused in household
and similar applicationssuch as:
-staff kitchen areas in shops, offices andother
working environments;
-farm houses;
-by clients in hotels, motels and other residential type
environments;
-bedand breakfast type environments.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledgeif they have been given supervision
or instruction concerning use of the appliance ina
safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.(For EN60335-1 )
This appliance is not intended for use by persons
(including children )with reducedphysical, sensory
or mental capabilities, or lack of experience and
knowledge ,unless they have been givensupervision
or instruction concerning use of the appliance bya
personresponsible for their safety.(For IEC60335-1 )
This appliance is for indoor useonly, for household
useonly.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug inwater orotherliquid.
Pleaseunplug before cleaning and maintenancethe
appliance.
Use a soft clothmoistenwith mild soap, and then use
adryclothtowipeitagain.
When using your dishwasher,
follow the precautions listed below:

1-2
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the risk
of anelectric shock by providing a path of least
resistance of electric current. This appliance is equipped
with a cord having an equipment-earthing conductor
and a grounding plug.
The plug must be plugged into an appropriate outlet that
is installed and earthed in accordance with all local
codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the appliance
is properly grounded.
Do not modify the plug provided with the appliance;
If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
Do not abuse, sit on, or stand on the door or dish rack of
the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;

2) Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points down or
placed in a horizontal position.
Check that the detergent powder is empty after
completion of the wash cycle.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent.
For plastic items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed for
an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
Children should be supervised to ensure that they do not
play with the appliance.
The door should not be left open, since this could increase
the risk of tripping.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using
new hose sets and that old hose-sets should not be reused.
The maximum number of place settings to be washed
is 12.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.
1-3

Dispose of the dishwasher packaging material
correctly.
All packaging materialscan be recycled.
Plasticparts aremarkedwith thestandard
international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control
Panel .
Packaging material could be dangerous for children!
Fordisposing of packageand theappliance please
go to a recycling centre. Therefore cut off the power
supply cableand make the door closing device
unusable.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuringthis productis disposedof correctly, you
will help prevent potential negative consequences
for the environment andhuman health, which could
otherwise becaused by inappropriate waste handling
of this product.
For more detailed information aboutrecycling ofthis
product, please contact your local city office and your
household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately
for special treatment is necessary.
1-4

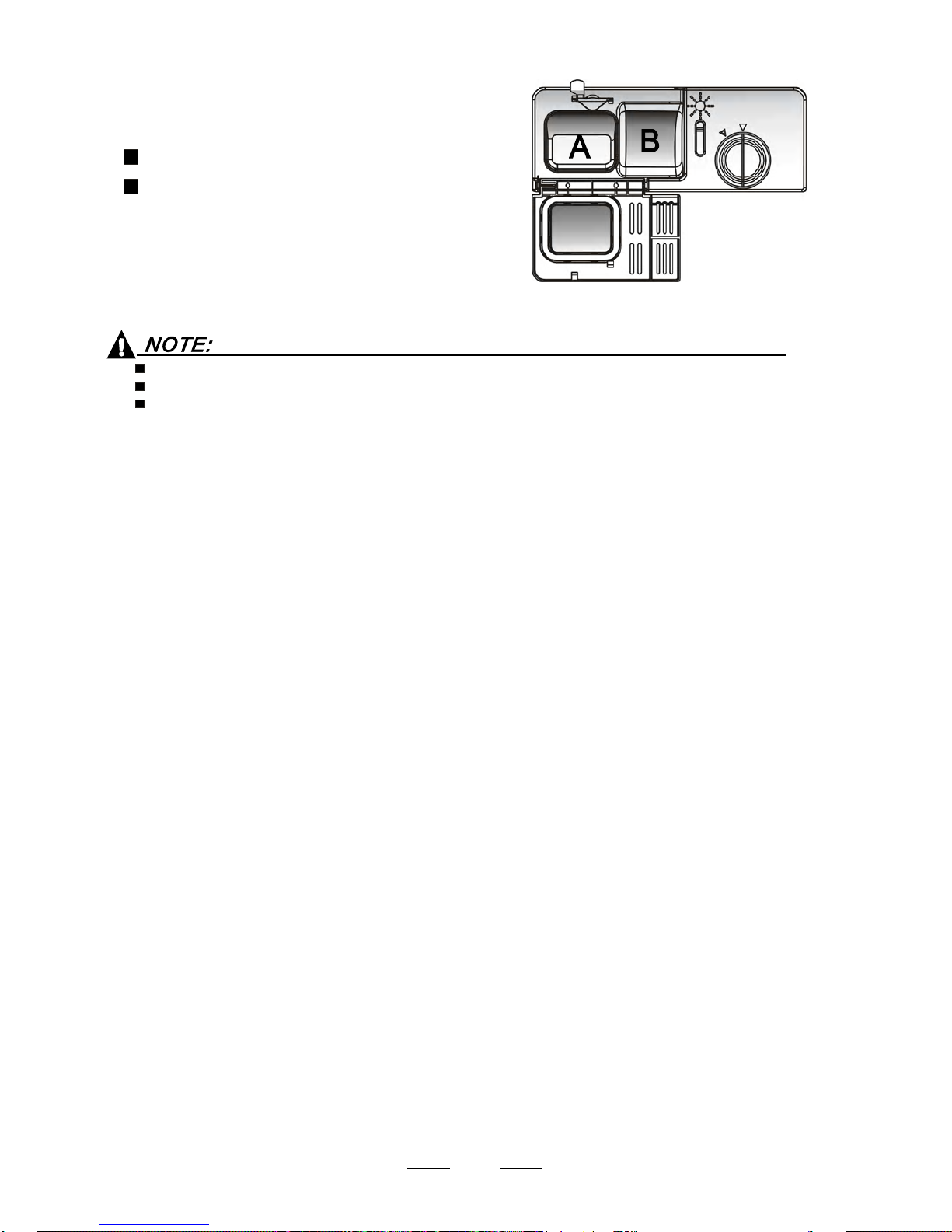

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a programme
turn on the water tap and press the Start/Pause button. The machine will start working
after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, startingfrom the lower basket.
Changing theprogramme
Add forgottendishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Close the door, Press the Programme button until the selected programme lights up.
( See the section entitled Operationg instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the ON/OFF button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteam may escape
when thedoorisopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Press the On/Off button to switch on the appliance, Open the door.
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
For detailed operating method read the corresponding content onthe instruction manual.
1. Arunning cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the Start/Pause button for more than 3 seconds to cancel the running programme.
3. Select a new programme.
4. Restart the dishwasher.
