Thank you for purchasing a Braun product.
We hope you are completely satisfied with
your new Braun shaver.
If you have any questions, please call:
US residents 1-800-BRAUN-11
1-800-272-8611
Canadian residents 1-800-387-6657
Merci d’avoir fait l’achat d’un produit Braun.
Nous espérons que vous serez pleinement
satisfait de votre nouveau rasoir Braun.
Si vous avez des questions, veuillez appeler
Braun Canada : 1-800-387-6657
Gracias por haber comprado un producto
Braun.
Esperamos que quede completamente
satisfecho con su nueva afeitadora Braun.
Si tiene alguna duda, por favor llame al:
En México 01(800) 508-5800
English 6
Français 16
Español 25
96233682/XI-12
USA/CDN/MEX
96233682_380_NA_S2.indd 196233682_380_NA_S2.indd 1 08.11.12 14:3708.11.12 14:37

4
+
–
+
–
380s-4
S
e
r
i
e
s
3
S
e
r
i
e
s
3
1
3
4
5
6
7
8
9
2
340380
11
12
10
+
–
380s-4
S
e
r
i
e
s
3
S
e
r
i
e
s
3
340
380
96233682_380_NA_S4.indd 196233682_380_NA_S4.indd 1 30.10.12 13:0330.10.12 13:03

5
click!
clic!
oil
huile
90°
lock
full
full
+
click!
clic!
96233682_380_NA_S5.indd 196233682_380_NA_S5.indd 1 30.10.12 13:0430.10.12 13:04

6
English
IMPORTANT SAFETY
INSTRUCTIONS
When using an electrical appliance, basic precautions should
always be followed, including the following:
Read all instructions before using this appliance.
When disconnected, the hand-held part of this shaving
appliance may be used in a bath or shower.
For safety reasons, it can only be operated cordlessly.
DANGER
To reduce the risk of electric shock:
1. The charger unit is not for immersion in water or for use in
shower.
2. Do not reach for a charger that has fallen into water. Unplug
immediately.
3. Do not place, store or charge the appliance where it can fall or
be pulled into a tub or sink. Do not place in or drop into water or
other liquid.
4. Except when charging, always unplug this appliance from the
electrical outlet immediately after using.
5. This appliance is provided with a special cord set with integrated
Safety Extra Low Voltage power supply. Do not exchange or
manipulate any part of it.
6. Do not use an extension cord with this appliance.
96233682_380_NA_S6-36.indd 696233682_380_NA_S6-36.indd 6 08.11.12 14:3508.11.12 14:35

7
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Close supervision is necessary when this appliance is used by,
on, or near children or persons with disabilities.
2. Use this appliance only for its intended use as described in this
manual. Do not use attachments not recommended by the
manufacturer.
3. Never operate this appliance if it has a damaged cord or plug,
if it is not working properly, if it has been dropped or damaged,
or if the power supply has been dropped into water. Return the
appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening of the appliance.
6. Do not use outdoors or operate where aerosol (spray) products
are being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken shaving
system, as serious skin injuries may occur.
8. Always attach plug to appliance first, then to outlet.
To disconnect turn all controls off, then remove plug from outlet.
9. When plugging to an electrical outlet outside North America, use
a plug adapter to match the outlet’s pin configuration.
10. The battery in this device may present a fire or chemical burn
hazard if mistreated. Do not disassemble, heat above 100 °C
(212 °F) or incinerate.
11. Only use the special electric cord set provided with the
appliance.
12. Oil bottle
Keep out of reach of children. Do not swallow. Do not apply to
eyes. Dispose of properly when empty.
SAVE THESE INSTRUCTIONS
96233682_380_NA_S6-36.indd 796233682_380_NA_S6-36.indd 7 08.11.12 14:3508.11.12 14:35

8
This appliance is designed for household use only.
Description
1 Foil & Cutter cassette
2 Long hair trimmer
3 Precision setting switch ( ) (380s only)
4 On/off switch
5 Charging lights (green)
6 Low-charge light (red)
7 Replacement light for shaving parts
8 Shaver power socket
9 Special cord set
10 Charging stand
11 Case (380s only)
12 Protective cap (340s only)
Charging
The best environmental temperature for charging is between 60 °F to 95 °F /
15 °C to 35 °C. Do not expose the shaver to temperatures higher than
122 °F / 50 °C for extended periods of time.
• Using the special cord set (9), connect the shaver or the charging stand (10)
to an electrical outlet with the motor switched off.
• When charging for the first time, leave the shaver to charge continuously
for 4 hours.
• Once the shaver is completely charged, discharge the shaver through
normal use. Then recharge to full capacity. Subsequent charges will take
about 1 hour.
• A full charge provides up to 45 minutes of cordless shaving time depend-
ing on your beard growth. However, the maximum battery capacity will
only be reached after several charging/discharging cycles.
• 5-minute quick charge is sufficient for a shave.
Charging lights
The green charging lights (5) show the charge status of the batteries
(340s: 1 charging light). The green charging light blinks when the shaver is
being charged or switched on. When the battery is fully charged, all green
charging lights (340s: 1 charging light) shine permanently, provided the
shaver is connected to an electrical outlet.
Low-charge light
The red low-charge light flashes when the battery is running low. You should
be able to finish your shave.
96233682_380_NA_S6-36.indd 896233682_380_NA_S6-36.indd 8 08.11.12 14:3508.11.12 14:35

9

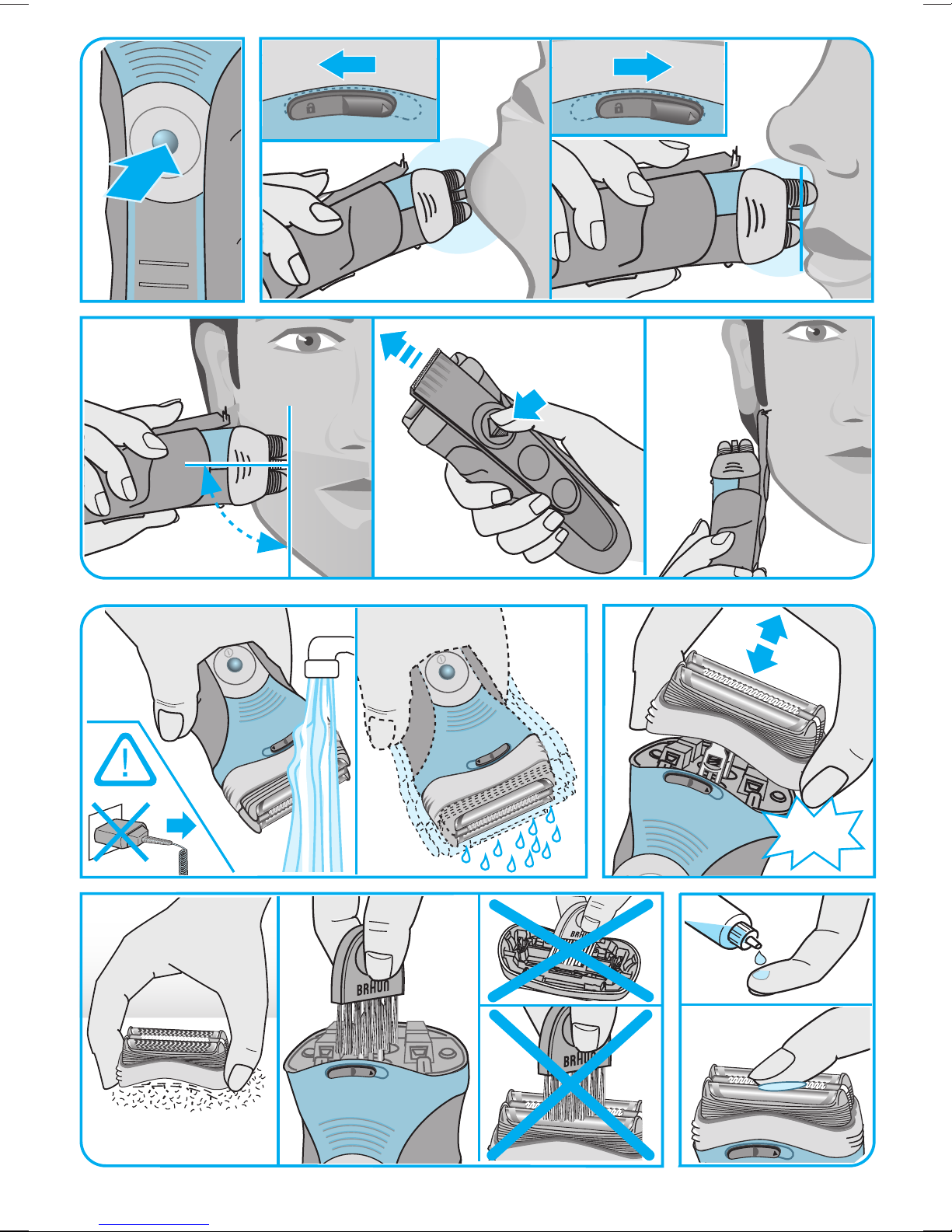

Shaving
Press the on/off switch (4) to operate the shaver (picture).
The flexible shaving foils automatically adjust to every contour of your face
(picture).
Long hair trimmer
To trim sideburns, moustache or beard, slide the long hair trimmer (2)
upwards.
Precision setting switch ( ) (380s only)
For precise handling in hard to shave areas (e.g. under the nose) slide the
switch (3) to the right to position . The centre trimmer and one foil will be
lowered.
Tips for the perfect dry shave
For best results, Braun recommends you follow 3 simple steps:
1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.
This appliance is suitable for use in a bath or shower. When using it in the
shower, we recommend applying shaving foam or gel.
Cleaning
Regular cleaning ensures better shaving performance. Rinsing the shaver
head under running water after each shave is an easy and fast way to keep
it clean:
• Switch the shaver on (cordless) and rinse the shaver head under hot
running water. You may use liquid soap without abrasive substances.
Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, remove the shaver Foil & Cutter cassette (1)
and let it dry.
• If you regularly clean the shaver under water, then once a week apply a
drop of light machine oil onto the long hair trimmer (2) and shaver
Foil & Cutter cassette (1) (picture).
Alternatively, you may clean the shaver using a brush:
• Switch off the shaver. Remove the shaver Foil & Cutter cassette and tap it
out on a flat surface (picture).
96233682_380_NA_S6-36.indd 996233682_380_NA_S6-36.indd 9 08.11.12 14:3508.11.12 14:35

10
• Using a brush, clean the inner area of the shaver head. However, do not
clean the shaver Foil & Cutter cassette with a brush as this may damage it
(picture).
Keeping your shaver in top shape
Replacement light for shaving parts / reset
To maintain the appliance performing like new, replace the shaver Foil &
Cutter cassette (1), when the replacement light for shaving parts (7) comes
on (after about 18 months) or when worn.
Foil & Cutter cassette: 32S/32B
The replacement light will remind you during the next 7 shaves to replace the
Foil & Cutter cassette. Then the shaver will automatically reset the display.
After you have replaced the Foil & Cutter cassette (1), press the on/off switch
(4) for at least 5 seconds to reset the counter.
While doing so, the replacement light blinks and goes off when the reset is
complete. The manual reset can be done at any time.
Preserving the batteries
In order to maintain the optimum capacity of the rechargeable batteries, the
shaver has to be fully discharged (by shaving) every 6 months approximately.
Then recharge the shaver to full capacity.
Environmental notice
This appliance contains rechargeable batteries. To protect the
environment, do not dispose of the appliance in the household waste
at the end of its useful life. Disposal can take place at a Braun Service
Center or appropriate collection sites.
Subject to change without notice.
For electric specifications, see printing on the special cord set.
96233682_380_NA_S6-36.indd 1096233682_380_NA_S6-36.indd 10 08.11.12 14:3508.11.12 14:35

11
How to obtain service in the USA
Should your Braun product require service, please call
1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun
Service Center closest to you.
To obtain service:
A. Carry the product in to the Authorized Braun Service Center
of your choice or,
B. Ship the product to the Authorized Braun Service Center
of your choice.
Pack the product well.
Ship the product prepaid and insured (recommended).
Include a copy of your proof of purchase to verify warranty
coverage, if applicable.
To obtain original Braun replacement parts and accessories:
Contact a Braun Authorized Service Center.
Please call 1-800-BRAUN 11 (272-8611) to be referred to the
Authorized Braun Service Center closest to you.
To speak to a Braun Consumer Service Representative:
Please call 1-800-BRAUN 11 (272-8611).
