Braun 5542 User manual

www.braun.com
Type 5542
Modèle 5542
Modelo 5542
91882792/V-18
91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 191882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 1 29.05.18 13:0829.05.18 13:08
Stapled booklet, 105 x 148 mm, 32 pages (incl. 4 pages cover), 1/1c = black
Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 1 of 32

2
Braun Infolines
Lignes d’assistance Braun
Líneas de información de Braun
Thank you for purchasing a Braun product.
We hope you are completely satisfied with
your new Braun product.
If you have any questions, please visit
www.service.braun.com or call:
US residents 1-800-BRAUN-11
1-800-272-8611
Canadian residents 1-800-387-6657
Merci d’avoir fait l’achat d’un produit Braun.
Nous espérons que vous serez entièrement
satisfait de votre nouveau produit Braun.
Si vous avez des questions, veuillez visiter le
www.service.braun.com ou appeler
Braun Canada : 1-800-387-6657
Gracias por haber comprado un producto
Braun.
Esperamos que quede completamente
satisfecho con su nuevo producto Braun.
English 5
Français 15
Español 23
USA/CDN/MEX
91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 291882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 2 29.05.18 13:0829.05.18 13:08
Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 2 of 32

3
1
9
10
2
8
3
7
4
5
6
11
20
2a
2b* 2c*
3
4
1
9
1
0
2
8
3
7
4
5
6
11
20
6
1b
7
8*
5
9
1
0
8
1
0
•
9
•
8
•
7
•
6
•
5
•
4
•
3
•
2
•
1
2
0
1
1
1a
1h
8*
91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 391882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 3 29.05.18 13:0829.05.18 13:08
Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 3 of 32

4
1
9
1
0
2
8
3
7
4
5
6
11
20
8
7
5
6
9
4
9
0
8
3
5
0
8
5
1
2
3
4
11
9
8
7
1
11
2
3
4
91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 491882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 4 29.05.18 13:0829.05.18 13:08
Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 4 of 32

5
English
IMPORTANT SAFETY
INSTRUCTIONS
When using an electrical appliance, basic precautions should
always be followed, including the following:
Read all instructions before using this appliance.
WARNING: When disconnected, the hand-held part of this
appliance may be cleaned under water.
DANGER
To reduce the risk of electric shock:
1. Use only in dry condition.
2. Do not submerge in water.
3. Do not reach for an appliance that has fallen into water.
Unplug immediately.
4. Do not use while bathing or in a shower.
5. Do not place, store or charge the appliance where it can fall or
be pulled into a tub or sink. Do not place in or drop into water or
other liquid.
6. Except when charging, always unplug this appliance from the
electrical outlet immediately after using.
7. Unplug this appliance before cleaning.
8. This appliance is provided with a special cord set with
integrated Safety Extra Low Voltage power supply. Do not
exchange or manipulate any part of it.
9. Do not use an extension cord with this appliance.
91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 591882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 5 29.05.18 13:0829.05.18 13:08
Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 5 of 32

6
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Close supervision is necessary when this appliance is used by,
on, or near children or persons with disabilities.
2. Use this appliance only for its intended use as described in this
manual. Do not use attachments not recommended by the
manufacturer.
3. Never operate this appliance if it has a damaged cord or plug, if
it is not working properly, if it has been dropped or damaged, or
if the power supply has been dropped into water. Return the
appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening of this
appliance.
6. Do not use outdoors or operate where aerosol (spray) products
are being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken cutter or
comb, as serious skin injuries may occur.
8. Always attach plug to appliance first, then to outlet. To
disconnect, turn all controls off, then remove plug from outlet.
9. When plugging to an electrical outlet outside North America,
use a plug adapter to match the outlet’s pin configuration.
10. Caution: The battery used in this device may present a fire or
chemical burn hazard if mistreated. Do not disassemble, heat
above 100 °C (212 °F) or incinerate.
11. To recharge the battery, only use the detachable power supply
provided with this appliance. If the appliance is marked
491 or 492, only use Braun power supplies coded
491-XXXX or 492-XXXX.
SAVE THESE INSTRUCTIONS
91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 691882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 6 29.05.18 13:0829.05.18 13:08
Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 6 of 32

7
Important
Do not open the appliance! Only at the end of the product’s useful life,
disassemble the rechargeable battery for disposal reasons as shown in the
battery removal section.
This appliance is designed for household use only.
Description
1a Sliding beard comb (3 – 11 mm in 2 mm steps)
1b Sliding hair comb (13 – 21 mm in 2 mm steps)
1c Release button sliding combs
1d Fix comb 1 (1 mm)
1e Fix comb 2 (2 mm)
2a Trimmer head
2b Detailed trimmer head*
2c Mini foil shaver head*
3 Length selector
4 On/off button
5 Charging indicator
6 Power socket
7 Special cord set (design can differ)
8 Charging stand*
* not with all models
For electric specifications, see printing on the special cord set.
Charging
Recommended ambient temperature for charging is 41 °F to 95 ° F / 5 °C to
35 °C. The battery may not charge properly or at all under extreme low or
high temperatures. Recommended ambient temperature for trimming is 60
°F to 95 °F / 15 °C to 35 °C. Do not expose the appliance to temperatures
higher than 122 °F / 50 °C for extended periods of time.
• Connect the appliance via the special cord set (7) or the charging stand
(8) to an electrical outlet.
• A full charge takes approx. 1 hour and provides up to 100 minutes of
cordless operation time.
• Once the appliance is completely charged, discharge it through normal
use. Then recharge again to full capacity.
91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 791882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 7 29.05.18 13:0829.05.18 13:08
Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 7 of 32

8
Charging indicator (5)
• The charging indicator blinks green when the appliance is being charged.
• It lights up permanently green for a few seconds when the battery is fully
charged. During usage it shines permanently green.
• The charging indicator shines permanently red when the battery is
running low. Once it flashes red, connect the appliance to the mains.
Usage
Exchange the attachments only when the appliance is switched off. To turn
the appliance on, push the on/off button.
Travel lock
Press the on/off button (4) for 3 seconds to lock the appliance. A beep
confirms that the travel lock is activated. To unlock, press the on/off button
3 seconds. 3 beeps will sound when your unlock attempt failed. Try again or
simply connect the appliance to the mains.

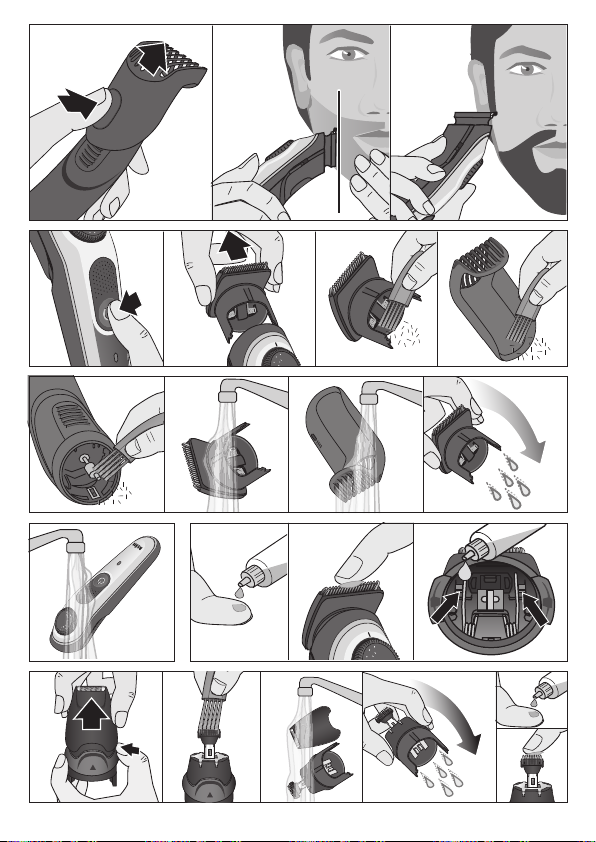

Beard Trimming / Hair Clipping
• Place one of the precision combs (1a, 1b) over the trimmer head (2).
• Turn the length selector (3) to your desired cutting length. The comb
slides automatically up or down.
• Length settings precision beard comb (1a): 1 to 10 mm in 0,5 mm steps
• Length settings precision hair comb (1b): 11 to 20 mm in 0,5 mm steps
• Push the on/off button (4) to turn the appliance on.
• Trim against hair growth by guiding the flat comb part over the skin.
• Avoid clogging the comb with hair. Remove and clean it from time to time.
Precision and Contour Trimming
Use the trimmer head (2a) without comb attachment, the detailed trimmer
head (2b) or the mini foil shaver head (2c) for shaping sideburns,
moustaches and partial short beards.
Cleaning and maintenance
• Switch off the appliance.
• Take off any head and attachment.
• Use the brush to clean the heads, combs and the appliance.
• The handle, the heads and combs can be cleaned under running water.
Rinse until all residues have been removed. Let all parts dry completely
before reassembling them.
91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 891882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 8 29.05.18 13:0829.05.18 13:08
Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 8 of 32

9
• To keep the trimmers working properly, oil them with light machine oil (not
included) regularly.

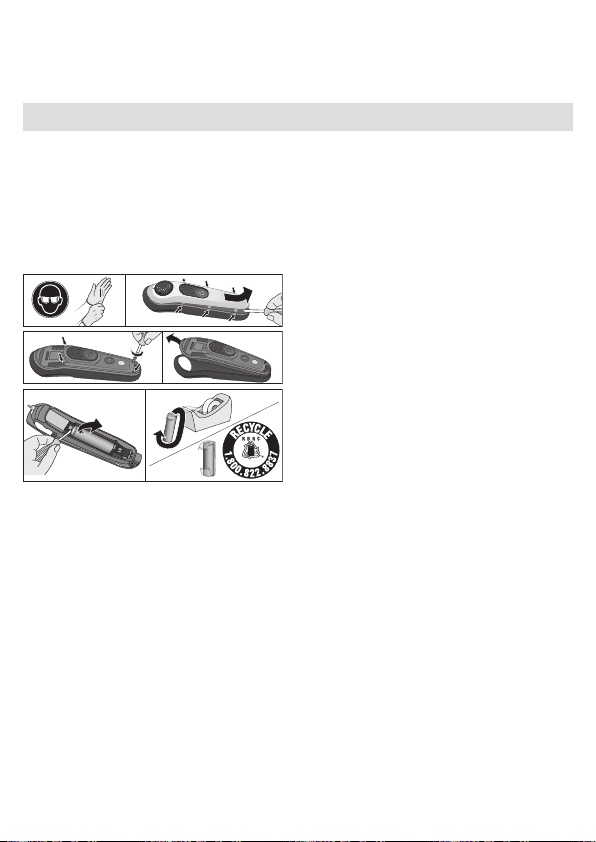

Battery removal
This appliance contains rechargeable batteries. Before disposing of the
appliance, disassemble the housing as shown, remove the rechargeable
batteries and recycle or dispose of properly, according to local guidelines.
Caution: Disassembling the appliance will destroy it and invalidate the
warranty.
Li-Ion
1
9
1
0
2
8
3
7
4
5
6
11
20
Subject to change without notice.
91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 991882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 9 29.05.18 13:0829.05.18 13:08
Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 9 of 32

11
How to obtain service in Canada
Should your Braun product require service, please call
1-800-387-6657 to be referred to the Authorized Braun Service
Center closest to you or visit www.service.braun.com.
To obtain service:
A. Carry the product in to the Authorized Braun Service Center of
your choice or,
B. Ship the product to the Authorized Braun Service Center of
your choice.
Pack the product well.
Ship the product prepaid and insured (recommended).
Include a copy of your proof of purchase to verify warranty
coverage, if applicable.
To obtain original Braun replacement parts & accessories:
Contact a Braun Authorized Service Center.
Please call 1-800-387-6657 to be referred to the Authorized Braun
Service Center closest to you or visit www.service.braun.com.
To speak to a Braun Service Representative:
Please call 1-800-387-6657.
91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 1191882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 11 29.05.18 13:0829.05.18 13:08
Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 11 of 32

12
60 day money back satisfaction guarantee
for men’s grooming products
Braun Shavers
Braun Trimmers
Once you have tried your new Braun product, we are confident you
will appreciate its performance. We suggest using the product
regularly for 2 to 3 weeks. If you are not satisfied with the product,
please call 1-800-211-6661 for instructions on how to return the
product. Return the unit and all parts within 60 days of purchase.
Retain original cash receipt, product and all product parts,
including the box. Do not return to the retailer for guarantee
fulfillment.
Please note: No refunds will be made for any product damaged by
accident, neglect or unreasonable use.
Your product must be shipped in its original packaging, with your
original sales slip indicating the date of purchase.
Please include the following information when you return your
product:
Name
Street
City
State / Zip code
Telephone number
Please allow 6-8 weeks for handling.
91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 1291882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 12 29.05.18 13:0829.05.18 13:08
Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 12 of 32

14
FOR CANADA ONLY
2 year limited warranty
In the event a Braun product fails to function within 2 years from
date of purchase, because of defects in material or workmanship,
and the consumer returns the unit to an authorized service center,
Braun Canada, will, at its option, either repair or replace the unit
without additional charge to the consumer.
This guarantee does not cover any product, which has been
damaged by dropping, tampering, wrong current, servicing
performed or attempted by unauthorized service agencies, misuse
or abuse, as well as the normal wear of the shearing parts.
Exclusion of Warranties: The foregoing warranty is the sole
warranty offered by Braun Canada. Braun Canada hereby disclaims
any implied warranty or merchantability or fitness for any particular
purpose. In no event will Braun Canada be responsible for
consequential damages resulting from the use of this product.
91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 1491882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 14 29.05.18 13:0829.05.18 13:08
Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 14 of 32
