Breeze33 BZ3350PED1 User manual

Dehumidifier
Instruction Manual
Thank you for purchasing our dehumidifier.
Before using your dehumidifier, please read this owner's manual carefully and keep it for future reference.
READ AND SAVE THESE INSTRUCTIONS
MODELS: BZ3350PED1 &
BZ3370PED1

breeze33.com
1
Contents
Preparation
Safety Precautions
Cautions
Operation
Maintenance
Troubleshooting
Warranty
2
4
6
8
12
13
14
------------------
-------------------
-----------------
---------------
-------------
--------------------
-------------------
breeze33.com

2
Preparation
rearfront
control panel
panel
handle
(both sides)
air intake grille
air filter (behind
the grille)
bucket
water level window
caster
power cord
power plug
air outlet grille
drain hose outlet
pump drain hose outlet
(on some models)
power cord buckle
(placed in bucket)

3
Preparation
-Fluorinated greenhouse gases are contained in
hermetically sealed equipment. For specific
information on the type, the amount and the CO2
equivalent in tonnes of the fluorinated greenhouse
gas(on some models), please refer to the relevant
label on the unit itself.
-Installation, service, maintenance and repair of this
unit must be performed by a certified technician.
-Product uninstallation and recycling must be
performed by a certified technician.
Note About Fluorinated Gasses
NOTE:
All the illustrations in the manual are for explanation
purpose only. Your machine may be slightly different.
The actual shape shall prevail. The design and
specifications are subject to change without prior
notice for product improvement. Consult with the
sales agency or manufacturer for details. Any updates
to the manual will be uploaded to the service website,
please check for the latest version.
NOTE: The unit you purchased may be look like
one of the followings:
Accessories:(placed in the bucket of the unit)
pump drain hose(1pc) (only for the unit with pump featrue)
power cord buckle(1pc)
female threaded end(1pc)(on some models)

4
-Do not exceed the rating of the power outlet or
connection device.
-Do not operate or stop the unit by switching on or off
the power supply.
-Do not damage or use an unspecified power cord.
-Do not modify power cord length or share the outlet
with other appliances.
-Do not insert or pull out plug with wet hands.
-Do not install the appliance in a location that may be
exposed to combustible gas.
-Do not place the unit near a heat source.
-Disconnect the power if strange sounds, smell, or
smoke comes from it.
-You should never try to take apart or repair the unit
by yourself.
-Before cleaning, turn off the power and unplug the
unit.
-Do not use the machine near flammable gas or
combustibles, such as gasoline, benzene,
thinner, etc.
-Do not drink or use the water drained from the unit.
-Do not take the water bucket out during operation.
WARNING: To prevent death or injury to the user or other people and property damage, the
following instructions must be followed. Incorrect operation due to ignoring of instructions may
cause death, harm or damage.
This symbol indicates that ignoring instructions may cause death or serious injury.
Safety Precautions
-Do not use the unit in small spaces.
-Do not put in places where water may splash onto
the unit.
-Place the unit on a level, sturdy section of the floor.
-Do not cover the intake or exhaust openings with
cloths or towels.
-Care should be taken when using the unit in a room
with the following persons: infants, children, elderly

WARNING: To prevent death or injury to the user or other people and property damage, the
following instructions must be followed. Incorrect operation due to ignoring of instructions may
cause death, harm or damage.
5
-The manufactures nameplate is located on the rear
panel of the unit and contains electrical and other
technical data specific to this unit.
-Be sure the unit is properly grounded. To minimize
shock and fire hazards, proper grounding is
important. The power cord is equipped with a
three-prong grounding plug for protection against
shock hazards.
-Your unit must be used in a properly grounded wall
receptacle. If the wall receptacle you intend to use is
not adequately grounded or protected by a time
delay fuse or circuit breaker(please refer to the
nameplate for the electrical data), have a qualified
electrician install the proper receptacle.
Electrical Information:

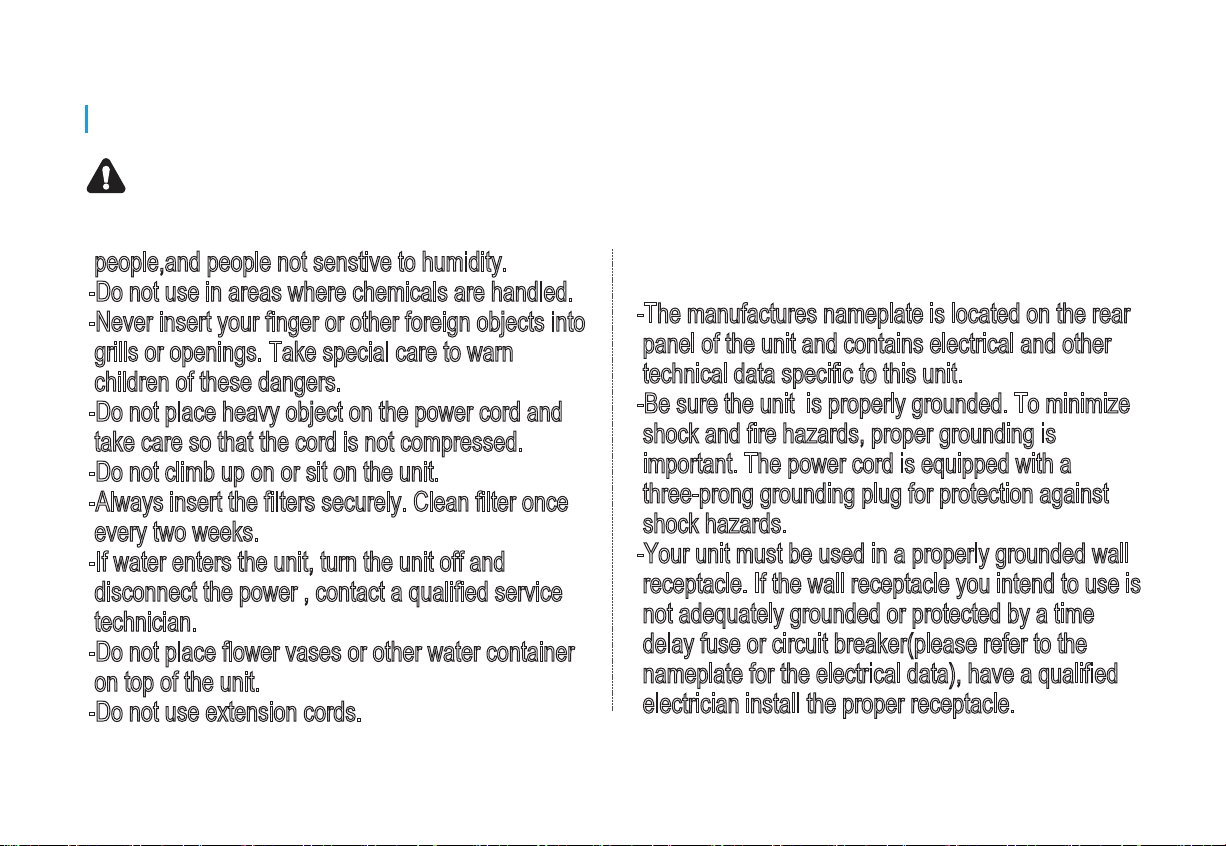

people,and people not senstive to humidity.
-Do not use in areas where chemicals are handled.
-Never insert your finger or other foreign objects into
grills or openings. Take special care to warn
children of these dangers.
-Do not place heavy object on the power cord and
take care so that the cord is not compressed.
-Do not climb up on or sit on the unit.
-Always insert the filters securely. Clean filter once
every two weeks.
-If water enters the unit, turn the unit off and
disconnect the power , contact a qualified service
technician.
-Do not place flower vases or other water container
on top of the unit.
-Do not use extension cords.
Safety Precautions

6
Cautions
Cautions
-This appliance can be used by children aged from 8 years and above and person with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision. (be applicable for the European Countries)
-This appliance is not intended for use by persons (including childern) with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.(be applicable for other countries except the European
Countries )
-If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or similarly qualified
persons in order to avoid a hazard.
-Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
-Do not install the appliance in a location that may be exposed to combustible gas. If combustible gas

7
accumulates around the unit, it may cause fire.
-If the appliance is knocked over during use, turn off the unit and unplug it from the main power supply
immediately. Visually inspect the unit to ensure there is no damage. If you suspect the unit has been damaged,
contact a technician or customer service for assistance.
-In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
-Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route
cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
-Do not operate unit with a damaged cord or plug. Discard unit or return to an authorized service facility for
examination and/or repair.
-To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
-The appliance shall be installed in accordance with national wiring regulations.
-Contact the authorised service technician for repair or maintenance of this unit.
-Turn off the product when not in use.
Cautions
Cautions

8
Operation
Place correctly
-This unit is designed to operate with a working
environment between 5°C(41°F) and 35°C(95°F).
more than 15.5"
more than 8"
more than 8"
more than 8"
Casters(Installed at four points on the bottom of unit)
-Do not force casters to move over carpet, nor
move the unit with water in the bucket.
(The unit may tip over and spill water.)
NOTE: Casters is optional, some models without.
Smart functions:
-Auto Shut Off
When the bucket full indicator light illiminates and the
setting humidity is reached, the unit will be shut off
automatically.
-Wait 3 minutes before resuming operation
After the unit has stopped, it can not be restart
opertation in the first 3 minutes. This is to protect the
unit. Operation will automatically start after 3 minutes.
-Auto Defrost
When frost builds up on the evaporator coils, the
compressor will cycle off and the fan will continue to
run until the frost disappears.
-Auto-Restart
If the unit breaks off unexpectedly due to the power
cut, it will restart with the previous function setting
automatically when the power resumes.

Operation
9
PUMP button(optional)
Press to activate the pump operation.
NOTE: Make sure the pump drain hose is
installed into the unit and the continuous drain
hose is removed from the unit before the pump
operation is activated. When the bucket is full,
the pump starts to work. Refer to the next pages
for removing the collected water. Do not use this
operation when the outdoor temperature is equel
to or less than 0ºC (32ºF).
COMFORT button
Press to activate the comfort dehumidifying operation.
NOTE: On this operation,the unit can not be set
humidity level.
FILTER button
The check filter feature is a reminder to clean the
Air Filter for more efficient operation. The Filter
light(Clean filter light) will illuminate after 250 hours
NOTE: The control panel of the unit you purchased may look like one of the followings:
On
Off
Full
Auto defrost On
Off
Full Defrost
of operation. To reset after cleaning the filter, press
the Filter button and the light will go off.
CONTINUE button
Press to activate the continuous dehumidifying operation.
TURBO button
Control the fan speed. Press to select either High or
Normal fan speed. Set the fan control to High for
maximum moisture removal. When the humidity has
been reduced and quiet operation is preferred, set
the fan control to Normal.
Timer button
Press to initiate the Auto start and Auto stop feature,
in conjuction with the and buttons.
When the unit is on, first press the Timer button,
the Timer Off indicator light illuminates. It indicates
the Auto Stop program is initiated. Press it again the
Time On indicator light illuminates.It indicates

Operation
10
Power button
Press to turn the dehumidifier on and off.
Timer Set Control Buttons
(Relative Humidity) in 5% increments.
For drier air, press the button and set to a lower
percent value(%).
For damper air, press the button and set a higher
percent value(%).
Press to initiate the Auto start and Auto stop
feature, in conjuction with the and buttons.
Down/Up buttons
Humidity Set Control Buttons
The humidity level can be set within a range
of 35%RH(Relative Humidity) to 85%RH
the Auto Start is initiated.
When the unit is off, first press the Timer button,
the TIMER ON indicator light illuminates. It indicates
the Auto Start program is initiated. Press it again the
Time Off indicator light illuminates. It indicates the
Auto Stop is initiated.
Press or hold the UP or DOWN button to change the
Auto time by 0.5 hour increments, up to 10 hours,
then at 1 hour increments up to 24 hours. The control
will count down the time remaining until start.
The selected time will register in 5 seconds and the
system will automatically revert back to display the
previous humidity setting.
When the Auto start & Auto stop times are set, within
the same program sequence, TIMER ON OFF
indicator lights illuminate identifying both ON and OFF
times are now programmed.
Turning the unit ON or OFF at any time or adjusting
the timer setting to 0.0 will cancel the Auto Start/Stop
function.
When LED display window displays the code of P2,
the Auto Start/Stop function will also be cancelled.
LED display
Shows the set % humidity level from 35% to 85%
or auto start/stop time (0~24) while setting, then
shows the actual (±5% accuracy) room % humidity
level in a range of 30% RH(Relative Humidity) to
90%RH(Relative Humidity).
Error Codes: AS- Humidity sensor error;
ES- Temperature sensor error; E3- Unit malfunction;
Eb- Bucket is removed or not in right position--
Replace the bucket in the right position.
(only available for the unit with pump feature).
Protection Codes:
P2- Bucket is full or bucket is not in right position--
Empty the bucket and replace it in the right position.
(only available for the unit with no pump feature.)
P2- Bucket is full -- Empty the bucket.(only available

Operation
11
NOTE:The indicator light illuminates when the function
is selected.
for the unit with pump feature.)
Note: When one of the above malfunctions occurs, turn
off the unit, and check for any obstructions. Restart the
unit, if the malfunction is still present, turn off the unit and
unplug the power cord. Contact the manufacturer or its
service agents or a similar qualified person for service.
Removing the collected water
There are three ways to remove collected water:
1.Use the bucket
When the bucket is full, remover the bucket and empty it.
water outlet
NOTE: If the pump hose drops when you remove the
bucket , you must reinstall the pump hose properly to the
unit before replace the bucket into the unit.
2.Continuous draining
Water can be automatically emptied into a floor drain by
attaching the unit with a water hose (Id≥Φ 5/16",not
included) with a female threaded end (ID:M=1" , not
included). (NOTE: On some models, the female threaded
end is included)
Pump hose
drops
Reinstall pump
hose properly
Water hose
Female
threaded
end
Remove the
plastic cover
by couter-clockwise
rotation.
-Remove the bucket from the unit, take down the pump
and clean the filter of the pump.
-Check that the pump drain hose is not plugged or
kinked.
-Empty the water tank.
-Reinstall the pump hose and reinstall the bucket
properly. Turn on the unit. If the error repeats, call for
service.
Remove the water hose and
reinstall the Plastic cover
3.Pump draining (on some models)
Water can be automatically emptied into a floor drain or a
suitable drainage facility by attaching the pump drain out
with a pump drain hose (od=Φ1/4" , supplied).
Insert pump
drain hose to
the drain hose
outlet
Pump drain
hose outlet
Pump drain hose
NOTE: The pump may cause big noise when it starts to
work for 3~5 minutes. It is a normal phenomenon.
NOTE: The pump operation on light blinks at 1Hz when
the pump is operational failure. Please turn off the unit
and plug the power cord out. Check the following things:

12
NOTE:
-Make sure the connection is tight and there is no leak.
-Lead the water hose to the floor drain or a suitable
drainage facility, the drainage facility and the water
hose should be lower than the drain outlet of the unit.
-Be sure to run the water hose sloping downward to let
the water flow out smoothly.
-When the continuous drain feature is not being used,
remove the drain hose from the outlet.
Maintenance
Filter of the pump 2,Take the pump
drain hose out
1,Press the pump drain
hose outlet in
Press the power cord
buckle into the rear
cover.
Clean the bucket with water every few weeks.
Clean the filter with water at least every 30 days or
more often if necessary.
Care and cleaning of the dehumidifier
WARNING: Turn the dehumidifier off and remove the
plug from the wall outlet before cleaning.
1.Clean the bucket
2.Clean the air filter
3.Store the unit
When not using the unit for long time periods
-After turning off the unit, wait one day before emptying
the bucket.
-Clean the main unit, bucket and air filter.
-Wrap the cord and bundle it with the band.
-Cover the unit with a plastic bag.
-Store the unit upright in a dry, well-ventilated place.
CAUTION: DO NOT
operate the dehumidifier without
a filter because dirt and lint will
clog it and reduce performance.
Operation
NOTE: Do not use this operation when the outdoor
temperature is equal to or less than 32°F(0°C), otherwise
water turns into ice that will cause the water hose to be
blocked up and the unit will fail. Make sure to empty the
bucket once a week when using the pump draining feature.
When the pump draining feature is not being used, remove
the pump drain hose from the outlet. Press the pump drain
hose outlet in and take the pump drain hose out from it .
Make sure to not let the water in the pump hose drip on to
the floor.

13
Troubleshooting
Unit does not start
Water on floor
Frost appears on the coils
The unit makes a loud
noise when operating
Dehumidifier does not
dry the air as it should
-Make sure the dehumidifier's plug is pushed completely into the outlet.
-Check the house fuse/circuit breaker box.
-Dehumidifier has reached its preset level or bucket is full.
-Bucket is not in the proper position.
-The air filter is clogged.
-The unit is tilted instead of upright as it should be.
-The floor surface is not level.
-Hose to connector or hose connection may be loose.
-Intend to use the bucket to collect water, but the back drain plug is
removed.
-This is normal. The unit has Auto defrost feature.
-Did not allow enough time to remove the moisture.
-Make sure there are no curtains, blinds or furniture blocking the front or
back of the dehumidifier.
-The humidity selector may not be set low enough.
-Check that all doors, windows and other openings are securely closed.
-Room temperature is too low, below 5°C(41°F).
-There is a kerosene heater or something giving off water vapor in the room.
Please check the machine according to the following form before asking for maintenance:
Faults Diagnosis What to check
Please request for repair if the issue persists or does not apply to the above scenarios.
