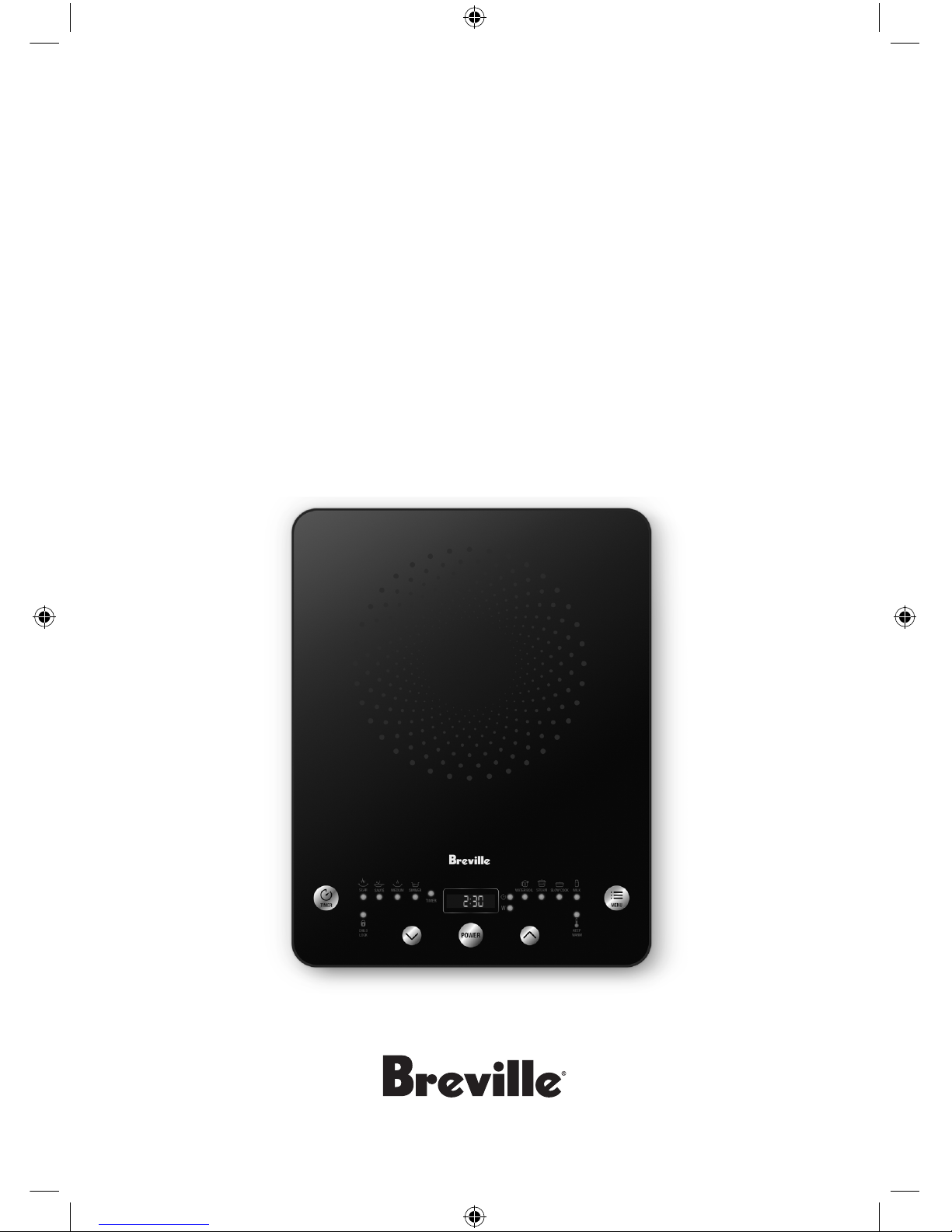

Breville Quick Cook LIC400 User manual

the Quick Cook™
Instruction Book - LIC400
LIC400_ANZ_IB_B17.indd 1 16/6/17 1:43 pm

2
BREVILLE
RECOMMENDS
SAFETY FIRST
At Breville we are very safety
conscious. We design and
manufacture consumer products
with the safety of you, our valued
customer, foremost in mind.
In addition we ask that you
exercise a degree of care when
using any electrical appliance
and adhere to the following
precautions.
IMPORTANT
SAFEGUARDS
READ ALL INSTRUCTIONS
BEFORE USE AND SAVE FOR
FUTURE REFERENCE
•Carefully read all
instructions before
operating the induction
cooker for the first time and
save for future reference.
•Remove and safely
discard any packaging
material and promotional
labels before using the
induction cooker for the
first time.
•To eliminate a choking
hazard for young children,
remove and safely discard
the protective cover fitted
to the power plug of this
appliance.
•Do not place the
induction cooker near
the edge of a bench top,
counter or table during
operation.
•Ensure that the surface
is level, clean and free
of water and other
substances.
•Do not place the
induction cooker on any
metal surface, a hot gas or
electric burner,
or where it could touch a
heated oven.
•Always operate the
induction cooker on a dry,
stable and heat resistant
surface. Do not use on
2Breville Recommends Safety First
8Components
9Operation
14 Care & Cleaning & Storage
15 Troubleshooting
Contents
LIC400_ANZ_IB_B17.indd 2 16/6/17 1:43 pm

3
a cloth-covered surface,
near curtains or other
flammable materials.
•Position the induction
cooker with at least
10cm free space around
the induction cooker to
prevent overheating.
•Position the induction
cooker at a minimum
distance of 20cm away
from curtains, cloths
and other heat sensitive
materials when in use. This
will allow for adequate air
circulation and also help
prevent the possibility
of curtains and cloths
discoloration due to
radiated heat.
•Do not use the induction
cooker on a sink drain
board.
•Do not leave the induction
cooker unattended when
in use.
•If the induction cooker is
not in use for an extended
period, disconnect from the
power outlet.
•Use only induction
compatible cooking
saucepans and pots
suitable for use with the
induction cooker.
•Extreme caution must be
used when the induction
cooker is in use with an
induction compatible
saucepans and pots. Do
not move the induction
cooker during cooking or
while the saucepan or pot
remains on the induction
cooker.
•Do not operate the
induction cooker in the
vicinity of magnetically
sensitive objects
(e.g. magnetic cards).
•The induction cooker
is not intended to be
operated by means of an
external timer or separate
remote-control system.
•The temperature of
accessible surfaces will be
high when the induction
cooker is operating and
for some time after use.
LIC400_ANZ_IB_B17.indd 3 16/6/17 1:43 pm

4
•Do not place anything on
top of the induction cooker
surface (except induction
cooker pot or saucepan)
when in use.
•Do not place metallic
utensils, non-compatible
induction cookware, lids,
knives, forks, spoons or
other metallic objects on
the induction cooker glass
ceramic plate, as these may
be heated and become hot
when the induction cooker
is switched on.
•Do not insert sharp objects
into the ventilation system.
•To avoid overheating, do
not place any aluminium
foil or metal plates on the
induction cooker.
•Do not touch the hot
surface of the glass
ceramic plate. The
induction cooker
does not heat up itself
during cooking, but
the temperature of the
cookware heats up the
glass ceramic plate.
•Do not heat any opened
or unopened cans on the
induction cooker.
•Always switch off the
induction cooker at the
power outlet, then unplug
the power cord and cool
completely, if the induction
cooker is not in use, before
cleaning, before attempting
to move the induction
cooker, and when storing
the appliance.
•Do not place anything
between the cookware
and the induction cooker
cooking plate.
•Do not put heavy objects
on the induction cooker.
Maximum weight of
cookware and content
should not exceed 6kg.
•Beware of hot steam that
comes out of the cookware
during cooking or when
you remove the lid.
•Do not lift and move the
induction cooker while it is
operating.
LIC400_ANZ_IB_B17.indd 4 16/6/17 1:43 pm

5
•Never put empty
cookware on the switched-
on induction cooker,
as this could cause the
cookware to become
distorted or the heating
coil to become damaged.
•Do not store flammable
materials and liquids
near or on the induction
cooker.
•Avoid hard contact
between the cookware
or other objects and the
ceramic glass cooking
plate.
•Always place the
cookware on the cooking
zone during cooking.
•Only use flat bottom
cookware to provide full
contact with the cooking
zone glass surface during
cooking to avoid the
heating coil becoming
damaged.
•Always use cookware with
a bottom diameter from
12cm to 23cm during
cooking.
•Keep the appliance
clean. Follow cleaning
instructions provided in
this book.
WARNING
•Fully unwind the power cord
from the storage facility
before use.
•Before use, people with
electronic implants such
as pacemakers, etc., and or
other health issues should
consult their doctor, as the
induction cooker generates
a magnetic field.
•If the glass ceramic plate
surface is cracked, switch off
the appliance to avoid the
possibility of electric shock.
Return the appliance to the
nearest authorised Breville
Service Centre for repair.
•Always keep in mind that
the induction cooker, after
being switched off, will
continue to radiate residual
heat on the glass ceramic
plate heating surface.
•Do not use this induction
cooker within reach of
young children.
LIC400_ANZ_IB_B17.indd 5 16/6/17 1:43 pm

6
IMPORTANT
SAFEGUARDS
FOR ALL
ELECTRICAL
APPLIANCES
•Fully unwind the power
cord before use.
•Connect only to 230V or
240V power outlet.
•Do not let the power cord
hang over the edge of a
table or counter, or touch
hot surfaces, or become
knotted.
•To protect against electric
shock do not immerse the
induction cooker, power
cord or power plug in
water or any other liquid,
unless it is recommended
in the cleaning
instructions.
•This appliance is not
intended for use by
persons (including
children) with reduced
physical, sensory or
mental capabilities, or lack
of experience and
knowledge, unless they
have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
•Children should be
supervised to ensure that
they do not play with the
appliance.
•This appliance is
recommended for
household use only.
•Do not use this appliance
for other than its
intended use. Do not use
in moving vehicles
or boats. Do not use
outdoors. Misuse may
cause injury.
•It is recommended to
regularly inspect the
appliance. Do not use the
appliance if power cord,
power plug or appliance
becomes damaged in any
way. Return the entire
appliance to the nearest
authorised Breville service
centre for examination
and/or repair.
LIC400_ANZ_IB_B17.indd 6 16/6/17 1:43 pm

7
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
•Any maintenance, other
than cleaning, should be
performed at an
authorised Breville Service
Centre.
•The installation of a
residual current device
(safety switch) is
recommended to provide
additional safety
protection when using
electrical appliances.
It is advisable that a safety
switch with a rated
residual operating current
not exceeding 30mA be
installed in the electrical
circuit supplying the
appliance.
See your electrician for
professional advice.
•Always turn the appliance
to the OFF position,
switch off at the power
outlet and unplug at
the power outlet when the
appliance is not
in use.
•Before cleaning, always
turn the appliance
to the OFF position,
switch off at the power
outlet, unplug at the power
outlet and remove
the power cord, if
detachable, from the
appliance and allow all
parts to cool.
•Do not place this
appliance on or near a
heat source, such as hot
plate, oven or heaters.
•Position the appliance at a
minimum distance
of 20cm away from walls,
curtains and other
heat or steam sensitive
materials and provide
adequate space above and
on all sides for air
circulation.
LIC400_ANZ_IB_B17.indd 7 16/6/17 1:43 pm

8
Components
C
J
D
E
B
A
FK
G
L
H
I
A. Ceramic glass cooktop
B. Cooking zone (glass ceramic plate surface)
C. LED screen
D. Decrease time/power button
E. Power On/Off
F. Increase time/power button
G. Menu button
H. Non-slip feet under base (not shown)
I. Control Panel with 8 cooking modes, keep
warm and child lock
J. Timer indicator light when timer function
is chosen
K. Wattage indicator light
L. Time remaining indicator light
LIC400_ANZ_IB_B17.indd 8 16/6/17 1:43 pm

9
Operation
WHAT IS INDUCTION COOKING?
An induction cooker creates an
electromagnetic field to heat the induction
compatible cooking saucepan/pot. Very little
energy is wasted heating the glass ceramic
plate, as most of the heat is transferred directly
to the food. As the majority of the heat is
absorbed by the saucepan/pot, the cooking
surface remains cooler to the touch than most
traditional cooktops making cooking fast, safe
and energy efficient.
Induction
Cookware
Heat is
Generated
in the Pot
Magnetic Field
Power Coil
BEFORE FIRST USE
Before using your Breville induction cooker
become familiar with all the parts.
Remove and safely discard all packaging
materials and promotional labels.
Wipe the glass ceramic plate surface with a
soft damp cloth and dry thoroughly.
WARNING
Do not immerse the power cord, power plug
and any other part of the induction cooker in
water or any other liquid.
HOW TO USE YOUR QUICK COOK™
1. Place the induction cooker on a dry,
stable and level surface.
2. Make sure there is at least 10cm free space
around the induction cooker to prevent
overheating.
3. Position an induction compatible
saucepan/pot in the centre of the circular
design on the glass ceramic plate surface,
ensure liquid or food is inside the
saucepan/pot.
4. Insert the power plug into a 230V or 240V
power outlet and switch power outlet ‘On’.
NOTE
Ensure the saucepan/pot is positioned in
the centre of the circular design on the glass
ceramic plate surface.
WARNING
Never use the saucepan/pot when empty;
ensure liquid or food is inside the
saucepan/pot.
RECOMMENDED TYPES AND
SIZES OF COOKWARE
Material Cookware with a bottom made of iron or
magnetic stainless steel.
Shape Cookware with a flat bottom.
Size Cookware with a bottom diameter of 12-23cm
depending on the cooking mode.
NOTE
To achieve maximum efficiency, it is essential
to use the correct type of saucepans/pot. Please
refer to the cooking vessel manufacturer to
confirm suitability for induction cooking.
LIC400_ANZ_IB_B17.indd 9 16/6/17 1:43 pm

10
COOKING MODES
There are 8 cooking modes: Sear , Sauté , Medium , Simmer , Water Boil ,
Steam , Slow Cook and Milk .
1. Insert the power plug into a 230V or 240V
power outlet and switch power outlet ‘On’.
The LED screen will continuously flash
displaying ‘- -’ on the screen.
2. Press the Power On/Off button, ‘ON’
will illuminate on the LED screen.
3. Press the Menu button to choose the
desired cooking mode. The corresponding
indicator lights up and the induction
cooker starts working in the selected mode.
The LED screen will alternate between
displaying the power level and cooking time
remaining.
4. When the cooking time has elapsed, the
induction cooker will beep once and go
into standby mode. The LED screen will
continuously flash displaying ‘- -’ on the
screen. The fan will continue to run for
about 30 seconds after the time has elapsed
before turning the fan off.
5. Switch off at the power outlet and unplug
the induction cooker.
NOTE
Before and during cooking, you can change the
cooking power by pressing the Increase or
Decrease button in each cooking mode.
DEFAULT COOKING TIME AND TEMPERATURE
Refer to the below table for the default cooking time and cooking power of the different cooking
modes.
Cooking mode
Default Cooking
Time (min/hrs)
Cooking Time
Range (min/hrs)
Default cooking
power
cooking power
range
Sear 10 mins 1 - 20 mins 1800W 1000 – 1800W
Sauté 20 mins 1 - 60 mins 1600W 1000 – 1600W
Medium 30 mins 1 - 60 mins 1000W 600 – 1400W
Simmer 2 hrs 30 mins - 6 hrs 1400W* 200 – 1400W
Water Boil 60 mins 1 min - 2 hrs 2100W 200 – 2100W
Steam 20 mins 1 - 60 mins 2100W 200 – 2100W
Slow Cook 6 hrs 4 - 10 hrs 1800W* 200 – 1800W
Milk 20 mins 1 min - 1 hr 800W 200 – 800W
Keep Warm 2 hrs 30 mins - 4 hrs 400W 400W
*In the simmer and slow cooking modes the wattage is programmed to automatically drop to 200W after a set
time. Refer to pages 12 and 13 for further details.
LIC400_ANZ_IB_B17.indd 10 16/6/17 1:43 pm

11
USING THE TIMER
You can use the Timer button to decide
how much time you want the induction cooker
to work at different cooking modes.
1. Press the Power On/Off button, ‘ON’
will illuminate on the LED screen.
2. Press the Menu button to choose the
desired cooking mode. The corresponding
indicator lights up and the induction
cooker starts working in the selected mode.
The LED screen will alternate between
displaying the power level and cooking time
remaining.
3. Press the Timer button, the timer
indicator lights up.
4. Press the Increase or Decrease
button to adjust the hours.
5. Press the Timer button again and press
the Increase or Decrease button to
set the minutes.
6. The LED screen will flash for about
5 seconds and displays the set time which
indicates the time has been confirmed.
7. When the cooking time has elapsed, the
induction cooker will beep once and go
into standby mode, the LED screen will
continuously flash displaying ‘- -’ on the
screen and the fan will continue to run for
about 30 seconds and then stop.
8. Switch off on the power outlet and unplug
the induction cooker.
NOTE
If you press and hold either the increase
or decrease button on the timer setting,
the display will scroll through the values more
quickly, making it quicker to set the desired
values.
COOKING MODES
Sear
This mode is intended for browning food stuffs
very quickly by intense heat. This method
develops flavour and improves appearance.
• To select the Sear mode, press the Menu
button once and the light above the Sear icon
illuminates.
• The default power is 1800W and default
timer is 10 minutes.
• If you want to change this default power
setting, press increase or decrease
button to adjust the power. Power can be
adjusted from 1000W to 1800W.
Timer can also be adjusted by pressing the
TIMER button once and then press increase
or decrease button to adjust the time.
Timer can be adjusted from 1 minute to
20 minutes.
Sauté
This mode is intended for browning or cooking
food stuffs quickly over medium to high heat.
• To select the Sauté mode, press the Menu
button twice until the light above the Sauté
icon illuminates.
• The default power is 1600W and default
timer is 20 minutes.
• If you want to change this default power
setting, press increase or decrease
button to adjust the power. Power can be
adjusted from 1000W to 1600W.
Timer can also be adjusted by pressing the
TIMER button once and then press increase
or decrease button to adjust the time.
Timer can be adjusted from 1 minute to
60 minutes.
NOTE
It is reccommended to operate the induction
cooker at the default power setting
and then adjust the cooking power if necessary
to achieve different cooking results.
LIC400_ANZ_IB_B17.indd 11 16/6/17 1:43 pm

12
Medium
This mode is intended for cooking food stuffs
all the way through.
• To select the Medium mode, press the Menu
button three times until the light above the
Medium icon illuminates.
• The default power is 1000W and default
timer is 30 minutes.
• If you want to change the default setting,
press increase or decrease button to
adjust the power. Power can be adjusted from
600W to 1400W.
Timer can also be adjusted by pressing the
TIMER button once and then press increase
or decrease button to adjust the time.
Timer can be adjusted from 1 minute to
60 minutes.
Simmer
This mode is intended for cooking slowly in
liquid over low heat. The surface of the liquid
should be barely moving, broken from time to
time by slowly rising bubbles.
• To select the Simmer mode, press the Menu
button multiple times until the light above
the Simmer icon illuminates.
• The default power is 1400W for about 10
minutes followed by 400W for about 7
minutes and then drops to 200W until the
end of cooking. The default timer is 2 hours.
• If you want to change this default setting,
press increase or decrease button to
adjust the power. Power can be adjusted from
200W to 1400W.
• When you change the power setting during
the simmer mode, the new power will operate
for approximatively 10 minutes, followed by
400W for approximately
7 minutes and then drops to 200W until the
end of cooking.
Timer can also be adjusted by pressing the
TIMER button once and then press increase
or decrease button to adjust the time.
Timer can be adjusted from 30 minutes to
6 hours.
NOTE
Always use the default power setting for the
Simmer mode until the food begins to simmer.
You may then adjust the power by increasing
or decreasing as required to maintain the
simmer.
Water Boil
This mode allows you to boil between 0.4 litres
and 4 litres of water in a saucepan/pot.
• To select the Water Boil mode, press the
Menu button multiple times until the light
above the Water boil icon illuminates.
• The default power is 2100W and default
timer is 60 minutes.
• If you want to change this default setting,
press increase or decrease button to
adjust the power. Power can be adjusted from
200W to 2100W.
Timer can also be adjusted by pressing the
TIMER button once and then press increase
or decrease button to adjust the time.
Timer can be adjusted from 1 minute to
2 hours.
Steam
This mode is intended for cooking food stuffs
by heating it in steam from boiling water.
• To select the Steam mode, press the Menu
button multiple times until the light above
the Steam icon illuminates.
• The default power is 2100W and default
timer is 20 minutes.
• If you want to change this default setting,
press increase or decrease button to
adjust the power. Power can be adjusted from
200W to 2100W.
Timer can also be adjusted by pressing the
TIMER button once and then press increase
or decrease button to adjust the time.
Timer can be adjusted from 1 minute to
60 minutes.
LIC400_ANZ_IB_B17.indd 12 16/6/17 1:43 pm

13
Slow Cook
This mode is intended for cooking food stuffs
for several hours at relatively low temperatures.
• It is recommend to slow cook between 3-4
litres of food at 1800W default power setting
and decrease the power to 200-400W for 1-2
litres of food.
• To select the Slow Cook mode, press the
Menu button multiple times until the light
above the Slow Cook icon illuminates.
• The default power is 1800W for about
3 minutes followed by 800W for about
7 minutes, 400W for up to about 2 hours and
then drops to 200W until the end of cooking.
The default timer is 6 hours.
• If you want to change this default setting,
press increase or decrease button to
adjust the power. Power can be adjusted from
200W to 1800W.
• When you change the power during the Slow
Cook mode, the new power will operate for
up to approximately 3 minutes, followed by
800W for approximately 7 minutes, 400W
for approximately 2 hours and then drops to
200W until the end of cooking.
Timer can also be adjusted by pressing the
TIMER button once and then press increase
or decrease button to adjust the time.
Timer can be adjusted from 4 hours to
10 hours.
Milk
This mode is intended for heating milk gently.
• To select the Milk mode, press the Menu
button multiple times until the light above
the Milk icon illuminates.
• The default power is 800W for some time
and then drops to 200W until the end of
cooking. The default time is 20 minutes.
• If you want to change this default setting,
press increase or decrease button to
adjust the power. Power can be adjusted from
200W to 800W.
Timer can also be adjusted by pressing the
TIMER button once and then press increase
or decrease button to adjust the time.
Timer can be adjusted from 1 minute to 1 hour.
Keep Warm
Once cooking is finished, the induction cooker
can be set to Keep Warm mode by pressing the
Keep Warm button once.
The Timer can be adjusted by pressing the
TIMER button once and then press increase
or decrease button to adjust the time.
Timer can be adjusted from 30 minutes to
4 hours.
WARNING
Do not use the Keep Warm mode for cooking
as it may result in food poisoning. This mode is
intended for keeping cooked foods at serving
temperature, not for normal cooking.
It is not recommended for food to remain on
the induction cooker in Keep Warm mode for
more than 4 hours.
NOTE
In this mode the power is set at 400W and
cannot be adjusted.
Child Lock
When the induction cooker is working, press
and hold the Child Lock button for about
3 seconds to enter child lock mode. The light
above the Child Lock icon illuminates. To
unlock this mode, press and hold the Child
Lock button for about 3 seconds again.
The light above the Child Lock icon turns off.
NOTE
In Child Lock mode, only the Child Lock
button is responsive.
LIC400_ANZ_IB_B17.indd 13 16/6/17 1:43 pm

14
Care & Cleaning
& Storage
Before cleaning, ensure the induction cooker
goes to standby mode and the fan stops
working.
The LED screen continuously flashes
displaying ‘- -’ on the screen. Switch power off
at the power outlet and unplug the power cord
from the power outlet.
Ensure the induction cooker has completely
cooled down before cleaning and storage.
To clean the glass ceramic plate surface,
wipe with a slightly damp cloth using a mild
detergent, to remove any food residue. Dry
thoroughly.
Do not place any part of the induction cooker
in the dishwasher.
NOTE
Do not use abrasives, harsh cleaning solutions
or metal scourer pads as these may scratch
the glass ceramic plate surface and make
subsequent cleaning more difficult.
WARNING
Do not immerse the induction cooker or power
cord and power plug in water or any other
liquid.
WARNING
To prevent damage to the appliance do not use
alkaline cleaning agents when cleaning, use a
soft cloth and mild detergent.
STORAGE
Before storage, ensure the induction cooker
has gone into standby mode and the fan
has stopped working. The LED screen
continuously flashes displaying ‘- -’ on the
screen. Switch off at the power outlet and
unplug power cord from the power outlet.
Ensure the appliance is completely cooled,
clean and dry. Store the appliance flat on the
bench or in a convenient cupboard.
Do not place anything on top of the appliance
during storage.
LIC400_ANZ_IB_B17.indd 14 16/6/17 1:43 pm

15
Troubleshooting
Error Code
Displayed On Screen Possible Causes What to Do
E0
•
Non-compatible induction
saucepan/pot has been
used.
•
Use an induction compatible
saucepan/pot.
•
Induction cooker has
detected no pot on the glass
ceramic plate.
•
Place an induction pot on the glass
ceramic plate and switch on the
induction cooker.
E1
•
Induction cooker does not
work.
•
Take the induction cooker to an
authorised Breville Service Centre for
inspection, repair and/or replacement.
E2
•
Induction cooker has
overheated.
•
Allow the appliance to cool down. Press
Power On/Off button once, remove
saucepan/pot and allow the induction
cooker to cool before switching the
power on.
E3
•
The voltage is too high.
•
Ensure the induction cooker is plugged
into a 230V or 240V power outlet.
E4
•
The voltage is too low.
•
Ensure the induction cooker is plugged
into a 230V or 240V power outlet.
E5
•
Ambient temperature of the
environment is too low.
•
Ensure the induction cooker works in
room temperature environment.
E6
•
Induction cooker does not
work.
•
Take the induction cooker to an
authorised Breville Service Centre for
inspection, repair and/or replacement.
Induction cooker does not
function
•
Induction cooker is not
plugged in.
•
Plug the power plug into the power outlet
and switch on the power outlet.
•
Induction cooker is
plugged in.
•
Take the induction cooker to an
authorised Breville Service Centre for
inspection, repair and/or replacement.
Food is not heated
•
Non-compatible induction
saucepan/pot has been used.
•
Use an induction compatible
saucepan/pot.
•
Compatible induction
saucepan/pot has been used.
•
Take the induction cooker to an
authorised Breville Service Centre for
inspection, repair and/or replacement.
LIC400_ANZ_IB_B17.indd 15 16/6/17 1:43 pm

Web: www.breville.co.nzWeb: www.breville.com.au
Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98 000 092 928.
Copyright Breville Pty. Ltd. 2017.
Due to continued product improvement, the products illustrated/photographed
in this brochure may vary slightly from the actual product.
LIC400 – B17
Australian Customers
Mail: Locked Bag 2000
Botany NSW 1455
AUSTRALIA
Phone: [phone]
Fax: [phone]
Email: Customer Service:
[e-mail]
New Zealand Customers
Mail: Private Bag 94411
Botany Manukau 2163
Auckland NEW ZEALAND
Phone: [phone]
Fax: [phone]
Email: Customer Service:
[e-mail]
Breville Customer Service Centre
LIC400_ANZ_IB_B17.indd 16 16/6/17 1:43 pm
