Brezza FRE125 User manual
AIR COOLER
INSTRUCTION MANUAL
NEW WITH UV DEVICE FOR WATER STERILIZATION
125
Important information for environmentally friendly disposal
IN SOME EU COUNTRIES THIS PRODUCT DOES NOT FALL INTO THE SCOPE OF APPLICATION OF THE
ITALIAN DOMESTIC LAW ACKNOWLEDGING THE RAEE DIRECTIVE AND THEREFORE THERE IS NO
OBLIGATION IN FORCE TO SEPARATE MATERIALS AT THE END OF THEIR USEFUL LIFE.
This product complies with Directive 2012/19/UE. The symbol of a dustbin with a cross, which is
shown on the appliance, indicates that the product, because it must be treated separately from
household waste, must be taken, at the end of its useful life, to a collection center for electrical and
electronic equipment or redelivered to the retailer on purchase of a new equivalent appliance. The
user is responsible for delivering the appliance to the appropriate collection structure at the end of
its life, on penalty of the measures provided for by current legislation on waste. The proper separate
collection for subsequent transfer of the appliance for recycling, treatment and environmentally
friendly disposal contributes to avoiding any possible harmful effects on the environment and health
and promotes recycling of the materials that make up the product. For more detailed information
on the available collection systems, contact the local refuse disposal service or the shop where the
purchase was made. The producers and importers meet their responsibilities for recycling,
treatment and environmentally friendly disposal either directly or through participating in a
collective system.
2
Warning
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
The ultraviolet ray from the UV lamp is harmful to human eyes and skin.
USER IS NOT ALLOWED TO OPEN THE MACHINE AND THE UV LAMP
COVER.
Thank you for purchasing our air cooler. Please read all the instructions
in detail before first time use, to ensure proper use of the unit. Also,
please keep the manual for future reference.
ANTIBACTERIAL UV WATER STERILISATION DEVICE
The BREZZA cooler you have purchased has a distinctive feature to aid personal health.
It is equipped with a UV lamp to sterilise water and prevent the formation of bacteria
(such as legionella, for instance) and mould.
When in use, our BREZZA cooler prevents the development of pathogens caused by
stagnant or contaminated water.
Star Progetti is the first to adopt this solution, which is part of our corporate strategy
aimed at offering customers the best possible product with a full guarantee of well-being
and health.
The UV lamp lasts for an average of 7000 hours, equivalent to several years of use during
the summer.
If the UV lamp needs replacing, contact Rubisolis.
ENGLISH
3
PRODUCT FEATURES
Cool
It cycles the water to blow cool air. It can lower the surrounding temperature and provide
you a comfortable environment in hot summer.
Built-in water tank, detachable filtration mesh
It is easy to clean. Filter removes harmful tiny substances, such as dust and pollen.
Energy saving, high-efficiency, friendly environment
The input power is 200 W.
Wide range of air output
100 angle wide range of air output. 6 fan speeds: Normal(HIGH-MID-LOW), Sleep(HIGH-MID-
LOW).
Remote Control
6 meters remote control, 120 angle wide range receiver
Touch panel
Touch panel control, easy to operate, with elegant chords.
Memory function
It can memorize the current working status. The memory is not cleaned until the power
supply is off.
1 to 24 hours timer setting
Built-in UV lamp
The ultraviolet ray can sterilize the water, good for health.
Alarm
Sound signal in the absence of water in the tank.
Outlet air temperature
Indication of the outlet air temperature on the display.

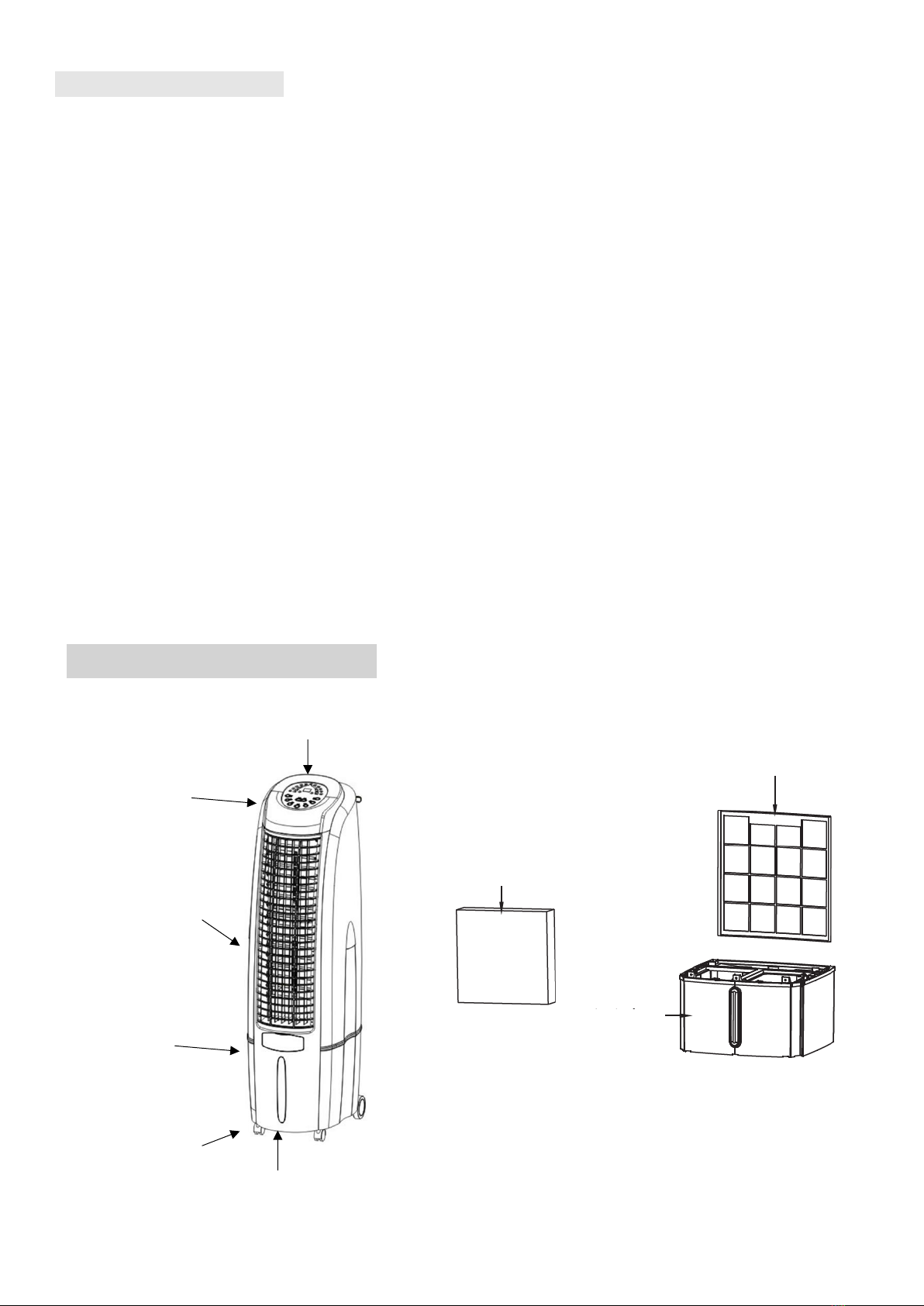

CONSTRUCTION DRAWING
COVER
TOUCH PANEL
OUTLET OF AIR
FLOW
WHEEL
SCOCCA
ANTERIORE
WATER LEVEL WiNDOW
EVAPORATIVE COOLER
PAD
SERBATOIO
ACQUA
AIR INLET
FILTER
WATER INLET
4
SPARE PARTS
No.
Designation
Quantity(pcs)
1
Air cooler
1
2
instruction manual
1
3
remote control
1
TECHNICAL PARAMETERS
MODEL
FRE125
Ratings
220-240V/50Hz 200W
MAX Air Flow Consumption
2500m³/h
MAX Water Volume
30L
Net Weight
11.7 KGS
Measurements
378X442X1240mm
MODEL UV BULB
E17-3W Mini UV bulb
Ratings
AC 10V 3W
Note: Due to constant development of our products in regard to specification and design, we take
reservation for changes without prior notice.
OPERATION INSTRUCTION
1. Pull the unit outwards from the carton and place it on the floor.
2. Check if the spare parts are complete, same as the spare part list.
3. Place the unit on the floor.
Note: Two wheels with stopper are for the two front holes and Two wheels
without stopper are for the unit.
4. Pull out the cover of water inlet to fill with water (shown as fig.1).
5
Note:
Water level must be between the MIN and MAX line.
After few days operation, dust and dirt may reserve
in water tank. It is recommended to change water and
clean water tank frequently.
5. Only use the unit with correct power required.
6. Insert the plug pin into a wall socket. A small beep sound can be heard, and the
power indicator will be on.
Note:
To protect against electric shock, do not remove plug from wall outlet by wet
hand.
Unplug from outlet while moving the unit.
Insert the plug pin into the wall socket and make sure it is connected well.
7.Press “ON” button to make the unit ready for working. Press “COOL” button to
improve the air damp, avoid skin dry and spall in winter. When press “COOL”, the
built-in UV lamp start working, the ultraviolet ray can sterilize the water flowing
through the UV lamp cover (shown as fig.2).
WATER INLET
6
CONTROL PANEL AND OPERATION
(Romote controller control panel
with the same function as the unit control panel)
7
ON/OFF: Press once this button to make the unit ready for working. It will start up with MID
in 3 seconds and then revert to work under the memorized status. If for first time use, it will
start up with MID in 3 seconds and then work with LOW.
Press again this button to turn OFF.
NORMAL: It starts up with fixed speed and under NORMAL mode.
SLEEP: Lower wind speed than Normal mode, more quiet and softer.
8
In sleep mode, if no any operation on the touch bottons, the brightness of all indicator lights
and digital tube will be dimmed after 3 minutes.

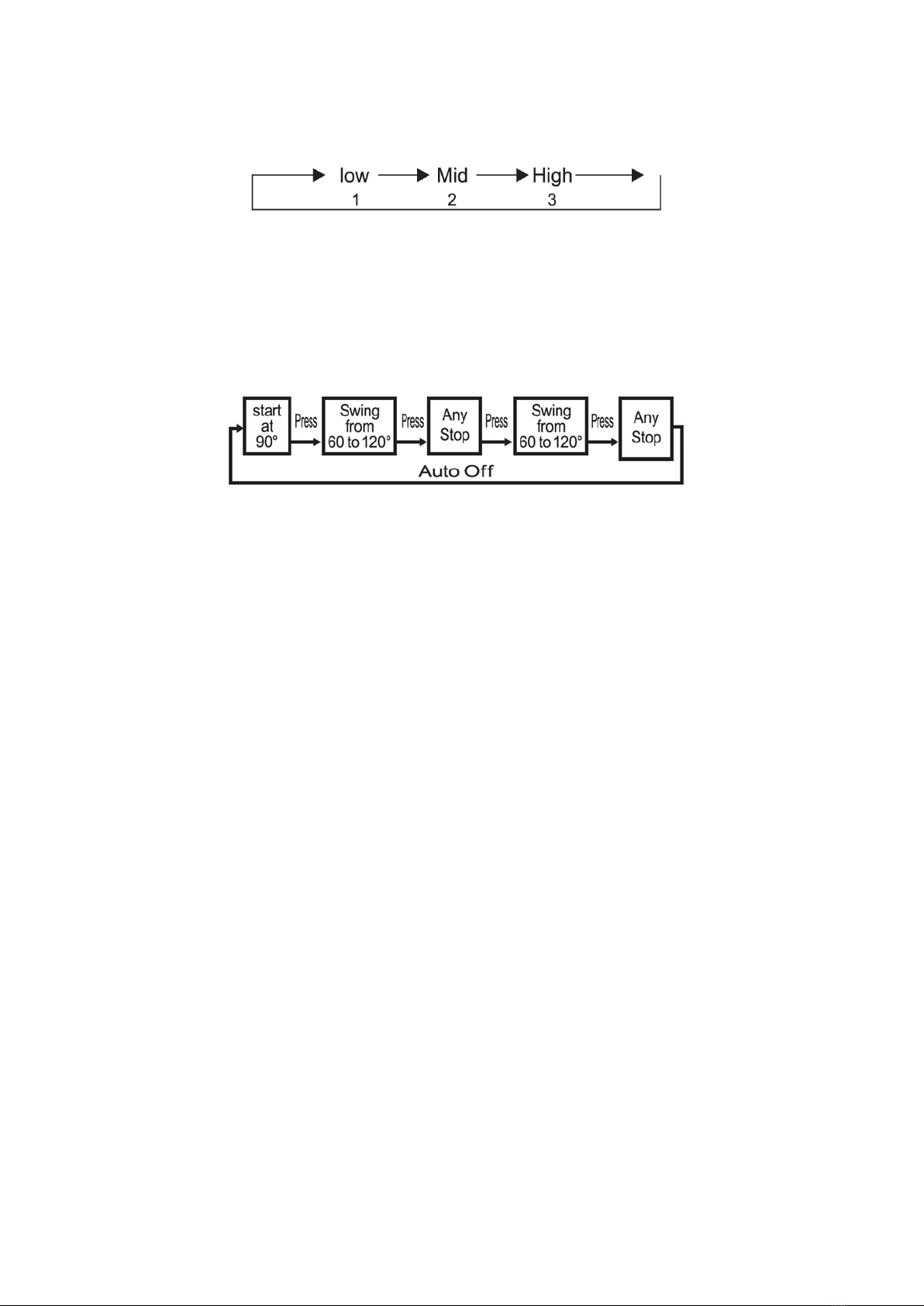

SPEED: Press this button to select desired fan speed, LOW→MID→HIGH→LOW, in turn.
TIMER: It can be set between 1 to 24 hours, increased by 1-hour intervals. Digital tube
displays the remaining time.
LEFT AND RIGHT SWING: Pressing once this button can control left and right air swing. Press
again this button to cancel this function.
UP AND DOWN SWING: Pressing once this button can control up and down air swing. Press
again this button to cancel this function
COOL: During operation, press this button to start the evaporative
cooling function, the water pump and the UV lamp start working; When press this button
again, the water pump and the UV lamp stop working (first ON, second OFF). And both of
water pump and UV lamp stop working when water shortage.
IONIZER: Press this button once to release negative ions into the air which will improve air
quality. Press this button again to cancel.
9
IMPORTANT PRECAUTIONS
1. READ ALL INSTRUCTIONS BEFORE USE.
2. DO NOT open and repair the appliance by unqualified personnel.
3. To avoid electric shocks, keep the appliance dry. Do not use with
wet hands.
4. Remove the plug from the socket when filling the water tank,
cleaning, maintenance or moving the appliance.
5. Remove the plug when not using the appliance.
6. Do not insert other objects into the air port while the appliance is
operating.
7. Do not cover the unit with paper, cardboard, plastic, aluminum foil
or other flammable materials while it is operating. Otherwise, fire
may occur. Keep the appliance away from any heat sources.
8. Lay the appliance on the floor.
9. This product is not intended for use in wet or damp locations.
10. The water level must be between the MIN and MAX lines.
11. After filling the water tank, do not tilt the appliance or move it to
prevent water from leaking from the sides of the tank and outside
the appliance. If you need to move the appliance slightly, slowly push
it to one side.
12. Do not tip the appliance on its side after filling the tank.
13. Do not place objects on the appliance or cover the door while the
appliance is in operation.
14. Do not use gasoline, toluene etc. to clean the body of the
appliance. To remove a light layer of dirt, remove it with a soft damp
cloth. To remove traces of grease, squeeze a little toothpaste or mild
detergent onto a soft, damp cloth and remove the dirt.
15. Do not hit or shake the appliance during operation.
16. After a few days of use, dirt and dirt may accumulate in the water
tank. It is recommended to change the water and clean the tank
frequently. If you want to select the humidifier function with outside
temperatures below 0, add warm water to the water tank.
17. Do not place the appliance under an electrical outlet.
18. Empty the water tank to prevent the formation of unpleasant
odors when the appliance is not in use.
19. Do not use in case of malfunction. Send to the repair center.
20. Do not use the appliance for purposes other than those
established.
10
21. Do not use the appliance if the electric cable is damaged. Send to
the repair center. If the power cord is damaged, it must be replaced
with a cable or other specific piece provided by the manufacturer or
his service representative.
22. Make sure that children do not touch the airflow port while the
appliance is operating.
23. Keep the cord away from sharp or hot objects.
24. Do not clean with metal-containing cloths, which could scratch
the surface or cause electric shocks.
25. Do not clean with flammable liquids.
26. Do not connect the appliance to the same outlet as any other
electrical devices.
27. To disconnect the appliance, deactivate all functions, press the
OFF button and remove the plug from the wall socket.
28. Do not insert new and exhausted batteries into the remote
control at the same time.
29. Remove the batteries from the remote control when not using it.
30. The product can not be used by people (including children) with
physical, sensory or mental impairments, or by personnel without
adequate experience and knowledge (including children), if not in
the presence of a person with the necessary skills, responsible for
the safety of the previously listed categories and providing
supervision and guidance on the use of the products and ensuring
safe use.
31. Make sure that children do not play with the product and do not
touch the air port while the appliance is plugged in or operating.
32. Do not cover the door when the appliance is operating.
33. When open the UV lamp cover for repairing or testing, operators
should wear UVC anti-penetration glasses and protective masks, to
protect the eyes and exposed parts of the human body from being
hurt by ultraviolet radiation.
11
MAINTENANCE AND CLEANING
Note:
After long time operation, the filtration mesh becomes clogged with dust and dirt, which
will greatly affect the unit’s performance. It is recommended to clean the filtration mesh
frequently.
Cleaning the filtration mesh
1. Remove plug from power.
2. Loose screw catch the filtration mesh handle and pull
upwards.
3. Clean filtration mesh with mild detergent and soft brush.
4. Make sure filtration mesh is completely dry before installing.
Cleaning the water tank
1. Remove plug power.
2. Add water from the water inlet in front side
3. Throw out the dirty water from the back-
water outlet
Cleaning the body
Clean the body with a little mild detergent on a
cotton cloth.
Note:
Unplug from outlet before cleaning.
No water on the control panel.

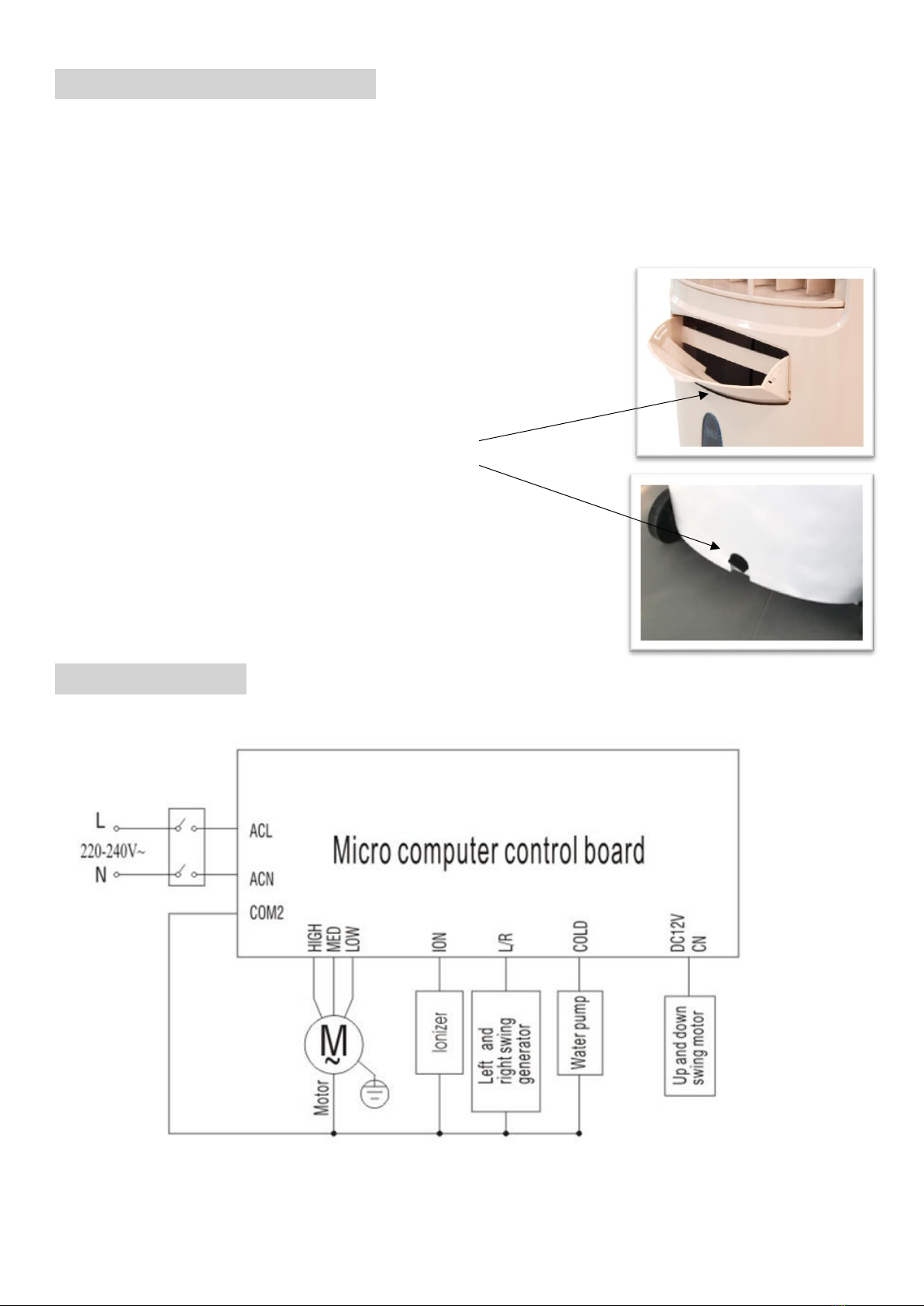

CIRCUIT DIAGRAM
12
TROUBLE SHOOTING
If there is something wrong during operation, it may not be the unit’s problem. You may check against
the following list before send for repair.
Problems
Possible reasons
Solutions
Not working
1. The plug is not securely
inserted into the socket or not
connected well.
2. The “ON/OFF” button is not
pressed.
1. Insert the plug pin into the wall
socket and make sure it is connected
well.
2. Press “ON/OFF” button after
plugged.
Cool effect not good
1. Water tank not enough water
2. Water pump is obstructed.
1. Add water to ensure there is
enough water for pumping
2. Clean water tank discharge
impurities.
Decrease in airflow
1. The filtration mesh is clogged
with dust and dirt, which affects
the unit’s performance.
2. The air vent is obstructed.
1. Clean the filtration mesh.
2. Remove the foreign objects from
the air vent.
NOTE:
THIS INSTRUCTIONAL CHART IS FOR REFERENCE PURPOSES ONLY, IF ANY TECHNICAL
ASSISTANCE IS NEEDED, PLAESE CALL STAR PROGETTI'S OFFICES FOR SERVICE/REPAIR AT
NO. 02/90639261 ext. 2
13
RECOMMENDATIONS FOR USE
• In order to avoid any water sprays to come out from the fan, the cooler, under normal working
conditions, should be placed on a flat surface, and its cellulose panels perpendicular to the floor.
• When it is first switched on, it is recommended to fill the tank as per instructions and run one-
hour cycle at least with the COOL function ON and the fan operating speed set to the minimum.
If the appliance is operated at the maximum air flow from the very start, it may cause the passage
of water from the cellulose panel to the fan, causing water sprays from the front of the cooler and
possible damages to the bearing of the fans themselves.
• The first time it is switched on, you might feel an unpleasant smell of the cooled air, caused
by the new cellulose panel. We suggest you should complete at least one cooling cycle outdoors
in an open space (fill a water tank, start the COOL function and let the appliance work until it
finishes water completely), before positioning and using it at the final place.
• You can also add ice to water, to maximise the appliance performance in the hottest weather,
as well as scented essences (to distribute cooled and scented air in the zone of use). Be however
sure to use water-based essences so as to avoid clogging the filter by oils or soaps, which may
affect the effectiveness and proper functioning of the cooler.
• It is suggested to run a lime washing cycle at least once in a year, by adding one litre of white
vinegar in the water tank and activating the COOL function until the tank is completely exhausted.
Once the cycle with vinegar is ended, fill again the tank by water only and repeat the procedure.
14
15
16
CERTIFICATE OF GUARANTEE
We congratulate you on the purchase of our FRE125 Validity 12 months from date of purchase of the appliance: the guarantee
expires after this period. The invoice, receipt or hire purchase agreement shall prove the duration of the guarantee period.
Replacements and repairs caused by faulty materials or manufacture are guaranteed. Replacements and repairs to those parts of
the appliance subject to normal wear are excluded form this guarantee. The guarantee shall immediately cease and become void
should the appliance be dismantled or repaired by unauthorized people, or in case of negligence, or accidental damage during
transport or elsewhere, or in case of misuse, failure to comply with the instructions for use, maintenance carried out by
unauthorized people, faulty installation not in conformity with the laws in force. Replacement of the appliance is excluded from
this guarantee. The eventual repairs recognized in guarantee will be carried out free of charge for those appliances returned free
STAR PROGETTI’s factory or to one of the authorized distributors. All transport costs are to be paid by the customer.
N. SERIE / N. SERIE / APPLIANCE No.
DATA ACQUISTO / DATE D'ACHAT / DATA OF PURCHASE
FATTURA N. / FACTURE N. / INVOICE No.
RIVENDITORE / REVENDEUR / DEALER
17
Other manuals for FRE125
1
Table of contents
Other Brezza Air Conditioner manuals
