BrightTonix Y10 User manual

Step by Step

Faster: Teeth whitening performed in 15 to 30 minutes, compared to
one hour on average with current treatments.
Safer: Eliminate the potential risks from abuse or poor application
during patient home follow-up treatments, and prevent hydrogen
peroxide associated side effects.
Brighter: Effectively whiten even the very dark or light teeth shades,
known to be difficult to treat with present methods. Due to no
Hydrogen Peroxide involvement, our treatment can be performed
frequently in order to keep the teeth brighter.
2
Mouth Rejuvenation

The Y10 technology provides the treatment results at the level of
professional treatment. The treatment can be repeated as needed. The
use of application of RF electric field having certain time and frequency
pattern (function of time and/or frequency) to unique Y10 toothpaste
during a treatment session provides for remarkable improvement of
several shade degrees in accordance with the common shading grading,
The entire treatment session is relatively shorter which saves valuable
chair time and there is no need for strong oxidizing agents in the
whitening substance.
3
Technology

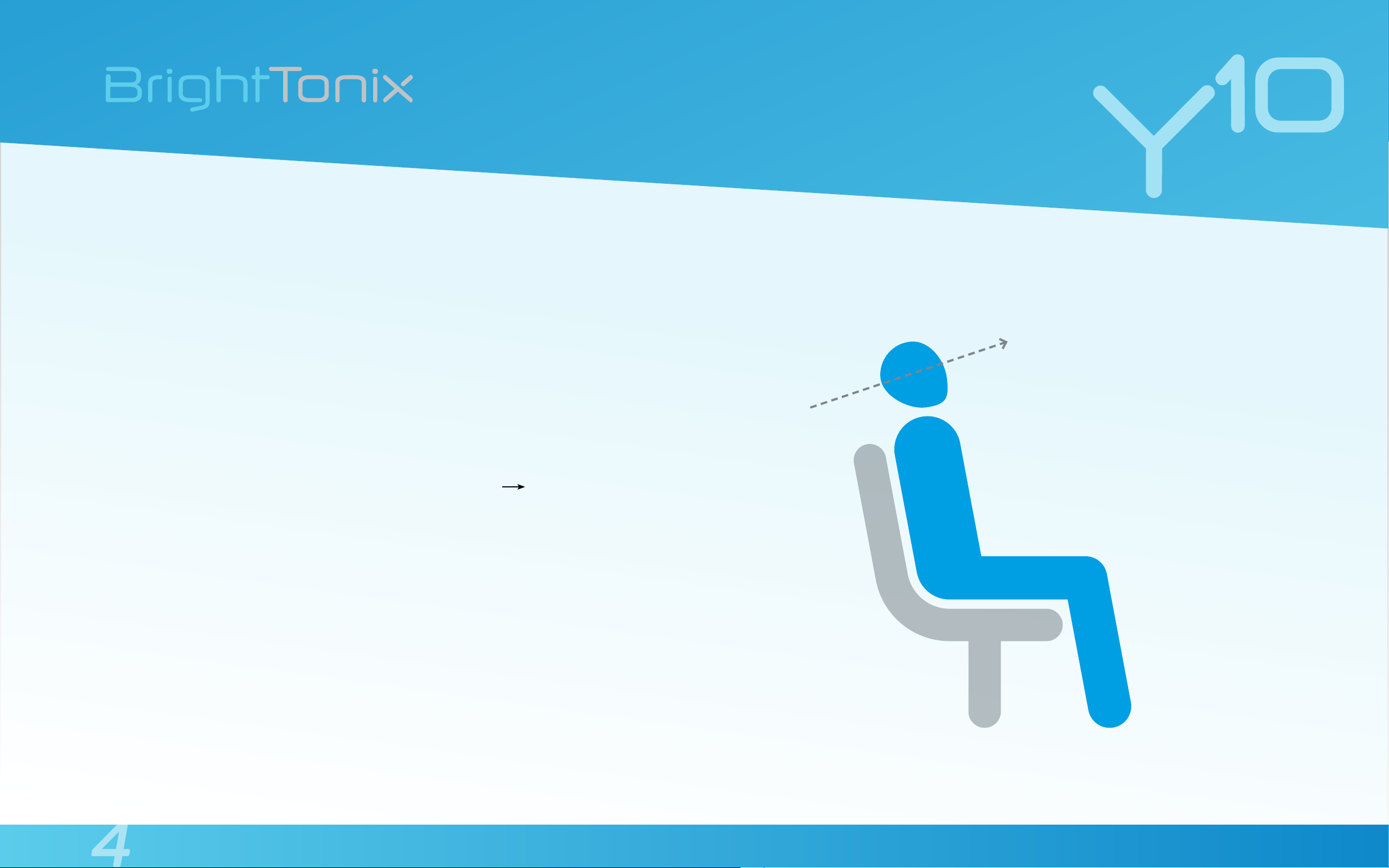

•Please make sure to slightly tilt the
patient’s head to the back as described in
the following sketch:
•Please make sure the patient doesn’t bite
too hard on the mouthpiece or chews it.
4
Important Guidelines
for the Treatment / 1

• Please make sure the toothpaste was refrigerated
for at least an hour prior to the treatment.

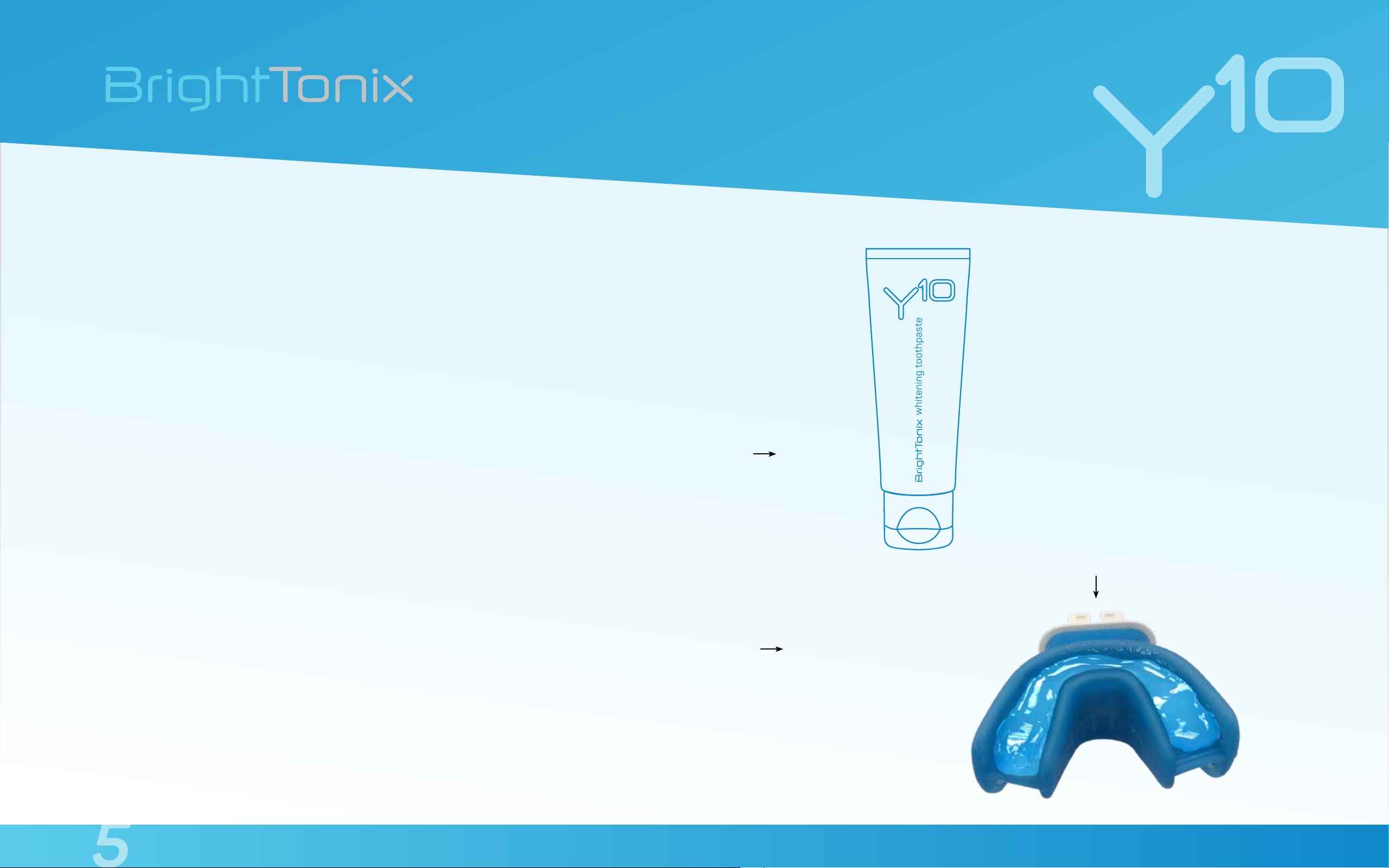

• Please make sure to fill both sides of the mouthpiece
with the correct portion of toothpaste as
demonstrated in the following pictures:
! Placing an insufficient amount of toothpaste in the
mouthpiece may cause the toothpaste to warm up too quickly.
The toothpaste should fill out
the entire electrode cavity
of the mouthpiece from both
sides, to reach the following
height:
5
Important Guidelines
for the Treatment / 2

Do not use the Y10 device in case of the following:
•The patient has an implanted pacemaker, an internal
defibrillator or any other active electrical implants
anywhere in the body.
•The patient has one of the following: a bleeding
disorder, leukemia, cirrhosis, vascular disease,
sarcoidosis, active hepatitis or HIV.
•The patient’s age is under 18.
•The patient is wearing metal braces/retainers.
6
Important Guidelines
for the Treatment / 3

Please make sure to carefully read the operator manual prior to the first use.

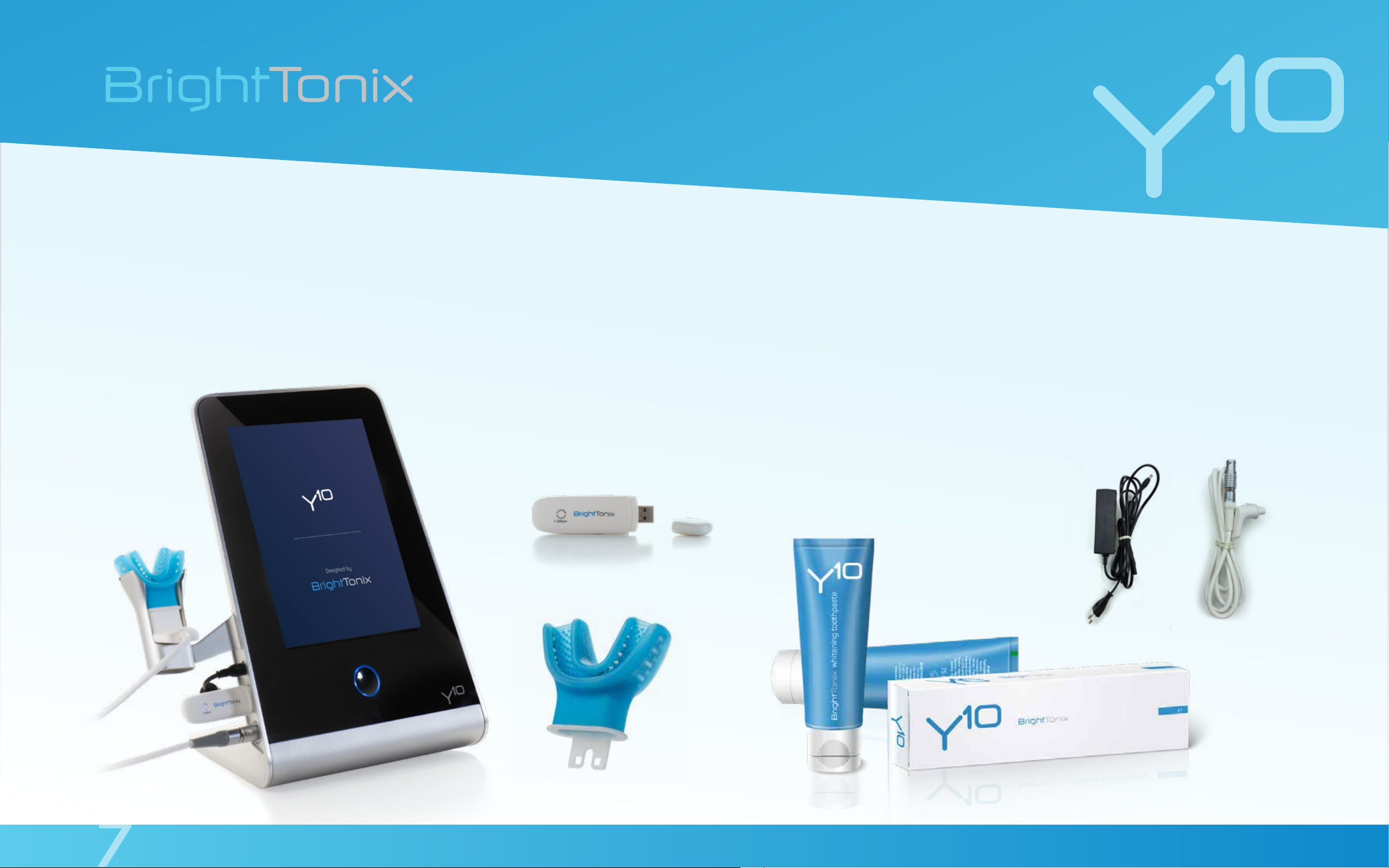

The following items are required for Y10 operation:
7
Preparation Step

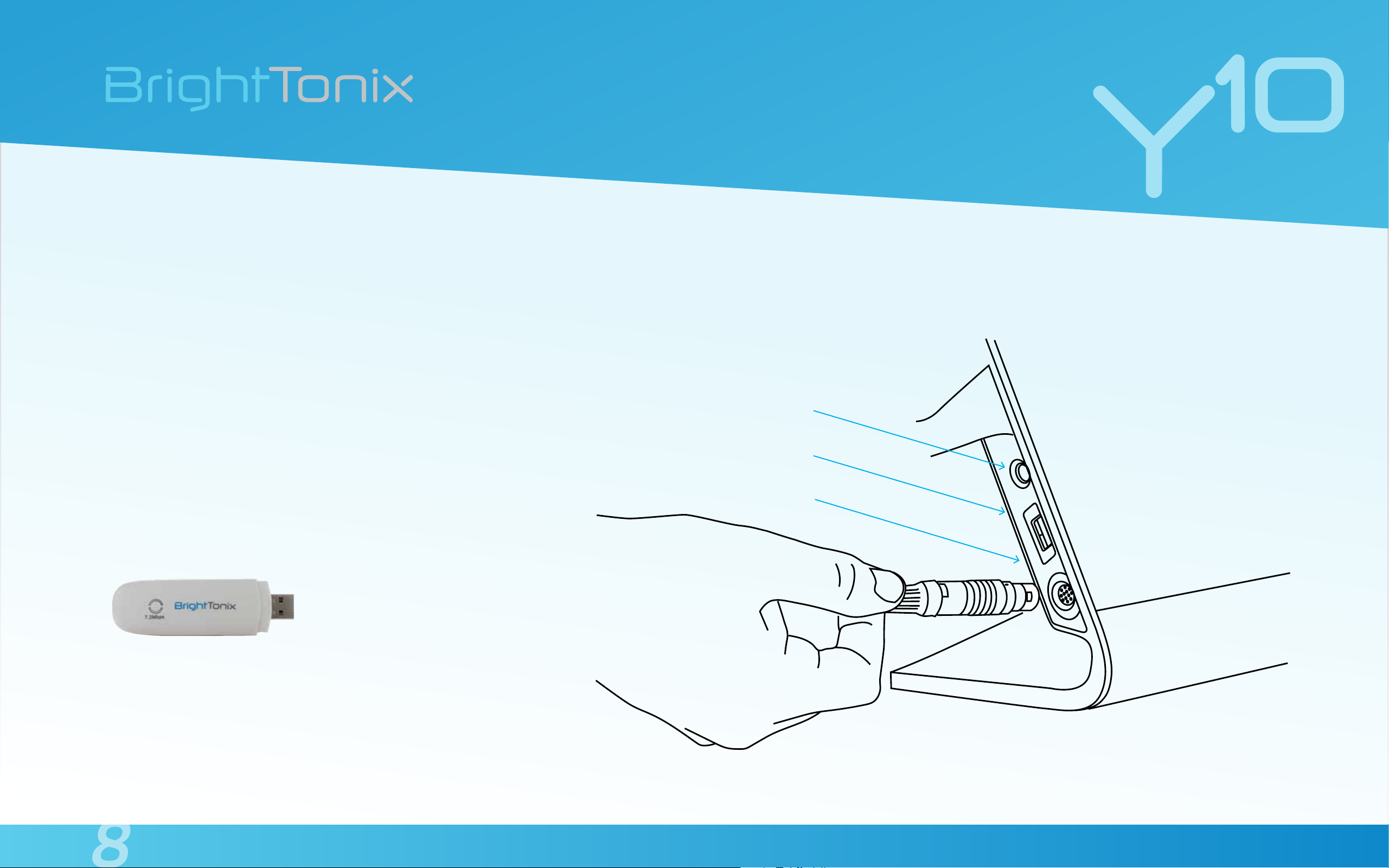

Connect the applicator cable to the
appropriate connection port.
Then proceed to connect the system’s
power cable to the clinic’s power supply.
Finally, connect the activation key to the
appropriate connection, as described:
Power Cable
Activation Key
Applicator Cable
8
Step 1 - Connecting the Y10 System

On / Stand by Button
To initialize the devise, please press the
button at the bottom of the screen.
After about 20 seconds, the main menu
will appear.
9
Step 2 - Initializing the Y10 System

Approach your BrightTonix product
distributor to receive the license key.

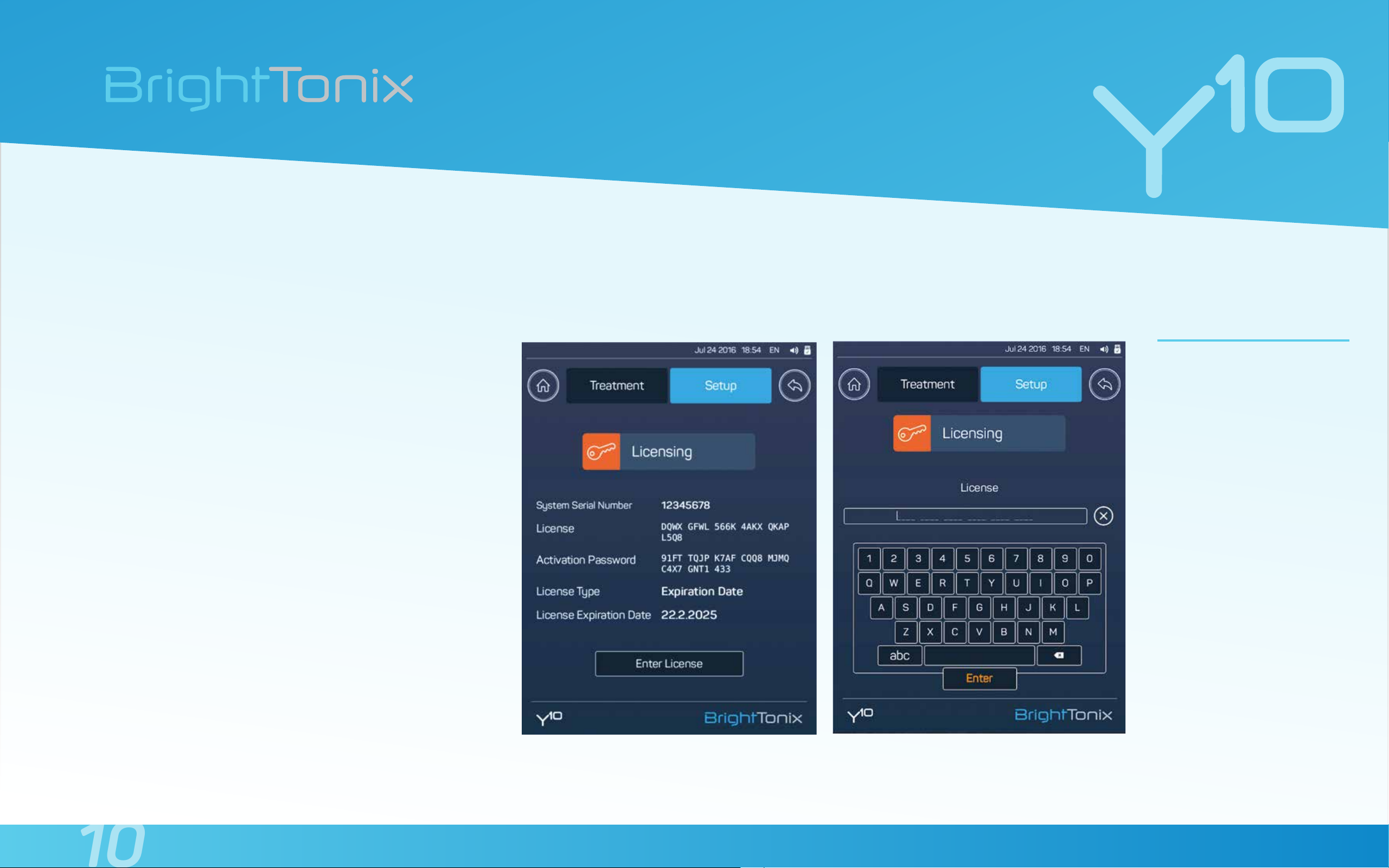

To update the system’s license key:
•Press the on the screen, the
‘Licensing screen’ will appear.
•Press the button.
•Enter the new license key, received
from your local distributor by tapping
on the virtual keyboard.
•Press the button, the license key is
now updated.
NOTE: The BrightTonix
system is configured
to operate with a
current license for a
pre-determined time.
When this period
expires, the system
will cease to emit the
treatment energy and
present a popup screen
requiring the input of a
new license key.
10
Step 3 System Licensing

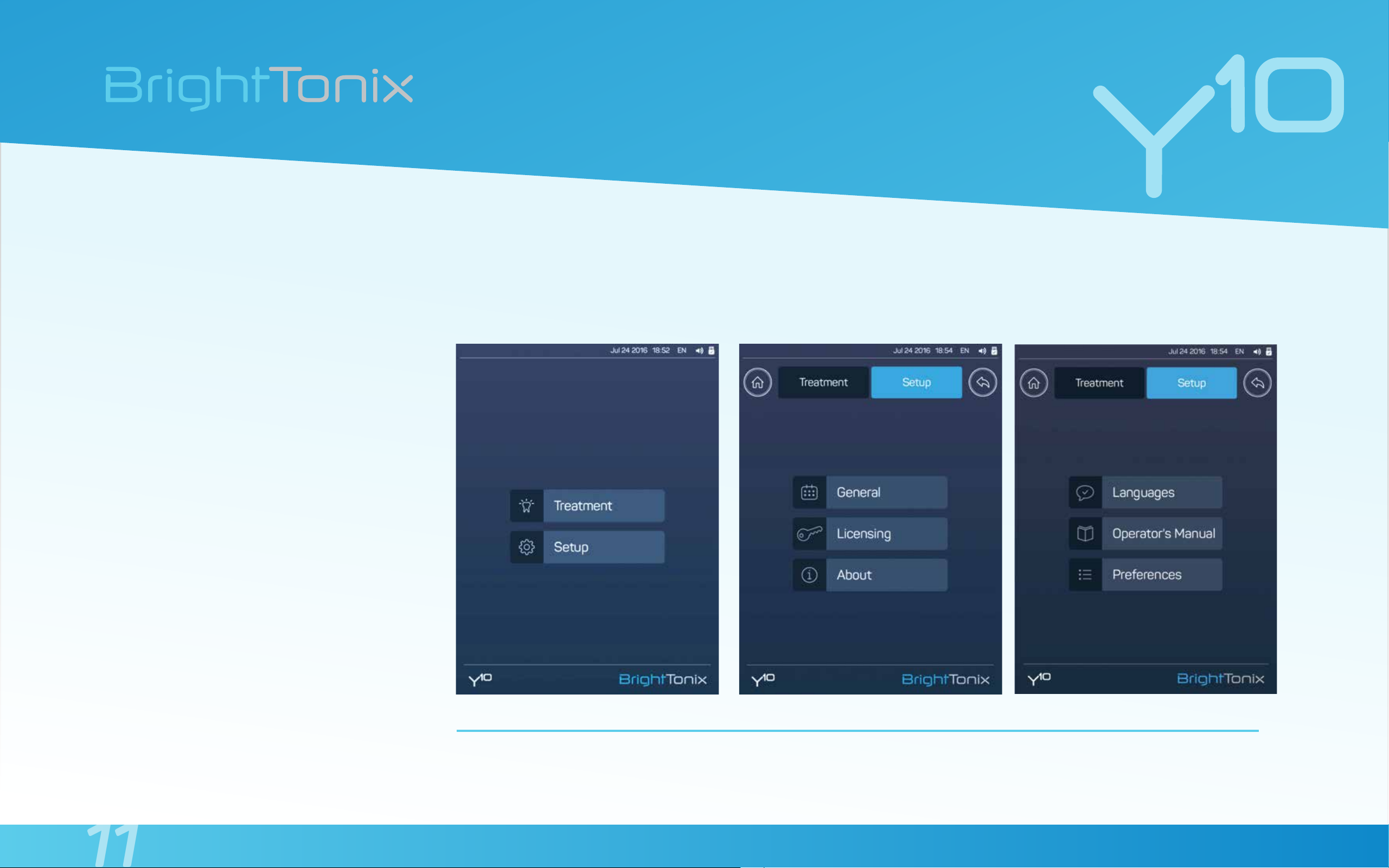

To customize the system
operations, press the button
on the screen. The system
Configuration screen will
appear.
Then, press the General
button- the Secondary Setup
screen will appear.
NOTE: To view the on screen version of the operator manual, press the ‘Operator’s Manual’ button.
11
Step 4 Setting the System Up

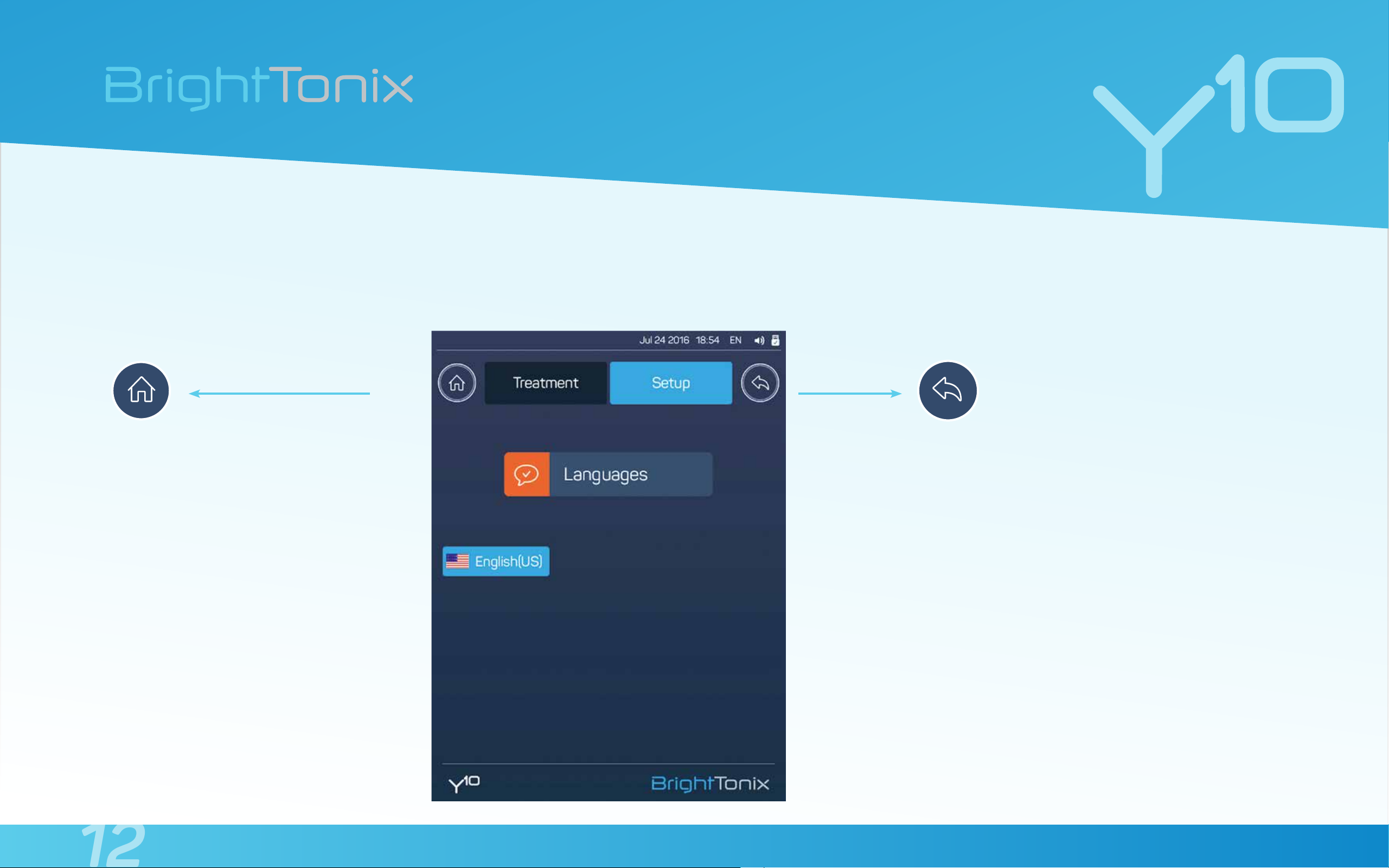

Press the button at any
time to navigate to the
main menu screen.
Press the ‘Return’ button at
any time to navigate to the
previous screen.
12
Step 5 Screen Navigation

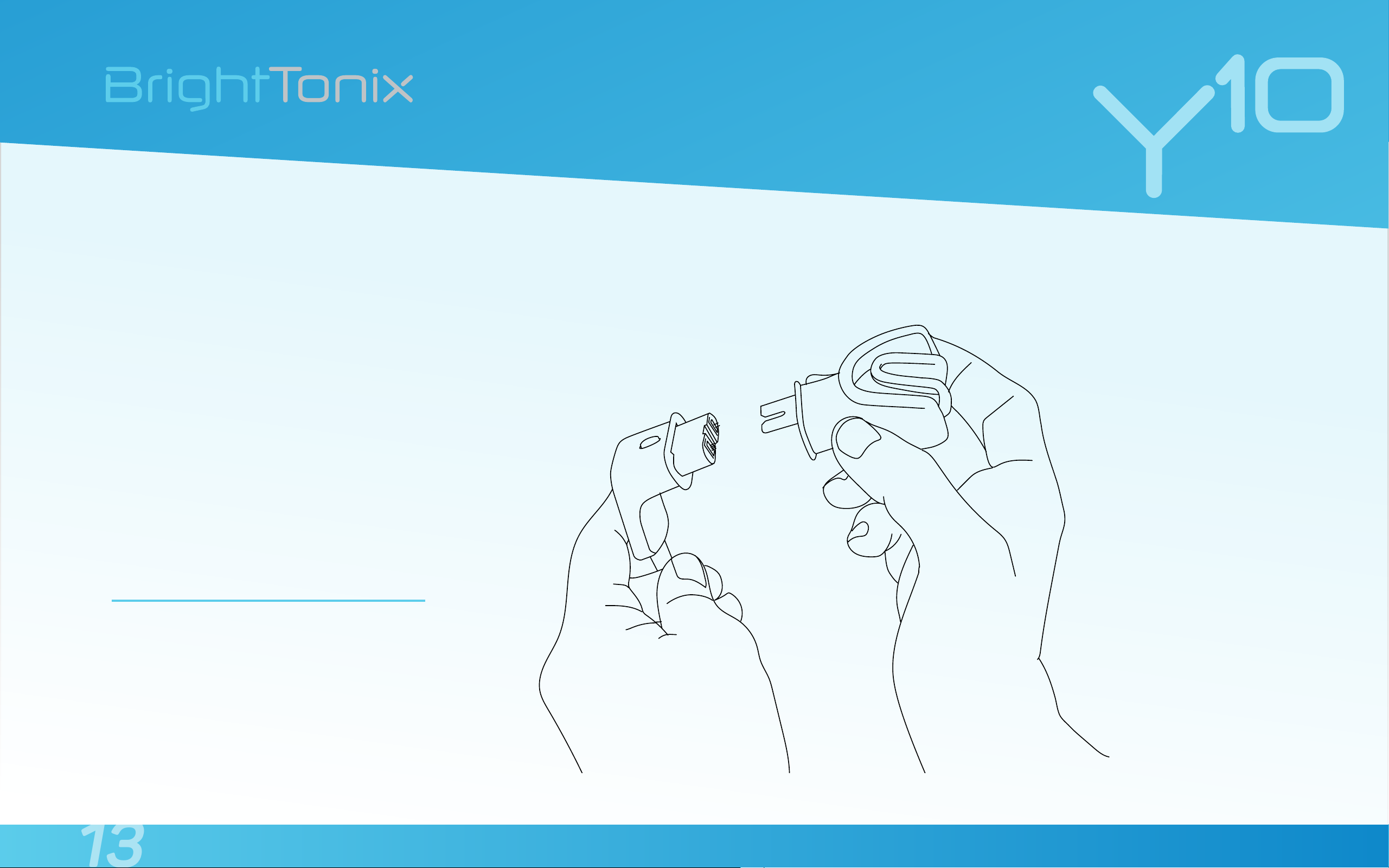

Connect a new, disposable
mouthpiece to the applicator
by inserting the tab on the
mouthpiece into the slot on the
top of the applicator. Make sure to
connect a mouthpiece to the distal
end of the umbilical.
NOTE: Prior to connecting the
mouthpiece, please make sure there
are no electrodes sticking out of it.
The mouthpiece is not suitable for
sterilization, single use only.
13
Step 6 Mouthpiece preparation

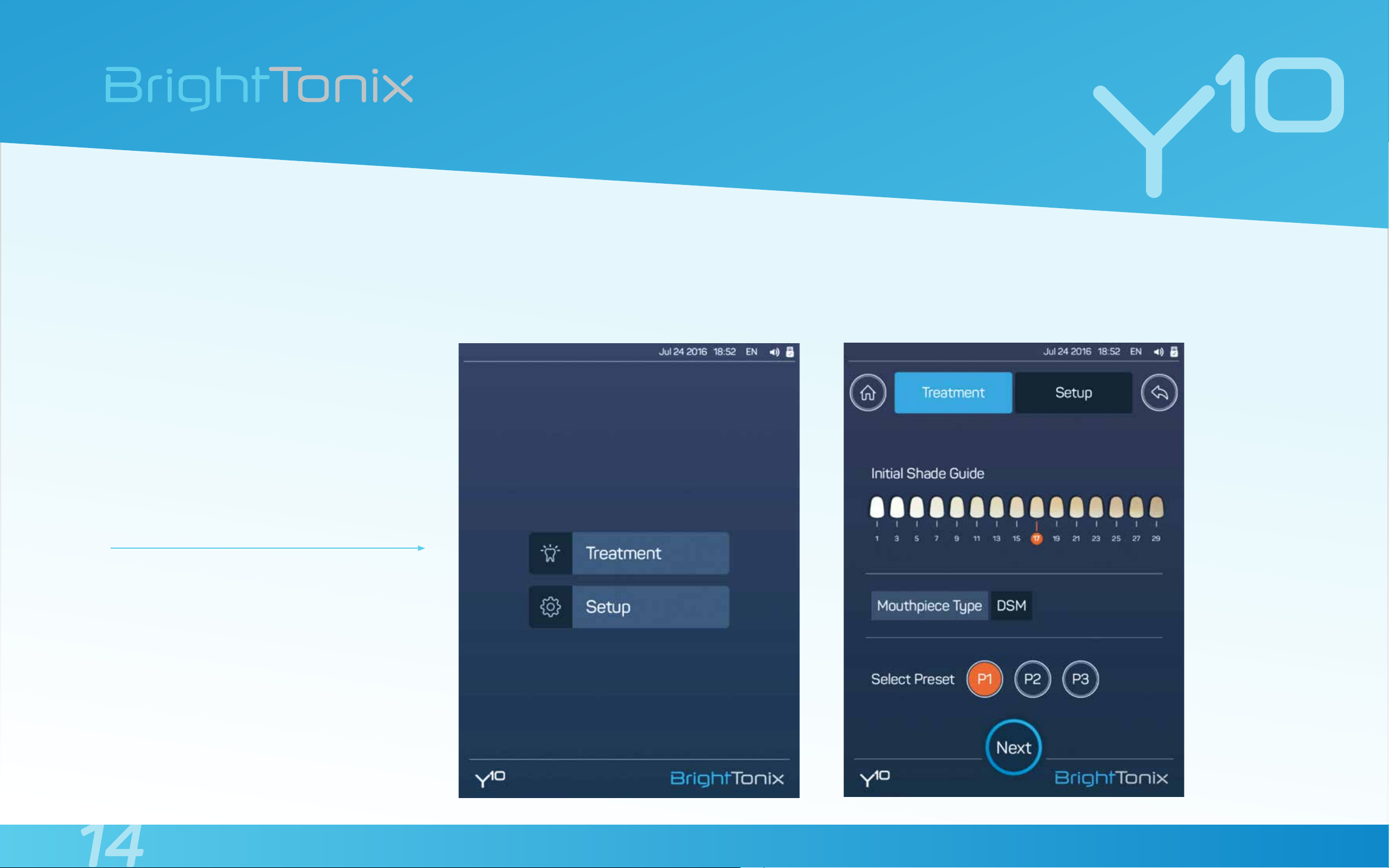

Press the ‘Treatment’ button
in the screen to customize
the system operations. The
Main treatment screen will
appear.
14
Step 7 Treatment Customization

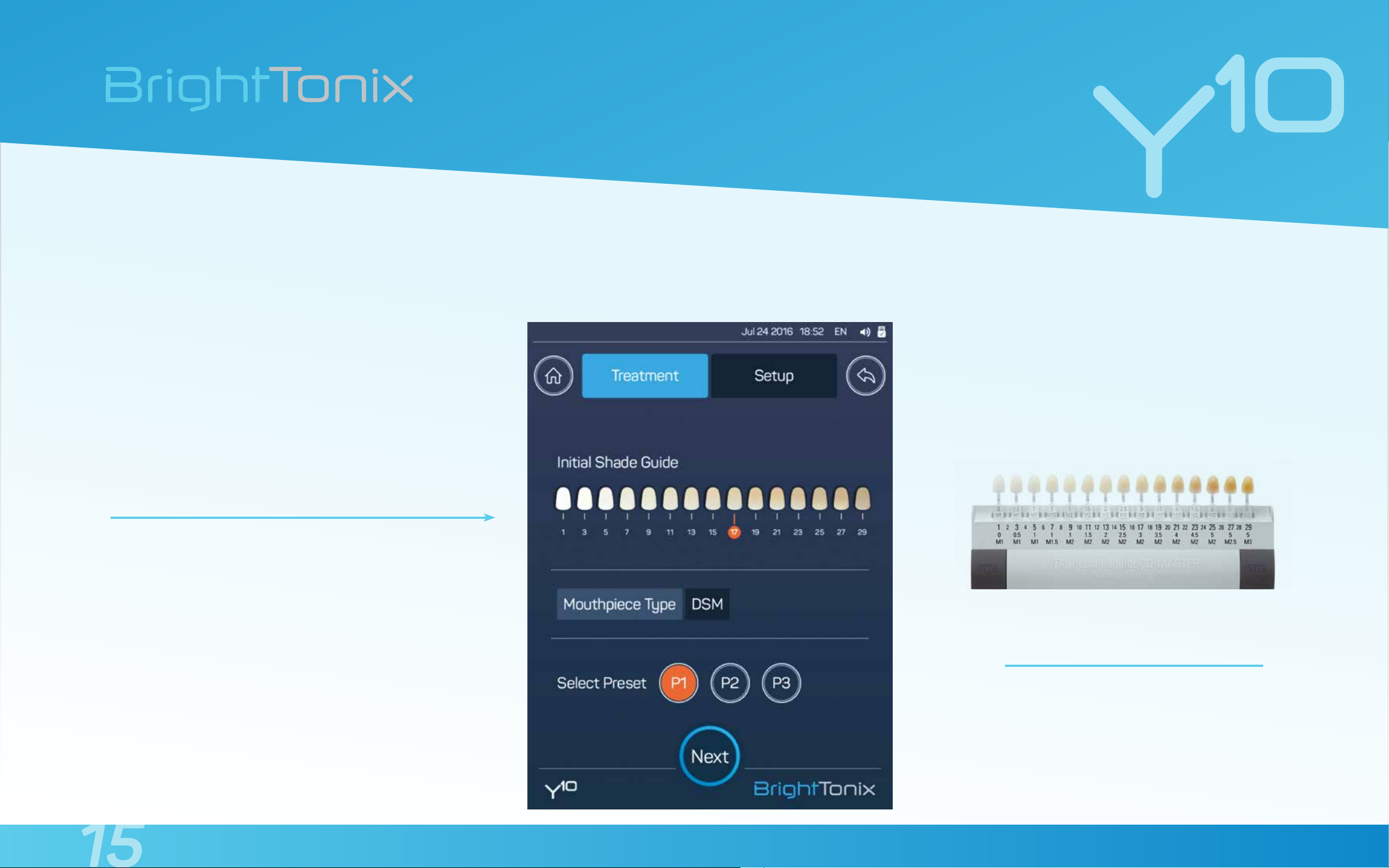

Select the client’s current
teeth shade and tap the
corresponding shade number
to highlight it.
NOTE: Hold the shade guide
approximately 10-50cm from
the open mouth of the client to
determine the shade.
VITA Bleachedguide 3D-MASTER
15
Step 8 Shade Selection

Medium energy treatment,
20-minute duration.
High energy treatment,
30-minute duration.

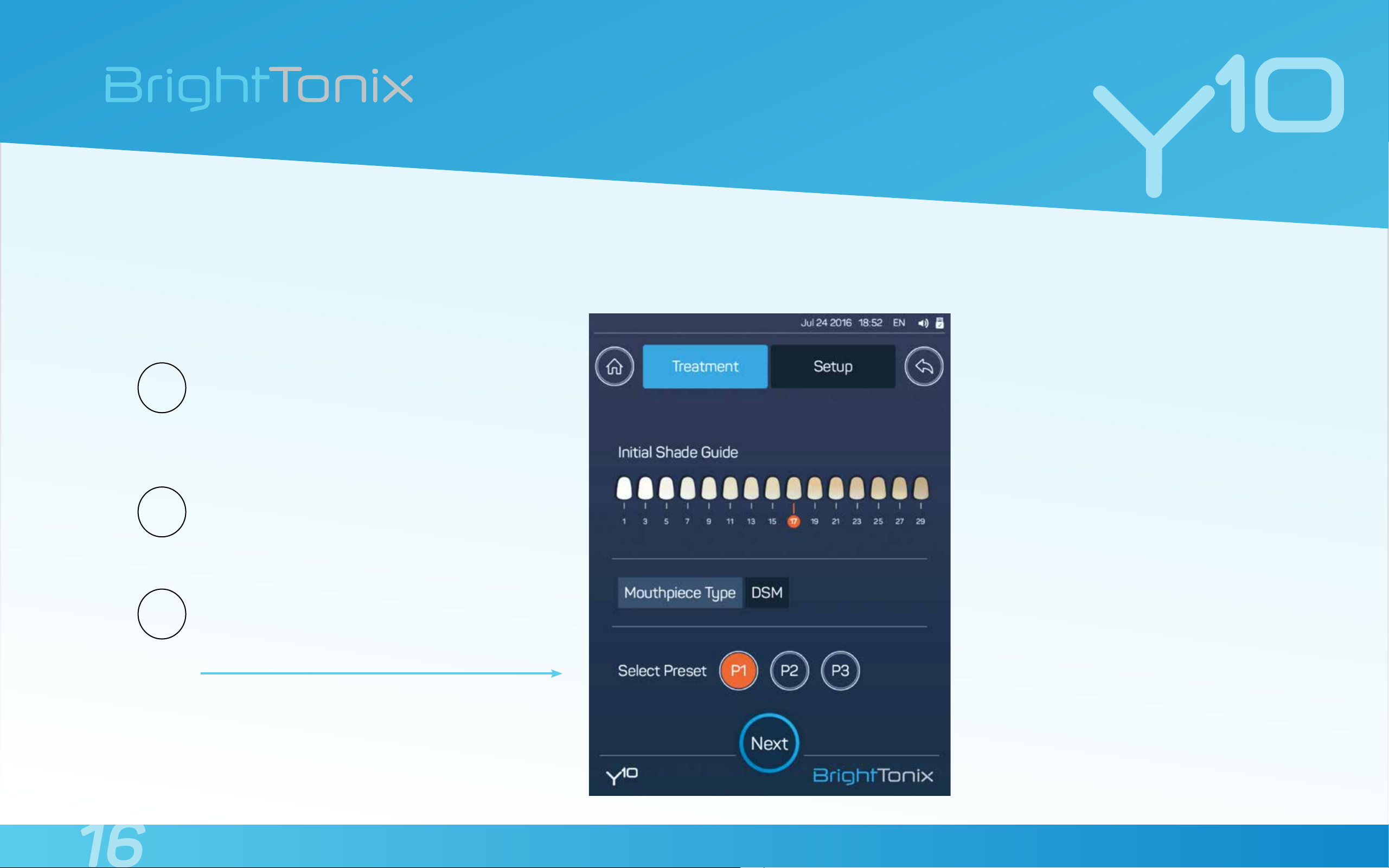

Select a treatment Preset:
Low energy treatment, 15-minute
duration (automatically selected
as default).
P2
P3
P1
16
Step 9 Preset Selection

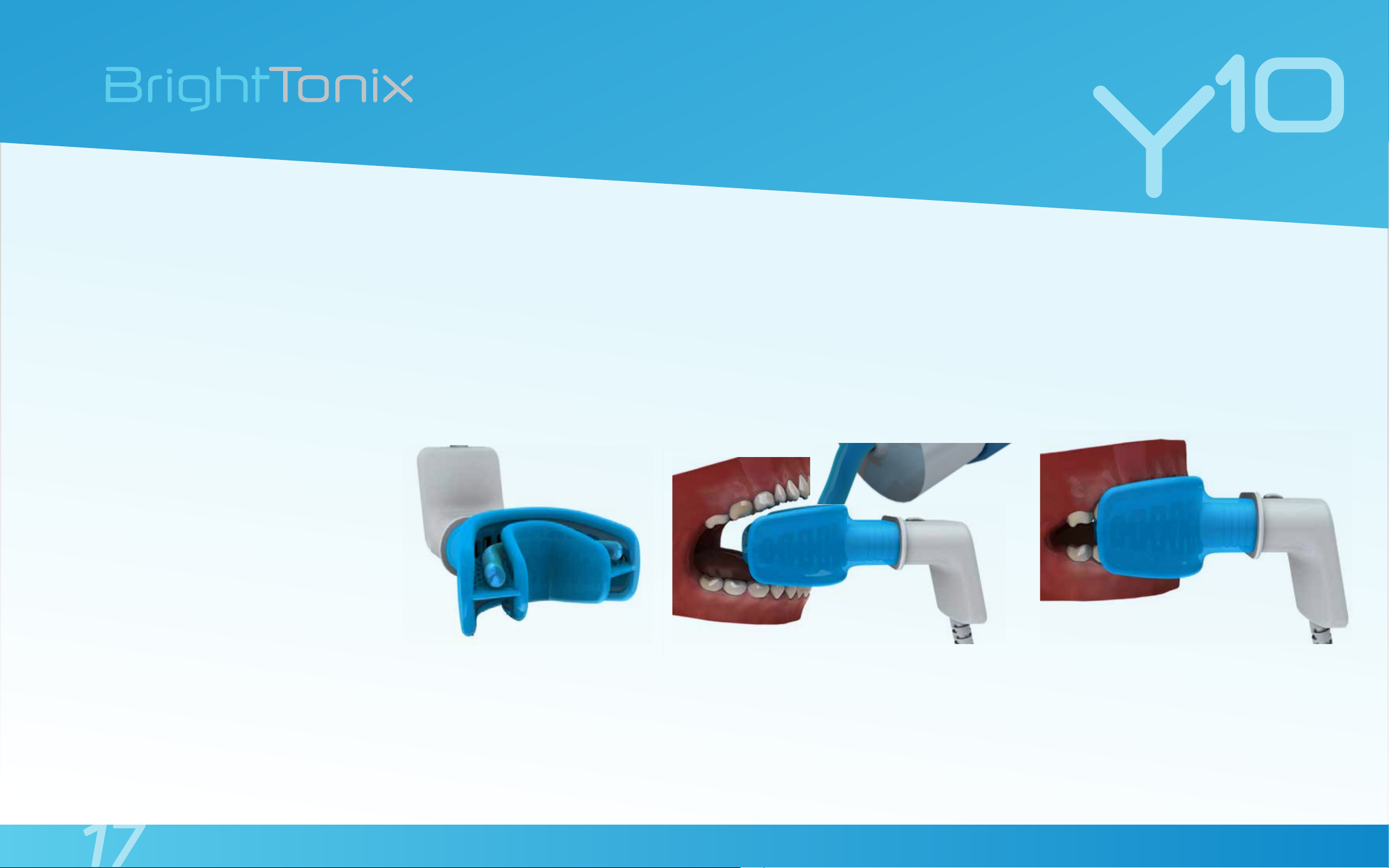

A-Apply the Y10 toothpaste
to the mouthpiece
generously on the bottom
side of the mouthpiece.
B-While placing the
mouthpiece in the
patient’s mouth, apply the
toothpaste to the top side
of the mouthpiece.
C-Make sure the
mouthpiece is secured on
the patient’s mouth.
A-Bottom side
Application
B-Top side
Application
C-Mouthpiece
Securing
17
Step 10 Toothpaste Application

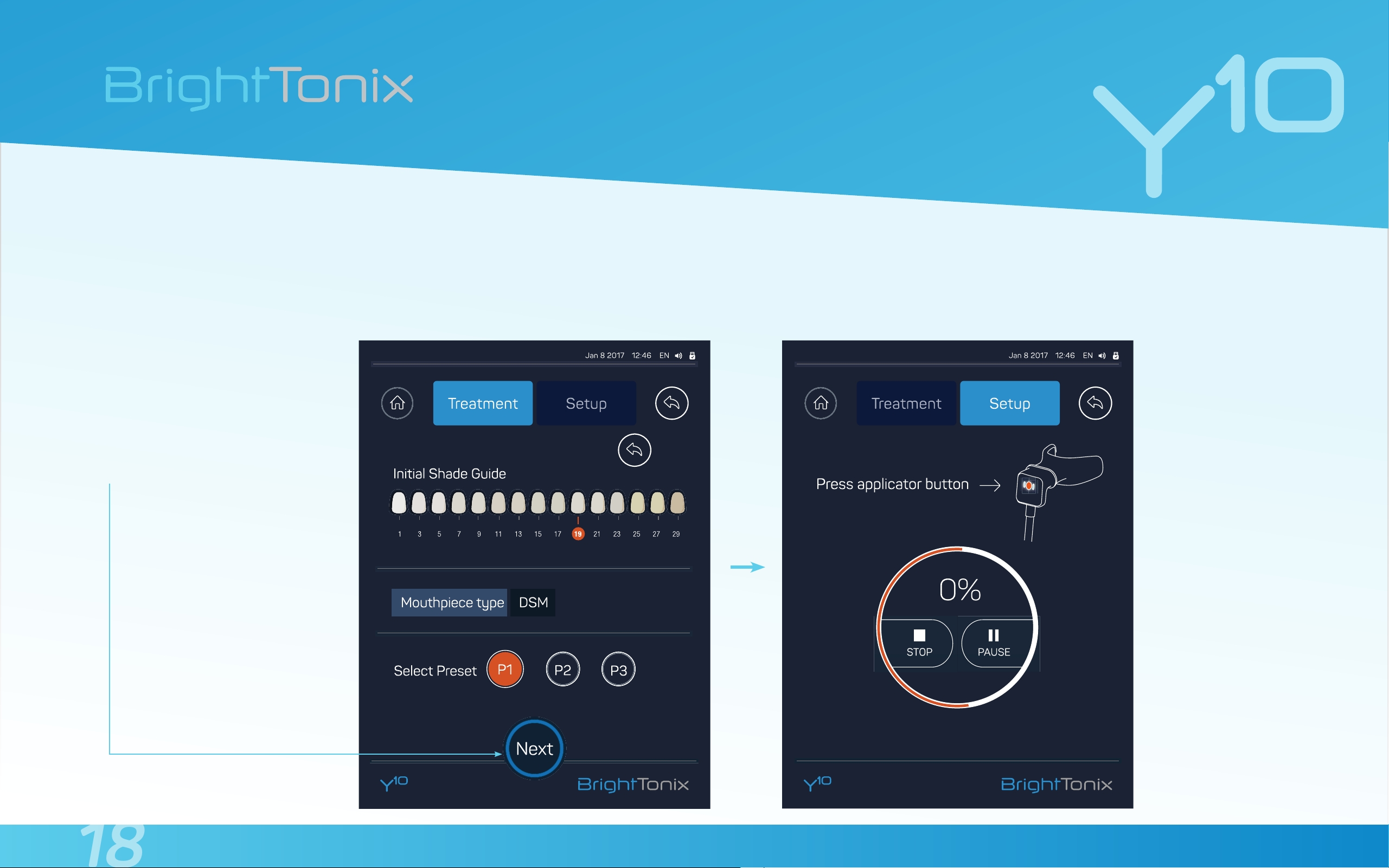

Press the ‘Next’
button, the
Treatment screen will
appear.
18
Step 11 Preparation

Tap the applicator
button to commence
treatment, a
percentage progress
dial will count from
zero to 100% to
show the treatment
progress.
NOTE: If the customer
reports discomfort,
at any time you may
press the ‘Pause’
button to interrupt the
treatment. To continue,
press ‘Resume’. Tapping
the ‘Stop’ button
will terminate the
treatment completely
without the ability to
resume it.
19
Step 12 Performing the Treatment

Once the percentage progress dial
reaches 100%, the treatment light
will extinguish and the screen will
be displayed.

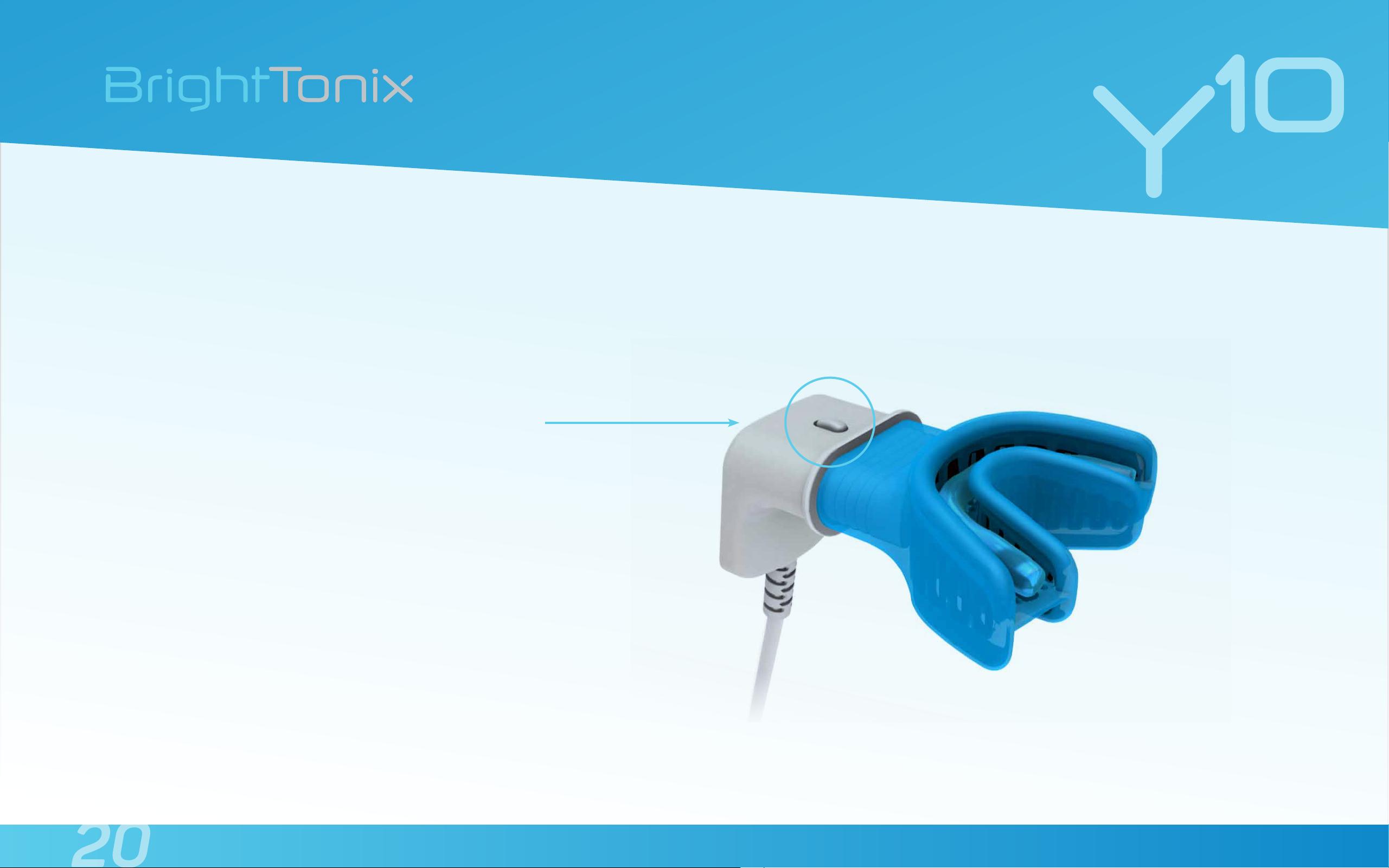

Press the button at the top of the
mouthpiece to safely remove the
applicator from the mouthpiece.
Remove the mouthpiece from the
patient's mouth and allow him to
wash his mouth with water.
20
Step 13 Treatment Termination
