Brightwell Bright-time User manual

BRIGHTFLOW CHEMICAL DISPENSING SYSTEMS
®
B926 (v1.0)
4 CHANNEL REAL TIME CLOCK
®

2
Operation
•Bright-time is a waterproof, 4 channel, real time clock
•Each channel may be programmed with up to 8 timing entries
•The timing entries may be programmed to operate in a continuous
‘TIMED’ mode or a pulsed ‘CYCLIC’ mode
•The 4 outputs can be individually selected to be used as ‘volt free’ (Max
6A) contacts or to give a 24V DC output (Max 0.7A, 16W)
•The volt-free contact option gives ‘normally open’ connections
•When the channels are not programmed to be ON, or they are
DISABLED, or the unit is not powered, then the relays are in a normally
open state

3
NO C GND
CH1 CH2 CH3 CH4
NO C GNDNO C GNDNO C GND
~230V
Installation Diagram
(1)
(2)
+24V
0V
NO C GND
CH1 CH2 CH3 CH4
NO C GNDNO C GNDNO C GND

4
(1) Wiring
LNE NOCGND
CH1 CH2 CH3 CH4MAINS IN
G756-3
NO C GNDNO C GNDNO C GND
BRIGHTWELL DISPENSERS
~230V L N E
24VDC 0V 24VDC 0V 24VDC 0V 24VDC 0V
NO - + 24VDC when ON
C - N/A
GND - Ground
With the links in place, the relevant outputs will supply 24V DC
Channel 1 - LK1 & LK2
Channel 2 - LK3 & LK4
Channel 3 - LK5 & LK6
Channel 4 - LK7 & LK8
Links in
place

5
(2) Wiring
LNE NOCGND
CH1 CH2 CH3 CH4MAINS IN
G756-3
NO C GNDNO C GNDNO C GND
BRIGHTWELL DISPENSERS
~230V L N E
NO C NO C NO C NO C
NO - Normally open
C - Common
GND - N/A
With the links removed, the relevant outputs will be set to operate as zero
volt contacts
Channel 1 - LK1 & LK2
Channel 2 - LK3 & LK4
Channel 3 - LK5 & LK6
Channel 4 - LK7 & LK8
Links
removed

6
Programming Instructions
Shown above are the default screens available when in
operating mode. Either screen can be selected using the
+ and - keys. The second screen shows the current state
of each channel.
E = Enabled D = Disabled O = Over-ridden
Press the Accept key to enter the program mode menu.
Scroll through the menu using the + and - keys.
Select the required option by pressing the Enter key.
PROGRAM MODE
Program channel View channel
PROGRAM MODE PROGRAM MODE
Clear timing entries
PROGRAM MODE
Enable channel
View total time
PROGRAM MODE
PROGRAM MODE
Set up system
Wednesday
BRIGHTWELL
14:52:02
Tel:[phone]
Channel 1 E
Channel 2 E
Channel 3 E
Channel 4 E
PROGRAM MODE
Program channel

7
Using the + and - keys, select the Channel that you wish
to program.
Using the + and - keys, select the Timing entry that you
wish to program.
PROGRAM MODE
Program channel
Channel 1
PROGRAM MODE
Program channel
Channel 1
Entry 1
Program channel, Clear timing entries and Set up system options will require a PIN number
before allowing access.
Programming Timing Entries (access code protected)
Program channel
PROGRAM MODE
Enter PIN number
0---
When selecting one of these options, the following screen
will be displayed.
Use the + and - key to enter your 4 digit access code and
press the ACCEPT key to move on.
During programming, the access code will only be
required to be entered once, until Program Mode is exited.
This is done by pressing the ESCAPE key.
Mode; TIMED (Continuous);
CYCLIC (Pulsed)
Channel/Entry Number
Operational Days
Start time; HRS:MIN
Run duration; HRS:MIN:SEC
ON=00:00:00/00:00:00
START M------ 00:00
Edit 1/1 CYCLIC
DURATION 00:00:00 CYCLIC mode only
CYCLE ON time;
HRS:MIN:SEC CYCLE OFF time; HRS:MIN:SEC
Timing entry programming screens

8
•Using the + and - keys, select the mode that you wish the channel entry to operate in,
TIMED or CYCLIC
•Select the days of operation (a selected day is shown by its corresponding letter, a
non-selected day is shown by a dash)
•Program the various settings, pressing the ACCEPT key to move on (Each setting will
flash in turn to prompt adjustment). Press the ESCAPE key to jump back if a mistake
is made
•On completion ‘SAVE?’ Will flash in the top left-hand corner. Press ACCEPT to save
the settings. ‘Please Wait’ will be displayed briefly whilst the information is stored.
WARNING
For safety, saving
will turn off
Channel 1/1
If the programmed entry is currently active then it will
revert to an off state once edited. This warning screen is
displayed, and must be accepted, before the entry is
switched off.
Mode; TIMED (Continuous);
CYCLIC (Pulsed)
Channel/Entry Number
Operational Days
Start time; HRS:MIN
Run duration; HRS:MIN:SEC
START M------ 00:00
Edit 1/1 TIMED
DURATION 00:00:00
Viewing Timing Entries
Using the + and - keys, select the Channel that you wish
to view.
Using the + and - keys, scroll through the 8 timing entries
of the chosen channel.
Channel 1
View channel
PROGRAM MODE
ON=00:00:00/00:00:00
START M------ 00:00
View 1/1 CYCLIC
DURATION 00:00:00

9
Clearing Timing Entries (access code protected)
Using the + and - keys, select the Channel that you wish
to clear.
Press ACCEPT to clear ALL the timing entries of the
chosen channel.
PROGRAM MODE
Clear timing entries
Channel 1
PROGRAM MODE
Clear timing entries
Channel 1
Please wait
Enabling and Disabling Channels
Using the + and - keys, select the Channel that you wish
to ENABLE/DISABLE.
PROGRAM MODE
Enable channel
Channel 1
Using the + and - keys, select the Channel to be
ENABLED or DISABLED.
Currently ENABLED
CHANNEL 1
The DISABLE function will stop a channel from operating without the need to
clear the programmed timing entries. Note that a DISABLED channel cannot be
OVER-RIDDEN.

10
The total run time will be displayed along with the date
and time that it was last reset.
EXIT
SINCE --/--/-- --:--
CHANNEL 1 TOTAL TIME
=----Hrs --min --sec
Viewing Total run time
Using the + and - keys, select the Channel that you wish
to view the total run time of.
View total time
PROGRAM MODE
Channel 1
Using the + and - keys, select CLEAR to reset the Total
run time.
CLEAR
SINCE --/--/-- --:--
CHANNEL 1 TOTAL TIME
=----Hrs --min --sec
Using the + and - keys, set the current time and date,
pressing ACCEPT to move on.
PROGRAM MODE
Set up system
Edit date and time
00:00 dd/mm/yy
Setting the day, date and time (access code protected)
Press ACCEPT to edit the date and time.
Using the + and - keys, select the current day and then
press ACCEPT.
PROGRAM MODE
Set up system
Edit date and time
PROGRAM MODE
Set up system
Edit date and time
Monday
WARNING
For safety, saving
will turn off
All Channels
Any active channels will revert to an off state when the
date and time are edited. This warning screen is
displayed, and must be accepted, before any channels
are switched off.
To clear total run times

11
Over-riding a Channel
Press the OVER-RIDE key to enter the OVER-RIDE
menu.
Using the + and - keys, select channel 1 to 4, or all
channels.
Once a channel has been OVER-RIDDEN, it will be
indicated by a O in the right-hand column. Any
DISABLED channels will be indicated by a D and cannot
be OVER-RIDDEN.
The OVER-RIDE facility allows any one, or all of the channels to be reversed in state. If
the channel is ON, then it will be switched OFF and if the channels is OFF, then it will be
switched ON.
An OVER-RIDDEN channel will only remain in this state until the next programmed ON/
OFF time.
The OVER-RIDE feature only works from the default screens.
Wednesday
BRIGHTWELL
14:52:02
Tel:[phone]
E
Channel 1 E
OVERRIDE MENU E
E
E
Channel 1 E
OVERRIDE MENU O
E

12

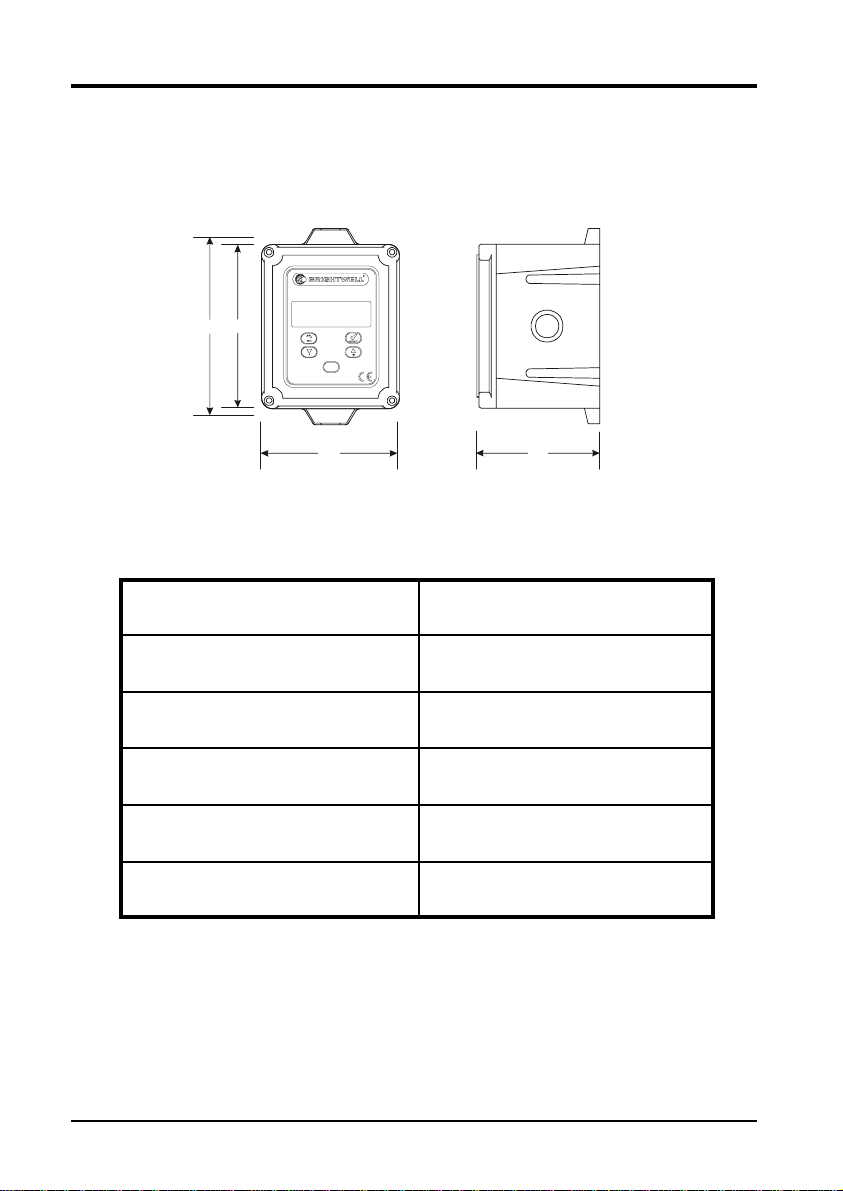

Specification
Enclosure: IP66M ABS
Supply: ~230V 50/60Hz
Fusing: T400mA
Maximum Outputs: Volt free - 250V 6A
DC - 24V DC 0.7A
Clock Accuracy: ±4 Min/Yr
Approvals: EMC 89/336/EEC - EN50081-1:EN50082-1
LVD 72/23/EEC - EN60335-1
OVER-
RIDE
132
157
169
115

13

14

15

HEAD OFFICE
Brightwell Dispensers Ltd
Brightwell Industrial Estate
Norton Road
Newhaven
BN9 OJF
UK
All Orders: [phone]
Sales: [phone]
Fax: [phone]
BENELUX & GERMAN OFFICE
Brightwell Dispensers Ltd
Lonneker Steumke 21
Enschede
NL-7524 DN
The Netherlands
Sales: [phone]
Fax: [phone]
www.brightwell.co.uk
[e-mail]
2000 Brightwell Dispensers Ltd. All rights reserved.C
