BroadMobi R520 User manual

R520
1
R520 Wireless Router&Access Point

R520
2
User Manual
目录
Chapter 1：Product Overview..........................................................................................................4
1.1 Introduction.........................................................................................................................4
1.1.1 Key Features ............................................................................................................4
1.1.2 Product Layout.........................................................................................................5
Chapter 2：Quick Setup Guide.........................................................................................................8
2.1 System Requirements..........................................................................................................8
2.1.1 R520 Placement .......................................................................................................8
2.2 Network Setup.....................................................................................................................9
2.2.1 WAN Setting ............................................................................................................9
2.2.2 3G/4G Setting ..........................................................................................................9
Chapter 3：Product Setting............................................................................................................11
3.1 Configuration wizard ........................................................................................................11
3.1.1 TCP/IP Setting........................................................................................................11
3.1.2 Log In.....................................................................................................................12
3.2 Home.................................................................................................................................12
3.3 Wizard ...............................................................................................................................13
3.4 WAN ..................................................................................................................................15
3.4.1 Connection .............................................................................................................15
3.4.2 Wan Setting ............................................................................................................15
3.4.3 APN Setting ............................................................................................................17
3.4.4 4G/3G/2G Modem .................................................................................................18
3.4.5 PIN..........................................................................................................................18
3.4.6 PLMN......................................................................................................................19
3.5 LAN ....................................................................................................................................19
3.5.1 LAN .........................................................................................................................19
3.5.2 DHCP ......................................................................................................................20
3.6 SMS ...................................................................................................................................21
3.7 WiFi ...................................................................................................................................21
3.7.1 Basic .......................................................................................................................21
3.7.2 WPS ........................................................................................................................22
3.7.3 MAC Filter...............................................................................................................25
3.7.4 Station List..............................................................................................................25
3.8 Security.............................................................................................................................26
3.8.1 Firewall ...................................................................................................................26
3.8.2 NAT .........................................................................................................................27
3.8.3 DMZ........................................................................................................................28
3.9 System...............................................................................................................................29
3.9.1 About......................................................................................................................29
3.9.2 Voice Setting...........................................................................................................29

R520
3
3.9.3 Qos .........................................................................................................................30
3.9.4 Configuration..........................................................................................................31
3.9.5 Firmware Upgrade..................................................................................................31
3.9.6 Antenna..................................................................................................................32
3.9.7 Password ................................................................................................................32
3.9.8 Date and Time ........................................................................................................33
3.9.9 Language ................................................................................................................33
3.9.10 Reboot..................................................................................................................34
AppendixⅠ:....................................................................................................................................35
Appendix II:....................................................................................................................................36
Appendix III:...................................................................................................................................38

R520
4
Chapter 1：Product Overview
1.1 Introduction
Thanks for purchasing R520 broadband router. This router, equipped with the latest 4G and
Wireless-N technology, is a full function network equipment. It can support you to freely access
network connection in different occasions, such as meeting, exhibition, factory, or home. When
using SIM card to access network, you could also make phone calls or send text messages
simultaneously. R520 has extraordinary performance, and is very easy to use and manage. It
supports multiple devices sharing one broadband link and ISP account, to offer you great
convenience and cost efficiency. In the meanwhile, it provides multiple management functions, to
configure system, DHCP server, firewall, static route table. R520 broadband router is easy to
configure, so non-professionals could configure the device. Before you start to configure R520,
please read this user guide, to fully understand the functions of R520.
1.1.1 Key Features

R520
5

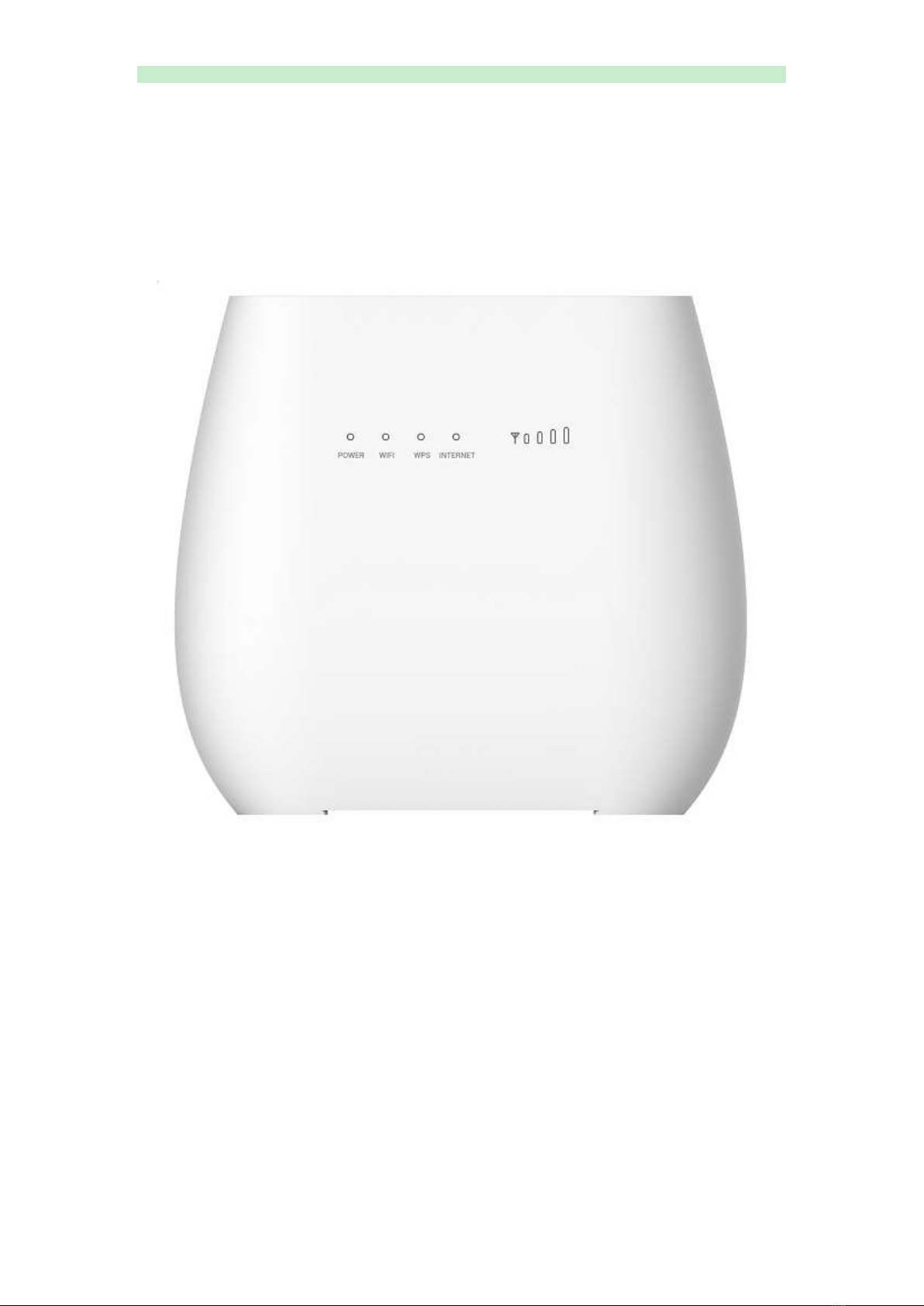

1.1.2 Product Layout

R520
6

R520
7
Number
LED
Description
1
Power
A blink green light indicates a proper connection to the power
supply
2
WIFI/WPS
1. Light up in green when WIFI is enabled;
2. Blink slowly when data transfer;
3. Blink quickly when WPS is enabled
3
LAN
For the LAN connection will shine.
4
Internet
Light up in green when Internet is enabled. Blink when data
transfer.
5
Signal
Show signal strength.
Number
Connections
Description
6
Power
Turn on/off the router.
7
Power Adapter
Connect Power to DC-Jack 12V/1A Power Adapter. Using power
supplies with a different voltage from the one included with the
R520 will cause damage and void the warranty.
8
LAN
LAN ports provide connections to Ethernet enabled devices.
9
WAN/LAN
If the WAN is set to the WAN Mode, will be as the WAN
interface, you can dial the DSL module; If WAN set to LAN
MODE, will be a LAN interface
10
TEL
Connect the telephone

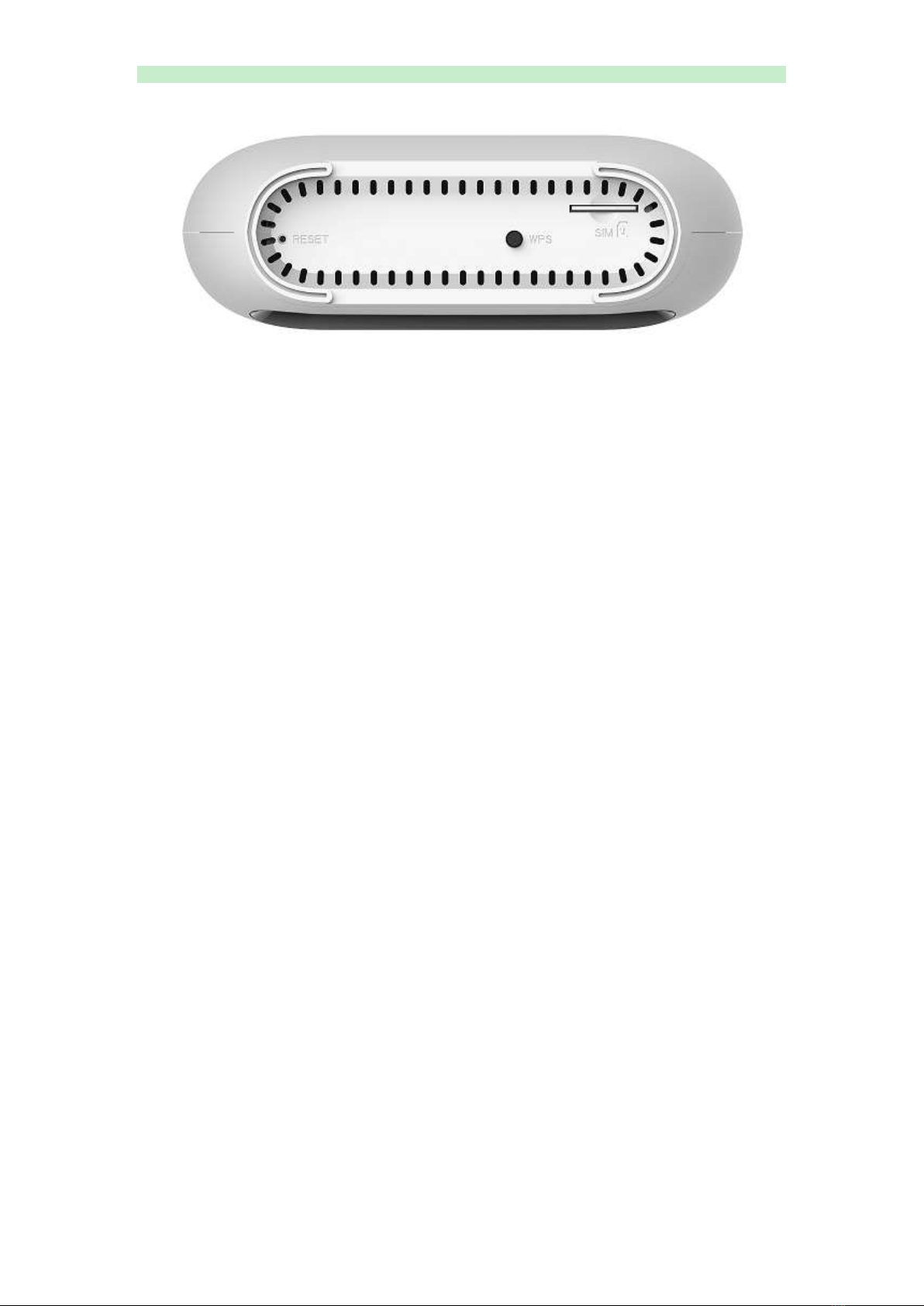

Number
Connections
Description
11
RESET
Press the reset button 3 seconds to restore the device to its factory
default settings.
12
WPS
Click this button to start WPS encryption.
13
SIM
Insert SIM card to automatically identify registration

R520
8
Chapter 2：Quick Setup Guide
2.1 System Requirements
EthernetADSL/Cable with an Ethernet port (RJ-45) ORInternet SIM card
Computer with Windows, Macintosh, or Linux-based operating system with an installed
Ethernet adapter.
Internet Explorer version 8.0 or above, Google Chrome, Safari, Firefox, Opera.
2.1.1 R520 Placement
You can place R520 on a desk or other flat surface. Please keep R520 away from heating. For
optimalperformance, please place your R520 in the center of your home (office), in a location that
is away from any potential interference source, such as metal walls or microwave oven.

R520
9
2.2 Network Setup
2.2.1 WAN Setting
1) Connect Ethernet cable between your PC/Notebook and one of the four available LAN ports
on R520.
2) Connect Ethernet cable between WAN ports of your ADSL/CABLE modem and WAN port
of R520. Please make sure your ADSL/CABLE modem is working properly. Contact your
ISP if you have any question.
3) Power up R520.
2.2.2 3G/4G Setting
When using SIM card to access network, you could also make phone calls or send text messages.

R520
10
1) Insert SIM card into the port.
(Attention:the SIM card can support the function of plugging during the operation of the
equipment.)
2) Power up R520. Press Power button,then front panel will light up and remain stable.

R520
11
Chapter 3：Product Setting
3.1Configuration wizard

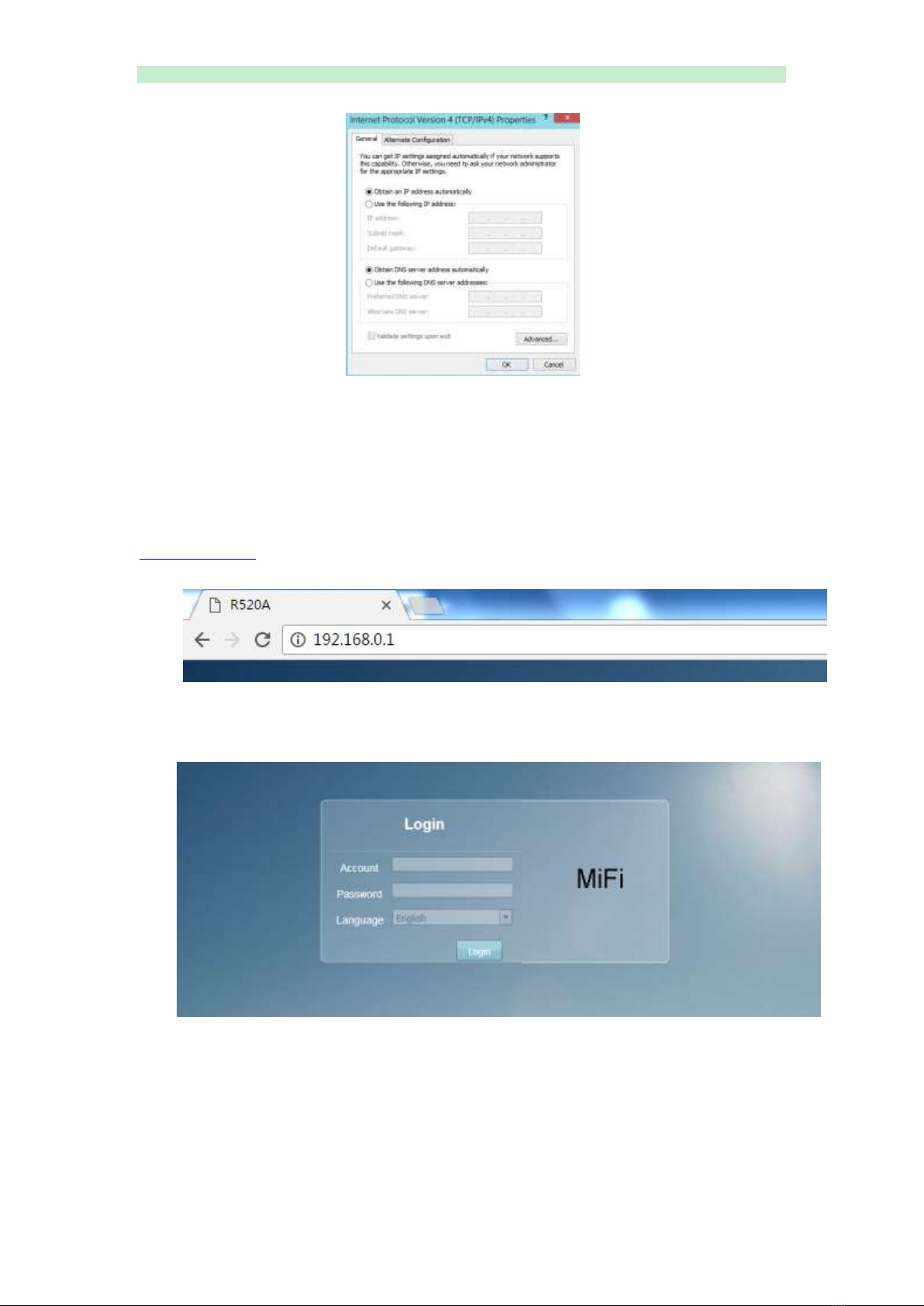

3.1.1 TCP/IP Setting
Enter [Start Menu]—Select [Control panel]—Select [Network]—Select [Local Area
Connection]—Select [Properties]
Select[Internet Protocol (TCP/IP)]—Click[Properties]
R520 supports [DHCP] function, please select both [Obtain an IP address automatically] and
[Obtain DNS server address automatically].

R520
12
3.1.2 Log In
Whenever you want to configure your network or the R520, you can access the Configuration
Menu by opening the web-browser and typing in the IP Address of the R520. For example,
http://192.168.0.1 Note: If you changed the default IPAddress assigned to the R520, make sure to
enter the correct IPAddress.
You will go to the overview and log in page. The Factory default user name and password
are admin. It is recommended to change the admin password for security purpose. Please
refer to Administrator Settings to change the admin password.

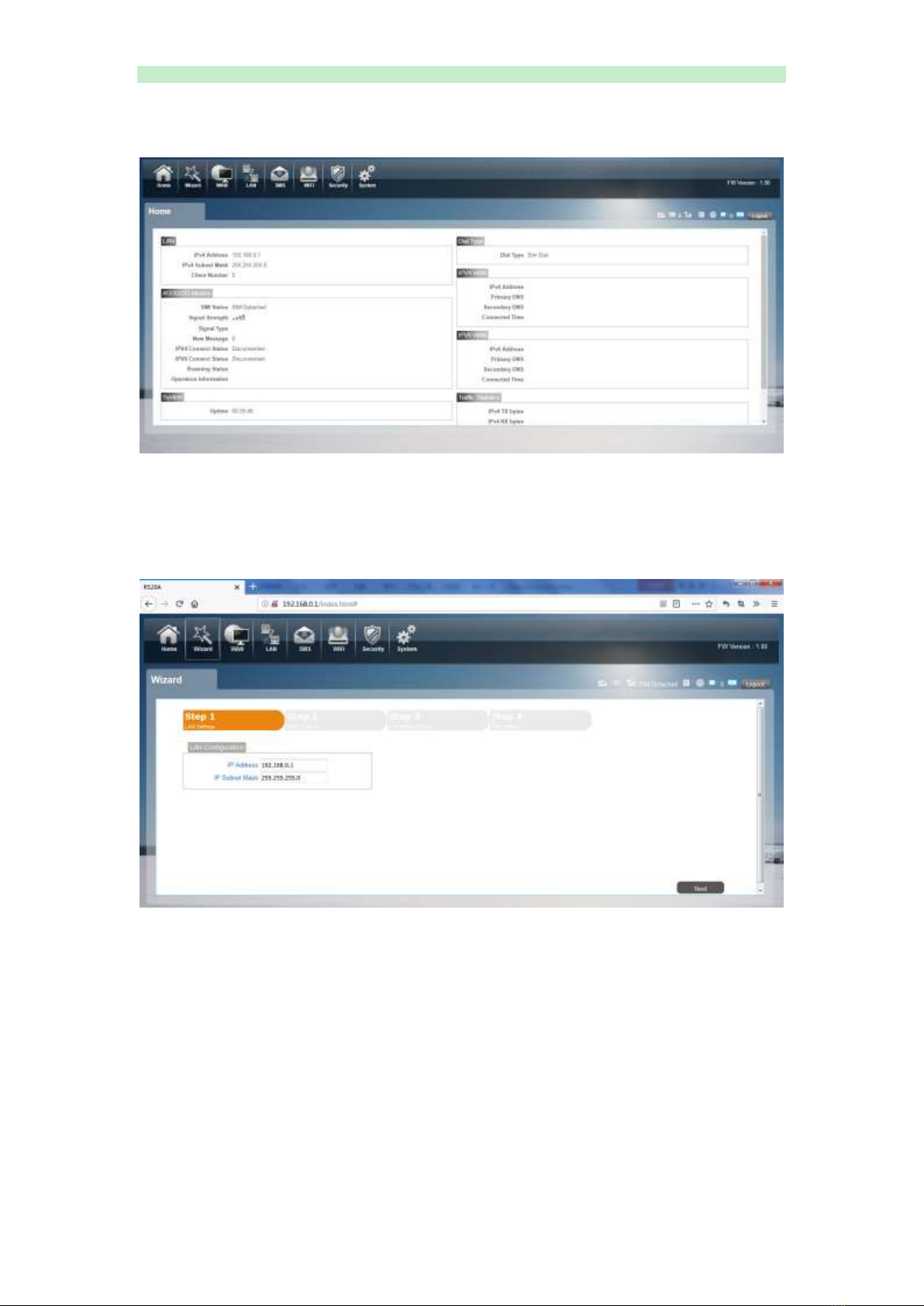

3.2 Home
First part of the main display settings and network status information, such as IPaddress, SIM
card status, type and quality of the network signal, whether it is roaming, with or without a new

R520
13
message, and traffic statistics,and system uptime, and so on.
3.3 Wizard

R520
14

R520
15
You can quickly change the lanconfiguration, set the APN ,ethernet settings , and
change the SSID \ password through the wizard function.
3.4 WAN
3.4.1 Connection
Dialing Mode:
Select theAutoMode, after you turn on R520 without additional operations, the device will
automatically connect to the network; select the Manual Mode, you need to manually connect to
the network after opening theR520 management page.
3.4.2 Wan Setting
Choose you Internet Access Type.

R520
16
If you choose WAN Mode,please select the type of internet connection for your router.
DHCP：A dynamic IP address connection that configures the router to automatically obtainIP
address from a DHCP server on the ISP‟s network.
Static Mode: Please enter the IP address information provided to you by your ISP. The Subnet
Mask for R520 is preconfigured to 255.255.255.0. Other configurations can be made, but not
recommended. This feature is for advanced users. Your ISP should alsoprovide the Default
Gateway, Primary DNS and Secondary DNS (optional).

R520
17
PPPoE: Please enter the PPPoE username and password assigned by your ISP. Choose the
Operation Mode; enable the Keep Alive option to automatically re-establish the connection when
an application attempts to access the Internet again. The On Demand Mode Idle Time is a
maximum period of time for which the Internet connection is maintained during inactivity. If the
connection is inactivate longer than the Maximum Idle Time, it will be dropped.
If you choose 3G/4G SIM card to access the network, please enter “APN”and
“Dial Number”,”Authentication”and all that at APN setting page, which are provided by
your mobile networkoperator.
3.4.3 APN Setting
You can customize the network configuration or manually add the newAPN and set defaultAPN.

R520
18

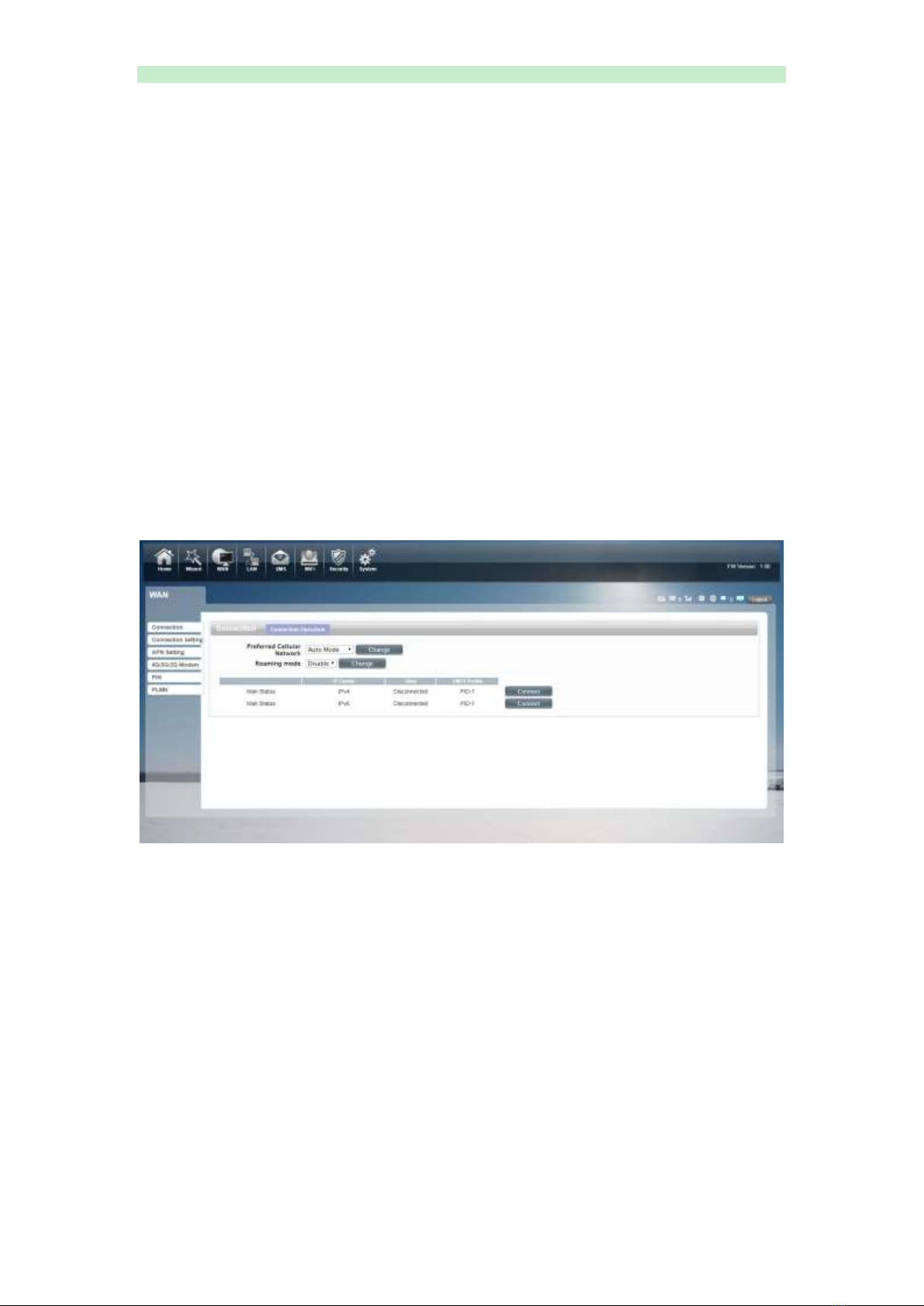

3.4.4 4G/3G Modem
There are four types of networks can be choose: Auto is 4G/3G, LTE Only is using only
4G, WCDMAOnly is using only 3G.

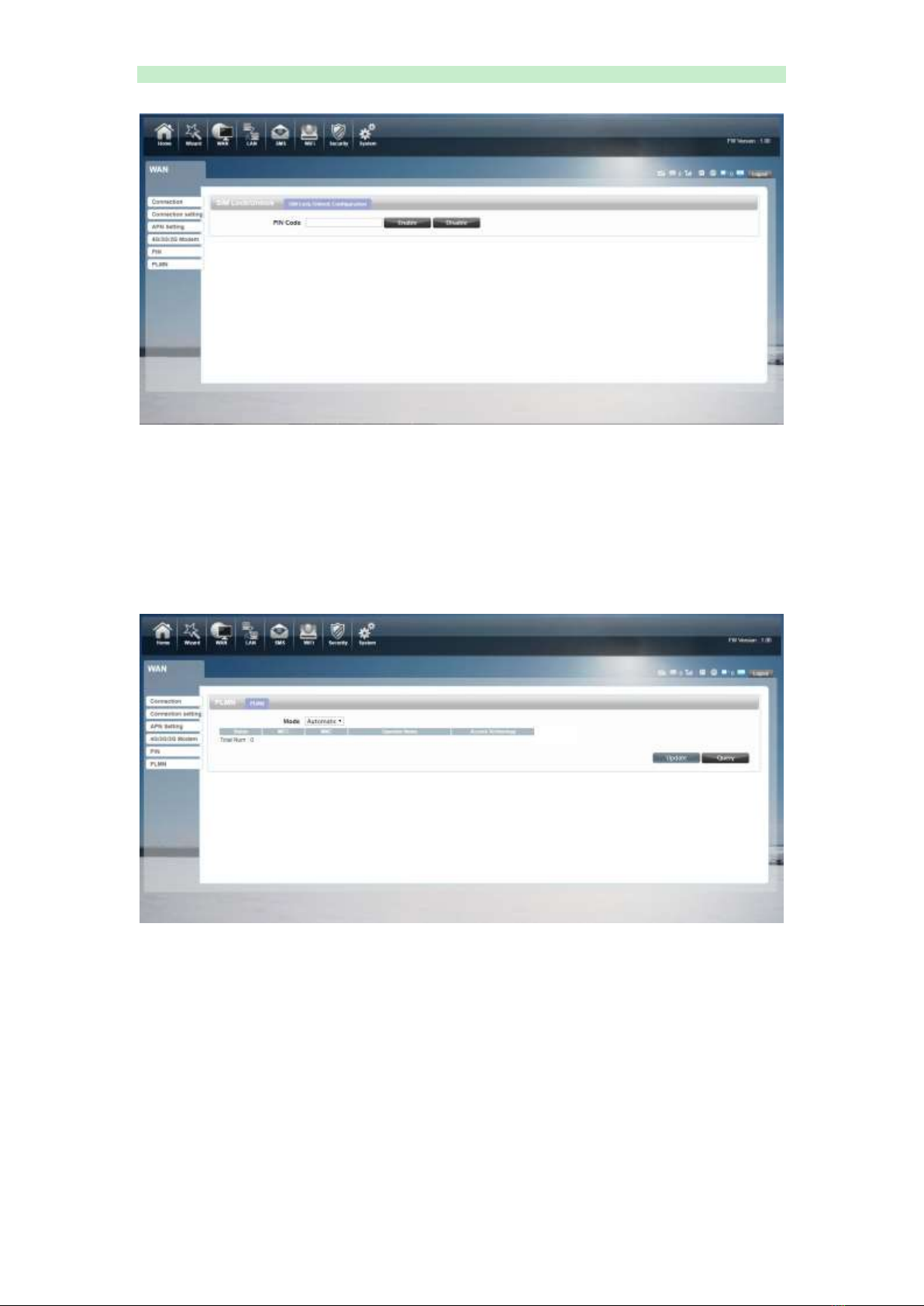

3.4.5 PIN
Open your PIN, if you reboot the device, you need to login management page, and the page
will prompted to enter the correct PIN code, you can use the SIM card. PIN / PUK code supplied
with the SIM card provided by your carrier, please consult your carrier.

R520
19
3.4.6 PLMN
Automatic：The R520 will automatically select the most appropriate network registration
connection.
Manual：click‘query’button and choose network which user selected.
3.5 LAN
3.5.1 LAN
You can configure the LAN port parameters here.
IPAddress: Set LAN IP address of the router.

R520
20
IP Subnet Mask: Set subnet mask of the router.
3.5.2 DHCP
You can configure the DHCP Settings parameters here.
Starting IPAddress&Ending IPAddress: The IP range obtained through DHCP by LAN host.
Lease Time: The time limit for the IP address configuration information obtained by the client
device at the DHCP server
