Broce FMJ470 Troubleshooting guide

FMJ470
Front Mount
4-Wheel Construction Sweeper
Broce Manufacturing Co. Inc. 1460 South 2nd Avenue Dodge City, KS 67801
PHONE [phone] FAX [phone] [email protected]m
M-F 7:00 AM-6:00 PM CST
1-866-283-2759
www.brocebroom.com
Operation & Maintenance

Broce Manufacturing Company, Inc.
WARRANTY REGISTRATION
Purchaser - Type of Business
Construction/Highway Rental Asphalt Contractor
Equipment Dealer Municipality Other
1. The Purchaser has been instructed and/or has read the manual and understands proper
preventive maintenance, operation and safety precautions.
2. The Warranty and Limitations of Liability are found in the Warranty pages enclosed in the
Parts and Operators Manuals.
3. BroceManufacturingCo.Inc.reservestherighttomakedesignchangesormodications
to Broce products at any time without incurring any obligation to make similar changes or
 modicationstopreviouslysoldunits.
4. If this Document is not signed and returned to Broce Manufacturing Co. Inc., the warranty
begins at the date of delivery to the Dealership.
I hereby acknowledge acceptance of above and conditions in the Warranty Policy
Purchaser/Owner: ___________________________________________________________
Dealer Representative: _______________________________________________________
Broce Manufacturing Co. Inc.
1460 South 2nd Avenue
Dodge City, KS 67801
[phone]
Purchased From (Dealership)
Company: _____________________________________________________
Address: _____________________________________________________
City: _________________________ State: ____ ZIP: ___________
Delivery Date to Dealer: ___ / ___ / ___ Unit Hours: _________________
Model Number: ________________ Serial Number: ______________
Purchaser
Company: _____________________________________________________
Address: _____________________________________________________
City: _________________________ State: ____ ZIP: __________
Delivery Date to Dealer: ___ / ___ / ___ Unit Hours: _________________

For a period of twelve (12) months or 1,000 hours whichever comes rst, from the date
of delivery of product to the original user, Broce Manufacturing of Dodge City, Kansas
warrants each product to be free from manufacturing defects, subject to the limitations
contained in this policy. This limited warranty covers parts and labor.
This warranty does not apply to defect caused, in whole or in part, by unreasonable use
while in the possession of the user, including, but not limited to, failure to properly set up
product, failure to provide reasonable and necessary maintenance, normal wear, routine
tune ups or adjustments, improper handling, accidents, operation at speed or load condi-
tions contrary to published specications, improper or insu󰀩cient lubrication, or improper
storage. This warranty is not a guarantee that the performance of each product will meet
the expectations of the purchaser.
Broce Manufacturing shall not be liable for consequential damage of any kind, including,
but not limited to: consequential labor costs or transportation charges in connection with
the replacement or repair of defective parts, lost time or expense which may have accrued
because of said defects. In no event shall Broce Manufacturing’s total liability hereunder
exceed the product purchase price.
Many components used by Broce Manufacturing are subject to the warranties of their
respective manufacturers. These warranties will be considered void if the product is mod-
ied or repaired in any way not expressly authorized, or if closed components are disas-
sembled prior to return. Closed components include, but are not limited to gearboxes,
hydraulic pumps, motors, cylinders and actuators.
Our obligation under the warranty is expressly limited, at our option, to the replacement or
repair at Broce Manufacturing of Dodge City, KS or at a service facility designated by us.
We are not responsible for unauthorized repairs or replacements. Any implied or statutory
warranties, including any warranty of merchantability or tness for a particular purpose,
are expressly limited to duration of this written warranty. We make no other express war-
ranty. This warranty cannot be extended, broadened, or changed except in writing by an
authorized o󰀩cer of Broce Manufacturing.
BROCE BROOM LIMITED TWELVE-MONTH WARRANTY
Broce Manufacturing Co. Inc.
1460 South 2nd Avenue
Dodge City, KS 67801
[phone]
BROCE MANUFACTURING COMPANY

NOTICE: THIS VEHICLE DOES NOT CONFORM TO ALL
SAFETY AND EMISSIONS STANDARDS APPLICABLE TO
ON-ROAD VEHICLES IN THE UNITED STATES.
OPERATOR QUALIFICATIONS
Operation of this equipment shall be limited to competent and experienced persons.
In addition, anyone who will operate or work around this equipment must use good
common sense. In order to be qualied, he or she must also know and meet all
other requirements, such as:
1. Some regulations specify that no one under the age of 16 may operate
power machinery. It is your responsibility to know what these regulations
are in your area or situation.
2. Current OSHA regulations state in part: “At the time of initial assignment
and at least annually thereafter the employer shall instruct EVERY
employee in the safe operation of servicing of all equipment with which the
employee is or will be involved.”
3. Unqualied persons are to STAY OUT of the work area.
4. A person who has not read and understood all operating and safety
instructions is not qualied to operate the machinery.
FAILURE TO READ THIS MANUAL AND ITS SAFETY INSTRUCTIONS
IS A MISUSE OF THE EQUIPMENT AND WILL VOID FACTORY WARRANTY.
SIGN OFF SHEET
As a requirement of OSHA, it is necessary for the employer to train the employee in
the safe operation and safety procedures with this equipment. We include this sign
o󰀨 sheet for your convenience and personal record keeping.
Date Employer’s Signature Employee’s Signature

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
8
BROCE FMJ470
SAFETY PRECAUTIONS ...........................................................10-12
MACHINE SPECIFICATIONS ....................................................13-14
MACHINE OPERATIONS
CONTROLS ..........................................................................15
INSPECTION ........................................................................16
STARTUP PROCEDURE .....................................................17
SWEEPING CORE...............................................................18
BROOM.................................................................................19

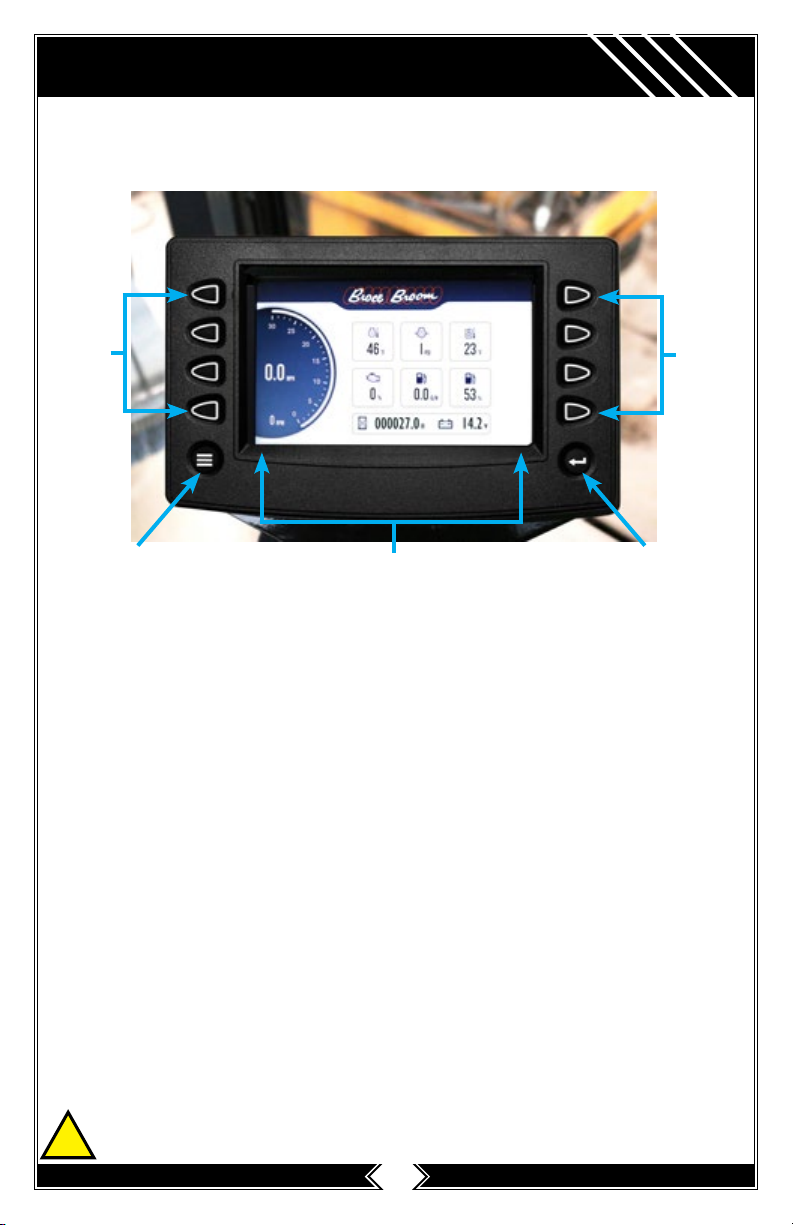

DISPLAY SCREEN
BUTTON NAVIGATION........................................................20
SCREENS........................................................................21-23
HYDRAULIC TEMP SCREEN.........................................24-25
HYDRAULIC SYSTEM................................................................27-30
MAINTENANCE
ENGINE AIR CLEANER.......................................................31
CABIN AIR CLEANER.........................................................32
SERVICE SCHEDULE..........................................................33
RADIATOR & HEAT EXCHANGER.....................................34
LUBRICATION.................................................................35-36
LUBRICATION CHART........................................................37
FASTENERS, CORE DRIVE, ETC......................................38
ENGINE, TIRE.....................................................................39
AIR CONDITIONER PREVENTIVE......................................40
TROUBLESHOOTING- A/C SYSTEM.................................41
TABLE OF CONTENTS

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
9
BROCE FMJ470
A/C WARRANTY..............................................................................42
BROOM WAFER REPLACEMENT.............................................43-44
TROUBLESHOOTING................................................................45-48
SCHEMATICS (Wiring Diagram).................................................49-51
SCHEMATICS (Hydraulic Diagram)............................................52-56
TABLE OF CONTENTS

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
10
BROCE FMJ470
SAFETY PRECAUTIONS
1. Keep all shields in place.
2. Stop machine, turn o󰀨 engine and remove key to repair or clean.
3. Keep hands, feet, and clothing away from power driven parts.
4. Keep o󰀨 of machinery unless a platform is provided.
Do not crawl on equipment.
5. When equipment becomes disabled, shut o󰀨 power before attempting repairs.
6. Check for hydraulic leaks with a piece of paper and not your hands.
Hydraulic oil under pressure can cause serious injury!
BE A SAFE OPERATOR BY
THINKING BEFORE ACTING AND
BY READING YOUR OPERATORS
MANUAL.
AVOID ACCIDENTS
Most accidents, whether they occur in industry, on the farm, at home, or on the high-
way, are caused by the failure of some individual to follow simple and fundamental
safety rules or precautions. For this reason, most accidents can be prevented by
recognizing the real cause and doing something about it before the accident occurs.
Regardless of the care used in the design and construction of any type of equip-
ment, there are many conditions that cannot be completely safe guarded against
without interfering with reasonable accessibility and e󰀩cient operation.
A careful operator is the best insurance against an accident.
The complete observance of one simple rule would prevent many thousand serious
injuries each year.
Never attempt to clean, oil, or adjust a machine while it is in motion!

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
11
BROCE FMJ470
SAFETY PRECAUTIONS
Read this manual completely. It contains information on safety and maintenance
procedures which must be followed to insure years of trouble free service.
BEFORE OPERATING THIS MACHINE
READ AND UNDERSTAND THE FOLLOWING
WARNING LABELS BEFORE OPERATING THIS MACHINE
WARNING STATEMENTS
The seat belt and roll over protection structure were designed to be used together to
prevent operator injury in the event of an accident. The seat belt must be worn at all
times in order to hold the operator in place so that the roll bar can protect the operator. Adjust
the slack out of the seat belt by pulling the unused portion of the belt to the left. The belt should
t snug over the operator’s hips.
Although a high travel speed is available with the Broce Broom, we caution all operators to use
good judgment, especially on rough terrain.
OPERATOR MUST BE SEATED WITH SAFETY BELT ADJUSTED
PROPERLY & SECURE WHEN ENGINE IS RUNNING.
TRAVEL SPEED MUST BE GOVERNED BY
GOOD JUDGMENT. DO NOT OVERSPEED

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
12
BROCE FMJ470
The operator must be aware at all times of any people, vehicles,
or any other objects which might be in the path of ying debris
from the sweeper. The sweeper can throw small rocks and other
objects several feet. This debris can cause serious injury to peo-
ple and damage to property. Always check that the area around,
and in front of the broom core is free of obstructions before
adjusting the broom angle or activating the core.
SAFETY PRECAUTIONS
NO RIDERS!
UNDER NO CIRCUMSTANCES SHOULD PASSENGERS BE
ALLOWED TO RIDE ON THIS MACHINE.

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
13
BROCE FMJ470
MACHINE SPECIFICATIONS
Engine Specications:
See Engine Manufacturer’s Manual (included) for engine specications.
Specication Sheet:
Engine Horsepower ................................................................. 74 HP
Machine Length ................................................................. 17’3”
Machine Weight ................................................................. 8,200 lbs
Machine Weight with Water ................................................................. 9,452 lbs
Brush Diameter ................................................................ 10-1/4” ID x 32” OD
Broom Length ................................................................. 8’
Broom Drive ................................................................. 2 Speed Hydraulic
Motor
Broom Angle ................................................................. 35° Degrees
Steering ................................................................. Hydraulic Orbital
Fuel Capacity ................................................................. 30 Gallons
Hydraulic Oil Capacity ................................................................. 25 Gallons
Speed ................................................................. 18 mph
Water Capacity ................................................................. 145 Gallons

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
14
BROCE FMJ470
Fluid Capacities
Component
Hydraulic Tank
Fuel
Radiator
Engine Crankcase
Front Axle
Fluid Type
DYNA-PLEX 21C Cursa Hydraulic Oil
Multifunctional Medium
#2 Diesel
ETHYLENE GLYCOL 50/50 MIX
API Classication CI-4, CE or CD CCMC
Specication D4 or D5
85/140 Gear Lube
Quantity
25 Gal.
30 Gal.
2.5 Gal.
10 Qts.
5.9 Qts. *
* 2 Quarts is approximate. Fill to the level of the ller plug.
ATTENTION
R-134a A/C Refrigerant Factory Charge:
John Deere = 3.0 lb (1.36kg)
Ester Oil Change:
Compressor = 8.0 oz
System = 4.0 oz
MACHINE SPECIFICATIONS
FLUID CAPACITIES

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
15
BROCE FMJ470
MACHINE OPERATION
The Broce Broom is hydro-statically driven. The directional control is achieved
through the use of the Forward & Reverse pedal, located near the operator’s foot.
Arrows on the pedals indicate direction of travel. Rate of travel is governed by the
distance the pedal is depressed and the throttle position. The pedal will return to
neutral when the pressure is released.
Familiarize yourself with the following controls before operating this machine.
1) Brake pedal
2) Forward Pedal
3) Reverse Pedal
4) Broom on/o󰀨
5) Throttle
6) Parking brake (lower left side of seat)
7) Ignition switch
8) Two speed switch
9) Broom position Joystick
10) Side Shift Joystick
11) Broom Control Dial
12) Windshield wiper Control
13) Heater & AC Controls
14) USB Ports
15) Radio
12
4
11
8
14
13
9
10
15
5
6
7
2
3
1

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
16
BROCE FMJ470
MACHINE OPERATION
Prior to initial startup of the machine each day, the following inspection checks must
be performed:
1. Visually inspect the entire machine for damage and uid leaks. Repair
critical items before machine is used.
2. Check all uid levels; engine oil, radiator, and hydraulic reservoir, etc.
Fill uid reservoirs if necessary.
3. Check wheels and tires for excessive wear or damage; also check air
pressure and lug nut tightness.
4. Seat belt, core cover, and rubber rock guard should be installed and serviceable.
5. Lights, windshield wipers, reverse alarm, horn, etc. must be in operating condition.
6. Test brakes before operating this machine. Refer to BRAKES area in the
MAINTENANCE Section in this manual for details.
7. Check water system lters, nozzle screens and cycle system.
Any defects or damage found during this inspection must be repaired before
operating this machine.
MACHINE STARTUP
1.Before starting the engine, be sure the parking brake is set (pull handle up to
vertical position). The brake pedal should be depressed and the right foot is not
on a control pedal.
2. Turn the key switch to the starting position (all the way forward). Add fuel as
necessary using the hand operated throttle near the operator’s right hand. Release
the key switch when the engine starts.
Do not exceed 1500 RPM until the hydraulic uid has warmed up.

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
17
BROCE FMJ470
MACHINE OPERATION
Choose the desired gear using the two-speed switch located on the right-hand
side of the dashboard. Low gear is normally used while sweeping in order to
maintain su󰀩cient RPM, to run the hydraulics. Leave the two-speed in Low
gear until the operator is familiar with the machine. High gear is used for travel
only. Shifting from Low to High can be accomplished at any speed; however, shifting from
High to Low should be done at a speed lower than 5 mph. Shifting at higher speeds can
damage the drive motor. Optimal sweeping is normally achieved at manufacturer’s recom-
mended engine speed of 1800-2000 rpm in Low gear with forward travel speed of 2 ½ -5
mph.
After gear selection, raise engine RPM to about half throttle. Release parking
brake. Slowly depress a control pedal in the desired direction. Engine speed may
be adjusted to obtain desired travel speed.
Do not over speed! Although a high rate of travel is available with a Broce
Broom, we caution all operators to use good judgment, especially on rough
terrain.
If the control pedal is released while traveling, the machine will slow down
rapidly. This is called “Dynamic Braking”. Using Dynamic Braking at low
speeds is ne as long as the operator is ready to use the brake pedal if needed.
Do not reverse the direction of travel while the broom is in motion. This could
damage the drive motor and cause brush distortion and imbalance.
The core should be in the raised position and the lift cylinder safety collar
should be placed on the lift cylinder. This prevents the core from drifting down
to the ground and creating a “at spot” in the brushes while the machine is
parked. These at spots can cause the broom to bounce or hop while sweeping.
To stop the engine, turn the key back to the center position. The parking brake
must be set prior to leaving the operator’s seat..
1.
2.
3.
4.
5.
6.
7.
Do not propel this machine with the parking brake engaged.
This will damage the rear brake assemblies

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
18
BROCE FMJ470

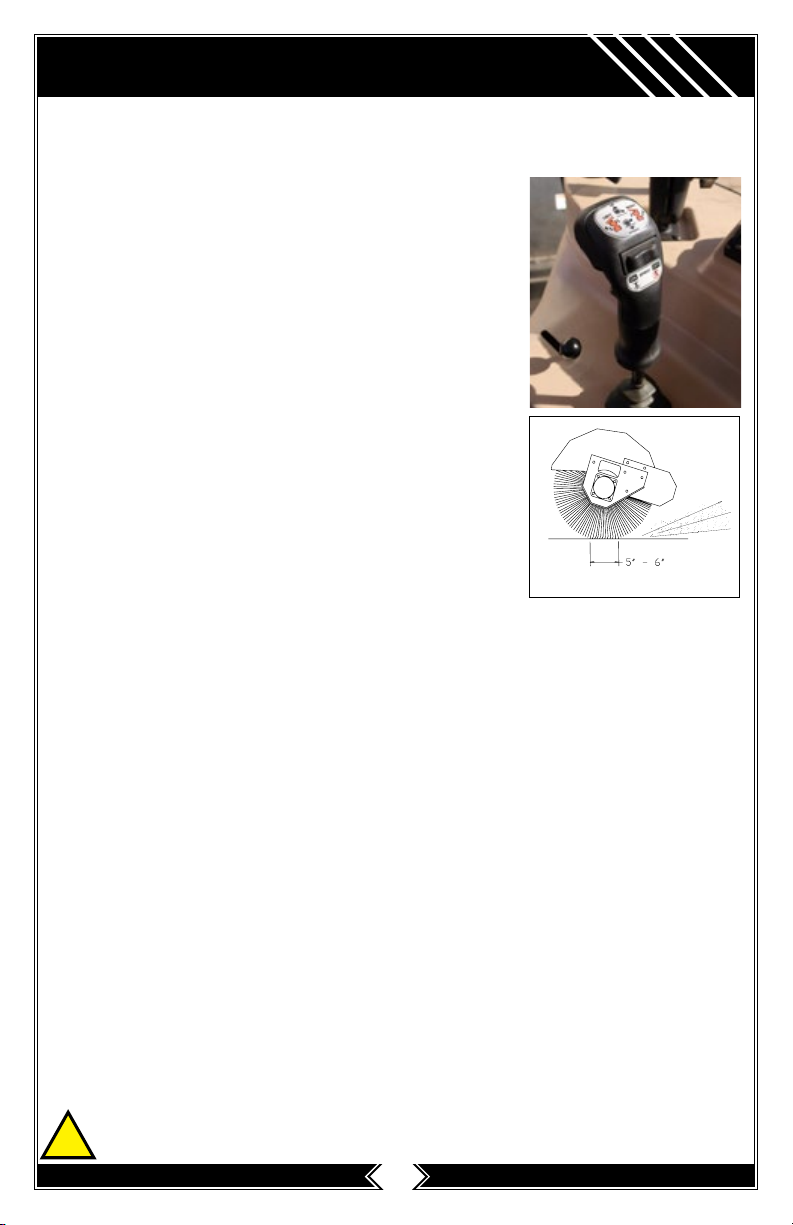

SWEEPING CORE OPERATION
RAISE/LOWER
To raise the sweeping core, position and pull the
joystick to the “UP” position until the core is raised all the
way. The joystick will return to the center position and
core height will be maintained.
To lower the core during normal sweeping conditions,
push the joystick to the “DOWN” position until the core
reaches the desired position.
The gure shows the optimum broom height for most
sweeping conditions. Using the proper height will also
extend the life of the broom.
ANGLE OPERATION OF BROOM
The broom core may be set at any angle from 37 left to 37 right, simply moving
the handle in the corresponding direction. Release the handle when the desired
angle is achieved.
BROOM ON/OFF
The Broom Core motor is activated when the switch is moved to the “BROOM ON”
position.
SIDE TO SIDE OPERATION OF BROOM
The sweeper is equipped with a side shift mechanism which allows the broom to
move 14” to the left or right. This function is activated with the side shift joystick.
oo
Proper Sweeping Height
MACHINE OPERATION
SWEEPING CORE

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
19
BROCE FMJ470
MACHINE OPERATION
SWEEPING TIPS
Optimal sweeping is normally achieved at manufacturer’s
recommended engine speed of 1800-2000 rpm in Low gear with
forward travel of 2 ½ - 5 mph.
If the broom starts to “hop” or “bounce”, the propelling speed is too high, reduce
the forward travel speed, but maintain high engine speed. Slowing the forward
travel speed of the machine down will help prevent you from having to make a
second pass over the sweeping area with the broom.
In areas where the dirt is “caked”, try to clean it by going over it a second or
third time.
• When changing the direction of travel, allow the machine to come to a
complete stop before moving the directional control pedals. Failure to com-
pletely stop the machine before changing direction can cause premature
failure of the drive components.
• If the dust cloud becomes so thick that it obscures your vision, use the wa-
ter sprinkling system or stop the machine until the dust clears. If possible,
angle the sweeper so that the dust and debris is swept downwind.
• Ensure that the operator of the machine is properly trained and follows all
safety procedures described in this manual.
1.
2.

!WARNING: Cancer
and Reproductive Harm
www.P65Warnings.ca.gov
20
BROCE FMJ470
DISPLAY SCREEN
Navigation
Function
Keys
Function
Keys
MENU
Key ENTER Key
Soft Key Commands
Soft Key Commands
Columns of vertical commands may be located to the left and/or right of the
display. They will change according to the options available for the screen being
displayed.
Function Keys
The function keys correspond to the soft key commands and allow selections to be
made accordingly.
MENU Key
Pressing the MENU key at any time displays the list of menu options.
ENTER Key
Pressing the ENTER key will select the option displayed much like the ENTER key
on a keyboard. The ENTER key also brings up the soft keys. Press once to display
the left and right arrows. Press twice to display all the soft keys. Press three times
to hide all the soft keys.
