SAFETY REGULATIONS
NEVER ALLOW WATER TO COME INTO CONTACT WITH ANY OF THE ELECTRICAL PARTS OF
DRNX BRW: THERE IS A DANGER OF CREATING A SHORT CIRCUIT.
INTENDED USE
DRNX BRW is intended to be used in cafes, restaurants, and pantries. It dispenses liquid from its internal
reservoir, infusing it with atmospheric nitrogen and chilling it to 2°C. Do not pour liquids that are above room
temperature or that are unfiltered. It must only be operated by a trained person. The appliance is not to be used
by persons (including children) with reduced physical, mental or sensory abilities or with scarce experience and/or
expertise, unless they are supervised by a person responsible for their safety, or they are instructed by this person
on how to properly use DRNX BRW.
POWER SUPPLY
DRNX BRW must be connected to the power supply in accordance with its specifications. Only connect it with
the specified supply voltage.
POWER CORD
Never use DRNX BRW if the power cord is defective. Report any defects in the cord and/or plug to the service
provider immediately. Do not pass the power cord around corners, over sharp edges or over hot objects and keep
it away from oil. Do not use the power cord to carry or pull the machine. Do not pull out the plug by the power
cord nor touch it with wet hands. Do not let the power cord hang freely from tables or shelves.
FOR THE SAFETY OF OTHERS
Ensure that children cannot play with DRNX BRW and/or the packaging materials. Observe the warning and
safety instructions on the electrical components and in this manual. Improper use of DRNX BRW such as
opening it during operation, incorrectly operating it, or not following standard guidelines for operating electrical
equipment may lead to injury.
FIRE SAFETY PRECAUTIONS
In case of fire, use carbon dioxide (CO2) extinguishers. Do not use water or dry powder extinguishers.
SUITABLE LOCATION FOR OPERATION AND MAINTENANCE
DRNX BRW should be installed in accordance with the safety regulations in force at the time of installation.
Operate it in an environment between 13°C and 32°C. Make sure it is a dust-free environment. Avoid placing
open flames and/or incandescent objects near it to avoid melting or other damage to the dispenser housing. If the
dispenser has been exposed to such conditions, alert the service provider who will carry out a safety check.
STORING DRNX
If DRNX BRW is to remain inactive for a long time, turn it o and unplug it. Store it in a dry place, out of reach
of children. Make sure the storage area is between 13°C and 40°C. Keep it protected from dust and dirt.

4
DRNX BY BROOD
SAFETY REGULATIONS
GENERAL INFORMATION
REPAIRS / MAINTENANCE
In case of failure, problems or a suspected fault resulting from a fall, immediately remove the plug from the
power socket and alert the service provider or specialized technician. Never attempt to operate it if it is faulty.
Please report any fault to your service provider. Only the service provider and/or technician may carry out
servicing operations and repairs on DRNX BRW, unless otherwise informed. Any repair of the dispenser must
be done only when it is switched o and it is ascertained that there is no electric current. All spare parts must be
obtained from your service provider. Follow the service and maintenance instructions in this operation manual.
USE
DRNX BRW pulls any filtered liquid from an internal reservoir. The liquid can be poured directly into the
reservoir, or it can be housed in a soft-walled Bag-in-Box (BiB) bladder. The reservoir is refrigerated such that
the liquid is dispensed at 2°C. It can be infused with atmospheric nitrogen, or it can be poured still.
VISCOSITY OF LIQUID
Ensure that your beverage has been filtered. Thick liquids risk slowing down the liquid pump inside. DRNX BRW
comes with a pre-filter that is already fitted into the machine.

5
DRNX BY BROOD
2
3
4
9
13
19
21
23
20
10
8
7
5
17
6
15
18
12
1
11
14
16
22

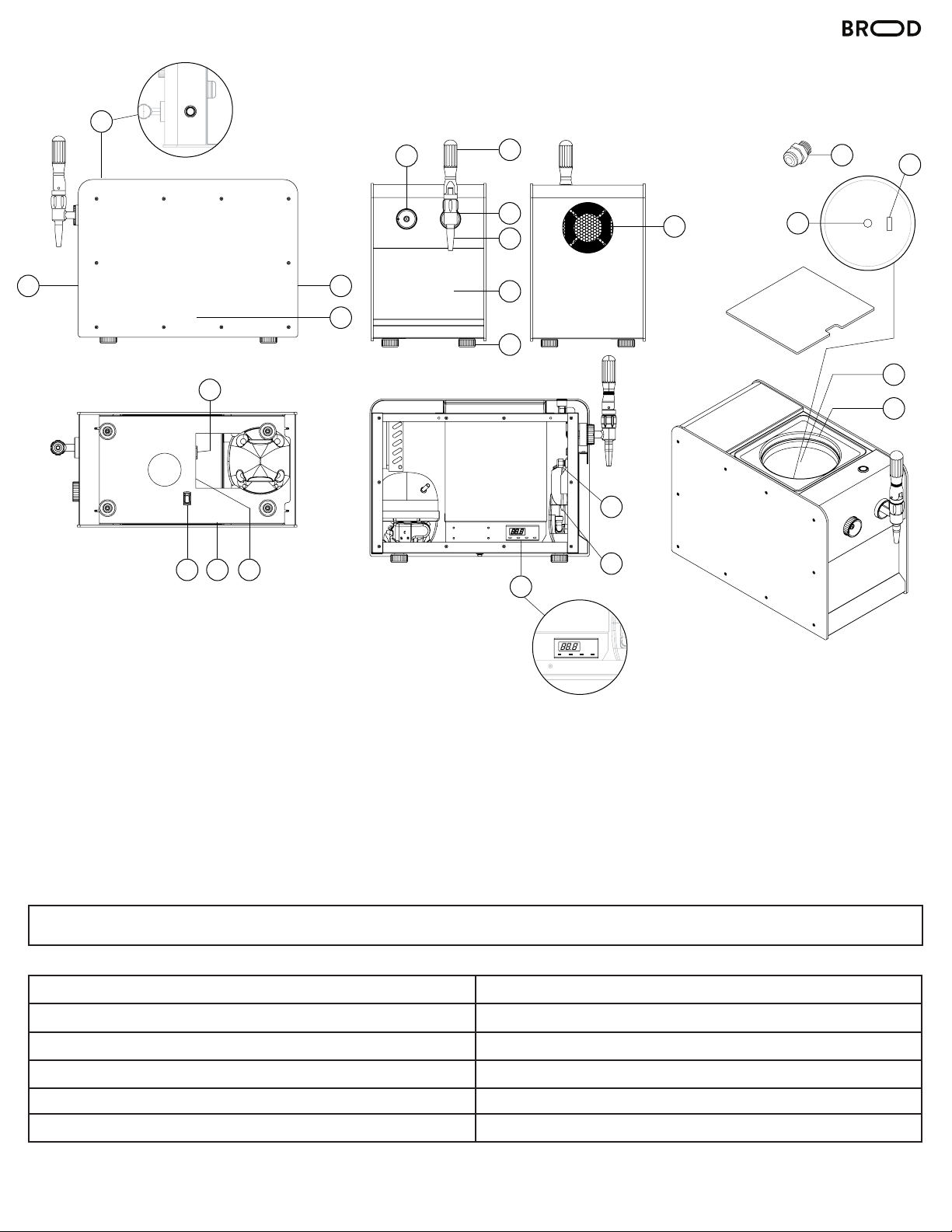

COMPONENTS
1 — Tap Handle
2 — Tap Body
3 — Nozzle
4 — Exterior
5 — Inlet Connector
6 — Main ON/OFF Switch
7 — Legs
8 — Forward Plate
9 — Rear Plate
10 — Side Panel(s)
11 — Infuser Dial
12 — Power Plug
13 — Vents/Exhaust
14 — Pre-Filter
15 — Thermostat
16 — Calibration Knob
17 — Pump ON/OFF Switch
18 — Ventilation Valve
19 — Internal Reservoir
20 — Internal Reservoir Collar
21 — Magnetic Stir Bar
22 — BiB bladder Adapter
23 — BiB bladder Adapter Inlet
SPECIFICATIONS
Width: 10.25in Power Supply: 100-120V/60Hz; 200-240V/50Hz
Height: 14.75in Nominal Power: 334W
Depth: 20.00in
Weight: 73lbs
Dispensing Capacity: 1.5L/min (0.4gpm)
Coee Temp at Tap: 2°C (36°F)

6
DRNX BY BROOD
INSTALLATION
1. Install on a clean and dry surface.
Allow no less than 20 centimetres of space from the back.
2. Assemble the tap handle.
Tilt the machine slightly if you need to.
3. For use with a BiB bladder, screw the BiB bladder adapter into the BiB
bladder inlet.
Place your BiB bladder adapter towards the bottom of the reservoir. This will
allow the contents of the BiB bladder to flow through the machine with ease.
Never use a BiB bladder that has a sti wall.

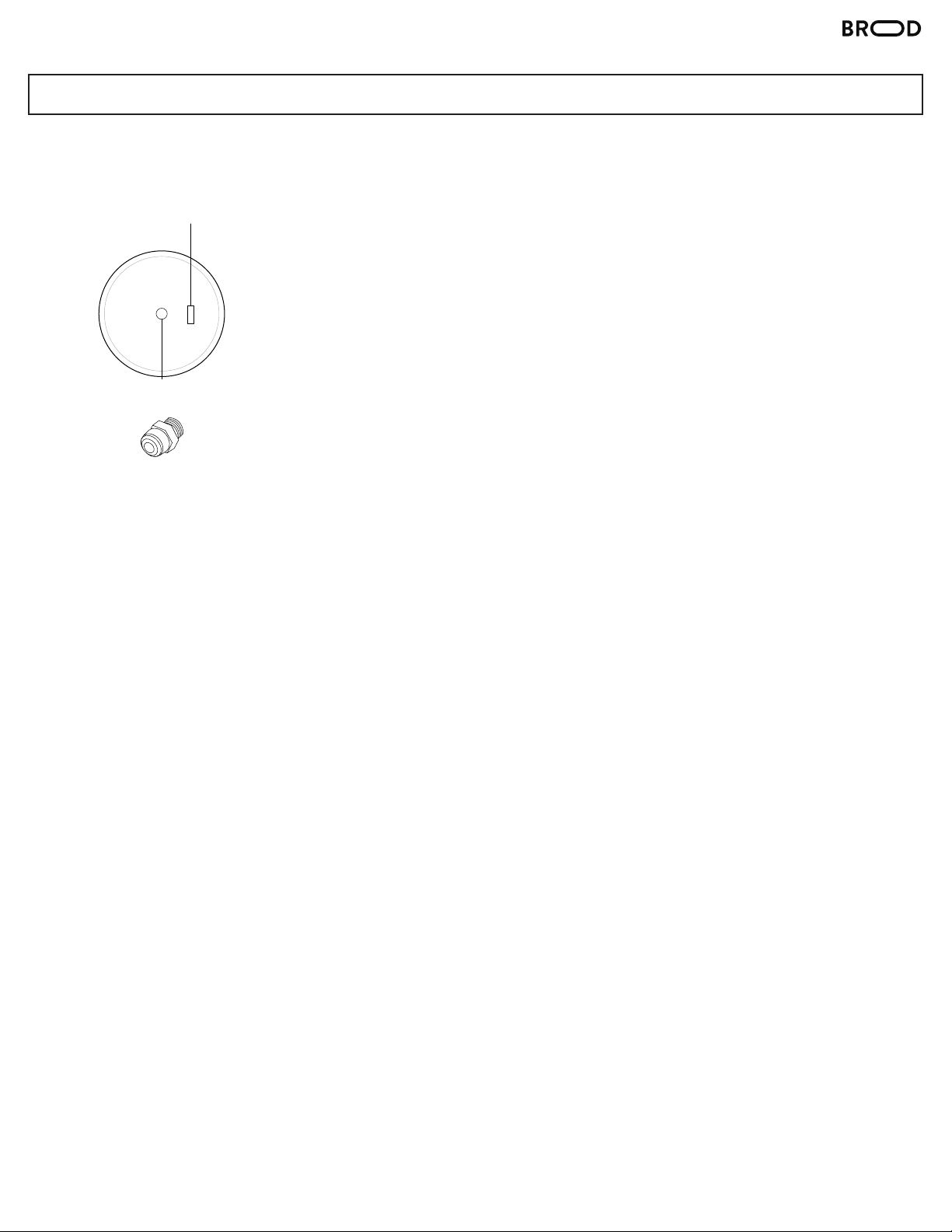

SETUP
THE CENTER IS THREADED.
THE BiB BLADDER ADAPTER IS FASTENED INSIDE
THIS THREADED HOLE.
MAGNETIC STIRRER

7
DRNX BY BROOD

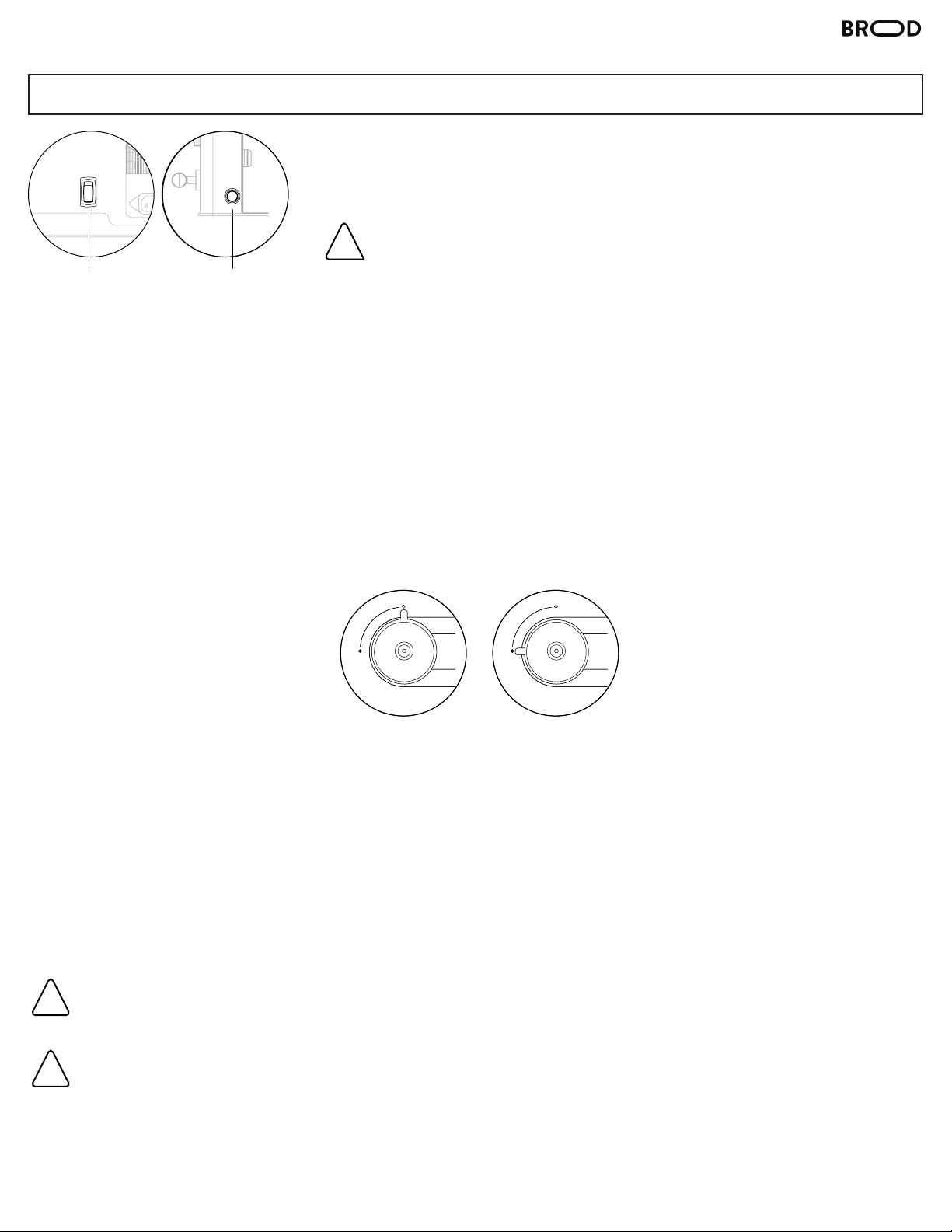

1. Switch on the main ON/OFF button at the bottom of the machine.
There will be a red light when the switch is on.
2. Switch on the pump ON/OFF button located at the top of the machine.
There will be a red light when the switch is on.
Pour the beverage into the reservoir and pull the tap forward to
prime the pump.
The pump will automatically turn o if it runs dry for one minute.
This will notify the operator that the beverage container is empty.
Simply switch the pump o, then on again to reset.
3. Place the magnetic stir bar at the bottom of the internal reservoir.
4. Pour your beverage into the internal reservoir.
Make sure not to pour above the internal reservoir collar.
Make sure not to dislodge the magnetic stirrer when pouring.
5. Place your cup beneath the stout at an angle. To pour a STILL beverage,
turn the infuser dial counter-clockwise. To pour a NITRO beverage, turn
the infuser dial clockwise.
Please note, if the last pour was nitro cold brew and the operator wants
the next pour to be still cold brew, there will be less than 10 mL (0.34
oz) of nitro cold brew in the tap that will come out. Every subsequent
still cold brew pour will come out fully still, until the next nitro cold
brew pour.
6. Return the tap to the start position when you have completed the pour.
Ensure that the coee is filtered with a fineness of at least 100 μm (microns).
OPERATION
!
STEPS
!
MAIN ON/OFF SWITCH
ON BOTTOM OF MACHINE
PUMP ON/OFF SWITCH
ON TOP OF MACHINE
!WARNING: Never run hot liquid above 30°C (86°F) through DRNX BRW.

8
DRNX BY BROOD
ADJUSTABLE SETTINGS
Locate the infuser dial at the front of the machine. Turn the dial counter-clockwise towards the 9 o’clock
position to pour a still drink. Turn the dial clockwise towards the 12 o’clock position to pour a nitrogenated
drink.
If the level of nitrogen infusion is too high at the maximum (12 o’clock) position, then follow the steps below to
decrease the level of nitrogen infusion. This is a one-time calibration process to adjust the amount of infusion
at the maximum position only.
1. Locate and remove the ten screws on the left panel.
2. Locate the calibration knob at the forefront section. Turning it clockwise will decrease the amount
of nitro.
3. Return the side panel and screw it securely.

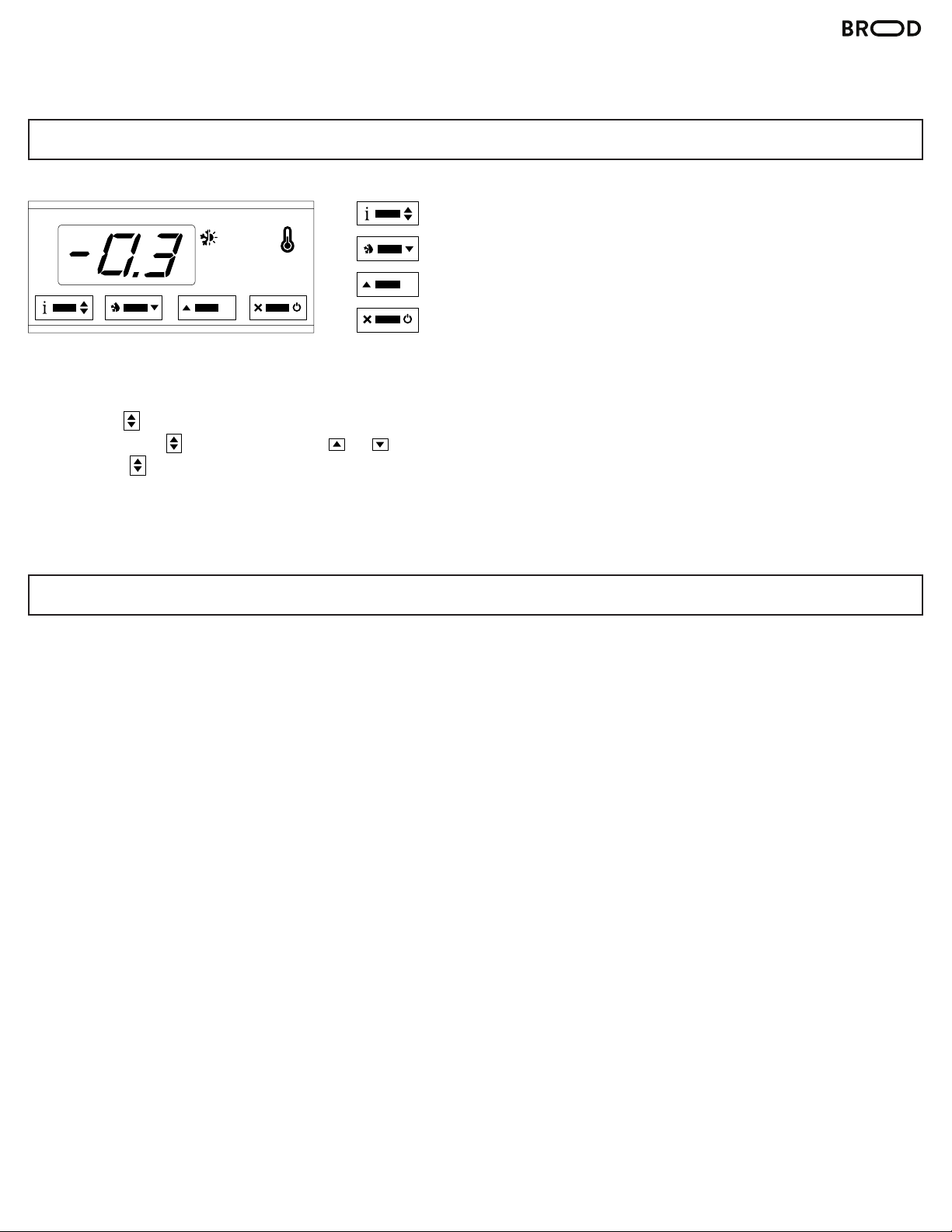

MODIFCATION OF DESIRED TEMPERATURE VALUE
Press button for at least half second, to display the setpoint value.
By keeping button pressed, use button or to set the desired value.
When button is released, the new value is stored.
If the operator sets the temperature at freezing, it runs the risk of freezing the Cold Brew. If this happens, turn
o the fridge as described in step 2. Keep o for 2 hours.
M
Info / Setpoint button.
Manual defrost / Decrease button.
Increase / Manual Activation button.
Exit / Stand-by button.
M
TEMPERATURE CONTROL
NITROGEN CALIBRATION

9
DRNX BY BROOD
CARE
Follow the cleaning procedures below as it is essential to both extend the life of the DRNX BRW, and to
achieve the desired flavor of cold brew. It must be cleaned twice week as described in the steps below.
Never use hot water during the cleaning procedure.
BROOD recommends the following cleaning detergent: 1-2-COLD BREW Cleaner by Urnex
1. Empty the reservoir by pouring out all liquid through the tap.
If using a BiB bladder, then unscrew the BiB bladder adapter and remove
both the adapter and the bladder from the reservoir.
2. Remove the magnetic stir bar and put in a bath of cleaning detergent.
3. Fill the reservoir with room temperature water.
4. Prepare the cleaning solution.
Dissolve any espresso cleaning detergent in the water to create a
cleaning solution.
5. Unscrew the nozzle from the tap by turning it counter-clockwise. Wash
the nozzle with clean water.
After washing, please reassemble it onto the tap.
6. Connect a 1/4 inch tube to the ventilation port.
Drop the other end of the tube into the cleaning solution inside
the reservoir.
7. After 30 minutes have passed pull the tap downward to run the solution
through DRNX BRW.
Keep pouring until all the solution has been flushed through the dispenser.
8. Wipe down the inside of reservoir with a clean paper towel.
9. Disconnect the 1/4 inch tube from the ventilation port.
10. Return the magnetic stir bar to the bottom of the reservoir.
CLEAN & MAINTAIN
BIWEEKLY CLEANSE
!
!
!

10
DRNX BY BROOD
TROUBLESHOOTING
QUICK SOLUTIONS
There is too much nitro The calibration knob is not
set correctly.
Follow steps in to decrease the level of infusion
outlined in section “Nitrogen Calibration”
There is no nitro even though it's set to
maximum.
There is a block in the spout Unscrew the spout and check to see if there is
any sediment. Remove the components inside
the spout and wash thoroughly.
Too many large bubbles BiB bladder is not facing
downward.
Place the outlet of the bladder at the bottom of
the reservoir. The pump will only pull liquid. It
will prevent it from sucking in air that is in the
bladder
Product is not cold enough. The temperature setting is
too high.
Check to see if the main switch underneath the
machine is on. Follow the instructions in the
manual to change the temperature setting.
The cold brew in the
container hasn’t chilled yet.
After pouring room temperature liquid inside
the reservoir, it will take approximately 25
minutes to reach 2°C.
DRNX BRW is not pouring cold brew. The pre-filter is clogged. Unscrew the left panel, and located the pre-
filter. Unscrew the cap and remove the internal
mesh. Clean and return the mesh. Screw the cap
back on.
There is no electrical power
connected to the machine
Check to see if the main switch underneath
DRNX BRW is on. Then check to see if the
pump switch on the top of the machine is on. If
either one is o, please switch them on. If the
pump switch is flashing, switch it o then on to
reset the pump.
The pump ON/OFF switch
needs to be reset.
When your container is empty, the pump turns
o and the ON/OFF switch flashes red. Switch
it o then on to reset the pump.

11
DRNX BY BROOD
FAQ
Q. I JUST RECEIVED MY DRNX BRW, HOW DO I SET IT UP?
A. Please follow the instruction manual that comes with DRNX BRW. It is easy to set up!
Q. WHERE DO I PUT MY COLD BREW COFFEE OR TEA?
A. DRNX BRW has an internal chilled reservoir. Either pour your cold brew or tea directly into the reservoir or connect
your BiB bladder to the bottom of the reservoir. Please watch our instructional video on our website drinkbrood.com.
Q. I AM NOT GETTING ENOUGH CREMA, WHAT SHOULD I DO?
A. Firstly, pull the tap downward fully (90°) to trigger nitrogen infusion. Pulling it only a little bit will yield still cold brew
only. Secondly, rotate the infusion dial towards the 12 o’clock position. Thirdly, the pre-filter might be clogged and in need
of cleaning. Check our troubleshooting section.
Q. I AM GETTING LARGE BUBBLES IN MY NITRO COLD BREW, WHAT SHOULD I DO?
A. If you are using a BiB bladder, make sure the outlet sits at the bottom of the reservoir. This will prevent the pump pulling
in any air that would settle at the top of the bladder, if any. The quality of the cold brew also has a marked eect on the size
of the bubbles in the final head of the drink. The more filtered the cold brew, the smoother the surface of the head. Make
sure to filter to a fineness of min 100μm.
Q. MY BEVERAGE IS NOT COLD ENOUGH, HOW DO I MAKE IT COLDER?
A. Follow the instructions in section “Temperature Control” on page 6 or visit drinkbrood.com/brood/FAQ to decrease the
temperature.
Q. DRNX BRW IS NOT POURING COLD BREW, WHAT SHOULD I DO?
A. There are several reasons why this may happen. All of them are easily remedied. Please follow our troubleshooting guide
in this instruction manual or visit drinkbrood.com/brood/FAQ.
Q. DRNX BRW HAS A SOUND THAT COMES AND GOES, WHY?
A. This is the sound of the exhaust fan. When this sound is heard it means that the fridge is cooling down to the pre-set
temperature. When the sound stops this means that the compressor has also stopped as the desired temperature has been
reached.
Q. DO I NEED TO KEEP A GAP AROUND THE VENTS ON THE TOP OF DRNX BRW?
A. Yes, never cover the exhaust located at the back of the machine. Allow for at least 20cm of clearance. If covered, it may
damage the compressor.

12
DRNX BY BROOD
WARRANTY
In order for the products to be stable, long lasting, AND covered under this manufacturer’s warranty, these requirements
must be met:
DRNX BRW is designed to be installed in interior areas with relative humidity levels of 35%-60% and operate at
temperatures between (13°C - 32°C). DRNX BRW must be stored at temperature between (13°C - 40°C). Prior to
opening original packaging or installation material, ensure that the spaces are enclosed and completely weatherproof, and
the building temperature and humidity conditions are consistently maintained at the indicated levels. The product MUST
be stored in an environmentally controlled space at all times. Do not store the product in direct sunlight.
THIS WARRANTY DOES NOT COVER:
• Any machine NOT distributed by BROOD Refreshments Company Ltd.
• Any machine NOT purchased from an Authorized BROOD Dealer (email us at [email protected] to check for
authorized dealers or check our website at www.drinkbrood.com).
• Damage caused by accident, abuse, negligence, or misuse.
• Improper operation or failure to follow instructions contained in the manual.
• Any service or alteration performed by an unauthorized person, company, or association.
• Damage caused by neglecting to clean and/or maintain upkeep of DRNX BRW.
• Damage caused by use of undissolved instant coee or any other ingredients not allowed in the dispenser.
This warranty is not transferable and applies to the original purchaser only.
The warranty period begins on the delivery date. If our transportation, storage or installation instructions are not followed,
any warranty shall lapse. The warranty period is 1 year. The purchaser must inform BROOD Refreshments Company Ltd
in writing of any transportation damages without delay, but at the latest within one week of arrival of the equipment. The
purchaser must cease any processing or handling of the damaged units. BROOD does not accept any guarantee against
defects which are due to improper storage or use of the products. The storage and use of the products presuppose that full
knowledge and experience of the technology is taken into account to avoid detrimental eects on the quality and stability.
This warranty does not cover damage caused by improper maintenance or by use contrary to our recommendations. There
are no implied warranties, representations or conditions, except those required by statute, and they shall not extend beyond
the term of the warranty applicable to your purchase.
CLEANING IS A CRITICAL PART OF MAINTAINING THE LONGEVITY OF DRNX BRW
• Prior to installation, use a clean soft cloth that has been dampened to remove dust or other foreign
materials from panel surfaces. Dirt and grit should not be allowed to build up as these may scratch the
finish during setup.
• Do not apply soap or cleaner directly to panel surfaces. Apply water to cloth and then wipe panel surfaces.
• Do not apply any solvents to panel surfaces, even by transfer from a cleaning cloth.
• Damage from solvents may not be immediately noticeable upon application. Do not use brushes to clean panels or vents
as bristles will scratch panel surfaces.
• Daily flushing of DRNX BRW as outlined in the operation manual is required.
• Cleaning DRNX BRW consistently is crucial to the operation and lifespan. Any negligence in daily cleaning and upkeep of
DRNX BRW will risk damaging the machine over time. The warranty period is 1 year. Please review our warranty terms
and conditions. To make a warranty claim, please email [email protected]. For faster service, locate the model type
and serial number, and include them in your email.
The warranty period is 1 year. Please review our warranty terms and conditions.
To make a warranty claim, please email [email protected]. For faster service, locate the model
type and serial number, and include them in your email.
!
!

13
DRNX BY BROOD
DECOMMISSIONING
Before placing DRNX BRW out of service for a period longer than 2 weeks, we recommend the weekly cleanse as
per the instructions in the Care section. Store DRNX BRW in a dust-free environment between 13°C and 40°C.
The packing materials can be recycled. Unplug the appliance and the power cord. Deliver the
appliance and power cord to a service centre or public waste disposal facility. This product
may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling of this product, please
contact your local city oce, your household waste disposal service or the shop where you
purchased the product.
STORAGE
DISPOSAL

14
DRNX BY BROOD
CONTACT

15
DRNX BY BROOD
