PATTERN DRAWING SCREEN
7
■Key functions
No. Display Key Name Explanation Page

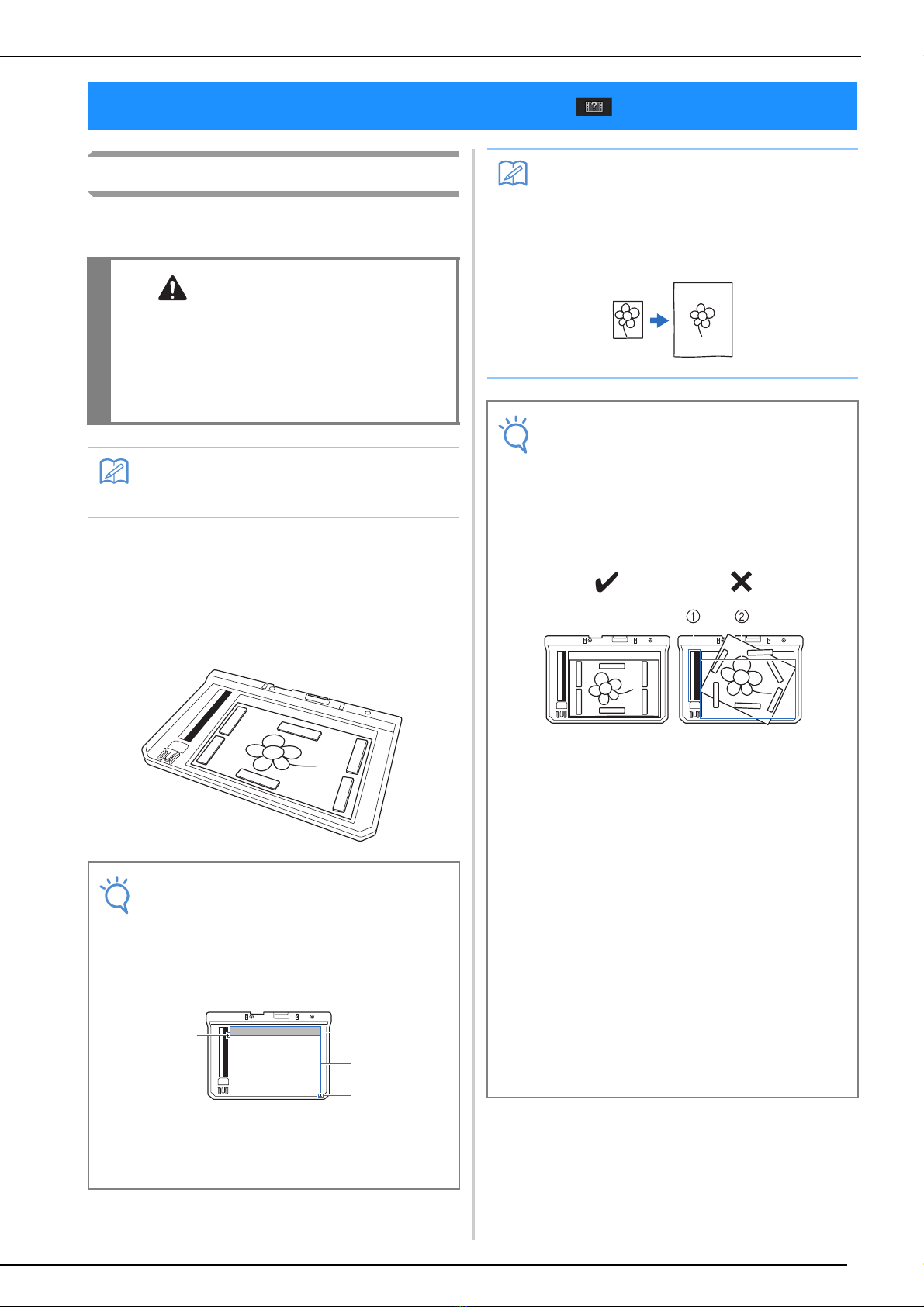

cImage scan key Press this key to scan the attached frame and display on the screen as
the background while using the My Design Center. You can scan the
fabric as the background or scan the picture as the reference when
creating the pattern.
19
dLine design key Press this key to scan the line drawing to edit and convert to the
embroidery data using the built-in camera. You can also import the line
drawing image from USB media, computer or SD card and create the
embroidery design.
21
eIllustration design key Press this key to scan the illustration to edit and convert to the
embroidery data using the built-in camera. You can also import the
illustration from USB media, computer or SD card and create the
embroidery design.
24
fMagnify key Press this key to magnify the pattern. 10
gStamp key Press this key to select the stamp shape for pattern drawing. 12
hRotate key Press this key to rotate the selected section. 14
iSize key Press this key to change the size of the selected section. 14
jErase key Press this key to erase lines and shapes that have been drawn. You
can select the size/shape of the eraser.
13
kPaste key Press this key to paste in the selected section duplicated with the
duplicate key or a selected section using the cut key.
—
lDuplicate key Press this key to duplicate the selected section. The temporarily
positioned section can immediately be rotated, enlarged, reduced or
moved.
—
mCut key Press this key to cut out the selected section. —
nSelect key Press this key to select a section for moving by finger or pen, copying,
deleting, changing size and rotating lines and shapes that have been
drawn.
13
oNext key Press this key to continue to the stitch settings screen. —
pRecall key Press this key to recall image data created with My Design Center from
the machine’s memory, USB media, SD card or the computer.
—
qStore key Press this key to store the pattern being created. —
rUndo key Press this key to undo the last operation that was performed and
return to the previous state. Each press of this key will undo one
operation.
—
sAll Clear key Press this key to clear all the lines and shapes and start from the
beginning. The background image is also cleared.
—
tCancel key Press this key to exit from the My Design Center. All lines and shaped
are erased when you press this key.
—
uBrush tool key Paint with brush and set the color. You can select the brush type, fill
type and color as you need. Painted lines and areas will be converted
to the pattern embroidered with fill stitch.
Press to pick up the color from a region in the pattern within the
pattern drawing area. The picked up color is shown as the currently
selected region color beside the button and as the selected color in the
Region Property screen.
10
vLine tool key Draw lines and set the color. You can select the line type, stitch type
and color as you need.
Press to pick up the color from a line in the pattern within the
pattern drawing area. The picked up color is shown as the currently
selected line color beside the button and as the selected color in the
Line Property screen.
8
