HE-800A
ELECTRONIC LOCKSTITCH BUTTON HOLDER
PARTS BOO
K
1. This book was prepared based on information available in November 2007.
2. Parts are subject to changes in design without prior notice.
3. Parts supplied as complete assemblies are circled by a dotted line.
A. Machine body .................................................... 1
B. Needle bar and thread take-up mechanism ...... 3
C. Upper shaft mechanism .................................... 5
D. Zigzag mechanism ............................................ 7
E. Emergency stop mechanism ............................. 9
F. Presser foot mechanism ...................................
.
11
G. Feed mechanism ..............................................
.
13
H. Cutter mechanism ............................................. 17
J. Thread breakage detector mechanism .............
.
19
K. Rotary hook mechanism ...................................
.
21
L. Lower shaft mechanism .................................... 23
M. Lubrication ........................................................ 25
N. Threading mechanism ......................................
.
29
P. Bobbin winder mechanism ................................ 33
Q. Upper thread trimmer mechanism ....................
.
35
R. Lower thread trimmer mechanism ....................
.
37
S. Synchronizer ..................................................... 41
T1. Control box mechanism ....................................
.
43
T2. Control box mechanism ....................................
.
45
T3. Control box (PCB) mechanism .........................
.
47
U. Power supply equipment mechanism ...............
.
49
V. Operation panel mechanism ............................. 51
W. Motor mechanism .............................................
.
53
X. Safety cover ...................................................... 55
Y.
A
ttachment set (Option parts) ........................... 57
Z1.
A
ccessories ....................................................... 59
Z2.
A
ccessories ....................................................... 61
Z3.
A
ccessories ....................................................... 63
Ga1. Gauge parts list ................................................. 65
Ga2. Gauge parts list ................................................. 66
Ga3. Gauge parts list ................................................. 67
Wa. Warning labels ..................................................
.
68
Index .................................................................
.
69
Notes for using this parts book
CONTENTS
1
A. / Machine body
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50124001 1 FACE PLATE
2 062711012 4 SCREW PAN SM4.76-32X10
3 SA4206001 1
THREAD TAKE-UP LEVER COVE
R
4 062680612 1 SCREW PAN SM4.37-40X6
5 S50126001 1
REAR COVE
R
6 062711012 6 SCREW PAN SM4.76-32X10
7 S50127101 1 TOP COVER
8 062711612 6 SCREW PAN SM4.76-32X16
9 S50128201 1
ROTARY HOOK COVE
R
10 104450101 1
RUBBER CAP, 8
11 158879001 1
SHAFT, ; R-HOOK COVER
12 S00306001 1
HINGE PLATE SPRING
13 025080132 1
WASHER PLAIN S 8
14 048060342 1 RETAINING RING E6
15 014760632 1
SET SCREW SOCKET SM5.95-28X6
16 117143003 2
SCREW, FLAT SM4.37
17 021680202 2 NUT 2 SM4.37-40
18 014760632 2
SET SCREW SOCKET SM5.95-28X6
19 158830001 2
BED HINGE
20 158831001 2
PIN
21 158832000 2
PIN SUPPORT RUBBE
R
22 159150000 1
RUBBER CAP, 20.5
23 159150000 1
RUBBER CAP, 20.5
24 104449001 1
RUBBER CAP, 15.5
25 104451101 1
RUBBER CAP, 23.9
26 104450101 2
RUBBER CAP, 8
27 104450101 2
RUBBER CAP, 8
28 104450101 1
RUBBER CAP, 8
29 104449001 1
RUBBER CAP, 15.5
30 104449001 1
RUBBER CAP, 15.5
31 104450101 1
RUBBER CAP, 8
32 104450101 1
RUBBER CAP, 8
33 104450101 1
RUBBER CAP, 8
34 104450101 2
RUBBER CAP, 8
35 104450101 1
RUBBER CAP, 8
36 104449001 2
RUBBER CAP, 15.5
37 S32263001 3
RUBBER CAP, 8.5
38 S36924001 2
INJURY MAR
K
39 S37060001 2 LABEL, GROUNDING
40 S50131001 1 THREADING DIAGRAM
41 104449001 1
RUBBER CAP, 15.5
42 S50340000 2
BED BASE CUSHION
43 120263001 2
SHOULDER SCREW,SM4.37
44 117936001 1
RUBBER CAP, 9.4
<For China>
45 SA0793001 1 LABEL CAUTION CHN/ENG
<Except for China>
46 SA0792001 1 LABEL CAUTION JPN/ENG
HE-800A-050
2
2
A. / Machine body
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50124001 1 FACE PLATE
2 062711012 4 SCREW PAN SM4.76-32X10
3 SA4206001 1
THREAD TAKE-UP LEVER COVE
R
4 062680612 1 SCREW PAN SM4.37-40X6
5 S50126001 1
REAR COVE
R
6 062711012 6 SCREW PAN SM4.76-32X10
7 S50127101 1 TOP COVER
8 062711612 6 SCREW PAN SM4.76-32X16
9 S50128201 1
ROTARY HOOK COVE
R
10 104450101 1
RUBBER CAP, 8
11 158879001 1
SHAFT, ; R-HOOK COVER
12 S00306001 1
HINGE PLATE SPRING
13 025080132 1
WASHER PLAIN S 8
14 048060342 1 RETAINING RING E6
15 014760632 1
SET SCREW SOCKET SM5.95-28X6
16 117143003 2
SCREW, FLAT SM4.37
17 021680202 2 NUT 2 SM4.37-40
18 014760632 2
SET SCREW SOCKET SM5.95-28X6
19 158830001 2
BED HINGE
20 158831001 2
PIN
21 158832000 2
PIN SUPPORT RUBBE
R
22 159150000 1
RUBBER CAP, 20.5
23 159150000 1
RUBBER CAP, 20.5
24 104449001 1
RUBBER CAP, 15.5
25 104451101 1
RUBBER CAP, 23.9
26 104450101 2
RUBBER CAP, 8
27 104450101 2
RUBBER CAP, 8
28 104450101 1
RUBBER CAP, 8
29 104449001 1
RUBBER CAP, 15.5
30 104449001 1
RUBBER CAP, 15.5
31 104450101 1
RUBBER CAP, 8
32 104450101 1
RUBBER CAP, 8
33 104450101 1
RUBBER CAP, 8
34 104450101 2
RUBBER CAP, 8
35 104450101 1
RUBBER CAP, 8
36 104449001 2
RUBBER CAP, 15.5
37 S32263001 3
RUBBER CAP, 8.5
38 S36924001 2
INJURY MAR
K
39 S37060001 2 LABEL, GROUNDING
40 S50131001 1 THREADING DIAGRAM
41 104449001 1
RUBBER CAP, 15.5
42 S50340000 2
BED BASE CUSHION
43 120263001 2
SHOULDER SCREW,SM4.37
44 117936001 1
RUBBER CAP, 9.4
<For China>
45 SA0793001 1 LABEL CAUTION CHN/ENG
<Except for China>
46 SA0792001 1 LABEL CAUTION JPN/ENG
HE-800A-050
2
3

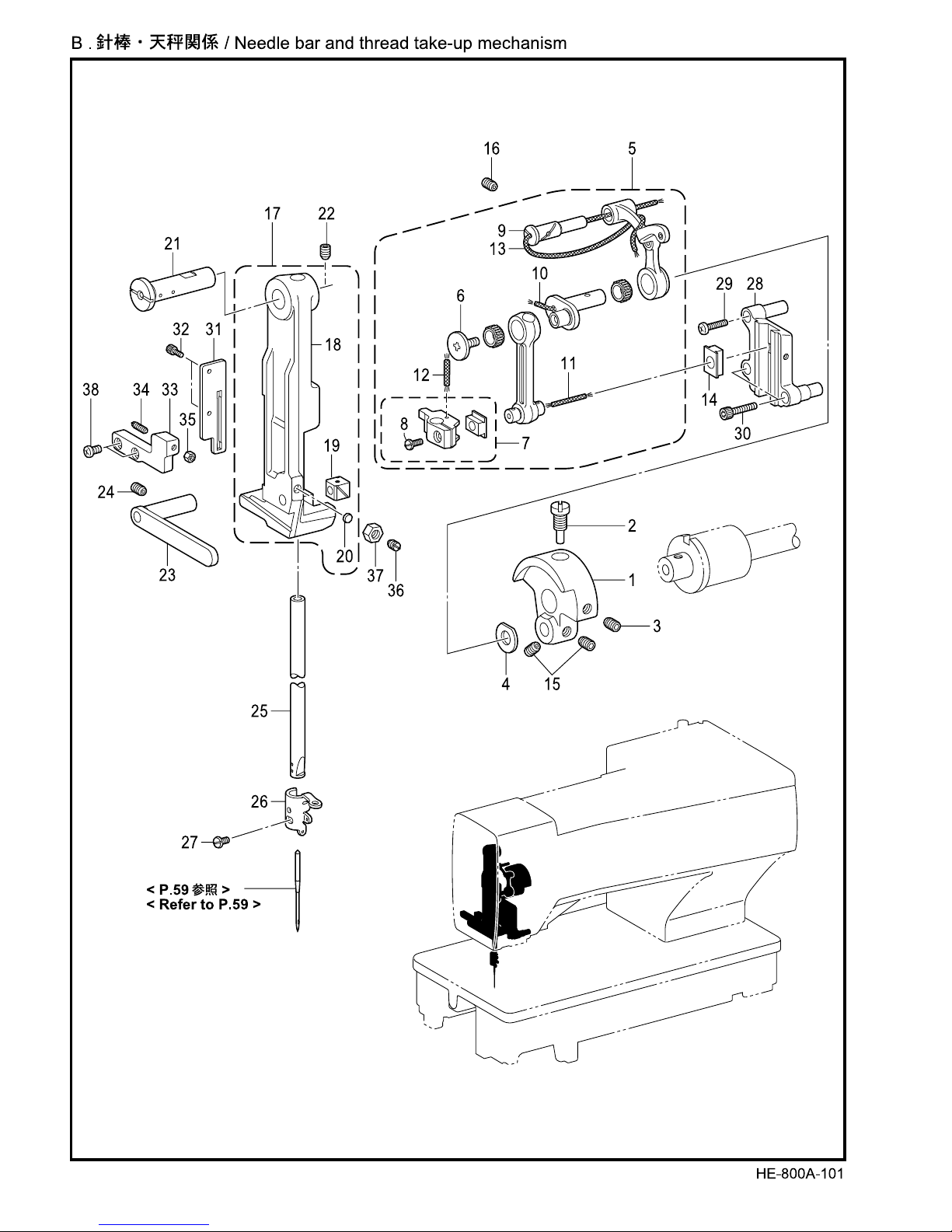

B. / Needle bar and thread take-up mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50132000 1
THREAD TAKE-UP CRAN
K
2 100250001 1
SCREW, SM7.14
3 014770632 1
SET SCREW SOCKET SM6.35-40X6
4 110367001 1
WASHER, PLAIN SPECIAL
8
5 SA4047301 1
NEEDLE BAR CONNECTING ROD SE
T
6 145465001 1
SCREW, SM3.57-40X6 L
7 S50136101 1
NEEDLE BAR CLAMP SE
T
8 140004001 1
SCREW, SM3.57-40X7
9 S52943101 1
SUPPORT SHAFT
10 140430001 1 WICK, 3X40
11 S50271000 1 WICK, 2X35
12 S50272000 1 WICK, 3X15
13 S50142000 1 WICK, 3X290
14 S52248001 1
N-BAR BRACKET SLIDE BLOC
K
15 014770632 2
SET SCREW SOCKET SM6.35-40X6
16 014760632 1
SET SCREW SOCKET SM5.95-28X6
17 S50143001 1
NEEDLE BAR BRACKET SE
T
18 S50144001 1
NEEDLE BAR BASE ASS
Y
19 159624001 1
N-BAR BRACKET SLIDE BLOC
K
20 S50146001 1 STOPPER PLATE
21 158888001 1
N-BAR BASE SUPPORT SHAF
T
22 014760632 1
SET SCREW SOCKET SM5.95-28X6
23 S50147001 1
NEEDLE BAR BASE GUID
E
24 014760632 1
SET SCREW SOCKET SM5.95-28X6
25 SA2921101 1
NEEDLE BA
R
26 S50149101 1
NEEDLE BAR THREAD GUIDE
27 140553102 1
SET SCREW, SM3.18
28 S50150001 1 CRANK ROD GUIDE
29 S31808001 1 SCREW, PAN SM4.37-40X25
30 150382001 2
BOLT, SOCKET SM4.37X18
31 S50152001 1
NEEDLE BAR GUIDE
32 154965001 2
BOLT, SOCKET SM3.57X8
33 S50153101 1
STOPPE
R
34 153483001 1
SET SCREW, SM4.76
35 021710202 1 NUT 2 SM4.76-32
36 013761410 1
SET SCREW (CP) SM5.95-28X14
37 100022005 1 NUT, SM5.95
38 062681012 2 SCREW PAN SM4.37-40X10
HE-800A-101
4
4
B. / Needle bar and thread take-up mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50132000 1
THREAD TAKE-UP CRAN
K
2 100250001 1
SCREW, SM7.14
3 014770632 1
SET SCREW SOCKET SM6.35-40X6
4 110367001 1
WASHER, PLAIN SPECIAL
8
5 SA4047301 1
NEEDLE BAR CONNECTING ROD SE
T
6 145465001 1
SCREW, SM3.57-40X6 L
7 S50136101 1
NEEDLE BAR CLAMP SE
T
8 140004001 1
SCREW, SM3.57-40X7
9 S52943101 1
SUPPORT SHAFT
10 140430001 1 WICK, 3X40
11 S50271000 1 WICK, 2X35
12 S50272000 1 WICK, 3X15
13 S50142000 1 WICK, 3X290
14 S52248001 1
N-BAR BRACKET SLIDE BLOC
K
15 014770632 2
SET SCREW SOCKET SM6.35-40X6
16 014760632 1
SET SCREW SOCKET SM5.95-28X6
17 S50143001 1
NEEDLE BAR BRACKET SE
T
18 S50144001 1
NEEDLE BAR BASE ASS
Y
19 159624001 1
N-BAR BRACKET SLIDE BLOC
K
20 S50146001 1 STOPPER PLATE
21 158888001 1
N-BAR BASE SUPPORT SHAF
T
22 014760632 1
SET SCREW SOCKET SM5.95-28X6
23 S50147001 1
NEEDLE BAR BASE GUID
E
24 014760632 1
SET SCREW SOCKET SM5.95-28X6
25 SA2921101 1
NEEDLE BA
R
26 S50149101 1
NEEDLE BAR THREAD GUIDE
27 140553102 1
SET SCREW, SM3.18
28 S50150001 1 CRANK ROD GUIDE
29 S31808001 1 SCREW, PAN SM4.37-40X25
30 150382001 2
BOLT, SOCKET SM4.37X18
31 S50152001 1
NEEDLE BAR GUIDE
32 154965001 2
BOLT, SOCKET SM3.57X8
33 S50153101 1
STOPPE
R
34 153483001 1
SET SCREW, SM4.76
35 021710202 1 NUT 2 SM4.76-32
36 013761410 1
SET SCREW (CP) SM5.95-28X14
37 100022005 1 NUT, SM5.95
38 062681012 2 SCREW PAN SM4.37-40X10
HE-800A-101
4
5
C. / Upper shaft mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50154001 1
UPPER SHAF
T
2 048150142 2
RETAINING RING EXTERNAL C15
3 072630260 1
BALL BEARING, THRUST 6302V
V
4 SA4065001 1
BUSH, F
5 158893100 1
BUSH M
6 S50156001 1 SET SCREW COLLA
R
7 014780632 2
SET SCREW SOCKET SM6.35-28X6
8 S50157001 1
PULLEY ASS
Y
9 014760632 2
SET SCREW SOCKET SM5.95-28X6
10 S50159001 1
T-PULLEY ASSY, U
11 S50160001 1
T-PULLEY, U
12 S48034001 2
RING
13 014780632 2
SET SCREW SOCKET SM6.35-28X6
14 S50161000 1
TIMMING BELT
15 S50163001 1
TENSION PULLEY PLATE
16 S50164001 1
TENSION PULLE
Y
17 S50165001 1
COLLAR
18 018102536 1
BOLT SOCKET M10X25
19 021100302 1 NUT 3 M10
20 048300242 2 RETAINING RING INTERNAL C30
21 076200800 1
BALL BEARING RADIAL 6200ZZ
22 018061632 2
BOLT SOCKET M6X16
23 025060232 2
WASHER PLAIN M 6
24 S50166001 1
IDLER PULLE
Y
25 S50167001 1
SHAFT
26 S50168001 1
COLLAR
27 070608800 2
BALL BEARING RADIAL 608ZZ
28 048220242 2 RETAINING RING INTERNAL C22
29 014760632 2
SET SCREW SOCKET SM5.95-28X6
30 111865009 1 CAP, 6
HE-800A-109
6
6
C. / Upper shaft mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50154001 1
UPPER SHAF
T
2 048150142 2
RETAINING RING EXTERNAL C15
3 072630260 1
BALL BEARING, THRUST 6302V
V
4 SA4065001 1
BUSH, F
5 158893100 1
BUSH M
6 S50156001 1 SET SCREW COLLA
R
7 014780632 2
SET SCREW SOCKET SM6.35-28X6
8 S50157001 1
PULLEY ASS
Y
9 014760632 2
SET SCREW SOCKET SM5.95-28X6
10 S50159001 1
T-PULLEY ASSY, U
11 S50160001 1
T-PULLEY, U
12 S48034001 2
RING
13 014780632 2
SET SCREW SOCKET SM6.35-28X6
14 S50161000 1
TIMMING BELT
15 S50163001 1
TENSION PULLEY PLATE
16 S50164001 1
TENSION PULLE
Y
17 S50165001 1
COLLAR
18 018102536 1
BOLT SOCKET M10X25
19 021100302 1 NUT 3 M10
20 048300242 2 RETAINING RING INTERNAL C30
21 076200800 1
BALL BEARING RADIAL 6200ZZ
22 018061632 2
BOLT SOCKET M6X16
23 025060232 2
WASHER PLAIN M 6
24 S50166001 1
IDLER PULLE
Y
25 S50167001 1
SHAFT
26 S50168001 1
COLLAR
27 070608800 2
BALL BEARING RADIAL 608ZZ
28 048220242 2 RETAINING RING INTERNAL C22
29 014760632 2
SET SCREW SOCKET SM5.95-28X6
30 111865009 1 CAP, 6
HE-800A-109
6
7
D. / Zigzag mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50169001 1
MOTOR BRACKET
2 S37940001 2
POSITIONING PIN
3 062711212 4 SCREW PAN SM4.76-32X12
4 062711612 1 SCREW PAN SM4.76-32X16
5 018401232 4
BOLT SOCKET M4X12
6 060300612 2
SCREW BIND M3X6
7 SA2881001 1
MOTOR LEVER
8 S50171001 1
MOTOR LEVER SHAFT
9 014760632 2
SET SCREW SOCKET SM5.95-28X6
10 S50172001 1 ZIGZAG CONNECTING ROD
11 S51190001 1
Z-CONNECTING ROD SHAFT
12 014760632 1
SET SCREW SOCKET SM5.95-28X6
13 S50174001 1
ZIGZAG LEVER
14 014760632 1
SET SCREW SOCKET SM5.95-28X6
15 118735001 2
WASHE
R
16 018062032 1
BOLT SOCKET M6X20
17 S32521001 1
WASHER, THRUS
T
18 S50176001 1
ZIGZAG LEVER ASSY, F
19 S50178001 1
Z-LEVER SHAFT
20 159625001 1
STUD
21 158945001 1
BUSH, F ; Z-LEVER
22 158946001 1
BUSH, R ; Z-LEVE
R
23 S50179001 1 Z-SENSOR PLATE
HE-800A-110
8
8
D. / Zigzag mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50169001 1
MOTOR BRACKET
2 S37940001 2
POSITIONING PIN
3 062711212 4 SCREW PAN SM4.76-32X12
4 062711612 1 SCREW PAN SM4.76-32X16
5 018401232 4
BOLT SOCKET M4X12
6 060300612 2
SCREW BIND M3X6
7 SA2881001 1
MOTOR LEVER
8 S50171001 1
MOTOR LEVER SHAFT
9 014760632 2
SET SCREW SOCKET SM5.95-28X6
10 S50172001 1 ZIGZAG CONNECTING ROD
11 S51190001 1
Z-CONNECTING ROD SHAFT
12 014760632 1
SET SCREW SOCKET SM5.95-28X6
13 S50174001 1
ZIGZAG LEVER
14 014760632 1
SET SCREW SOCKET SM5.95-28X6
15 118735001 2
WASHE
R
16 018062032 1
BOLT SOCKET M6X20
17 S32521001 1
WASHER, THRUS
T
18 S50176001 1
ZIGZAG LEVER ASSY, F
19 S50178001 1
Z-LEVER SHAFT
20 159625001 1
STUD
21 158945001 1
BUSH, F ; Z-LEVER
22 158946001 1
BUSH, R ; Z-LEVE
R
23 S50179001 1 Z-SENSOR PLATE
HE-800A-110
8
9
E. / Emergency stop mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50182000 1
EMERGENCY STOP COVE
R
2 062400806 3 SCREW PAN M4X8
HE-800A-114
10
10
E. / Emergency stop mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50182000 1
EMERGENCY STOP COVE
R
2 062400806 3 SCREW PAN M4X8
HE-800A-114
10
11
F. / Presser foot mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50183001 1
PRESSER DRIVING ARM
2 018061032 4
BOLT SOCKET M6X10
3 S43717201 1
GEAR, 15.75
4 014770632 2
SET SCREW SOCKET SM6.35-40X6
5 S50184001 1
GUIDE BRACKE
T
6 S42116000 2
LINEAR BUSH
7 S50185001 1
BEARING HOLDE
R
8 018400832 1
BOLT SOCKET M4X8
9 S50186001 2
GUIDE SHAFT
10 014760632 4
SET SCREW SOCKET SM5.95-28X6
11 S50187001 1
DRIVING ARM PRESSE
R
12 110367001 1
WASHER, PLAIN SPECIAL
8
13 014760632 1
SET SCREW SOCKET SM5.95-28X6
14 018401232 3
BOLT SOCKET M4X12
15 S50189001 1
P-LOFTER CONNECTING ROD
16 S50190001 1
SHOULDER SCRE
W
17 S50191001 1 ROLLER
18 110161004 1 NUT, SM4.76
19 028050242 1
WASHER SPRING 2-5
20 S50192101 1
SPACE
R
21 SA3001001 1
WASHER, PLAIN L 4.8: D
22 117363001 1
BOLT, SM4.76
23 S38761201 1
LIFTER LEVER KNEE
24 S50192101 1
SPACE
R
25 SA3001001 1
WASHER, PLAIN L 4.8: D
26 117363001 1
BOLT, SM4.76
27 S50193001 1
LIFTER SHAFT, A
28 014760632 1
SET SCREW SOCKET SM5.95-28X6
29 S50195001 1 U-THREAD TRIMMER DRIVING LIN
K
30 S38761201 1
LIFTER LEVER KNEE
31 145478101 1
SHOULDER SCREW, SOCKET SM4.76
32 S50196001 1
LIFTER SHAFT
33 025080132 1
WASHER PLAIN S 8
34 048060342 1 RETAINING RING E6
35 014760632 1
SET SCREW SOCKET SM5.95-28X6
36 145478101 2
SHOULDER SCREW, SOCKET SM4.76
37 S50198001 1
PRESSER BAR GUIDE BRACKE
T
38 S50199101 1
PRESSER BAR LIN
K
39 145478101 1
SHOULDER SCREW, SOCKET SM4.76
40 014760632 1
SET SCREW SOCKET SM5.95-28X6
41 111466121 1
PRESSER BA
R
42 SA7607001 1
SPRING GUIDE
43 S50200001 1
PRESSER BAR SPRING
44 S31013001 1
PRESSER ADJUSTING NU
T
45 S31012001 1
PRESSER ADJUSTING SCRE
W
46 140407001 1
WASHE
R
47 145472001 1
PRESSER BAR BUSH
48 S50201001 1 P-BAR ROLLER BRACKE
T
49 S50202001 1
ROLLER
50 062671212 1 SCREW PAN SM3.57-40X12
51 025060132 1
WASHER PLAIN S 6
52 048060142 1
RETAINING RING EXTERNAL C6
53 S50203101 1 ROLLER
54 S50204001 1
ROLLER SHAFT
55 014760632 1
SET SCREW SOCKET SM5.95-28X6
56 S37927000 1
NEEDLE BAR GUIDE
57 100242003 2
SCREW, SM3.57-40X5
58 155578000 2
RUBBER CAP, 7.2
59 S50205001 1
CLAMP SENSOR DOG
60 060670512 2
SCREW BIND SM3.57-40X5
61 S50206001 1 CLAMP SENSORPLATE
62 102538002 1
SCREW, FLAT SM3.57
63 025040232 3
WASHER PLAIN M 4
HE-800A-201
12
12
F. / Presser foot mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50183001 1
PRESSER DRIVING ARM
2 018061032 4
BOLT SOCKET M6X10
3 S43717201 1
GEAR, 15.75
4 014770632 2
SET SCREW SOCKET SM6.35-40X6
5 S50184001 1
GUIDE BRACKE
T
6 S42116000 2
LINEAR BUSH
7 S50185001 1
BEARING HOLDE
R
8 018400832 1
BOLT SOCKET M4X8
9 S50186001 2
GUIDE SHAFT
10 014760632 4
SET SCREW SOCKET SM5.95-28X6
11 S50187001 1
DRIVING ARM PRESSE
R
12 110367001 1
WASHER, PLAIN SPECIAL
8
13 014760632 1
SET SCREW SOCKET SM5.95-28X6
14 018401232 3
BOLT SOCKET M4X12
15 S50189001 1
P-LOFTER CONNECTING ROD
16 S50190001 1
SHOULDER SCRE
W
17 S50191001 1 ROLLER
18 110161004 1 NUT, SM4.76
19 028050242 1
WASHER SPRING 2-5
20 S50192101 1
SPACE
R
21 SA3001001 1
WASHER, PLAIN L 4.8: D
22 117363001 1
BOLT, SM4.76
23 S38761201 1
LIFTER LEVER KNEE
24 S50192101 1
SPACE
R
25 SA3001001 1
WASHER, PLAIN L 4.8: D
26 117363001 1
BOLT, SM4.76
27 S50193001 1
LIFTER SHAFT, A
28 014760632 1
SET SCREW SOCKET SM5.95-28X6
29 S50195001 1 U-THREAD TRIMMER DRIVING LIN
K
30 S38761201 1
LIFTER LEVER KNEE
31 145478101 1
SHOULDER SCREW, SOCKET SM4.76
32 S50196001 1
LIFTER SHAFT
33 025080132 1
WASHER PLAIN S 8
34 048060342 1 RETAINING RING E6
35 014760632 1
SET SCREW SOCKET SM5.95-28X6
36 145478101 2
SHOULDER SCREW, SOCKET SM4.76
37 S50198001 1
PRESSER BAR GUIDE BRACKE
T
38 S50199101 1
PRESSER BAR LIN
K
39 145478101 1
SHOULDER SCREW, SOCKET SM4.76
40 014760632 1
SET SCREW SOCKET SM5.95-28X6
41 111466121 1
PRESSER BA
R
42 SA7607001 1
SPRING GUIDE
43 S50200001 1
PRESSER BAR SPRING
44 S31013001 1
PRESSER ADJUSTING NU
T
45 S31012001 1
PRESSER ADJUSTING SCRE
W
46 140407001 1
WASHE
R
47 145472001 1
PRESSER BAR BUSH
48 S50201001 1 P-BAR ROLLER BRACKE
T
49 S50202001 1
ROLLER
50 062671212 1 SCREW PAN SM3.57-40X12
51 025060132 1
WASHER PLAIN S 6
52 048060142 1
RETAINING RING EXTERNAL C6
53 S50203101 1 ROLLER
54 S50204001 1
ROLLER SHAFT
55 014760632 1
SET SCREW SOCKET SM5.95-28X6
56 S37927000 1
NEEDLE BAR GUIDE
57 100242003 2
SCREW, SM3.57-40X5
58 155578000 2
RUBBER CAP, 7.2
59 S50205001 1
CLAMP SENSOR DOG
60 060670512 2
SCREW BIND SM3.57-40X5
61 S50206001 1 CLAMP SENSORPLATE
62 102538002 1
SCREW, FLAT SM3.57
63 025040232 3
WASHER PLAIN M 4
HE-800A-201
12
13

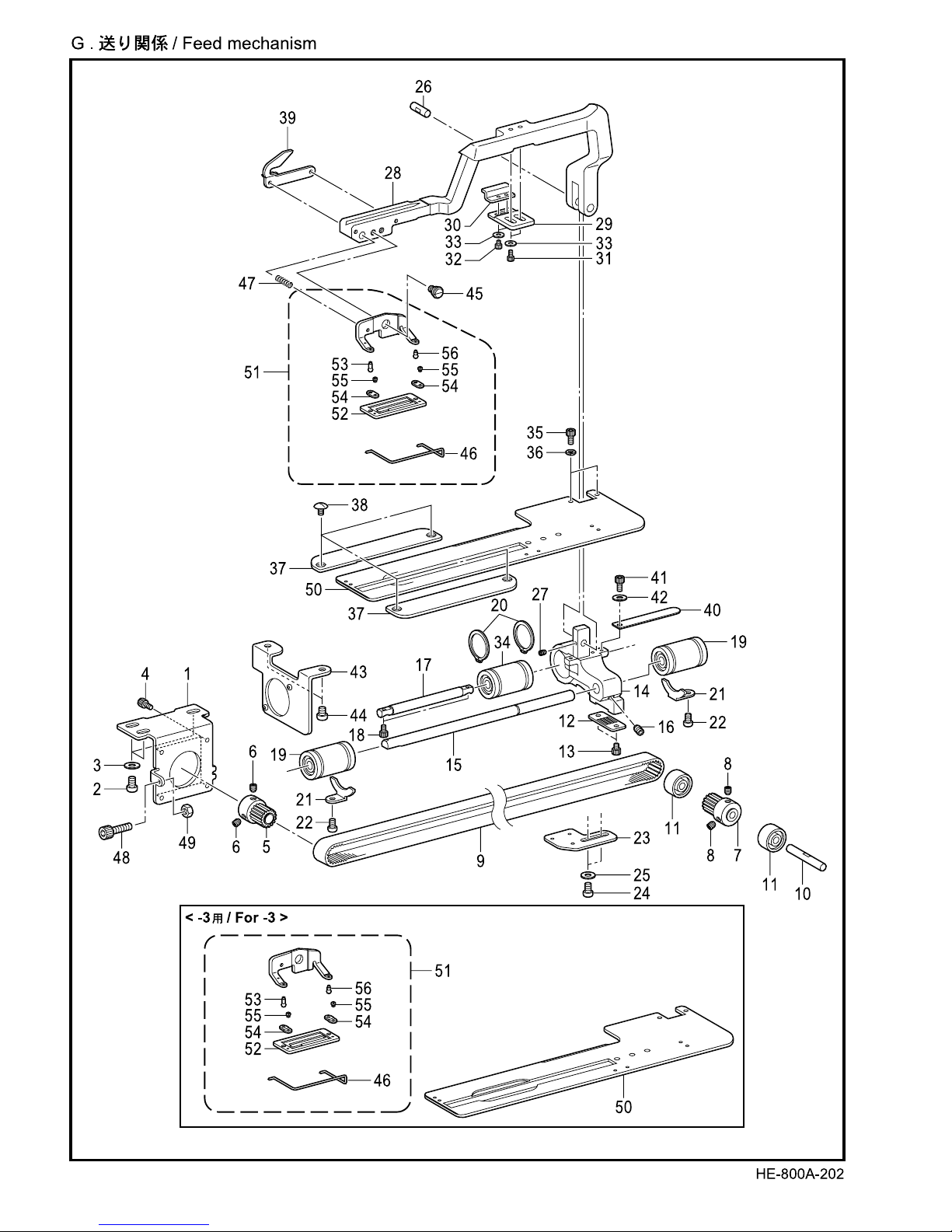

G. / Feed mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50207001 1 MOTOR MOUNTING BRACKET
2 062761012 3 SCREW PAN SM5.95-28X10
3 025060232 3
WASHER PLAIN M 6
4 018401032 4
BOLT SOCKET M4X10
5 S50208001 1
PULLEY,
A
6 014060632 2
SET SCREW SOCKET (CP) M6X6
7 S50110001 1
PULLEY, B
8 014060632 2
SET SCREW SOCKET (CP) M6X6
9 S50209000 1
TIMING BELT
10 S50210001 1
SUPPORT SHAFT
11 070688850 2
BALL BEARING RADIAL 688ZZ
12 S50211101 1
BELT HOLDER
13 S59890001 2
BOLT, SOCKET SM4.37-40X8
14 S50212001 1
FEED ARM SUPPOR
T
15 S50213001 1
FEED GUIDE SHAFT, B
16 014760632 1
SET SCREW SOCKET SM5.95-28X6
17 S50214001 1
FEED GIIDE SHAFT,
A
18 S59894001 2
BOLT, SOCKET SM4.37-40X12
19 S12004000 2
LINEAR BUSH
20 S02460001 2
RETAINING RING, EXTERNAL C19
21 S35184001 2
BALL BEARING STOPPE
R
22 060660416 2
SCREW BIND SM3.18-40X4
23 S50215101 1 FEED SENSOR SUPPORT PLATE
24 062680812 2 SCREW PAN SM4.37-40X8
25 025680132 2
WASHER PLAIN S SM4.37
26 S50216101 1
SUPPORT SHAFT
27 012500536 1 SET SCREW SOCKET (FT) M5X5
28 S50217001 1
FEED ARM
29 S50218001 1
SUPPORT PLATE
30 S50219101 1
CAM
31 S59893001 2
BOLT, SOCKET SM4.37-40X10
32 S59892001 2
BOLT, SOCKET SM4.37-40X5
33 110735002 4
WASHE
R
34 S12004000 1
LINEAR BUSH
35 S59893001 2
BOLT, SOCKET SM4.37-40X10
36 028680242 2
WASHER SPRING 2-4.37
37 S50221101 2 FEED PRESSER PLATE
38 105130001 4
SCREW, SM3.57
39 S50222001 1
FEED ARM SUPPOR
T
40 S50223100 1
COVE
R
41 S59890001 1
BOLT, SOCKET SM4.37-40X8
42 025680132 1
WASHER PLAIN S SM4.37
43 S50224001 1
FEED MOTOR COVER
44 062680812 2 SCREW PAN SM4.37-40X8
45 S50562101 1
SHOULDER SCREW SM6.35
46 159080100 1
FINGER GUARD, M
47 159078001 1
SPRING
48 018502032 1
BOLT SOCKET M5X20
49 021500216 1 NUT 2 M5
<For -2>
50 S50220001 1
LENGTH FEED PLATE, -2
51 S37100302 1 WORK CLAMP ASSY 25RS W/F-G
52 159762002 1 WORK CLAMP 25RS
53 159926001 1
PIN, L
54 107401001 2
SPRING, PLATE
55 107404001 2
SCREW, SM1.98-64X2
56 159927001 1
PIN, S
HE-800A-202
14
14
G. / Feed mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50207001 1 MOTOR MOUNTING BRACKET
2 062761012 3 SCREW PAN SM5.95-28X10
3 025060232 3
WASHER PLAIN M 6
4 018401032 4
BOLT SOCKET M4X10
5 S50208001 1
PULLEY,
A
6 014060632 2
SET SCREW SOCKET (CP) M6X6
7 S50110001 1
PULLEY, B
8 014060632 2
SET SCREW SOCKET (CP) M6X6
9 S50209000 1
TIMING BELT
10 S50210001 1
SUPPORT SHAFT
11 070688850 2
BALL BEARING RADIAL 688ZZ
12 S50211101 1
BELT HOLDER
13 S59890001 2
BOLT, SOCKET SM4.37-40X8
14 S50212001 1
FEED ARM SUPPOR
T
15 S50213001 1
FEED GUIDE SHAFT, B
16 014760632 1
SET SCREW SOCKET SM5.95-28X6
17 S50214001 1
FEED GIIDE SHAFT,
A
18 S59894001 2
BOLT, SOCKET SM4.37-40X12
19 S12004000 2
LINEAR BUSH
20 S02460001 2
RETAINING RING, EXTERNAL C19
21 S35184001 2
BALL BEARING STOPPE
R
22 060660416 2
SCREW BIND SM3.18-40X4
23 S50215101 1 FEED SENSOR SUPPORT PLATE
24 062680812 2 SCREW PAN SM4.37-40X8
25 025680132 2
WASHER PLAIN S SM4.37
26 S50216101 1
SUPPORT SHAFT
27 012500536 1 SET SCREW SOCKET (FT) M5X5
28 S50217001 1
FEED ARM
29 S50218001 1
SUPPORT PLATE
30 S50219101 1
CAM
31 S59893001 2
BOLT, SOCKET SM4.37-40X10
32 S59892001 2
BOLT, SOCKET SM4.37-40X5
33 110735002 4
WASHE
R
34 S12004000 1
LINEAR BUSH
35 S59893001 2
BOLT, SOCKET SM4.37-40X10
36 028680242 2
WASHER SPRING 2-4.37
37 S50221101 2 FEED PRESSER PLATE
38 105130001 4
SCREW, SM3.57
39 S50222001 1
FEED ARM SUPPOR
T
40 S50223100 1
COVE
R
41 S59890001 1
BOLT, SOCKET SM4.37-40X8
42 025680132 1
WASHER PLAIN S SM4.37
43 S50224001 1
FEED MOTOR COVER
44 062680812 2 SCREW PAN SM4.37-40X8
45 S50562101 1
SHOULDER SCREW SM6.35
46 159080100 1
FINGER GUARD, M
47 159078001 1
SPRING
48 018502032 1
BOLT SOCKET M5X20
49 021500216 1 NUT 2 M5
<For -2>
50 S50220001 1
LENGTH FEED PLATE, -2
51 S37100302 1 WORK CLAMP ASSY 25RS W/F-G
52 159762002 1 WORK CLAMP 25RS
53 159926001 1
PIN, L
54 107401001 2
SPRING, PLATE
55 107404001 2
SCREW, SM1.98-64X2
56 159927001 1
PIN, S
HE-800A-202
14
15
G. / Feed mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
<For -3>
50 S50225001 1
LENGTH FEED PLATE, -3
51 S37102301 1 WORK CLAMP ASSY 25-K W/F-G
52 144630001 1 WORK CLAMP 25-
K
53 159926001 1
PIN, L
54 144707001 2
SPRING, PLATE
55 107404001 2
SCREW, SM1.98-64X2
56 159927001 1
PIN, S
HE-800A-202
16
16
G. / Feed mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
<For -3>
50 S50225001 1
LENGTH FEED PLATE, -3
51 S37102301 1 WORK CLAMP ASSY 25-K W/F-G
52 144630001 1 WORK CLAMP 25-
K
53 159926001 1
PIN, L
54 144707001 2
SPRING, PLATE
55 107404001 2
SCREW, SM1.98-64X2
56 159927001 1
PIN, S
HE-800A-202
16
17

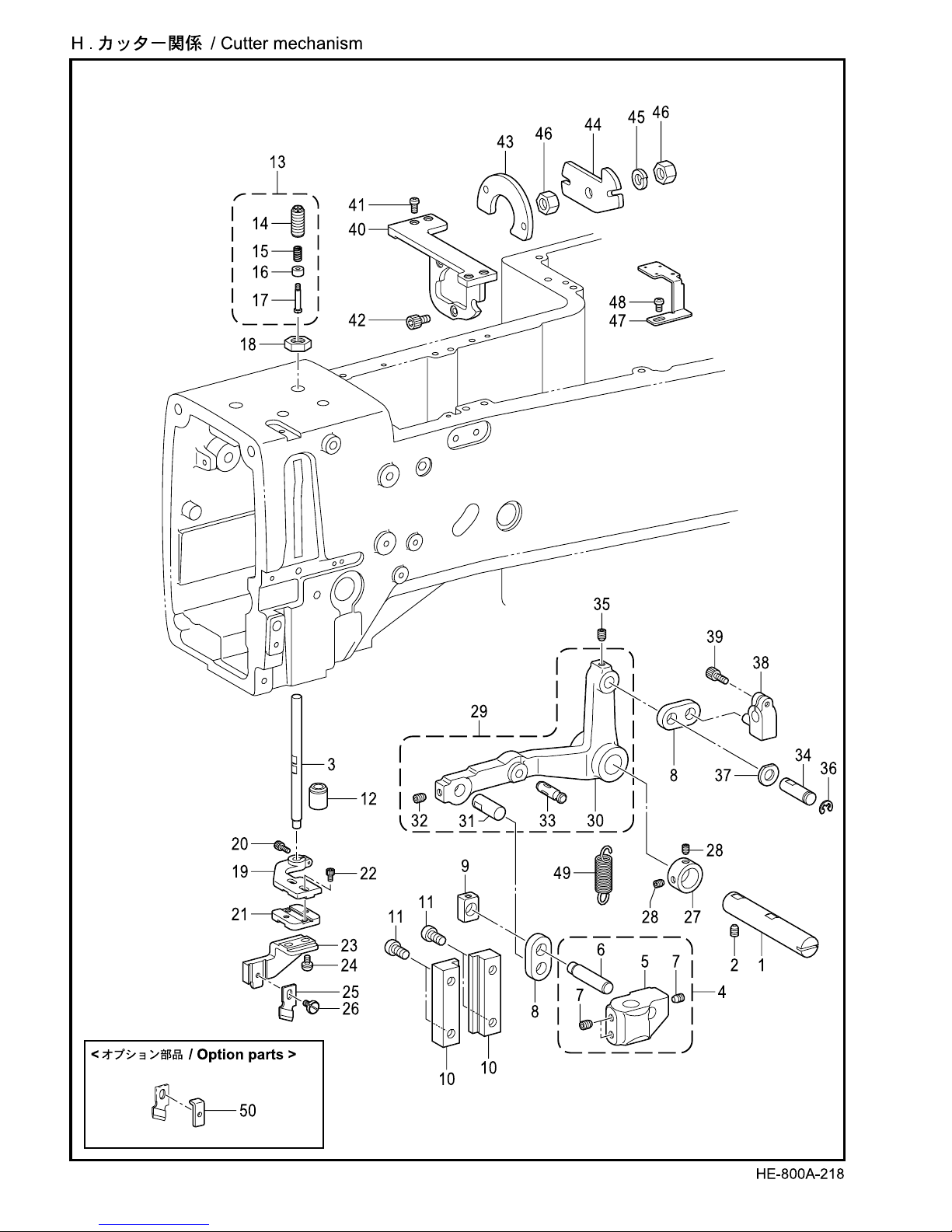

H. / Cutter mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 S50283001 1
CUTTER DRIVING ARM SHAFT
2 014760632 1
SET SCREW SOCKET SM5.95-28X6
3 S50284101 1
CUTTER DRIVING SHAFT
4 S50285101 1
DRIVING SHAFT HOLDER ASS
Y
5 S50286101 1
CUTTER DRIVING SHAFT HOLDER
6 S50287001 1
CUTTER DRIVING LINK SHAFT
7 014780632 3
SET SCREW SOCKET SM6.35-28X6
8 S50288001 2 CUTTER DRIVING LIN
K
9 102630001 1
NEEDLE BAR GUIDE SLIDE BLOC
K
10 SA2385001 2
GUIDE, ; C-BAR
11 062761012 4 SCREW PAN SM5.95-28X10
12 159117001 1
BUSH, ; C-DRIVING SHAFT
13 S50289001 1
A
DJUSTING SCREW ASS
Y
14 S50290001 1
A
DJUSTING SCRE
W
15 S50291001 1
CUSHION SPRING
16 S50292001 1 CUSHION SUPPOR
T
17 S50293001 1
SHOULDER SCREW, SM3.57
18 021910302 1 NUT 3 SM12.70-20
19 S50294001 1
CUTTER HOLDER
20 S59893001 1
BOLT, SOCKET SM4.37-40X10
21 S50295001 1
CUTTER HOLDER, M
22 S59891001 2
BOLT, SOCKET SM4.37-40X6
23 S50296001 1
CUTTER HOLDER, DL
24 153057102 2
SCREW, ROUND W/SOCKET SM4.37
25 S51352001 1 CUTTER, 1/2
26 115503001 1
SCREW, SM4.37
27 S09212001 1 SET SCREW COLLA
R
28 014770632 2
SET SCREW SOCKET SM6.35-40X6
29 S50298101 1
CUTTER DRIVING ARM ASS
Y
30 S50299101 1
CUTTER DRIVING ARM
31 159104001 1
PIN
32 014680632 1
SET SCREW SOCKET SM4.37-40X6
33 159379001 1
PIN, DOWEL BX6X18
34 S50300001 1
CUTTER LINK SHAFT
35 014760632 1
SET SCREW SOCKET SM5.95-28X6
36 048060342 1 RETAINING RING E6
37 110367001 1
WASHER, PLAIN SPECIAL
8
38 SA2412001 1
CUTTER LINK BRACKE
T
39 S59894001 1
BOLT, SOCKET SM4.37-40X12
40 S50362001 1
CUTTER SOLENOID BRACKE
T
41 062711412 4 SCREW PAN SM4.76-32X14
42 018501032 3
BOLT SOCKET M5X10
43 S50363000 1 STOPPER CUSHION
44 S50364001 1 SOLENOID STOPPE
R
45 028080242 1
WASHER SPRING 2-8
46 021080202 2 NUT 2 M8
47 S50365101 1 CUTTER SENSOR SETTING PLATE
48 062710812 1 SCREW PAN SM4.76-32X8
49 S50366001 1
SPRING
<OPTION PARTS>
50 S50297001 1 CUTTER HOLDER
HE-800A-218
18
Other manuals for HE-800A
5
Table of contents
Other Brother Sewing Machine manuals
Brother
Brother SC9500 Setup guide
Brother
Brother DB2-8715 User manual
Brother
Brother CS7000X User manual
Brother
Brother VX-1400 User manual
Brother
Brother 888-F50 User manual
Brother
Brother vx780 User manual
Brother
Brother PC-6500 User manual
Brother
Brother DB2-B773 User manual
Brother
Brother T-8421C User manual
Brother
Brother MA4-V61 User manual
Brother
Brother TZ1-B652 User manual
Brother
Brother Innov-is I User manual
Brother
Brother 882-W07 Quick start guide
Brother
Brother BAS-311E User manual
Brother
Brother Couture Sewing Kit User manual
Brother
Brother DT4-B266 User manual
Brother
Brother MA4-B551 User manual
Brother
Brother CS-8060 User manual
Brother
Brother KXC4589-051 User manual
Brother
Brother LK3-B438E MKII User manual
Popular Sewing Machine manuals by other brands
Duerkopp Adler
Duerkopp Adler 366 Spare parts
Mitsubishi
Mitsubishi DB-189 Instruction for operation manual
HIGHLEAD
HIGHLEAD GC0518-MC Instruction manual parts catalog
Keystone
Keystone Consew 733R-5 Operating instructions, parts list, maintenance procedures
Singer
Singer 302U201 Service manual
Siruba
Siruba C007K manual
