BSaunas PATIO S User manual

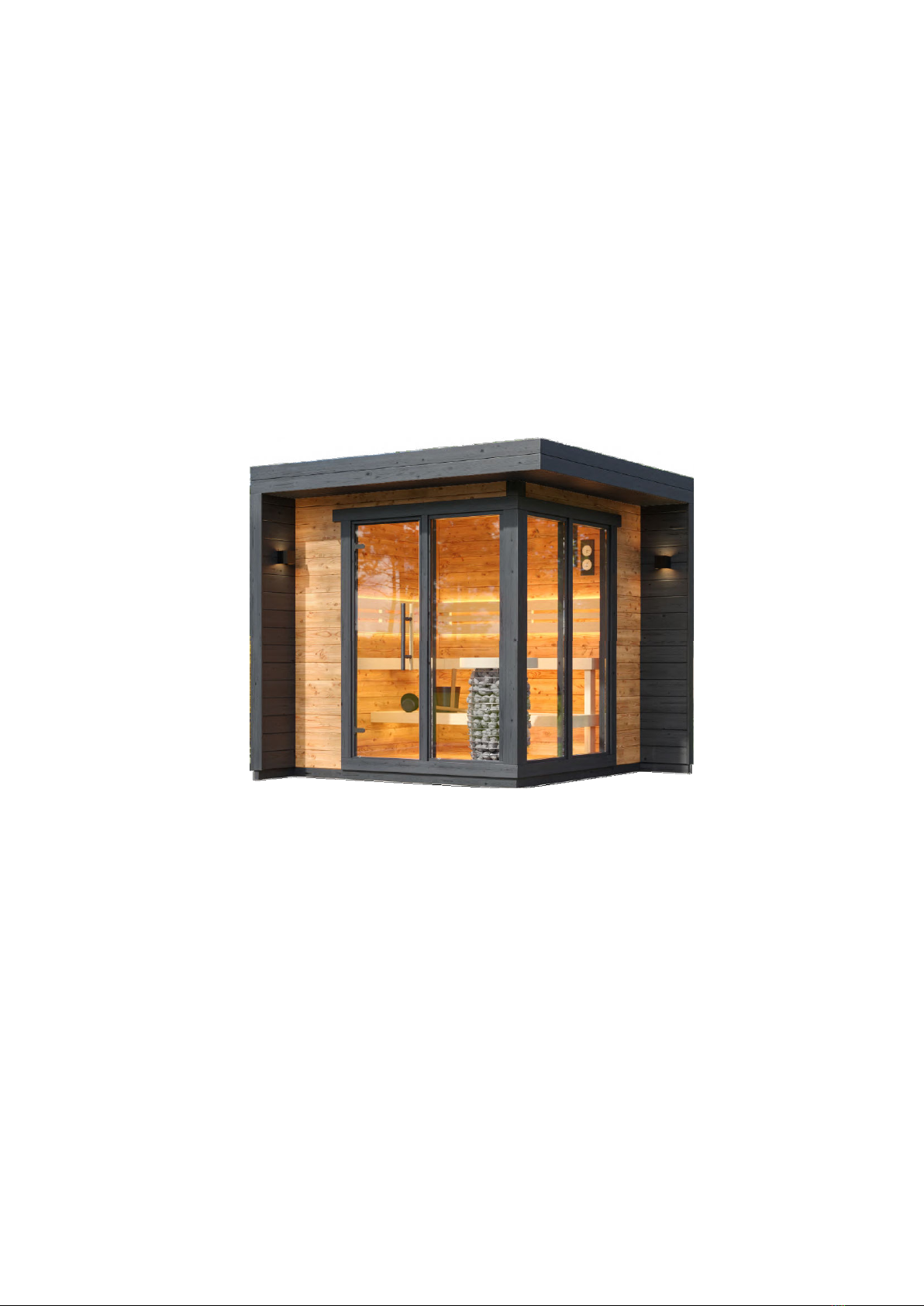

PATIO S THERMO SAUNA
INSTALLATION MANUAL

1
Instructions
Tape measure
Required tools
It is recommended to install the sauna above ground level to prevent the base frame of the sauna from coming into
direct contact with the ground. Install a water-resistant material, such as bitumen strips, between the base frame and
the base surface.
1.
Make sure that the surface on which you install the sauna is level and stable before and after installing the sauna.
Otherwise, the doors of the sauna may not open and close properly later on.
2.
During the first heating of the sauna, it must be constantly supervised, and the doors should be kept open, as the
stove emits a specific odor when first heated. Read more from the user manual for the sauna stove.
3.
The maximum permitted temperature in the steam room is +90 °C. If heated to a higher temperature, the sauna may
become overheated.
4.
In order to avoid damage caused by the weight of snow in winter, any snow should be removed from the roof of the
sauna. Keep in mind that the roof covering should not be damaged during snow removal.
5.
If your sauna has lighting, install a 3G 2,5 mm outdoor power cable and connect it in accordance with the
schematics on the plug socket coupler provided with the sauna. The power cable of the sauna must be connected to
a residual-current circuit breaker! Consult an electrician if necessary.
6.
Cutting knife Respirator
Pencil Battery drill Scissors
Level Nail gun Tin shears
Rubber mallet Circular saw Pliers
Hammer Gloves Hole saw Ø 100 mm
Hand saw Safety goggles Jigsaw
PATIO S THERMO SAUNA

690x1860
560 690x1860
690x1860 690x1860
500
560
2000
2350
2430
2000270
2410 2350
270
500
600
400
857
2407
Floor plan
Cross section
WALL 2 (front)
WALL B (right)
2
WALL A (left)
WALL 1 (back)
WALL B (right)
WALL A (left)
PATIO S THERMO SAUNA

VR-1
45 mm gap for
VR-1 drainage detail
5x90 screws
fasten at an angle
fasten at an angle
fasten at an angle
fasten at an angle
AR-1A
AR-4
WALL B (right)
WALL 1 (back)
WALL A (left)
335
WALL 2 (front)
AR-4
AR-4
AR-4
AR-4
AR-4
AR-3
X
Y
335 335 281
AR-2
2752070
2025
AR-4
334
416
22
1884
AR-1A
45
95
STEP 1 - Base frame
Scheme 1.1
Marking Detail Image Note Pcs.Length
AR-1A 45x95 Base Frame Cutout! 12345
AR-2 12300
AR-3 45x95 Base Frame 12025
VR-1 Drainage detail 12065
45x95 Base Frame
Check diagonals: X=Y
X= 2927 mm
Y= 2927 mm
Marking Detail Image Note Pcs.Length
for base frame 40Screw 5x90
3
Connect the base frame details according to Scheme 1.1.
Make sure that the frame is level and that the diagonals are equal (X = Y). Leave a 45 mm gap between two
AR-1 base frame details so that the water drainage detail VR-1 can be fitted between them.
Use a level, a battery drill, and 5x90 screws to join the base frame together.
1.1
Place the VR-1 drainage detail on top of the base frame. The bottom of the detail must be inclined outward.
No fixings are needed.
Caution! The detail has sharp edges; use gloves.
1.2
AR-4 45x95 Base Frame 81980
PATIO S THERMO SAUNA

34 10296
04C
33
04B
163
96
560 1390
81
05D
5601390
81
05D
49
49

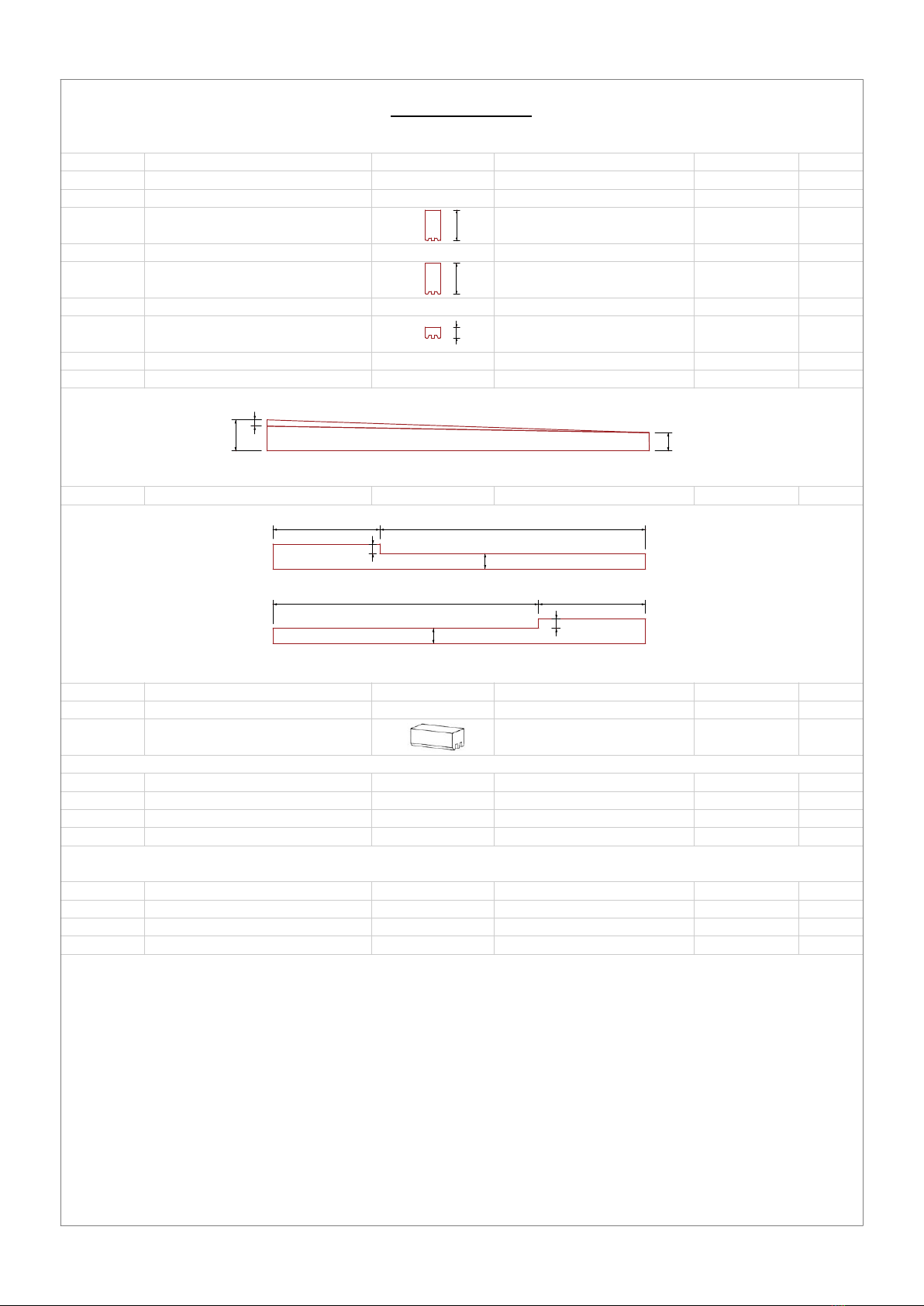

STEP 2 - Walls
Marking Detail Image Note Pcs.Length
01 40x138 Wall Log Thermo 172350
EXTRA 12350
01B 40x102 Wall Log Thermo 12350
40x138 Wall Log Thermo
Height: 102 mm
03B 40x34 Wall Log Thermo Height: 34 mm 12040
02 40x138 Wall Log Thermo 162310
02B Height: 96 mm 1231040x96 Wall Log Thermo
03 2204040x138 Wall Log Thermo
4
Marking Detail Image Note Pcs.Length
for every wall log 200Screw 6x180
Hitting Block 2
for corner posts 230Screw 4.5x70
for AT-1 temporary supports 12Screw 4.5x70
P-1 45x45 Corner Post 12190
P-2 2212045x45 Corner Post
AT-1 for corner post installation 6~180045x45 Temporary Support
EXTRA 456040x138 Wall Log Thermo
04 1200040x138 Wall Log Thermo
04B + 04C Wedge shaped 1200040x33 Wall Log Thermo
05D 2195040x138 Wall Log Thermo
06 2856040x138 Wall Log Thermo
90x90 Corner Post 12290P-0
PATIO S THERMO SAUNA

6x180 screws
4.5x70 screws
06
P-1
06
02
01
P-2
P-2
AT-1
AT-1
AT-1
AT-1
AT-1
AT-1
1910
1910
4.5x70 screws
6x180 screws
45 mm
6x180 screws
02
WALL A (left)
WALL 2 (front)
WALL 1 (back)
WALL B (right)
05D
05D
01
2000
2000
Scheme 2.2
5
Scheme 2.1
5 mm
OUTSIDEINSIDE

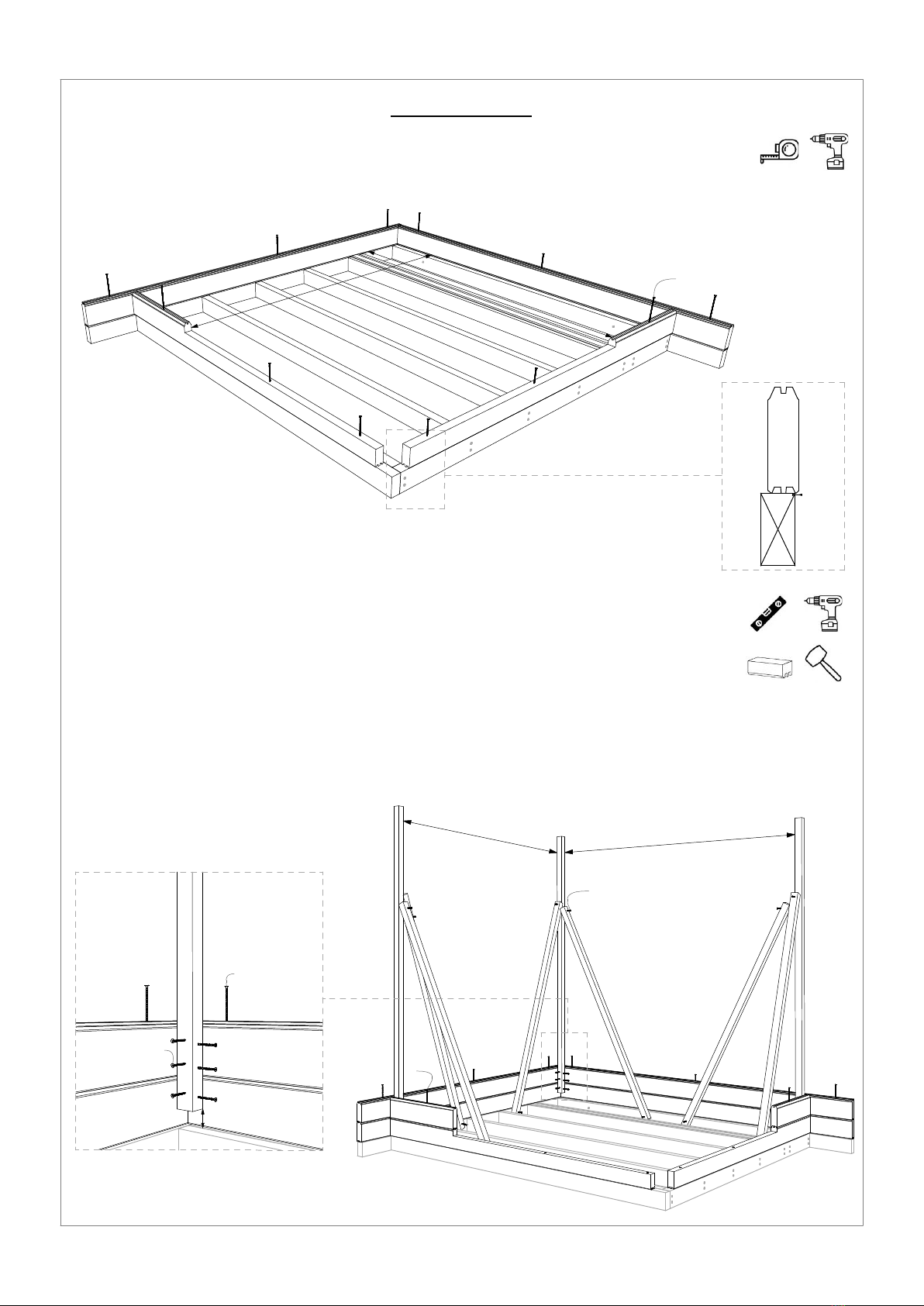

STEP 2 - Walls
Place the first row of wall logs on the base frame according to Scheme 2.1. Make sure that the wall logs protrude
5 mm outward from the base frame on all sides. Use 6x180 screws to fix the wall logs to the base frame.
Suggestion: Pre-drill the holes for the screws to prevent wall logs from splitting.
2.1
Place the second row of wall logs on top of the first row. Use a hitting block and a rubber mallet to set the logs
in place. Attach the second row to the first using 6x180 screws and a battery drill.
Suggestion: Pre-drill the holes for the screws to prevent wall logs from splitting.
2.2
Install corner posts in the inner corners. Leave a 45 mm gap at the bottom, between the corner posts and
the base frame. Use 4.5x70 screws and a drill to fix the corner posts to every wall log (Scheme 2.2).
Suggestion: Pre-drill holes for the screws to prevent the posts from splitting.
2.3
Vertically level the corner posts and temporarily attach AT-1 details to them for support and to keep the posts
in a level position. Use a level, 4.5x70 screws, and a battery drill.
2.4
PATIO S THERMO SAUNA

06
02
01
02
02
02
02
02
01
01
01
01
01
06
06
06
06
06
06
06
06
06
06
06
1910
1910
01
01
01
01
0
6
06
06
6

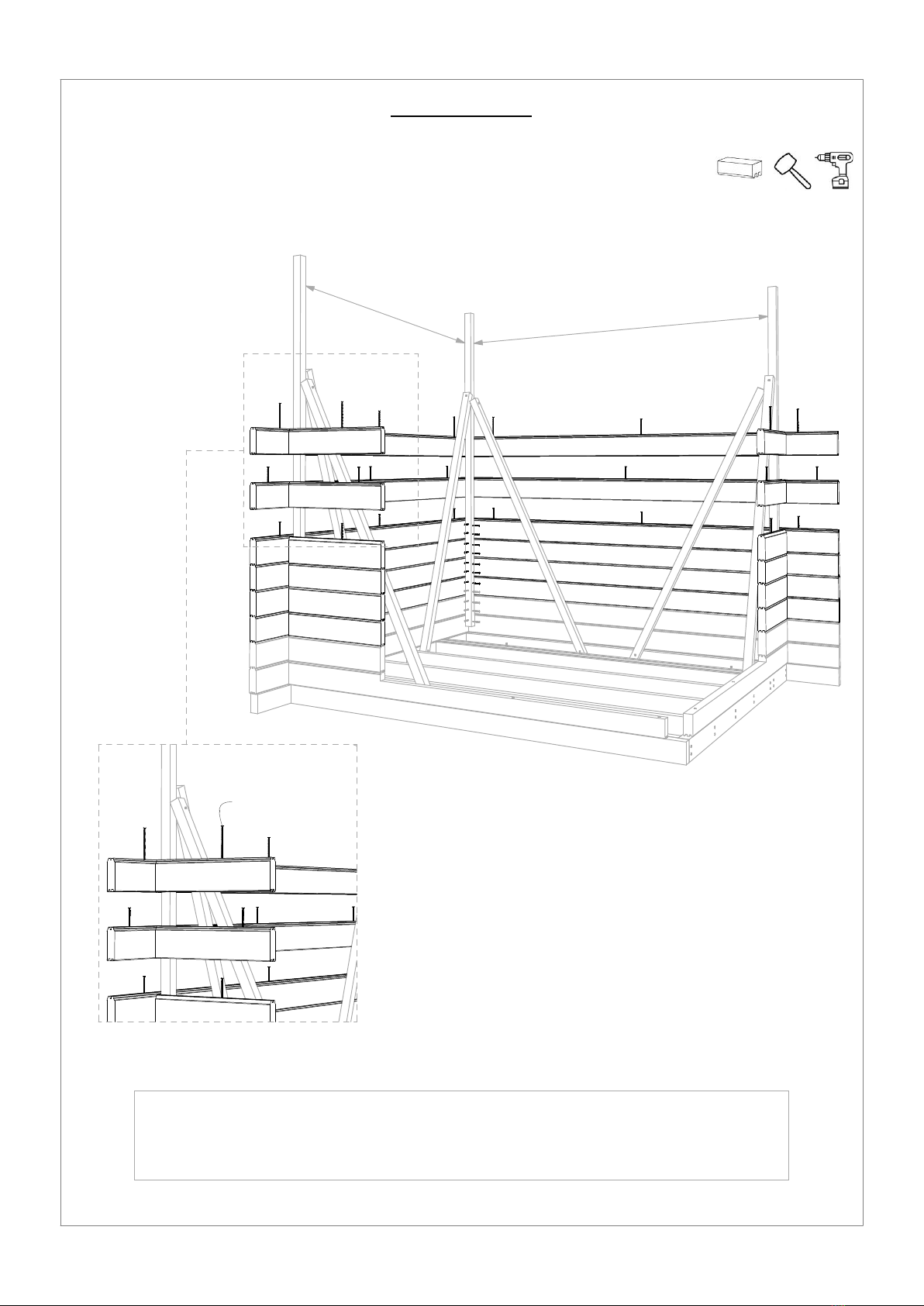

STEP 2 - WallsSTEP 2 - Walls
Continue to install the wall logs on top of each other according to the "Wall Layout" scheme on page 7.
Use 6x180 screws to connect all wall logs to each other and 4.5x70 screws to fix all logs to corner posts,
like shown in Scheme 2.3.
2.5
Remove the AT-1 temporary support details after all wall logs have been installed.2.6
For installation of walls, please see the placement of the wall logs on the
"Wall Layout" scheme on page 7.
Scheme 2.3
fix every log with
6x180 screws
PATIO S THERMO SAUNA

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Wall 2 (front)
View from the outside
560 1390 90
2244
Wall A (left)
View from the outside
2350
2312
Wall 1 (back)
View from the outside
2310
2176
Wall B (right)
View from the outside
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
2176
1950
2040
02
02
02
02
02
02
02
02
02
02
02
02
02
02
02B
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01B
03B
03
03
05D
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
06
05D
04
04B
04C
Window
690x1860
Window
690x1860
Door
690x1860
Window
690x1860
2244
2000
01
02
02
WALL LAYOUT
7
* Connect all wall logs together using 6x180 screws.
* Connect all wall logs to corner posts using 4.5x70 screws
PATIO S THERMO SAUNA

P-0
Cut at the bottom
Measure the height of the opening
Mark the opening height on the corner post
and cut to length from the bottom
P-0
4.5x70 screws
6x180 screws
8

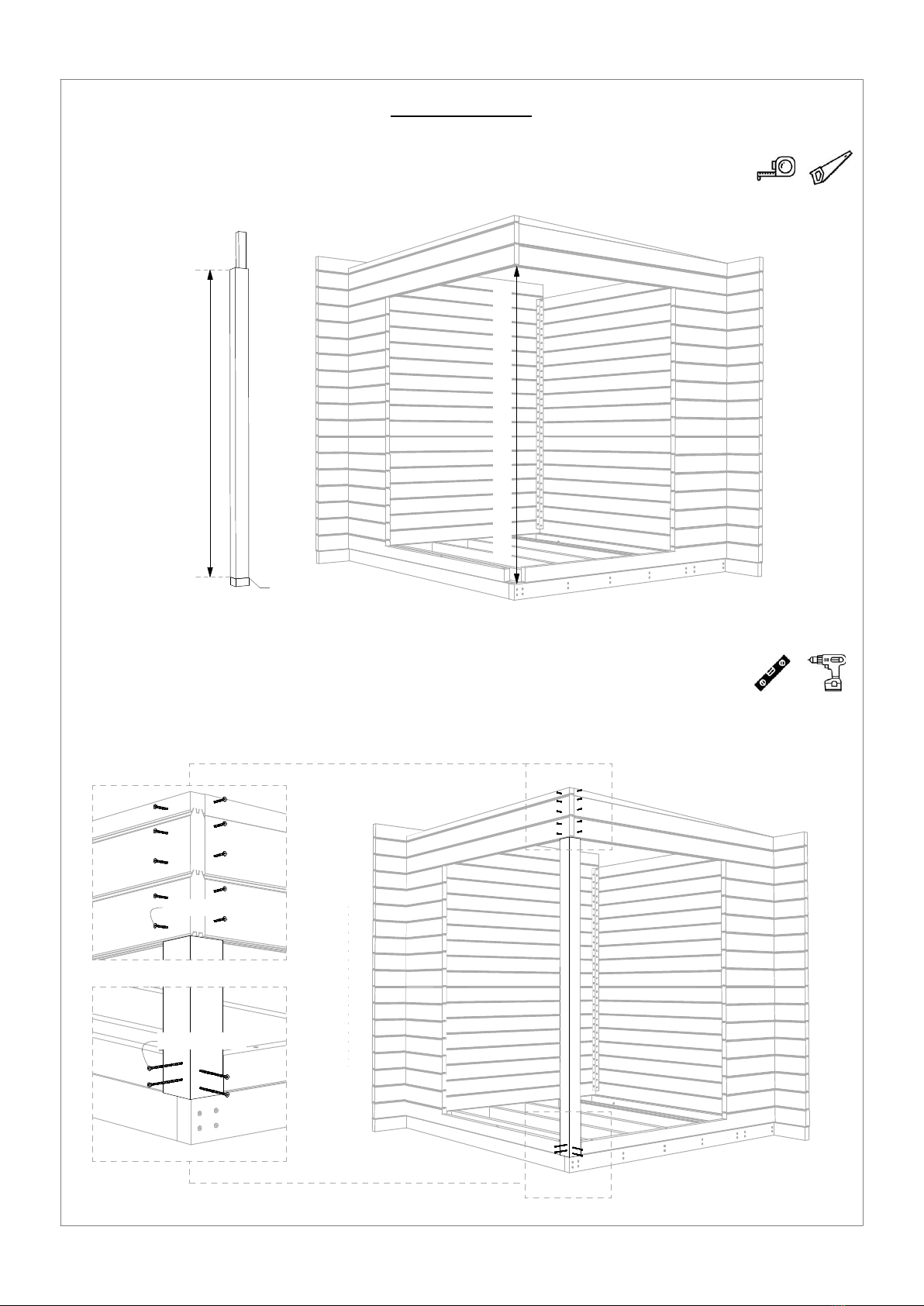

STEP 2 - Walls
Place the P-0 corner post in position and make sure it is level. Attach the corner post to the bottom row of
wall logs with 6x180 screws (Scheme 2.5).
2.8
Install the P-0 corner post. The length of the post is delivered with an oversize of 50 mm. Measure the
height of the window opening and cut the post to the right length at the bottom (see Scheme 2.4).
2.7
Scheme 2.4
Fix the top three rows of logs to the corner post using 4.5x70 screws. The screws will later be covered with
corner post moldings and will not be visible.
2.9
Scheme 2.5
PATIO S THERMO SAUNA

gap ~2 mm
gap ~2 mm
gap ~2 mm
gap ~2 mm
T-4
T-4
Top side of the ceiling beam
must be flush with the wall
Corner posts can remain lower
than the upper edge of the wall
4.5x70 screws
T-4
9

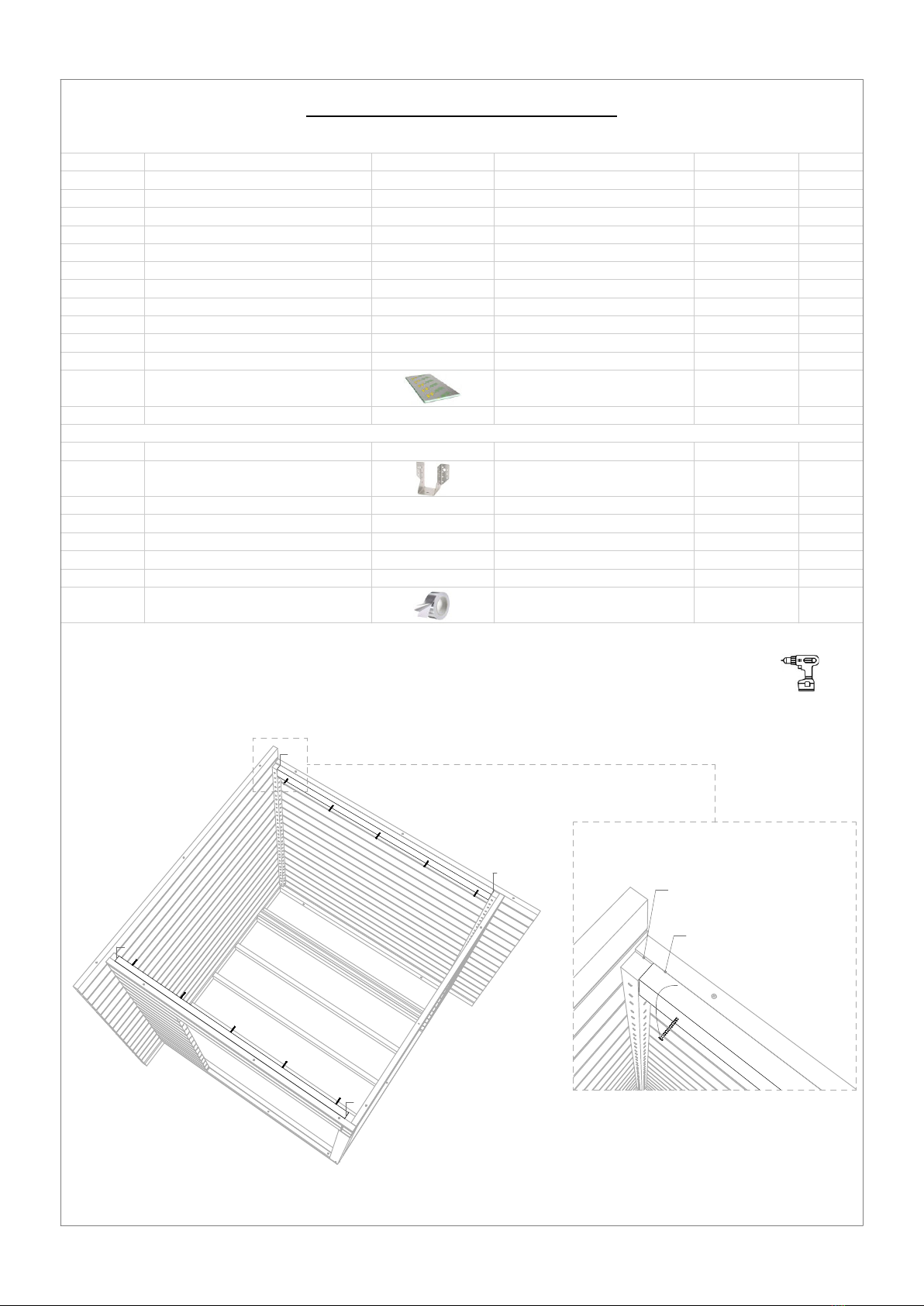

STEP 3 - Roof boards and ceiling
Marking Detail Image Note Pcs.Length
KL-1 24x120 Roof Board 21+22370
01F 12265
T-1 45x145 Roof Beam 12350
40x30 Roof Block
Marking Detail Image Note Pcs.Length
for fixing T-3 beams 4Joist Hanger
45x97
T-2 45x76 Roof Beam 12040Wedge shaped
DI-2 15x55 Ceiling Distance Board 21995
SPU Insulation Panel
30x600x1200
6
DI-3 15x55 Ceiling Distance Board 21905
STP-1 15x90 Ceiling Board 25+21995Thermo spruce
Screw 5x40 40 for joist hangers
Screw 4.5x70 40 for beams and distance boards
Screw 3.5x50 5 for 01F roof block
Nail 70 mm 200 for KL-1 roof boards
Lost-head nail 40 mm 150 for STP-1 ceiling boards
for SPU insulation panels 2Foil Tape 10 m
3.1
Scheme 3.1
Attach the T-4 beams to the front and back walls. Leave ~2 mm gap at both ends. Make sure that the top side of
the beams is flush with the upper edge of the front and back walls. Use 4.5x70 screws and a drill to fix the
beams to the walls (Scheme 3.1).
T-3 45x95 Ceiling Beam 21998
T-4 45x95 Ceiling Beam 21905
KR-1 45x95 Roof Frame 12265
KR-2 45x45 Roof Frame 12265
KR-3 45x45 Roof Frame 5180
PATIO S THERMO SAUNA

605 mm
Temporarily placed KL-1 roof board or
another straight detail to mark the
installation height of T-1 beams
Markings for distance
between T-1 beams
T-4
610 mm 605 mm
Marking for installation
height of T-1 beams
T-4
605 mm
T-3
610 mm
605 mm
T-3
5x40 screws flush with the
beam's end
T-3
marked line
10
STEP 3 - Roof boards and ceiling
Temporarily lay one KL-1 roof board or some other straight detail on top of the front and back walls. Mark the
diagonal that forms under the detail on the side walls with a pencil. These markings will determine the installation
height of the T-3 ceiling beams. Measure out the distance from T-4 beams and mark the locations on both side
walls, like shown in Scheme 3.2. These markings will indicate the spacing between the ceiling beams.
3.2
Scheme 3.2
Attach the joist hangers to the T-3 ceiling beams, flush with the beams ends (Scheme 3.3). Use 5x40 screws.3.3
Fasten the T-3 ceiling beams to the side walls through the joist hangers in the previously marked location,
like shown in Scheme 3.3. Use 5x40 screws to fix the joist hangers to the beams and walls.
3.4
Scheme 3.3
PATIO S THERMO SAUNA

5x90 screws
KR-1
KR-2
KR-3
KR-3
KR-3
KR-3
T-1
T-2
KR-3
T-
KR-3
4.5x70 screws
flush with the
back wall
flush with the
right wall
KR-5 top and bottom edges must
be flush with the KR-3 edges
5x90 screws
4.5x70 screws
11
STEP 3 - Roof boards and ceiling
Assemble the roof frame according to Scheme 3.4. Use 5x90 screws to connect the details.3.5
Place the T-1 beam on top of Wall B (back) and fix it to the roof frame with 5x90 screws.3.7
Attach the T-2 wedge-shaped beam to Wall B (right), flush with the top edge of the wall. Fix with 4.5x70
screws. Install the KR-3 detail between the T-1 and the T-2 beams so that its top and bottom edges are flush
with the edges of the beams. Fix it in place with 4.5x70 screws. See Scheme 3.6.
3.8
Scheme 3.4
Measure 54 mm from the upper edge of Wall A (left), and mark the distance on the wall with a pencil.
This line determines the installation height of the roof frame. Raise the roof frame to the marked location and fix it to
the wall logs with 4.5x70 screws as shown in Scheme 3.5.
3.6
Scheme 3.5
Scheme 3.6
54 mm
marked line
KR-1
KR-3
T-2
T-1
KR-2
T-1
T-2
PATIO S THERMO SAUNA

Cut the last roof board to width
70 mm nails
3.5x50 screws
Install roof bords and
01F roof block flush
with the T-1 beam
start from the right wall
KL-1 Roof Boards
01F
T-1
corner
cutout
corner
cutout
4.5x70 screws
Apply foil tape to
all edges and joints
SPU
insulation
panel
SPU
insulation
panel
SPU
insulation
panel
SPU
insulation
panel
SPU
insulation
panel
SPU
insulation
panel
SPU
insulation
panel
12
STEP 3 - Roof boards and ceiling
Scheme 3.7
Scheme 3.8
Install the roof boards flush with the side wall and T-1 beam, starting from the right. Fix the roof boards with 70
mm nails to the beams (8 nails per every roof board) using a hammer or a nail gun. Cut the last roof board to
width using a circular saw.
3.9
3.10 When all the roof boards are installed, fasten the 01F roof block on top of the roof boards, flush with the front
edge, like shown in Scheme 3.7. Use 3.5x50 screws for fixing.
3.11 Cut the SPU insulation panels to the right size using a cutting knife. Make cutouts in the corners for corner
posts. Attach the panels to the ceiling beams using a few 4.5x70 screws. Tape all edges and joints with
foil tape to prevent heat loss, like shown in Scheme 3.8.
PATIO S THERMO SAUNA

4.5x70 screws
40 mm nails
corner
cutout
corner
cutout
STP-1
Ceiling Boards
DI-2
DI-3
Leave ~3 mm gap
DI-2
DI-3
6 mm
slope veneer
9 mm
slope veneer
3 mm
slope veneer
3 mm
slope veneer
12 mm
slope veneer
40 mm lost- head nails
13
STEP 3 - Roof boards and ceiling
~3 mm gap
T-4 ceiling beam
SPU insulation
DI-3
STP-1
Wall log
STEP 4 - Floor
Marking Detail Image Note Pcs.Length
3 mm Floor slope veneer 21980
11980
PL-1 24x120 Floor Board 18+21575
6 mm Floor slope veneer
Marking Detail Image Note Pcs.Length
for floor boards 150Screw 3.5x50
Scheme 4.1
Scheme 3.6
Place the DI-2 and DI-3 ceiling distance boards on top of the insulation panels and fasten them to the ceiling
beams using 4.5x70 screws.
Install the ceiling lining boards on top of the distance boards. Leave ~3 mm gap between the ceiling boards and
walls on all sides. Use 40 mm lost-head nails (3 per every ceiling board) and a hammer or nail gun for fixing.
Make corner cutouts in the first and last ceiling boards for corner posts with a hand saw, and cut the last ceiling
board to width using a circular saw (Scheme 3.6).
3.8
3.9
Place the slope veneers on the base frame to give the floor a slope for water drainage.
Fixing the details to the base frame with screws is optional (Scheme 4.1).
4.1
119809 mm Floor slope veneer
1194012 mm Floor slope veneer
PL-1 24x120 Floor Board 18+2385
PATIO S THERMO SAUNA

3.5x50 screws
Floor slope
Leave ~3 mm gap
Floor slope
PL-2 Floor Boards
PL-2
4.5x70 screws
A-1
A-1
U-1
UR-1
UR-1
UR-2
A-1
UR-2
UR-
2
UR-
2
3.5x50 screws
14
~3 mm gap
3 mm
slope detail
Wall log
PL-1
Base frame
Marking Detail Image Note Pcs.Length
U-1 1
A-1 Window 88x690x1860 3
UR-1 45x45 Door/ Window frame 21950
Glass Door 88x690x1860
Marking Detail Image Note Pcs.Length
Screw 4.5x70
UR-2 45x45 Door/ Window Frame 21380
Marking Detail Image Note Pcs.Length
Marking Detail Image Note Pcs.Length
for door and window frames 50
STEP 5 - Doors and windows
Scheme 5.1
Scheme 4.2
Metal + Wooden door handle
STEP 4 - Floor
Install the floor boards starting from the right. Leave ~3 mm gap between the floor boards and walls
at all sides. Cut the last floor board to width using a circular saw. Use 3.5x50 screws to fix the floor
boards in place (Scheme 4.2).
4.2
5.1 Connect the windows and door together by attaching the UR-1 and UR-2 frame details around them with 4.5x70
screws (Scheme 5.1).
Attention! When installing the window, make sure that the inclined frame is located indoors, at the bottom of the
window. The bottom side is marked with a sticker.
INCLINED WINDOW FRAME
AT THE BOTTOM
ON THE INSIDE
STIKKER AT THE BOTTOM
STIKKER AT THE BOTTOM
PATIO S THERMO SAUNA

4.5x70 screws
A-1A-1U-1
metal handle
on the outside
A-1
P-0
A-1A-1 U-1
wooden handle
on the inside
A-1
4.5x70 screw
wooden
cover cap
15

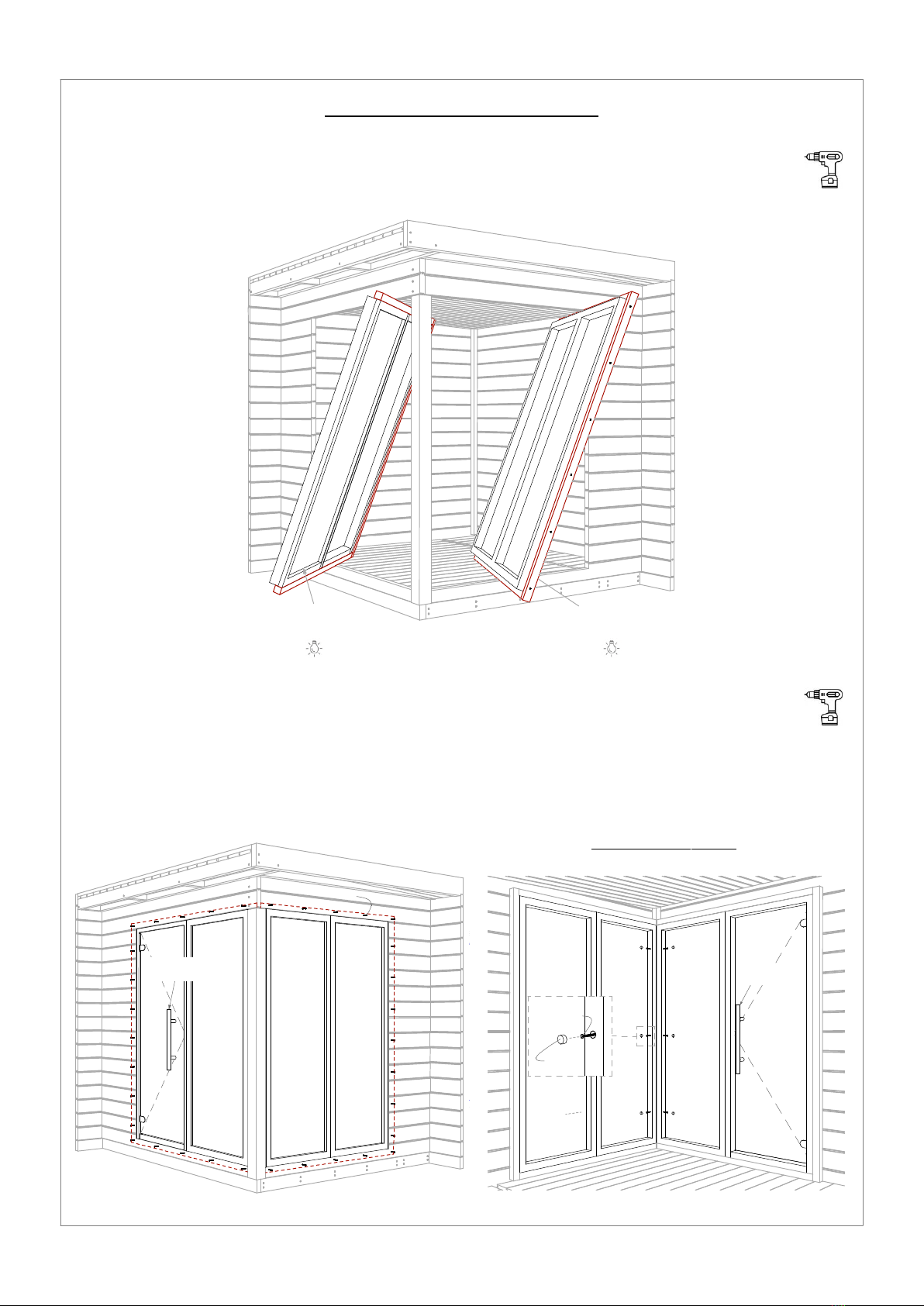

Scheme 5.2
Scheme 5.3
Lift and tilt the door and windows diagonally into the opening (Scheme 5.2).
Place them to their positions from inside the sauna. For easier installation, remove the glass from the door
hinges to reduce the weight of the door.
5.2
Fix the door and window frames to Wall 2 (front) and Wall B (right) from the outside using 4.5x70 screws
(Scheme 5.3).
5.3
INCLINED WINDOW FRAME
AT THE BOTTOM
ON THE INSIDE
Fasten the windows to the P-0 corner post from inside the sauna, through the pre-drilled holes in the window frames.
Use 4.5x70 screws. (Scheme 5.4). After fixing, cover all the pre-drilled holes with wooden cover caps. Attach the glass
back to the door hinges and fix the door handles to the glass doors so that the metal handle is located on the outside
and the wooden handle on the inside.
5.4
Scheme 5.4
View from the inside:
STEP 5 - Doors and windows
INCLINED WINDOW FRAME
AT THE BOTTOM
ON THE INSIDE
PATIO S THERMO SAUNA

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
View from the outside
2350
2312
Wall 1 (back)
View from the outside
2390
2176
Ventilation hole
520
300
610 1780
2090
1885
325
195
Ventilation hole
Ventilation hole 3. ROW
15. ROW
2. ROW
1830
BASE FRAME BASE FRAME
Wall A (left)
16

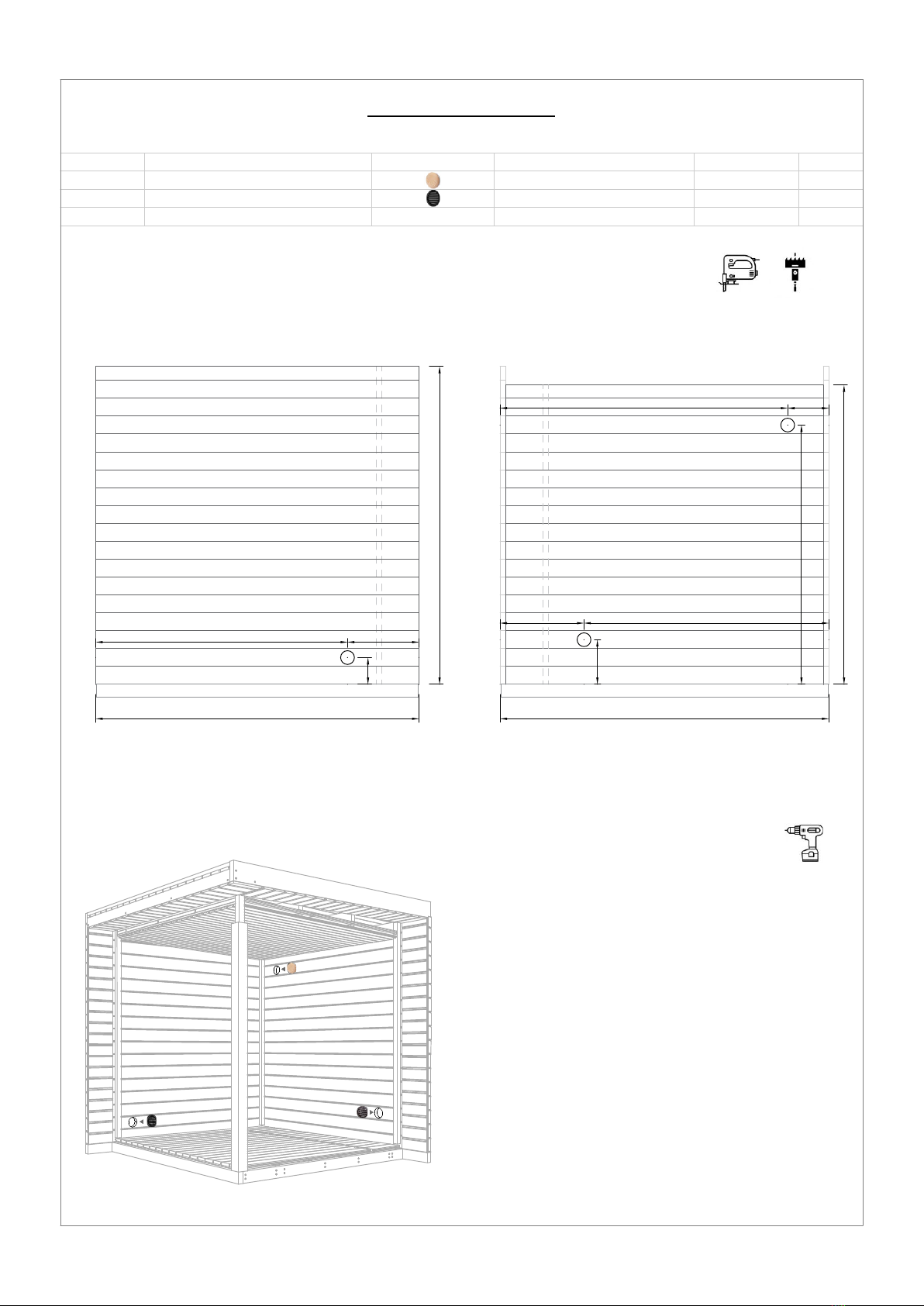

STEP 6 - Ventilation
Cover the openings with ventilation grids or valves, as shown in Scheme 6.2. Use 3.5x40 black screws for fixing.6.2
U-2 Ventilation Valve Ø100 1 wood
U-3 Ventilation Grid Ø100 5 metal
Screw 3x40 Black 25
Marking Detail Image Note Pcs.Length
I - EXHAUST OPENING
Install the metal ventilation grid on the outside and the
wooden valve on the inside.
The exhaust opening with the valve inside is located under
the ceiling, and its purpose is to dry the steam room after
using the sauna. The ventilation valve should be closed
while using the sauna. Open the valve after using the
sauna to expel excess moisture through the opening.
For faster drying, leave the steam room door ajar after a
sauna session.
The ventilation valve can also be opened between steam
sessions if there are many people in the steam room at the
same time and excessive humidity or a lack of air occurs.
II - INLET
Install a metal ventilation grid inside and outside.
III - OUTLET
Install a metal ventilation grid inside and outside.
I
III
Scheme 6.2
II
Cut the ventilation holes in the walls with a diameter of 100 mm using a hole saw or a jigsaw.
For recommended locations of ventilation openings see Scheme 6.1
6.1
Scheme 6.1
PATIO S THERMO SAUNA

Moisture
safety tape
Moisture
safety tape Moisture
safety tape
Cut the last lining
board to width
3x40 screws
40 mm
lost- head nails
DI-1
STP-2
STP-2
STP-2
DI-1
17
STEP 7 - Outer lining and moldings
Marking Detail Image Note Pcs.Length
STP-2 14x121 Outer Lining Board 80+4270
L-2 18x95 Roof/ Corner Molding 42200
L-1 18x95 Roof/ Corner Molding 82400Cut to length!
UL-1 18x95 Door/ Window Molding 21925
DI-1 4225015x55 Distance Board for Outer Lining
Cut to length!
UL-2 18x95 Door/ Window Molding 11478
UL-3 18x95 Door/ Window Molding 11460
UL-4 18x95 Door/ Window Molding 11358
for outer lining boards 200Lost-head nail 40 mm
for all outer corners 1Moisture safety tape 10 m
for distance boards and moldings 250Screw 3.5x40 Black
EXTRA 18x95 Roof/ Corner Molding 12400
Scheme 7.1
Scheme 7.2
1Teknos Aqua Primer - Black
Tape all corners of the sauna with moisture safety tape before installing exterior moldings to prevent moisture and
rainwater from entering the sauna (Scheme 7.1).
7.1
Measure the height of the protruding parts of the side walls and cut the DI-1 distance boards to the correct length if
necessary. Attach the distance boards to the walls using 3x40 screws.
Install the STP-2 outer lining boards on top of the DI-1 distance boards and roof frame, starting from the bottom.
Cut the last lining board to the correct width. Use 40 mm lost-head nails for fastening (2 nails per board).
See Scheme 7.2.
7.2
7.3
L-0 18x120 Corner Post Molding 22200Cut to length!
UL-5 18x95 Door/ Window Molding 11340
UL-6 15x55 Door/ Window Molding 21830
PATIO S THERMO SAUNA

Cut to
length
Cut to
length
Cut to
length
Cut to
length
Cut to
length
L-1
WALL 2 (front)
L-2
L-0
UL-1
UL-4
UL-2
L-1
L-1
L-1
L-1
L-0
WALL B (right)
L-2
UL-1
UL-3
UL-5
UL-6
UL-6
Corner
cutout
Corner
cutout
Cut to
length
Cut to
length
Cut to
length
Cut to
length
WALL 1 (back)
L-1
L-1
WALL A (left)
L-1 L-2
L-2
L-1
1926
1830
1340
1460
2153
20
10
10
10
28
30
10
10
28
20
12
30
28
20
10
1358
1478
1925
2153
1830
12
20
12
28
10
10
10
10
12

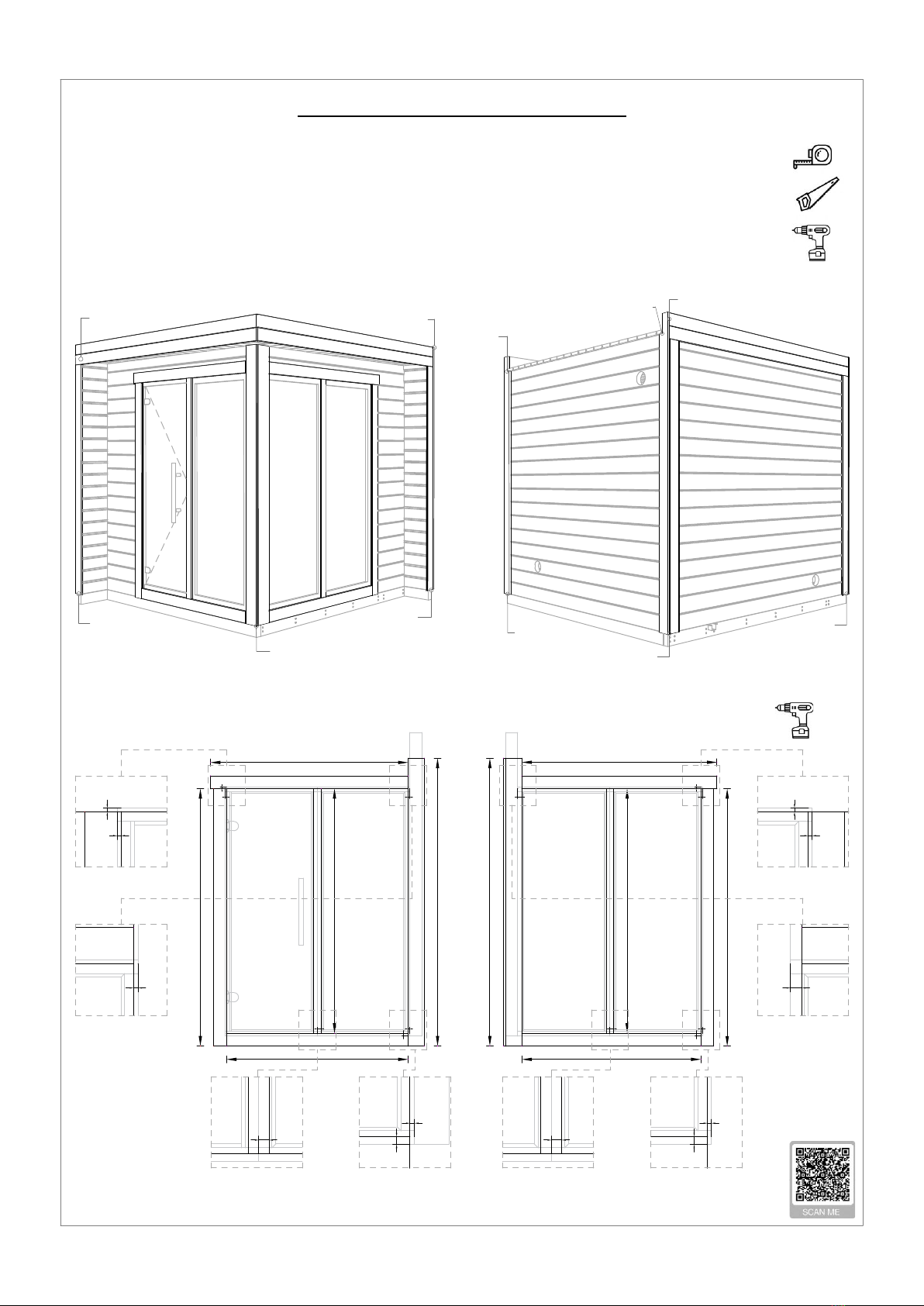

STEP 7 - Outer lining and moldings
First, fix the L-1 roof moldings to the side walls. The moldings must be installed flush with the upper edges of the
side walls. Cut the moldings to length and fasten them with 3x40 black screws.
Scheme 7.3
Make corner cutouts in L-1 corner moldings as marked in Scheme 7.3. Cut to length and use 3x40 black screws to
fasten all the L-2 corner moldings.
Install the moldings around the door and windows using 3x40 black screws.
For the correct overlay, see Scheme 7.4.
7.4
7.6
7.7
Next, measure and cut to length the L-1 roof molding at the front, and fasten them to the roof frame and beam.7.5
18
Scheme 7.4
Paint over all cut ends of the moldings with black Teknos Aqua Primer.
Scan the QR code for more detailed product information.
7.8
PATIO S THERMO SAUNA

560 mm
775 mm
515 mm
420 mm
630 mm
515 mm
60 mm
434 mm
465 mm
1011 mm
WALL 1 (back)
WALL A (left)
Adjust the side frame height
through adjustable legs.
Measure the length of the sauna bench
and mark the position of the side frame.
WALL 1 (back)
465
45515
412
434 45
372
829
19
Scheme 8.2
View from the front: View from the side:
8.2 Measure the distance and fix the upper and lower bench supports to the walls according to Scheme 8.1.
Use 4.5x70 screws for fixing.
It is recommended to additionally use glue (not included) for fixing the sauna bench supports to the wall.

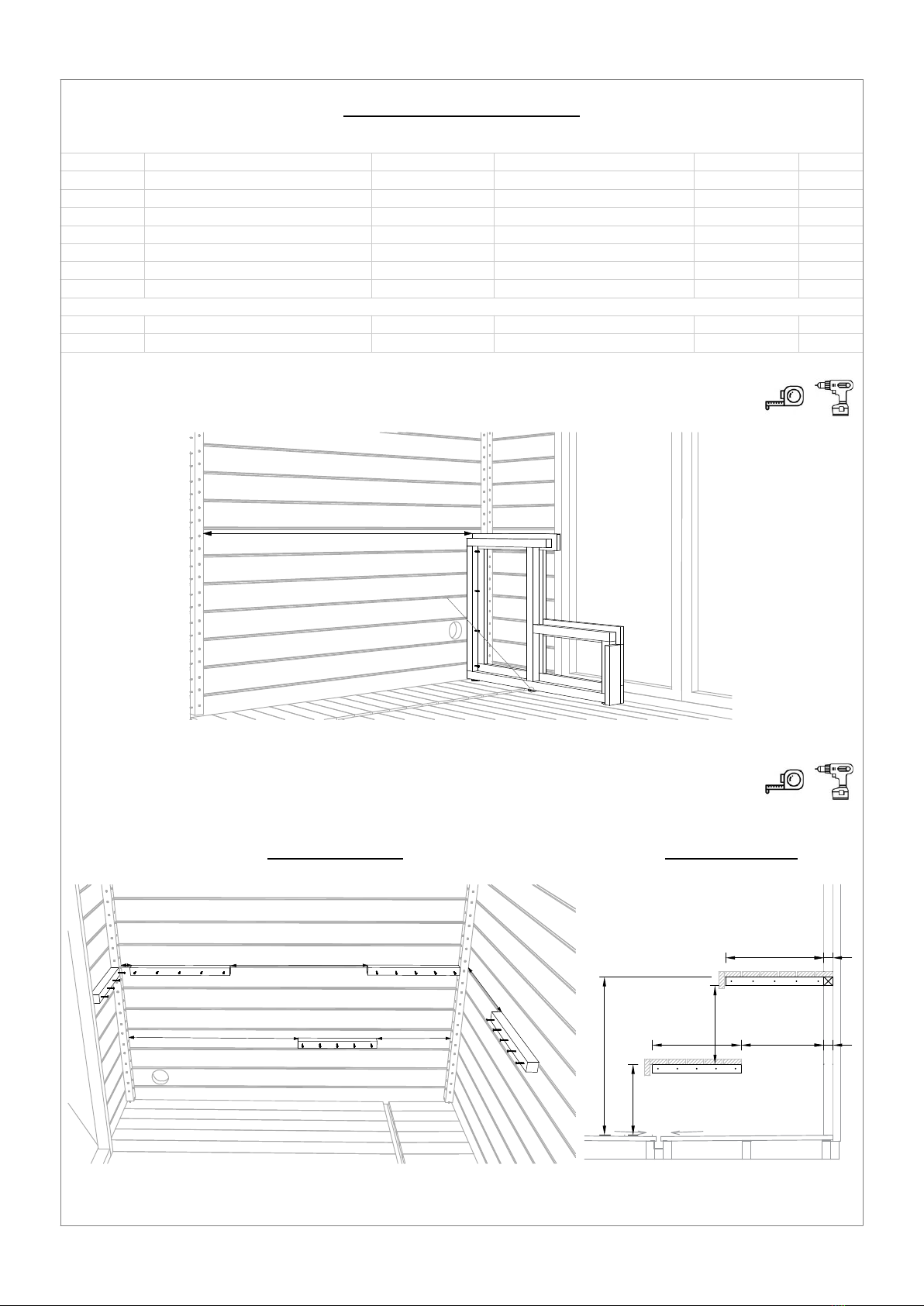

STEP 8 - Sauna benches
Marking Detail Image Note Pcs.Length
Bench Module 600 mm 11871
Bench Module 500 mm 11400
Top - Wall 1 (back)
Bench Module 500 mm 11871Bottom - Wall 1 (back)
Top - Wall A (left)
Bench Horizontal Support Set 45x45 1
Bench Side Frame 1Includes 3 adjustable legs
Extra Vertical Support 1 Includes 1 adjustable legs
for all supports 50Screw 4.5x70
Measure the length of the sauna bench and mark the location of the vertical frame. Adjust the height of the side
frame through the adjustable legs. Fix the frame to Wall 1 (back) using 4.5x70 screws, like shown in Scheme 8.1.
8.1
Scheme 8.1
Marking Detail Image Note Pcs.Length
Bench Skirt 11871Wall 1 (back)
PATIO S THERMO SAUNA
