Bsmarthome SH-01-001 User manual

SH-01-001
User Manual

2
◆Table of Contents
Product Image.............................................................1
Table of Contents.......................................................2-4
Introduction................................................................5-8
Mode Selection..................................................................9
Mode 1-Thermostat...................................................10
LCD Display............................................................11-13

3
Operation of Main Display
Hold Mode..............................................................14-15
Holiday Mode..........................................................16-17
Away Mode..............................................................17-18
Schedule..................................................................19-21
Optional Functions................................................22-26
Optional Features Table.........................................27-28

4
Feature Settings
Clock Setting..............................................................................29
Backlight Setting........................................................................30
Standby Screen........................................................................31
Screen Lock..........................................................................32-33
Temperature Format..................................................................34
Temperature Limit......................................................................35

5
Defrost.......................................................................................36
Sensor Selection.......................................................................37
Floor Temperature Limit............................................................38
Daylight Saving Time (DST).......................................................39
System Information...................................................................40
Reset To Factory Settings.........................................................41
Installation...........................................................................42-43
Technical Specification.............................................................44
Wiring Diagram........................................................................45

6
Mode 2-Time Clock...................................................46
LCD Display........................................................................47-49
Boost........................................................................................50
Setting the Switching Times................................................51-52
Optional FeaturesTable............................................................53
Wiring Diagram........................................................................54

7
◆Introduction
What is a Programmable Thermostat?
A programmable room thermostat is a device that combines the
functions of both a room thermostat and timed heating controller
into a single unit. The programmable thermostat is used to
switch the heating system in your home on and off as needed. It
works by controlling the temperature according to a series of
programmed temperature settings that take effect at different
times of your choosing. The thermostat then works by sensing
the air temperature and therefore switching on the heating when
the air temperature falls below the thermostat setting, and
switching it off oncethis set temperature has been reached.

8
It will allow you to select different temperatures in your home at
different times of the day (and days of the week) to meet your
particular needs.
Adjusting aroom thermostat to a higher setting will not make the
room heat up more quickly. How quickly the room heats up
depends on the design of the heating system and heat-loss of
the building. For example, the size of boiler and radiators.
Neither does the setting affect how quickly the room cools down.
Turning a programmable room thermostat to a lower setting
results in the room being controlled at a lower temperature, and
saves energy.
The way to set and use your programmable room thermostat is
to find the lowest temperature settings that you are comfortable

9
with at the different times you have chosen and then leave it
alone to do its job. The best way to do this is to set a lower
temperature first, for example 18°C, and then adjust the
temperature gradually up or down by one degree each day until
you are comfortable with the temperature. The higher a
temperature setting required will result in more energy and fuel
cost.
If your heating system uses radiators, there will usually be only
one programmable room thermostat on each floor to control the
house. But you can still have different temperatures in individual
rooms by installation of thermostatic radiator valves (TRVs) on
individual radiators. If you don’t have TRVs, you should choose
a temperature that is reasonable for each floor or the whole
house. If you do haveTRVs, you can choose a slightly higher

10
temperature setting to make sure that even the coldest room is
comfortable, then prevent any overheating in other rooms by
adjusting the TRVs.
All types of thermostats need a free flow of air to sense the best
temperature, so they must not be placed in a cupboard or
covered by curtains or blocked by furniture. Radiant heat by the
sun, shining directly onto the thermostat through a window and
heat from nearby electric fires, televisions, wall or table lamps
may prevent the thermostat from reading the correct average
temperature in the room properly. It cannot be stressed enough
on how important the correct positioning of a thermostat will
allow for a more efficient heating system. Acentral open position
within the house is usually the best place.

11
Mode Select
MC6 can either be used as a Thermostat or a Time-clock.
Thermostat Mode (Fully Programmable Mode) –Allows Time &
Temperature Settings to be made. This allows the thermostat to
be programmed for a specific temperature during a specific

12
time.
Time-clock Mode –Allows for Time ONLY setting to switch ON
or OFF as desired. This Mode ignores any temperature
requirement.
To change between Thermostat and Time-clock Modes:
Follow these steps (Use your finger as the screen is Touch
Sensitive)
★Press the icon and enter Feature Settings.
★Use the icon / to turn page to 4. Find ‘Work Mode’

13
Selection, click it and enter Selection Interface.
★Select ‘Heating Mode’ or ‘Timer Mode’ the thermostat will
re-set and enter the desired Mode.
Mode 1-Thermostat

14

15

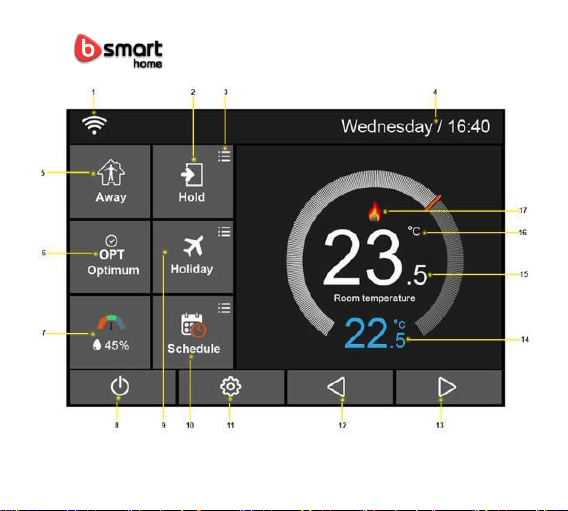

◆LCD Display
1. Wi-Fi indicator- Displayed when connected to a Wi-Fi
Network
2. Hold: Temperature Hold.
3. Adjusting the optional settings.
4. Day Indicator & Clock
5. Away: Means the MC6-Timer is maintaining a lower
temperature to give frost protection.

16
6. OPT (Optimum): Displayed ON/OFF of the ‘Optimum Start’
7. Air Humidity:
8. Power ON/OFF
9. Holiday: Displayed when thermostat is in holiday mode.
10. Schedule: Programmable Operation.
11. Setup Button
12 & 13 Adjusting the Setting Temperature or turning a page.
14. Set-point Temperature display
15. Actual Room Temperature display

17
16. Temperature reading is in Degrees ℃or ℉Display
17. Display shows “Heating” flame symbol (Aflame on screen
means heating is ON. If thereis no flame symbol, the heating is
OFF)

18
◆Operation of Main Display
Hold
The Temperature hold function allows you to manually override
the current operating program and set a different temperature
for a desired period.
★Press the ‘Hold’ and enter the setting interface.

19
★Press the First column of ‘Hold Temp’, use the icon / to
set the desired Hold Temperature. (Temperature Range 5℃
-35℃).
★Press the Second/Third columns of Hour/Minute, use the icon
/to set the desired “Hold Time”
★Press the icon to save and return to main display, or click
‘Cancel’ to delete the setting.
You will see the ‘HOLD’time remaining: **:** indication is

20
displayed on screen. The time will count down for the set
duration and then revert to the normal program setting.
Holiday
The MC6 will maintain this temperature for the duration of the
holiday and will then automatically return to the program mode
on your return.
★Press the “Holiday” and enter setting interface.
