Buchi B-585 User manual

Glass Oven B-585
Operation Manual
096981Hen

Imprint
Product Identification:
Operation Manual (Original), Glass Oven B-585
096981Hen
Publication date: 04.2016
BÜCHI Labortechnik AG
Meierseggstrasse 40
Postfach
CH-9230 Flawil 1
E-Mail: [e-mail]
BUCHI reserves the right to make changes to the manual as deemed necessary in the light of experience; espe-
cially in respect to structure, illustrations and technical detail.
This manual is copyright. Information from it may not be reproduced, distributed, or used for competitive purposes,
nor made available to third parties. The manufacture of any component with the aid of this manual without prior
written agreement is also prohibited.

1
Glass Oven B-585
Contents
Contents
5 Operation 11
5.1 Overview program structure 11

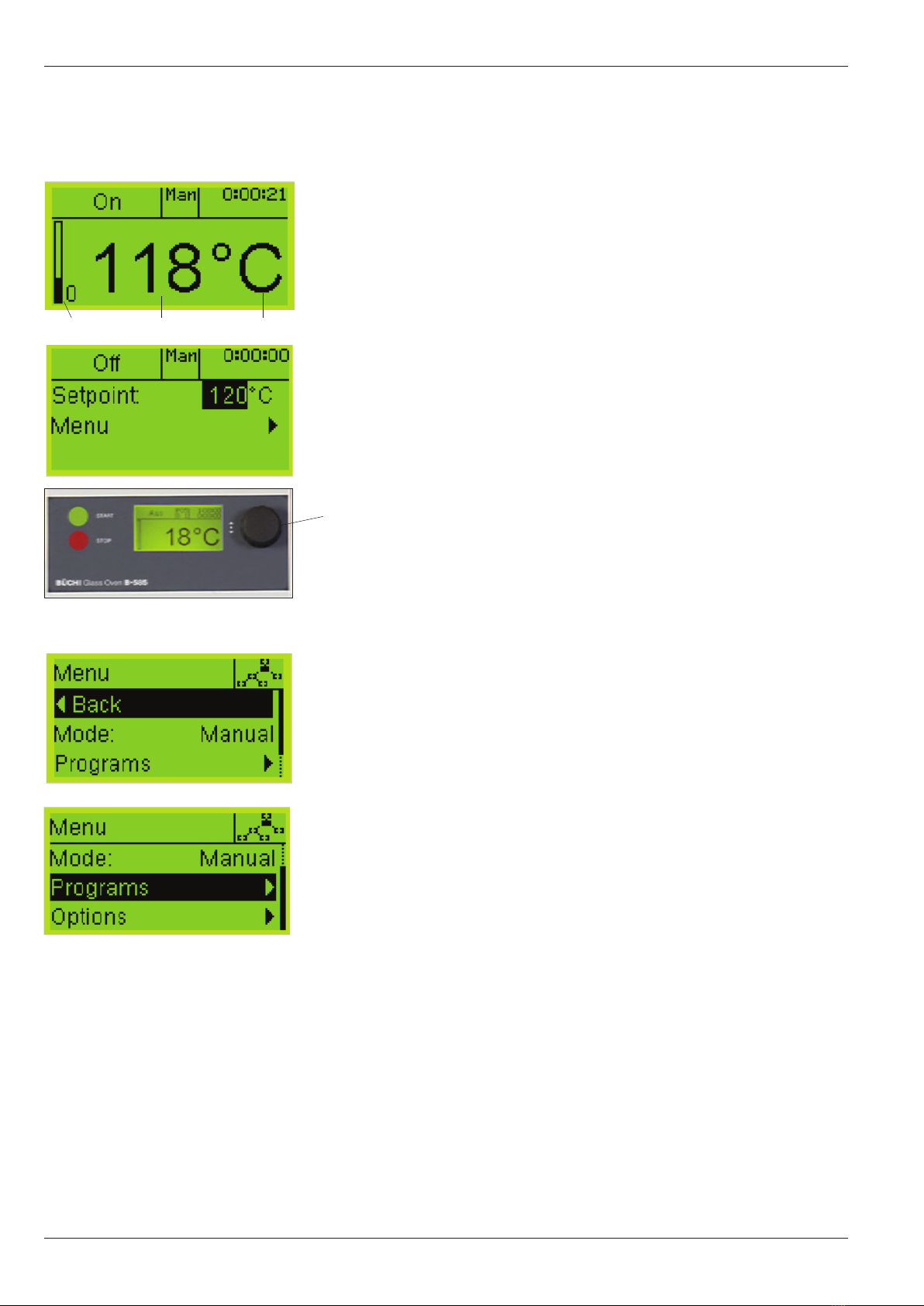

5.2 Basic display arrangement 12
5.3 Operation of the B-585 Drying 16
5.4 Operation of the B-585 Kugelrohr 19
5.5 Accessories: Sublimation and freeze drying 22
5.6 Converting the Glass Oven configurations 23
6 Maintenance 26
6.1 Cleaning 26
6.2 Service 26
6.3 Customer service 26
7 Taking out of operation 27
7.1 Storage / Transport 27
7.2 Disposal 27
8 Replacement parts 28
8.1 B-585 Drying configuration replacement parts 28
8.2 B-585 Kugelrohr configuration
replacement parts 29
8.3 Sublimation accessory replacement parts 29
9 Appendix 30
9.1 Technical data 30
9.2 Error massages 30
9.3 Materials used 31
9.4 Declaration of conformance 32
EN Version G
as of Software-Version 1.1 (32 pages) Order Code
B-585 Instructions 096981
Please read these instructions thoroughly before using the Glass
Oven B-585. Keep these instructions in the immediate vicinity
of the device so that they can be referred to at any time.
Chapter 2 contains important safety advice. These information
is vital to the safe operation of the glass oven.
The right to make technical changes without notice is reser-
ved. No portion of these instructions may be reproduced in
any manner, nor may it be edited, copied or distributed using
any electronic or optical systems without the expressed written
consent of Büchi Labortechnik AG.
All rights reserved.
Copyright © Büchi Labortechnik AG, 2004
1 Scope of delivery 2
1.1 Glass oven for drying 2
1.2 Glass oven for ball tube (Kugelrohr) distillation 3
2 Safety 5
2.1 Symbols 5
2.2 Requirements to be met by the customer 5
2.3 Proper use 5
2.4 Improper use 6
2.5 General hazards 6
2.6 Safety measures 7
2.7 Over-temperature protection 7
3 Function 8
3.1 Working with the glass ovens 8
4 Putting into operation 10
4.1 Installation location 10
4.2 Power connections 10
4.3 Installation of the glass parts and
the drive unit 10

2
Glass Oven B-585
1 Scope of delivery
Fig. 2: Ball tube drive complete
Fig. 3: Sublimation accessory complete
1 Scope of delivery
Fig. 1: B-585 Drying
1.1 Glass oven for drying
Description
B-585 Drying Order Code
Drying oven B-585
100 V - 230 V / 50/60 Hz 46600
Additional package contents:
2 Replacement fuses 3,15 AT
1 Drying accessory complete 37010
1 Mains cable PNE, 1.5m
Typ CH 10010
Typ Schuko 10016
Typ GB 17835
Typ USA 10023
Typ AUS 17836
1 Instructions
German 96980
English 96981
French 96982
Italian 96983
Spanish 96984
Optional accessories
1 Complete ball tube drive for con-
verting to a ball tube distillation oven 46617
(Kugelrohr) incl. cooling device
1 Complete sublimation accessory for
conversion to the Sublimation configuration 37133
1 Communication cable 46728
B-585 / V-500

3
Glass Oven B-585
Fig. 5a: Glass Accessories including with B-585 Kugelrohr configuration
1 Scope of delivery
a
b
d
c
Fig. 4: B-585 Kugelrohr configuration
Fig. 5b/c: Other Accessories including with B-585 Kugelrohr configuration
1.2 Glass oven for ball tube (Kugelrohr) distillation
Description
B-585 Kugelrohr configuration Order Code
Kugelrohr destillations oven B-585
100 V - 230 V / 50/60 Hz 46601
Additional package contents:
1 30 ml rotation drying flask with
vapour duct and clip a37143
1 20 ml ball tube with vapour duct and
clips b37107
1 Replacement gasket for the ball tube
drive d37288
1 60 g tube of vacuum grease 48197
2 Replacement fuses 3,15 AT
2 GL 14 hose nipples 37287
1 Iris diaphragm cpl. e46605
1 Cooling unit compl. c46616
1 3-wire power cord. 1.5m
Type CH 10010
Type Schuko 10016
Type GB 17835
Type USA 10023
Type AUS 17836
1 Instructions
German 96980
English 96981
French 96982
Italian 96983
Spanish 96984
e

4
Glass Oven B-585
Fig. 6a: 10 ml ball tube
Fig. 6b: 40 ml ball tube
Fig. 6c: Drying accessory
Fig. 6d: Complete sublimation accessory
1 Scope of delivery
Fig. 6e: The freeze drying accessory
Optional accessories
1 10 ml ball tube
with vapour duct and clips 37118
1 40 ml ball tube
with vapour duct and clips 37117
1 Drying accessory for converting to the
B-585 Drying model 37010
1 Complete sublimation accessory for
converting to the B-585 Sublimation model 37133
1 Freeze drying accessories 46710

5
Glass Oven B-585
2 Safety
The device has been built using state art techniques and in ac-
cordance with the recognized safety regulations. There are no
risks or hazards associated with the use of this device if used
according to the instructions.
2.1 Symbols
Stop
Information about hazards which can lead to serious material
damage or cause serious or potentially fatal injury.
Warning
Information about hazards which can be harmful to your health
and lead to material damage.
Please note
Information about technical requirements. Non-observance can
lead to malfunctions, inefficiency and lost production.
2.2 Requirements to be met by the customer
The device may only be used by laboratory personnel and other
persons who, due to their training or experience, can recognize
the hazards associated with operating the device.
Personnel without this type of training or persons currently in
training require careful instruction. This instruction can be con-
sidered to be the basis for this instruction manual.
When working with solvents whose composition is not known,
it is the management’s responsibility to obtain information from
the appropriate persons about possible hazards associated with
using such solvents.
2.3 Proper use
The device has been designed and built as a laboratory device.
Appropriate uses of the device are for the drying, distillation,
sublimation and freeze-drying of small quantities of substance
from room temperature up to 300°C.
2 Safety

6
Glass Oven B-585
2.4 Improper use
Using the device for any other purpose other than those stated
above or using in any application that does not correspond to
the technical data is considered to be improper usage.
Any damage resulting from such use is the sole responsibility
of the operator.
Using the device in the following situations is especially prohibited:
• Using the device in rooms which require explosion-proof
equipment.
• Testing samples which, through impact, friction, heat or spar-
king, may explode or ignite (for example, explosives, etc.).
• Using in conjunction with solvents containing peroxides
2.5 General hazards
General hazards arise from:
• When using with mixtures with unknown composition or im-
purities.
• Flammable solvents (attend the burning point)
• Toxic gases, which can result during operation.
• Flammable gases or solvent fumes in or around the device.
• Damaged glassware.
• When the device is too close to the wall (see Chapter 4,
Putting into operation)
• Touching the heating elements, causing burns.
• Squeezings by inappropriate retracting and extending of the
drive or adjustment of the heating angle.
• Storage of the unit in confined places when hot.
Rotation drive
Care must be taken to ensure that hair, clothing, jewelry or any
other article is prevented from entering any rotating parts of
the instrument.
Removing the cover using common hand tools is - except for
authorized maintenance personnel, prohibited. The device may
not be put into operation if the glassware is damaged.
It may be fatal if any high voltage parts of the device are touched!
Use of dry ice
Dry ice can cause serious burns if allowed to come into contact
with skin or eyes. Appropriate protective clothing must be worn.
NB Dry ice will foam strongly if allowed to come into contact
with acetone.
2 Safety

7
Glass Oven B-585
2.6 Safety measures
It is required that you wear protective gear such as protective
glasses, gloves and a lab coat.
These instructions must be available at all times to the operating
personnel at the location where the device has been installed,
as it is considered to be a component of the glass oven. This
is also true of the copies of the instructions in other languages,
which may be ordered separately at a later date.
Modifications
Modifications to the device or to the replacement parts or acces-
sories, as well as using any replacement parts or accessories
other than those mentioned in these instructions, is only allowed
with the express written consent of Büchi Labortechnik AG.
Responsibilities of the Management
The management is responsible for instructing its personnel. To
help in this task, you can order these instructions in several
other languages.
Protective Shield
The protective shield mounted on the device does not serve to
completely protect the operator from coming into contact with
hot glass elements. It is only there to protect the operator from
burns occurring due to carelessness.
2.7 Over-temperature protection
The device has an over-temperature cut-out for the protection
of samples and the oven. This protective device switches the
heating off in the event of the oven temperature reaching 320°C:
• For additional information, please see.
Troubleshooting; Chapter 9.2 Error messages
2 Safety

8
Glass Oven B-585
3 Function
3.1 Working with the glass ovens
The core of the glass oven comprises two borosilicate glass
tubes lying one within the other. The outer tube (1) protects
against damage to the heating tube, and at the same time
prevents contact with parts that are electrically live. A metal
screen (2) around the outer jacket provides additional protec-
tion. The transparent, electrically conductive semi-conductor
coating, does the actual heating. Temperatures up to 300°C
are attained, the oven temperature being monitored via an
integral temperature sensor (4). A lock nut (5) can be used
to tilt the oven and to secure it in a suitable position.
The basic equipment can be used for drying,
distilling and sublimating, if the appropriate ac-
cessories are used.
To avoid thermal damage to, or decomposition of, samples
requires gentle heating techniques. Conventionally, this has
been done by heating the sample via an intermediate medium
(e.g. water or oil) whose temperature is regulated just above
the required setpoint for the sample. In bulb-tube distillations,
a semi-conductor coating is used to provide direct, yet still
gentle, heating. The product may be heated directly because
the heat source provides evenly across the entire surface
of the heater. Because the thermal capacity and the thermal
conductivity of the vapour-coated glass are significantly bet-
ter than those of the gas/atmosphere outside, most of the
heat given off is taken up by the glass and radiated inwards.
There are further advantages in addition to the gentle heating:
Because 75% of the heat is supplied to the product through
radiation and only 25% via heated gas, the oven heats up
very quickly and also cools down relatively quickly when it is
switched off. In addition, because the semi-conductor is fully
transparent, the sample can be observed during the drying
process, so that any decomposition can be identified quickly
and any necessary countermeasures can be taken in time.
3 Function

9
Glass Oven B-585
a Jacket tube
b Heat protection
c Heating tube
d Temperature sensor
The electrically conductive semiconductor layer operates at
supply voltage. There is a possibility for fatal injuries when the
outer jacket tube has been removed.
Fig. 7: Function principle of the glass oven
a
b
c
3 Function
d

10
Glass Oven B-585
4 Putting into operation
Please inspect the package for any damage while unpacking.
Any damage suspected of having occurred during transportation
should be reported immediately to the appropriate authorities
(ditributor, post office, railroad or trucking company).
The original packaging should be saved in case it is required
at a later date.
4.1 Installation Location
The device must be set up on a clean, stable and level surface.
The device may not be used in rooms meant for use with ex-
plosive gases.
For safety reasons, there must be at least 30 cm between
the wall or other equipment and the rear and sides of the device.
No containers, chemicals or other devices should be placed
behind the device.
4.2 Power connections
Check to ensure that the voltage coming out of the electrical
socket agrees with the voltage stated on the devices ratings
plate. The glass oven must always be connected to an earthed
electrical socket. External couplings and extension cords must
have an earth wire (3-pole couplings, cords and sockets). It is
prohibited to cut or interrupt the earth wire. to avoid the risk of
damage to the device, or personal injury.
In a vertical operation care must be taken to ensure that every
cable of the B-585 not gets in contact with the heating element.
Discription of the interface:
Drive: interface for the drive unit
Vac Pump: interface for communications cable
B-585/V-500 to a vacuum pump V-500
Air Pump: interface for air pump Mettler for the KF-
Method (not availlabel at Büchi)
4.3 Installation of the glass parts and
the drive unit
For installation of the different parts please see chapter 5.6
"Converting the Glass Oven".
4 Putting into operation

11
Glass Oven B-585
5 Operation
5.1 Overview of program structure
5 Operation
WORKING DISPLAY
PROGRAMS
- load
- view
- edit
- delete
OPTIONS
MODE
- program
- manual
LANGUAGE
- English
- Spanish
- German
- Italian
- French
- Japanese
CONTRAST
0 - 100%
UNIT OF TEMPERATURE
°C / ° F
VACUUM CONTROL
Yes / No
Fig. 8: Overview of program structure B-585

12
Glass Oven B-5855 Operation
5.2. Basic display arrangement
a Active mode information
b Operating condition
c Actual temperature
d Temperature unit of measurement
e Graphic display of heating intensity
f Display of the elapsed time
g Set point adjustment
hMenu adjustment
i Graphical display, shows level indication of the user
j Multifunction button
By pressing and turning the Multifunction botton allows
access to the working menu where changes and modifica-
tions can be made. Pressing the Multifunction botton again
activates the set point. An existing value can be modified
by turning the Multifunction botton and is stored by press-
ing the botton again. The cursor will jump forward to the
display menu.
By turning the Multifunction botton you get back
to the actual working menu or access another
control mode. It is possible to change/create,
delete, read or load a program profile in the menu
program or change the main settings.
b
c
ed
f
i
h
a
g
a)
j

13
Glass Oven B-585
5.2.1 Operation of the B-585 in manual mode
Cchanging the actual temperature and the speed
of rotation in manual mode.
By pressing the Multifunction botton the user gets into the
working menu, where the changes to the actual temperature
set point and the rotation speed can be made. Pressing the
Multifunction botton again activates the menu set point. To
select the desired temperature turn the button. By pressing
the Multifunction botton the selected temperature will be
stored. The cursor will then jump forwards to the rotation
speed or (if no rotation speed is available) to the menu.
5.2.2 Selection of the rotation speed before
operation
The rotation speed can be pre-selected prior to a run with
real samples. Select ”speed of rotation” from the working
menu and confirm the desired value by rotating and then
pressing the Multifunction button.
The motor will now start running at the newly adjusted speed.
Note, if the new chosen speed is not confirmed within 10
seconds, then the value automatically reverts to the pre-
viously stored value. Pushing the ”stop” button causes the
motor to stop.
5.2.3 Change/build or delete a program profile
in manual working mode.
Even when the instrument is working in manual mode , a
program can be created, deleted or changed.
Whilst the instrument is in operation, the program points to
”load program” and ”mode of operation” can not be chosen.
5 Operation

14
Glass Oven B-585
5.2.4 General information about the menu
functions:
On the menu item language it is possible to choose between
the following languages: English, Spanish, Italian, French,
German and Japanese.
On the menu item contrast it is possible to optimize the
display.
On the menu item temperature it is possible to choose either
Fahrenheit or °Celsius.
On the menu item Vac. pump it is possible to switch the
vacuum pump on or off directly from the B-585, (Requires
Büchi vacuum pump V-500 series with the B-585/V-500
cable). The cable has to be connected at the plug socket
in the middle.
5.2.5 Adjusting the working angle of the oven
The working angle of the oven can be adjusted by the re-
lease handle.
5.2.6 Working at room temperature
To operate at room temperature, select the value ”RT”
from the Setpoint values. This setting switches the heating
circuitry off.
5 Operation
Fig. 9: Angle 3
Fig. 10: Working angle

15
Glass Oven B-585
5.2.7 Operation of the B-585 in the program mode
Fundamental arrangement of the display:
a Information about the active mode and current stage of
the program (I, II or III)
b Operating condition
c Actual temperature
d Temperature unit of measurement
e Graphical heating display
f Indication of the remaining time to the end of the program
g Indication of the remaining time in the current program
step
Program load, edit select, delete, view:
By turning the Multifunction button, the display will change to
the working menu. By choosing the menu ”program” existing
programs can be checked, deleted or modified.
To load an existing program, turn the Multifunction button to
load and confirm it by pressing the button. The cursor will
jump to the next selection. By turning the buton again the
stored programs are shown (P01, P02...) . By pressing the
button, the chosen program will be confirmed. Now it shows
the working display. To start the chosen program press the
green button start.
5.2.8 Change or create a program:
If the cursor is on position change/new, a new program can
be built or an existing program can be changed.
By confirming choose the cursor will get to the existing pro-
grams. (P01, P03, new.....).
After choosing the program the cursor jumps to step1. Press-
ing the Multifunction button allows the user to change the
temperature or time. The cursor jumps to the temperature
display. It is now possible to make any desired changes.
Press the button to enter the chosen temperature and the
cursor will then jump to the time display. Continue accord-
ingly as for the temperature setting.
If a new program is created, an empty memory positions
are will be offered. If all of the 10 memory position
occupied, then an existing program must be either
edited and saved to store the desired parameters,
or one must be deleted before a new program can
be created and stored.
At any time, even during a run, any program stored in me-
mory (apart from the one currently loaded), can be edited or
deleted. New programs can also be created.
5 Operation
b
c
ed
f
g
a

16
Glass Oven B-585
5 Operation
5.3 Operation of the B-585 Drying Oven
Please ensure that the device has been correctly put into opera-
tion according to Chapter 4, Putting into operation.
5.3.1 Operational and display elements
a Unit sockets with main fuses
b Main power switch
c Digital display showing the current temperature
d Multifunction botton for setting the desired oven
temperature r
e Pilot lamp, illuminated when heating is turned on
f Lever used to open the iris diaphragm
g Glass ball cooling apparatus
h Holder for the save contact of the furnace
i Start
j Stop
k Lever of the adjustment of the inclination of the furnace
angel
5.3.2 Drying
The glass oven can also be used to dry solid substances.
Unlike permanently installed drying cabinets, the drying oven
only has to heat up a small volume. It requires less energy,
reaches the desired temperature more quickly, and thereby
reduces the time for drying. Moreover, if used as a vacuum
oven, it has a significantly tighter seal than a drying cabinet
and can therefore maintain a better vacuum. There are three
methods used for drying direct drying, indirect drying, and
rotary drying. The drying accessory is used for direct and
indirect drying, the rotary flask for rotary drying.
Fig. 11: B-585 Drying
b
c
edhfg
a
i
j
k

17
Glass Oven B-585
5.3.3 Filling with the Material to be Dried
The drying accessory consists of three parts. While the drying
is in progress, the drying tube ainto which the product is
put (either directly or inside a container), is in the oven. The
end cap bthat catches the moisture evaporated off can be
filled with desiccants to improve the drying effect. A stop-
cock c is used to evacuate or aerate the sample chamber.
The aluminum flange ring djoins the two glass sections
in a screwed joint, sealing them vacuum-tight. The flange
ring eis also used to hold the drying accessory in position
within the glass oven. This drying accessory does not rotate.
The material to be dried can be placed in the drying tube in va-
rious ways. The method chosen depends mainly on the amount
of substance.
Example A
A large quantity of the material to be dried is placed directly in
the drying tube. With this method, existing glass boats, metal
dishes, etc., may be used. This drying method should not be
used for hygroscopic samples, as these may absorb moisture
during transfer to another container after having been dried.
Example B
The material to be dried is placed in its container and the con-
tainer is placed in the drying tube. The drying oven must be
operated in the vertical position for this method. The advantage
of this method is that the substance does not need to be trans-
ferred from one container to another after drying, and that its
container can be sealed immediately after drying.
Example C
A hard surface layer is created while drying some substances
which increases the drying time dramatically. This can be avoi-
ded by rotating the container regularly. It is therefore recommen-
ded to use the notched rotation drying flask which can only
be used in conjunction with an electrical ball tube
drive.
5 Operation
b
c
ed
a
Fig. 12: Direct Drying A
Fig. 13b: Indirect Drying BFig. 13a: Indirect Drying A
Fig. 14: Rotation Drying Flask C

18
Glass Oven B-5855 Operation
5.3.4 Placing the Drying Tube in the Drying Oven
If the material to be dried has been placed in the drying tube
according to Chapter 5..., the tube and the end cap are scre-
wed together. The entire assembly is then placed in the drying
oven and fastened with the screw a. You should ensure that
the stopcock is vertical and that the reservoir in the end cap is
directed downwards.
The oven temperature must be set for drying and, if necessary,
the vacuum must be connected. After drying, aeration follows,
either using the air in the environment or using an inert protective
gas using the corresponding gas connection. The assembly is
taken out of the oven and left to air-cool.
5.3.5 Working with Desiccants
The drying of substance samples containing water can be ac-
celerated and optimized by using desiccants such as silica
gels, CaCl2or P2O5. Such desiccants are placed in the rear part
of the end cap. When filling with a free-flowing desiccant, you
must make sure that the end cap remains clean between the
aeration stopcock and the flange. If dust particles adhere to the
sides, then the end cap must be cleaned afterwards. Otherwise,
there is the danger that of these particles will be taken with the
flow of air when aerating the evacuated drying tube, thereby
adding impurities to the material to be dried.
The safety guidelines on the original packaging of the P2O5/
CaCl2should be observed.
Fig. 16: Desiccant
Fig. 15: Drying Tube
a
