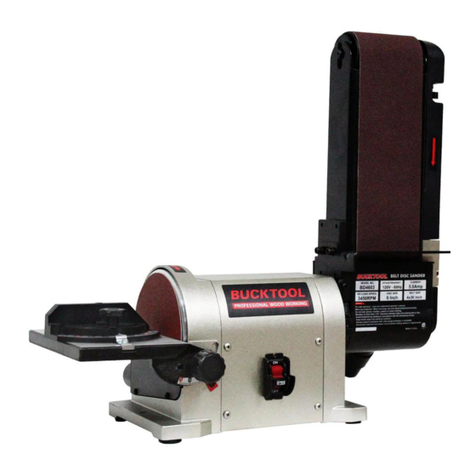

Bucktool BD1801 User manual

1"×8"BELT DISC SANDER
INSTRUCTION
MANUAL
IMPORTANT:
For your own safety, read and follow all of the Safety
Guidelines and Operating Instructions before operating
this product.
GET IT DONE
Contact Us:
email: [email protected]
https://www.bucktool.com
909-255-1088 (8AM-5PM PST)

Safety guidelines
Table of contents
Package contents
Key parts diagram
Assembly instructions
Operating instructions
Maintenance
Troubleshooting
Exploded view
Parts list
Warranty
SPECIFICATIONS
Motor 120VAC, 60Hz , 5.0A
Speed (no load) 3580RPM
Belt size 1" x 42"
Belt speed 3150 FPM
Disc speed 3580RPM
Dust port size 1 1/2"
Disc size 8"
TABLE OF CONTENTS
2
3
9
10
11
13
15
17
18
19
20
2BD1801
TABLE OF CONTENTS

3
SAFETY GUIDELINES
SAFETY GUIDELINES - DEFINITIONS
• Always wear safety goggles or safety glasses with side shields.
• Always wear respiratory and hearing protection.
• To reduce the risk of injury, user and all bystanders must read and understand
instruction manual before using this product.
• Failure to keep your hands away from the moving part and cutting surface will
result in serious personal injury.
• No children or pregnant women should enter the work area where the paint
sanding is being done until all clean up is completed.
• A dust mask or respirator should be worn by all persons entering the work area.
The filter should be replaced daily or whenever the wearer has difficulty breathing.
• NO EATING, DRINKING or SMOKING should be done in the work area to prevent
ingesting contaminated paint particles. Workers should wash and clean up BEFORE
eating, drinking or smoking. Articles of food, drink, or smoking should not be left in
the work area where dust would settle on them.
• Paint should be removed in such a manner as to minimize the amount of dust
generated.
• Areas where paint removal is occurring should be sealed with plastic sheeting
of 4 miles thickness.
• Sanding should be done in a manner to reduce tracking of paint dust outside the
work area.
• All surfaces in the work area should be vacuumed and thoroughly cleaned daily
for the duration of the sanding project. Vacuum filter bags should be changed
frequently.
• Plastic drop cloths should be gathered up and disposed of along with any dust
chips or other removal debris. They should be placed in sealed refuse receptacles
and disposed of through regular trash pick-up procedures. During clean up,
children and pregnant women should be kept away from the immediate work area.
• All toys, washable furniture and utensils used by children should be washed
thoroughly before being used again.
Use of this tool can generate and/or disperse dust, which may cause serious
and permanent respiratory or other injury. Always use NIOSH/OSHA approved
respiratory protection appropriate for the dust exposure. Direct particles away
from face and body.
BD1801
WARNING!
!

4
SAFETY GUIDELINES
POWER TOOL SAFETY
BD1801
1. READ and become familiar with the entire Instruction Manual. LEARN the
tool’s application, limitations and possible hazards.
2. KEEP GUARDS IN PLACE and in working order.
3.
REMOVE ADJUSTING KEYS AND WRENCHES. Form the habit of checking
to see that keys and adjusting wrenches are removed from the tool before
turning ON.
4. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
5. DO NOT USE IN DANGEROUS ENVIRONMENTS. Do not use power tools
in damp locations, or expose them to rain or snow. Keep work area well lit.
6. KEEP CHILDREN AWAY. All visitors and bystanders should be kept a safe
distance from work area.
7. MAKE WORKSHOP CHILD PROOF with padlocks, master switches or by
removing starter keys.
8. DO NOT FORCE THE TOOL. It will do the job better and safer at the rate
for which it was designed.
9. USE THE RIGHT TOOL. Do not force the tool or an attachment to do a job
for which it was not designed.
10. USE PROPER EXTENSION CORDS. Make sure your extension cord is in
good condition. When using an extension cord, be sure to use one heavy
enough to carry the current your product will draw. An undersized cord will
result in a drop in line voltage and in loss of power which will cause the tool
to overheat. The table on page 8 shows the correct size to use depending
on cord length and nameplate ampere rating. If in doubt, use the next heavier
gauge. The smaller the gauge number, the heavier the cord.
11. WEAR PROPER APPAREL. Do not wear loose clothing, gloves, neckties,
rings, bracelets or other jewelry which may get caught in moving parts.
Nonslip footwear is recommended. Wear protective hair covering to contain
long hair.
12. ALWAYS WEAR EYE PROTECTION. Any power tool can throw foreign
objects into the eyes and could cause permanent eye damage. ALWAYS
wear Safety Goggles (not glasses) that comply with ANSI Safety standard
Z87.1. Everyday eyeglasses have only impact–resistant lenses. They ARE
NOT safety glasses. NOTE: Glasses or goggles not in compliance with ANSI
Z87.1 could seriously injure you when they break.
13. WEAR A FACE MASK OR DUST MASK. Sanding operation produces dust.
14. SECURE WORK. Use clamps or a vise to hold work when practical. It is
safer than using your hand and it frees both hands to operate the tool.
15.
DISCONNECT TOOLS FROM POWER SOURCE before servicing, and when
changing accessories such as blades, bits and cutters.
16. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch
is in the OFF position before plugging the tool in.

5
SAFETY GUIDELINES
People with electronic devices, such as pacemakers, should consult their
physician(s) before using this product. Operation of electrical equipment in
close proximity to a heart pacemaker could cause interference or failure of
the pacemaker.
WARNING!
BD1801
!
17. USE RECOMMENDED ACCESSORIES. Consult this Instruction Manual for
recommended accessories. The use of improper accessories may cause risk
of injury to yourself or others.
18. NEVER STAND ON THE TOOL. Serious injury could occur if the tool is tipped
or if the cutting tool is unintentionally contacted.
19. CHECK FOR DAMAGED PARTS. Before further use of the tool, a guard or
other part that is damaged should be carefully checked to determine that it will
operate properly and perform its intended function – check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting and any
other conditions that may affect its operation.Aguard or other part that is
damaged should be properly repaired or replaced.
20. NEVER LEAVE THE TOOL RUNNING UNATTENDED. TURN THE POWER
“OFF”. Do not walk away from a running tool until the blade comes to a complete
stop and the tool is unplugged from the power source.
21. DO NOT OVERREACH. Keep proper footing and balance at all times.
22.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and changing accessories.
23. DO NOT use power tool in presence of flammable liquids or gases.
24. DO NOT operate the tool if you are under the influence of any drugs, alcohol
or medication that could affect your ability to use the tool properly.
25.
Dust generated from certain materials can be hazardous to your health. Always
operate saw in well-ventilated area and provide for proper dust removal.
26. WEAR HEARING PROTECTION to reduce the risk of induced hearing loss.

POWER TOOL SAFETY
6
SAFETY GUIDELINES
BD1801
1. USE sander on horizontal surfaces only. Operating the sander when mounted
on non-horizontal surfaces might result in motor damage.
2. TO STOP it from tipping over or moving when in use, the sander must be
securely fastened to a bench top or supporting surface.
3. PLACE the sander so neither the user nor bystanders are forced to stand in
line with the abrasive belt or disc.
4.
MAKE SURE the sanding belt is installed in the correct direction. See directional
arrow on back of belt.
5. ALWAYS have the tracking adjusted properly so the belt does not run off the
pulleys.
6.
DO NOT USE sanding belts or discs that are damaged, torn or loose. Use only
correct size sanding belt and disc. Narrower belts uncover parts that could
trap fingers.
7. MAKE SURE there are no nails or foreign objects in the part of the workpiece
to be sanded.
8. ALWAYS HOLD the workpiece firmly when sanding. Keep hands away from
sanding belt or disc. Sand only one workpiece at a time.
9. ALWAYS HOLD the workpiece firmly on the table when using the disc sander
and when using the belt sander.
10. ALWAYS SAND ON THE DOWNWARD SIDE of the sanding disc when using
the disc sander. Sanding on the upward side of the disc could cause the
workpiece to fly out of position, resulting in injury.
11.ALWAYS maintain a minimum clearance of 1/16 in. (1.6 mm) or less between
the table or backstop and the sanding belt or disc.
12. DO NOT sand pieces of material that are too small to be safely supported.
13. KEEP fingers away from where the belt goes into the dust trap.
14. WHEN sanding a large workpiece, provide additional support at table height.

7
BD1801
SAFETY GUIDELINES
IMPORTANT INFORMATION-Electrical
A separate electrical circuit should beused for your machines. This circuit should
notbeless than #12 wire and should be protected with a 20-A time-lag fuse. If an
extension cord isused, use only 3-wire extension cords which have 3-pronged
grounding type plugs and matching receptacle which will accept the machine’s plug.
Before connecting the machine to the power line, make sure the switch isin the
"OFF"position and be sure that the electric current isof the same characteristics as
indicated on the machine. All line connections should make good contact. Running
on low voltage will damage the machine.
GROUNDED
OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
GROUNDED OUTLETBOX
GROUNDING
MEANS
ADAPTER
Figure. 1 Figure. 2
MOTOR SPECIFICATIONS
Your machine is wired for 120 V, 60Hz alternating current. Before connecting the
machine tothe power source, make sure the switch is in the "OFF" position.
GROUNDING INSTRUCTIONS
All grounded, cord-connected machines: In the event of a malfunction orbreakdown,
grounding provides a path ofleast resistance for electric current to reduce the risk of
electric shock. This machineis equipped with an electric cord having an equipment
grounding conductor and agrounding plug.
!
DANGER!
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN
DAMP LOCATIONS.
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE
OPERATOR FROM ELECTRIC SHOCK.

8
SAFETY GUIDELINES
The plug must be plugged into a matching outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Do not modify the plug provided–if it will not fit the outlet, have the proper outlet
installed by a qualified electrician.
Improper connection of the equipment-grounding conductor can result in risk of
electric shock. The conductor with insulation having an outer surface that is green
with or without yellow stripes is the equipment-grounding conductor. If repair or
replacement of the electric cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if thegrounding instructions
are not completely understood, or if in doubt as to whether the machineis properly
Use only 3-wire extension cords that have 3-pronged grounding type plugs and
matching 3-conductor receptaclesthat accept the machine’s plug, as shown in Fig.A.
Repair or replace damaged or worn cord immediately.
grounded.
Use proper extension cords. Make sure your extension cord is in good condition
and is a 3-wire extension cord which has a 3-pronged grounding type plug and
matching receptacle which will accept the machine’s plug. When using an extension
cord, be sure to use one heavy enough to carry the current of the machine. An
undersized cord will cause adrop in line voltage, resulting in loss of power and
gauge to use depending on the cord
length. If in doubt, use the next heavier gauge. The smaller the gauge number, the
heavier the cord.
MINIMUM GAUGE FOR CORD SETS
overheating. The table shows the correct
Ampere rating of the tool
(120V circuit only)
more than not more than
Total length of cord
Minimum Gauge for the extension cord (AWG)
In all cases,make certain the receptacle in question is properly grounded.
If you are not sure,have a electrician check the receptacle.
WARNING!
!
BD1801

9
BD1801
PACKAGE CONTENTS
No. Description Qty.
1Belt / disc sander (not shown) 1
2Disc worktable
Disc table handle
Flat washer D8
1
2
3
3
Belt table handle 1
4
Belt worktable 1
5
Miter gauge assy 1
6
Belt tension handle 1
7
8Inner hex wrench 3
9Sanding disc cover 1
10 Philips screw 2
11
2
6789
3 4 5
Package contents
10 11

10 BD1801
KEY PARTS DIAGRAN
No. Description
18 in. diameter sanding disc
2Miter gauge assy
Disc worktable
Base
3
Disc table handle
4
On / Off switch
5
Belt table handle
6
Belt worktable
7
81 in. width / 42 in. length sanding belt
Belt tracking knob
9
Belt tension handle
10
11
1
3
2
10
45678
9
11

ASSEMBLY INSTRUCTIONS
11
MOUNTING WORKTABLE ON DISC
INSTALLING TENSION HANDLE
Screw the tension handle (1) into the hole (2) of the hub and lock it.
1. Locate worktable handles (1) and washers
(2) in parts bag.
2. Place the worktable (3) onto the sander
frame, aligning the semi-circle slot (4) with
the threaded hole (5).
3. Place a washer (2) on threaded shaft of
each worktable handle (1), insert through
semi-circular slot (4), and tighten into
threaded hole (5). Repeat on other side of
table.
4. Adjust worktable to level or any angle
between 0° and 45° for sanding.
5. Mount the sanding disc cover (6) onto the
metal frame that surrounds the sanding
disc with the two Phillips Screws (7).
BD1801
To avoid injury, always keep the plug disconnected from the power source and
the switch turned OFF until the sander is completely assembled and adjusted
properly.
WARNING!
!
To avoid trapping the workpiece or fingers between the worktable and sanding
disc, the worktable edge should be positioned a maximum of 1/16 in. (1.6 mm)
from sanding disc plate.
Always sand on the downward, right side of the rotating disc.
CAUTION
!
1
1
2
5
2
4
3
The larger worktable is used with the sanding disc. It should be used to support
workpieces in all sanding operations except inside curve applications.
7
6

12
MOUNTING WORKTABLE ON BELT
1. Attach the belt work table (1) to the
sanding frame using a handle (2)
and flat washer (3) as shown.
NOTE: Ensure the locating pin (4) passes
through the table bracket and the registration
disc of the bracket is facing inwards.
BD1801
ASSEMBLY INSTRUCTIONS
The use of a dust collection system with the sander is strongly recommended.
It will maintain shop cleanliness, and help prevent possible health hazards caused
by wood dust.
The sander has two dust ports. Slide the hose of your dust collector over the outlet,
and secure with a hose clamp.
NOTE: Dryer vent hoses are not acceptable for this purpose.
DUST COLLECTION
Recommended (not included):
Search BUCKTOOL Y-fitting 4" to 1-3/8"(O.D.) Reducer
at AMAZON.COM or https://www.bucktool.com
You can use it to attach two of your tools including your table saw, jointer, planer,
bandsaw, disc sander, belt sander, drum sander, and more.
A miter gauge (1) is supplied with your sander and can be used with the sanding
table. The miter gauge body can be adjusted from 0° to 60° right or left for angle
or miter sanding.
1. Insert the miter gauge bar (2) into one end
of the miter slot (3) in the disc table.
2. Loosen lock knob (4) and then rotate
miter gauge body to the desired angle.
3. Tighten lock knob (4).
MITER GAUGE
1
4
1
4
2
3
23

13
BD1801
OPERATING INSTRUCTIONS
BELT PLATEN
The belt platen (1) is used to properly support
the workpiece while sanding. The platen (1) is
constructed of heavy steel to provide adequate
support.
The platen (1) should be adjusted so it is almost
touching the back of the abrasive belt. Loosen
the socket head cap screw (2) and adjust the
platen (1) to the desired position. Tighten the
screw (2) to secure the platen (1).
The platen can be removed for operations such
as stripping, contour sanding, polishing or other
special operations. To remove the platen,
remove the socket head cap screw and washer.
Note: Be sure to re-install the platen to perform
operations where support of the belt is required.
1
2
Always lock the switch off when the grinder is not in use. Remove the key
and keep it in a safe place. In the event of a power failure, blown fuse, or
tripped circuit breaker, turn the switch off and remove the key, preventing
an accidental startup when the power comes on.
CAUTION
!
ON/OFF Switch (FIG. G)
1. Press the power switch side marked
“ON” to turn the grinder on.
2. Press the power switch side marked
“OFF” to turn the grinder off.
3. To lock the switch in the “OFF”
position, grasp the end, of the switch
key, and pull it out.
4. With the power switch key removed,
the switch will not operate.
5. If the switch key is removed while the
grinder is running, it can be turned off
but cannot be restarted without
inserting the switch key.
Power switch

14 BD1801
OPERATING INSTRUCTIONS
ADJUSTING DISC TABLE SQUARE WITH SANDING DISC
ADJUSTING BELT TABLE SQUARE WITH SANDING BELT
TO PROPERLY TRACK THE SANDING BELT
1. Plug in the sander.
2. Turn power switch ON, then immediately
OFF, noting whether the belt (1) tends to
slide off its track, and to which side of the
sander.
3. If the sanding belt does not slide to either
side, it is tracking properly.
4. Viewed from the switch end, if the sanding belt runs toward the disc side,
slightly turn the tracking knob (2) counterclockwise (up).
5. Viewed from the switch end, if the sanding belt runs away from the disc
side, slightly turn the tracking knob (2) clockwise (down).
6. Turn power switch ON, then immediately OFF again, again taking note of
any belt movement.
1. Using a combination square (1), place
one side of the square on the disc
table (2) with the other side against the
sanding disc (3), and check to see if the
disc table is 90° to the disc.
2. If the disc table surface is not 90° to the
disc, loosen the table lock knob (4), adjust
table square with disc and tighten the
table lock knob (4).
3. Loosen the screw (5) and secure the
scale pointer (6) at 0°.
1. Using a combination square (1), place
one side of the square on the belt
table (2) with the other side against the
sanding belt (3), and check to see if the
disc table is 90° to the disc.
2. If the disc table surface is not 90° to the
disc, loosen the table lock knob (4), adjust
table square with belt and tighten the
table lock knob (4).
NOTE: The disc table (2) can be tilted from 0° to 45° by loosening the table
lock knob (4). Tilt the disc table (2) to the desired angle. Tighten table
lock knob (4).
up
21
3
2
4
5
6
1
1
down

15
BD1801
MAINTENANCE
REPLACING SANDING DISC
REPLACING VELCRO
A sanding disc is pre-mounted at the factory. Use only sanding discs that
measures 8 in. (200 mm) in diameter.
1. Remove the disc worktable and then
remove the disc cover (1) by removing
four screws (2).
2. Remove the disc paper.
3. Press the new sanding disc firmly in
position around the velcro. Make sure
the disc is centered on the plate.
4. Reinstall the disc cover (1), tighten four
screws (2) and place sanding table back
on unit.
1. Remove the disc worktable and then
remove the disc cover (1) by removing
four screws (2).
2. Remove the velcro (3), and clean any
residue left on disc plate. Only use
mineral spirits to remove this residue.
3. Press the new velcro (3) firmly in position
around the plate. Make sure the velcro
is centered on the plate and do not cover
the screw (4).
4. Reinstall the disc cover (1), tighten four
screws (2) and place sanding table back
on unit.
For your safety, turn switch OFF and remove the power cord from the electrical
outlet before adjusting or performing maintenance on your sander.
To avoid electric shock or fire, all repairs to the electrical components should
be done by a qualified service technician. Before each use check for damaged,
missing, or worn parts; check for alignment of moving parts, binding, improper
mounting, or any other conditions that may affect the operation. Should any of
these conditions exist, do not use the sander until properly repaired or parts
are replaced.
WARNING!
!
1
3
4
2

16 BD1801
MAINTENANCE
REPLACING SANDING BELT
1. Remove the belt cover (2) by loosen the inner hex nut (1).
NOTE: No need remove the inner hex nut.
2. Release belt tension by pulling down on tension handle (2). Slide old belt off the
drive and tracking wheels.
NOTE: The sanding belt can be removed directly along the inner boundary of the
belt work table without removing the belt work table
3. Install the new belt around the wheels.
6. Install the belt cover and the two inner hex nut.
7. Start the sander and check the belt tracking before sanding operations
(See “TO PROPERLY TRACK THE SANDING BELT”).
LUBRICATION
Ball bearings are grease packed at the factory and require no further lubrication.
Use a paste wax to ensure smooth operation on all moving table parts. Do not use
any lubrication on the belt plate as this might end up on the wheels, causing them
to slip.
1
2
2

WARNING!
To avoid injury from an accidental start, turn the switch OFF
and always remove the plug from the power source before
making any adjustments.
17
BD1801
TROUBLESHOOTING GUIDE
ydemeResuaCelbaborPelbuorT
Sander will not start.
Not connected to power source. Connect to power source.
Branch circuit fuse is blown or the
circuit breaker is tripped.
Determine reason for blown fuse/
tripped breaker (such as short circuit
or motor overload). Correct reason for
fault. Replace fuse/ reset circuit
breaker.
Voltage is too low. Check power source for proper
voltage.
Switch is defective. Replace switch.
.rotomecalpeR.eruliafrotoM
Motor stalls easily. Low voltage. Check power source for proper
voltage and correct if necessary.
Abrasive disc
separates from
aluminum disc. Improper bond. Clean residual adhesive from
aluminum disc, and re-apply
adhesive-backed abrasive disc.
Abrasive belt will not
track correctly.
Belt not centered on wheels. Readjust tracking.
Belt stretched unevenly. Replace abrasive belt.
Belt is jointed improperly. Check the belt for an irregular seam
or shape. Replace if needed.
.leehwdetceffaecalpeR.nrowsileehW
Worn bearings. Check all the bearings for excessive heat or loose shafts. Replace if
necessary.
Abrasive belt slips or
stalls when pressure
is applied.
Abrasive belt tension inadequate;
spring in tension mechanism is worn. Replace spring.
Excessive pressure being applied to
platen. Reduce pressure on abrasive belt (and platen).
Frequent
replacement of
abrasive belt or disc.
Too much pressure being applied to
workpiece.
Allow the belt to do the cutting.
Excessive pressure only dulls the grit
and removes it from the cloth.
Full width of belt or disc not being
used. Stroke across abrasive belt using full width of belt surface.
Incorrect abrasive material or grit
size.
Check with your abrasives supplier for
recommendations on the type and
coarseness of the abrasive required
for your particular workpieces.

BD1801
EXPLODED VIEW
18
32
82
33
35
34
83
36
37
39
40
67
66
65
64
63
62
26
84
61 45
46
47
50 42 48
51
52
53
54
55
12345
6789
13
14
15
16
25 26 27 28 29
85
31
17
?
19 20 21 19 22
10
3
23
24
30 13 14 15 16
1112
10
18 19
78 77 76
75 19 18
41
42
43
44
56 57 58 59
79
80
81
68
69
70
71
72
73
74
89
88
87
49
60
38

PARTS LIST
19
BD1801
Item Description Qty Item Description Qty
1 Belt tension handle 1 47 Philips screw assy M4x7 1
2 Tension handle base 1 48 Base 1
3 Inner hex bolt M8x12 2 49 Switch plate 1
4 Tension spring 1 50 Switch 1
5 Shaft circlip D16 1 51 Philips bolt assy M8x20 4
6 Driven eccentric shaft 1 52 Rubber foot 4
7 Knob 1 53 Philips screw assy M5x16 4
8 Handle spring 1 54 Base plate 1
9 Supprot base 1 55 Philips screw assy M5x8 4
10 Hex nut M5 2 56 Capacitor 1
11 Philips screw assy M5x12 4 57 Capacitor support 1
12 Belt adjustment plate 2 58 Philips screw assy M5x8 1
13 Shaft circlip D35 2 59 Hex nut m8 1
14 Bearing 6202 2 60 Philips screw assy M4x8 2
15 Driven wheel 2 61 Pointer 2
16 Shaft circlip D15 2 62 Sanding disc palte 1
17 Belt work table 1 63 Sanding disc pad 1
18 Locking knob 2 64 Philips screw M6*16 1
19 Flat washer D8 5 65 Sanding disc paper 1
20 Set screw 1 66 Sanding protection palte 1
21 Belt work table support 1 67 Philips screw assy M4x8 5
22 Inner hex bolt M8x12 2 68 Miter gauge knob 1
23 Belt back stop 1 69 Philips screw assy M5x8 1
24 Inner hex bolt assy M5x10 2 70 Pointer 1
25 Belt cover 1 71 Big flat washer 1
26 Philips screw assy M6x18 8 72 Miter gauge 1
27 Driving wheel 1 73 Round pin M6x10 1
28 Hex nut M12 right 1 74 Miter rod 1
29 Sanding belt 1 75 Left workt table spport 1
30 Driven shaft 1 76 Disc worktable 1
31 Inner hex bolt assy M5x25 2 77 Right workt table spport 1
32 Philips screw assy M5x196 4 78 Inner hex bolt assy M6x12 4
33 Wave spring washer D47 1 79 Wrench s=6 1
34 Bearing 6204 1 80 Wrench s=5 1
35 Flat key 5×5×12 1 81 Wrench s=4 1
36 Flat key 5×5×10 1 82 Left end cap 1
37 Bearing 6203 1 83 Rotor 1
38 Stator 1 84 Disc guard 1
39 Right end cap 1 85 Belt guard cover 1
40 Hex flange nut 4 86 Locking knob assy 1
41 Power cord 1 87 Disc protection cover 1
42 Philips screw M5x8 4 88 Philips screw assy M4x8 2
43 Line card 1 89 Velcro 1
44 Line card plate 1 90 Switch protection plate 1
45 Cord bushing 1 91 Philips screw 2
46 Tooth lock washer D4 1

20
WARRANTY
GET IT DONE
Having Problems ?
Give us a chance to help you before returning this product
Email : [email protected]
TWO-YEAR LIMITED WARRANTY
https://www.bucktool.com
https://www.bucktool.com
2
909-255-1088 (8AM-5PM PST)
