Buffalo WLI-UC-G450 User manual

User Manual
N450 Wireless-N USB Adapter
WLI-UC-G450
www.buffalotech.com
35012280 ver.01

WLI-UC-G450 User Manual 1
Contents
Chapter 1 - Product Overview .........................................4
Features .................................................................................. 4
450 Mbps High Speed Mode ................................................... 4
System Requirements ............................................................. 5
Package Contents ................................................................... 5
Hardware Overview ................................................................. 5
Chapter 2 - Installation .....................................................6
Installing Wireless Drivers ....................................................... 6
Installing Utility ........................................................................ 10
Chapter 3 - Connect to a Wireless Network ...................13
Automatic Secure Setup (AOSS / WPS) ................................. 13
Windows 7 or Vista (Client Manager V) ......................................... 14
Windows XP (Client Manager 3) .................................................... 15
Automatic Secure Setup (WPS PIN) ....................................... 16
Windows 7 or Vista (Client Manager V) ......................................... 16
Windows XP (Client Manager 3) .................................................... 20
Manual Setup (Client Manager) .............................................. 22
Windows 7 or Vista (Client Manager V) ......................................... 22
Windows XP (Client Manager 3) .................................................... 25
Manual Setup (Windows Utility) .............................................. 26
Windows Vista (WLAN AutoCong) ............................................... 27
Windows XP (Wireless Zero Conguration) ................................... 30

WLI-UC-G450 User Manual 2
Chapter 4 - Client Manager ..............................................31
Software Overview .................................................................. 31
Using Client Manager V .......................................................... 31
Opening and Closing Client Manager ............................................ 31
Main Screen ................................................................................... 32
Automatic Secure Setup and Advanced Setup .............................. 33
SSID / WPS-PIN selection ............................................................. 34
Searching Wireless Access Points ................................................. 35
Wireless Network Information ........................................................ 36
WPS-PBC / AOSS selection .......................................................... 37
Wireless Status .............................................................................. 38
Wireless LAN Diagnostic ............................................................... 40
Prole List ...................................................................................... 41
Wireless Properties ........................................................................ 42
Network Properties ........................................................................ 43
Browser Properties ........................................................................ 44
Printer Properties ........................................................................... 45
Using Client Manager 3 ........................................................... 46
Status ............................................................................................. 47
Scan ............................................................................................... 49
Connect .......................................................................................... 50
Proles ........................................................................................... 51
Prole Information (Basic) .............................................................. 52
Prole Information (Network) ......................................................... 54
Prole Information (Browser) ......................................................... 55
Prole Information (Printers) .......................................................... 56
System Tray Menu ......................................................................... 57
Option Menu .................................................................................. 58

WLI-UC-G450 User Manual 3
Chapter 5 - Trouble Shooting ..........................................60
The Computer does not Recognize the Wireless Adapter. ..... 60
You Cannot Connect to the Network Wirelessly. ..................... 60
You Forgot the AP’s SSID, Encryption Key, or Password. ...... 60
The Link Speed is Slower than 450 Mbps............................... 61
Other Tips ................................................................................ 61
Appendix .....................................................................64
450 Mbps Mode Settings ........................................................ 64
Specications .......................................................................... 65
Dismounting ............................................................................ 66
Uninstalling the Software ........................................................ 66
Uninstalling the Drivers ........................................................... 66
TCP/IP Settings in Windows ................................................... 67
Windows 7 ..................................................................................... 67
Windows Vista ............................................................................... 68
Windows XP ................................................................................... 69
Compliance Information .......................................................... 70
Environmental Information ...................................................... 76

WLI-UC-G450 User Manual 4
Chapter 1 - Product Overview
Features
With support for current Wireless-N, Wireless-G, and Wireless-B standards, the AirStation can transfer
data to and from all standard 2.4 GHz wireless network devices.
This device includes support for AOSS (AirStation One-touch Secure System) and WPS (Wi-Fi
Protected Setup), making connection with other wireless devices easier.
The following types of encryption are supported:
• WPA-PSK (TKIP / AES)
• WPA2-PSK (TKIP / AES)
• WEP (128-bit / 64-bit)
450 Mbps High Speed Mode
450 Mbps is the link speed when using 2 channel Wireless-N mode. It represents actual wireless
data speeds, including overhead. Because the overhead is not available for user data transfer, usable
wireless throughput will be substantially slower.

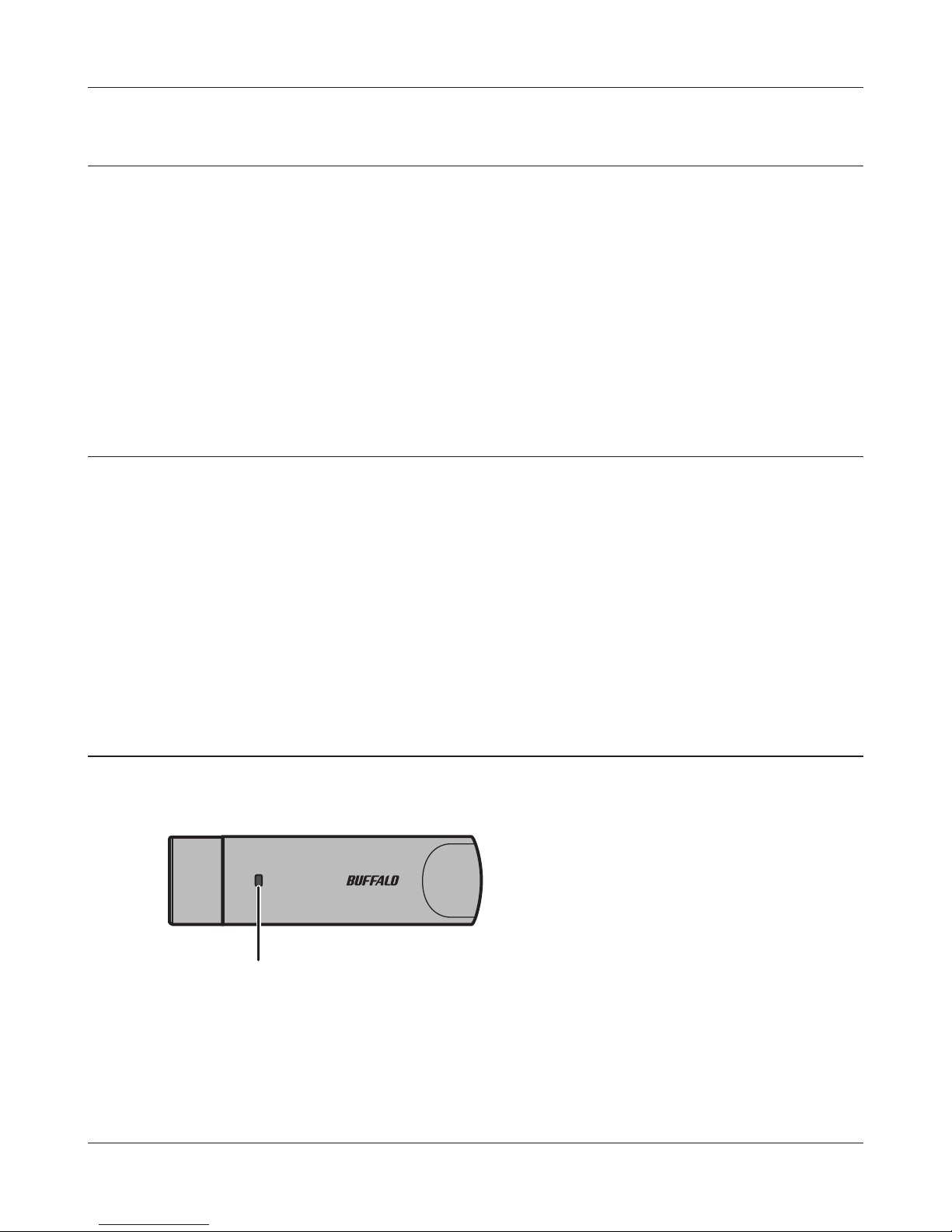

ACT LED (Blue)
Flashes when sending or receiving data.
Chapter 1 Product Overview
WLI-UC-G450 User Manual 5
System Requirements
Computer should be IBM/PC compatible (OADG specication) with a USB 2.0 port and a CD-ROM drive.
This product does not support computers equipped with dual processors (computers with two
physical CPUs). Computers with dual-core CPU's are supported.
Compatible OS
Windows 7 (32-bit or 64-bit), Vista (32-bit), XP (32-bit)
Service Pack 2 or later is required for Windows XP.
Package Contents
The following items are included with your AirStation. If any of the items are missing, please contact
your vender.
• Main unit ......................................................................................................................................... 1
• USB cable ........................................................................................................................................ 1
• Air Navigator CD ........................................................................................................................... 1
• Quick Setup Guide....................................................................................................................... 1
Hardware Overview

WLI-UC-G450 User Manual 6
Chapter 2 - Installation
Installing Wireless Drivers
Follow the instructions below to install drivers. Do not connect the AirStation to your computer yet.
1
2

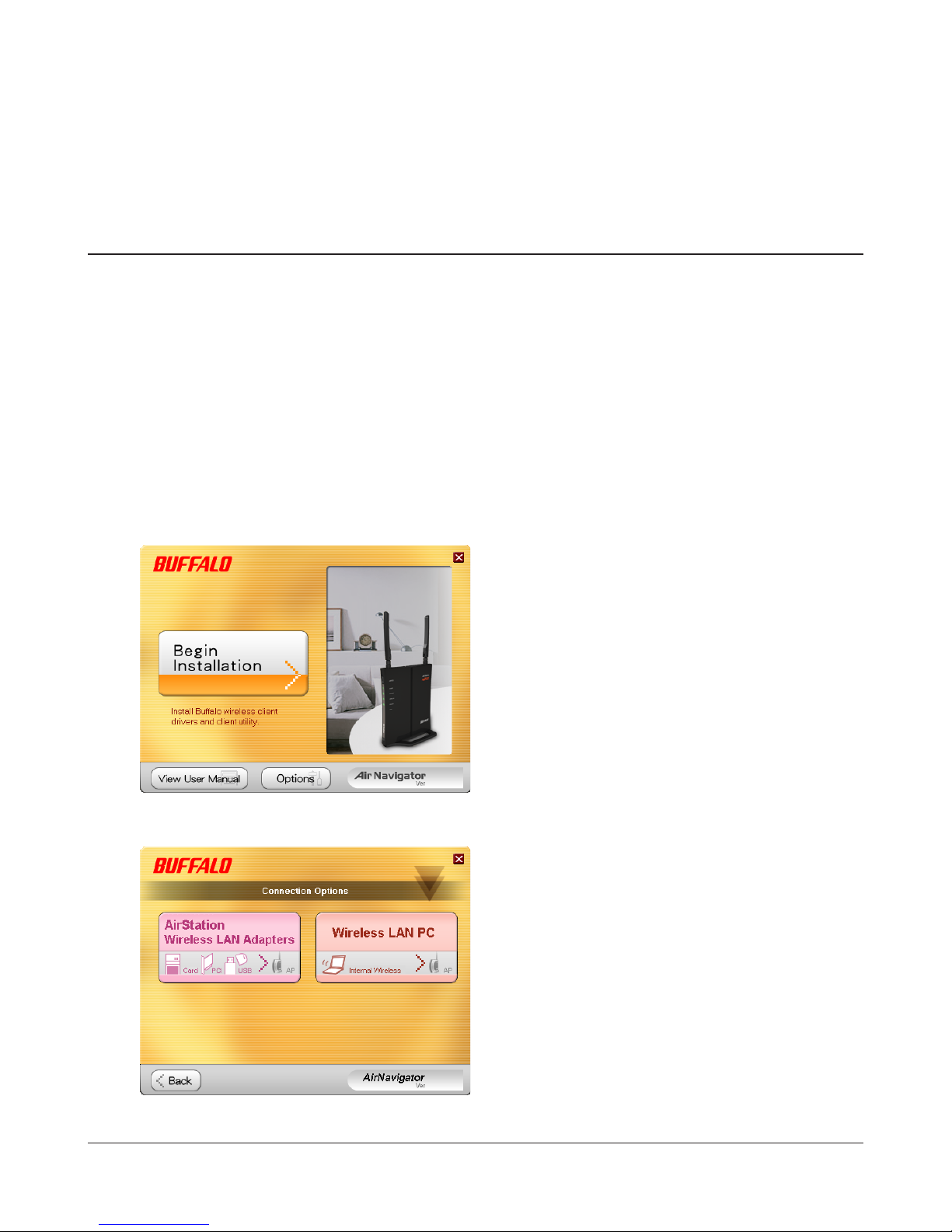

Boot your computer and insert the AirNavigator CD. The setup wizard will launch automatically.
Note: If the setup wizard doesn’t launch, double click [My Computer] > CD-ROM drive icon > [AirNavi.exe] to
launch manually.
Click [Begin Installation].
3Click [AirStation Wireless LAN Adapters].

Chapter 2 Installation
WLI-UC-G450 User Manual 7

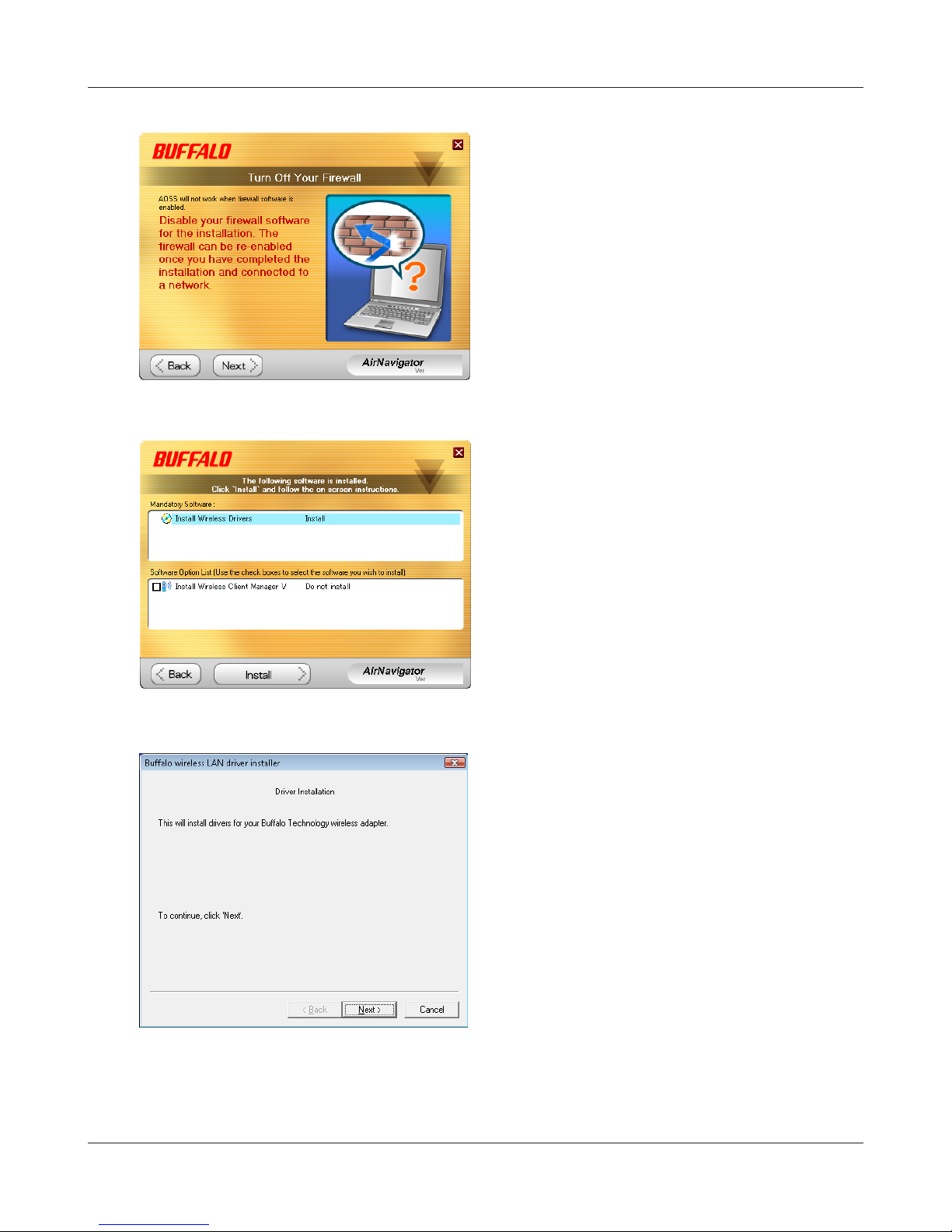

4Disable any rewalls and click [Next].
5Click [Install].
6Click [Next].
Note: • Check “Install Wireless Client Manager” to
install Client Manager after the drivers.
• Refer to page 10 to install Client Manager
later.

WLI-UC-G450 User Manual 8
Chapter 2 Installation

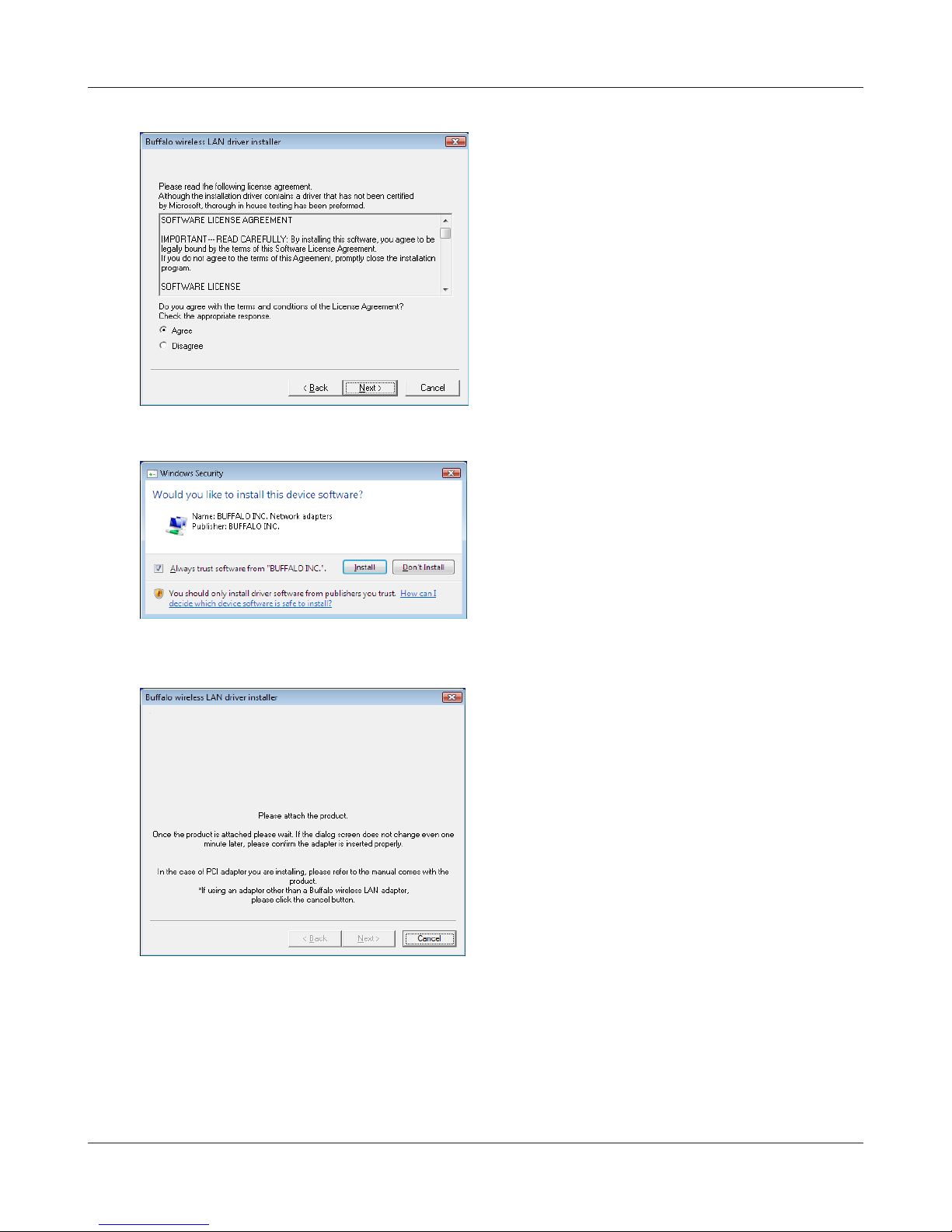

7Read the license agreement, select [Agree],
and then click [Next].
8Check “Always trust software from "BUFFALO
INC.” and click [Install].
9When the screen to the left is displayed, attach
the AirStation to your computer. Drivers will
be installed automatically.

Chapter 2 Installation
WLI-UC-G450 User Manual 9

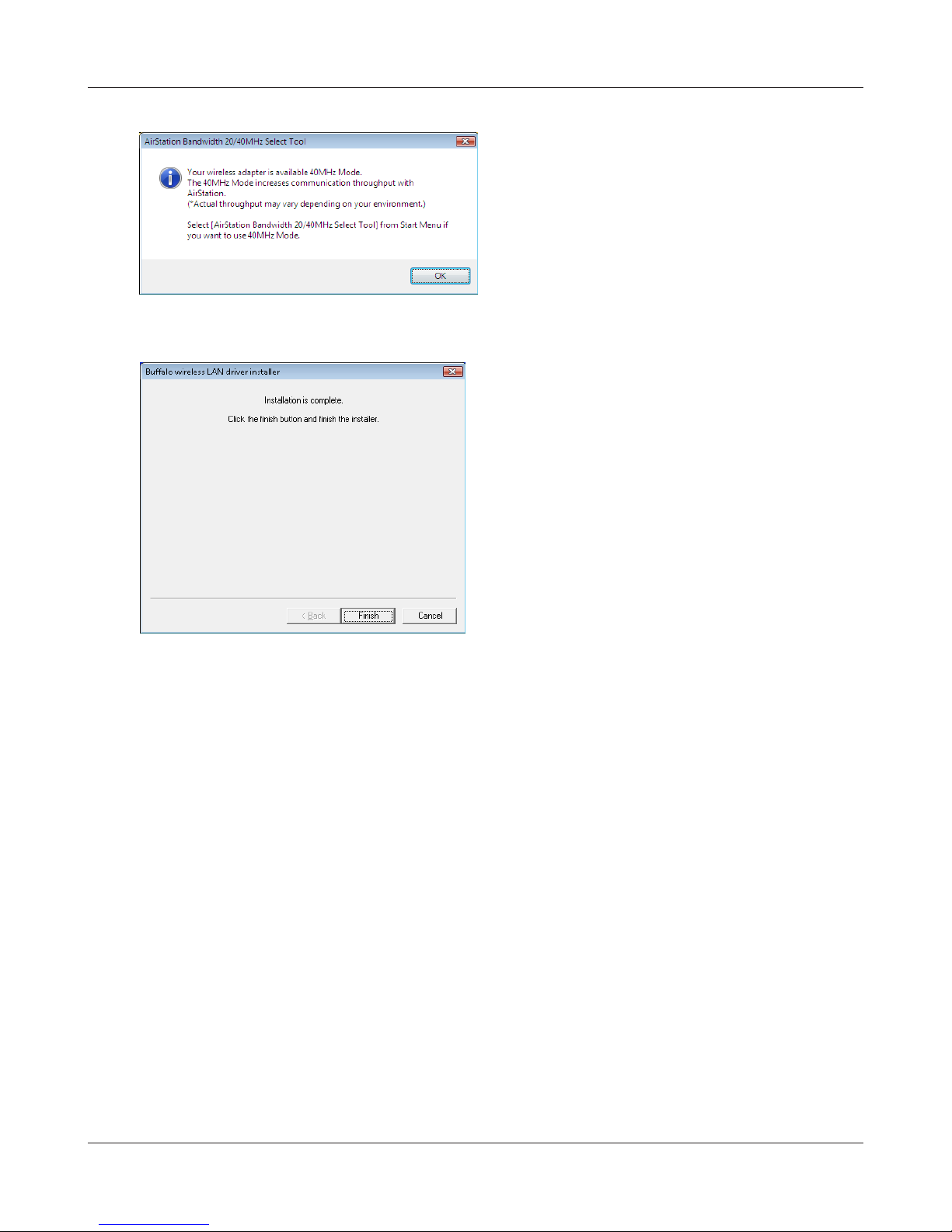

10 Click [OK].
11 After the drivers are installed, the screen at
left will be displayed. Click [Finish].
Note: If you checked the box to Install Wireless Client
Manager (page 7), then the installation screen
for Client Manager will be displayed after this
screen. Follow the instructions on the screen to
install Client Manager.
Drivers are now installed.

WLI-UC-G450 User Manual 10
Chapter 2 Installation
Installing Utility
Follow the procedure below to install “Client Manager”.
1Boot your computer and insert the AirNavigator CD. The setup wizard will launch automatically.
Note: If the setup wizard is not displayed, double-click [My Computer] > CD-ROM drive icon > [AirNavi.exe].
Click [Options].
Click [Advanced Installation].
2
3

Chapter 2 Installation
WLI-UC-G450 User Manual 11

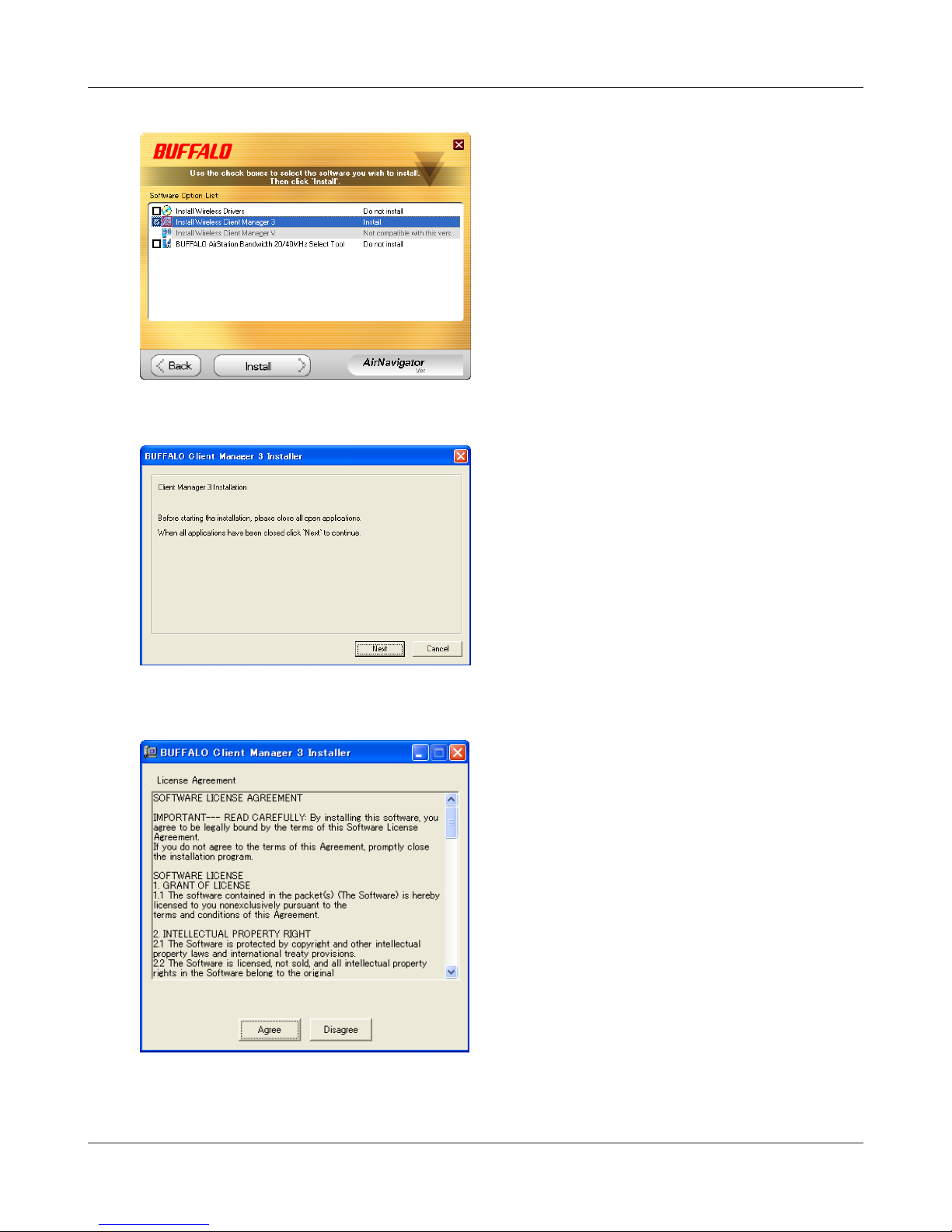

4Check the box for “Install Wireless Client
Manager” and click [Install].
Note: Use Client Manager V with Windows 7/Vista or
Client Manager 3 with Windows XP.
5Click [Next].
6Read the license agreement and select [Agree].

WLI-UC-G450 User Manual 12
Chapter 2 Installation
7
8
9
Click [Next].
Click [OK].
Click [Back].
10 Click “X” at the top right corner of the window
to close it.
Client Manager is now installed.

WLI-UC-G450 User Manual 13

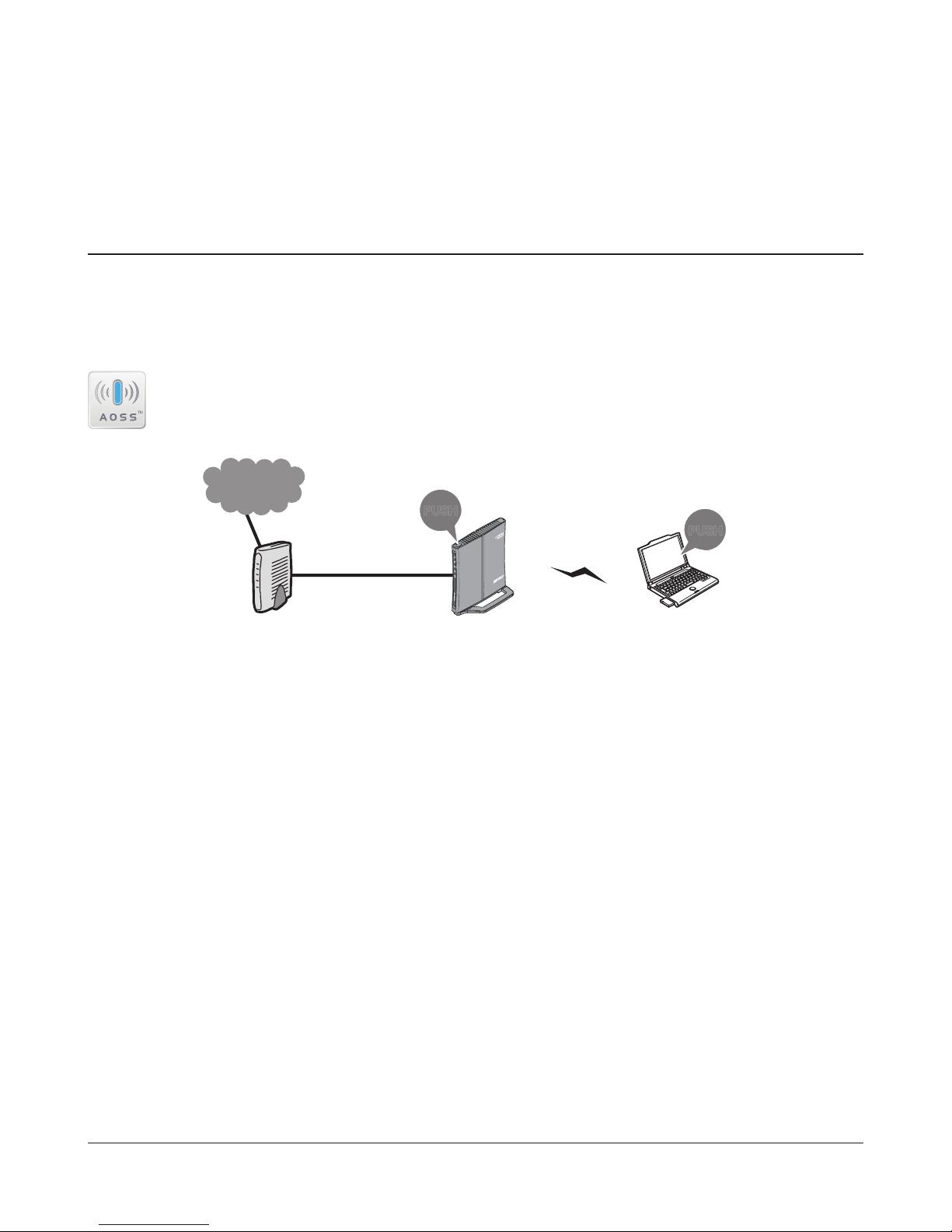

Automatic Secure Setup (AOSS / WPS)
AOSS and WPS are systems that enable you to automatically configure wireless LAN settings. Just
pressing the buttons will connect wireless devices and complete security settings. Use them to
connect wireless devices, computers, and game machines that support AOSS or WPS.
AOSS (AirStation One-Touch Secure System) is technology developed by Bualo Technology.
WPS was created by the Wi-Fi Alliance.
Chapter 3 - Connect to a Wireless Network
ÐÏ×ÅÒ
ÓÅÃÕÒÉÔÙ
×ÅÉÒÅÌÅÓÓ
ÒÏÕÔÅÒ
ÄÉÁÇ
őŖŔʼn
őŖŔʼn
Modem
Internet
AirStation PC or
Game console
(AOSS Devices)
Before using AOSS or WPS, install Client Manager software from the CD. See chapter 2 for
instructions on installing Client Manager software.

WLI-UC-G450 User Manual 14
Chapter 3 Connect to a Wireless Network
1
2

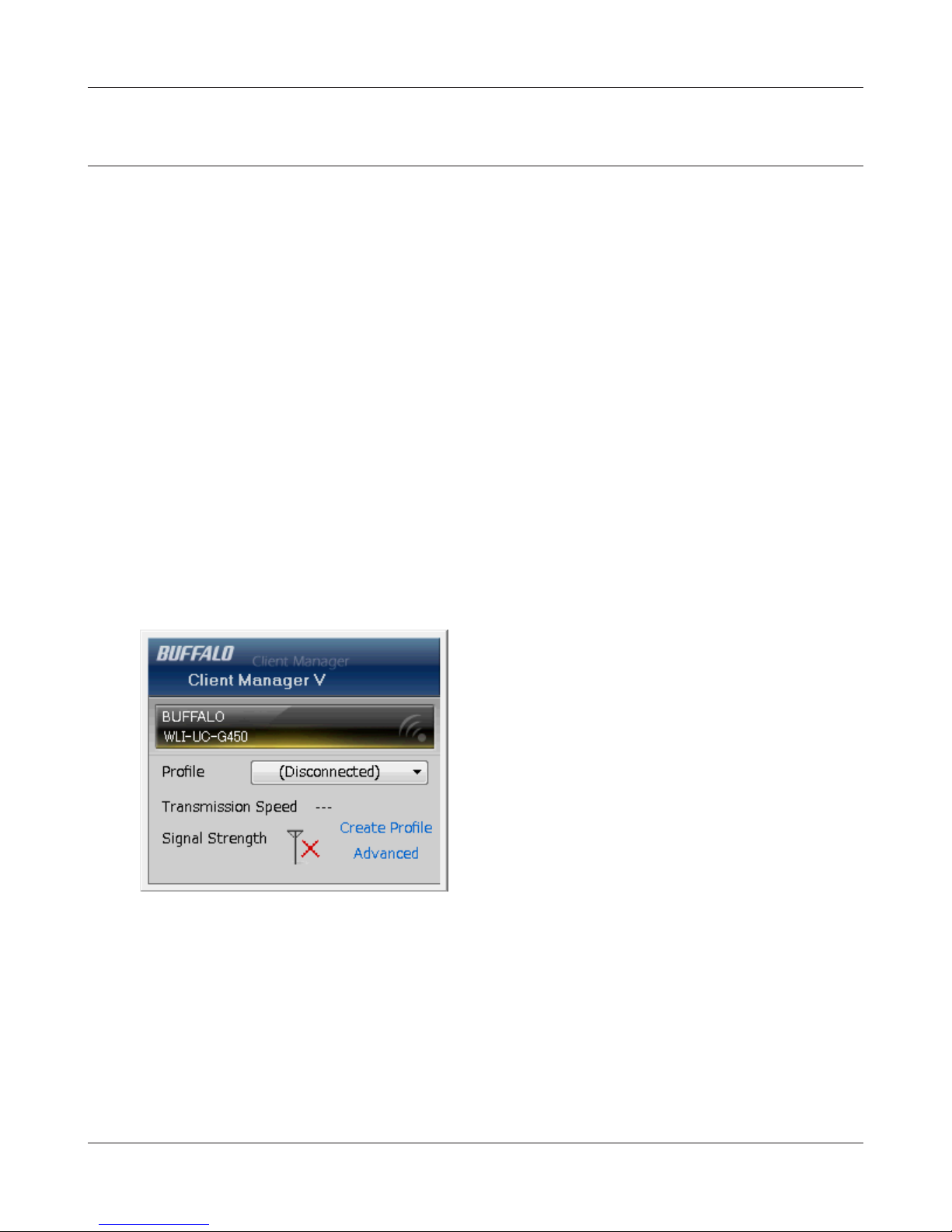

Click [Start] > [All Programs] > [BUFFALO] > [AirStation Utility] > [Client Manager V].
Windows 7 or Vista (Client Manager V)
If you are using Windows 7 or Vista, use the included Client Manager V software to connect wirelessly
with AOSS or WPS.
Click [Create Pro le].
3The User Account Control screen is displayed. Click [Yes] or [Continue].
4
Click the [WPS AOSS] button.

Chapter 3 Connect to a Wireless Network
WLI-UC-G450 User Manual 15
When “Connection has been Completed” is displayed in Client Manager V, your connection is
complete. If “Set Network Location” is displayed, select “Home”, “Work”, or “Public location”
depending on the environment in which the AirStation will be used.
2
Windows XP (Client Manager 3)
If you are using Windows XP, use the included Client Manager 3 software to connect wirelessly with
AOSS or WPS.

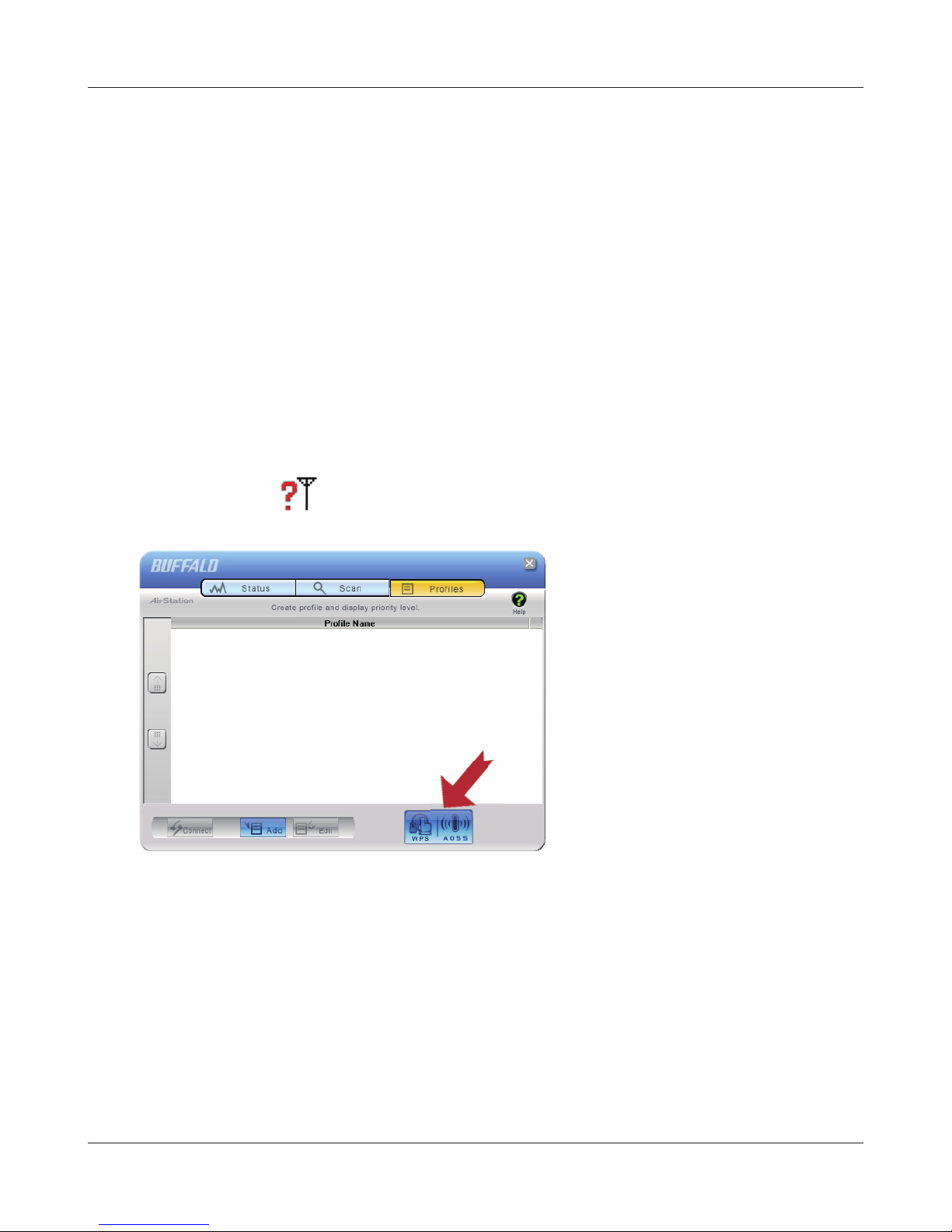

1Right-click on the icon in the system tray and select [Pro le].
Click the [WPS AOSS] button.
Your connection is complete when the message “Security setup and connection have been
completed” is displayed.

WLI-UC-G450 User Manual 16
Chapter 3 Connect to a Wireless Network
Automatic Secure Setup (WPS PIN)
WPS can use a PIN generated by the Client Manager utility to easily connect to an access point that
supports WPS PIN.
To use WPS PIN, rst install Client Manager software on your computer. See chapter 2 for
instructions on installing Bualo Client Manager software.
Windows 7 or Vista (Client Manager V)
The procedure for connecting to an access point with a WPS PIN is described below.
1
2
Click [Start] > [All Programs] > [BUFFALO] > [AirStation Utility] > [Client Manager V].
Click [Create Prole].
3The User Account Control screen is displayed. Click [Yes] or [Continue].

Chapter 3 Connect to a Wireless Network
WLI-UC-G450 User Manual 17

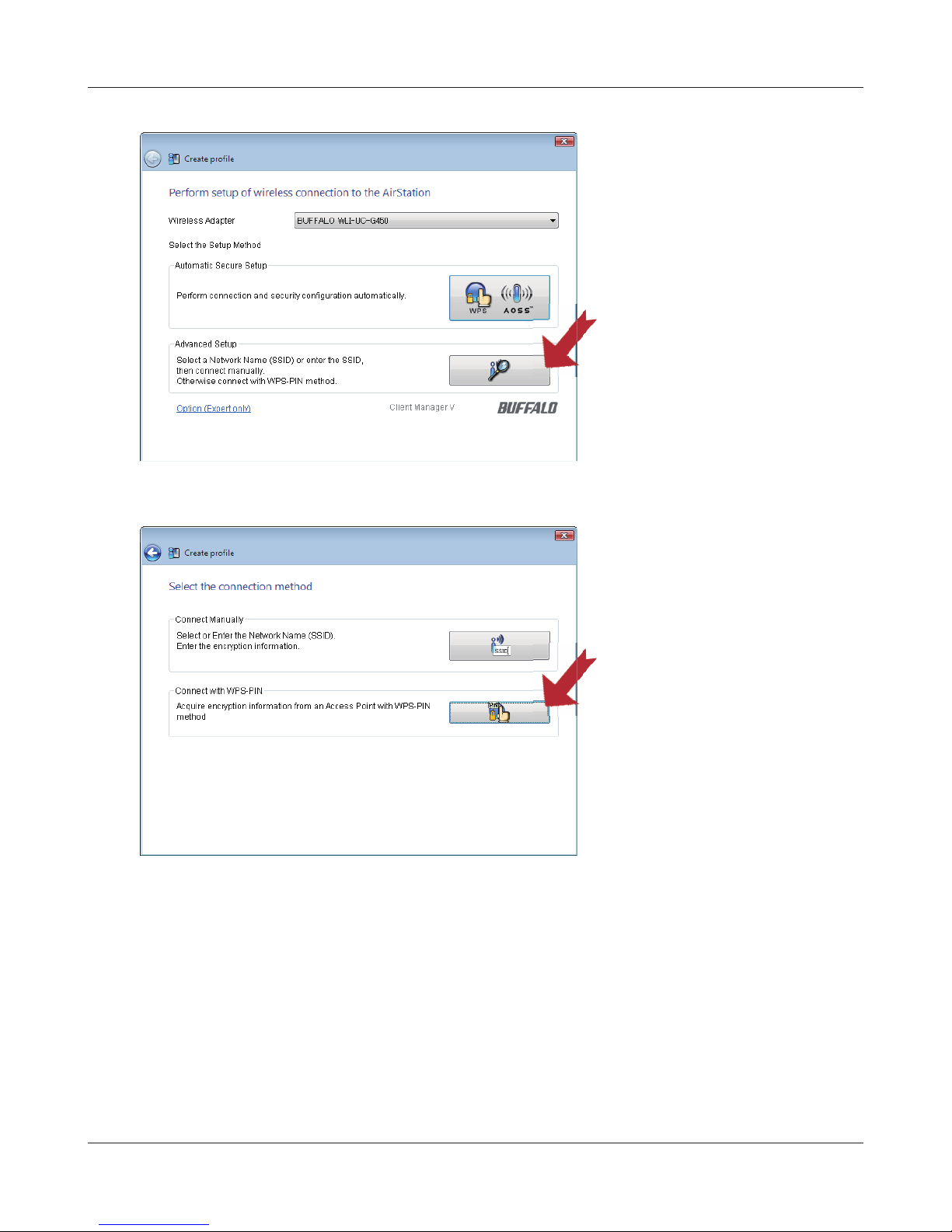

4
Click [Advanced Setup].
5
Click [WPS-PIN].

WLI-UC-G450 User Manual 18
Chapter 3 Connect to a Wireless Network
6
Carefully copy the PIN to a piece of
paper, then click [Next].
7
Select the access point to connect
to, then click [Next].
This screen will be displayed.

Chapter 3 Connect to a Wireless Network
WLI-UC-G450 User Manual 19
8Use a PC with a wired Ethernet connection to log in to the access point’s management utility.
Note: If the access point you are trying to connect is a Bu alo AirStation, click Wireless Con g > WPS from the
home page of the con guration interface. The screen to enter the PIN code will be displayed.
9Navigate to the WPS PIN
con guration screen, then enter
the PIN that you write down in
step 6.
Note: If the access point you are
trying to connect is a Bu alo
AirStation, enter the PIN in
“Enrollee PIN”  eld and click
[OK].
When “Connection has been Completed” is displayed in Client Manager V, your connection is
complete. If “Set Network Location” is displayed, select “Home”, “Work”, or “Public location”
depending on the environment in which the AirStation will be used.
