Bull Escala E2-700 User manual

PCI Adapter Placement for E2-700, E2-
700T, E2-705, E2-705T, E4-700, E4-
700T or E4-705
ESCALA Power7
REFERENCE
86 A1 88FF 05

PCI Adapter Placement for E2-700, E2-700T, E2-705,
E2-705T, E4-700, E4-700T or E4-705
The ESCALA Power7 publications concern the following models:
- Bull Escala E1-700 (Power 710 / 8231-E2B)
- Bull Escala E1-705 (Power 710 / 8231-E1C)
- Bull Escala E2-700 / E2-700T (Power 720 / 8202-E4B)
- Bull Escala E2-705 / E2-705T (Power 720 / 8202-E4C)
- Bull Escala E3-700 (Power 730 / 8231-E2B)
- Bull Escala E3-705 (Power 730 / 8231-E2C)
- Bull Escala E4-700 / E4-700T (Power 740 / 8205-E6B)
- Bull Escala E4-705 (Power 740 / 8205-E6C)
- Bull Escala E5-700 (Power 750 / 8233-E8B)
- Bull Escala M6-700 (Power 770 / 9117-MMB)
- Bull Escala M6-705 (Power 770 / 9117-MMC)
- Bull Escala M6-715 (Power 770 / 9117-MMD)
- Bull Escala M7-700 (Power 780 / 9179-MHB)
- Bull Escala M7-705 (Power 780 / 9179-MHC)
- Bull Escala M7-715 (Power 780 / 9179-MHD)
References to Power 755 / 8236-E8C models are irrelevant.
Hardware
November 2012
BULL CEDOC
357 AVENUE PATTON
B.P.20845
49008 ANGERS CEDEX 01
FRANCE
REFERENCE
86 A1 88FF 05

The following copyright notice protects this book under Copyright laws which prohibit such actions as, but not limited to, copying,
distributing, modifying, and making derivative works.
Copyright © Bull SAS 2012
Printed in France
Trademarks and Acknowledgements
We acknowledge the rights of the proprietors of the trademarks mentioned in this manual.
All brand names and software and hardware product names are subject to trademark and/or patent protection.
Quoting of brand and product names is for information purposes only and does not represent trademark misuse.
The information in this document is subject to change without notice. Bull will not be liable for errors contained herein, or
for incidental or consequential damages in connection with the use of this material.

Contents
Safety notices .................................v
PCI adapter placement for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C ...........1
Supported PCI adapters for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C ................1
PCI adapter placement rules and slot priorities for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C ........17
I/O expansion units ................................43
PCI adapter slot priorities for the 5796 expansion unit ....................43
PCI adapters slot priorities for the 58/02 and 58/77 expansion units ...............45
Notices ...................................47
Trademarks ...................................48
Electronic emission notices ..............................48
Class A Notices .................................48
Class B Notices .................................52
Terms and conditions ................................54
iii

iv PCI adapter placement for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C

Safety notices
Safety notices may be printed throughout this guide.
vDANGER notices call attention to a situation that is potentially lethal or extremely hazardous to
people.
vCAUTION notices call attention to a situation that is potentially hazardous to people because of some
existing condition.
vAttention notices call attention to the possibility of damage to a program, device, system, or data.
World Trade safety information
Several countries require the safety information contained in product publications to be presented in their
national languages. If this requirement applies to your country, a safety information booklet is included
in the publications package shipped with the product. The booklet contains the safety information in
your national language with references to the U.S. English source. Before using a U.S. English publication
to install, operate, or service this product, you must first become familiar with the related safety
information in the booklet. You should also refer to the booklet any time you do not clearly understand
any safety information in the U.S. English publications.
Laser safety information
The servers can use I/O cards or features that are fiber-optic based and that utilize lasers or LEDs.
Laser compliance
The servers may be installed inside or outside of an IT equipment rack.
v

DANGER
When working on or around the system, observe the following precautions:
Electrical voltage and current from power, telephone, and communication cables are hazardous. To
avoid a shock hazard:
vConnect power to this unit only with the provided power cord. Do not use the provided power
cord for any other product.
vDo not open or service any power supply assembly.
vDo not connect or disconnect any cables or perform installation, maintenance, or reconfiguration
of this product during an electrical storm.
vThe product might be equipped with multiple power cords. To remove all hazardous voltages,
disconnect all power cords.
vConnect all power cords to a properly wired and grounded electrical outlet. Ensure that the outlet
supplies proper voltage and phase rotation according to the system rating plate.
vConnect any equipment that will be attached to this product to properly wired outlets.
vWhen possible, use one hand only to connect or disconnect signal cables.
vNever turn on any equipment when there is evidence of fire, water, or structural damage.
vDisconnect the attached power cords, telecommunications systems, networks, and modems before
you open the device covers, unless instructed otherwise in the installation and configuration
procedures.
vConnect and disconnect cables as described in the following procedures when installing, moving,
or opening covers on this product or attached devices.
To Disconnect:
1. Turn off everything (unless instructed otherwise).
2. Remove the power cords from the outlets.
3. Remove the signal cables from the connectors.
4. Remove all cables from the devices.
To Connect:
1. Turn off everything (unless instructed otherwise).
2. Attach all cables to the devices.
3. Attach the signal cables to the connectors.
4. Attach the power cords to the outlets.
5. Turn on the devices.
(D005a)
DANGER
vi PCI adapter placement for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C

Observe the following precautions when working on or around your IT rack system:
vHeavy equipment–personal injury or equipment damage might result if mishandled.
vAlways lower the leveling pads on the rack cabinet.
vAlways install stabilizer brackets on the rack cabinet.
vTo avoid hazardous conditions due to uneven mechanical loading, always install the heaviest
devices in the bottom of the rack cabinet. Always install servers and optional devices starting
from the bottom of the rack cabinet.
vRack-mounted devices are not to be used as shelves or work spaces. Do not place objects on top
of rack-mounted devices.
vEach rack cabinet might have more than one power cord. Be sure to disconnect all power cords in
the rack cabinet when directed to disconnect power during servicing.
vConnect all devices installed in a rack cabinet to power devices installed in the same rack
cabinet. Do not plug a power cord from a device installed in one rack cabinet into a power
device installed in a different rack cabinet.
vAn electrical outlet that is not correctly wired could place hazardous voltage on the metal parts of
the system or the devices that attach to the system. It is the responsibility of the customer to
ensure that the outlet is correctly wired and grounded to prevent an electrical shock.
CAUTION
vDo not install a unit in a rack where the internal rack ambient temperatures will exceed the
manufacturer's recommended ambient temperature for all your rack-mounted devices.
vDo not install a unit in a rack where the air flow is compromised. Ensure that air flow is not
blocked or reduced on any side, front, or back of a unit used for air flow through the unit.
vConsideration should be given to the connection of the equipment to the supply circuit so that
overloading of the circuits does not compromise the supply wiring or overcurrent protection. To
provide the correct power connection to a rack, refer to the rating labels located on the
equipment in the rack to determine the total power requirement of the supply circuit.
v(For sliding drawers.) Do not pull out or install any drawer or feature if the rack stabilizer brackets
are not attached to the rack. Do not pull out more than one drawer at a time. The rack might
become unstable if you pull out more than one drawer at a time.
v(For fixed drawers.) This drawer is a fixed drawer and must not be moved for servicing unless
specified by the manufacturer. Attempting to move the drawer partially or completely out of the
rack might cause the rack to become unstable or cause the drawer to fall out of the rack.
(R001)
Safety notices vii

CAUTION:
Removing components from the upper positions in the rack cabinet improves rack stability during
relocation. Follow these general guidelines whenever you relocate a populated rack cabinet within a
room or building:
vReduce the weight of the rack cabinet by removing equipment starting at the top of the rack
cabinet. When possible, restore the rack cabinet to the configuration of the rack cabinet as you
received it. If this configuration is not known, you must observe the following precautions:
– Remove all devices in the 32U position and above.
– Ensure that the heaviest devices are installed in the bottom of the rack cabinet.
– Ensure that there are no empty U-levels between devices installed in the rack cabinet below the
32U level.
vIf the rack cabinet you are relocating is part of a suite of rack cabinets, detach the rack cabinet from
the suite.
vInspect the route that you plan to take to eliminate potential hazards.
vVerify that the route that you choose can support the weight of the loaded rack cabinet. Refer to the
documentation that comes with your rack cabinet for the weight of a loaded rack cabinet.
vVerify that all door openings are at least 760 x 230 mm (30 x 80 in.).
vEnsure that all devices, shelves, drawers, doors, and cables are secure.
vEnsure that the four leveling pads are raised to their highest position.
vEnsure that there is no stabilizer bracket installed on the rack cabinet during movement.
vDo not use a ramp inclined at more than 10 degrees.
vWhen the rack cabinet is in the new location, complete the following steps:
– Lower the four leveling pads.
– Install stabilizer brackets on the rack cabinet.
– If you removed any devices from the rack cabinet, repopulate the rack cabinet from the lowest
position to the highest position.
vIf a long-distance relocation is required, restore the rack cabinet to the configuration of the rack
cabinet as you received it. Pack the rack cabinet in the original packaging material, or equivalent.
Also lower the leveling pads to raise the casters off of the pallet and bolt the rack cabinet to the
pallet.
(R002)

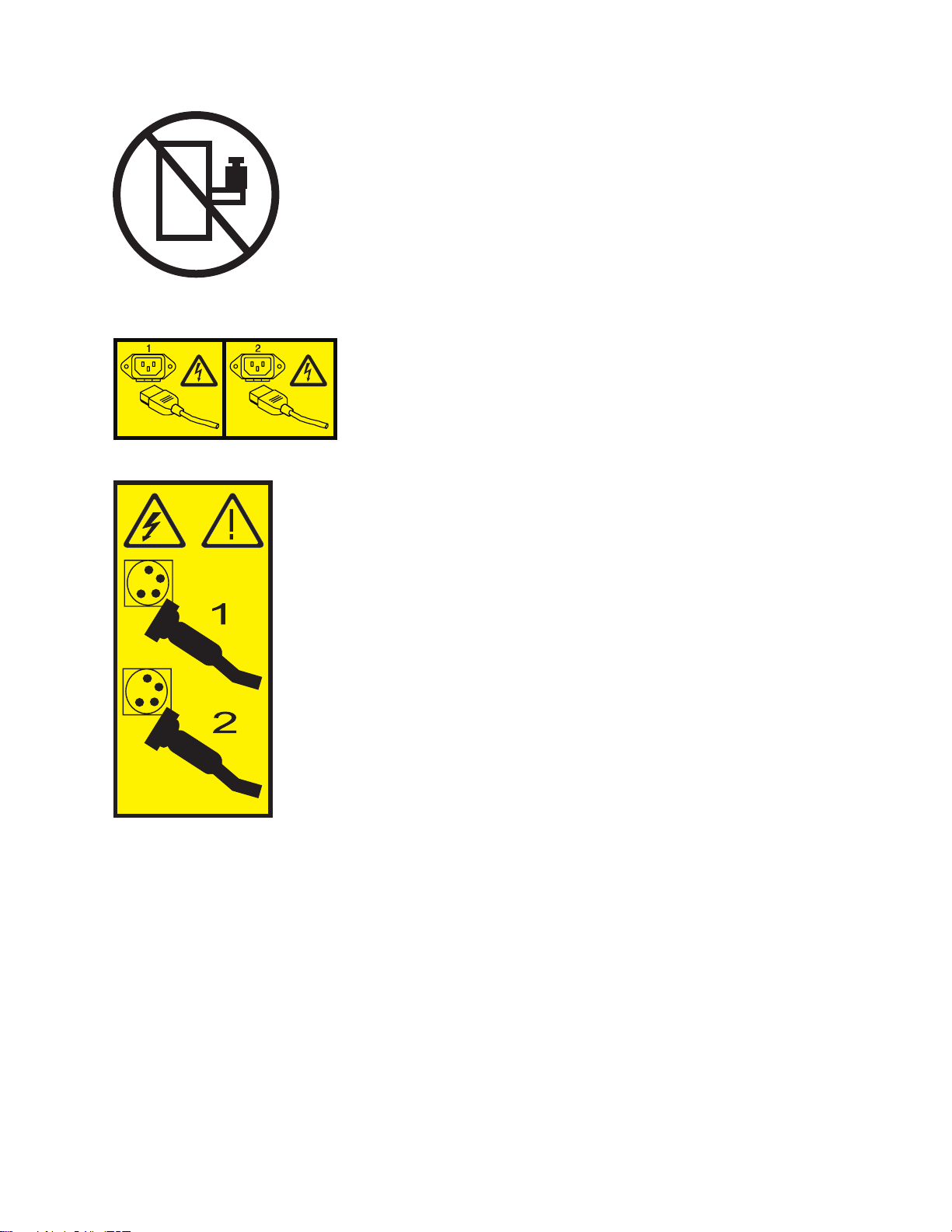

(L001)
(L002)
viii PCI adapter placement for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C

(L003)
or
All lasers are certified in the U.S. to conform to the requirements of DHHS 21 CFR Subchapter J for class
1 laser products. Outside the U.S., they are certified to be in compliance with IEC 60825 as a class 1 laser
product. Consult the label on each part for laser certification numbers and approval information.
CAUTION:
This product might contain one or more of the following devices: CD-ROM drive, DVD-ROM drive,
DVD-RAM drive, or laser module, which are Class 1 laser products. Note the following information:
vDo not remove the covers. Removing the covers of the laser product could result in exposure to
hazardous laser radiation. There are no serviceable parts inside the device.
vUse of the controls or adjustments or performance of procedures other than those specified herein
might result in hazardous radiation exposure.
(C026)
Safety notices ix

CAUTION:
Data processing environments can contain equipment transmitting on system links with laser modules
that operate at greater than Class 1 power levels. For this reason, never look into the end of an optical
fiber cable or open receptacle. (C027)
CAUTION:
This product contains a Class 1M laser. Do not view directly with optical instruments. (C028)
CAUTION:
Some laser products contain an embedded Class 3A or Class 3B laser diode. Note the following
information: laser radiation when open. Do not stare into the beam, do not view directly with optical
instruments, and avoid direct exposure to the beam. (C030)
CAUTION:
The battery contains lithium. To avoid possible explosion, do not burn or charge the battery.
Do Not:
v___ Throw or immerse into water
v___ Heat to more than 100°C (212°F)
v___ Repair or disassemble
Exchange only with the approved part. Recycle or discard the battery as instructed by local
regulations. (C003a)
Power and cabling information for NEBS (Network Equipment-Building System)
GR-1089-CORE
The following comments apply to the servers that have been designated as conforming to NEBS
(Network Equipment-Building System) GR-1089-CORE:
The equipment is suitable for installation in the following:
vNetwork telecommunications facilities
vLocations where the NEC (National Electrical Code) applies
The intrabuilding ports of this equipment are suitable for connection to intrabuilding or unexposed
wiring or cabling only. The intrabuilding ports of this equipment must not be metallically connected to the
interfaces that connect to the OSP (outside plant) or its wiring. These interfaces are designed for use as
intrabuilding interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE) and require isolation
from the exposed OSP cabling. The addition of primary protectors is not sufficient protection to connect
these interfaces metallically to OSP wiring.
Note: All Ethernet cables must be shielded and grounded at both ends.
The ac-powered system does not require the use of an external surge protection device (SPD).
The dc-powered system employs an isolated DC return (DC-I) design. The DC battery return terminal
shall not be connected to the chassis or frame ground.
xPCI adapter placement for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C

PCI adapter placement for the 02E/4B, 02E/4C, 05F/6B, or
05E/6C
Find information about the Peripheral Component Interconnect (PCI), PCI-X, and PCI Express (PCIe)
adapters that are supported for the 7/20 (02E/4B or 02E/4C) or the 7/40 (05F/6B or 05E/6C) systems
that contain the POWER7®processor, and the associated I/O expansion units.
The following features are electromagnetic compatibility (EMC) Class B features. See the Class B Notices
in the Hardware Notices area.
Table 1. Electromagnetic compatibility (EMC) Class B features
Feature Description
1912, 5736 PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter
1983, 5706 Port 10/100/1000 Base-TX Ethernet PCI-X Adapter
1986, 5713 1 Gigabit iSCSI TOE PCI-X Adapter
2728 4-Port USB PCIe Adapter
4764 PCI-X Cryptographic Coprocessor
4807 PCIe Cryptographic Coprocessor
5717 4-Port 10/100/1000 Base-TX PCI Express Adapter
5732 10 Gigabit Ethernet-CX4 PCI Express Adapter
5748 POWER®GXT145 PCI Express Graphics Accelerator
5767 2-Port 10/100/1000 Base-TX Ethernet PCI Express Adapter
5768 2-Port Gigabit Ethernet-SX PCI Express Adapter
5769 10 Gigabit Ethernet-SR PCI Express Adapter
5772 10 Gigabit Ethernet-LR PCI Express Adapter
5785 4 Port Async EIA-232 PCIe Adapter
Supported PCI adapters for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C
Find information about the Peripheral Component Interconnect (PCI), PCI-X, and PCI Express (PCIe)
adapters that are supported for the 7/20 (02E/4B or 02E/4C) or the 7/40 (05F/6B or 05E/6C) systems
that contain the POWER7 processor, and the associated I/O expansion units.
This section provides reference information that information technology (IT) personnel and service
representatives can use in determining where to place PCI, PCI-X, and PCIe adapters in the 02E/4B,
02E/4C, 05F/6B, or 05E/6C system and the associated I/O expansion units.
Adapters supported on the AIX®, , or Linux operating system
Table 2 on page 2 and Table 3 on page 9 list the adapters supported on the AIX, , or Linux operating
systems. Not all adapters are supported on all operating systems. Exceptions are noted in the Description
column.
1

PCI and PCI-X adapters
The following table lists PCI and PCI-X adapters supported for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C.
Table 2. PCI and PCI-X adapters supported on the AIX, , or Linux operating system
System supported Feature
code
CCIN Description
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
2943 3-B 8-Port asynchronous EIA-232E/RS-422A PCI Adapter (FC 2943;
CCIN 3-B)
vPCI bus
v8 Async ports
vOS support: AIX operating system
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5723 5723 2-Port Asynchronous EIA-232 PCI Adapter (FC 5723; CCIN
5723)
vPCI adapter
v2-port EIA-232 asynchronous serial communications
v16C850 UART equivalent
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
1905 1910 4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter (FC
1905; CCIN 1910)
vPCI-X 2.0a, PCI 3.0, PCI-X Mode 2 - 266 MHz, PCI-X Mode 1
- 133 MHz, PCI - 66 MHz
vHigh-speed data networking
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
1910 1910 4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter (FC 1910;
CCIN 1910)
vPCI-X 2.0a, PCI 3.0, PCI-X Mode 2 - 266 MHz, PCI-X Mode 1
- 133 MHz, PCI - 66 MHz
vHigh-speed data networking
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
1977 197E 2 Gigabit Fibre Channel PCI-X Adapter (FC 1977; CCIN 197E)
vPCI-X, 64-bit
vHigh bandwidth
vOS support: AIX and Linux operating systems
02E/4B and 02E/4C 2787 2787 PCI-X Fibre Channel Disk Unit Controller (FC 2787; CCIN 2787)
vShort, 64-bit, 133 MHz
vHigh bandwidth
vIOP controlled
vOS support: operating system
02E/4B and 02E/4C 5704 5704 2 Gigabit Fibre Channel Tape Controller (FC 5704, 6239; CCIN
5704)
vProvides attachment to external tape devices
vExtra-high bandwidth
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5716 280B 2 Gigabit Fibre Channel PCI-X Adapter (FC 5716; CCIN 280B)
vPCI-X, 64-bit
vHigh bandwidth
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5749 576B 4 Gigabit Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter (FC
5749; CCIN 576B)
2PCI adapter placement for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C

Table 2. PCI and PCI-X adapters supported on the AIX, , or Linux operating system (continued)
System supported Feature
code
CCIN Description
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5758 1910 4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter (FC
5758; CCIN 1910)
vPCI-X 2.0a, PCI 3.0, PCI-X Mode 2 - 266 MHz, PCI-X Mode 1
- 133 MHz, PCI - 66 MHz
vHigh-speed data networking
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5759 5759 4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter (FC 5759;
CCIN 5759)
vShort, 64-bit, 3.3 V
vHigh-speed data networking
vExtra-high bandwidth
vOS support: AIX and Linux operating systems
02E/4B and 02E/4C 5760 and
5761
280E 4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter (FC
5760, 5761; CCIN 280D, 280E)
vPCI-X 2.0a, PCI 3.0, PCI-X Mode 2 - 266 MHz, PCI-X Mode 1
- 133 MHz, PCI - 66 MHz
vHigh-speed data networking
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
1980 and
2849
1980 POWER GXT135P Graphics Accelerator with Digital Support
(FC 1980; CCIN 1980)
v32-bit PCI interface
v128-bit graphics processor
v8-bit or 24-bit color modes
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
1954 4-Port 10/100/1000 Base-TX PCI-X adapter (FC 1954)
vPCI-X 1.0a
vFull-height, 64-bit
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
1978 IBM Gigabit Ethernet-SX PCI-X Adapter (FC 1978)
v64-bit PCI-X
vOne full-duplex 1000Base-SX fiber connection to a Gigabit
Ethernet LAN
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
1979 IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter (FC 1979)
v64-bit PCI-X
vOne full-duplex 10/100/1000Base-TX UTP connection to a
Gigabit Ethernet
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
1983 5706 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter (FC 1983;
CCIN 5706)
vTwo full-duplex 10/100/1000Base-TX UTP connections to
Gigabit Ethernet LANs
vHigh bandwidth
vOS support: AIX and Linux operating systems
PCI adapter placement 3

Table 2. PCI and PCI-X adapters supported on the AIX, , or Linux operating system (continued)
System supported Feature
code
CCIN Description
02E/4B and 02E/4C 1984 5707 IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter (FC 1984; CCIN
5707)
vTwo full-duplex 10/100/1000Base-TX optical connections to
Gigabit Ethernet LANs
vHigh bandwidth
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
1986 573B 1-Gigabit iSCSI TOE PCI-X Adapter (FC 1986; CCIN 573B)
vCopper media adapter
viSCSI TOE (TCP/IP offload engine)
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
1987 573C 1-Gigabit iSCSI TOE PCI-X Adapter (FC 1987; CCIN 573C)
vOptical media adapter
viSCSI TOE (TCP/IP offload engine)
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5700 5700 IBM Gigabit Ethernet-SX PCI-X Adapter (FC 5700; CCIN 5700)
vOne full-duplex 1000Base-SX fiber connection to a Gigabit
Ethernet LAN
vOS support: AIX, , and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5701 5701 IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter (FC 5701;
CCIN 5701)
vOne full-duplex 10/100/1000Base-TX UTP connection to a
Gigabit Ethernet
vOS support: AIX, , and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5706 5706 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter (FC 5706;
CCIN 5706)
vShort, 32-bit or 64-bit 3.3 V or 5 V
vHigh bandwidth
vOS support: AIX, , and Linux operating systems
02E/4B and 02E/4C 5707 5706 IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter (FC 5707; CCIN
5706)
vShort, 32-bit or 64-bit 3.3 V or 5 V
vHigh bandwidth
vOS support: AIX, , and Linux operating system
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5713 573B 1 Gigabit-TX iSCSI TOE PCI-X Adapter (FC 5713; CCIN 573B)
vShort, 32-bit or 64-bit 3.3 V or 5 V
vHigh bandwidth
vOS support: AIX, , and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5714 573C 1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter (FC 5714;
CCIN 573C)
vShort, 32-bit or 64-bit 3.3 V or 5 V
vHigh bandwidth
vOS support: AIX, , and Linux operating systems
02E/4B and 02E/4C 5718 5718 10 Gigabit Ethernet-SR PCI-X Adapter (FC 5718; CCIN 5718)
vShort, x4
vExtra-high bandwidth
vOS support: AIX and Linux operating systems
4PCI adapter placement for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C

Table 2. PCI and PCI-X adapters supported on the AIX, , or Linux operating system (continued)
System supported Feature
code
CCIN Description
02E/4B and 02E/4C 5719 5719 10 Gigabit Ethernet-LR PCI-X Adapter (FC 5719; CCIN 5719)
vShort, x4
vExtra-high bandwidth
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5721 573A 10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter (FC 5721; CCIN
573A)
vHigh bandwidth
vOS support: AIX, , and Linux operating system
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5722 573A 10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter (FC 5722; CCIN
573A)
vHigh bandwidth
vOS support: AIX, , and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5740 1954 4-Port 10/100/1000 Base-TX PCI-X adapter (FC 5740; CCIN
1954)
vPCI-X 1.0a
vFull-height, 64-bit
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
2738 28EF 2-port USB PCI Adapter (FC 2738; CCIN 28EF)
vShort, 32-bit
v3.3 or 5 V
vOS support: AIX and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
4764 4764 PCI-X Cryptographic Coprocessor (FC 4764; CCIN 4764)
vShort, 64-bit, 3.3 V
vOS support: AIX, , and Linux operating systems
02E/4B and 02E/4C 4801 4758 PCI Cryptographic Coprocessor (FC 4801; CCIN 4758)
vShort, 32-bit, 33 MHz
vIOP controlled
vThe adapter cannot be controlled by the load source IOP
vOS support: operating system
02E/4B and 02E/4C 4805 2058 PCI Cryptographic Accelerator (FC 4805; CCIN 2058)
vShort, 32-bit, 33 MHz
vOS support: operating system
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5900 572A PCI-X DDR Dual-x4 3 Gb SAS Adapter (FC 5900; CCIN 572A)
vShort, 64-bit, 3.3 V
vExtra-high bandwidth
vSupports a dual controller mode, multi-initiator configuration
vOS support: AIX and Linux operating systems
PCI adapter placement 5

Table 2. PCI and PCI-X adapters supported on the AIX, , or Linux operating system (continued)
System supported Feature
code
CCIN Description
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5902 572B PCI-X DDR Ext Dual-x4 3 Gb SAS RAID Adapter (FC 5902;
CCIN 572B)
vLong, 64-bit, 3.3 V
vExtra-high bandwidth
vThe adapter must be connected and configured in a dual
controller mode, multi-initiator configuration, and this
configuration requires that the adapters are installed in pairs.
vThis adapter supports disk expansion units. This adapter does
not support media expansion units.
vOS support: AIX and Linux operating systems
02E/4B and 02E/4C 5904 572F and
575C
PCI-X DDR 1.5 GB cache SAS RAID Adapter (FC 5904; CCIN
572F, 575C)
vLong, 64-bit, 3.3 V
vExtra-high bandwidth
vNo blind-swap cassette
vDouble-wide adapter requires two adjacent slots:
– 572F is the CCIN number on the SAS controller side of the
double-wide adapter.
– 575C is the CCIN number on the write-cache side of the
double-wide adapter.
vOS support: AIX, , and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5908 572F and
575C
PCI-X DDR 1.5 GB cache SAS RAID Adapter (FC 5908; CCIN
572F, 575C)
vLong, 64-bit, 3.3 V
vExtra-high bandwidth
vGeneration-3 blind-swap cassette
vDouble-wide adapter requires two adjacent slots:
– 572F is the CCIN number on the SAS controller side of the
double-wide adapter.
– 575C is the CCIN number on the write-cache side of the
double-wide adapter.
vOS support: AIX, , and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5912 572A PCI-X DDR Dual-x4 3 Gb SAS Adapter (FC 5912; CCIN 572A)
vShort, 64-bit, 3.3 V
vExtra-high bandwidth
vSupports a dual controller mode, multi-initiator configuration
vOS support: AIX, , and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
1912 571A PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter (FC 1912;
CCIN 571A)
vShort, 64-bit, 3.3 V
vHigh-bandwidth
vOS support: AIX, , and Linuxoperating systems
6PCI adapter placement for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C

Table 2. PCI and PCI-X adapters supported on the AIX, , or Linux operating system (continued)
System supported Feature
code
CCIN Description
02E/4B and 02E/4C 2749 2749 PCI Ultra Magnetic Media Controller (FC 2749; CCIN 2749)
vShort, 32-bit, 33 MHz
vIOP controlled
vThis adapter might encounter performance limitations in
PCI-X expansion units and systems.
vOS support: operating system
02E/4B and 02E/4C 2757 2757 PCI Ultra RAID Disk Controller (FC 2757; CCIN 2757)
vLong, 64-bit
vHigh bandwidth
vIOP controlled
vThe controller must be mirrored to be supported.
vThis adapter might encounter performance limitations in
PCI-X expansion units and systems.
vOS support: operating system
02E/4B and 02E/4C 2780 2780 PCI-X Ultra4 RAID Disk Controller (FC 2780; CCIN 2780)
vLong, 64-bit, 133 MHz
vHigh bandwidth
vIOP controlled
vThe controller must be mirrored to be supported.
vOS support: operating system
02E/4B and 02E/4C 5580 2780 PCI-X Ultra4 RAID Disk Controller with Auxiliary-write cache
IOA (FC 5580; CCIN 2780)
vLong, 64-bit, 133 MHz
vHigh bandwidth
vIOP controlled auxiliary-write cache
vThe controller must be mirrored to be supported.
vOS support: operating system
02E/4B and 02E/4C 5581 2757 PCI Ultra RAID Disk Controller with Auxiliary-write cache IOA
(FC 5581; CCIN 2757)
vRegular full-height
vPCIe 2.0 adapter with x8 Generation-1
vIOP controlled auxiliary-write cache
vConvergence enhanced Ethernet (CEE) supported
vOS support: AIX, Linux, and operating systems (with VIOS).
02E/4B and 02E/4C 5583 571E PCI-X Quad-Channel Ultra320 SCSI RAID Adapter (FC 5582,
5583, 5738, 5777; CCIN 571E)
vPCI-X compliant
v64-bit, 3.3 V
vOS support: AIX, , and Linux operating systems
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5736 571A PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter (FC 5736;
CCIN 571A)
vShort, 32-bit or 64-bit, 3.3 V
vHigh bandwidth
vOS support: AIX, , and Linux operating systems
PCI adapter placement 7

Table 2. PCI and PCI-X adapters supported on the AIX, , or Linux operating system (continued)
System supported Feature
code
CCIN Description
02E/4B and 02E/4C 5776 571B PCI-X Disk Controller (FC 5776; CCIN 571B)
vLong, 64-bit, 266 MHz
vExtra-high bandwidth
vDual-mode capable adapter
vThe controller must be mirrored to be supported
vOS support: AIX, , and Linux operating systems
02E/4B and 02E/4C 5777 571F PCI-X Disk Controller (FC 5777; CCIN 571F)
vLong, 64-bit, 266 MHz
vExtra-high bandwidth
vDual-mode capable adapter
vThe controller must be mirrored to be supported
vOS support: operating system
02E/4B and 02E/4C 5778 571F PCI-X Dual Channel Ultra320 SCSI RAID Adapter with
Auxiliary Write Cache (double-wide) (FC 5778; CCIN 571F)
vLong, 64-bit, 3.3 V, 266 MHz
vDual-mode capable adapter
vExtra-high bandwidth
vDouble-wide adapter, requires two, adjacent slots. The SCSI
controller side of the adapter pair requires a 64-bit slot. The
controller side is the side with the external SCSI connectors.
vWhen used in a logical partition (LPAR) environment, this
double-wide adapter must have both slots of the adapter
assigned to the same logical partition. When using DLPAR,
both slots of the adapter must be managed together.
vBecause of the complexity of this adapter, concurrent
maintenance is not supported through the HMC. Concurrent
maintenance must be done from the Hardware Service
Manager (HSM).
vOS support: operating system
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
5782 571F and
575B
PCI-X Dual Channel Ultra320 SCSI RAID Adapter with
Auxiliary Write Cache (double-wide) (FC 5782; CCIN 571F and
575B)
vLong, 64-bit, 3.3 V, 266 MHz
vDual-mode capable adapter
vExtra-high bandwidth
vDouble-wide adapter, requires two, adjacent slots. The SCSI
controller side of the adapter pair requires a 64-bit slot. The
controller side is the side with the external SCSI connectors.
vOS support: operating system
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
2947 ARTIC960Hx 4-Port Multiprotocol PCI Adapter (FC 2947)
v32-bit PCI
vProvides 4-Ports of: EIA-232, EIA530, RS-449, X.21, or V.35
vOS support: AIX operating system
02E/4B, 02E/4C, 05F/6B,
and 05E/6C
6805 2742 PCI 2-Line WAN IOA (FC 6805; CCIN 2742)
vShort, 32-bit, 66 MHz
vIOP less
vOS support: and Linux operating systems
8PCI adapter placement for the 02E/4B, 02E/4C, 05F/6B, or 05E/6C
