Bunton BZT 2000 EFI Series User manual

WARNING: If incorrectly used this machine can cause severe injury. Those who use
and maintain this machine should be trained in its proper use, warned of its dangers
and should read the entire manual before attempting to set up, operate, adjust or
service the machine.
SETUP, PARTS & MAINTENANCE
MANUAL BZT 2000 EFI SERIES
Operation & Safety Manual: 2722184
2722185 REV C
Models:
642230 BZT 2260EFI 26HP KLR W/61 SIDE DISCHARGE
642231 BZT 2260EFI 26HP KLR W/72 SIDE DISCHARGE

CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of
its constituents are known to the State
of California to cause cancer, birth
defects and other reproductive harm.
Californie Proposition 65
Avertissement
Les échappements des moteurs diesel
et certains de leurs composés sont
reconnus par l’Etat de Californie pour
être cancérigènes, provoquer des
défauts congénitaux et d’autres dangers
en matière de reproduction.
ADVERTENCIA
AVERTISSEMENT
WARNING
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
California Advertencia
de la Proposicion 65
El estado de California hace saber
que los gases de escape de los
motores diesel y algunos de sus
componentes producen cáncer,
defectos de nacimiento y otros daños
en el proceso de reproducción
humana.
L’ é mission du moteur de ce mat é riel
contient des produits chimiques que
l’Etat de Californie consid è re ê tre
canc é rig è nes, provoquer des d é fauts
cong é nitaux et d’autres dangers en
mati è re de reproduction.
El estado de California hace saber
que los gases de escape de este
producto contienen productos
quÍmicos que producen cáncer,
defectos de nacimiento y otros daños
en el proceso de reproducción
humana.
© 2001, TEXTRON INC

1
BZT 2000
EFI Series
IMPORTANT MESSAGE
Thank you for purchasing this Bunton product. You have purchased a world class mowing product, one of the best
designed and built anywhere.
This machine comes with an Operation and Safety Manual and a separate Setup, Parts and Maintenance Manual.
The useful life and good service you receive from this machine depends to a large extent on how well you read and
understand these manuals. Treat your machine properly, lubricate and adjust it as instructed, and it will give you
many years of reliable service.
Your safe use of this Bunton product is one of our prime design objectives. Many safety features are built in, but
we also rely on your good sense and care to achieve accident-free operation. For best protection, study the manuals
thoroughly and watch the operation training video. Learn the proper operation of all controls. Observe all safety
precautions. Follow all instructions and warnings completely. Do not remove or defeat any safety features. Make
sure those who operate this machine are as well informed and careful in its use as you are.
See a Bunton dealer for any service or parts needed. Bunton service ensures that you continue to receive the best
results possible from Bunton’s products. You can trust Bunton replacement parts because they are manufactured
with the same high precision and quality as the original parts.
Bunton designs and builds its equipment to serve many years in a safe and productive manner. For longest life,
use this machine only as directed in the manuals, keep it in good repair and follow safety warnings and instructions.
You'll always be glad you did.
Textron Golf, Turf & Specialty Products
One Bob Cat Lane
Johnson Creek, WI 53038-0469
1-2002-TGTSP
TABLE OF CONTENTS FIGURES PAGE
SAFETY .............................................................................................................................................................................. 2
ASSEMBLY AND SETUP ................................................................................................................................................. 3-5
MAINTENANCE CHART ..................................................................................................................................................... 6
MAINTENANCE RECORD ................................................................................................................................................. 7
MAINTENANCE ............................................................................................................................................................. 8-14
ADJUSTMENTS ........................................................................................................................................................... 15-19
BELT REPLACEMENT ................................................................................................................................................ 20, 21
SPECIFICATIONS ....................................................................................................................................................... 22-24
PARTS SECTION .............................................................................................................................................................. 25
UPPER ENGINE DECK ASSY ..................................... FIGURE 1 ............................................................................. 26, 27
LOWER ENGINE DECK ASSY/CLUTCH ....................FIGURE 2 ............................................................................. 28, 29
CRADLE ASSEMBLY-61" ............................................FIGURE 3 ............................................................................. 30, 31
DECALS ....................................................................... FIGURE 4 ............................................................................. 32, 33
BUMPER ...................................................................... FIGURE 5 ............................................................................. 34, 35
BRAKES/REAR WHEEL ............................................. FIGURE 6 ............................................................................. 36, 37
HYDRAULICS ..............................................................FIGURE 7 ............................................................................. 38, 39
HYDROGEAR PUMP ................................................... FIGURE 8 ............................................................................. 40, 41
DECALS-CUTTERDECKS ........................................... FIGURE 9 ............................................................................. 42, 43
KOHLER WIRE HARNESS .........................................FIGURE 10 ........................................................................... 44, 45
FUEL TANKS/CONTROL PANEL ................................ FIGURE 11 ........................................................................... 46, 47
ELECTRIC DECK LIFT-72" .......................................... FIGURE 12 ........................................................................... 48, 49
OIL COOLER/ECU ....................................................... FIGURE 13 ........................................................................... 50, 51
SEAT ASSEMBLY & ROPS .......................................... FIGURE 14 ........................................................................... 52, 53
ELECTRIC DECK LIFT-61" .......................................... FIGURE 15 ........................................................................... 54, 55
STEERING/INSTRUMENTS ........................................ FIGURE 16 ........................................................................... 56, 57
CRADLE & CASTER ASSEMBLY ................................FIGURE 17 ........................................................................... 58, 59
61" SIDE DISCHARGE ................................................FIGURE 18 ........................................................................... 60, 61
BELTS .......................................................................... FIGURE 19 ........................................................................... 62, 63
72" SIDE DISCHARGE ................................................FIGURE 20 ........................................................................... 64, 65
CRADLE ASSEMBLY-72" ............................................FIGURE 21 ........................................................................... 66, 67

2
BZT 2000
EFI Series
SAFETY
NOTICE !!!
Unauthorized modifications may present extreme
safety hazards to operators and bystanders and
could also result in product damage.
Textron Golf, Turf & Specialty Products strongly
warns against, rejects and disclaims any
modifications, add-on accessories or product
alterations that are not designed, developed, tested
and approved by Textron Golf, Turf & Specialty
Products Engineering Department. Any Textron
Golf, Turf & Specialty Products product that is altered,
modified or changed in any manner not specifically
authorized after original manufacture–including the
addition of “after-market” accessories or component
parts not specifically approved by Textron Golf, Turf
& Specialty Products–will result in the Textron Golf,
Turf & Specialty Products Warranty being voided.
Any and all liability for personal injury and/or property
damage caused by any unauthorized modifications,
add-on accessories or products not approved by
Textron Golf, Turf & Specialty Products will be
considered the responsibility of the individual(s) or
company designing and/or making such changes.
Textron Golf, Turf & Specialty Products will vigorously
pursue full indemnification and costs from any party
responsible for such unauthorized post-manufacture
modifications and/or accessories should personal
injury and/or property damage result.
This symbol means:
ATTENTION!
BECOME ALERT!
Your safety and the safety of others is involved.
Signal word definitions:
The signal words below are used to identify levels of
hazard seriousness. These words appear in this
manual and on the safety labels attached to Textron
Golf, Turf & Specialty Products machines. For your
safety and the safety of others, read and follow the
information given with these signal words and/or the
symbol shown above.
DANGER indicates an imminently hazardous
situation which, if not avoided, WILL result in death
or serious injury.
WARNINGindicates a potentiallyhazardous situation
which, if not avoided, COULD result in death or
serious injury.
CAUTION indicates a potentially hazardous situation
which, if not avoided, MAY result in minor or moderate
injury. It may also be used to alert against unsafe
practices or property damage.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, MAY result in property damage.
MODEL NUMBER: This number appears on
sales literature, technical manuals and price lists.
SERIAL NUMBER: This number appears only
on your mower. It contains the model number
followed consecutively by the serial number. Use
this number when ordering parts or seeking
warranty information.
OPERATION TRAINING VIDEO:
Part Number Description
2810586 BZT 2000 SERIES

3
BZT 2000
EFI Series
ASSEMBLY AND SETUP
TOOLS REQUIRED FOR ASSEMBLY
– Wrecking bar
– Claw hammer
– Ratchets: 3/8"
– Sockets: 3/8", 1/2", 17 mm, 19 mm
– Wrenches: two 15/16" (or adjustable), 13 mm, 17 mm, 19 mm
– Level
– Straight edge
– Tire pressure gauge
NOTE: All references below to the "right" or "left" are with respect to an operator at the controls.
1. INSTALL SEAT
a) Position seat over seat plate Pand route seat
wire Wthrough hole Hin seat plate. Drop seat
mounting studs through seat plate holes. Secure
studs with four 5/16-18 whiz nuts and tighten
securely.
b) Leave enough seat wire between the seat and
seat plate to allow full fore and aft travel of the
seat. Secure seat wire on the bottom of the seat
plate with clip Cand a 1/4-20x3/8 thread forming
screw.
c) Connect the tractor harness to the seat wire.
Bottom of seat plate P showing clip C

4
BZT 2000
EFI Series
ASSEMBLY AND SETUP
2. Set tire pressures to 14 lbs/in2(1.0 kg/cm2). Tires are overinflated for shipping.
3. LEVEL CUTTERDECK
– Side Discharge: The front of a side discharge
deck should be slightly lower than the rear.
– Mulching: The front of a mulching deck should
be slightly higher than the rear.
To level 61" decks, follow Steps a-d:
To level 72" decks, follow Steps e-h:
a) Park the machine on a smooth, level surface. The
deck may be set to any cutting height.
b) Place a level on the deck, from front to rear. If the
level is too short to reach all the way from front to
rear, lay a straight edge on the deck first, then
place the level on the straight edge.
c) Lay a 1/8" spacer beneath the front of the level
for the side discharge and under the rear for
mulching.
d) Adjust nuts Muntil the level's bubble is centered.
Repeat for the other side of the deck.
e) Remove the height of cut pin Aand raise the
cutterdeck to the 3" height of cut position.
f) Locate (2) 3" tall blocks just inside the front rollers
and (2) 2-7/8" tall blocks just inside the rear
rollers.
g) Lower the deck until it is resting on the blocks and
there is plenty of float for the actuator B.
h) Loosen the jamnuts on the height of cut clips.
Adjust the thread rolling screws Con the front
and rear chains until the chains just become tight.
Tighten the jamnuts against the clips.

5
BZT 2000
EFI Series
4. TRACTION LEVERS
a) Remove bolt A.
b) Rotate traction lever Binto position and secure
with bolt A. Repeat for the other lever.
c) Tighten all fasteners.
d) Sit on the machine. If the levers are too long,
bracket Cmay be removed to make them
shorter.
5. FINAL PREPARATIONS
– Check the engine and hydraulic oil levels. Top up with the correct oil if necessary. Use 10W30 motor oil
for the engine. Use fresh, clean 15W40 or 20W50 motor oil or 15W50 synthetic motor oil for the hydraulic
system.
– Remove the battery from the machine.Fill the battery to the bottom of the vent wells with acid and trickle
charge for several hours. Replace the battery in the machine and make the connections, red to positive
first, then black (ground) to negative.
– Read Operation and Safety Manual before starting.
– Run engine at full RPM for 5 minutes before engaging blades to allow the engine to be fully lubricated
before load is applied.
– Check the hydrostat neutral adjustment. Neutral is set at the factory but may require readjustment if air
trapped during the initial oil fill has worked out of the system. See adjustments section later in this manual.
– Do not use the machine without an approved grass collector, the grass discharge chute or mulching plates
correctly fitted.
ASSEMBLY AND SETUP

6
BZT 2000
EFI Series
MAINTENANCE CHART
ECNANETNIAM
NOITAREPO
neewtebsemitmumixameraslavretniesehT.bojgniognonasiecnanetniaM
.snoitidnocerevesrednunetfoerommrofreP.snoitarepoecnanetniam
5TSRIF
SRUOH YLIAD
YREVE
52
SRUOH
YREVE
05
SRUOH
YREVE
001
SRUOH
YREVE
002
SRUOH
YREVE
005
SRUOH
ENIGNE
snoitcurtsnidnanoitamrofnilanoitiddaroflaunamenigneehttlusnoC
pupoT/kcehC
leveLliO X
skaeLrofkcehCX
ekatnIriAnaelC
neercS X
renaelCriAnaelC
renaelcerP X
renaelCriAnaelC
tnemelE X
sniFgnilooCnaelC X
dnaliOegnahC
retliF Xlaunams'rerutcafunamenigneeeS
ecalpeR/kcehC
sgulPkrapS X
SCILUARDYH
skaeLrofkcehCX
pupoT/kcehC
leveLliO X
dnaliOegnahC
retliF XX
ENIHCAM
kcolretnIkcehC
noitarepO X
eriTkcehC
serusserP X
pupoT/kcehC
yrettaB X
stnioPllAetacirbuLX
Consult the manufacturer's manual for your engine
for further information and instructions.

7
BZT 2000
EFI Series
NOTES
_______________________________________________________________
____________________________________________________
________________________________________________________________________
_______________________________________________________________
____________________________________________________________
____________________________________________________
________________________________________________________________________
_______________________________________________________________
____________________________________________________________
_______________________________________________________________
____________________________________________________________
____________________________________________________________
MAINTENANCE RECORD
LARENEG
ETAD SRH ETAD SRH ETAD SRH ETAD SRH ETAD SRH ETAD SRH
serusserperitkcehC
stniopllaetacirbuL
stlob&stunkcehC
ENIGNE
levelliokcehC
lioegnahC
naelC
tnemelerenaelcria
snifgniloocnaelC
ecalpeR
tnemelerenaelcria
pag&naelC
sgulpkraps
.sretlifhtobdnaliociluardyh,lioenigneecalpernoitarepofosruoh5tsrifretfA:ETON

8
BZT 2000
EFI Series
MAINTENANCE
CHECK DAILY
Operator Presence Interlock System - Start Operation
For the engine to crank, the parking brake must be on, the PTO (blades) off and traction levers in the neutral
lock position. Sit in the seat and check, one by one, if the engine will crank with the parking brake off, the
blades on, and either traction lever out of neutral lock. Also, make sure engine coolant temperature gauge
light flashes upon turning key to the ON position.
Operator Presence Interlock System - Run Operation
The operator must be in the seat for the engine to run with the parking brake off, the traction levers moved out
of the neutral lock position, or the blades on. To check:
1. Start the engine and run at 1/2 throttle with the operator on the machine but raised off the seat.
2. One by one: move the parking brake to the “OFF” position, traction levers out of the neutral lock position
(check each independently), and turn the blades on. Each check should kill the engine after 1/2 second.
(A 1/2 second delay is built into the system to prevent engine cutout when traversing rough terrain.)
Repair machine before using if the Operator Presence Interlock System does not operate correctly in start or
run. Contact your authorized Bunton dealer.
Hardware
Tighten any nuts and bolts found loose. Replace any broken or missing cotter pins. Repair any other problems
before operating.
Tire pressure
Tires should be kept inflated at 14 lbs/in2(1.0 kg/cm2). Improper tire inflation can cause rapid tire wear and
poor traction. Uneven inflation can cause uneven cutting.
Battery
Check the electrolyte level at each oil change as follows:
1. Stop engine and remove key.
2. Remove battery vent caps. The electrolyte level should reach the bottom of the vents.
3. Top up, if necessary, with distilled water.
4. Replace vent caps.
Engine Malfunction Indicator Lamp
The ECU is the brain or central processing computer of the entire EFI fuel/ignition management system. If
a fault is detected, the ECU turns on the Malfunction Indicator Light (MIL) on the equipment control panel,
stores the fault code in its fault memory, and goes into a default operating mode.
NOTE: When the key is first turned on, the light comes on for several seconds (or until the engine starts)
to verify the light is working.

9
BZT 2000
EFI Series
MAINTENANCE
LUBRICATION
Every 50 hours of operation, lubricate the following points (1-5) with grease:
1. Push arms (2 points located at rear of cutterdeck under each fuel tank)
2. Brake lever pivot (1 point)
3. Deck idler pivot bearings (2 points)
4. Deck lift pivots (6 points)
5. Hydro belt tensioner (1 point under engine deck)
6. Caster wheel pivots (2 points)
(Lubricate every 500 hours or once a year)
NOTE ON BLADE SPINDLES -The blade spindles on these machines use a
superior sealed bearing that does not require relubrication.

10
BZT 2000
EFI Series
View from below machine
MAINTENANCE
HYDRAULIC SYSTEM
After the first 5 hours of operation, fluid level in the
hydraulic system should be checked every 100 hours
or when a leak has occurred. If the fluid is low, check
all components for leaks.
To check, remove reservoir cap M. The fluid level
should be at the bottom of the filler tube. If low, top up
(do not overfill). Use one of the oils listed below:
– SAE 15W40 motor oil
– SAE 20W50 motor oil
– 15W50 synthetic motor oil
AFTER FIRST FIVE (5) HOURS
1. Remove plug Nto drain hydraulic reservoir.
Dispose of used oil in accordance with local
requirements.
2. Clean and replace the plug.
3. Change hydraulic oil filter G.
4. Fill the reservoir with fresh oil to the bottom of the
reservoir filler tube, using an oil from the list
above. Do not overfill.
PERIODIC OIL CHANGES
Change the hydraulic fluid and hydraulic filter after
each 500 hours of operation using the same
procedure given above.
NOTES:
Before servicing the hydraulic system, stop the engine, disconnect spark plug wires and disengage the PTO.
– After any hydraulic line is opened, plug or cap it promptly to reduce the risk of contamination.
– Do not use teflon tape on hydraulic pipe fittings. Use a liquid sealant that will dissolve into the system.
– Make sure all hydraulic connections are tight and hydraulic hoses and lines are in good condition before
applying pressure to system.
The machine's hydraulic system operates under high pressure. When checking for leaks, do not use your
hands to attempt to find a leak. Instead, use cardboard or paper. Escaping hydraulic fluid can be under
sufficient pressure to penetrate skin and cause serious injury. If hydraulic fluid is injected into the skin, it must
be promptly removed by a doctor familiar with this form of injury or gangrene may result.
View from right side

11
BZT 2000
EFI Series
MAINTENANCE
SPARK PLUGS
Remove each plug and check condition.
– Good operating conditions are indicated if the plug has a light coating of grey or tan deposit.
– A white blistered coating indicates overheating. A black coating indicates an “over rich” fuel mixture. Both
may be caused by a clogged air cleaner or improper carburetor adjustment.
– Do not sandblast, wire brush or otherwise attempt to repair a plug in poor condition. Best results are
obtained with a new plug.
– Set plug gap as specified in engine manual..
ENGINE OIL
Do not perform engine maintenance without the
engine off, spark plug wires disconnected and PTO
disengaged.
AFTER FIRST FIVE (5) HOURS
While the engine is warm:

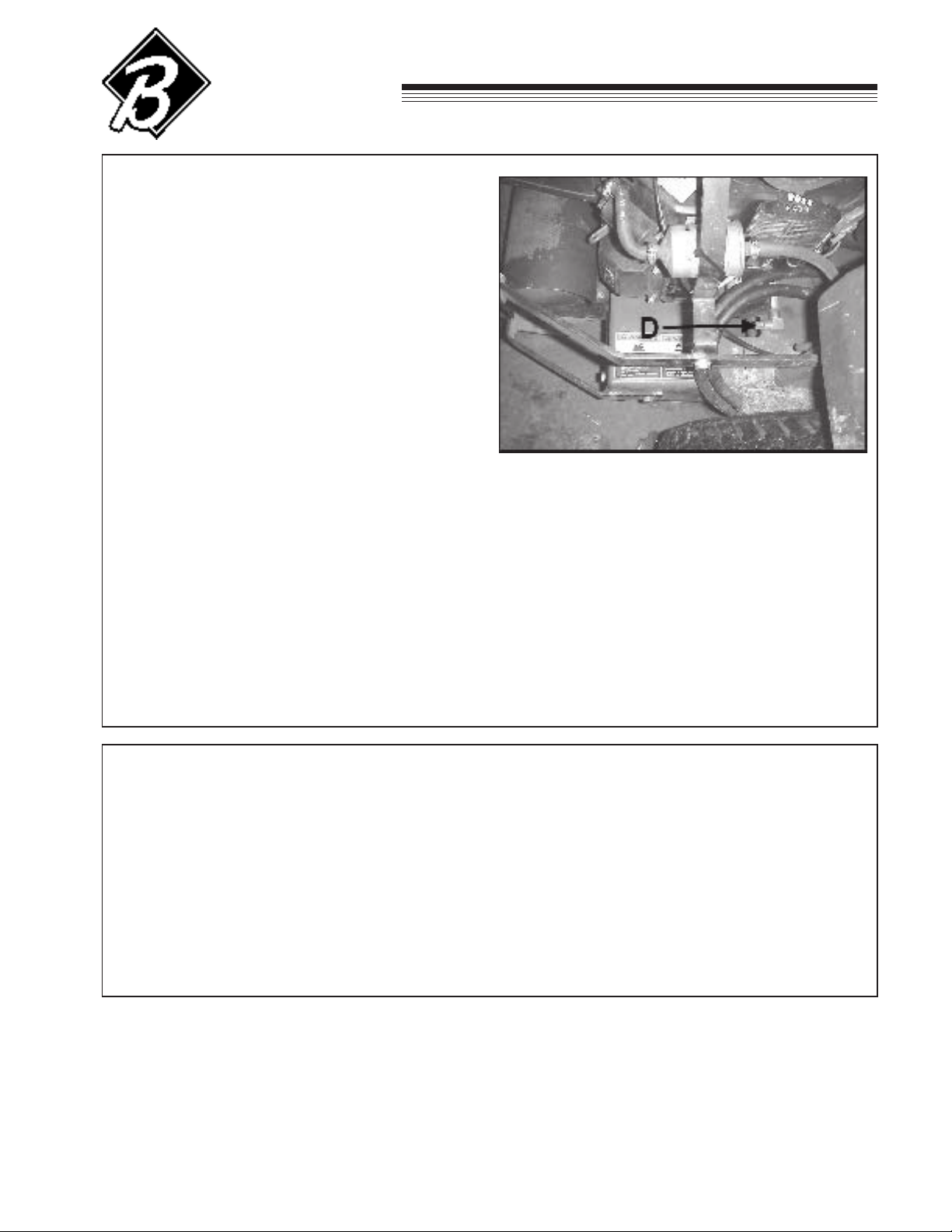

1. Remove drain cap Dand drain the crankcase.
Dispose of used oil in accordance with local
requirements.
2. Clean and replace the cap.
3. Change oil filter.
4. Fill the crankcase with fresh oil to the full mark.
Do not overfill. See engine manual for oil
specifications.
DAILY
1. Check oil level with the dipstick.
2. If oil is needed, add fresh oil of proper viscosity
and grade. See engine manual for oil
specifications. Do not overfill.
3. Replace dipstick before starting engine.
PERIODIC OIL CHANGES
1. See engine manual for oil and filter change
intervals after the break-in period.
2. Follow instructions for first oil change, above.

12
BZT 2000
EFI Series
MAINTENANCE
FUEL SYSTEM
Before attempting to service any
part of the fuel system, the pressure must be relieved.
Refer to section 5B of the engine manual.
A low pressure filter C is located on the kickplate as
shown. Inspect at every oil change and replace when
necessary.
A high pressure fuel filter S is located as shown. The
fuel in this filter is always under pressure. The filter
should be replaced every 1500 hours of operation.

13
BZT 2000
EFI Series
ENGINE COOLING
Continued operation with a clogged cooling system
will cause severe overheating and can result in
engine damage.
–Daily: Clean air intake screen S.
–Every 100 hours: Clean cooling fins beneath
blower housing Hwith reference to information in
the engine manufacturer's manual.
MAINTENANCE
AIR CLEANER
Clean and replace the air cleaner element as
specified in the service chart. Uneven running, lack
of power or black exhaust fumes may indicate a dirty
air cleaner.
To replace air cleaner elements:
1. Unclamp end cover X and remove existing
cleaner elements.
2. Insert new elements Y and Zand replace cover.
Ensure the breathing port Ais pointing down and
towards the front of the tractor.

14
BZT 2000
EFI Series
MAINTENANCE
BLADE REMOVAL
Follow these instructions to prevent injury during
blade removal:
1. Loosen with a box wrench or a socket and long
breaker bar. To gain additional leverage, slip a
long pipe or thick-walled tube over breaker bar or
wrench.
2. Insert wood block Aas shown, with grain
perpendicular to blade, to prevent blade from
turning when loosening.
3. Wear thickly padded gloves. Keep hands clear of
blade path. Blades may rotate when bolt releases.
SHARPENING
Blades may sharpened by filing or grinding.
–Inspect blades before sharpening.
–Replace bent or cracked blades.
–Replace blades when the lift portion has worn
thin.
–Maintain cut angle at 30o.
–Do not overheat blades when sharpening.
–Always use Bunton blades. Use of another
manufacturer’s blades may be dangerous.
BLADE BALANCE
Blade balance must be maintained at 5/8 oz-in (19.4
g-cm) or less. Failure to keep blades balanced
causes excess vibration, wear, and shortened life of
most components of the machine.
To balance a blade:
1. Sharpen blade first.
2. Balance the blade at the center.
3. Attach a 1/8 oz (3.9 g) weight at a distance 5"
(127 mm) from center on the light end. This
should make the light end the heavy end:
– If it does, the blade is balanced.
– If does not, file or grind the heavy end until
the addition of the weight makes the light end
the heavy end.
BLADE INSTALLATION
1. Wear thickly padded gloves to prevent cuts from
the sharp blade.
2. Insert the blade bolt, in order, through the conical
washer (cup side toward the blade, as shown),
the blade, and the blade spacer.
3. Install assembly on the blade spindle.
4. Torque the blade bolt to 70 ft-lbs.

15
BZT 2000
EFI Series
REAR DECK ROLLERS
The rear outside deck rollers are adjustable up and
down to provide improved deck flotation and scalping
protection at various heights of cut. They are not
intended to ride continuously on the ground. Adjust
no closer than 3/8" (10mm) to the ground.
Height of cut ranges for roller adjustment
HEIGHT OF CUT
The height of cut is set by moving height of cut pin N
to the hole designated for the height of cut desired.
To change the height of cut:
1. Raise the deck to the highest position.
2. Move pin Nto the selected hole.
3. Lower the deck until the lift lever is stopped by
the pin.
NOTES:
– Height of cut may vary due to the amount of tread
on the tires, tire diameter or inflation pressure.
– For best results, adjust the rear deck rollers for
the height of cut to be used (see below).
ADJUSTMENTS

16
BZT 2000
EFI Series
ADJUSTMENTS
PUSH ARMS
The push arm rod ends must be adjusted evenly to:
– locate the deck perpendicular to the front-to-rear
axis of the machine; and
– so the notch at the front of the engine deck clears
the push arm bracket on the rear of the
cutterdeck when the cutterdeck is raised to the
transport position.
Adjust the rod end length to 1-7/16" (37 mm) to start.
If any additional adjustment is required, adjust both
rod ends so the same number of threads show.
BELT TENSION
All belts are tensioned by spring loaded idlers and do
not require any adjustment, except the spring loaded
72" cutterdeck belt. Manual tension adjustment of
the spring loaded 72" cutterdeck belt is as follows.
A single belt supplies power to the three blade
spindles. Belt tension is maintained by a spring D
loaded idler pulley. Proper belt tension is maintained
with a minimum spring dimension of 3-7/8” (77mm).
Keep this area clean and periodically inspect the
cutterdeck belt for abnormal wear and proper tension.
If the cutterdeck belt becomes worn, damaged, or
stretched beyond use; Replace it.
Before removing the cutterdeck belt, the engine to
cutterdeck (pto) belt must be removed from the
center pulley.
1. Remove tension on the engine to cutterdeck belt at
the engine and remove the belt from the deck pulley.
2. Decrease the tension on the idler pulley Aby
loosening the nut Bon the idler rod C.
Reverse the procedure for installation of the new belt.
The stationary idler Eis mounted to the deck. If the
belt rubs on the belt cover, in the area shown Fand
the tension idler is adjusted to its maximum position,
move the stationary idler to an appropriate mounting
hole on the deck.
Increase Belt Tension:
To increase cutterdeck belt tension, turn nut B1/4
turn until desired belt tension is reached.

17
BZT 2000
EFI Series
DECK LEVELING 61"
– Side Discharge: The front of a side discharge
deck should be slightly lower than the rear.
– Mulching: The front of a mulching deck should
be slightly higher than the rear.
To level deck:
a) Park the machine on a smooth, level surface. The
deck may be set to any cutting height.
b) Place a level on the deck, from front to rear. If the
level is too short to reach all the way from front to
rear, lay a straight edge on the deck first, then
place the level on the straight edge.
c) Lay a 1/8" spacer beneath the front of the level
for the side discharge and under the rear for
mulching.
d) Adjust nuts Muntil the level's bubble is centered.
Repeat for the other side of the deck.
ADJUSTMENTS
DECK LEVELING 72"
NOTE: These instructions are in regards to both
sides of the deck.
To level deck:
1. Park the machine on a smooth, level surface.
Remove the height of cut pin Aand raise the
cutterdeck to the 3" height of cut position.
2. Locate (2) 3" tall blocks just inside the front rollers
and (2) 2-7/8" tall blocks just inside the rear
rollers.
3. Lower the deck until it is resting on the blocks and
there is plenty of float for the actuator B.
4. Loosen the jamnuts on the height of cut clips.
Adjust the thread rolling screws Con the front
and rear chains until the chains just become tight.
Tighten the jamnuts against the clips.

18
BZT 2000
EFI Series
ADJUSTMENTS
Parking brake assembly (fuel tank, tire and deck
not shown for clarity - brake in ON position).
PARKING BRAKE
Start with parking brake Nin the OFF position.
1. Adjust the parking brake rod to provide a distance
of 14-3/16” between pin K and pin L
2. Disconnect one end of rods M(at brakes on both
sides of the machine).
3. Move the parking brake lever to the ON position.
4. Adjust rods Mon each brake to be 3/4” short of
connecting to the spring when all the slack is
taken out of the brake linkage and brake lever N.
5. Move the parking brake to the OFF position and
reconnect rods M.
This adjustment will cause the brake springs to
stretch 3/4” when the brake is in the ON position to
provide the correct parking brake force without
overloading the brake.
