Bunton EstatePro series User manual

WARNING: If incorrectly used this machine can cause severe injury. Those who use
and maintain this machine should be trained in its proper use, warned of its dangers
and should read the entire manual before attempting to set up, operate, adjust or
service the machine.
OPERATION, SAFETY & MAINTENANCE MANUAL
EstatePro
4146249 REV A
MODELS:
642290 EstatePro-21HP B&S W/36 SIDE DISCHARGE
642291 EstatePro-17HP KAW W/36 SIDE DISCHARGE
642293 EstatePro-19HP KAW W/42 SIDE DISCHARGE
642295 EstatePro-19HP KAW W/48 SIDE DISCHARGE
642296 EstatePro-19HP KAW W/52 SIDE DISCHARGE

CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of
its constituents are known to the State
of California to cause cancer, birth
defects and other reproductive harm.
Californie Proposition 65
Avertissement
Les échappements des moteurs diesel
et certains de leurs composés sont
reconnus par l’Etat de Californie pour
être cancérigènes, provoquer des
défauts congénitaux et d’autres dangers
en matière de reproduction.
ADVERTENCIA
AVERTISSEMENT
WARNING
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
California Advertencia
de la Proposicion 65
El estado de California hace saber que
los gases de escape de los motores
diesel y algunos de sus componentes
producen cáncer, defectos de
nacimiento y otros daños en el
proceso de reproducción humana.
L’ é mission du moteur de ce mat é riel
contient des produits chimiques que
l’Etat de Californie consid è re ê tre
canc é rig è nes, provoquer des d é fauts
cong é nitaux et d’autres dangers en
mati è re de reproduction.
El estado de California hace saber
que los gases de escape de este
producto contienen productos
quÍmicos que producen cáncer,
defectos de nacimiento y otros daños
en el proceso de reproducción
humana.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, wiring
insulation, and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
WASH HANDS AFTER HANDLING.

1
EstatePro
6-2006
IMPORTANT MESSAGE
Thank you for purchasing this Bunton product. You have purchased a world class mowing product, one of the
best designed and built anywhere.
This machine comes with an Operation and Safety Manual. The useful life and good service you receive from
this machine depends to a large extent on how well you read and understand this manual. Treat your machine
properly, lubricate and adjust it as instructed, and it will give you many years of reliable service.
Your safe use of this Bunton product is one of our prime design objectives. Many safety features are built in, but
we also rely on your good sense and care to achieve accident-free operation. For best protection, study the
manual thoroughly. Learn the proper operation of all controls. Observe all safety precautions. Follow all
instructions and warnings. Do not remove or defeat any safety features. Make sure those who operate this
machine are as well informed and careful in its use as you are.
See a Bunton dealer for any service or parts needed. Bunton service ensures that you continue to receive the
best results possible from Bunton’s products. You can trust Bunton replacement parts because they are
manufactured with the same high precision and quality as the original parts.
Bunton designs and builds its equipment to serve many years in a safe and productive manner. For longest life,
use this machine only as directed in the manuals, keep it in good repair and follow safety warnings and instructions.
You'll always be glad you did.
Jacobsen, a Textron Company
One Bob Cat Lane
Johnson Creek, WI 53038-0469
TABLE OF CONTENTS PAGE
SAFETY ...................................................................................................................................................... 2-8
LABELS..................................................................................................................................................... 9-13
CONTROLS ............................................................................................................................................ 14-17
PRE-OPERATION CHECK LIST ................................................................................................................. 18
OPERATION ........................................................................................................................................... 19-21
MAINTENANCE CHART .............................................................................................................................. 22
MAINTENANCE RECORD .......................................................................................................................... 23
MAINTENANCE ...................................................................................................................................... 24-30
ADJUSTMENTS...................................................................................................................................... 31-33
BELT REPLACEMENT .......................................................................................................................... 34, 35

2
EstatePro
SAFETY
NOTICE !!!
Unauthorized modifications may present extreme
safety hazards to operators and bystanders and
could also result in product damage.
Jacobsen, a Textron Company strongly warns
against, rejects and disclaims any modifications,
add-on accessories or product alterations that are not
designed, developed, tested and approved by
Jacobsen Engineering Department. Any Jacobsen
product that is altered, modified or changed in any
manner not specifically authorized after original
manufacture–including the addition of “aftermarket”
accessories or component parts not specifically
approved by Jacobsen–will result in the Jacobsen
Warranty being voided.
Any and all liability for personal injury and/or property
damage caused by any unauthorized modifications,
add-on accessories or products not approved by
Jacobsen will be considered the responsibility of the
individual(s) or company designing and/or making
such changes. Jacobsen will vigorously pursue full
indemnification and costs from any party responsible
for such unauthorized post-manufacture
modifications and/or accessories should personal
injury and/or property damage result.
MODEL NUMBER: This number appears on
sales literature, technical manuals and price lists.
SERIAL NUMBER: This number appears only
on your mower. It contains the model number
followed consecutively by the serial number. Use
this number when ordering parts or seeking
warranty information.
This symbol means:
ATTENTION!
BECOME ALERT!
Your safety and the safety of others is involved.
Signal word definitions:
The signal words below are used to identify levels
of hazard seriousness. These words appear in this
manual and on the safety labels attached to
Jacobsen machines. For your safety and the safety
of others, read and follow the information given with
these signal words and/or the symbol shown above.
DANGER indicates an imminently hazardous
situation which, if not avoided, WILL result in death
or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, COULD result in
death or serious injury.
CAUTION indicates a potentially hazardous
situation which, if not avoided, MAY result in minor
or moderate injury. It may also be used to alert
against unsafe practices or property damage.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, MAY result in property damage

3
EstatePro SAFETY
Site preparation and circumstances
- Evaluate the terrain to determine what
accessories and attachments are needed to
properly and safely perform the job. Only use
accessories and attachments approved by the
manufacturer.
- Clear the area to be mowed of objects such as
rocks, toys, wire or other debris that may be
picked up or thrown by the mower.
- Be sure the area is clear of pets and people,
especially young children. Never assume they
will remain where you last saw them. Stop the
machine if any enter the area.
- Mow only in daylight or in good artificial light.
- Do not mow wet grass as tires may lose traction.
PREPARING FOR SAFE OPERATION
Operator preparation and training
Read the Operation & Safety
Manual
- If an operator or mechanic
cannot read English, it is
the owner's responsibility
to explain this material to
them. If any portion of this
material is unclear, contact your factory
representative for clarification.
- Become familiar with the safe operation of the
equipment, operator controls and safety signs.
Know how to stop the engine and attachments
quickly in an emergency. Do not operate or
allow another person to operate this machine if
there are any questions about safety.
- All operators and mechanics should be trained.
The owner is responsible for training the users.
- Wear appropriate clothing, including long
trousers and safety goggles or safety glasses
with side shields when operating mower. Do not
operate barefoot or wearing open sandals. Long
hair, loose clothing or jewelry may get tangled in
moving parts.
- Wear hearing protection.
- Never allow underage children, unskilled or
improperly trained people to operate this
equipment. Local regulations can restrict the
age of the operator.
- Data indicates that those operators age 60 years
and above are involved in a large percentage of
riding mower-related injuries. Those operators
should evaluate their ability to operate the riding
mower safely enough to protect themselves and
others from injury.
- Do not carry passengers, especially small
children. They may fall off and be seriously
injured.
- Keep warning labels and this operator's manual
legible and intact. Replacement labels and
manuals are available from the factory.
- Do not operate machine while under the
influence of drugs or alcohol.
- The owner/user can prevent and is responsible
for accidents or injuries occurring to themselves,
other people or property.
All rotary lawnmowers are potentially
dangerous. They can amputate hands and
feet and throw objects. Failure to follow
these safety and operating instructions
could result in serious injury or death.
WARNING

4
EstatePro
SAFETY
Machine preparation
- Check operator present interlock system and
brake operation. Adjust or repair any problems
before using.
- Do not tamper with or defeat safety devices.
Keep guards, shields and interlock safety
devices in place and in proper working condition.
They are for your protection.
- Keep all fasteners such as nuts, bolts and pins
well secured.
- Visually inspect blades, blade bolts and the
cutter assembly for wear or damage. Replace
worn or damaged blades and bolts to preserve
balance.
- Verify that machine and attachments, if any, are
in good operating condition.
- Do not engage blades until ready to mow.
OPERATING SAFELY
In general
- Use extra care when loading or unloading the
machine into a trailer or truck.
- Slow down and use caution when making turns
and crossing roads and sidewalks. Stop blades
if not mowing.
- Do not run the engine in an enclosed area where
dangerous carbon monoxide fumes can collect.
- Do not place your foot on the ground while
operating the machine.
- Before operating, lower the discharge chute,
install the mulcher or put the entire grass catcher
in place.
- Keep clear of the discharge opening at all times.
Never direct the discharge toward a bystander.
Stop operation if someone approaches.
- Keep washout ports and other mower housing
service openings closed when mowing.
- Use care when pulling loads or using heavy
equipment.
- Use only approved drawbar hitch points.
- Limit loads to those you can safely control.
- Do not turn sharply. Use care when reversing.
- Use counterweight(s) or wheel weights when
suggested in the operator's manual.
- Never leave a machine unattended. Always turn
off blades, set parking brake, stop engine and
remove keys before dismounting.

5
EstatePro SAFETY
Starting
- Start only according to instructions in this
manual or on the machine.
- Before attempting to start the engine, make
sure:
- the parking brake is on;
- the PTO is disengaged;
- the traction drive is in NEUTRAL.
- When starting the engine, make sure hands and
feet are clear of the blades.
- Do not start the machine while standing in front
of the discharge chute or with the chute directed
at someone.
- Do not engage PTO at full throttle. Throttle to
idle or lowest possible engine speed.
- Do not change engine governor settings or
overspeed the engine. Operating the engine at
excessive speed can increase the hazard of
personal injury.
Interrupting operation
- Before leaving the operator's position:
- Park on level ground.
- Disengage the PTO.
- Set the parking brake.
- Shut off the engine and remove the key.
- Disengage the PTO and wait until the blades
quit rotating:
- before raising cutterdeck;
- when not mowing;
- for transport;
- when crossing surfaces other than grass.
- Stop the engine, disengage the PTO, set
parking brake and wait until the blades quit
rotating and lower cutting unit:
- before refueling;
- before removing grass catcher;
- before making height adjustment unless the
adjustment can be made from the operator's
position.
- Stop the engine, disengage the PTO, set
parking brake and disconnect the spark plug
wire(s) or remove the key:
- before clearing blockages or unclogging chute;
- before checking, cleaning or working on the
machine;
- after striking a foreign object. Inspect the
machine for damage and make repairs before
restarting;
- if the machine begins to vibrate abnormally:
shut off machine immediately. Inspect and
make repairs as needed before restarting;
- except for repairs or adjustments as
specifically noted, such as for carburetor
adjustment, where the engine must be
running. Keep hands and feet clear of moving
parts in these circumstances.
- Allow the blades to come to a complete stop
when stopping operation to clear blockages,
unclog, inspect the machine, do maintenance or
repair.
- Reduce the throttle setting during engine shut-
down and, if the engine is provided with a shut-
off valve, turn the fuel off at the conclusion of
mowing.

6
EstatePro
WARNING
SAFETY
MANEUVERING SAFELY
In general
- Slow down before turning.
- Do not mow in reverse unless absolutely
necessary. Always look behind and down for
small children and pets before and during
backing.
- Be aware when approaching blind corners,
shrubs, trees, tall grass or other objects that may
obscure vision.
- If tires lose traction, disengage the blades. If on
a slope, head down.
Mowing slopes
Slopes are a major factor in loss-
of-control and tipover accidents
that sometimes lead to severe
injury or death. All slopes require
extra caution.
- Do not mow on slopes if uneasy or uncertain.
Ultimate responsibility for safe operation on
slopes rests with the operator.
- Do not mow excessively steep slopes.
- On zero turn machines, mow across slopes, not
up and down.
- Avoid starting or stopping on a slope. If tires
lose traction, disengage the blades and proceed
slowly straight down the slope.
- With a zero turn machine, if tires lose traction
going down a slope, steering control may be
regained by speeding up.
- Mid-mount zero turns (belly mounted deck)
have much greater traction pointed up slope
than down slope. Be aware that traction may be
lost going down a slope. Do not operate a mid-
mount zero turn on slopes it cannot back up.
- Keep all movement on the slopes slow and
gradual. Do not make sudden changes in speed
or direction.
- Do not turn on slopes unless necessary, and
then turn slowly and downhill when possible.
- Stay away from slopes if the ground is loose or if
caught in the rain during mowing.
- Use lower speeds on a slope to avoid stopping
or shifting.
- Use extra care with grass catchers or other
attachments. These can change the stability of
the machine.
- Remove obstacles such as rocks, treelimbs etc.
- Avoid driving over obstacles such as ruts, holes,
rocks and roots whenever possible. Be alert to
dips and rises. Uneven terrain can overturn a
mower or cause it to slide. Tall grasses can hide
obstacles.
- Do not mow dropoffs, ditches or embankments.
The machine could suddenly turn over if a wheel
runs over the edge or an edge caves in.
- Follow the manufacturer's recommendations for
wheel weights or counterweights to improve
stability.
- Do not mow slopes when grass is wet. Reduced
traction could cause sliding.

7
EstatePro SAFETY
MAINTENANCE SAFETY
In general
- Maintain machine according to manufacturer's
schedule and instructions for maximum safety
and best mowing results.
- Park machine on level ground.
- Never allow untrained personnel to service
machine.
- Adjust or repair only after the engine has been
stopped and the blades have quit rotating.
- Inspect grass catcher components regularly. If
worn, damaged or deteriorated, they may
expose moving parts or allow objects to be
thrown.
- Replace parts if worn, damaged or faulty. For
best results, always replace with parts
recommended by the manufacturer.
- Disconnect battery or remove spark plug wire(s)
before making any repairs. Disconnect the
negative terminal first and the positive last.
Reconnect positive first and negative last.
- Do not dismantle the machine without releasing
or restraining forces which may cause parts to
move suddenly.
- Provide adequate support for lifted machine or
parts if working beneath.
- Do not put hands or feet near or under rotating
parts.
- Clean up spilled oil or fuel thoroughly.
- Replace faulty mufflers.
- To reduce fire hazards, keep the engine,
muffler, battery compartment and fuel storage
area free of grass, leaves, debris buildup or
grease.
- Hydraulic fluid can penetrate skin, use paper to
check for leaks. Relieve hydraulic pressure
before disconnecting hoses. Make sure
connections are tight and hoses are in good
condition.
Blades
- Mower blades are sharp and
can cut. Use extra caution
when handling. Remove
obstructions with care. Wrap
the blade(s) or wear gloves.
- Be aware that rotating one
blade on multiblade mowers
can cause other blades to rotate.
- Only replace blades. Never straighten or weld
them.
- Keep other persons away from blades.
Fuel
- Gasoline and diesel fuels
are flammable; gasoline
vapors are explosive. Use
extra care when handling.
- Store only in containers
specifically designed for fuel.
- When refueling or checking fuel level:
- Stop the engine and allow to cool;
- Do not smoke;
- Refuel outdoors only;
- Use a funnel;
- Do not overfill;
- If fuel is spilled, do not attempt to start the
engine until the spill is cleaned up and vapors
have cleared.
- Do not fill containers in a vehicle or on a truck or
trailer bed with a plastic liner. Fill containers on
the ground away from the vehicle.
- When practical, remove gas powered equipment
from the truck or trailer and refuel it on the
ground. If equipment must be refueled on the
truck or trailer, refuel from a portable container
rather than a dispenser nozzle.
Keep the dispenser nozzle in contact with the
rim of the fuel tank or container opening until
fueling is complete. Do not use a nozzle lock-
open device.
- Replace caps on fuel cans and tanks securely.
WARNING
WARNING

8
EstatePro
SAFETY
BATTERY
Battery acid is caustic and fumes
are explosive and can cause
serious injury or death.
To reduce the risk of personal
injury when working near a
battery:
- When working with battery acid,
use protective equipment such as,
but not limited to, goggles, face shield, rubber
gloves and apron.
- Avoid leaning over a battery.
- Do not expose a battery to open flames or
sparks.
- Be sure batteries with filler caps are properly
filled with fluid.
- Do not allow battery acid to contact eyes or skin.
Flush any contacted area with water immediately
and get medical help.
- Charge batteries in an open, well ventilated
area, away from sparks and flames. Unplug
charger before connecting or disconnecting from
battery.
TRANSPORTATION AND STORAGE SAFETY
- Stop the engine and allow to cool before storing.
- Drain the fuel tank outdoors only.
- Store fuel in an approved container in a cool, dry
place.
- Keep the machine and fuel containers in a
locked storage place to prevent tampering and
to keep children from playing with them.
- When the machine is to be parked, stored or left
unattended, lower the cutterdeck unless a
positive mechanical lock is used.
- Do not store the machine or fuel container near
heating appliances with an open flame such as a
water heater or an appliance with a pilot light.
- Keep gasoline storage area free of grass, leaves
and excessive grease to reduce fire hazard.
- Clean grass and debris from cutting units,
drives, mufflers and engine to help prevent fires.
JUMP STARTING
1. Be sure the jumper cables are in good condition.
Turn off the ignition and all electrical accessories
on both machines.
2. Position the machine with a good (charged)
battery next to but not touching the machine with
the dead battery so jumper cables will reach.
3. When making cable connections:
- make sure the clamps do not touch anywhere
except to intended metal parts,
- Never connect a positive ("+" or red) terminal
to a negative ("–" or black) terminal.
- Make sure the cables won't get caught in any
parts after the engines are started.
4. Connect one end of the first jumper cable to the
positive terminal on one battery. Connect the
other end to the positive terminal on the other
battery.
5. Connect one end of the other cable to the
negative terminal of the machine with a good
(charged) battery. Make the final connection on
the engine of the machine to be started, away
from the battery.
6. Start the vehicle with the good battery, then the
machine with the discharged battery.
7. Remove the cables in the exact reverse order of
installation. When removing each clamp, take
care it does not touch any other metal parts
while the other end remains attached.
WARNING

9

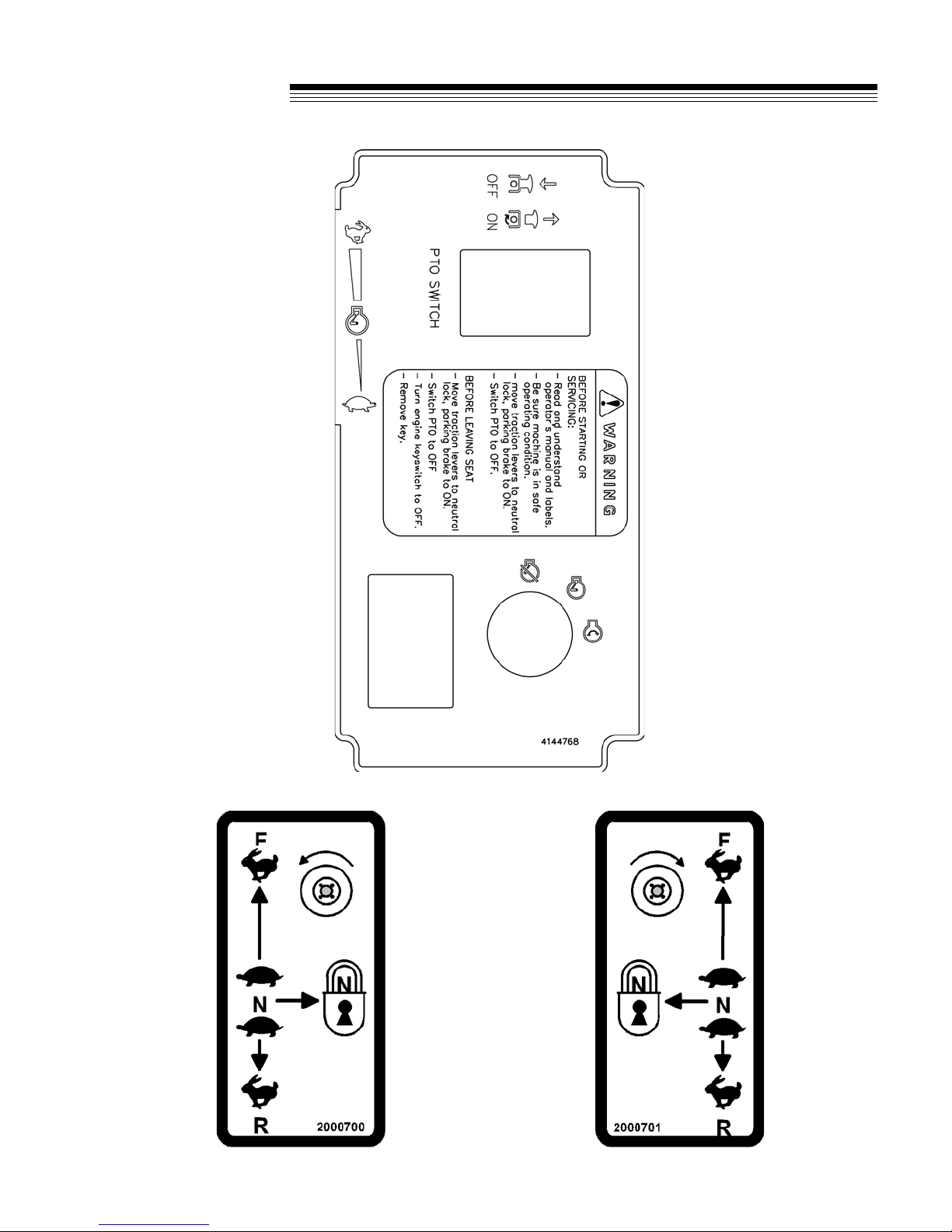

EstatePro LABELS

10
EstatePro
LABELS

11
EstatePro LABELS

12
EstatePro
LABELS

13
EstatePro LABELS

14
EstatePro
At operator's right side
KEYSWITCH (K) - The keyswitch has three
positions: OFF, RUN, and START. Insert the key
and turn it clockwise to move the switch from OFF to
RUN. Turn it further to START and hold to engage
the starter. Release the key and the switch will
return to RUN from START. Turn the key
counterclockwise to OFF to stop the engine.
THROTTLE (T) - Move the throttle lever forward to
increase engine speed until the maximum governed
engine RPM is reached. Move the lever rearward to
decrease engine speed until the engine reaches its
idle speed.
CHOKE (C)
For Kawasaki and Briggs and Stratton Engines, pull
the choke control out to set the choke ON. Push it in
to set the choke OFF.
Generac Engines are equipped with an integrated
throttle and choke. Move the throttle lever forward to
the detent, to reach maximum governed engine
speed. Move the lever past the detent, to set the
choke to ON.
POWER TAKE OFF (PTO) SWITCH (P) -
The operator must be in the seat when engaging the
PTO or the engine will kill. Pulling the PTO switch
out engages (turns on) the PTO and starts the
blades or other attachment. Pushing the PTO switch
in disengages (turns off) the PTO and stops the
blades or other attachment.
NOTE: The PTO switch does not control
attachments powered by a separate engine.
- Disengage the PTO whenever you stop or leave
the operator’s position
- Shut off engine with the key and remove the
spark plug wires before making adjustments or
unplugging a clogged mower.
- Do not engage the PTO until ready to start
mowing.
12 VOLT POWER OUTLET (X)
A 12 volt power outlet is provided to operate 12 volt
personal accessories.
Below seat
CONTROLS

15
EstatePro CONTROLS

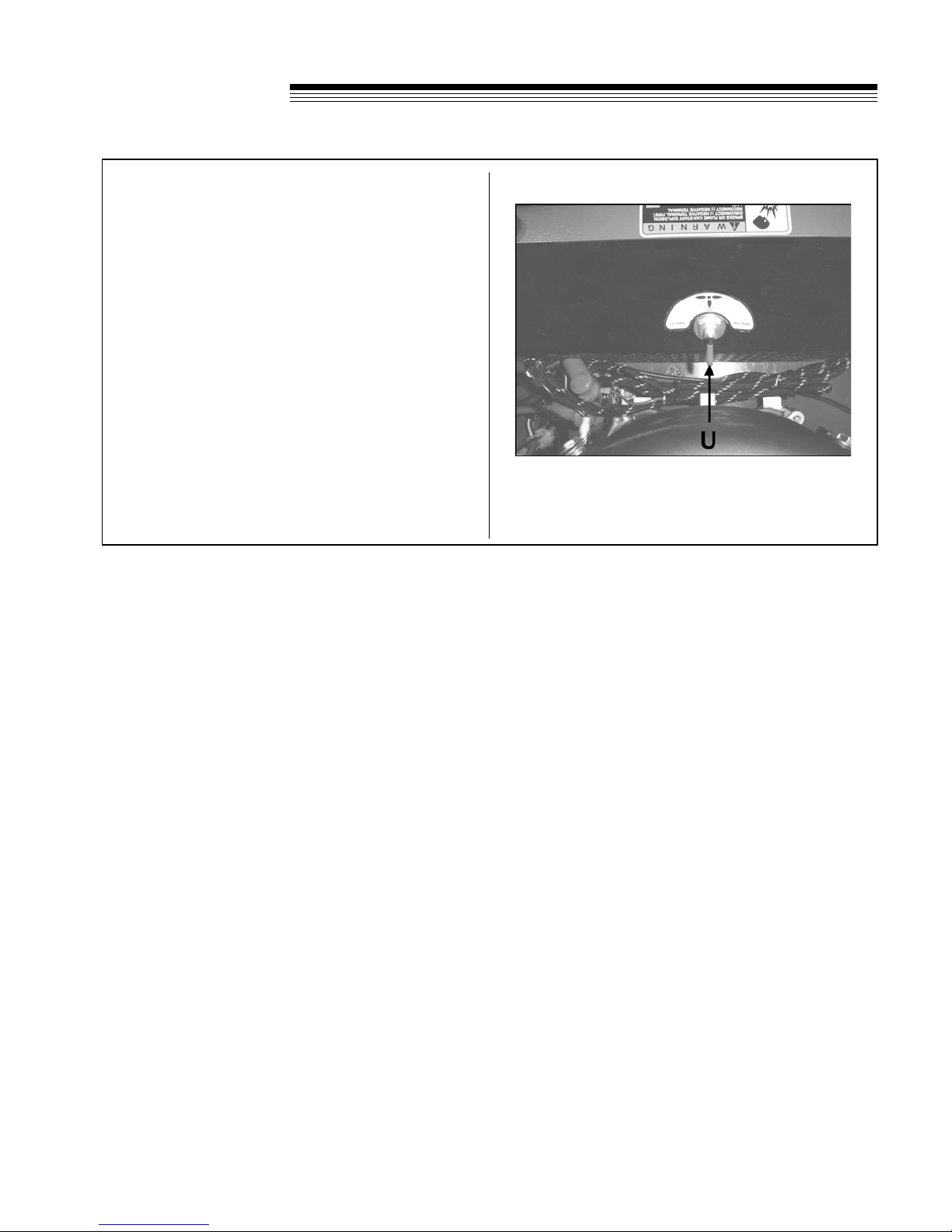

FUEL SELECTOR VALVE (U)
The fuel tank selector valve is located behind the
seat.
The fuel tank selector valve has three positions:
Off: The tank selector is off when the lever points
down. The selector should be off whenever the
machine is transported or stands unused for any
length of time. Shutting off the fuel supply avoids the
possibility of flooding should any dirt get under the
carburetor float needle. Leaving the tank selector in
either tank position can allow severe flooding, which
may ruin the engine by diluting the oil.
Right Tank: Fuel flows from the right tank when the
selector is turned 1/4 turn toward the right.
Left Tank: Fuel flows from the left tank when the
selector is turned 1/4 turn toward the left.

16
EstatePro
CONTROLS
Reverse movement - To move the machine straight
back, pull both traction levers back equally from their
neutral position. Reverse speed increases as the
levers are moved back farther. Maximum reverse
speed is reached when the levers hit the rear of the
forward-reverse slot. When moving in reverse,
pushing the levers forward slows the machine, and
the machine stops when the neutral position is
reached.
NOTE: Reverse is spring loaded to return to neutral.
This spring resistance may be felt when moving the
traction levers into reverse. When the levers are
released in reverse, spring tension will slowly return
them to the neutral position.
STEERING - To steer, move one lever forward
and one back.
Turns during forward movement:
-Right turn - move the right traction lever back
toward neutral to slow the right drive wheel.
-Left turn - move the left traction lever back
toward neutral to slow the left drive wheel.
Turns during reverse movement:
-Reverse right turn - move the right traction
lever forward toward neutral to slow the right
drive wheel.
-Reverse left turn - move the left traction lever
forward toward neutral to slow the left drive
wheel.
Slow, sweeping turns are made with both traction
levers on the same side of neutral and slightly apart.
True zero radius turns about the center of the
machine are made by having one lever in reverse
while the other is in forward. By varying the relative
positions of the two levers, the rate of turn is varied
to suit the mowing situation.
Slow down before making sharp turns. The machine
is capable of turning very rapidly when the levers are
moved further apart from each other. Loss of control
and/or turf damage may result.
Lift and traction levers
(operator's right side)
LIFT LEVER (F) - Used to raise the cutterdeck to
maximum height for transport, curb climbing or
blade changing. To return to preset height of cut,
lower lift lever until it contacts height of cut pin A.
TRACTION LEVERS (L) - Each of the two
traction levers controls the drive wheel located on
the same side. They control the forward and
reverse movement of the machine, provide steering
and also provide dynamic braking.
The operator must be in the seat and the parking
brake must be OFF to engage the traction drive. To
engage traction drive, move the traction levers
toward the center of the machine until they are out
of neutral lock slot S.
Forward movement - To move the machine straight
ahead, push both traction levers forward equally
from their neutral position. Forward speed in-
creases as the levers are moved farther forward
from the neutral position. Maximum forward speed
is reached when the levers hit the front of the
forward-reverse slot. When traveling forward,
pulling the traction levers rearward slows the
machine. The machine stops when the neutral
position is reached.

17
EstatePro CONTROLS
PARKING BRAKE (R) - Pull the parking brake
lever up and back to put the parking brake ON. Push
it forward and down to put the parking brake OFF.
The parking brake must be ON to start the engine. It
must also be ON to keep the engine running if the
operator leaves the seat. The parking brake must
be OFF to keep the engine running when a traction
lever is moved out of neutral lock.
Parking brake in ON position
(operator's left side)
PUSHING THE MACHINE
The machine may be pushed with the engine off, the
parking brake off, and the bypass valves open.
To open the bypass valves, move the parking brake
to the OFF position, then lift and pull bypass control
rod Cthrough the large opening D, until the control
rod stop is past the opening. Drop rod Cinto the
small opening to lock in place. Repeat for the other
bypass control rod.
To close the bypass valves, lift bypass control rod C
allowing the control rod stop to retract through the
large opening D.

18
EstatePro
PRE-OPERATION CHECK LIST
(OPERATOR’S RESPONSIBILITY)
___ Review and follow all safety rules and safety
decal instructions.
___ Check that all safety decals are installed and
in good condition. Replace if damaged.
___ Check to make sure all shields and guards
are properly installed and in good condition.
Be sure that either the discharge shield or
complete vacuum attachment is installed.
___ Check that all hardware is properly installed.
and secured.
___ Check that equipment is properly and
securely attached to power unit.
___ Check to be sure engine is free of dirt and
debris. Pay particular attention to the cooling
fins, governor parts and muffler. Clean air
intake screen. Check air cleaner; service if
necessary.
___ Never allow riders.
___ Inspect area and remove stones, branches or
other hard objects that might be thrown,
causing injury or damage.
___ Clean area around oil fill dipstick. Remove
dipstick and check to be sure oil is in
operating range (between marks on dipstick).
Add oil if necessary but Do Not Overfill.
Install dipstick assembly firmly until cap
bottoms out on tube. Dipstick assembly must
always be secured into fill tube when engine
is running.
___ Check all lubrication points and grease as
instructed in manual.
___ Check hydrostatic fluid level. Check to be
sure cooling fins on hydrostat are clean.
___ Perform a functional check of the safety
interlock system each time you operate the
unit.
PRE-OPERATION CHECK LIST
