Bush BCR30DAB User manual

BCR30DAB
2
Introduction
Thank you for buying this Bush product, which is designed to give you many years of trouble-free service.
You may already be familiar with using a similar unit, but please take time to read these instructions.
They are designed to familiarise you with the unit’s many features and to ensure you get the very best from your
purchase.
Safety is important
Your safety and the safety of others is important.
Please therefore, ensure you read the “Safety Instructions” before you operate this unit.
Warranty
In the unlikely event that your product fails to work normally, please call the below free phone number to discuss the
problem with one of our qualified service engineers.
Australia.
Bush Warranty: 1800 509 394
New Zealand
Bush Warranty: 0800 450 259

BCR30DAB
3
Ensure that you read all of the safety instructions before using this unit.
Safety Considerations
Position the power cable and other connected cables so that they are not likely to be walked on, pinched or
where items can be placed on or against them.
Do not use the unit in humid or damp conditions.
Do not allow the unit to get wet.
Never allow children to insert foreign objects into holes or slots on the unit.
Do not cover the ventilation with items such as tablecloths, curtains, etc. This may cause overheating.
No naked flame sources, such as lit candles, should be placed on or near the unit.
Do not expose the unit to dripping or splashing water, and no objects filled with liquids, such as vases, should be
placed on or near the apparatus.
Do not place the unit in closed cabinet without proper ventilation.
Cleaning
Disconnect the unit from the mains supply before cleaning.
Do not use any liquids or aerosol cleaners, as this may damage the unit. Use a soft, dust free cloth.
Servicing
There are no user serviceable parts in the unit. When servicing, refer to qualified service professional.
Consult your retailer if you are ever in doubt about the installation / operation / safety of the product.
Safety Instructions

BCR30DAB
4
Contents
Your DAB+ Radio …..…………………………………………………………………………….…………….... 5
What is DAB+..………………………………………………………………………..…………….……………... 6
Getting Started …………………………………………………………………….……………...……………… 7-8
Using your DAB+ Radio…………………..…………………………………………….……………...…………. 9-12
Using your DAB+ and FM Radio…………………..…………………………………………….…………….… 13
Using your FM Radio ……………………………………………………………….……………...…………….. 14-17
System Setup…………………………………………………………………….……………...……………….. 18-24
Troubleshooting and Technical Specification……………………………….……………...………………… 25
Warranty…………………………………………………………………….……………...……………………… 26

BCR30DAB
5
1. PRESET Button 6. LCD Display 11. DC Jack
2. SELECT/NAV Button 7. DAB/FM Button 12. ANTENNA
3. Button 8. ALARM Button 13. Headphone Jack
4. Button 9. STANDBY Button
5. SNOOZE Button 10. MENU Button
Control DAB + and FM
STANDBY Press to turn on/off Radio
MENU Press to go to Main Menu or select other menus
DAB/FM Press to convert between DAB+ and FM mode
ALARM Press to set alarm1, press again to set alarm2
PRESET Press to enter presets options
(Note: for detail please refer page 14)
SELECT/NAV Press to select an option or confirm
a. Press to decrease or increase volume level
b. In DAB+ mode, press SELECT/NAV button then press or button to
select different DAB+ stations or options.
c. In FM mode, press SELECT/NAV button, then press or button to
adjust FM frequency.
a. When alarm is sounding, press Snooze to postpone the alarm for a period of 5-30
minutes.
b. Press to set sleep time.
Your DAB+ Radio

BCR30DAB
6
DAB+ uses digital compression techniques to transform the source material, i.e. music and speech, into better quality
audio.
Interference free reception
Analogue systems suffer from an effect called “multipath distortion”. This is caused because waves do not behave in
an orderly fashion, but bounce and reflect off buildings etc. DAB+ sees this as an advantage and uses the direct and
reflected signals to actually reinforce the end result, allowing for better service more of the time.
No need to re-tune
A single DAB+ frequency can be used to cover the whole of the Australia, so solving many of the problems
experienced with the earlier analogue system. DAB+ scans automatically and tunes-in all of the available stations in
your area.
Scolling text
Broadcasters can transmit text to your radio. This way you can read the name of the DJ, artist, song title or any other
information they choose.
DAB+ coverage
Check your local coverage at www.digitalradioplus.com.au, or alternatively text 0409-DRPLUS to receive an SMS
confirming whether you reside in a DAB+ broadcast area.
What is DAB+

BCR30DAB
7
Carefully remove your DAB+ Receiver from the box. You may wish to store the packaging for future use.
In the Box
Inside the box you will find:
DAB+ Radio (Main Unit)
Power Adapter
User Guide
Positioning your DAB+ Radio
Place your DAB+ Receiver on a flat / stable surface that is not subject to vibrations.
Avoid the following locations:
Where it is exposed to direct sunlight.
Where it is close to heat radiating sources.
Where the humidity is high and ventilation is poor.
Where it is dusty.
Where it is damp or there is a possibility of water dripping or splashing onto unit.
Adjusting the Antenna
The aerial should be extended to ensure good reception in both DAB and FM radio modes. It may be necessary to
alter the position of the DAB+ RADIO and /or aerial to achieve the best signal.
Using Headphones
You will require headphones fitted with a 3.5 mm diameter stereo plug. The Headphone socket is located on the back
of this unit. Headphones are not supplied with this DAB+ Receiver.
Turning On/Off
Connect the power adaptor to connect the DC Jack on the back of the unit. After this connection is made, insert the
power adaptor into the wall outlet. Press the STANDBY button to turn on the unit and press this button again to turn
off the power.
When you turn on your radio for the first time you will be presented with the image
below.
Gettin
g
Started

BCR30DAB
8
#Note: When you turn on the radio it will automatically search the stations available. You should conduct an additional full scan
to ensure all stations are picked up and stored.
For initial use, conduct a full scan to auto search and store all DAB+ Radio Stations. Press the menu button and use
the or buttons to select the full scan option. Press SELECT/NAV to confirm.
The full scan may take 1-2 minutes to complete. All stations will be stored.
#Note: 1. the DAB+ stations will be displayed in alphanumeric order. The first station in the list will be selected.
2. If no DAB+ signal is found in your area, it may be necessary for you to relocate your radio. Also make sure your
postcode is listed on the Digital Radio website.
Getting Started

BCR30DAB
9
DAB+ Menu Options
Volume Control
Adjust the radio volume by pressing or buttons.
Using your DAB+ Radio

BCR30DAB
10
To view Station Information in DAB+ mode
Press the MENU button then press SELECT/NAV button consecutively to show
different information.
Signal Strength:
Shows a signal bar with the strength of the current station.
Program Type (PTY):
This is a description of the type of program being broadcasted.
Station Name:
This will show the station that is broadcasting the program you are listening to.
Frequency:
This displays station transmission frequency and name.
Signal Error:
This displays the signal error rate being received from 0 to 100.
a. 0 means no error signal being detected,
b. while 100 means it is a bad signal.
Signal Information:
This shows the digital bit rate and the signal mode.
Time:
This displays the time provided by the broadcaster.
Date:
This displays the date provided by the broadcaster.
Dynamic Label Segment (DLS)
This is scrolling text information supplied by the DAB+ station.
Using DAB+ Radio
Using your DAB+ Radio

BCR30DAB
11
To Show the Signal Strength in DAB+ mode
1. Press the MENU button during play. Then press SELECT/NAV to confirm. The LCD screen will display a signal
bar to show the signal strength.
The indicator on the signal bar shows the minimum acceptable
signal level.
#Note: Stations with signal strength below the minimum signal level will
not provide a steady stream of audio.
Conducting a Manual Tune
1. Press the MENU button and then select the Manual tune menu.
2. Press the SELECT/NAV button to confirm, the display will show the channel number and frequency list.
3. Press or to scroll through the channels and press the SELECT/NAV to select preferred Radio
channel.
#Note: If there is a multiplex corresponding to this channel and frequency, then the display will show a tuning meter with the
signal strength and the multiplex name after a few seconds.
4. Press the MENU button to exit this order.
Using your DAB+ RadioUsing your DAB+ Radio

BCR30DAB
12
DRC (Dynamic Range Control)
You can set the level of the compression of stations to eliminate the differences in dynamic range or sound level
between radio stations.
#Note: Set DRC to off indicates no compression, set DRC to low indicates little compression, and set DRC to high shows
maximum compression.
1. Press the MENU button, then press or to select DRC menu.
2. Press the SELECT/NAV button to confirm.
3. Press or to select ideal DRC Mode. Press SELECT/NAV to confirm.
Prune Order
#Note: Pruning Radio order will remove inactive stations from the station list.
1. Press the MENU button, then press or to select Prune menu.
2. Press the SELECT/NAV button to confirm.
3. Press or to select Yes, and then press SELECT/NAV to confirm.
Using your DAB+ Radio

BCR30DAB
13
Setting Station Presets
Your radio can store 10 DAB+ & 10 FM station presets. To store presets:
#Note: this is the same for DAB+ and FM Radio stations.
1. While playing your favourite station, press and hold the PRESET button.
2. Press or to cycle through preset stations 1-10.
3. Then select your preferred preset station. Press the SELECT/NAV button to confirm.
Selecting a Preset Station
To select a stored station:
1. Press the PRESET button.
2. Press or to select your preferred preset station, then press SELECT/NAV to confirm.
Using your DAB+ & FM Radio

BCR30DAB
14
1. Press DAB/FM button to switch to FM Mode from DAB Mode.
2. Once in FM mode, it will start at the beginning of the FM frequency range (87.50MHz) or it will play the last FM
station you were listening to.
3. To manually change FM frequency, press SELECT/NAV and then immediately press or to change
it by 0.05MHz.
4. To Auto-search, press SELECT/NAV button then press and hold or .
#Note: 1. The display will show the frequency changing until it stops on the next station.
2. After it reaches the end of the frequency range, it goes back to the start.
Using your FM Radio

BCR30DAB
15

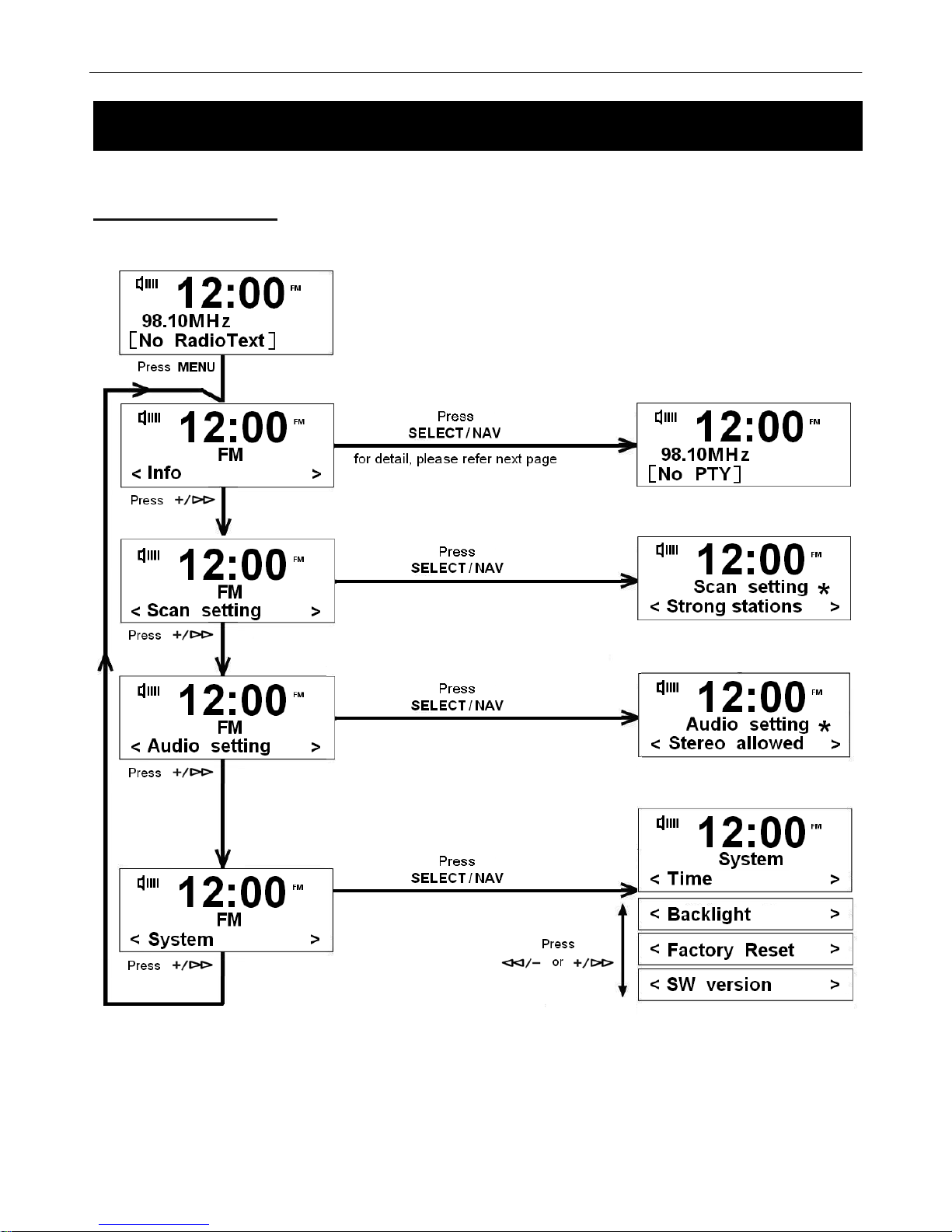

FM Menu Options
Using your FM Radio

BCR30DAB
16
To view Station Information in FM Mode
Press the MENU button then press SELECT/NAV button consecutively to
show different radio information.
Station Name
This displays the transmission (station name) of the station you are currently
listening to.
Audio Type
This will display the audio type of the station you are listening to. It will either
be Stereo or Mono.
Time
This displays the time provided by the broadcaster.
Date
This displays the date provided by the broadcaster.
Radio text
This is scrolling text information supplied by the FM station. It may comprise
information on music titles or details of the program and is provided by the
broadcaster.
#Note: This information depends on the radio broadcaster and their broadcast
transmissions. DAB+ Stations are equipped to send this information through
their digital transmissions.
Using your FM Radio

BCR30DAB
17
Scan Setting
1. Press the MENU button and then press or to select Scan Setting menu.
2. Press the SELECT/NAV button to confirm.
#Note: You can choose between Strong stations only and All Stations. If you choose Strong Stations only, the menu will
show only the stations with strong signal strength. If you choose All Stations, all detected stations will be shown.
3. Press or to select your preferred station and then press the SELECT/NAV to confirm.
Audio Setting
1. Press the MENU button and then press or to select Audio Setting menu.
2. Press the SELECT/NAV button to confirm.
#Note: You can choose between Stereo Allowed and Forced Mono audio settings. If you choose Stereo Allowed, the
sound output will be stereo. If you choose Forced Mono, the sound output will be Mono.
3. Press or to select your preferred setting, and then press the SELECT/NAV to confirm.
Using your FM Radio

BCR30DAB
18
How to Enter System Setup
1. Press the MENU button and then press or to select System Menu.
2. Press the SELECT/NAV button to confirm.
3. Once in System Menu, press or to cycle through options, including ‘Time’, ‘Backlight’, ‘Factory
Reset’, ‘SW version’.
How to Set the Clock
1. Select System Menu and then select Time option.
#Note: You can set the clock two ways ‘Manually’ and ‘Auto update’.
Choose 12/24 Hour Format
a. Once in the Time System Menu, you can select to set 12 or 24 hour format. Then press SELECT/NAV to confirm.
b. Press or to choose 12 hour or 24 hour time, then press the SELECT/NAV to confirm.
System Setup

BCR30DAB
19
Set Date format
a.) In the Time System Menu, press or to select Set date format option, then press the SELECT/NAV
to confirm.
Æ
#Note: You can choose ‘MM-DD-YYYY’ or ‘DD-MM-YYYY’.
b.) Press or to select date format. Press the SELECT/NAV button to confirm.
Set Time / Date (Manually)
a.) In the time menu, press or to select Set Time/Date option, then press the SELECT/NAV button to
confirm.
Æ
b.) Press or to change hours, and then press the SELECT/NAV button to confirm.
c.) Press or to change minutes, and then press the SELECT/NAV button to confirm. The radio will
ask you to set the date.
d.) Using the same method to set the date as you did to set the time.
S
y
stem Setup

BCR30DAB
20
Auto update
a.) In the Time System Menu, press or to select ‘Auto update’ option. Then press the SELECT/NAV
button to confirm.
b.) Press the SELECT/NAV button to confirm.
#Note: You can choose ‘Auto update from DAB’ and ‘No update’.
c.) Press or to select ‘Auto update from DAB’, then press the SELECT/NAV button to confirm.
How to set Backlight
#Note: You can adjust the backlight level to ‘High’, ‘Medium’ and ‘Low’. High backlight will make it easier to view the display
content or alarm/clock information. Low backlight level can eliminate the brightness and use less power.
Setting Backlight for Power on Mode
1. In System Menu, select Backlight Menu and press the SELECT/NAV button to confirm.
Æ
2. In Backlight Menu, use or to select Power On, press SELECT/NAV to confirm.
System Setup
System Setup
