Dear Valued Consumer:

to use. Knowing the exact distance for each shot will assist you in lowering your

This User Manual was created for you to get the most out of your new device. It
only takes a few minutes to read, after which you can immediately begin using

Also, please visit http://www.bushnellgolf.com/gps.html to set up your iGolf
membership (click “Log-In”). As a member, you have access to all the features


Thank you for choosing Bushnell.
Welcome
User Manual
Introduction

5
Legal Disclaimer
By using this product, you agree that Bushnell Outdoor Products will not be held


product.
Note: See Limited Warranty for other limitations on our liability.
Additional Information
The Global Positioning System (GPS), a network of 32 satellites orbiting Earth,
is operated and maintained by the U.S. government. This GPS device requires
at least 3 satellites to be acquired to accurately determine your position. Any
change made to the system by the government could affect the accuracy and
performance of this product.
Important Information
User Manual Introduction

6

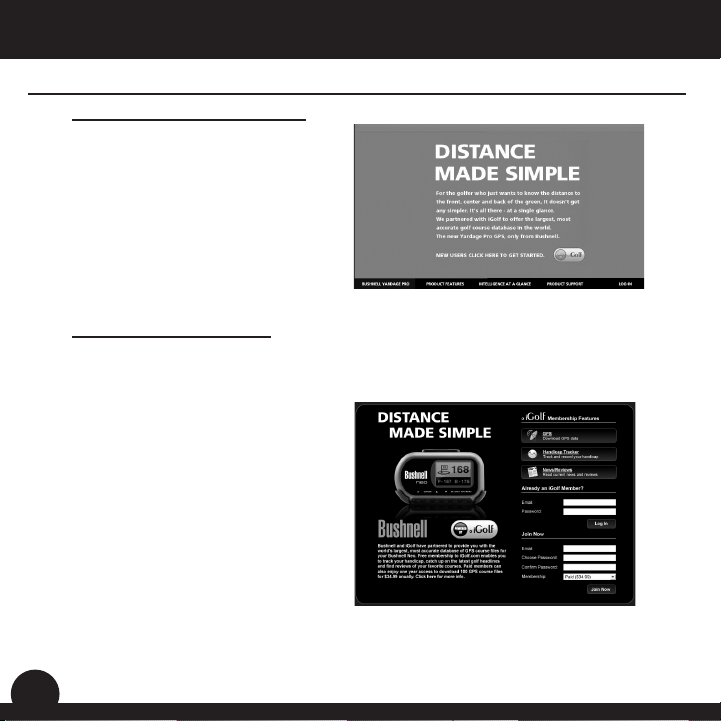

Bushnell Golf GPS Website
http://www.bushnellgolf.com/gps.
html is an online resource for all our
Golf GPS product owners, and it also
serves as a portal to access iGolf
      
Bushnell products. Setting up your
iGolf membership allows you access
      
     

http://www.bushnellgolf.com/gps.html
Download Course Files
1) Go to http://www.bushnellgolf.com/gps.html, and click the “Log-In” link. If not

2) Search for desired course using simple terms to broaden results
(i.e. Augusta National Golf Club:
search for Augusta).
3) Select course name from search

4)
5) Use Bushnell Neo Sync to

User Manual
Introduction

7
Package Contents*
1 - Bushnell Neo
1 - Belt Clip
1 - USB Cable
1 - AC/DC 5V Adapter
1 - Software CD
1 - Quick Start Guide
*Please contact your dealer if your package is incomplete.
Additional Requirements*
PC with Windows Vista, Windows XP or Windows 2000
or Mac with OS X, version 10.4.x or later **
PC or Mac with CD-ROM drive and USB port
*Required to transfer les from computer
**Windows is a registered trademark of Microsoft Corporation in the United
States and other countries. Mac and Mac OS are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Package Contents – Additional Requirements
User Manual Introduction

8

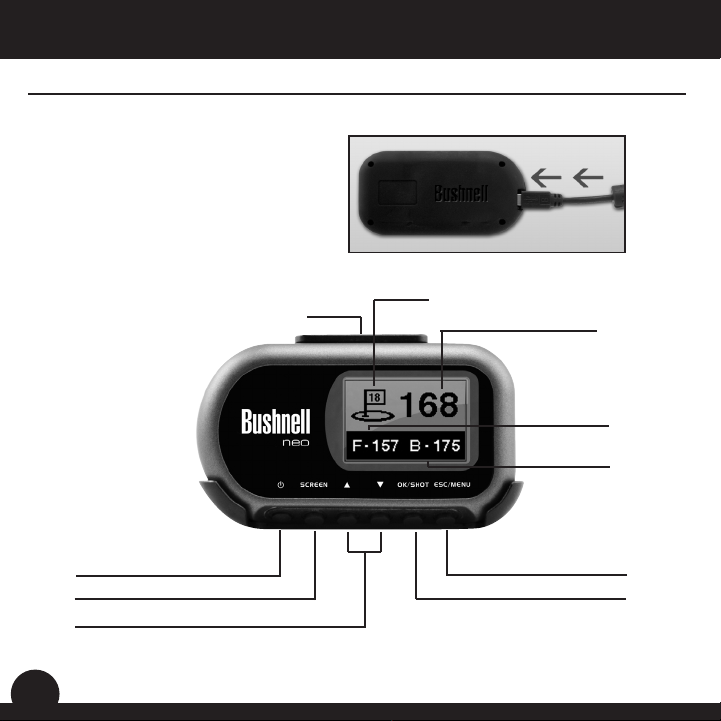

Bushnell Neo Features
USB Connection >
Distance to the Center
Distance to
the Front
Distance to
the Back
Belt Clip
SCREEN Button
Up / Down Buttons
ESC / MENU Button
OK / SHOT Button
Power Button / Backlight
Hole #
User Manual
Introduction

9
Battery Information
This product contains an internal rechargeable lithium-ion battery. Under
normal operating conditions, a new battery will last 14-16 hours on a full
charge. However, battery life is diminished due to a variety of factors including
temperature and backlight usage. All rechargeable batteries lose their effective
charge length over time.
The internal battery can be charged by connecting the included USB cable to the
device and a computer. Alternatively, the battery can be charged by connecting
the USB cable to the device and using the included adapter to plug the charger
into a standard 110V wall outlet.
Battery Information
User Manual Introduction

10
Power Button ESC / MENU Button
OK / SHOT Button
SCREEN Button
Up / Down Buttons
Keypad Function
Power Button


SCREEN Button

within Play Golf mode
Up Button


Down Button


OK/SHOT Button


ESC/MENU Button


Start-Up
Power On

Power Off

Backlight On/Off


Keypad Function – Start-up
Introduction User Manual

11

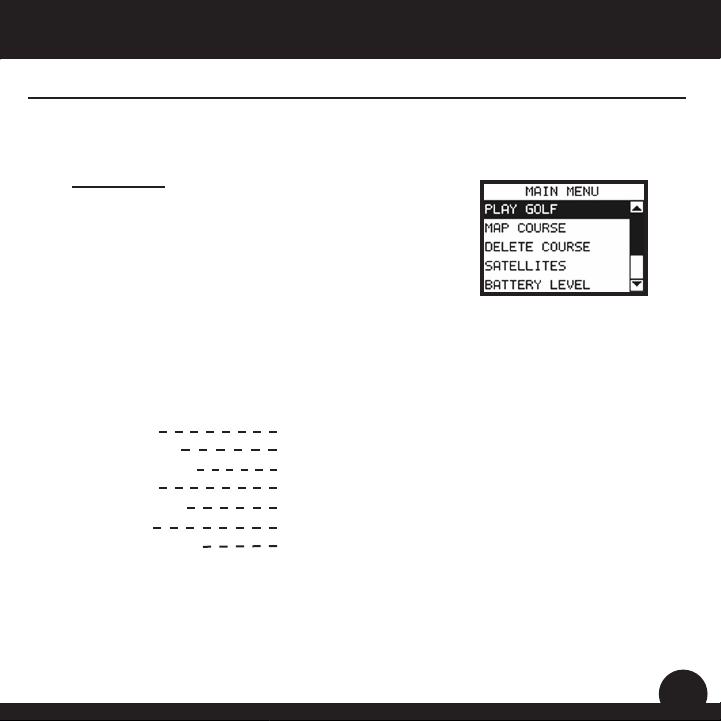

Main Menu
The Main Menu displays all the features available to
the user, which are explained in detail in subsequent
sections of this User Manual. To begin using the device,
scroll to highlight any feature and press OK.
Main Menu
Feature Descriptions
Play Golf Select to play golf using GPS data
  
  
Satellites Select to view satellite position and signal strength
Battery Level Select to verify remaining battery power
Settings Select to customize additional features
About Bushnell Select to display version and company information
User Manual Introduction

12
Play Golf
Play Golf
This feature is the main interface to display distance

downloaded from Bushnellgolf.com or manually
entered using the Map Course feature. If GPS data
is available, distances to the front, center and back
of the green and up to four custom points per hole
will be displayed upon satellite acquisition. Highlight
“Play Golf” on the Main Menu and press OK. Scroll to
highlight the desired golf course and press OK.
Bushnell Neo User Manual

13
Play Golf
Screen Operation
Up/Down buttons Move between holes
SCREEN button Move between screens
OK/SHOT button Activate Shot Distance
ESC/MENU button Go to Play Menu
Shot Distance Operation
From any Play Golf screen, press SHOT to activate
the Shot Distance feature. Press SHOT again to
establish starting point. Distance will automatically
update as the user moves. Once the user reaches
the end position, press SHOT to freeze the shot
distance measurement. Press SHOT again to
reactivate the Shot Distance feature and establish a
new start position.
User Manual Bushnell Neo

14
Play Golf
Play Menu
From any Play Golf screen, press MENU to access
the Play Menu. This menu allows the user to easily
view status or modify settings being used for the
current course.
1. Map Golf Hole
Allows the user to map the current hole being played without having to exit
the game.
2. Satellites
Displays various bar lengths to show signal strength for all satellites being
tracked.
3. Battery Level
Displays a horizontal bar representing the power remaining in the battery.
4. Return to Game
Resumes play from previous hole.
5. Exit
Returns to Main Menu.
Bushnell Neo User Manual

15
Map Course
Map Course
This feature is used to manually input course name


Highlight “Map Course” on the Main Menu and press
OK.

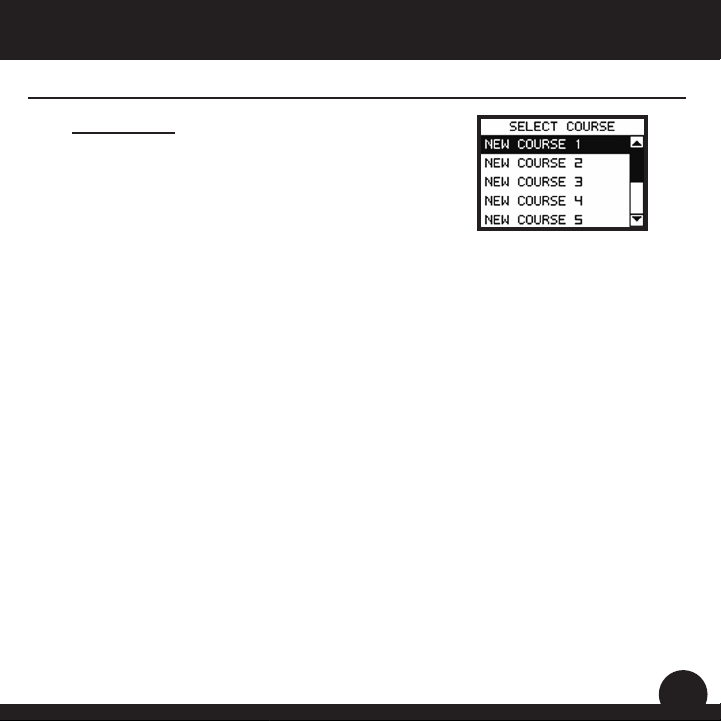

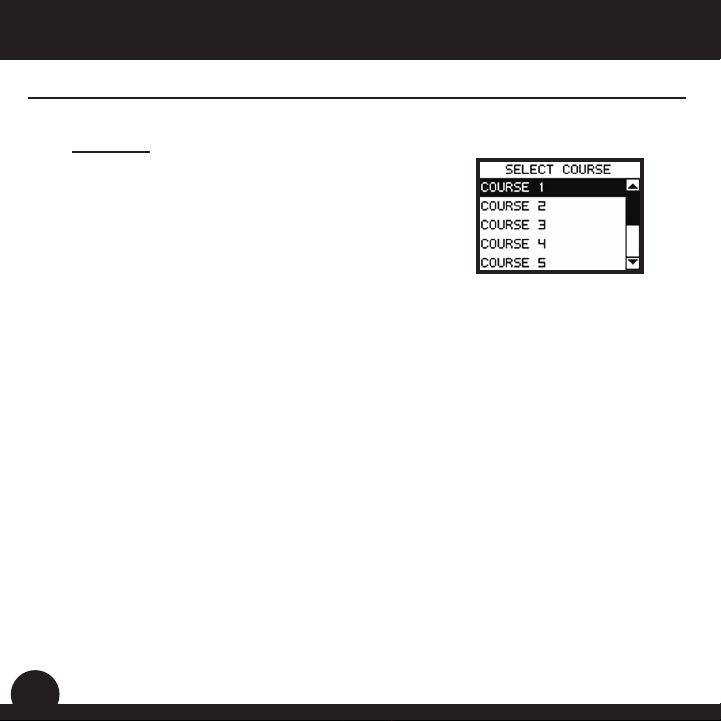

1. Select Course
Scroll to highlight the desired new or existing golf course and press OK.
2. Function: Course Name
To revise name highlight “Course Name” and press OK. Names are limited
to fourteen (14) characters and should be distinguishable from other golf
courses entered. Scroll to highlight the character and press OK. To delete

highlight “SAVE” and press OK.
Note: Course les may also be renamed using the Neo PC Sync
application.
User Manual Bushnell Neo

16
Map Course
Map Course (continued)
*If mapping a Custom Point, the user may customize the name prior to registering GPS
data. The user may select from a list of common abbreviations, or choose a six (6)
character name, to easily identify the point on the course. If the user chooses not to
customize the name, proceed directly to “Register Point”.
3. Function: Map GPS Point
To add or revise GPS data highlight “Map GPS Point”
and press OK. Select the desired hole and press
OK. Highlight point to map* and press OK. Stand at

OK to register point. Do not move until process is
complete. Repeat these instructions for all desired

press OK. Repeat for all holes, then select “Save/
Exit” to return to Main Menu.
4. Function: Save/Exit
After all data has been entered and/or captured, the
user MUST scroll to “Save/Exit” and press OK to
save all information. All entered data will be lost if
function is exited without saving.
Bushnell Neo User Manual

17
Delete Course - Satellites - Battery Level - Sync
Delete Course

device. Highlight “Delete Course” on the Main Menu and press OK. Scroll to
highlight the golf course to delete and press OK. To remove course from device,
Note: this only deletes the course
from the Neo device. All downloaded course data is still saved on your PC, and
may be reloaded onto the Neo later by using the Sync application).
Satellites
This feature displays the GPS satellites recognized by the device. Satellites
providing location data to the device for use in distance calculation are
represented by black horizontal bars and black boxes around the satellite
numbers. Typically, at least three satellites providing location data are required
before GPS distance can be calculated. Highlight “Satellites” on the Main Menu
and press OK.
Battery Level
This feature displays the status of the battery in the device. Battery information is
displayed using a horizontal bar representing the amount of power remaining in
the battery. Highlight “Battery Level” on the Main Menu and press OK.
User Manual Bushnell Neo

18

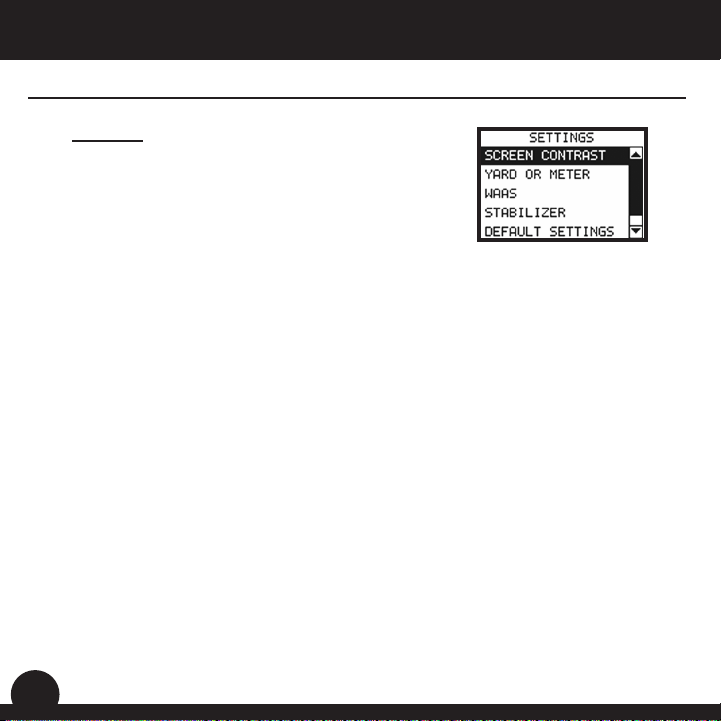

Settings
Settings

to personalize the device, such as screen contrast,
distance measurement and GPS performance.
Highlight “Settings” on the Main Menu and press OK.
2. Yard or Meter
Allows the user to select yards or meters as the measure of distance.
3. WAAS
Allows the user to select if location correction is used to improve GPS
accuracy within the United States. Commonly known as WAAS, this system of
satellites and ground stations provides GPS signal corrections for much of the

location. The default setting on the device is “On”.
1. Screen Contrast

light conditions.
Bushnell Neo User Manual

19
Settings
4. Stabilizer
Allows the user to select the rate at which the device refreshes GPS position.
With stabilizer “On” the device will not refresh GPS distance readings once

distance readings, even though they are stationary. The default setting on the
device is “On”.
5. Default Settings
Allows user to return device to factory default settings. All data, including

to computer prior to accessing this setting.
6. Update
For factory use only.
7. Auto Off
Default “On” setting will shut power off after 45 minutes of inactivity (no
buttons pressed) to save battery power. Selecting “Off” will allow the device to
remain powered on with no time limit, until manually turned off by user.
Settings (continued)
User Manual Bushnell Neo

20
About Bushnell Neo
About Bushnell Neo
This feature displays general information pertaining to the device including the
software version. Highlight “About Bushnell Neo” on the Main Menu and press
OK.
