Bushnell OUTDOORSMAN OUTM1BTS User manual

Model #: OUTM1BTS 0821
BLUETOOTH® SPEAKER WITH CHARGER
OUTDOORSMAN™
OWNER’S GUIDE

Congratulations on your purchase of the Bushnell® Outdoorsman Bluetooth® Speaker. Outdoorsman is a rugged, high quality
wireless speaker designed to entertain the avid outdoor enthusiast. This owner’s guide will help you achieve optimum satisfaction
with the product by explaining its features and operation, as well as how to care for it. To ensure best performance and longevity,
please read these instructions before using your Outdoorsman.

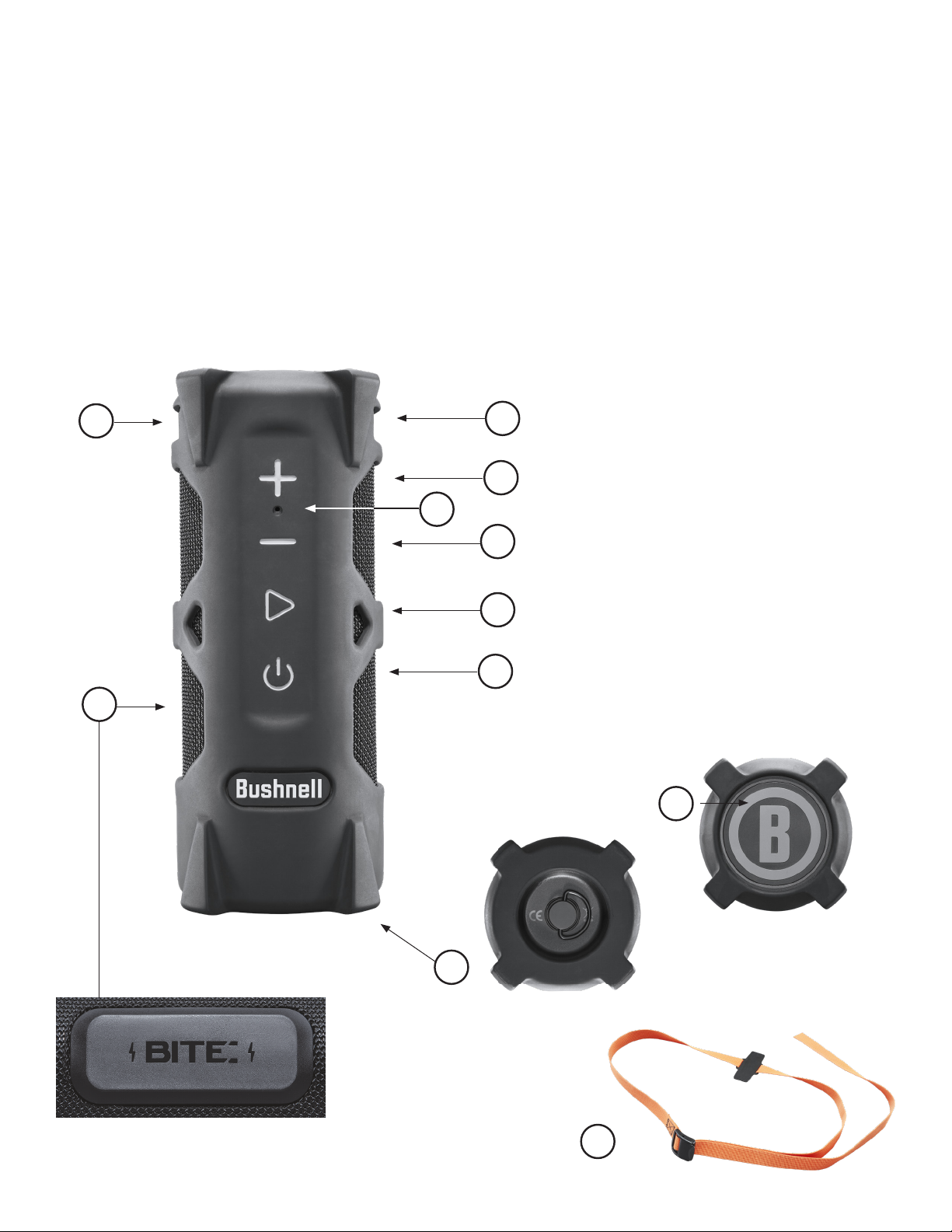

1. CHARGE IN PORT
2. CHARGE OUT PORT
3. VOLUME UP/NEXT TRACK
4. VOLUME DOWN/PREVIOUS TRACK
5. PLAY/PAUSE/EQ
6. POWER BUTTON
7. MICROPHONE
8. BITE MAGNET (back of speaker)
9. TRIPOD MOUNT & D-RING
10. INDICATOR RING
11. BITE Strap
1
8
9
10
Package Includes:
• 1 x Outdoorsman Speaker
• 1 x Micro-USB Cable
• 1 x Additional ExoArmor
• 1 x BITE Strap
• 1 x User Manual
6
7
5
4
3
2
11

3
POWER AND BLUETOOTH™ SPEAKER OPERATION
1. To charge the Outdoorsman’s internal lithium-ion battery, connect a smartphone or tablet’s USB charger (any 1A or 2A rated USB
charger) to the “IN” micro USB port (1) on the Outdoorsman. The battery is fully charged when the Outdoorsman’s Indicator Ring
(10) turns green. A fully charged battery will provide approximately 10 hours operating time at a normal, moderate volume level.
Low power is indicated by a ashing orange ring. When the battery charge drops below 3% remaining, the Outdoorsman will
power o automatically.
2. The “OUT” micro USB port (2) can be used to recharge your phone if necessary while away from other power sources. Note: using
the Outdoorsman to recharge mobile devices will reduce the battery level and operating time of the Outdoorsman.
3. Hold the Power button on the Outdoorsman (6) until the startup sound is heard and indicator light will blink fast orange.
4. Make sure the Outdoorsman is within 10meters/32 feet from your mobile device. Activate Bluetooth® on your portable device and
select “Outdoorsman” from list of available devices. Once paired, the indicator light will be solid orange and music from your
portable devise will be heard on the Outdoorsman.
5. To disconnect the currently paired device, press Plus and Minus buttons simultaneously. The indicator light will blink fast orange,
indicating the device has been disconnected, and the Outdoorsman is ready to pair with a new device. Note: when powered on, the
Outdoorsman automatically reconnects to the last mobile device it was paired with. The Outdoorsman can memorize up to 8 paired
devices. The Outdoorsman will shut o after 10 minutes in pairing mode if no devices have been paired, as a power saving feature.
6. Use the Plus (3) and Minus (4) buttons to adjust speaker volume up or down. Press the Play button (5) to pause music, press again
to resume. Press and hold the Plus button to advance to the next track. Press and Hold the Minus button to start a track over from
the beginning.
7. The Outdoorsman has a microphone which allows you to take incoming calls. To answer an incoming call, press the Play button.
To reject an incoming call, Press and hold the Play button. To end a call, press Play. To redial the last called number, press and hold
the Play button.
TRUE WIRELESS STEREO CONNECTION OPERATION requires two Outdoorsman speakers)
TWS technology enables you to use two Outdoorsman speakers, pairing via Bluetooth to create a wireless dual-channel system to
deliver a true stereo eect with a left and right channel.
True Wireless Stereo Connection and Operation:
1. Place two Outdoorsman speakers near each other, not more than ten meters apart.
2. Power on the two Outdoorsman speakers.
3. Your portable device will automatically connect with the Speaker that was last used. Then, disconnect that Speaker from the
Bluetooth device list on your portable device.
4. Double press the power button on the Speaker that was previously connected to your portable device. This Speaker will be your
Left Channel (main Speaker). A conrmation tone will play when connected in TWS mode successfully. The LED indicator light
should be blinking orange on the main Speaker.
5. Reconnect the Outdoorsman speaker via Bluetooth on your portable device.
*If you’re having issues connecting both speakers in TS, make sure your Bluetooth connection is o before pairing to the main Speaker.
DISCONNECT THE TRUE WIRELESS STEREO CONNECTION
Press + and – buttons on one of the speakers simultaneously until the LED indicator light is blinking fast orange light.
POWER BANK FEATURE
1. Lift the “Out” port cover.
2. Plug the USB-A cable to the USB out port on a speaker and charge a portable device. If the Speaker is on, it will automatically start
charging. If the Speaker is o, press the power button to turn on the Speaker to use the charging feature.
Note: The power bank function will automatically shut down after 10 seconds if the Speaker is o and no device is connected to be charged.
CHANGE EQ MODE
Double press Play button to change the sound mode. The LED indicator light will slowly blink orange in outdoor mode and keep solid
orange in indoor mode.
NFC FEATURE
Enable your device’s NFC feature, if equipped, and place your device near the NFC chip on the BT speaker. Then, follow the instructions
on your device. If the connection is established successfully, your device and the BT speaker will be connected automatically.
IPX6 WATER RESISTANT FEATURE
This Speaker is equipped with IPX6 technology that makes it water-resistant but not waterproof. Therefore, the Speaker should never
be submerged in water or liquid. Remove all cable connections and close the port covers tightly after charging and before use.
*Important Note: All cables must be disconnected and the port tabs must be properly closed for the Speaker to be water-resistant.

4
RESETTING THE SPEAKER
If the function buttons are not working, disconnect the charging cable, place a small pin into the reset hole, and hold for two seconds
until the LED light is o.
CLEANING AND GENERAL CARE
IMPORTANT NOTE: To ensure the Outdoorsman is water resistant, remove all cable connections and close the port protection cover
tightly after charging and before use.
Follow these tips for proper cleaning and maintenance:
• Blow away any excessive dust or debris on exterior (or use a soft brush).
• To remove dirt or nger prints, clean with a micro-ber cloth. The Outdoorsman is water resistant, but should not be exposed to
heavy rain or other direct streams of water, and will not withstand submersion in water or other liquids.
• When you are not using the speaker/remote, please store it in a secure, dry indoor location for additional protection.
TROUBLESHOOTING:
Cannot Power On
Charge the Speaker and make sure it has enough battery power.
Cannot connect with the device
Please check the following:
• The Bluetooth device supports the A2DP prole.
• The Speaker is within 10m of the device.
• The Speaker is in pairing mode, the LED indicator blinking orange
No Sound
Make sure the music volume is at an audible level on both your device and Speaker.
Ensure your device is successfully paired with the Speaker, the LED indicator light being a solid orange.
Poor Sound Quality
Move the portable device closer to the Outdoorsman or remove any obstacle between them.
CAUTION:
• Keep the Speaker and accessories out of reach from children as they may be a choking hazard.
• Keep the Speaker away from re, water, liquids, extreme heat, and strong magnetic elds.
• Do NOT use this Speaker at high volume for an extended time as it may cause permanent hearing damage or loss.
• Do NOT drop or knock the Speaker on hard surfaces.
• Do NOT use chemicals or detergents to clean the speakers.
• Do NOT scrape the surface with sharp objects.
• Do NOT make any unauthorized alterations to the product.
WARNING: This product uses a Lithium based battery. Lithium batteries can overheat and cause damage if physically abused.
Do not use batteries that are damaged or show signs of physical wear.
WARNING: Fire Hazard! Do not short-circuit batteries. Batteries may overheat or explode.
WARNING: Danger to life. Keep batteries out of the reach of pets and children. If swallowed, seek medical advice immediately.
WARNING: Do not expose batteries to water or re. Do not attempt to charge non-rechargeable batteries.The batteries may
explode.
BITE MAGNETIC MOUNT
The Outdoorsman features a powerful BITE magnet incorporated into its housing, which allows the device to be securely attached to a
golf cart bar or frame.
WARNING: Bite feature included with device contains a Neodymium magnet. Magnets could aect the functioning of pacemakers
and implanted heart debrillators. If you use these devices, keep sucient distance from magnet. Warn others who wear these
devices from getting too close to magnets.
• Magnet may lose part of its adhesive force permanently if exposed to temperatures above o F (o C).
• Magnets produce far-reaching, strong magnetic eld. They could damage TVs and laptops, computer hard drives, credit and ATM
cards, data storage media, mechanical watches, hearing aids and speakers. Keep unit away from devices and objects that could be
damaged by strong magnetic elds.
• Magnets have strong magnetic elds which can pinch skin and ngers. Use caution when attaching the unit to a metal bar.

5
STEP 1: Hook ngers into the charging
port locations on the Exo™ Armor.
STEP 1: Place ngers on top of Exo™
Armor lugs and push down.
TAKING OFF AND PUTTING ON THE EXO™ARMOR
Your Outdoorsman Bluetooth Speaker comes with two EXO™ARMOR skins that can be changed
whenever you wish. We encourage you to aways have an EXO™ARMOR on your speaker as it will
help protect your speaker from any falls or drops.
How to put the EXO™ARMOR on your OUTDOORSMAN
STEP 2: Pull and stretch the Exo™ Armor
onto the bottom of the
Outdoorsman.
STEP 3: Pull the Exo™ Armor up the rest
of the way onto the Outdoorsman.
How to remove the EXO™ARMOR from your OUTDOORSMAN
STEP 2: Continue pushing down until
the Exo™ Armor is halfway down.
STEP 3: Pull the Exo™ Armor o the
Outdoorsman the rest of the way.
USING THE BITE STRAP
Your Outdoorsman Bluetooth Speaker comes with another helpful accessory, the adjustable
BITE Strap. Using the BITE Strap, you can secure your speaker to almost any object around your
campsite. Open and adjust the cam buckle to t around the object you want to attach the
speaker. This could be a tree trunk, a secured post, etc. Once the strap is tight around the object,
secure the cam buckle. Place the BITE Magnet, on the back of the speaker, on the metal plate.

6
ONE YEAR LIMITED WARRANTY
Your Bushnell® Outdoorsman Bluetooth® Speaker is warranted to be free of defects in materials and workmanship for one year after the date of
purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product
postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone
other than a Bushnell® Authorized Service Department.
Do not send in accessories (case, strap, etc.), only the product for repair.
Product should be well packed in a sturdy outside shipping carton to prevent damage in transit, and shipped to the address listed below:
IN U.S.A. Send To: IN CANADA Send To:
Bushnell® Outdoor Products Bushnell® Outdoor Products
Attn.: Repairs Attn.: Repairs
 Cody  Great Gulf Drive, Unit B
Overland Park, Kansas  Vaughan, Ontario LK W
For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information.
This warranty gives you specic legal rights. You may have other rights which vary from country to country.
Technical Specications
Bluetooth Version .
Support HFP V1.5, A2DP V1.2, AVRCP V1.4, GAVDP V1.2, AVDTP V1.2, SPP V1.2, AVCTP V1.2
Wireless work distance 10m
Output power 2x10W
Driver Unit 2 x φ45mm (4, 2x15w)
Frequency response 80Hz – 16Hz
Signal-to-noise ratio ≥701dB
Battery type Lithium-ion 2x (7.2V/2600mAh)
DC input voltage/current MICRO USB DC 5V/0.5A-2A
Playtime 5-12 hours (varies by volume level and content)
Battery charge time 3 hours 92A)
Dimensions 192 x 91 x 91mm
Weight 713.5g
FCC ID: 2ASQI-OUTM1BTS
IC: 24886-OUTM1B
©2021 Bushnell Outdoor Products
Bushnell,™, ®, denote trademarks of Bushnell Outdoor Products
www.bushnell.com
9200 Cody, Overland Park, KS 66214
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cable must be used with the equipment in order to comply with the limits for a
digital device pursuant to Subpart B of Part 15 of FCC Rules. Specications and designs are subject
to change without any notice or obligation on the part of the manufacturer.
Disposal of Electric and Electronic Equipment
(Applicable in the EU and other European countries with separate collection systems)
This equipment contains electric and/or electronic parts and must therefore
not be disposed of as normal household waste. Instead, it should be disposed
at the respective collection points for recycling provided by the communities.
For you, this is free of charge. If the equipment contains exchangeable
(rechargeable) batteries, these too must be removed before and, if necessary, in
turn be disposed of according to the relevant regulations (see also the respective
comments in this unit’s instructions). Further information about the subject
is available at your community administration, your local waste collection
company, or in the store where you purchased this equipment.
