buster HBTV-55D02FD User manual

LCD TV
Model No.
Este manual t€cnico € de uso exclusivo da Rede Autorizada H-Buster. N•o existem pe‚as ou partes que possam
ser reparados pelo consumidor final, sob riscos de choque el€trico, causando ferimentos
ƒ proibida a distribui‚•o, comercializa‚•o ou c„pia deste documento.
HBTV-55D02FD
ATEN…†O
© 2011 H-BUSTER DO BRASIL
MANUAL DE SERVIÇO
graves.
Sujeito a modificações.

Service Manual
HBTV-55D02FD
2
CONTENTS
Chapter 1.General Information
. General Guidelines ................................................................................ 4
1-2. Important Notice ..................................................................................... 4
1-2-1. Followthe regulations and warnings ..................................................... 4
1-2-2. Be careful to the electrical shock........................................................... 4
1-2-3. Electro static discharge (ESD)............................................................... 4
1-2-4. About lead free solder (PbF).................................................................. 5
1-2-5. Use the genewingparts (specifi ed parts) .............................................. 5
1-2-6. Safety check after repairment................................................................ 5
1-2-7. Ordering Spare Parts............................................................................. 7
1-2-8. Photo used in this manual ..................................................................... 7
1-3. Howto Read this Service Manual...................................................... 7
1-3-1. Usingicons: ........................................................................................... 8
Chapter 2. Specification
2-1. Specification list ...................................................................................... 9

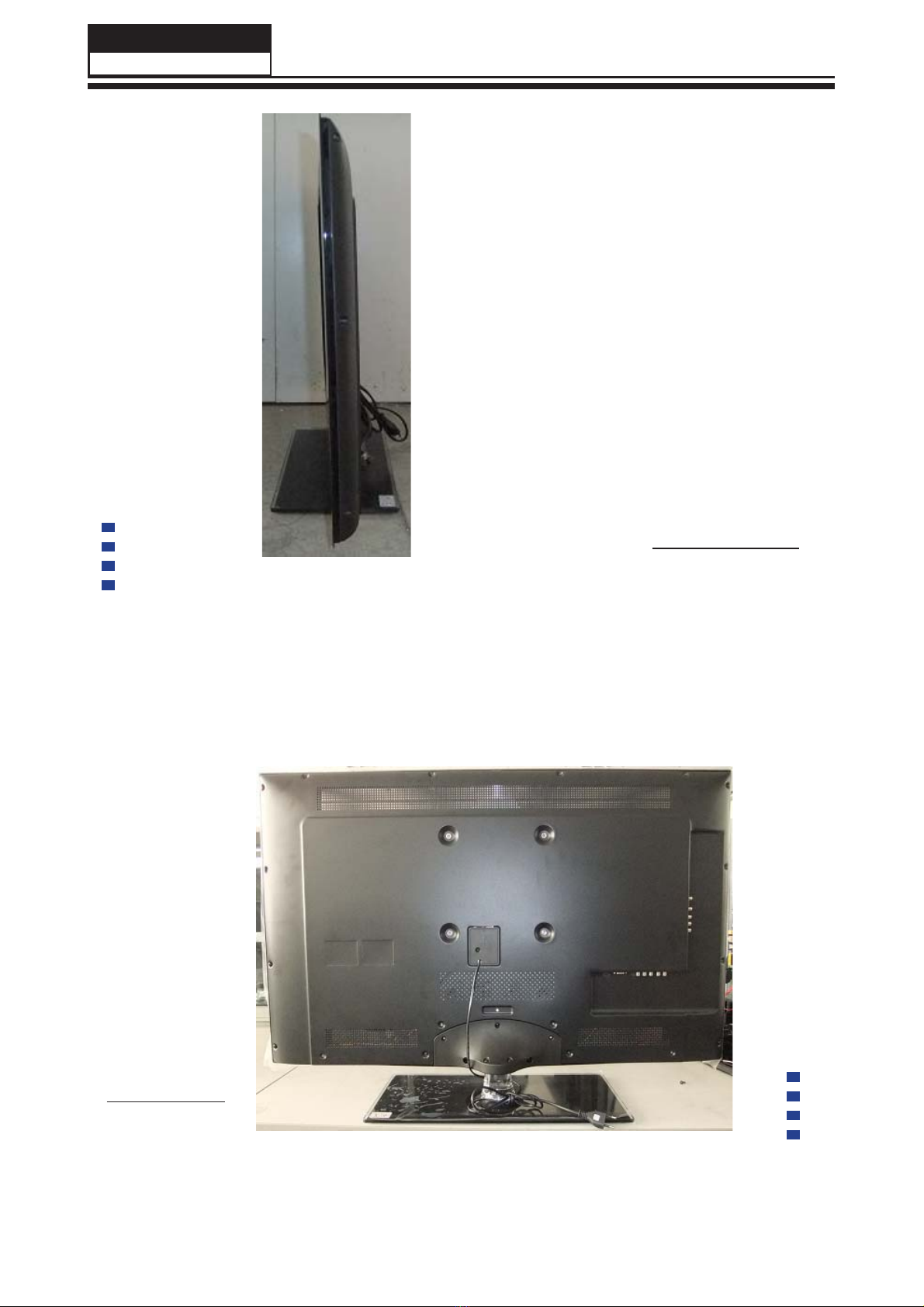

2-2. External pictures (four faces)
..............................................................
10
Chapter 3. Disassemble and Assemble
Chapter 4. Location ofControls and Components

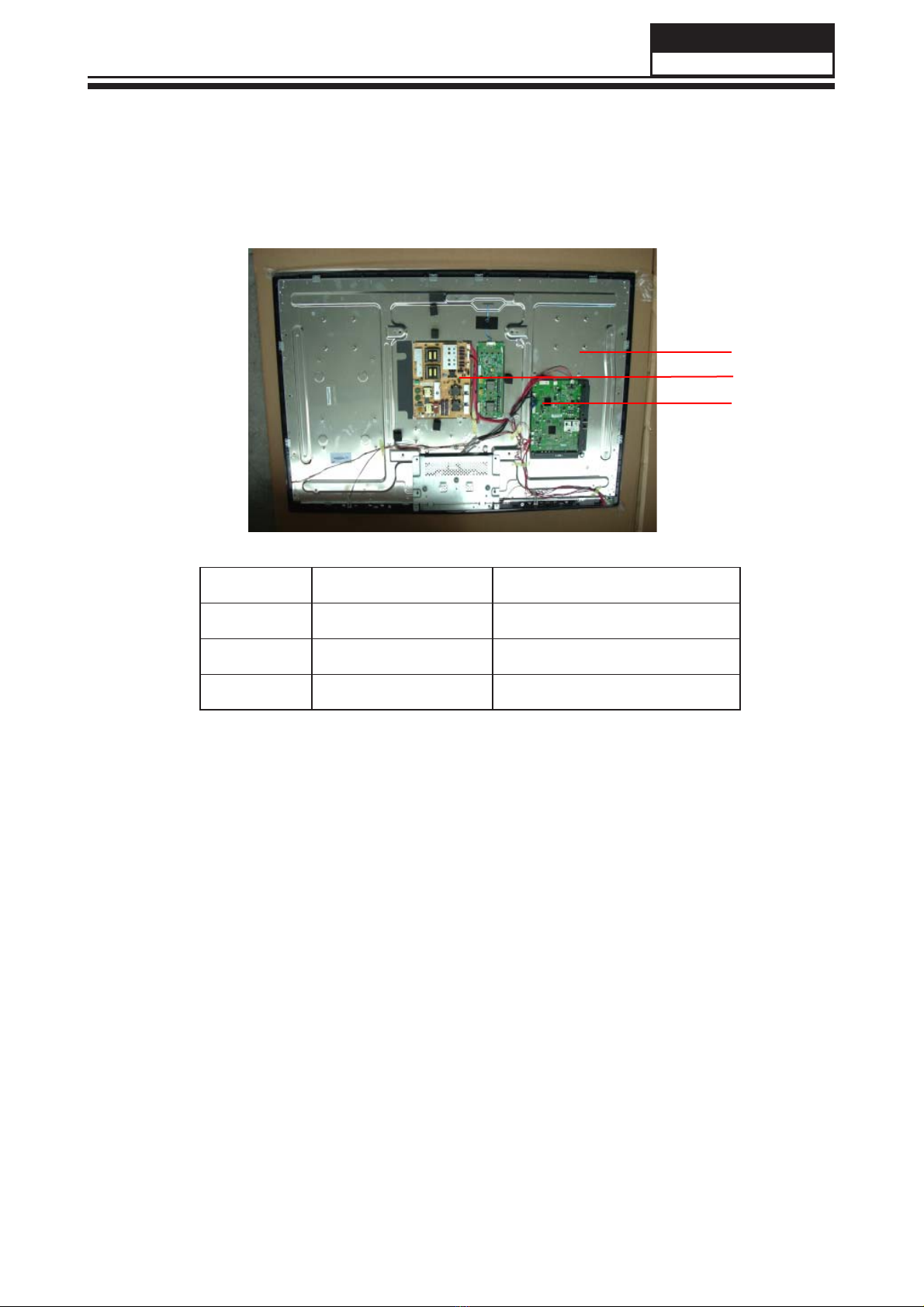

4-1. Board Location...................................................................................... 14
4-2. Main Board .......................................................................................... 15
4-2-1. Function Description: ...........................................................................15
4-2-2. Connector defi ............................................................................15

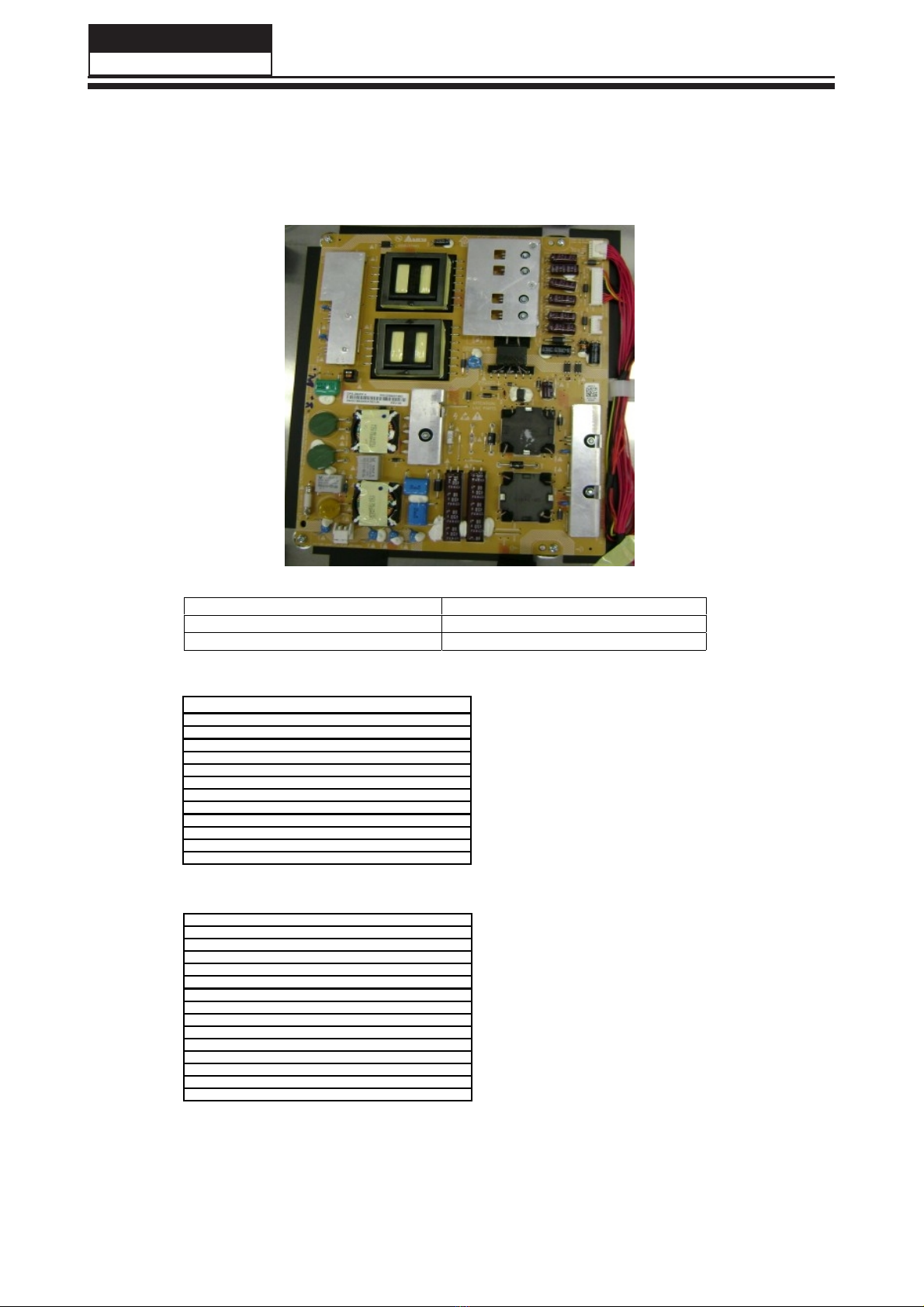

4-3. Power Supply Board.............................................................................
4-3-1. Function description:.............................................................................
4-3-2. Connector defi nition: ...........................................................................
1-1
nition:
Chapter 5. Operation Instructions (simplified)
5-1. Get To Know your TV
.........................................................................
18
20
C
5-2. Get To Know your Remote Control
.................................................
...............................
12
17
17
17

Service Manual
HBTV-55D02FD
3
Chapter 6. Electrical Parts
7-1. Block Diagram. .......................................................................................21
7-2. Circuit Diagram . .....................................................................................22
7-1. Service Mode . .......................................................................................
7-1-1. Howto enter in Service Mode. ..............................................................
7-1-2. Howto exit ............................................................................................
7-2. Measurements and Adjustments . ......................................................
Chapter 8. Fi
rmware Update (Atualização de programa)
C
6-
6-
7
C
Chapter 7. Measurements and Adjustments
8-1. Initial Care (cuidados iniciais).....................................................
Chapter 9. Exploded View and Parts List
8-2. Initial Procedures (Procedimentos Iniciais)................................36
8-2-1. Nedded tools (Ferramentas Necessárias) ..................................................
8-2-2. How to identify the Panel Type (Como identificar o modelo de painel)..........
8-2-2-1. Service Menu Mode (Menu do Modo de Serviço)........................................
8-2-2-2. Rear Side of LCD Panel (lado traseiro do painel de LCD).............................
8-2-3. Copying the firmware to USB Memory Key (copiando o programa no pen-drive)
8-3. Updating the Firmware (Atualizando o programa).....................
(Vista Explodida e Lista de Peças)
Firmware Update Lay-out (Lay-out da atualização do programa)
8-4.
....................................................................................................................38
................................................................................................................
35
35
35
35
36
36
36
37
37
37
37
..........................................39

4
Chapter 1.General Information
1-1. General Guidelines
When servicing, observe the original lead dress. If ashort circuit is found, replace all parts which
have been overheated or damaged by the short circuit.
After servicing, see to it that all the protective devices such as insulation barriers, insulation papers
shields are properly installed.
After servicing, make the followingleakage current checks to prevent the customer frombeing
exposed to shock hazards.
1) Leakage Current Cold Check
2) Leakage Current Hot Check
3) Prevention ofElectro Static Discharge (ESD) to Electrostatically Sensitive
1-2. Important Notice
1-2-1. Followthe regulations and warnings
Most important thingis to list up the potential hazard or risk for the service personnel to open
the units and disassemble the units. For example, we need to describe properly howto avoid the
possibility to get electrical shock fromthe live power supply or charged electrical parts (even the
power is off).
This symbol indicates that high voltage is present inside.It is dangerous to make any
kind ofcontact with any inside part ofthis product.
This symbol indicates that there are important operating and maintenance instructions
in the literture accompanyingthe appliance.
1-2-2. Be careful to the electrical shock
To prevent damage which might result in electric shock or fire, do not expose this TVset to
rain or excessive moisture. This TV must not be exposed to drippingor splashing water, and
objects filled with liquid, such as vases, must not be placed on top ofor above the TV.
1-2-3. Electrostatic discharge (ESD)
Some semiconductor (solid state) devices can be damaged easily by static electricity.
Such components commonly are called Electrostatically Sensitive (ES) Devices. The following
techniques should be used to help reduce the incidence ofcomponent damage caused by
electrostatic discharge (ESD).
Service Manual
HBTV-55D02FD

Service Manual
5
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such
components commonly are called Electrostatically Sensitive (ES) Devices. Examples oftypical
ESdevices are integrated circuits and some field-effect transistors and semiconductor "chip"
components. The followingtechniques should be used to help reduce the ncidence ofcomponent
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped
assembly, drain off any electrostatic charge on your body by touching aknown earth ground.
Alternatively, obtain and wear acommercially available discharging wrist strap device, which
should be removed to prevent potential shock reasons prior to applyingpower to the unit under
test.
2. After removing an electrical assembly equipped with ESdevices, place the assembly on a
conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of
the assembly.
1-2-4. About lead free solder (PbF)
This product is manufactured usinglead-free solder as apart of a movement within the
consumer products industry at large to be environmentally responsible. Lead-free solder must be
used in the servicing and repairingofthis product.
1-2-5. Use the genewingparts (specified parts)
Special parts which have purposes offire retardant (resistors), high-quality sound (capacitors),
lownoise (resistors), etc. are used.
When replacing any ofcomponents, be sure to use only manufacture's specified parts shown in
the parts list.
Safety Component
ƔComponents identified by mark have special characteristics important for safety.
1-2-6. Safety check after repairment
Confirmthat the screws, parts and wiring which were removed in order to service are put in the
original positions, or whether there are the positions which are deteriorated around the serviced
places serviced or not. Check the insulation between the antennaterminal or external metal and
the AC cord plugblades. And be sure the safety ofthat.
HBTV-55D02FD

6
1. Always unplugthe receiver AC power cord fromthe AC power source before:
a. Removingor reinstalling any component, circuit board module or any other receiver
assembly.
b. Disconnectingor reconnecting
any receiver electrical plugor other electrical connection.
c. Connecting atest substitute in parallel with an electrolytic capacitor in the receiver.
CAUTION: A
wrongpart substitution or incorrect polarity installation ofelectrolytic capacitors
may result in an explosion hazard.
2. Test high voltage only by measuringit with an appropriate high voltage meter or other voltage
measuringdevice (DVM, FETVOM, etc) equipped with asuitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any ofits assemblies.
4. Unless specified otherwise in this service manual, clean electrical contacts only by applying
the following mixture to the contacts with apipe cleaner, cotton-tipped stick or comparable non-
abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99%
strength).
CAUTION: This is afl ammable mixture.
Unless specified otherwise in this service manual, lubrication ofcontacts is not required.
Capacitors may result in an explosion hazard.
5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this
service manual might be equipped.
6. Do not apply AC power to this instrument and/or any ofits electrical assemblies unless all
solid-state device heat sinks are correctly installed.
7. Always connect the test receiver ground lead to the receiver chassis ground before connecting
the test receiver positive lead.
Always remove the test receiver ground lead last. Capacitors may result in an explosion
hazard.
8. Use with this receiver only the test fixtures specified in this service manual.
CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.
9. Remove the antennaterminal on TV and turn on the TV.
10. Insulation resistance between the cord plugterminals and the eternal exposure metal should
be more than Mohmby usingthe 500Vinsulation resistance meter.
General Servicing Precautions
Service Manual
HBTV-55D02FD

Service Manual
7
12. Use only a grounded-tip solderingiron to solder or unsolder ESdevices.
13. Use only an anti-static type solder removal device. Some solder removal devices not
classified as "anti-static" can generate electrical charges sufficient to damage ESdevices.
14. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to
damage ESdevices.
15. Do not remove areplacement ESdevice fromits protective package until immediately
before you are ready to install it.
(Most replacement ESdevices are packaged with leads electrically shorted together by
conductive foam, aluminum foil or comparable conductive material).
16. Immediately before removingthe protective material fromthe leads of areplacement ES
device, touch the protective material to the chassis or circuit assembly into which the device will
be installed.
CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety
precautions.
17. Minimize bodily motions when handlingunpackaged replacement ESdevices. (Otherwise
harmless motion such as the brushingtogether ofyour clothes fabric or the liftingofyour foot
from acarpeted floor can generate static electricity sufficient to damage an ESdevice.)
1-2-7. Ordering Spare Parts
Please include the followinginformations when you order parts. (Particularly the Version letter)
1. Model number, serial number and software version
The model number and serial number can be found on the back cover ofeach product. Software
version can be found in the Spare Parts List.
2. Spare part No. and description
Spare part No. and description can be found in the Spare Parts List.
1-2-8. Photo used in this manual
The illustration and photos used in this Service Manual may not base on the final design of
products, which may differ fromyour products in some way.
11. Ifthe insulation resistance is less than M ohm, the inspection repair should be required.
Ifyou have not the 500Vinsulation resistance meter, use aTester. External exposure metal:
Antennaterminal Headphone jack.
HBTV-55D02FD

8
1-3. How to Read this Service Manual
1-3-1. Usingicons:
Icons are used to attract the attention ofthe reader to specific information. The
meaningofeach icon is described in the table below:
Note:
A“note” provides information that is not indispensable, but may nevertheless be
valuable to the reader, such as tips and tricks.
Caution:
A“caution” is used when there is danger that the reader, through incorrect
manipulation, may damage equipment, loose data, get an unexpected result or has to
restart(part of) aprocedure.
Warning:
A“warning” is used when there is danger ofpersonal injury.
Reference:
A“reference” guides the reader to other places in this binder or in this manual,
where he/she will find additional information on aspecific topic.
Service Manual
HBTV-55D02FD

Service Manua
9
Chapter 2. Specification
2-1. Specification list
HBTV-55D02FD
MODELO HBTV-55D02FD
Tamanho de Tela 55 polegadas
Taxa de Aspecto 16:9
Resolução 1920 * 1080
Tempo de Resposta (ms 6 ms
Ângulo de Visão 178°
Contraste 5000:1
Brilho 450 cd/m²
Idioma OSD Ing/ Por/ Esp
Sistema de Cor PAL / NTSC / ISDB-Tb
Sistema de Audio M / N
Potência de saída (W 10W * 2
Consumo (W 160W
Tensão de entrada (V 100-240V
Frequência (Hz 50/ 60Hz
Peso Líquido (Kg 28,5 (com pedestal
Peso Bruto (Kg 32 (sem pedestal

2-2. External pictures (four faces)
Front Side
Left Side
10
Service Manual
HBTV-55D02FD

Service Manual
11
Right Side
Back Side
HBTV-55D02FD

Chapter 3. Disassemble and Assemble
12
Service Manual
HBTV-55D02FD
1.11.1
①
1.2
1.41.4
②
①
1.31.3
1.1. 1.
①
③
②
X
②
Remove the bottom
5 M4*8
4 M8*8
X
Remove the speaker
2 ST3*12
X
Remove the backcover
14 ST4*12
①X
1 M4*16
X5 M3*6
X
Remove the connection of the bottom
4 M4*8
①X
2 ST4*12
X
Remove the Remote Control Board Assembly
5 5
1 ST3*10
①X
Remove the mainboard
66
6M3*6
X

Service Manual
13
HBTV-55D02FD
①
1.
①
1.
②
Remove the power suuply
7
4 M3*6
X
Remove the panel
8
10 ST4*12
X
14 ST3*8
X

Chapter 4. Location of Controls and Components
Service Manual
14
Item Parts number Descrição
A
B
Tela de LCD
PCI da Fonte
410455 Placa Principal
410453
410455
OBS.: OS ITENS ACIMA SOMENTE PODEM SER SOLICITADOS
MEDIANTE CONSULTA AO SUPORTE TÉCNICO !!!
C
4-1. Board Locations:
HBTV-55D02FD
A
B
C

4-2. Mainboard
4-2-1. Function Description:
Process signal which incept fromexterior equipment then translate into signal that panel can display.
4-2-2.Connector definition
CNB4
CNB3
CN5
CN2
CN4
Remote connectors (CNB4)
Pin number Signal name Description
5
5VSTB
IR IN
IR
LED_R
LED_B
GND GND
1
2
3
4
15
Service Manual
CN10 CN27
5V-Stand
LED-RED
LED-BLUE
HBTV-55D02FD
HBTV-55D02FD

16
1
2
3
4
Key connectors (CNB3)
Pin number Signal name Description
KEY0
KEY1
3.3V
Speaker connectors (CN27)
1
2
3
Pin number Signal name Description
R-
L+
L-
4R+
Left of audio
Right of audio
Left of audio
Right of audio
1
2
3
Pin number Signal name Description
Service Manual
GND GND
KEY0
KEY1
3.3V
Power connectors (CN10)
4
5
6
7
8
9
10
11
12
12V 12V-Mainboard
12V
12V
GND GND
GND
GND
GND
GND
12V-Mainboard
12V-Mainboard
5VSTB 5V_standby
E-PWM ([WHUQDO3:0&RQWURO
GND GND
PW-ON/OFF Power on/off
NC NO Connection
PB-ON/OFF Back light on/off
HBTV-55D02FD

4-3. Power Supply Board
4-3-1. Function description: to supply power for Mainboard, Panel.
4-3-2. Connector definition:
17
Service Manual
HBTV-55D02FD
CN3
Pin Nmuber Signal Name
1 24V
2 24V
3 24V
4 24V
5 24V
6 GND
7 GND
8 GND
9 GND
10 GND
12 BL-ON/OFF
13
STATUS
14 PWM-DIMMING
11
NC
CN2
Pin Number Signal Name
1 12V
2 12V
3 GND
4 12V
5 GND
6 GND
7 5V
9 GND
10 P-ON/OFF
12 B-ON/OFF
8 PWM-DI
MMI
NG
11 NC
CN1
Pin Number Singal Name
1 L
2 R

Chapter 5. Operation Instructions (simplified)
5-1. Get to know your TV
Service Manual
18
Controls
TV Side panel controls and connections
LOV
HC
UNEM
TV/AV
1
2
3
4
5
1TV/AV
Press this key to open/close signal source
options menu.
2MENU Menu display. Press to access the on-screen
menu display.
3VOL +/-
Press to adjust the volume. In the MENU screen,
these buttons serve as right/left buttons.
4CH +/-
Press to scan through channels.To scan quickly
through channels, press and hold down either
+/- . In the MENU screen, these buttons serve
as up/down buttons.
5POWER
HBTV-55D02FD

Service Manual
19
HDMI1 IN
ANT IN
(AIR)
ANT IN
(CABLE)
DIGITAL AUDIO OUT
(OPTICAL) USB
AUDIO
COMPONENT1 IN
LYP
bPr
R
VIDEO VIDEO
AUDIO
AV OUT AV IN COMPONENT2 IN PC IN HDMI3 IN
HDMI2 IN
LRLRLR
YP
bPr
AUDIO AUDIO PC PC/DVI AUDIO
1 2 3 4 5 6 7
8
9
10
11
12
13
14
15
16
1AV OUT Connect the
audio L/R and video cables to your
other video equipment .
2AV In Connect the AV signal from a video device to
this jack.
3Component 2
Video In Connect a component video device to this jack.
4Component 2
Audio In
Connect the audio L/R cables from the
component video signal source to this jack.
5PC Video In Connect a video cable from a computer to this
jack.
6PC/DVI Audio
In
Connect the audio L/R cables from a computer
to this jack.
7HDMI3 In Connect a HDMI device to receive digital audio
and uncompressed digital video.
8HDMI2 In Connect a HDMI device to receive digital audio
and uncompressed digital video.
9HDMI1 In Connect a HDMI device to receive digital audio
and uncompressed digital video.
0Component1
Video In Connect a component video device to this jack.
AComponent1
Audio In
Connect the audio L/R cables from the
component audio signal source to this jack.
BAntenna
Input Connect RF antenna to this jack.
CCable Input Connect cable signals to this jack.
DHeadphone
jack Headphone audio output terminal.
EDigital Audio
Output
Connect various types of digital audio
equipment.
FUSB jack
Connect USB storage device to this jack.
Connection Options
Back panel connections
HBTV-55D02FD

Remote control
The remote control cannot be operated unless the batteries are properly loaded.
When using the remote control, aim it at the remote sensor on the TV.
1Power Press to turn on and o theTV
2INPUT Show the input source
3MTS/SAP Select MONO, STEREO, SAP
4CCD (closed caption) Select a closed caption option
5P.SIZE
Select the aspect ratio
6H.LOCK Hotel Lock button
7tCVUUPO Press to select digital channels. For example, to enter “54-3”,
QSFTTiwitwBOEiw
8MUTE Switches the sound on or o
9VOLUME UP/DOWN Press to adjust the volume
0MENU Press to open the on-screen menu
A5IVNCTUJDL6Q%PXO
Left/Right)
Allows you to navigate the on-screen menus and adjust the
system settings to your preference
BSOUND Press to cycle through dierent sound settings
C$PMPSCVUUPO
Press to operate the Functions in GUIDE/Program Edit/Block
Program/USB
D
G
I
X
5IVOCTUJDL64# Allows you to nacigate the on-screen menus in USB function,and
17 for Previous, 34 for Next;
EREV Fast Reverse (Only for USB)
FENTER Conrm button (Only for USB)
H1MBZ1BVTFCVUUPO (Only for USB)
JUSB Press to switch input source to USB in
KDNR Digital Noise Reduction
L4-&&1CVUUPO Press to display the sleep timer option
MCH.LIST Open the channel list in TV
NFAVORITE Open the favourite channel list inTV
O/VNCFSCVUUPOT Press to change a channel
PINFO Show Informations about the programs and USB les
QQ.VIEW Press to jump back and forth between two channels
RCHANNEL UP/DOWN Press to scan between the last two channels, press and hold
down either +/--
SQ.MENU Adjust some functions in common use
TOK
Accesses the highlighted item in the on-screen menu
UPICTURE Press repeatedly to cycle through the available picture modes
VFWD
Fast forward
WGUIDE
Display the guide when you are watching analog or digital channels
YEXIT Clears all on-screen displays and returns to TV viewing from any
menu
ZREPEAT Replay a music or movie
[ZOOM
Press to magnify/minify an image
ENTER
ZOOM
OK
GUIDE
EXIT
REPEAT
INPUT
MTS/SAP
INFO
MUTE
VOL CH
MENU
Q.MENU
SOUND PICTURE
Q.VIEW
P.SIZE H.LOCK FAVORITE CH.LIST
CC DNRSLEEP
USB
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Service Manual
20
5-2. Get to know your remote control
HBTV-55D02FD
