BUTCHER BOY SA16 LH Installation manual

B
U
T
C
H
E
R
B
O
Y
AMERICAN MEAT EQUIPMENT LLC.
640 MULBERRY AVE
SELMER, TN. 38375
PHONE: [phone]
FAX: [phone]
OPERATION MANUAL
MUST BE READ AND UNDERSTOOD BY ANYONE
USING THIS SAW
®
SA16 LH
STAINLESS STEEL
BAND SAW
®
Last printed 5/27/2011 10:47 AM

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW
PAGE 1
WARNING
NEVER TIGHTEN BLADE
BEYOND RED
INDICATOR LINE.
BLADE BREAKAGE,
SHORTENED BEARING
LIFE AND SHAFT
BREAKAGE MAY
OCCUR.
Flange
ADJUST CAMBER OF LOWER WHEEL BY:
1. Completely release tension on saw blade by loosening
tension handle (see above).
2. Loosen top nut in front of flange, then turn nut in back of
flange clockwise ½ turn. Tighten top nut. Repeat this
procedure as many time as necessary. When finished, tighten
top nut securely
Stud
Cabinet Wall
Top Nut
Back Nut
Correct tension is
on blade when red
line on indicator
lines up with the
edge of the wheel
hanger.
Adjusting screw

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW
PAGE 2
UPPER
WHEEL:
2 to 4
strokes with
grease gun
every 30
days, as
needed
UPPER BLADE
GUIDE SUPPORT
BAR:
Lubricate daily with
food grade oil while
moving up and down
MEAT
CARRYING
TABLE
WHEELS (4):
Lubricate daily
with edible oil
LOWER WHEEL
BEARING
HOUSING:
2 to 4 strokes with
grease gun every
30 days as needed
TENSION
HANDLE:
Lubricate daily
with edible oil
while screwing
in and out
THICKNESS
GAUGE
THREADS:
Lubricate daily
with edible oil
while screwing
in and out
THICKNESS
GAUGE SLIDE
ROD:
Lubricate daily
with edible oil
while sliding full
length.
After washing and sanitizing spray entire saw (interior and exterior) with food grade white oil.
MOTOR:
If equipped with
grease fittings
grease every six
months with
bearing grease

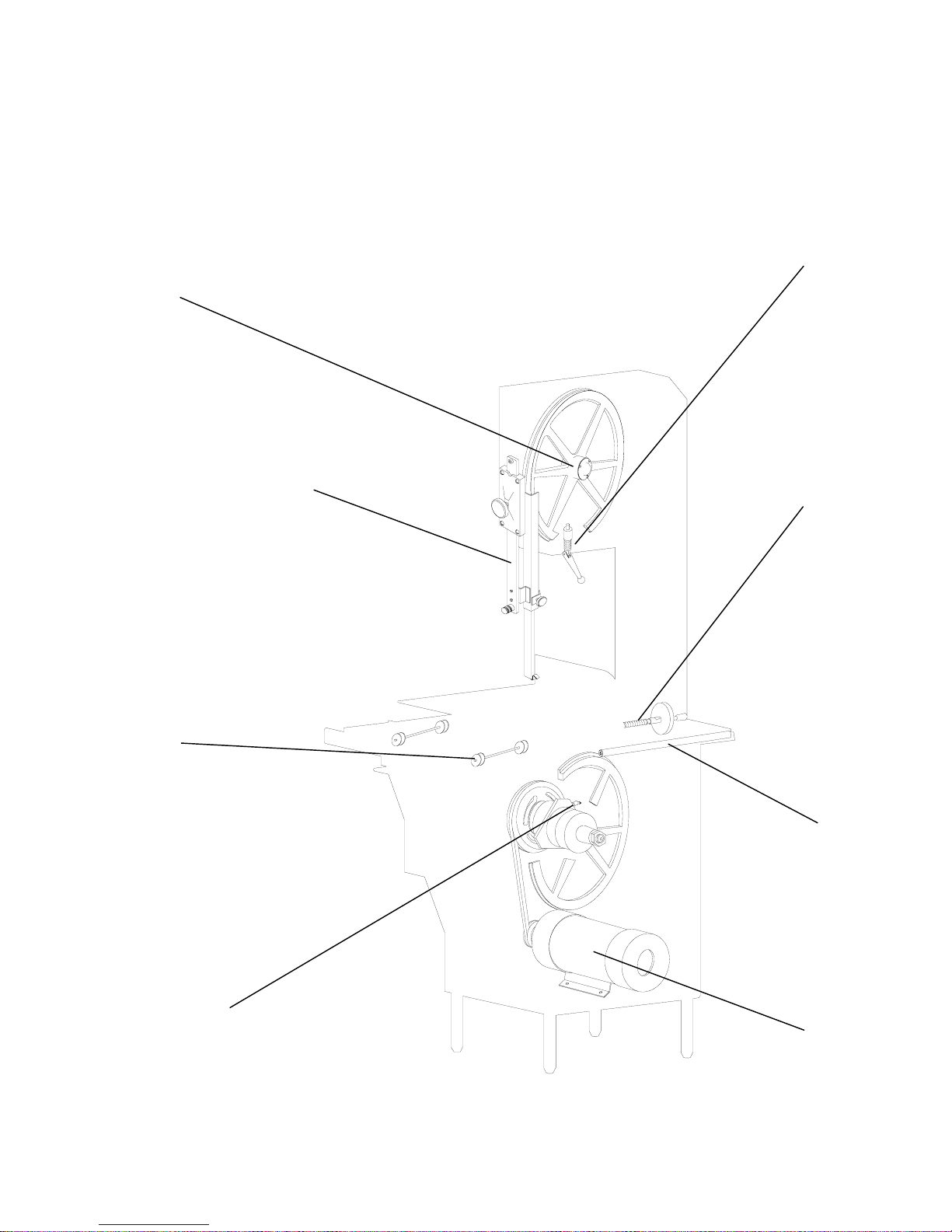

LUBRICATION INSTRUCTIONS

BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW
PAGE 3 LH Last printed 5/27/2011 10:39 AM
12
11
13
14
1
17
10 9
8
7
5
6
18
18
4
2
3
19
20

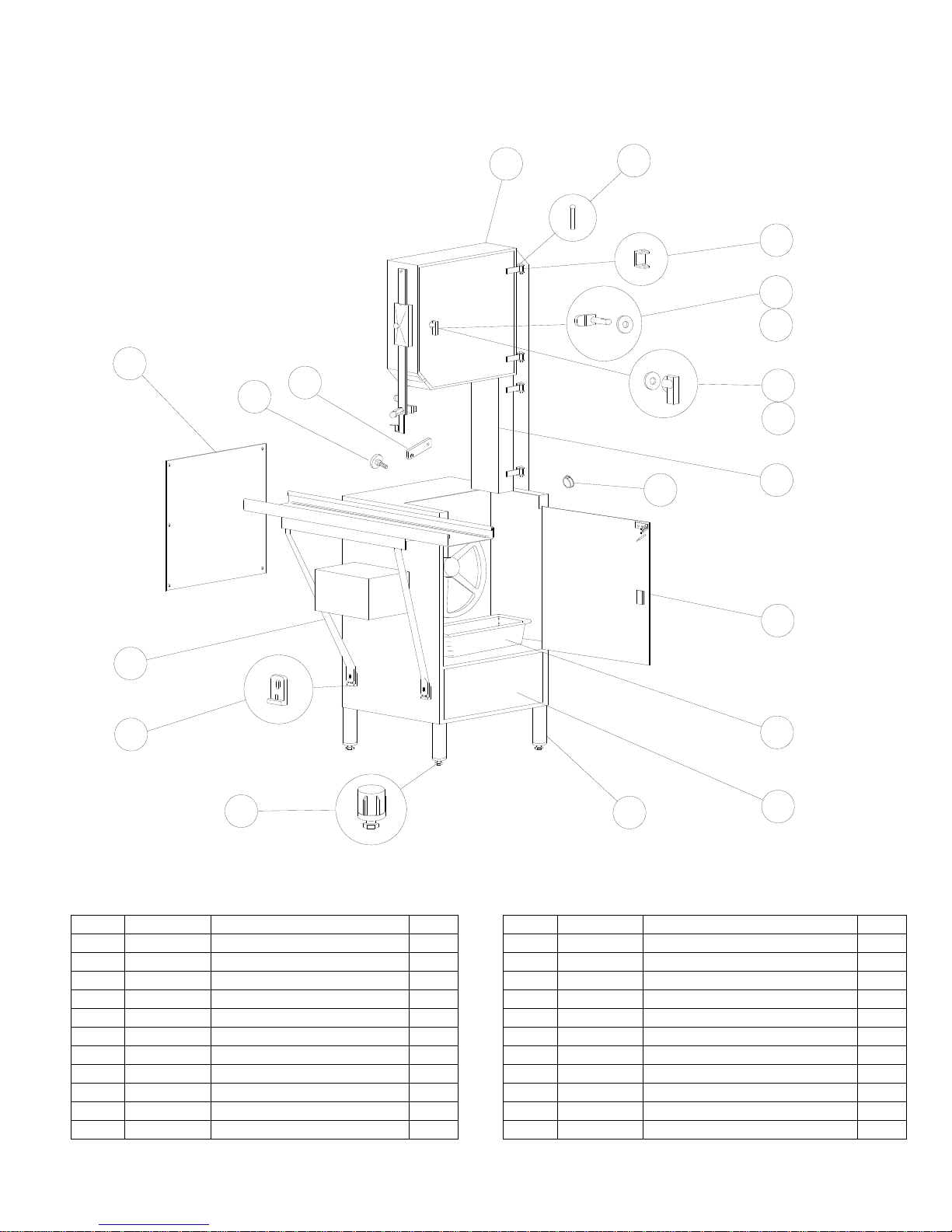

ITEM PART# DESCRIPTION USE
1 00160635 UPPER DOOR ASSY 1
2 0010581 S/S HINGE PIN 6
3 0010571 S/S HINGE 6
4 0010650 S/S LATCH ASSY 2
5 0010401 DOOR HANDLE 2
6 00160770 COLUMN DOOR ASSY 1
7 00160640 LOWER DOOR ASSY 1
8 0014069 BONE BOX 1
9 0016111 MOTOR ACCESS PANEL 2
10 0010307 LEG & FOOT ASSY 4
ITEM PART# DESCRIPTION USE
11 0059390 FOOT ASSY 4
12 0010260 BRACE ADJUST BRACKET 2
13 0010014 BRACE 2
14 0016106 LOWER ACCESS PANEL 1
15
16
17 0093695 PLUG 1
18 0090602 RUBBER WASHER 4
19 00160769 LATCH LH COLUMN DOOR
20 0095084 KNOB LH COLUMN DOOR

BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW
PAGE 4 LH Last printed 10/10/2003 3:28 PM
5
8
6
16
27
17
18
13
15
28 31
30
26
25
24
23
22
21
20
19
1
2
9
10
11
12
13
4
7
3
32
14

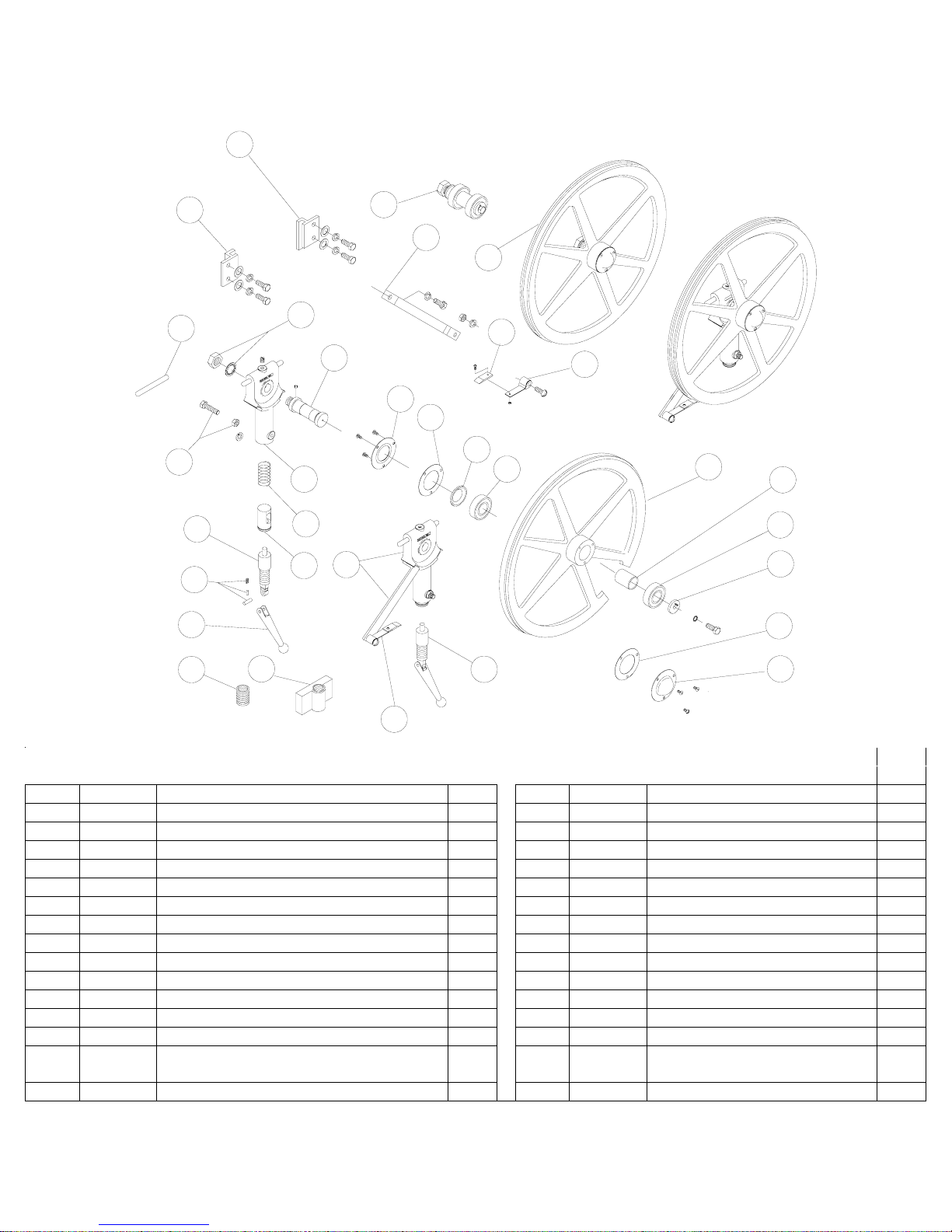

LH UPPER WHEEL ASSEMBLY COMPONENTS
ITEM PART# DESCRIPTION USE ITEM PART# DESCRIPTION USE
1 0010283 GUIDE BLOCK LH 1 18 0010031 HUB CAP 1
2 0010282 GUIDE BLOCK RH 1 19 0016034 GUIDE PIN TENSION GAUGE 1
3 0016511 SCRAPER ARM 1 20 0016175 ADJUSTING SCREW & NUT 1
4 0010040 FIBER SCRAPER 1 21 0010730 UPPER HANGER 1
5 0010277 SCRAPER SPRING 1 22 0010082 TENSION SPRING 1
6 0010574 UPPER SHAFT & BEAR. ASSY 1 23 0010056 INDICATOR 1
7 0016039 16 LH UPPER WHEEL & SHAFT ASSY 1 24 0010033 ADJUSTIN SCREW 1
8 0010770 WHEEL SHAFT NUT AND WASHER 1 25 0016093 PINS & SPRING ASSY 1
9 0010150 UPPER SHAFT W/NUT & WASHER 1 26 0019060 TENSION HANDLE 1
10 0010030 BEARING RETAINER 1 27 0010034 THREADED INSERT 1
11 0010127 GASKET 2 28 0016624 GAUGE BLOCK INSERT 1
12 0090400 RUBBER SEAL 1 29 0016028 BLADE TENSION ASSY LH 1
13 0090302 BEARING 2 30 0016062 HANGER & ARM ASSY LH 1
14 0016324 16” LH UPPER WHEEL 1 31 0016089 TENSION HANDLE ASSY 1
15 0010258 BEARING SAPCER 1 32 0010377 WHEEL SCRAPER ASSY 1
16 0010121 RETAINER & SCREW ASSY 1 33 0016206 16 LH UPPER WHEEL
& HANGER 1
17 0010127 GASKET 2

BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW
PAGE 5 LH Last printed 4/3/2009 7:40 AM

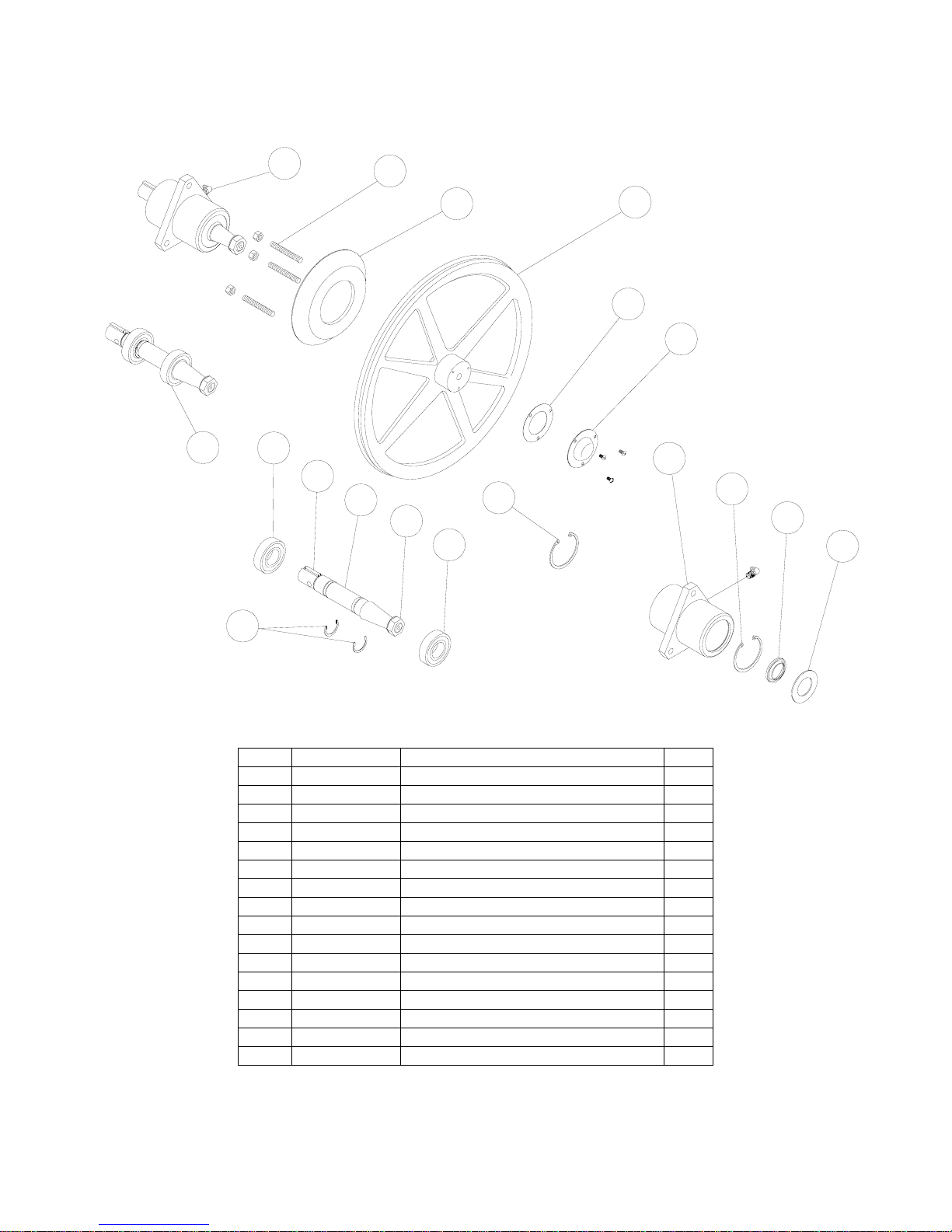

LH LOWER WHEEL AND BEARING HOUSING
4
8
11
14
7
1
6
1
2
5
3
9
2
10
12
13
16
15
ITEM PART# DESCRIPTION USE
1 0090200 RETAINING RING (LARGE) 2
2 0090300 BEARING 2
3 0010023 SHAFT ASSY W/ WASH & NUT 1
4 0090201 RETAINING RING (SMALL) 2
5 0010770 NUT & WASHER FOR SHAFT 1
6 0010024 BEARING HOUSING 1
7 0090400 RUBBER SEAL 1
8 0010029 SPECIAL SEAL 1
9 000059247-8 KEY SHAFT 1
10 0010575 LOWER SHAFT & BEARING ASSY 1
11 0010025 LOWER SHAFT & HOSING ASSY 1
12 0010078 STUD 3
13 0010077 BEARING HOUSING SUPPORT 1
*14 0016325 LOWER WHEEL 16 LH 1
15 0010127 GASKET 1
16 0010031 HUB CAP 1

BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW
PAGE 6 LH Last printed 10/13/2003 7:32 AM
6
7
13
16
17
18
21
20
19
3
4
1
2
5
9
8
11
10
12
15
14

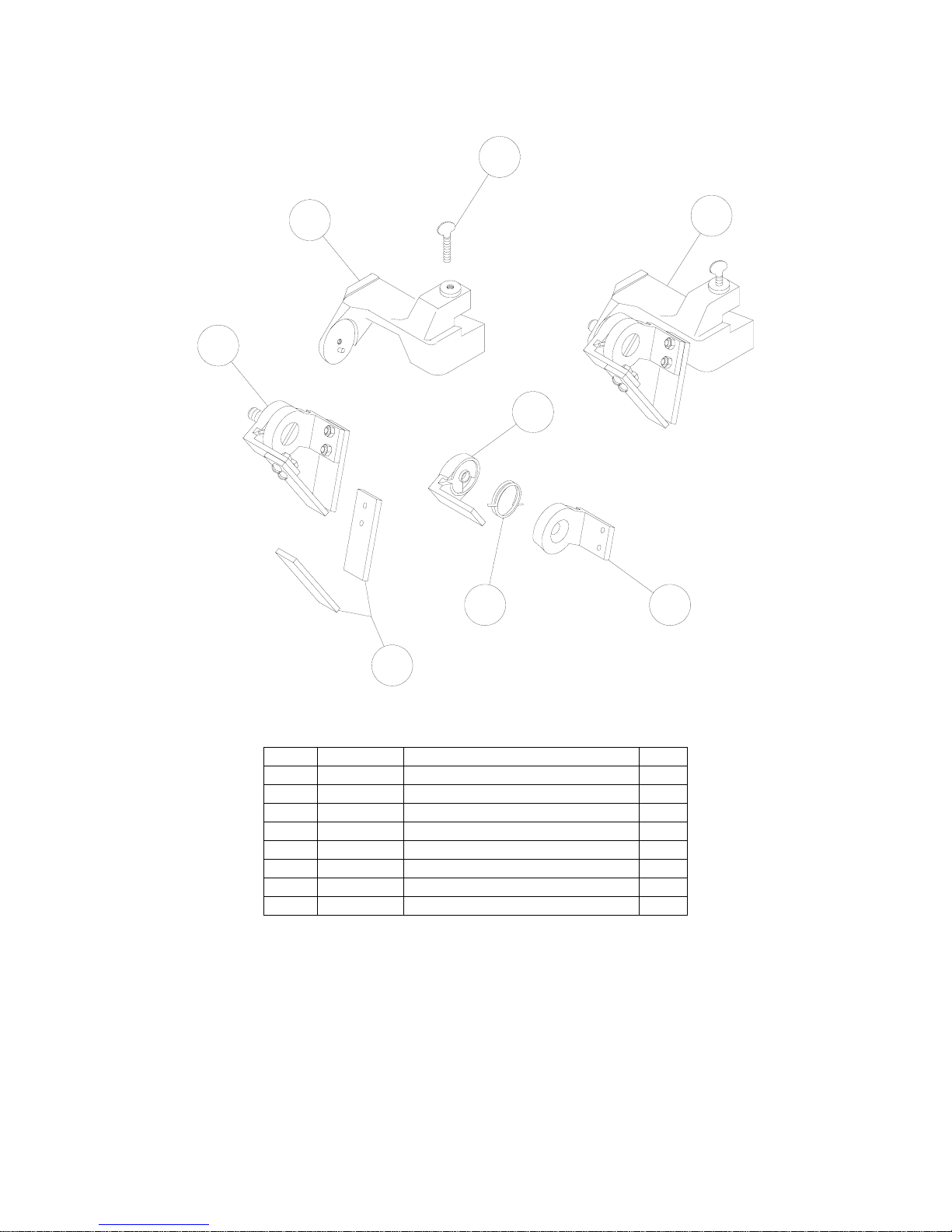

REAR BLADE SCRAPER
ITEM PART# DESCRIPTION USE
1 0010405 LH FRONT SCRAPER ASSY 1
2 0010036 LH FIBER BLADE BLOCK 1
2 0010036P LH PLASTIC BLADE BLOCK 1
3 0010305 LH BLADE SCRAPER HOLDER 1
4 0010002 LOWER BLADE GUIDE STD (.30) 1
4 0020785 LOWER BLADE GUIDE HS (.30) 1
4 0020786 LOWER BLADE GUIDE HS (.018) 1
5 0090301 BALL BEARING 1
6 0010418 KNOB 1
7 0010464 BLADE SCRAPER ASSEMBLY 1
8 0010199 SPRING 1
9 0010302 SCRAPER HOLDER 1
10 0010310 SCRAPER S/S 2
11 0010197 DEFLECTOR 1
12 0010301 SCRAPER HOLDER 1
13 0010040 SCRAPER SPRING 1
14 0010277 WHEEL FIBER SCRAPER 1
15 0010377 SPRING & SCRAPER ASSY 1
16 0010436S S/S SCRAPER BLADE & GUIDE BLOCK 1
17 00160765 LH FRONT MOUNTING BRACKET 1
18 0010378S S/S SPACER BLOCK 1
19 0010417S S/S SPACER 1
20 0010416 POSITIONING BLOCK 1
21 0010412S S/S WASHER 1

BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW
PAGE 7 LH Last printed 10/10/2003 3:42 PM
3
4
1
2
5
76
8
REAR BLADE SCRAPER
ITEM PART# DESCRIPTION USE
1 00160617 SCRAPER MOUNT 1
2 0010460 BLADE SCRAPER ASSEMBLY 1
3 00160618 REAR SCRAPER ASSEMBLY 1
4 0010303 THUMB SCREW 1
5 0010302 SCRAPER HOLD 1
6 0010199 SPRING 1
7 0010301 SCRAPER HOLDER 1
8 0010300 FIBER SCRAPER 2

BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW
PAGE 8 LH Last printed 10/13/2003 7:43 AM
3
2
1
5
7
10 89
13
11
12
4
6
SA16 LH BLADE GUARD
ITEM PART# DESCRIPTION USE
1 00160695 BLADE SUPPORT ADJ BAR 26” 1
2 0020624 BLADE GUARD ASSY LH 1
3 0095084 KNOB 1
4 00160664 BLADE GUARD EXTENSION LH 1
5 0010714 EXTENSION STOP 1
6 0020785 BLADE GUIDE .030 CARBINE 1
6 0020786 BLADE GUIDE .018 CARBINE 1
7 0020782 HOLDER 1
8 0020788 LOCK NUT 1
9 0002789 HAND GRIP HEX NUT 1
10 0090600 KNOB 1
11 0020779 BLADE SUPPORT BAR GUIDE 1
12 0020921 BLADE GUARD ASSY W/EXT LH 1
13 0020770 BLADE GUARD ASSY RH W/26” LG BAR 1

BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW
PAGE 9 LH Last printed 1/11/2008 11:49:00 AM
SA16 LH THICKNESS GAUGE ASSEMBLY
15
6
4
1
5
16
8
9
10
11
12
13 7
7
14
3
2
ITEM PART# DESCRIPTION USE
1 0016071 LH THICKNESS GAUGE W/RATCHET & ROD 1
2 0010512 LH HAND THICKNESS GAUGE ASSEMBLY 1
3 0016535 GAUGE SLIDE ROD ASSEMBLY 1
4 0010041 LH RATCHET LOCK W/HARDWARE 1
5 0010297 ROLLER 1
6 0010389 LH GAUGE PLATE 1
7 0090700 BUSHING 2
8 0010385 LH GAUGE SPINDLE & ARM ASSEMBLY 1
9 0010313 GAUGE ARM SUPPORT 1
10 0010782 LOCK PIN W/WASHER & NUT 1
11 0010315 KNOB 1
12 0010211 PIN 1
13 0010314 SPRING 1
14 0010287 HAND WHEEL 1
15 0010312 LH HOUSING 1
16 0020815 LH SHORT CUT PLATE 1

BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW
PAGE 10 LH Last printed 10/13/2003 8:07 AM
1
5
2
4
3
10
86
7
17
11
12
15
14
13
16
SA16 LH TABLES AND SUPPORT
ITEM PART# DESCRIPTION USE
*1 00160775 LH STATIONARY TABLE ASSY 1
2 00165060 TABLE LOCK LEVER 1
*3 0010339 LH FRONT TABLE SUPPORT 1
4 0010332 REAR TABLE SUPPORT 1
5 0010293 LEVER ADJUSTING LOCK 2
*6 00160760 LH TABLE TRACK 1
7 0010126 TABLE TRACK SUPPORT 2
8 0010037 STOP BRACKET ASSY 2
9 0080612 RUBBER STOP 1
10 0010294 ANGLE SUPPORT ASSY 1
11 0010039 TABLE WHEEL AXLE 2
12 0010098 TABLE HOLDING PIN 3
13 TS-21-16-S THUMB SCREW 1
14 0010068 U-GROVE WHEEL 4
15 0010016 TABLE BUTTON 6
*16 0016354 LH ROLLER TABLE ASSY 1
17 0010003 EXTENSION TABLE (OPTIONAL) 1

BUTCHER BOY SA16 LH STAINLESS STEEL BAND SAW
PAGE 11 LH Last printed 10/13/2003 8:13 AM
1
2
3
4
56
7
8

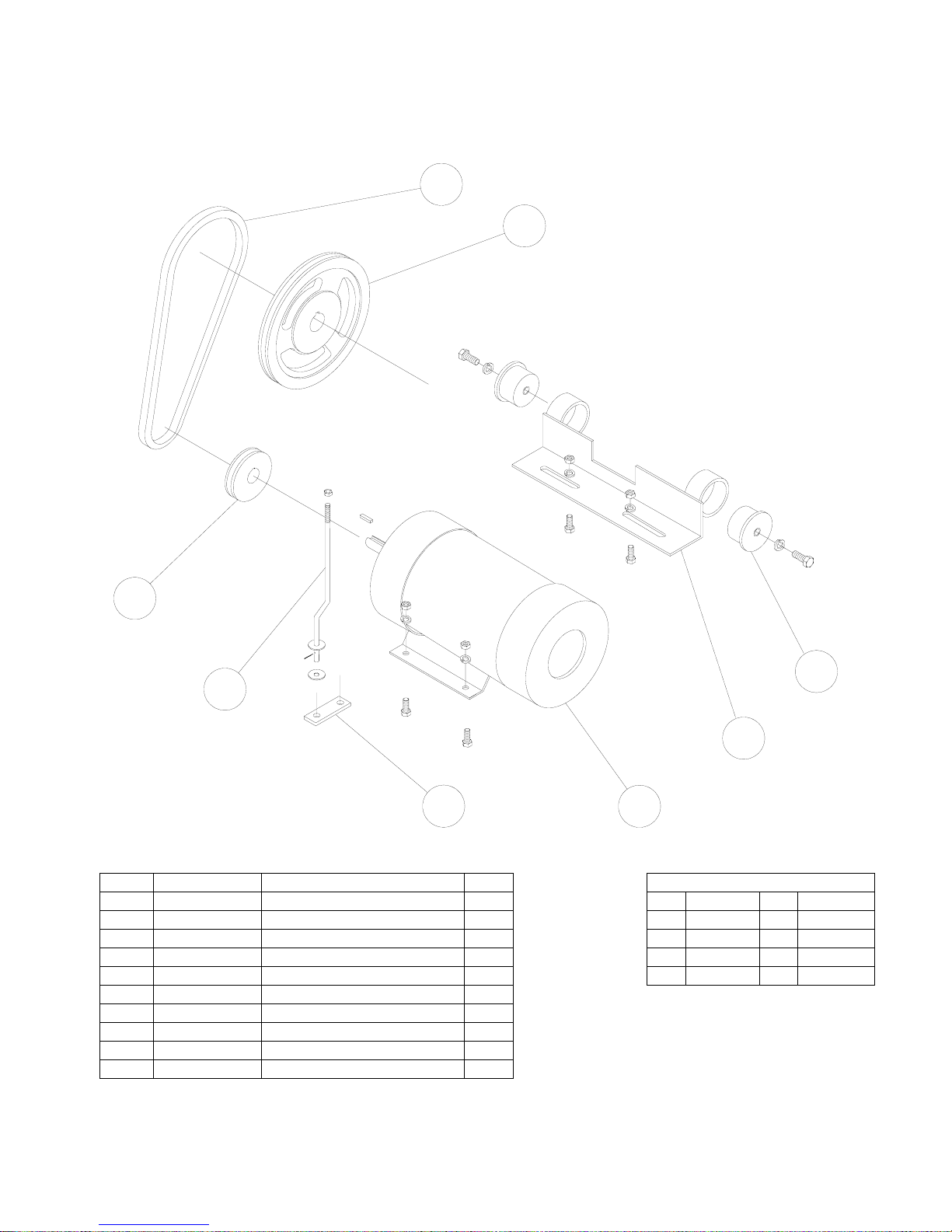

SA16 LH DRIVE UNIT
ITEM PART# DESCRIPTION USE
1 0090537 STANDARD SPEED BELT 1
1 0090513 HIGH SPEED BELT 1
2 0010485 DRIVEN PULLEY (8 3/4") 1
2 0090199-142 DRIVEN PULLEY (6”) 1
3 **** MOTOR PULLEY 1
4 0010384 TORQUE ROD ASSY 1
5 0010430 TORQUE BRACKET 1
6 MOTOR SEE PAGE 13 1
7 0010344 MOTOR MOUNT ASSY 1
8 0010118 RUBBER MOUNT ASSY 1
MOTOR PULLEY****
HP VOLT PH PART#
1.5 115 1 0010485
2.0 208-575 3 0010485
2.0 208-230 1 0010477
3.0 208-575 3 0010477

BUTCHER BOY SA16 STAINLESS STEEL BAND SAW
PAGE12 080107
1
16
STARTER
8
15
7
1411105
4
3
6
2
FUSE F2
(SEE PAGE 13)
12
13
9FUSE F1
(SEE PAGE 13)
13 23 24
A1 S33 S34
S21 S22 A2
14 S11 S12
P
C1
C2
S/N 07C0577-0N
22 21 20
17 18 19
ITEM PART# DESCRIPTION USE
1
11 FUSE F2 (SEE PAGE 13) 1
12 0093999-024 FUSE HOLDER (PRIMARY) 1
13 FUSE F1 (SEE PAGE 13) 2
14 0093999-067 TRANSFORMER (115/24) opt
14 0093999-302 TRANSFORMER (208-460/24) 1
14 0093999-068 TRANSFORMER (575/24) opt
15 00160691 ENCLOSURE 1
16 SEE ITEM # 9
ITEM PART# DESCRIPTION USE
1 STARTER (SEE PAGE 13) 1
2 0093999-030 START BUTTON ASSY. 1
3 0093999-029 RUBBER BOOT 1
4 0093999-031 PUSH BUTTON 1
5 0093999-026 CONTACT BLOCK 1
6 0093999-316 EVALUATION RELAY 1
7 0093999-023 DISCONNECT SWITCH 1
8 0093999-055 SWITCH HANDLE 1
9 0093999-317 READ & ACTUATOR 2
10
ITEM DESCRIPTION PART# USE
17 SWITCH ROCKER 0010911S 1
18 PUSH BUTTON ASM. 0093279 1
19 SPACER 0010909 2
ITEM DESCRIPTION PART# USE
20 COLLAR-WASHER 0010915 1
21 SWITCH HANDLE 0010912S 1
22 COLLAR 0090606S 3

(F2)
2.8A FUSE
TRANSFORMER
L3
T3
MOTOR
ENCLOSURE
CONTACTOR
O/L
SWITCH
NOTE:
115/208/230V, IPH
208/230/460V, 3PH
575V, 3PH
OVER CURRENT
PROTECTION TO BE
SUPPLIED BY USER.
DISCONNECT
L2L1
T2T1
L1 L2 L3
H2
24V
97 9698 95
T2T1
A214 22
13 21 A1
T3
34
START
BUTTON
UPPER
DOOR
SAFETY
LOWER
DOOR
SAFETY
GREEN
RED
STOP
START
RED SWITCH
3 4
2
JUMP
1
BLK
WHT
ROD ACTUATED
OPERATOR
(F1) FUSE
BLUE
YELLOW
GREEN
RED
BLUE
YELLOW
13 23 24
A1 S33 S34
S21 S22 A2
14 S11 S12
J
J
J
P
C1
C2
INPUT CONNECTIONS AS REQUIRE
H1 H3 H4
X2X3 XF X1

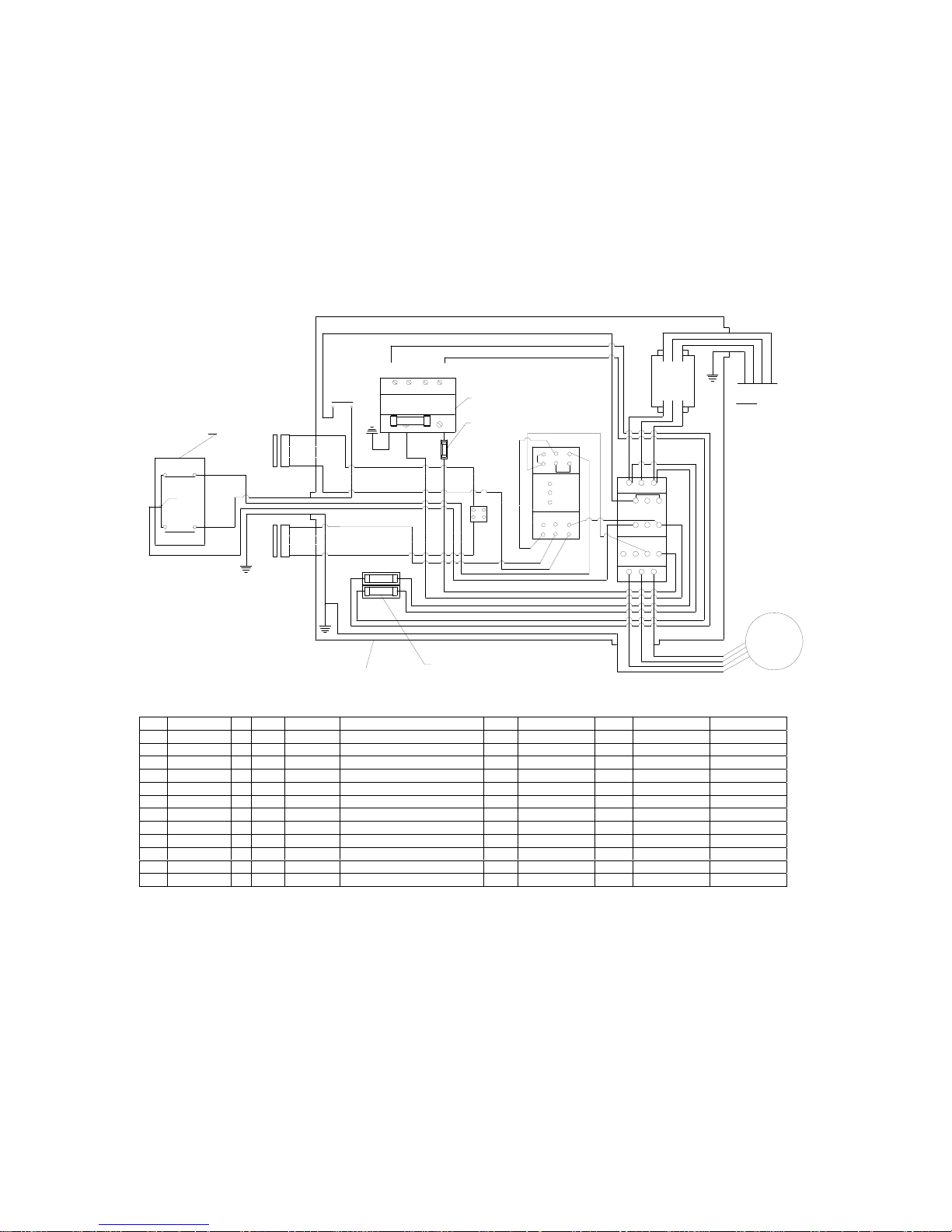

ELECTRICAL
BUTCHER BOY SA16
PAGE 13
HP VOLTAGE ø FLA PART# *OVERCURRENT DEVICE **F1 PART# ***F2 PART# STARTER
1.5 115 1 20 0092093 35A TIME DELAY FUSE .80 0093999-066 2.8 0093999-018 0093999-105
1.5 208 1 11.2 0092093 20A TIME DELAY FUSE .40 0093999-065 2.8 0093999-018 0093999-106
2.0 230 1 8.3 0092107 12A TIME DELAY FUSE .30 0093999-025 2.8 0093999-018 0093999-109
2.0 208 3 7.5 0092118 12A TIME DELAY FUSE .40 0093999-065 2.8 0093999-018 0093999-108
2.0 230 3 6.8 0092118 10A TIME DELAY FUSE .30 0093999-025 2.8 0093999-018 0093999-108
3.0 208 3 10.6 0092169 15A TIME DELAY FUSE .40 0093999-065 2.8 0093999-018 0093999-109
3.0 230 3 9.6 0092169 17.5A TIME DELAY FUSE .30 0093999-025 2.8 0093999-018 0093999-109
2.0 460 3 3.4 0092118 6.25A TIME DELAY FUSE .15 0093999-017 2.8 0093999-018 0093999-110
3.0 460 3 4.8 0092169 8A TIME DELAY FUSE .15 0093999-017 2.8 0093999-018 0093999-111
2.0 575 3 2.7 0092145 5A TIME DELAY FUSE .15 0093999-017 2.8 0093999-018 0093999-110
3.0 575 3 3.9 0092183 6.25A TIME DELAY FUSE .15 0093999-017 2.8 0093999-018 0093999-111
*MAXIMUM OVERCURRENT DEVICE TO BE INSTALLED BY USER TO PROTECT THIS MOTOR CONFIGURATION. PER NEC
**USE CLASS “CC” FUSES ONLY
***
USE TYPE
“
FLM
”
FUSES
