CableCreation CD0032 User manual

http://www.cablecreation.com
CableCreation CD0032 ‘s User Guide
1 Introduction……………………………………………………..1
2 Specifications………………………………………………..…1
3 Package Contents……………………………………………...2
4 Panel Descriptions…………………………………………..…2
5 Connection and Operation……...........................................2

http://www.cablecreation.com
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or adjusting this product.
Please keep this manual for future reference.
1 INTRODUCTION
The USB 3.0 to VGA Adapter allows you to connect an extra monitor to your desktop or
laptop's USB port. You can watch videos or slideshows together on the big screen.
1.2 FEATURES
Support USB 3.0 input and VGA output.
USB 3.0 5 Gbps bandwidth for connecting to computers.
USB 3.0 resolution max up to 1920x1080, including 1600x1200,
USB video supports Primary, Extended, Mirror, Rotate
Supports Operating system for computers:
Windows: Windows 10, Windows8.1, Windows 8, Windows 7 ,Windows Vista,
Windows Server 2008, Windows XP (31-bit),
Mac: Mac OSX v10.8,Mac OSX v10.9,Mac OSX v10.10 , Mac OSX v10.11,macOS
10.12, macOS 10.13, macOS 10.14, macOS 10.15.
Important Notes: If you have updated your macOS to 10.13.4 or onwards version,
please visit the following link to get extend function.
https://support.displaylink.com/knowledgebase/articles/1854724
Android: Lollipop or later (5.0 or later)
Ubuntu:14.04, 16.04, 17.10
2 SPECIFICATIONS
Signal Inputs/Output
Input port
USB 3.0 x1
Output port
VGA x1
Operating Frequency
Vertical Frequency Range
50/60Hz
Video Amplifier Bandwidth
Max to 1.65Gbps/165MHz
Resolutions(HDTV)
480p,576p,720p,1080p
Warranty
Limited Warranty
2- Year
Environmental

http://www.cablecreation.com
Operating Temperature
0℃to +45℃
Operating Humidity
10% to 85 % RH (no condensation)
Storage Temperature
-20℃to +60℃
Storage Humidity
5% to 90 % RH (no condensation)
Power Requirement
External Power Supply
NO
Power consumption (Max)
1.30W
Accessories Adapter
Remote control
NO
User Manual
English Version
Note: Specifications are subject to change without notice.
3 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
Main unit x1
4 PANEL DESCRIPTIONS
5 CONNECTION AND OPERATION
1) Connection
①Connect Computer to USB 3.0 input of this product.
②Connect HDTV to VGA output of this product.
Attention: Insert / Unplug cable gently.
2) Driver Link
http://www.displaylink.com/downloads
Or
https://www.cablecreation.com/download/?ss=CD0032&stype=download

http://www.cablecreation.com

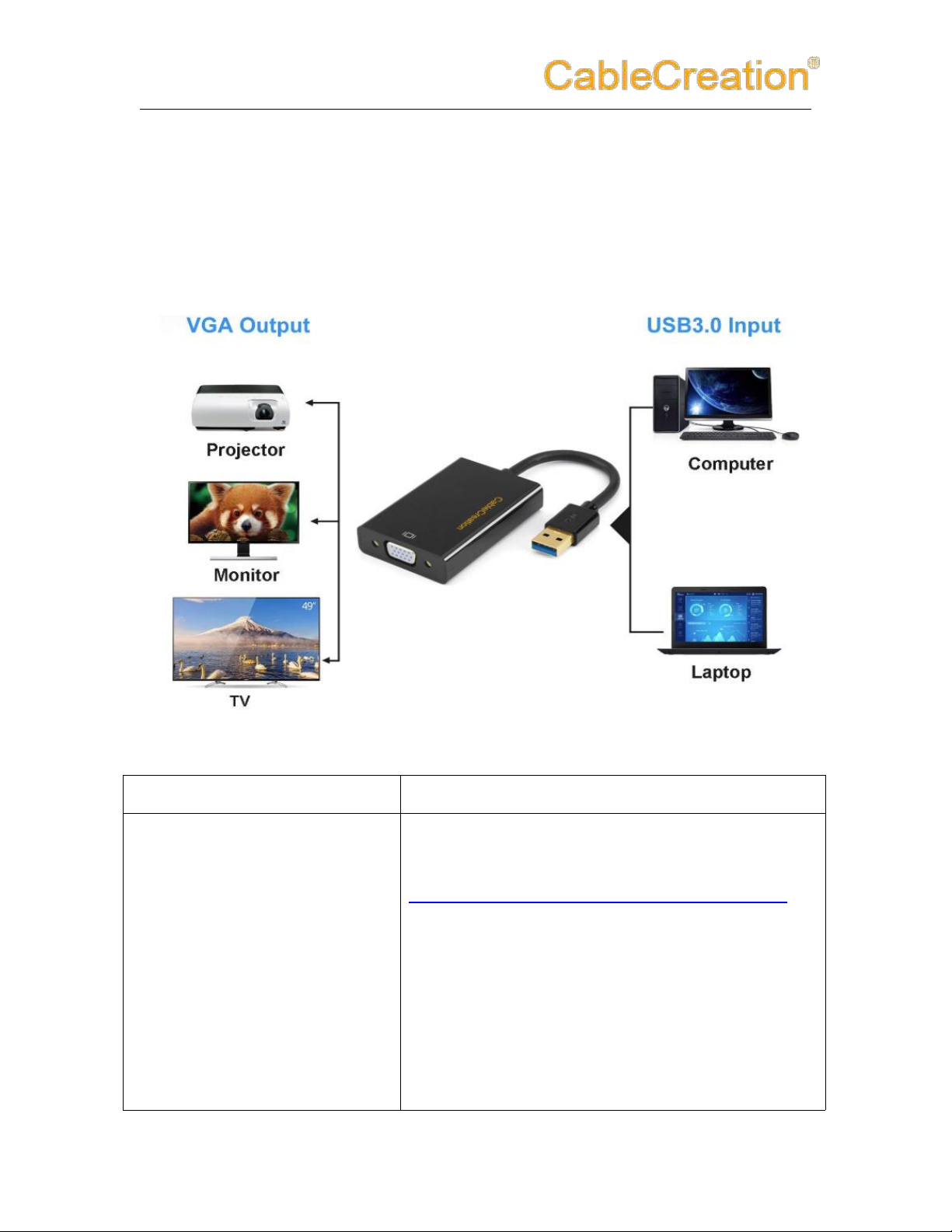

6. CONNECTION DIAGRAM
7.Troubleshooting
Problems
Troubleshooting
How to download and install
drivers for your Windows & Mac ?
For Windows.
1, Visit the correct link to download the driver.
http://www.displaylink.com/downloads/windows
Download and install the driver with your
“Administrator” account, you can also visit your PC or
laptop’s official website, update USB 3.0 host
controller to the latest version.
2, Restart your laptop or PC
3, Set the corresponding VGA port as the input
source. Make the connection stable and securely.
If your VGA cable has the screws, please tighten the
screws.

http://www.cablecreation.com
4, If you just hook this adapter to your VGA monitor
directly(not as the external monitor), after you
started your PC, please be more patient, since the
adapter would work until you see the login Window,
your VGA monitor would not show anything when
you just push the start button on your desktop.
5, If you need to duplicate or extend your desktop,
you can use Windows key(on your keyboard)+P
combination order, then pop different options, you
can choose duplicate or extend your monitor.
For MacOS X and macOS.
1, Visit the correct link to download the driver
http://www.displaylink.com/downloads/macos
2, Use your “Admin” account to install the driver.
You can go to left-upper apple iconSystem
PreferencesSecurity & PrivacyGeneralAllow
apps downloaded from website and identified
developers, or your Mac probably could not be
installed the drivers correctly.
3, Restart your Mac.
4, Set the corresponding VGA port as your monitor’s
input source.
5, If you need to mirror or extend your Mac’s
desktop, you can just go to left-upper apple
iconSystem PreferencesDisplays to set “mirror
displays” or not.
After installed macOS 10.13.4 to
macOS 10.13.6, my Mac does not
support extended mode.
You can refer the following article to get
extended mode.
https://support.displaylink.com/knowledgebase/artic
les/1854724
My MacBook Air could not
support two external monitors.
MacBook Air only supports ONE External Monitor.
If you have used a Mini DP adapter, just unplug it,
and connect this adapter to have a try.
My VGA monitor /projector works
intermittently or stuck.
1, Check your VGA cable’s quality, please make sure
you have used a quality VGA cable. If possible, you
can also swap another VGA cable.
2, Check if the connection stable and securely.
When you were using this adapter, do not move your
laptop or cables. If you have to move your laptop,

http://www.cablecreation.com
Any further questions, you can email to us via [email protected]
Thanks very much,
CableCreation Support Team
after your behavior, please keep the connection
stable.
3, Note that this adapter can support the best
resolution up to 1920*1080. When you need to
mirror your local videos or online videos, keep an eye
on if your video source’s size, you had better not
watch 4K videos using this adapter.
My VGA monitor or TV does not
show anything when I was
watching blue-ray DVD.
Yes. It does not support HDCP function.
My TV does not have sound.
Yes. VGA does not support sound function.
