Caliber RMD 032 User manual

RMD 032
Manual
GB

ENGLISH ENGLISH
MANUAL
I. Control Panel II. Basic operations
1. Power switch/mute/pause button ( )
a) Short press “ ” button in the standby state and the radio will be started up; long press “ ” in the ON state
and the radio will be shut down.
b) Short press this button in the radio or AUX state, and it is the “Mute” function. Short press this button when
the MP3 is being played, and it is the “Pause/Play” function.
2. Mode switching/clock button (MOD/CLK)
a) Short press this button to switch the mode (Radio/USB/SD/AUX).
b) Long press this button to display the clock which will automatically exit after 3 sec. When the clock is
displayed,longpressthisbuttonfor2sec.toadjustthehour:thedigitwillicker,androtatethevolume
knobtoadjustthetime;shortpressthisbuttonagaintoadjusttheminute:thedigitwillicker,androtate
thevolumeknobtoadjustthetime.5sec.aftercompletionoftheoperation,thesystemwillautomatically
conrmthetimeandreturntothestatebeforeenteringtheclockadjustment.
3. Volume control/function selection button
 a) Adjustthisbuttonclockwisetoincreasethevolumeandcounterclockwisetoreducethevolumeinthe
radio/playback state.
b) Short press this button in the radio/playback state to enter function of BASS, TER (treble), BAL (balance),
FAD (fader), EQ (equalizer), LOUD ALL (loudness), DX/LOC (distant/local), STEREO/MONO (stereo radio/
force mono), CH/STEP (choose radio station/stepped frequency), CLOCK24/12 (24/12-hour clock),
orAREAEU/US(Europeanstandard/Americanstandard),andadjustthevolumeknobtoselectthe
corresponding function.
4. Next track/search radio station forwards
a) In the radio state, short press this button to select next radio station, and long press this button to
semi-automatically search the radio stations forwards.
b) In the MP3 playback state, short press this button to select the next song, and long press this button
to fast forward the song.
 5. Display
It displays the radio frequency and current playback information.
6. USB interface (USB)
  InsertaUSBashdrive,anditwillautomaticallyplaythesonginthecorrespondingformat.
7. AUX-IN jack (AUX)
It is used for connecting external audio signal.
8. MicroSD card slot / TF card slot (TF)
Insert a MicroSD card, and it will automatically play the song in the corresponding format.
9. Reset button (RES)
Short press this button to conduct system resetting when the radio system functions in disorder.
The radio shall be restarted for operation after the resetting.
 10. Previoustrack/searchradiostationbackwards
 a) Intheradiostate,shortpressthisbuttontoselectpreviousradiostation,andlongpressthisbuttonto
semi-automatically search the radio stations backwards.
 b) IntheMP3playbackstate,shortpressthisbuttontoselecttheprevioussong,andlongpressthisbutton
to fast backward the song.
11. Band switching/automatic station locking (BND/AMS)
In the radio state, short press this button to switch the band (FM1-FM2-FM3), and long press this button
to automatically search the radio stations and store the searched stations in P1-P6 in order; after the
automatic search, the radio station stored in P1 will be automatically played. 6 radio stations can be stored
in each band, and 18 radio stations in total can be stored.

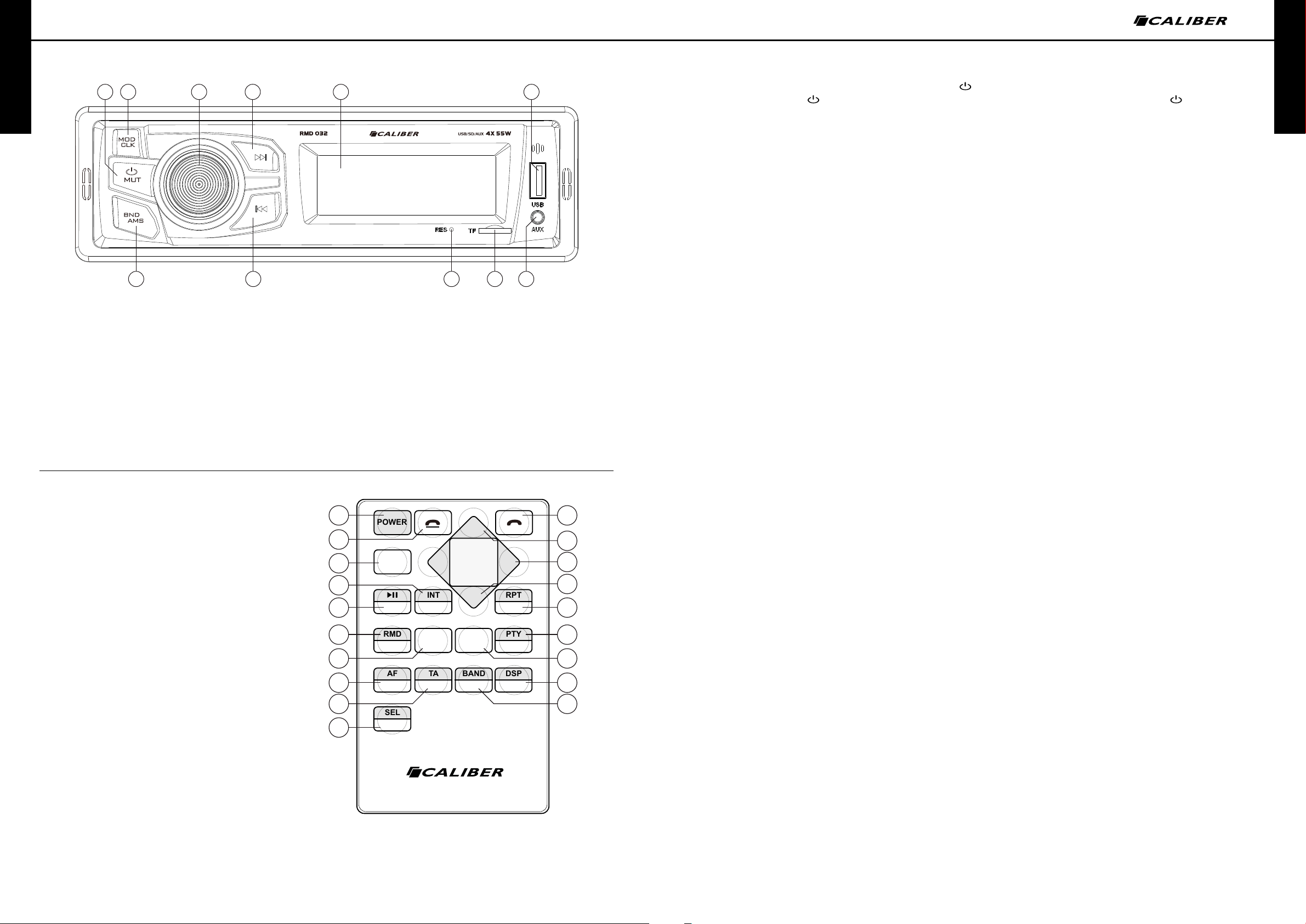

1. Power switch/Mute/Pause
2. Mode switching/Clock button
3. Volume control/Function selection
4. Next track/Search radio station forwards
 5. Display
6. USB interface (No charge function)
7. AUX-IN jack
8. MicroSD card slot
9. Reset button
10. Previoustrack/Searchradiostation
backwards
11. Band switching/Automatic
memory storage
POWER
MODE
1
12
2
INT
3
RPT
4
RMD
5
7
PTY
8
AF
9
TA
*
DSP
0
BAND
#
SEL
6
VOL
VOL
87 TUNE/SEEK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1. Power ON/OFF
2. End/ignore call (only for Bluetooth models)
3. Mode switch
(Tuner/AUX/Bluetooth)
4. Intro play / Preset 2 / No. 2
 5. Play/Pauseplayback/Preset1/No.1
 6. Shufeplayback/Preset4/No.4
 7. Preset5/No.5/-10tracks
8. RDS AF mode / Preset 8 / No. 8
9. RDS TA mode / Preset 9 / No. 9
10. Audio (settings) menu / Numeric #
11. Call pickup (only for Bluetooth models)
12. Increasevolume/+inmenu
13. Next track / tune seek
14. Decreasevolume/-inmenu
15. Repeatmode/Preset3/No.3
16. PTY / Preset 7 / No. 7
 17. Preset6/No.6/+10tracks
18. Display / Numeric *
19. Band / Numeric 0
421 3
11 10
5 6
89 7

ENGLISH ENGLISH
MANUAL
Warning: The negative speaker lead should NOT be grounded,
otherwise it will damage the radio!
III. Operating Instructions for Station Adjustment
Manual step-by-step station adjustment
In the radio state, short press “SEL” button for many times to enter the “CH” (choose radio station) state, and
adjustthevolumeknobtoenter“STEP”(steppedfrequency)state.Andthenshortpress“ ” or “ ” to adjust
thestationstepbystep,andthesystemwillautomaticallyreturnto“CH”stateafter5sec.withoutoperation.
V. Installation Drawing
1. Before installing the radio, place the radio according to the assembly position, and connect the corresponding
speaker line and power line for listening test.
2. Fix the radio only after its running effect is ideal.
Install the radio
1. Install the support on the dashboard,
and bend its partial parts for sticking in
the positions.
2. Connect the power line and speaker line,
andxthexingplateonthecar.
3. Insert the antenna plug and push the
radiointothesupport,andtightenxing
screwsofthexingplate.
Disassemble the radio
Insert both of the tool for disassembling
radio into the gaps on left and right sides
to make them hook the radio, and then
gently pull out the tools to make the radio
separated from the support.
Then disassemble the connecting lines
and unplug the antenna plug.
VI. Wiring Diagram
ISO connector:
WARNING!
To connect the unit, use ISO connectors only.
Ifyourvehicleisn’tequipedwithanISOconnector,pleaseusethe
providedISOloomcable.Thispreventsanincorrectwiredconnection.
Damage caused by faulty wiring: warranty will be void.
