Caliber RMD602 User manual

MP3/USB/SD/MMC Player,
with FM/MW Tuner
Operating Instructions
Thank you for purchasing the
RMD602

1
Safety Precautions
To ensure safe driving, please adjust the
volume to a safe & comfort level in case of
emergency situations.
Never expose this unit, amplifier, and
speakers to moisture or water for preventing
electric sparks or fires.
Please don't change the fuse on the power
cord without professional guidance, using
improper fuse may cause damage to this unit
or even cause fire.
Please power off this unit at once and send it
back to the after-sales service center or the
dealer/distributor you purchased from if one
of the following symptoms is found:
(a). No audio output;
(b). No image output;
(c). Water or other obstacle enters the unit;
(d). Smoking;
(e). Peculiar smell.
Only connect the unit to a 12-volt power
supply with negative grounding.
MUTE
OK
MUTE
OK
Never install this unit where the operation &
condition for safety driving is restrained.
MUTE
OK
MUTE
OK
Never use the video display function in the
front when driving to prevent the violation of
laws & regulations and also to reduce the
risk of traffic accident except using for rear
view video camera.
MUTE
OK
MUTE
OK
MUTE
OK
MUTE
OK
Thank you for purchasing this product.
Please read through these operating
instructions so you will know how to operate
your model properly. After you have finished
reading the instructions, keep this manual in
a safe place for future reference.
To provide a clear demonstration and an
alternative for easy understanding of the
operation of this unit, graphic illustration
was used. However, this illustration is not
necessary printed as the actual image found
on the unit.

2
Contents
Safety Precautions ......................................... 1
Contents ......................................................... 2
Features .........................................................3
Panel Controls................................................ 4
Remote Controls ............................................5
Basic Operations............................................ 6
Rotary Knob Menu ......................................7-8
Radio Mode....................................................9
USB/SD/MMC/MP3 Playback .................10-14
Device Connections ................................15-17
Installation Guide.....................................17-19
Anti-Theft System.........................................19
Troubleshooting............................................ 20
Specifications ...............................................21

3
WMA and MP3 Compatibility
It is possible to playback WMA and MP3 files.
About WMA
The unit can playback WMA data.
Windows Media and the Windows logo are
trade marks or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
This unit may not operate correctly depending
on the application used to encode WMA files.
About MP3
Supply of this product only conveys a license
for private, non-commercial use and does not
convey a license nor imply any right to use
this product in any commercial (i.e.revenue-
generating) realtime broadcasting (terrestrial,
satellite, cable and/or any other media),
broad-casting/streaming via internet, intranets
and/or other networks or in other electronic
content distribution systems, such as pay-
audio or audio-on-dem and applications.
An independent license for such use is
required. For details, please visit http://www.
mp3licensing.com.
Features
Button Operation Explanations
Some frequent operations
1) Move cursor
Note:
In Setting mode, the VOL knob has the same
function as the / button to select setting
items.
2) Conrm
Press the button to open the
panel.

4
Panel Controls
Power on/off: Press to turn on/off the unit.
1. - Short press to select playing mode:
• Radio
• USB (when USB inserted)
• SD (when SD/MMC inserted)
• AV (front audio & video input. External
peripheral devices can be connected with
the unit.)
- Long press to return to main source menu
when in any mode, then use navigate
button to select the desired mode, and
press OK button to conrm.
2. Cancel source select menu and return to
previous menu
3. - Press to navigate up among option items
(in MP3/WMA mode)
- Play the previous preset radio station (in
Radio mode)
4. - Press to navigate down among option
items (in MP3/WMA mode)
- Play the next preset radio station (in
Radio mode)
5. - Power on/off (press and hold more than 2
seconds)
- Mute
6. 3 inch TFT display
7. SD card slot
8. USB port
9. - Rotate the knob to adjust volume level
- Press to select audio/video Setting, and
rotate the knob to adjust level.
- Press more than 2 seconds to Setting
menu.
10. Panel open
11. - Play/Pause (in MP3/WMA modes)
- Band switch: FM1-FM2-FM3-MW1-MW2
(in Radio mode)
12. - Preset scan (press briefly, in Radio mode)
- Auto preset (press more than 2 seconds,
in Radio mode)
- Stop (in MP3/WMA mode)
13. - Search the previous station manually,
and each press to seek step by step
(press briefly, in Radio mode).
- Search the previous station automatically
(press more than 2 seconds, in Radio
mode).
- Press to search the previous track or
chapter (in MP3/WMA mode).
- Fast backward by 2, 4, 8, 20 step (press
more than 2 seconds, in MP3/WMA mode).
- Press to navigate left among option items
14. - Search the next station manually, and
each press to seek step by step (press
briefly, in Radio mode).
- Search the next station automatically
(press more than 2 seconds, in Radio
mode).
- Search the next track or chapter (in MP3 /
WMA mode).
- Fast forward by 2, 4, 8, 20 step (press
more than 2 seconds,in MP3/WMA mode).
- Press to navigate right among option
items
15. - Confirm operation
- Stop auto seeking (in Radio mode).
16. Remote sensor
17. AV in

5
Press to turn on/off the unit.
Replacing the lithium battery
When the range of operation of the card
remote control becomes short or no function,
replace the lithium battery with a new one.
Make sure the battery polarity replacement is
correct.
1. Pull out the battery holder while pressing
the stopper.
2. Insert the button-type lithium battery with
the (+) mark facing upward. Insert the battery
holder into the remote control.
1 2
(CR2025)
Remote Control Operating Range
The remote control can operate within a
distance of 3~5m.
Warning
• Store the battery where children cannot
reach. If a child accidentally swallows the
battery, consult a doctor immediately.
• Do not recharge, short, disassemble or heat
the battery or dispose it in a fire.
• Do not leave the battery with other metallic
materials. Otherwise, the battery may start
to give off heat, crack or catch fire.
• When throwing away or saving the battery,
wrap it in tape and insulate.
1. Power on/off
2. Setup
3. Menu cursor
4. Enter
5. Program
6. Digit area
7. Select Audio/Video Setting, then rotate the
knob to adjust level.
8. Volume
9. - Radio tune
- Track skip/seek
10. Source switch
11. Zoom
12. Repeat
13. Repeat A-B
14. Stop/Return
15. Play/Pause
16. Goto search
17. - OSD: On screen display
- AMS: Search and store stations
automatically
18. - DISP: Display time/clock (Video mode)
- ESC: Return to previous menu
19. - Video system PAL/NTSC/AUTO
- Radio band (in Radio mode)
20. Mute
Remote Controls

6
Basic Operations
Turn on/off the Power
1. Press to turn on the unit.
The unit goes back to the last status after
power on.
2. Press more than two secnonds to power
off.
Mute
Press the button to cut the sound.
Note:
• Doing the operation above again or
adjusting volume will release muting.
• Mute icon appears on the TFT during
muting.
Adjust the Volume
Rotate the knob on the panel or press VOL +/-
on the remote control to increase or decrease
the volume.
The adjustable range of volume is 0 to 39.
Playing Source Selection
Method 1
Short press the SRC button on the panel
or remote control to cycle through all the
available sources.
Method 2
In any mode, long press the SRC button on
the panel or remote control to enter main
source menu, then use navigate button to
select the desired mode, and press OK to
confirm.
Note:
• When some devices are not ready, they
cannot be selected.
• You should stop switching when the playing
source you desired has been selected and
wait for some seconds, the unit will auto
enter the playing source mode you have
selected.
When Parking Brake Applied
1. If 'PRK SW' cable is connected to hand
brake switch, the video display of the TFT
monitor will be controlled by driving status,
system setup and input video sources.
2. When the car is moving ahead, if the
video file is played, the screen appears
“WARNING: Engage Parking Brake to View
Video”. The above warning screen will
prevent the driver watching images. The
passengers at the rear seats can watch
normally.
When Reverse Driving
If the rear view video camera is connected,
the unit automatically switches to CAMERA
source during reverse driving. The unit returns
to the original work mode after the reverse
driving is done.

7
Rotary Knob Menu
1. Rotate the knob to adjust volume level.
2. Short press to access the Audio & Video
Setting menu.
Each press the knob to change the AUDIO
mode: EQ/Bass/Treble/Balance/Fader, and
rotate the knob to adjust level.
Each press the knob to change the VIDEO
mode: Bright/Contrast/Saturation, and rotate
the knob to adjust level.
EQ: USER/FLAT/POP/ROCK/CLASSIC/
JAZZ
The Equalizer function applies preset sound
effects to the unit’s audio output signal. Turn
the rotary encoder to select from the following
equalizer options: USER, FLAT, POPULAR,
ROCK, CLASSIC, JAZZ. With the equalizer
function activated, if bass or treble is adjusted,
the EQ Mode will revert to “USER”. When
the equalizer function is activated, the most
recently selected bass/treble levels cannot be
adjusted. When the equalizer function is not
active, the unit will return to the most recently
selected bass and treble levels.
3. Press the knob more than 2 seconds to
enter Setting mode, then Use , /
and OK key to select setting items.
General Setting
BEEP: ON/ OFF
The beep tone feature allows the selection of
an audible beep tone to be heard each time
the menu is accessed.
LOUDNESS: ON/OFF
When listening to music at low volumes, this
feature will selectively boost certain bass and
treble frequencies.
TIME MODE
12 HOUR MODE: the clock displays in the
type of 12 hours such as 11:18 AM.
24 HOUR MODE: the clock displays in the
type of 24 hours such as 20:18.
TIME ADJUST
Press / or / key to set hour and minute.
Each time you press / to select one
segment of the clock display:
Hour-Minute
As you select segments of the clock display
the segment selected will be highlighted. Then
you can press / to put a clock right.
PARKING: ON/OFF (optional)
When it is in Parking “On” mode, if you play
the video le, the screen will show “WARNING:
Engage Parking Brake to View Video”.
MIRROR: ON/OFF
This option allows for selection of a mirror
image view when a rear view backup camera
(sold separately) is connected to the CAMERA
IN input on the back of the radio. Turn the
rotary encoder to select “On” or “Off”.
.
.
.

8
Video Setting
TV SYSTEM: NTSC/PAL/AUTO
Select the TV system in the setting menu.
TV TYPE: 4:3PS/4:3LB/16:9
Select TV type to watch wide screen movies.
4:3 Pan Scan: For 4:3 TV, left and right edges
will be cut.
4:3 Letter Box: For 4:3 TV, black bars will
appear on top and bottom.
16:9: For 16:9 wide screen TV.
DEFAULT: RESTORE
If this item is selected, the unit will return to
original setting.
BRIGHTNESS
Set the brightness of the video output with
from 00 to 16.
CONTRAST
Set the contrast of the video output with
from 00 to 16.
HUE
Set the hue of the video output with from 00
to 16.
SATURATION
Set the saturation of the video output with
from 00 to 16.
Language Setting
OSD LANGUAGE
Select one language that you are familiar with
to display system menu.
Radio Setting
LOC_DX: LOC/DX
Choose radio distant or local.
DX: Stations with strong and weak
signals can be broadcast.
LOCAL: Only station with strong signal can be
broadcast.
STEREO_MONO: STEREO/MONO
Choose FM mono/stereo.
Rotary Knob Menu

9
Radio Mode
Accessing Radio Mode
Press the SRC button on the front panel or
remote control to switch to the Radio source.

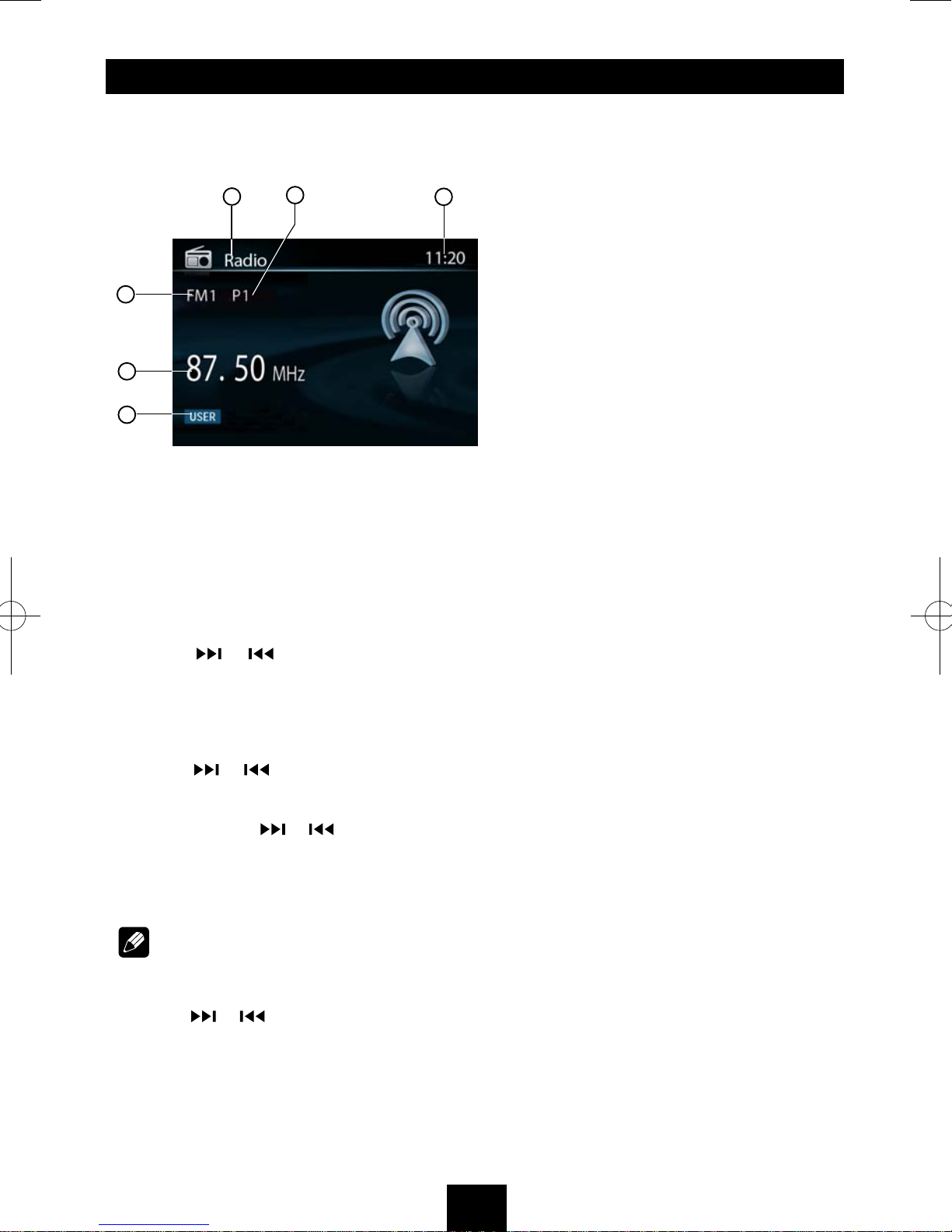

1. Source Indicator
2. Current Preset Channels
3. Time/Clock
4. AM/FM Band
5. Radio Station Frequency
6. EQ Indicator
Selecting a Band
Press BAND once or more to select FM1-
FM2 - FM3 - AM1 - AM2.
Display shows wave band, frequency, and
preset station number if already stored.
Selecting a Station
Press the or tuning button to tune to
another station.
Tuning
- AUTO SEEK
Press the or buttons to seek the next/
previous station automatically.
- MANUAL SEEK
Press and hold the or buttons to enter
manual tuning mode. Press the buttons again
to move the radio frequency number up or
down one step.
Note:
During manual seeking, if the pause between
two operating steps is longer than 5 seconds,
press the or buttons, the unit will enter
auto seeking.
Preset Mode
Six numbered preset buttons store and recall
stations for each band. The stored stations
(P1-P6) for the current band can be viewed on
the screen.
Storing Stations
- Auto storing
1. Select a band (if needed).
2. Press AMS briefly to scan the preset station
P1 - P6 for 5 seconds each.
3. Hold AMS more than 2 seconds, the
6 strongest available stations will be
automatically saved in the preset button
(numbers 1-6).
- Manual Storing
1. Select a band (if needed), then select a
station.
2. Press and hold a preset button (numbers
1-6) on the front panel or remote control.
3. The preset number and station is displayed
and highlighted.
Recalling a Station
1. Select a band (if needed).
2. Press a front panel or remote control
preset button (numbers 1-6) to select the
corresponding stored station.
2
13
4
5
6

10
USB/SD/MMC/MP3 Playback
1. Load SD/MMC Card
Insert the SD/MMC card into the slot, with
the front side at left.
The unit will play the music automatically
and the LCD will show CARD.
2. Take out SD/MMC Card
Press SRC button and switch to non CARD
mode, slightly press SD/MMC card, take
out the card when it pops out.
3. Load USB Equipment
Open the rubber cap, insert the USB into
the connector and the unit will play the
music in the USB storer automatically, and
the LCD will show USB.
4. Take out USB Equipment
Press SRC button and switch to non USB
mode, then take off the USB stick, close
the rubber cap.
USB/SD/MMC Notes
USB functions (flash memory type) MP3
music play
1. SD/MMC card support
2. USB flash memory 2 in 1 (SD/MMC)
support
3. FAT 12/FAT 16, FAT 32 is possible
- FAT 12/16 (dir: 180 support, file: 1500
support)
- FAT 32 (dir: 180 support, file: 1500
support)
4. Tag (id3 tag ver 2.0)
- Title/artist/album: 30 byte support
5. Multi card reader not support
6. USB 1.1 support
USB 2.0 support
(it can not support USB 2.0 speed. Just, get
the same speed with USB 1.1)
Note:
Not all kinds of USB devices are compatible
with the unit.

11
USB/SD/MMC/MP3 Playback
Accessing USB/SD Card Mode
To play les from an SD or USB that is already
inserted, choose the CARD or USB source.
The playback screen is indicated below:
File Type Supported
Audio le: MP3(*.mp3), WMA(*.wma)
Video le:
MP4 (*.avi, DIVX3.11/4.0/5.0/6.0)
MPEG 1 (*.dat)
Picture le: JPEG (*.jpg)
MP3 le:
ISO 9660 or ISO 9660 + Joliet format - Max.
30 characters.
Max. nested directory is 8 levels.
The max. album number is 99.
The max. length of each track is 99 minutes
59 seconds.
Supported sampling frequency for MP3: 8KHz
to 48KHz (44.1KHz preferably).
Supported bit-rates of MP3 are: 32 - 320 kbps
(128 kbps preferably).
File NOT Supported
*.AAC, *.DLF, *.M3U, *.PLS, MP3 PRO files
and files with DRM.
Audio/Picture/Video File Playback
When AUDIO/PICTURE/VIDEO file is played,
Category/Folder/File list will be displayed on
the screen, and file/folder name being played
will be displayed on top. Current selected item
will be highlighted.
The list lets you see the list of track titles or
folder names. If you select a folder on the list,
you can view its contents.
For Audio Files
1. Press ESC to return to playlist menu.
2. Use / to select AUDIO folders.
3. Press OK, on the front panel or ENTER
on the remote control to display all available
audio file folders.
4. Use / to enter file list and use / to
select desired file, press OK, on the
front panel or ENTER on the remote control
to start play.
5. During the file playing, press will enter
power on logo, then press to return.
1. Source Indicator
2. Current Track/Total Track
3. Name of the Song Display
4. Audio Folder
5. Picture Folder
6. Video Folder
2
4
5
6
1 3

12
USB/SD/MMC/MP3 Playback
For Picture les
1. Press ESC to return to playlist menu.
2. Use / to select PICTURE folders.
3. Press OK, on the front panel or ENTER
on the remote control to display all available
picture file folders.
4. Use / to enter file list and use / to
select desired file, press OK, on the
front panel or ENTER on the remote control
to slide show the pictures, and press PROG
to select picture showing style.
5. During the file playing, press to stop and
return to the sub-root.
For Video les
1. Press ESC to return to playlist menu.
2. Use / to select VIDEO folders.
3. Press OK, on the front panel or ENTER
on the remote control to display all available
video file folders.
4. Use / to enter file list and use / to
select desired file, press OK, on the
front panel or ENTER on the remote control
to start play.
5. During the file playing, press to stop and
return to the sub-root.
Note:
1. If the selected folder does not contain
any playable track, the track list is not
displayed.
2. During the folder selecting, press ESC
to the upper folder (parent folder). If the
uppermost folder is listed, ESC cannot be
used.
MP3/WMA Notes
MP3 and WMA (Windows Media Audio) music
files are digital audio files that are compressed
to allow more files to be stored. This unit can
play MP3/WMA and video directly from files
contained on a SD card or USB Device. Many
types of software are available for converting
audio files into MP3/WMA formats. This unit
can play MP3 (MPEG1, 2, 2.5 Audio Layer
3). However, the MP3 recording media and
accepted formats are limited.
Entering ID3 Tag
This unit supports ID3 tag version 2.0.
For character codes, refer to the table to the
below.
Entering File and Folder Names
Names using the code list characters are the
only file names and folder names that can
be entered and displayed. Using any other
character will cause the file and folder
names to be displayed incorrectly. The unit
recognizes and plays only les with the MP3/
WMA extension.
Note:
A le name entered with characters not on the
code list may not play correctly.

13
USB/SD/MMC/MP3 Playback
MP3 Playing Order
When selected for play, files and folders
(Folder Search, File Search or Folder Select)
are accessed in the order in which they were
written to the media. As a result, the order in
which they are expected to be played may
not match the order in which they are actually
played. You may be able to set the order in
which MP3/WMA files are to be played by
assigning file names beginning with play
sequence numbers such as "01" to "99". For
example, a medium with the following folder/
le hierarchy is subject to Folder Search, File
Search or Folder Select as shown below.
(

)

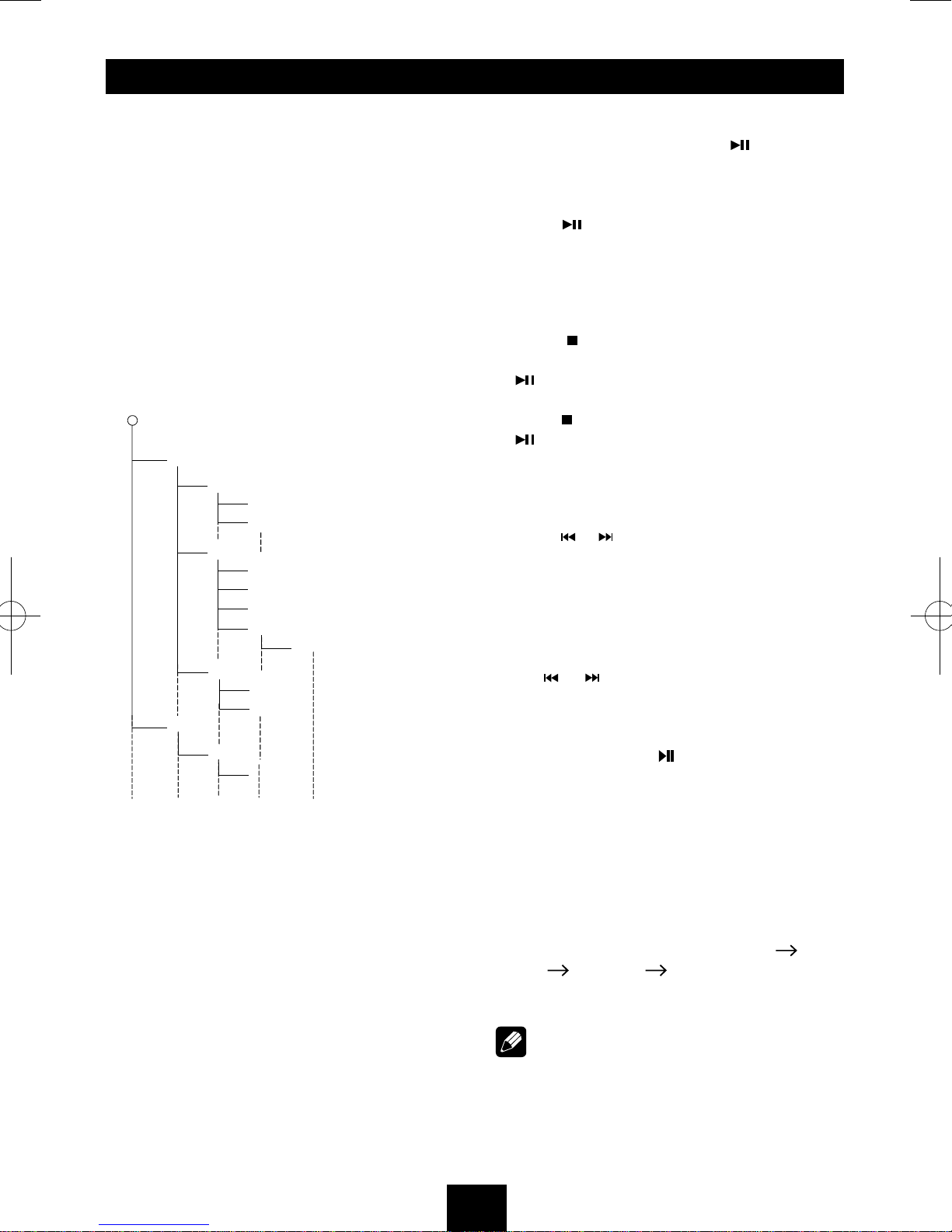

0

1

2♪①
♪②

5
♪⑧
♪⑦

6

7♪⑨
♪③

3

4
♪④
♪⑤
♪⑥
Layer1Layer 2Layer 3Layer 4Layer5
○Root Folder
Folder
♪File
The player will only recognize three folder
levels and does not display folders containing
only other folders. In the example above, the
unit will display folders 3, 4, 6, and 8, but not 2
and 7 since they do not contain since they do
not contain any tracks directly. Folder 5 is not
recognized at all since it is at the fourth level.
Electronic Shock Protection
• >45 seconds for MP3 recorded at 44.1kHz,
128kbps
• >90 seconds for WMA recorded at 44.1kHz,
128kbps
Stop Playback Temporarily
- During playback, press to pause
playback.
- The sound will be muted.
- Display "PAUSE" in the TV screen.
Press again to continue playback.
To resume normal play, repeat the operation.
Stop Playback Entirely
During MP3 playback:
1. Press key once stopping the playback
and the relevant location is saved, press
to resume the playback from the saved
location.
2. Press twice to cease the playback. Press
to start the playback from the very
beginning the Title page.
Select Desired Track
- Press or to skip to the next track.
- Use 1-9 and 0, 10+ buttons on the remote
control to select desired track number.
Fast Forward/Backward During
Playback
Press or for more than 2 seconds once
or more to select X2, X4, X8, X20, to fast
backward or forward track during playback.
- During the fast forward or backward
operation, press briefly to playback
again.
- During the fast forward or backward
operation, the volume will be muted.
Repeat
During playback, press REPEAT once or
more.
- RPT icon will appear on the display.
- For File: Display appears RPT ONE RPT
DIR RPT ALL RPT OFF
Note:
If you do not select RPT on, when the entire
playback has finished, the system will stop. If
no other control, after 5 minutes the unit will
turn into standby mode.

14
USB/SD/MMC/MP3 Playback
Repeat A B
Select desired passage to repeat playback.
- Press A B once to select starting point.
Display shows REPEAT A.
- Press A B again to select ending point.
Display shows REPEAT A B, and selected
passage start to replay.
- Press A B once again to exit. Display
shows A B CANCEL.
GOTO
Goto desired track/chapter or time point
directly.
Press GOTO button on the remote control,
track and time display on top of the screen.
Current item is highlighted. Use / to
select desired item. Use digit button to select
number. Press ENTER to confirm.
Program
-Press PROG to enter program list. Use
/ or / cursor and digit button to enter
number.
-Press to play, or move the cursor to
select "PLAY" and press ENTER to play.
-If you want to delete the list, move the
cursor to "CLEAR", press ENTER to delete
all the list set before.
- Press PROG again to exit program play.
Picture Mirror
When you view a picture, press repeatly
to mirror the picture vertically, and press
repeatly to mirror the picture horizontally.
ZOOM
Press ZOOM button, the picture will be
zoomed accordingly.

15
Device Connections
Notes of connection
• To avoid short circuit in the electrical
system, ensure that the negative battery
cable is disconnected before installation.
• To prevent short circuit in the wiring and
damaging to this unit, secure all wirings
with cable clamp or adhesive tape. Route
the wirings in a secured, out of heating
place without touching any moving parts
such as gear shift, handbrake, and seat
rails to prevent the wiring insulation being
melted / wore off.
• Never pass the yellow power cord through
the installation hole into the engine
compartment and connect to the car
battery. Otherwise, a high possibility of
serious short circuit to the electrical system
may be occurred.
• Replacing a new fuse with 15A rating
when the old one is broken, using no
fuse or fuse with improper rating may
cause damage to this unit or even fires.
If a proper fuse is installed and electrical
problems still occur, please contact with
any professional car shops for inquiry.
• DO NOT connect other equipments with the
car battery to avoid battery overheating.
• Please make sure all the wiring connections
& the cables of the Speakers are well-
insulated. Otherwise, this unit may be
damaged by short circuit.
• If there is no ACC available, please connect
ACC lead to the power supply with a switch.
• If an external power amplifier is connected,
please don't connect P.CONT lead to the
power lead of the external power amplifier,
otherwise, electric spark or other damage
may be resulted.
• Never ground the speaker output to prevent
the damage to the built-in power amplifier.
• The minimum rating of the speakers
connected to this unit is 50W with 4 to 8Ω
impedance.
Reverse Driving Cable Connections
Parking Brake Cable Connections

16
Device Connections
Wiring Diagram
Rear Line-out(Gray)
ISO Connector
Amplifier
Connector
L(White) R(Red)
(Pink)
Radio Antenna
Reverse
(Active high level input) Fuse 15A
Video-out
(Yellow) (Yellow)
Camera-in
(Green/ White) Parking SW
(Active low level input)

17
Installation Guide
Preparation
1. Disconnect battery
Before you begin, always disconnect the
battery negative terminal.
Note:
If the unit is to be installed in a car equipped
with an on-board drive or navigation computer,
do not disconnect the battery cable. If the
cable is disconnected, the computer memory
may be lost. Under these conditions, use extra
caution during installation to avoid causing a
short circuit.
2. Remove unit from sleeve
Lift latches on both sides of sleeve to remove
half-sleeve from the unit.
Mounting Sleeve Installation
1. Slide the mounting sleeve off the chassis.
If it is locked into position, use the removal
tools (supplied) to disengage it.
2. Check the dashboard opening size by
sliding the mounting sleeve into it.
If the opening is too small, carefully cut or
file as necessary until the sleeve easily
slides into the opening. Do not force the
sleeve into the opening or cause it to bend
or bow. Check for sufficient space behind
the dashboard for the unit chassis.
This unit can be installed in any dashboard
with a suitable 183 mm (W) x 52 mm (H)
opening as shown above. The dashboard
should be 4.75 mm - 5.56 mm thick in order
to be able to support the unit.
3. Locate the series of bend tabs along the
top, bottom, and sides of the mounting
sleeve. With the sleeve fully inserted into
the dashboard opening, bend as many of
the tabs outward as necessary to firmly
secure the sleeve to the dashboard.
4. Place the unit in front of the dashboard
opening so the wiring can be brought
through the mounting sleeve. Follow the
wiring diagram carefully and make certain
Device Connections
Using the ISO Connector
1. If your car is equipped with the ISO
connector, then connect the ISO connectors
as illustrated.
2. For connections without the ISO
connectors, check the wiring in the vehicle
carefully before connecting, incorrect
connection may cause serious damage to
this unit.
Cut the connector, connect the colored
leads of the power cord to the car battery,
as shown in the colour code table below for
speaker and power cable connections.
Location Connector A Connector B
Rear Right (+) - Purple
Rear Right (-) - Purple /
Black Stripe
Front Right (+) - Gray
Front Right (-) - Gray /
Black Stripe
Front Left(+) - White
Front Left(-) - White /
Black Stripe
Rear Left (+) - Green
Rear Left (-) - Green/
Black Stripe
1
2
3
4
5
6
7ACC+/Red
ANT/Amp control
/Blue
Battery 12V(+)/Yellow
Ground/Black
8
Function

18
all connections are secure and insulated
with wire nuts or electrical tape. After
completing the wiring connections, turn the
unit on to confirm operation (vehicle ignition
must be on). If the unit does not operate,
re-check all wiring until the problem is
corrected.
5. Make sure the radio is right-side up, then
carefully slide the radio into the mounting
sleeve until it is fully seated and the spring
clips lock it into place.
6. Secure the rear of the unit to the car
body using the mounting bolt and rubber
cushion.
7. Test the unit using the “Operation”
instructions that follow.
Kit Installation
If your vehicle requires the use of an
installation kit to mount this unit, follow the
instructions included with the installation kit to
attach the unit to the mounting plate supplied
with the kit.
1. Wire and test the unit as outlined in the
Mounting Sleeve Installation instructions.
2. Install the radio/mounting plate assembly
to the sub-dashboard according to the
instructions in the installation kit.
3. Replace the dashboard trim panel.
Installation Guide
ISO Installation
This unit has threaded holes in the chassis
side panels which may be used with the
original factory mounting brackets of some
vehicles to mount the radio to the dashboard.
Please consult with your local car stereo shop
for assistance on this type of installation.
1. Remove the existing factory radio from the
dashboard or center console mounting.
Save all hardware and brackets as they will
be used to mount the new radio.
2. Carefully unsnap the plastic frame from the
front of the new unit chassis. Remove and
discard the frame.
3. Remove the factory mounting brackets and
hardware from the existing unit and attach
them to the new unit. Do not exceed M5 x
9mm maximum screw size. Longer screws
may damage components inside the
chassis.
4. Wire the new unit as outlined in the
Mounting Sleeve Installation instructions.
5. Mount the new unit assembly to the
dashboard or center console using the
reverse procedure of step 1.

19
Reset
The RESET button is located behind the front
panel and can only be accessed with the front
panel opened. Resetting the unit will erase
the time and preset memories. It should only
be activated upon initial installation after all
wiring is complete, or if there is a malfunction
of any of the switches on the unit. In these
circumstances, pressing the RESET button
will clear the system and return the unit to
default operation.
Fuse
When replacing a fuse, make sure the new
fuse is the correct type and amperage. Using
an incorrect fuse could damage the radio.
Reconnect Battery
When wiring is complete, reconnect the
battery negative terminal.
Installation Guide
This unit is equipped with a detachable panel.
Panel can be detached and taken with you,
helping to deter theft.
Removing the Panel
1. Switch off the power of the unit.
2. Press button to flip down the panel.
3. At an angle hold the panel to pull it out.
4. Place the panel into the case and take it
with you when you leave the car.
Installing the Panel
1. Hold the panel and ensure the panel faces
toward you, and set the right side of the
panel in the panel bracket.
2. Press the left side of the panel until it locks.
Removing the Unit
1. Remove the panel and the trim plate.
2. Remove the trim ring by firmly grasping one
side and pulling.
3. Insert the removal keys straight back until
they lock, then pull the radio out. If the
removal keys are inserted at an angle, they
will not lock properly and will not release the
unit.
Anti-Theft System
