Caliber PMT 562BT User manual
PMT 562BT
Manual
• GB •
Bluetooth®version: 4.1 + EDR
supportsA2DPandAVRCPprole
Bluetooth®range: up to 10 meters (without barrier)
Transmission: Bluetooth®: Freq range: 2402-2480 Mhz / Max e.r.p:
<100mW/20dBm
Bluetooth name: “PMT562BT_CALIBER”
Built-in connections: - USB slot (max. size 64GB)
- Micro SD card slot (max. size 64GB)
- Aux-out 3.5mm jack connection
FM Freq. transmitter range: 87.6-107.9MHZ, Max e.r.p: <50nW/-43dBm
Frequency stability: ±10ppm
USB charging output: 5V DC 2.1A + 1.0A
Power supply: 12-24V DC
Dimensions: 90(W) x 55(D) x 15(H) mm
PMT 562BT Specifications

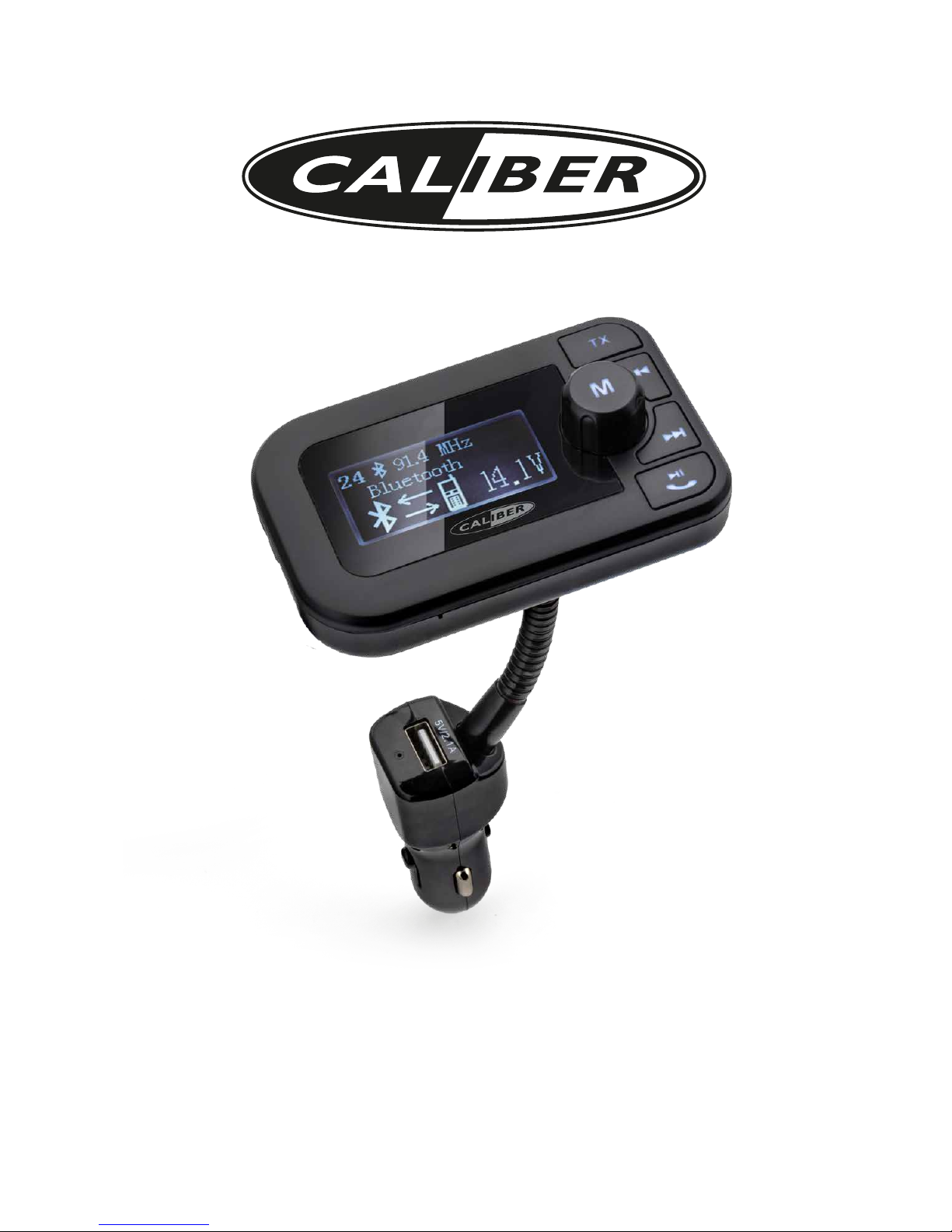

Product introduction
This device is a car Bluetooth MP3 player , which is equipped with professional high performance Bluetooth
module and MP3 decoder chip. It can play and transmit the music from SD-card/USB to car stereo via FM
radio signal. It can transmit your mobile phone’s music to car stereo via Bluetooth. It can also be used as
a hands-free car kit during driving. This device transmits signal by wireless method, no need to modify
anything in car. It can be used both as the music player for entertainment purpose or hands-free car kit in
safety purpose during driving.
Product features
1. Support Bluetooth hands free MIC calls, allowing you to answer the phone safely.
2. Noise and wind suppressed by CVC technology to create full duplex sound quality.
3. Support mobile’s A2DP function. Music will be played directly while the device is connected with a
mobile phone.
4. Mobile phone can be re-connected automatically.
5. Support an external SD card/USB, can play music les in MP3/WMA/WAV format.
6. Integrated car charger of output 5V/2.1A, it’s available for charging handheld devices in car.
Operation instructions
1. Device power-on
(1). Device turns on automatically when plug its integrated car charger to car cigarette lighter power.
(2). Select a frequency.
(3). Turn on car FM stereo and keep the frequency same with the device.
2. Frequency and volume adjustment
(1). This device supports 206 transmission frequency point : 87.5~108.0MHZ, Short press [ ] into the
Frequency setting mode, then rotate [ ] to adjust FM transmission frequency
(2). Rotate [ ] to adjust the volume
3. Playing music from SD-card
(1). Insert the SDcard into the device, it will automatically detect and play the MP3/WMA/WAV format
music in the SDcard.
(2). Musicselection: short press or to select songs.
4. Connect to Bluetooth devices
(1). This device is equipped with built-in Bluetoothchip, it can connect to an other handheld Bluetooth
devices.
(2). It will enter pairing mode automatically when the device is powered on.
Search this device with name of “PMT562BT_CALIBER”, and connect it.
(3). Memory function. It will connect to its memorized paired Bluetooth device automatically once the unit
is powered on.
5. Automatic re-connect function
When the unit is in power , the phone beyond the Bluetooth reception range, or leave the unit for some
time {more than 3 minutes}. Then put the phone back to the product‘s Bluetooth reception range, this time,
click any key of the unit, then the phone can be connected automatically. Don’t need to power o and re-
connect the unit and the mobile phone.
6. Playing music from mobile phone
(1). After connecting mobile phone to the device successfully via Bluetooth, you can play music from
mobile phone, the device will wirelessly transmit the signal to car stereo.
(2). You can adjust the music Volume/Play/Pause/Previous/Next on mobile phone, or on the device.
7. Switching music le sources
(1). It can play the music from SDcard and device with Bluetooth function, switch the le source between
SDcard and device with Bluetooth by short press [ ].
(2). when you are in USB/SD music playing , long press [ ] botton, the unit music playback mode will from
Cycleplay mode to Random mode.
8.Make a call
(1) You can make a call and answer the phone through this device after connected by Bluetooth. Doubletap
redial the last phonenumber.
(2) Reject a call: when a call coming, double press to reject a call.
9. AUX output
This device supports a wired audio connection via the AUX-out. Connect the AUX-out to the car audio
system (AUX-in or Line-in) using the included Jack-to-jack cable.
10. Part description
See next page
Play/Pause (ON/OFF)
Answer Phone
Next Button
Volume Control/Mode
Previous Button
FM Transmitter
LCD Display
SD Card
USB
AUX-out 3,5mm jack
MIC
WWW.CALIBER.NL
CALIBER EUROPE BV
•
Kortakker 10
•
4264 AE Veen
•
The Netherlands
Latest declaration form can be found at:
www.caliber.nl/media/forms/PMT562BTBT.pdf
GB Caliber hereby declares that the item PMT562BT is in compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU (EMC) and 2011/65/EU (RoHS).
FR Par la présente Caliber déclare que l’appareil PMT562BT est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU (EMC) et 2011/65/EU (RoHS).
DE Hiermit erklärt Caliber, dass sich das Gerät PMT562BT in Übereinstimmung mit den grundlegenden Anforderung und
übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU (EMC) und 2011/65/
EU(RoHS)bendet.
IT Con la presente Caliber dichiara che questo PMT562BT è conforme ai requisiti essenziali ed alle alte disposizioni
pertinenti stabilite dalla directtiva 2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU (EMC) e 2011/65/EU (RoHS).
ES Por medio de la presente Caliber declara que el PMT562BT cumple con los requisitos esenciales y otra disposiciones
aplicables o exigibles de la Directiva 2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU (EMC) y 2011/65/EU (RoHS).
PT Caliber declara que este PMT562BT está conforme com os requisitos essenciais e outras disposições da Directiva
2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU (EMC) e 2011/65/EU (RoHS).
SHärmed intygar Caliber att denna PMT562BT Pro står i överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU (EMC) och 2011/65/EU
(RoHS).
PLNiniejszymCaliberoświadcza,źePMT562BTjestzgodnezzasadniczymiwymaganiamiorazinnymistosownymi
postanowieniami Dyrektywy 2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU (EMC) i 2011/65/EU (RoHS).
DK Undertegnede Caliber erklærer hermed, at følgende udstyr PMT562BT overholder de væsentlige krav og øvrige
relevante krav i direktiv 2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU (EMC) og 2011/65/EU (RoHS).
EE Käesolevaga kinnitab Caliber seadme PMT562BT vastavust direktiivi 2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/
EU (EMC) ja 2011/65/EU (RoHS). pöhinõuetele ja nimetatud direktiivist tulenevatelle teistele asjakohastele sätetele.
LT Šiuo Caliber deklaruoja, kad šis PMT562BT atitinka esminius reikalavimus ir kitas 2014/53/EU (RED), 2014/35/EU (LVD),
2014/30/EU (EMC) ir 2011/65/EU (RoHS).Direktyvos nuostatas.
FI Caliber vakuuttaa täten että PMT562BT tyyppinen laite on direktiivin 2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU
(EMC) ja 2011/65/EU (RoHS). oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
ISHérmeðlýsiCaliberyrϸviaðPMT562BTerίsamræmiviðgrunnkröfurogaðrarkröfur,semgerðareruítilskipun
2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU (EMC) og 2011/65/EU (RoHS).
NO Caliber erklærer herved at utstyret PMT562BT er i samsvar med de grunn-leggende krav og øvrige relevante krav i
drektiv 2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU (EMC) og 2011/65/EU (RoHS).
NL Hierbij verklaart Caliber dat het toestel PMT562BT in overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 2014/53/EU (RED), 2014/35/EU (LVD), 2014/30/EU (EMC) en 2011/65/EU (RoHS).
