Callaway Golf UPRO MX User manual

©2011 Callaway Golf Company
Callaway UPRO®MX Golf GPS
User Guide (v1.0) - abridged

upromxUserGuide(v1.0) ©2011CallawayGolfCompany  Page2of24
Table of Contents
1GETTING STARTED WITH THE CALLAWAY UPRO MX..............................................................................3
1.1 CALLAWAY UPRO® MX OVERVIEW............................................................................................................3
1.2 CHARGING THE CALLAWAY UPRO MX........................................................................................................6
2PLAYING GOLF WITH YOUR UPRO® MX....................................................................................................7
2.1 POWERING ON/OFF....................................................................................................................................7
2.2 MAIN MENU................................................................................................................................................7
2.3 PLAYING GOLF WITH YOUR NEW UPRO® MX............................................................................................8
2.4 BASIC NAVIGATION .....................................................................................................................................8
2.5 BASICMODE.............................................................................................................................................10
2.6 GOMODE® ..............................................................................................................................................13
2.7 PROMODE®.............................................................................................................................................13
2.8 SHOT TRACKING.......................................................................................................................................16
2.9 SCORE KEEPING ......................................................................................................................................16
2.10 ROUND REVIEWS......................................................................................................................................18
2.11 CHANGING HOLES ....................................................................................................................................18
3SETTINGS MENU.........................................................................................................................................19
3.1 DEVICE SETTINGS ....................................................................................................................................19
4PREVIEW MODE ..........................................................................................................................................21
4.1 ENABLING PREVIEW MODE........................................................................................................................21
5COMPLIANCE...............................................................................................................................................22
5.1 FCC STATEMENT (USA) ..........................................................................................................................22
5.2 INDUSTRY CANADA STANDARD (CANADA 310)...........................................................................................23
5.3 BATTERY INFORMATION AND WARNING......................................................................................................23

uProUserGuide(v1.5) ©2011CallawayGolfCompany  Page3of24
1 Getting Started with the Callaway UPRO MX
1.1 Callaway UPRO® MX Overview
This section provides a brief overview of the location and functionality of the inputs and outputs you will
use to enable the full capability of your upro mx Device

upromxUserGuide(v1.0) ©2011CallawayGolfCompany  Page4of24
1.1.1 UPRO MX Controls Layout
Figure 1: upro mx Button Layout
1.1.2 Touch Screen
Touch Screen – The upro mx has an extremely precise, simple-to-use capacitive touch screen to ensure
quick and easy operation of your new device. You will use this powerful feature to perform nearly every
function on your new device. See Section 2 – Playing Golf with your upro mx for more information
Supported Gestures:
Tap – used to select menu options, and to activate the measuring point on AnyPoint® feature
Drag – used to reposition the measuring point on AnyPoint® feature, change the zoom level,
and pan in ProMode®

uProUserGuide(v1.5) ©2011CallawayGolfCompany  Page5of24
Flick - used to scroll through menu options (vertical or horizontal),
1.1.3 Button Descriptions
Power Button – This button is used to power on and off the device when held for at least three seconds. It
is also used put the device into stand-by mode when pressed for 1 second. You can bring the device out
of stand-by mode by pressing the power or mode button again
Mode Button – This button is used to switch between BasicMode, ProMode® (requires purchase and
download of additional content), and GoMode®
Optical Finger Navigation (OFN) – The upro mx has a state-of-the-art Optical Finger Navigation button
which offers the user a powerful, flexible, and extremely precise method of navigating through the upro mx
user interface. You can use the OFN in the following scenarios:
When using AnyPoint, slide your finger across the OFN to move the position of the AnyPoint®
target point
When viewing any hole in ProMode, click once to engage the SmartView feature of your device
1.1.4 Other Inputs and Outputs
LED Indicator - The uPro has an LED indicator that is used to provide status information. The blue LED
flashes when the uPro is in normal operation. The red LED indicates that the device is charging. A flashing
red LED indicates that charging is complete.
Note: The red LED will not flash when charging is complete if the uPro is powered on. Please see
section 1.3 Charging the Callaway uPro for more information on charging.
Micro-USB Port - The Micro-USB Port is used to connect the device to the your computer to access the
uxplore website for course downloads and updates. It is also used to charge the battery within the device.
Headphone Jack - The uPro contains a small, 2.5mm headphone jack that allows connection of stereo or
mono headphones. Note that your upro mx does not come with headphones.

upromxUserGuide(v1.0) ©2011CallawayGolfCompany  Page6of24
1.2 Charging the Callaway UPRO MX
Prior to operating your upro mx the battery must be fully charged. Follow these steps to charge the battery:
1) Remove the battery cover on the upro mx. Using your finger, un-screw the screw head located on
the back of the device until the battery cover is loose, and can be removed by lifting up gently.
Figure 2: Battery Cover Removal
2) Insert the Li-Ion rechargeable battery into the battery compartment. Angle the battery such that the
bottom edge with the three contacts makes contact with connector on the upro mx first and then
push the top side of the battery into place. The text on the battery should be face up and readable
(the Callaway logo will face down).
3) Replace the battery cover.
4) Insert the micro-USB connector of the included USB cable into the USB connector on the bottom of
the upro mx.
5) Connect the larger end of the USB cable to the included wall adapter.
6) Plug the wall adapter into an AC wall outlet. The upro mx’s red LED will be lit while charging. This
LED will begin to flash when charging is completed. Charging the battery completely takes
approximately 3 hours. For more information regarding safe handling of your battery, please
review Section 5.3 below.

uProUserGuide(v1.5) ©2011CallawayGolfCompany  Page7of24
2 Playing Golf with Your UPRO® MX
2.1 Powering On/Off
The upro mx Power button is used to power the device on and off. Turn on the upro mx by pressing the
power button for three seconds while the device is powered off.
The uPro can be powered off with three different methods:
Soft Power Off - Holding down the power button for approximately 3-4 seconds will bring up the power off
confirmation screen. Answering yes by tapping the Select/Enter key will power off the upro mx.
Mandatory Power Off - Holding down the power button for approximately 6 seconds will force the device
to power off without any confirmation.
Auto Power Off - The uPro has a device setting that allows the device to be automatically powered down
if the device is not used for 90 minutes. This can be enabled through the Device Settings menu.
2.2 Main Menu
After powering on, the uPro will display the Main Menu screen as shown in Figure 3. From this menu you
can choose Play Golf, Preview, Settings, Training Videos, Stats Replay, UTRACK™, or Applications. To
access additional menu options, swipe the touch screen to the left and right.

upromxUserGuide(v1.0) ©2011CallawayGolfCompany  Page8of24
Figure 3: Main Menu
2.3 Playing Golf With Your New UPRO® MX

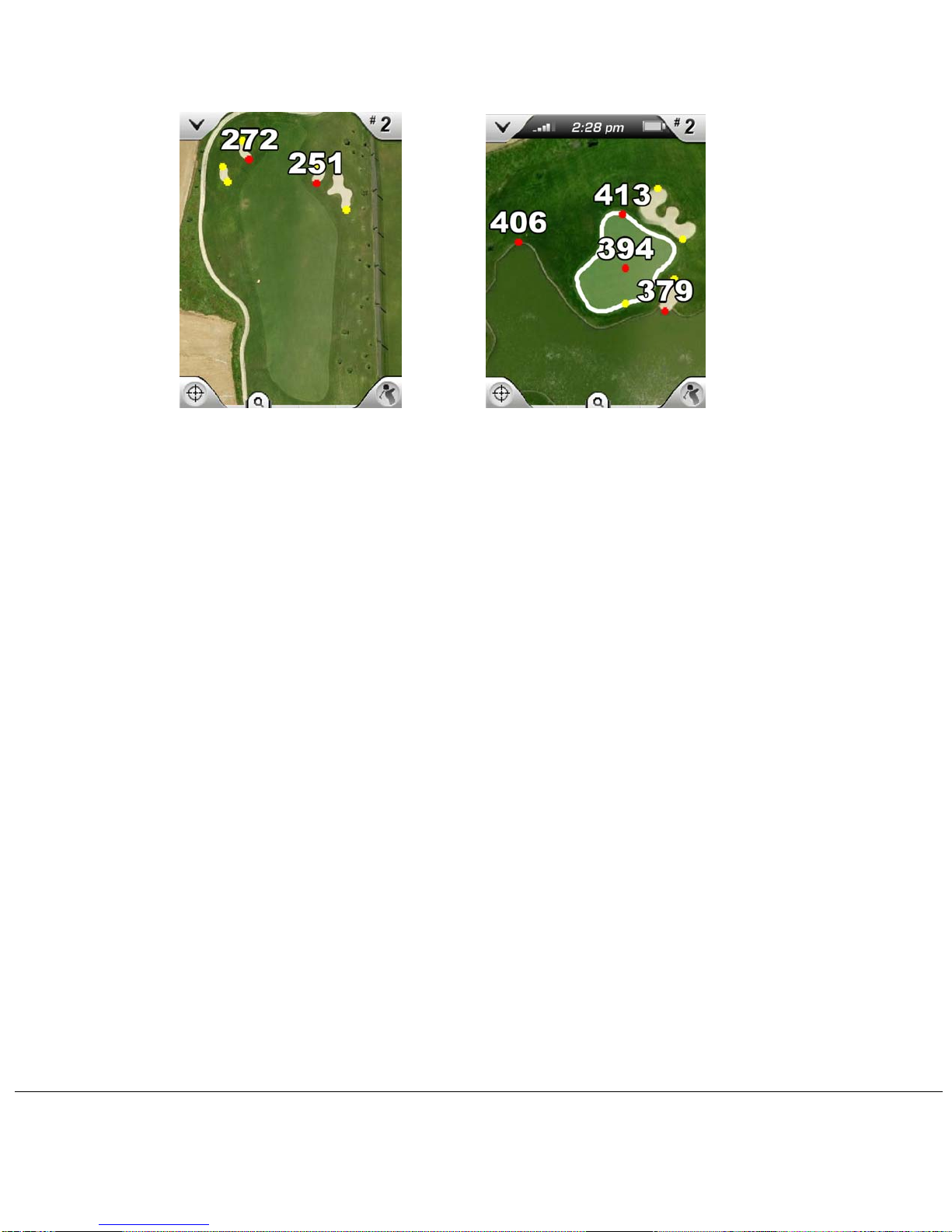

Your new upro mx device comes pre-loaded with over 25,000 courses, as well as the ability to download
and use actual aerial imagery to play in ProMode®. This section will provide you all the information you
need to enjoy the use of your upro mx.
2.4 Basic Navigation
2.4.1 Accessing Menus
When in any play mode (ProMode®, BasicMode, GoMode®), your upro mx screen will display similar
navigation options. See Figure 4 below for a brief description of navigation options available in any mode

uProUserGuide(v1.5) ©2011CallawayGolfCompany  Page9of24
Figure 4: Accessing Menus

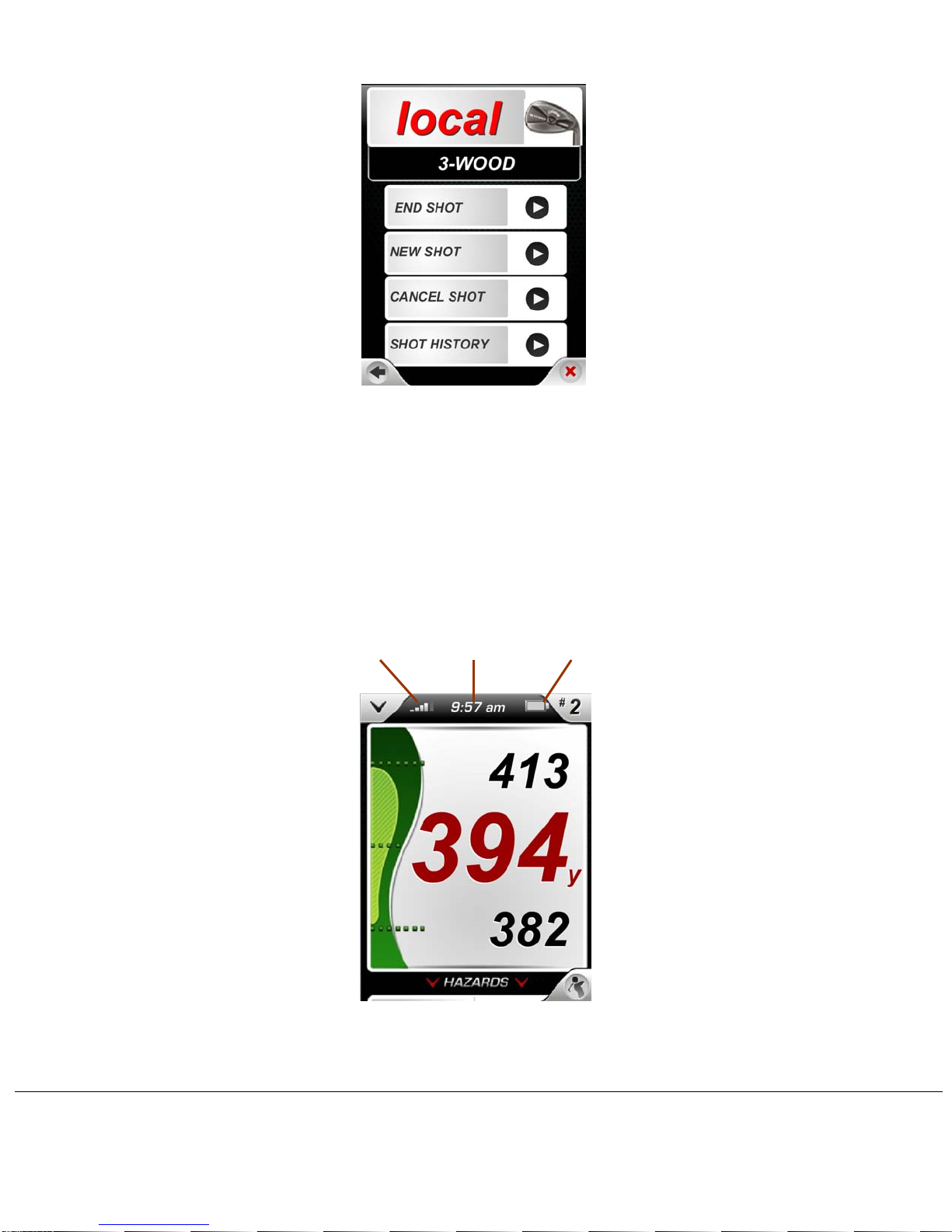

2.4.2 Navigating Through Lists
Whenever you have a list of items on your upro mx, you can scroll through the list by swiping the list up or
down. In Figure 5 below, if you wish to scroll down, you simply touch the screen near the bottom (do not
touch the corners) and drag your finger upwards along the screen. This will cause the list to scroll
downward. When you have found the list item you wish to select, simply tap the screen on that item to
open it.
Figure 5: Navigating Through Lists
Tap here to access
In-Game Menu
Tap here to access
Manual Hole Change
Tap here to access
Manual Shot Tracking
Tap the Red X to exit
this list
Tap the Back Arrow to
return to previous screen

upromxUserGuide(v1.0) ©2011CallawayGolfCompany  Page10of24
To return to the previous screen, tap the back arrow indicated in Figure 5 above. You can also click the
red X to exit that menu.
2.4.3 Play Golf
From the Main Menu (See Figure 3 above) tap the Play Golf option. You will then be able to select
available ProMode® courses by tapping on the PRO MODE COURSES option. If you wish to play a
course in BasicMode, or GoMode, you can select the country where your course is located, and navigate
to the specific golf course.
Note: The upro mx’s electronics provide unmatched GPS performance. Satellite acquisition typically
occurs in less than one minute when you are positioned outdoors with an unobstructed view of
the sky.
If your upro mx has achieved satellite lock, you will automatically be provided with a list of nearby golf
courses, with the distance to the course listed to the right. Courses available in Basic Mode and
GoMode® will just show the distance, but courses available with ProMode® imagery will display the
ProMode® icon.
When selecting a course, you will be provided with basic information about the course including city, state
or province, country, and map version.
Click Play to begin your round.
2.5 BasicMode
Your upro mx contains more than 25,000 pre-loaded courses which you can use without additional fees
required. There are two modes with which to access these pre-loaded courses. The first mode, called
Basic Mode, gives distances to the green center, front and back as well as all hazards. Basic Mode
consists of two views, the Green View and the Hazard View.
2.5.1 Green View
As shown in below Figure 6a, the Green View displays distances to the front, center and back of the green.
