Cambridge Audio DVD55RWI User manual

Owners' Manual
DVD Recorder
DVD55RWi

DVD55RWi
Contents
Safety Precautions
Basic Information..............................................................................................

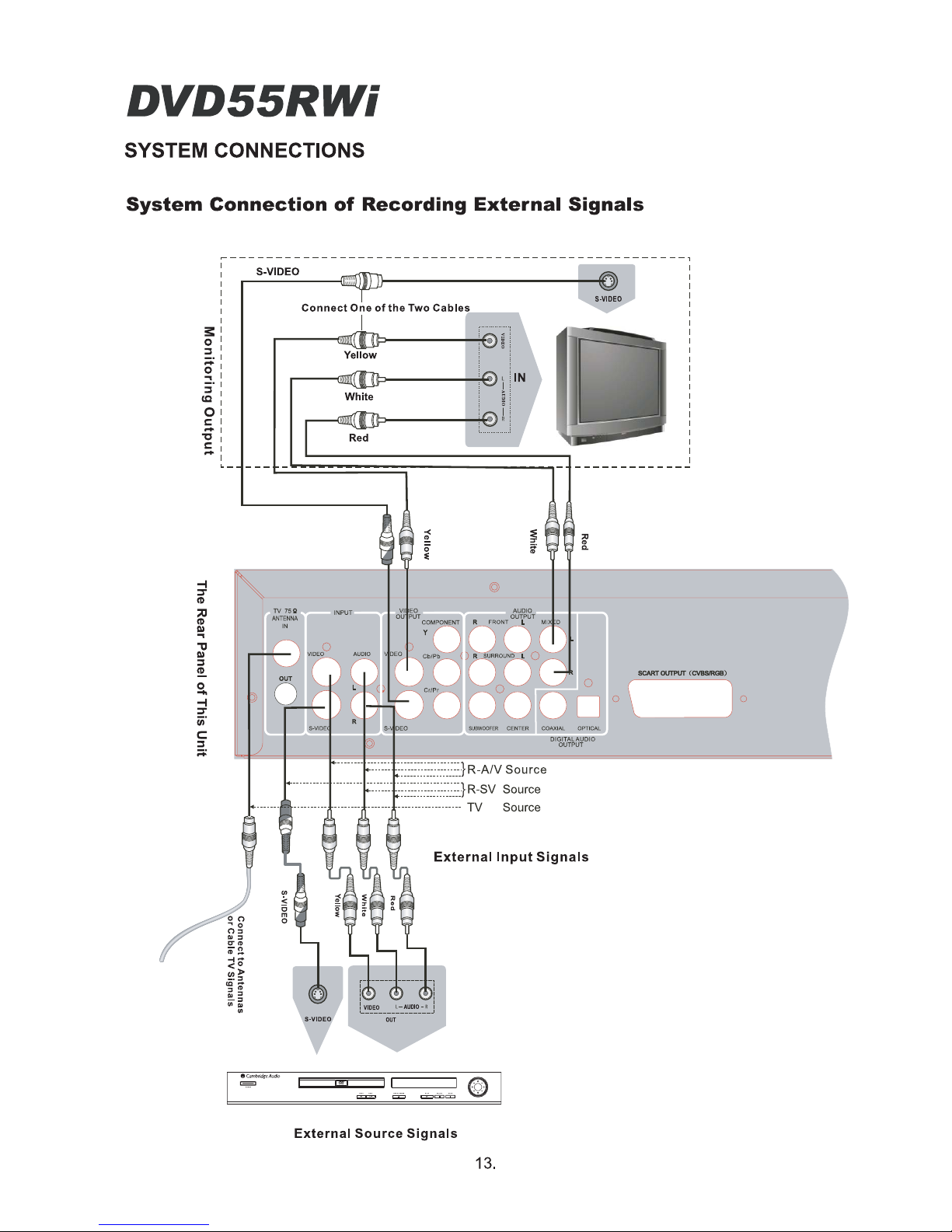

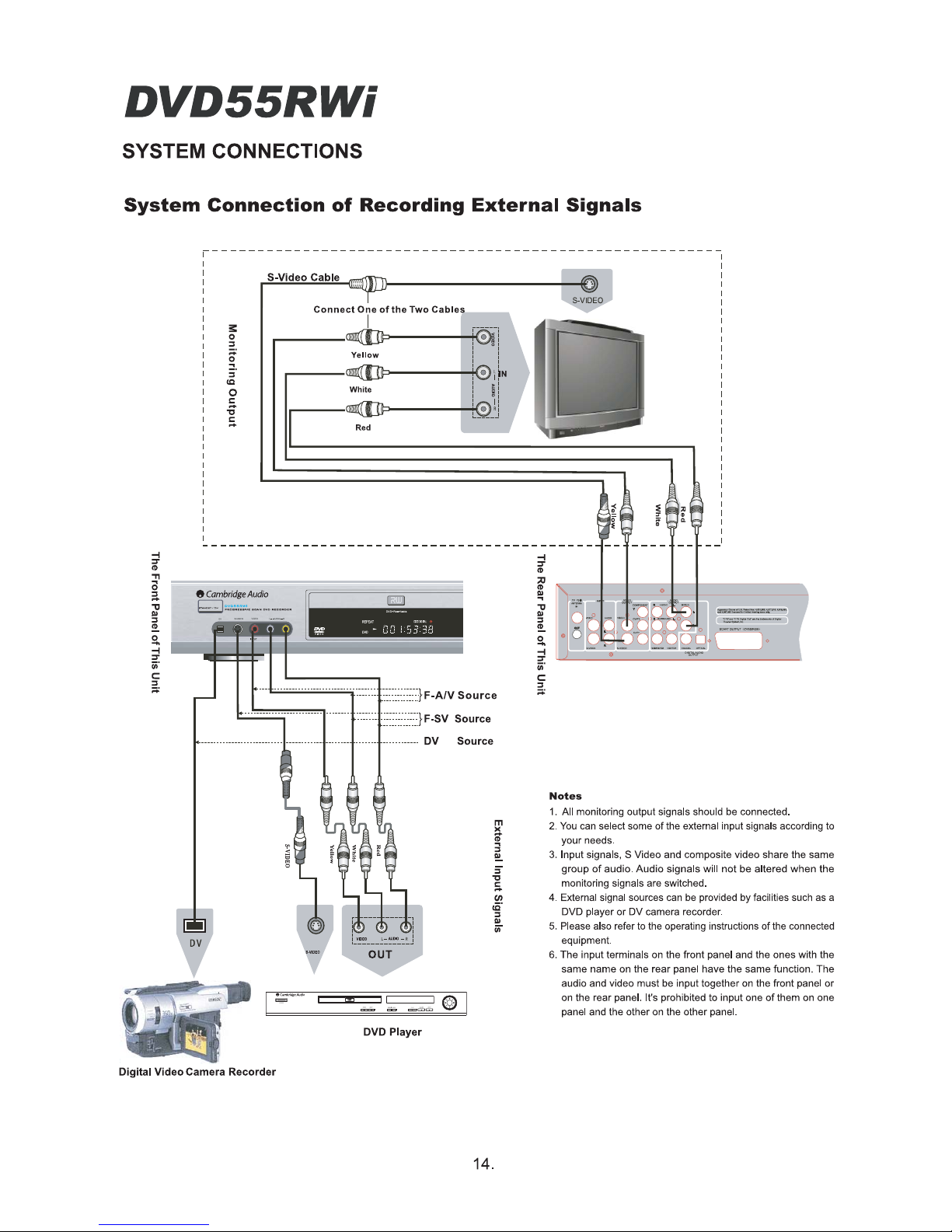

System Connections..........................................................................................
Monitoring Mode................................................................................................
Recording Mode ............................................................................................
Manual Recording.............................................................................................
Recording schedule
Chapter Editing.................................................................................................
Disc Operation..................................................................................................
Playback MODE ...............................................................................................
System Setup ...................................................................................................
Appendix............................................................................................................
............................................................................................
...........................................................................................
1
4
12
15
16
17
20
22
25
27
37
49

SAFETY PRECAUTIONS
For safety reasons please read the following instructions and the enclosed Important Safety Information carefully before
attempting to connect your DVD player to the mains.
Warning
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
Caution
Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation
exposure.
Caution
To reduce the risk of electric shock, do not remove cover (or back). There are no user-serviceable parts inside. Please
refer all servicing to a qualified engineer.
The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to
the presence of uninsulated 'dangerous voltage' within the product's enclosure that may be of
sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
This product complies with European Low Voltage (73/23/EEC) and Electromagnetic Compatibility
(89/336/EEC) Directives when used according to this instruction manual.
Plug Fitting Instructions (UK only)
The cord supplied with this appliance is factory fitted with a 13A mains plug fitted with a 3A fuse inside. If it is necessary to
change the fuse, it is important that a 3A one is used.
If the plug needs to be changed because it is not suitable for your socket, or becomes damaged, it should be cut off and an
appropriate plug fitted following the wiring instructions below.
The plug must then be disposed of safely, as insertion into a 13A socket is likely to
cause an electrical hazard. Should it be necessary to fit a 3-pin BS mains plug to
the power cord the wires should be fitted as shown in this diagram.
The colours of the wires in the mains lead of this appliance may not correspond with
the coloured markings identifying the terminals in your plug. Connect them as
follows:-
The wire which is coloured BLUE must be connected to the terminal which is
marked with the letter 'N' or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is
marked with the letter 'L' or coloured RED.
Note
If a 13 Amp (BS 1363) type of plug is used a 3 Amp or 5 Amp fuse must be fitted,
either in the plug or adaptor, or on the distribution board.
BLUE
FUSE
BROWN
CORD
GRIP
N
L
1.
DVD55RWi

Read Instructions - All the safety and operating instructions should be read before the product is operated
Retain Instructions - The safety and operating instructions should be retained for future reference.
Heed Warnings - All warnings on the product and the operating instructions should be adhered to.
Follow instructions - All operating and use instructions should be followed.
Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.v
Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl or kitchen sink; in a wet
basement, or near a swimming pool etc.
Accessories - Do not place this product on an unstable surface, stand, bracket or table. The product may fall, causing
serious injury to child or adult, and serious damage to the product. Use only a surface, stand bracket or table recommended
by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions,
and should use a mounting accessory recommended by the manufacturer.
Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you
are not sure of the type of power supply to your home, consult your product dealer or local power company. For products
intended to operate from battery power, or other sources, refer to the operating instructions.
Grounding or Polarization - In some countries this product may be equipped with a polarized alternating-current line plug
(a plug having one pin wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If
you are unable to insert the plug into the outlet, try reversing the plug. If the plug still does not fit, contact your electrician to
replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and point where
they exit from the product.
Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.
SAFETY PRECAUTIONS
DVD55RWi
2.
A product and stand combination should be moved with care. Quick stops, excessive force, and uneven surfaces may
cause the combination to overturn.
- Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product
and to protect it from overheating, and these openings must not be blocked or covered. The openings should
never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed
in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.
Ventilation

SAFETY PRECAUTIONS
DVD55RWi
Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk
of fire or electric shock.
Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the product to its normal operation.
e) If the product has been dropped or damaged in any way.
f) When the product exhibits a distinct change in performance - this indicates a need for service.
Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorised substitutions may result in
fire, electric shock, or other hazards.
Safety Checks - Upon completion of any service or repairs to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating condition.
Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
3.

Introduction
Erase the recorded contents on the disc. Only applicable to DVD+RW discs.
SLP: general resolution, a single-side DVD disc can record about 6 hours program.
EP: good resolution, a single-side DVD disc can record about 4 hours program.
SP: better resolution, a single-side DVD disc can record about 2 hours program.
HQ: best resolution, a single-side DVD disc can record about 1 hour program.
According to the different compress degree, there are four recording qualities to DVD+R/RW discs with 4.7GB
(12CM single side) .
Erasing a disc
Finalizing a disc and making a disc compatible
Recording preparations
Recording quality
This means DVD+Recordable. These Discs can be recorded and finalized only once.
This means DVD+ReWritable. These Discs can be recorded repeatedly.
BASIC INFORMATION
DVD+RW
DVD+R
The preparations before recording, including checking whether the disc is up to standard, or the recording format is valid,
optics correction and pre-writing the directory zones.making necessary
Process the directory information of a disc, so that it can be played in the normal DVD players. A disc that is not finalized or
made compatible can only be played in this unit. Finalizing a disc refers to the operation to DVD+R disc and making compatible
refers to the operation to DVD+RW.
Chapter
Title
The longest section of a picture or a music piece on a DVD; a movie, etc., for a picture piece on video software; or an album
music piece on audio software. Each title is assigned a title number enabling you to locate the title you want.etc., for a
Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each
assigned a chapter number enabling you to locate the chapter.chapter is
DVD55RWi
DVD is well known for its extraordinarily large capacity and outstanding audio-video effects. Its capacity is as high as 4.7-17 GB
(approximately 7-26 times the capacity of CD). With 500-line horizontal resolution of picture and Dolby Digital 5.1 Channel
surround sound, it brings a new era to audio visual entertainment .
Terms
4.

Progressive scan and Interlacing scan
BASIC INFORMATION
Terms (CONTINUED)
DVD55RWi
Progressive scan creates a picture with double the scan lines of traditional component video pictures and creates a sharper
image.
The advantages of progressive scan video output are reduced picture flickering and motion artifacts as well as a sharper
image on large screens.
Disc Pictures
16:9
4:3

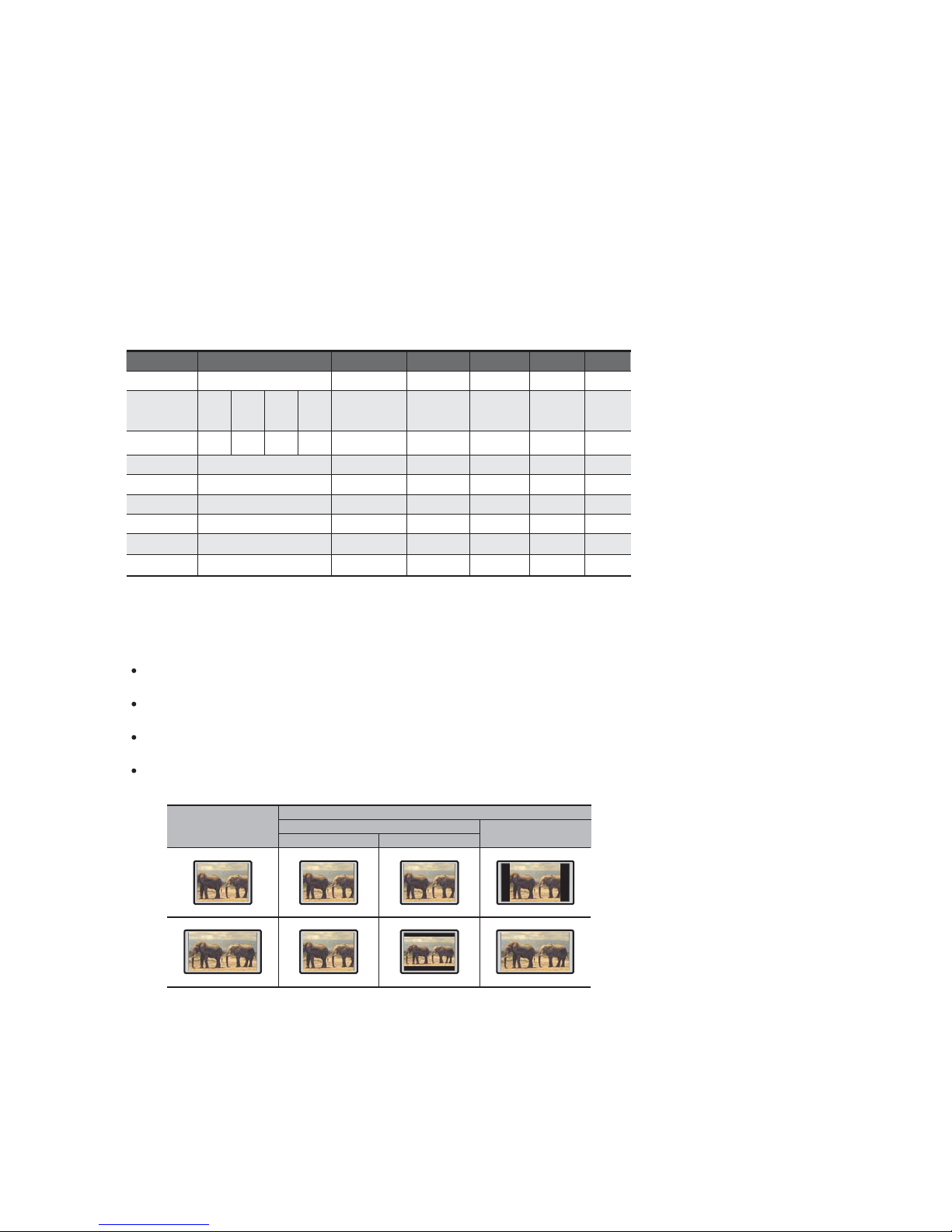

Comparison between DVD and other discs
Digital/MPEG2
Single
1 layer
-
sided
4.7G
Single-
sided
2 layers
8.5G
Double-
sided
1 layer
9.4G
Double-
sided
2 layers
17G
133min.
500 lines or more
Multiple
Dolby Digital/Linear PCM
32 types
242min. 266min. 484min.
DVD
48KHz,96KHz/16,20,24bit
12CM/8CM
Recording Method
Capacity
Playback time
Disc Diameter
Horizontal
Resolution
Aspect Ratio
Subtitle
Audio
Sound Quality
Function Introduction
Multiple languages and subtitles
DVD disc can support as many as 8 dubbing languages and 32 subtitle languages.
Multiple angles
DVD disc may support as many as 9 camera angles.
Multiple story plots
Users can select to play desired plots (the beginning, development or ending) of the same disc.
Multiple aspect ratios
Multiple aspect ratios support various TV screens.
TV Screen
4:3 16:9
Pan-Scan Letterbox
Analog
Linear PCM
FM modulation
Linear PCM
One
430 lines or more 350 lines or more
250 lines or more
CDROM
650MB
12CM/8CM
VCD
Super VCD
Digital/MPEG1 Digital Digital Digital/MPEG2
650MB
44.1KHz
12CM/8CM
74min.
650MB
12CM/8CM
45min.
CD
650MB
44.1KHz/16bit
12CM/8CM
74min.
LD
44.1KHz/16bit
30CM/20CM
1 side 60min.
2 sides 120min.
Max. 16 types
Note : This player does not support Super VCD or VCD
5.

14
15
16
17
18
2
3
5
4
7
6
9
10
12
11
14
13
16
17
19
18
21
20
8 15
The function of buttons on the front panel is the same with that of the corresponding ones on the remote control.
23456789 10 11
12
13
SCART output terminal
13
TV TUNER input terminal
Rear Video input terminal
Rear S-Video input terminal
L/R channel audio input terminals
COMPOSITE VIDEO output terminal
S-VIDEO output terminal
COMPONENT VIDEO output terminal
L/R channel audio output terminal
COAXIAL output terminal
OPTICAL output terminal
5.1 CH output terminals
2
3
4
5
6
7
8
9
10
11
12
TV TUNER output terminal
234567 8
9 10
12
13
STANDBY/ON button
Disc tray
Infrared remote sensor
OPEN/CLOSE button
REVERSE button
FORWARD button
SOURCE button
CH+ button
CH- button
PREV button
NEXT button
REC button
STOP button
PAUSE button
PLAY button

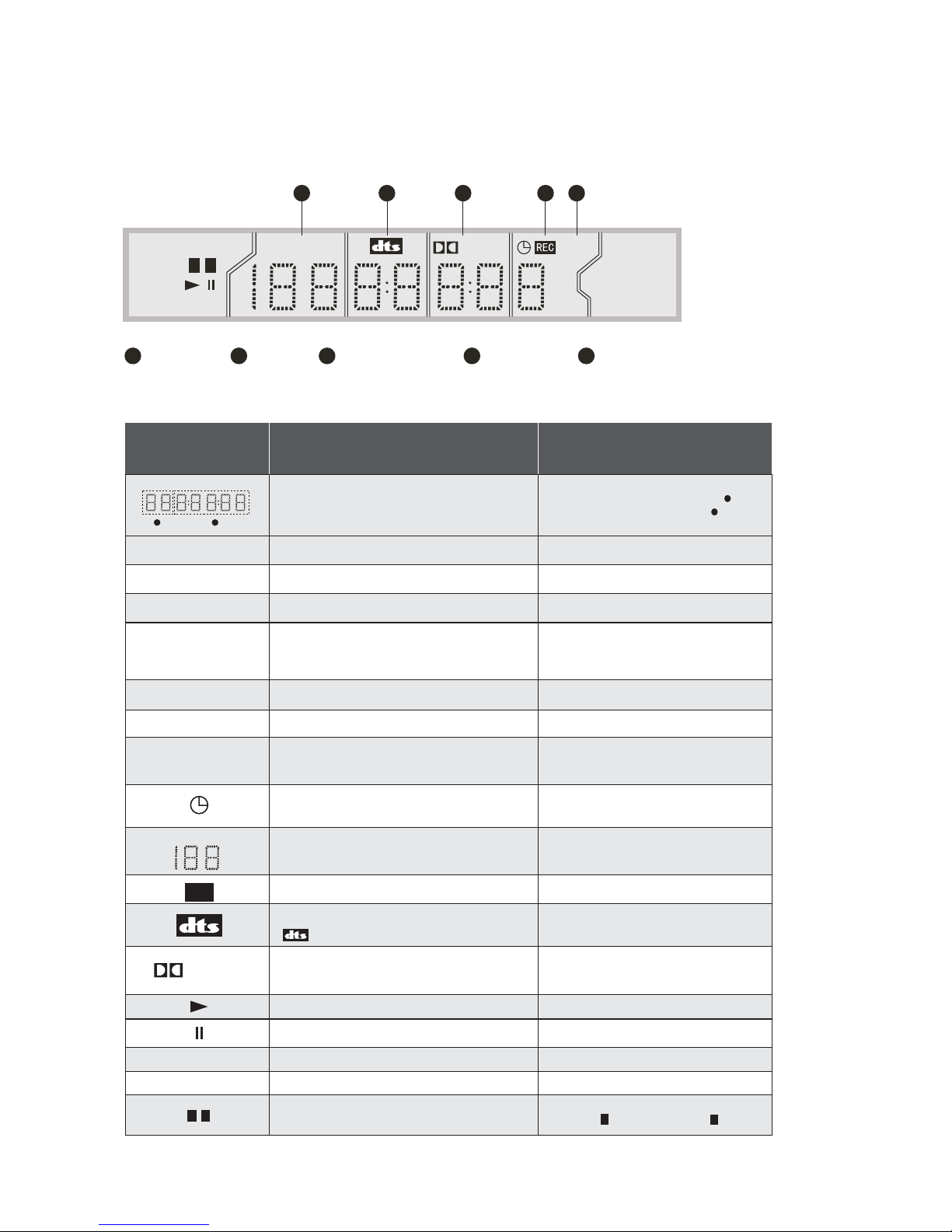

VFD display window
Right audio channel input terminal
Left audio channel
Front Video input terminal
Front S-Video input terminal
DV input terminal
11
192021
BASIC INFORMATION
OPEN CLOSE
PREV
DV
NEXT
PLAY
SEARCH SOURCE
PAUS E STOP RECORD
CH-
CH+
DIGITAL AUDIODIGITAL AUDIO
COMPACT
STANDBY / ON
DV S-VIDEO VIDEO audioLr
DVD55RWi
PROGRESSIVE SCAN DVD RECORDER
Illustration of the front panel
Illustration of the rear panel
DVD55RWi
S-VIDEO
COMPONENT
COAXIAL OPTICAL
FRONT
SURR
CENTRE
SUB
Y
Cb/Pb
Cr/Pr
VIDEO
VIDEO OUT
L
R
PCM/DTS/DOLBY DIGITAL
AUDIO OUT
2-CH OUT
L
R
R
L
INPUTS
S-VIDEO
VIDEO 2-CH AUDIO IN
R
L
ANTENNA
TV 75
IN
OUT
SCART OUT
(COMPOSITE/RGB)
www.cambridge-audio.co.uk
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
Manufactured under license from Dolby
Laboratories. "Dolby" and the double - D
symbol are trademarks of Dolby Laboratories.
Confidential Unpublished Works. 1992 -
1997 Dolby Laboratories. All rights reserved
Manufactured under license from Dolby
Laboratories. "Dolby" and the double - D
symbol are trademarks of Dolby Laboratories.
Confidential Unpublished Works. 1992 -
1997 Dolby Laboratories. All rights reserved
c
This product complies with DHHS rules 21 CFR,
Chapter 1, Subchapter J, Part 1040 at date of
manufacture
This product complies with DHHS rules 21 CFR,
Chapter 1, Subchapter J, Part 1040 at date of
manufacture
Apparatus claims of US patent nos. 4,631,603;
4,577,216; 4,819,098; and 4,907,093 licensed
for limited viewing only
Apparatus claims of US patent nos. 4,631,603;
4,577,216; 4,819,098; and 4,907,093 licensed
for limited viewing only
"DTS" and "DTS Digital Out" are trademarks of
Digital Theater Systems Inc.
"DTS" and "DTS Digital Out" are trademarks of
Digital Theater Systems Inc.
POWER
AC
Power Rating: 100-240V AC 50-60Hz
Max Power Consumption: 30W
Power Rating: 100-240V AC 50-60Hz
Max Power Consumption: 30W
DVD55RWi DVD RECORDERDVD55RWi DVD RECORDER
2
The antenna cable plug is inserted here
This terminal is directly connected with
the TV TUNER Input Terminal
6.
VIDEO

REPEATALLA-B
MP3
DVD PBC
P N
CHANNEL
DIGITAL
ANGLE
L/R
PROGRAM
RANDOM
Su Mo Tu We
Th Fr Sa
When the unit is switched on, information about the working status will be shown on the FL display.
The relation between the VFD items' lighting and unit's working status is shown as the following table:
BASIC INFORMATION
DVD55RWi
Display
1 2 3 4 5
1 2 345
Channel DTS Dolby Digital Record Angle
7.
Lighting
VFD items Light on condition Remarks
MP3
SVCD
DVD
PROGRAM
RANDOM
Su Mo Tu We
Th Fr Sa
REC
DIGITAL
When is in the standby modethis unit
When the system has one or more timer
recording tasks
When receiving the TV signal.
When recording.
When playing the DVD with
function
When playing the DVD with
dolby digital sound
According the media of the played
disc, one of them will light.
The channel number will be shown
below the item "CHANNEL"
When is in the status of
playing a disc
this unit
When is in program playback mode this unit
When is in random playback modethis unit
According to what day today is,
one of them will light.
ALL
A-B
If is in repeat disc playback mode this unit
If is in repeat AB playback mode this unit
ANGLE
PBC
When playing
When pausing
When the PBC function is on
When playing the DVD with multi-angle options
REPEAT
If is in repeat playback modethis unit
1 2
In any working status
The contents in this area are different in different
working status. When playing, the area shows
the track (chapter) number, the area shows the
elapsed time of the track (chapter).
1
2
CHANNEL
P N
In any working status
When the output video system is PAL,
The item lights, otherwise, lights.
P
N
