FUNAI FDR-90E User manual

DVD RECORDER
FDR-90E
SERVICE MANUAL
SUPPLEMENT
This service manual shows only the differences between
the model FDR-90E and the original model DVR90DE.
All other information is described in the service manual
of the model DVR90DE.

IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.
TABLE OF CONTENTS
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
Different parts from original model (DVR90DE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
Manufactured under license from Dolby Laboratories. "Dolby" and
the double-D symbol are trademarks of Dolby Laboratories.

1-1-1
Audio Block Diagram
E6550BLA
BLOCK DIAGRAM
IC13 (AUDIO D/A CONVERTER)
DIGITAL AUDIO OUT
A-MUTE
JK4301
JK4104
BUFFER
Q4301
Q4425 Q4424
AUDIO-L OUT1 AUDIO-L OUT2
AV CBA JACK CBA
DVD BE MAIN CBA
JK4105
AUDIO-R OUT1
AUDIO-R OUT2
JK4602
AUDIO-L IN2
AUDIO-R IN2
JK4104
AUDIO-L IN1
JK4105
AUDIO-R IN1
SIF OUT
L-CH R-CH
88
AUDIO(L)-IN2
10 10
AUDIO(R)-IN2
18 18SPDIF 25 25
AUDIO-OUT(L)
27 27
AUDIO-OUT(R)
19 19
DVD-AUDIO-MUTE
23 23
DVD-AUDIO-IN(L)
21 21
DVD-AUDIO-IN(R)
(MTS/SAP AUDIO SIGNAL PROCESS)
IC4041
(OP AMP)
IC4165
TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM
TU4001
MTS/SAP AUDIO SIGNAL PROCESS
OP AMP
AUDIO D/A CONVERTER
OP AMP
14
21
30 29
1 7
2 6
(OP AMP)
IC4166
(AUDIO INPUT SELECT)
IC4164
OP AMP OP AMP
1 7
3
13
2 6
24 27
4 2 5
11 15 14
MUTE-ONDRIVE
Q4426
MUTE-ON
9 10
1 2 3
7 8
11
13 14 16
IC12 (AUDIO A/D CONVERTER)
AUDIO A/D CONVERTER
13 14 15
1 5
16
SPDIF CN6 CN4502
CN7 CN4401
BCK
DATA LRCK
MD
MC SCK
15
ML
L-CH R-CH
MUTE
BCK DATA LRCK
SYSCLK
R-CH L-CH
IN1 TU IN2
(L-CH)
IN1 TU IN2
(R-CH)
SW CTL
AUDIO-SW2 AUDIO-SW1
TO SYSTEM CONTROL BLOCK DIAGRAM
(OP AMP)
IC4421
OP AMP OP AMP
2 6
1 7
TO SYSTEM CONTROL BLOCK DIAGRAM
SUB-SCL SUB-SDA TO SYSTEM CONTROL
BLOCK DIAGRAM
CN4104 CN4601
REC AUDIO SIGNAL PB AUDIO SIGNAL
Q4162
Q4161
WF6 WF7
OPTICAL AUDIO OUT FIBER OPTIC TRANS MODULE IC4301
1
COAXIAL
()

1-2-1 SC_FN1
SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS
Standard Notes
WARNING
Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using replace-
ment components rated for higher voltage, wattage,
etc. Replacement parts that have these special safety
characteristics are identified in this manual and its
supplements; electrical components having such fea-
tures are identified by the mark " #" in the schematic
diagram and the parts list. Before replacing any of
these components, read the parts list in this manual
carefully. The use of substitute replacement parts that
do not have the same safety characteristics as speci-
fied in the parts list may create shock, fire, or other
hazards.
Notes:
1. Do not use the part number shown on these draw-
ings for ordering. The correct part number is
shown in the parts list, and may be slightly different
or amended since these drawings were prepared.
2. All resistance values are indicated in ohms
(K=103, M=106).
3. Resistor wattages are 1/4W or 1/6W unless other-
wise specified.
4. All capacitance values are indicated in µF
(P=10-6 µF).
5. All voltages are DC voltages unless otherwise
specified.

1-2-2 E6500SC

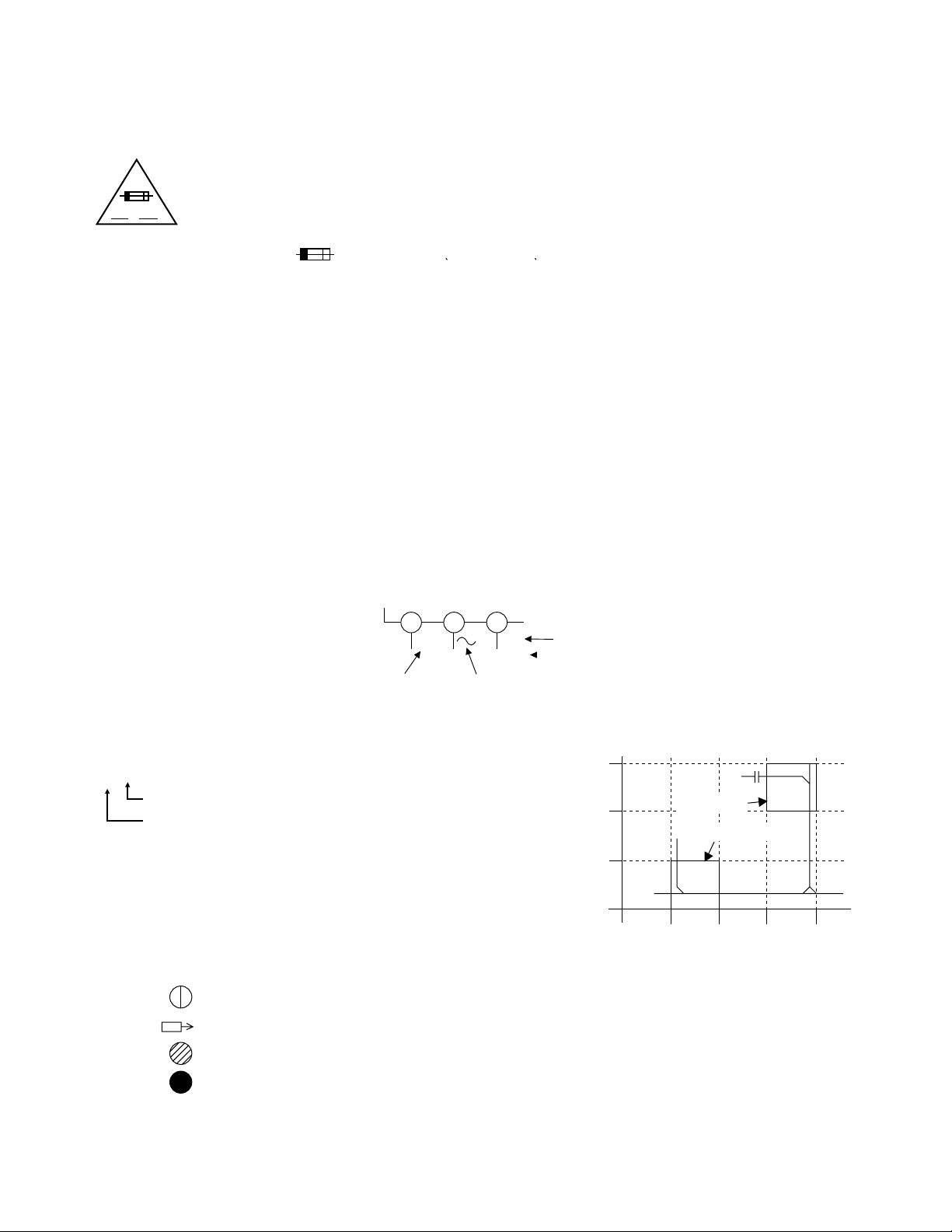

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING
PAGES:
1. CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE
SAME TYPE FUSE.
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER QUE
DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.
2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F2101) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the
power supply circuit to fail.
3. Note:
(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts
list, and may be slightly different or amended since the drawings were prepared.
(2) To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.
4. Wire Connectors
(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect).
(2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).
5. Voltage indications for PLAY and REC mode on the schematics are as shown below:
6. How to read converged lines
7. Test Point Information
This symbol means fast operating fuse.
Ce symbole represente un fusible a fusion rapide.
23
1
5.0
(2.5)
5.0
The same voltage for
both PLAY & REC modes
Indicates that the voltage
is not consistent here.
PLAY mode
REC mode
(Unit: Volt)
1-D3
Distinction Area
Line Number
(1 to 3 digits)
Examples:
1. "1-D3" means that line number "1" goes to area "D3".
2. "1-B1" means that line number "1" goes to area "B1".
3
2
1
ABCD
1-B1
1-D3
AREA D3
AREA B1
: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.
A V
F

M1
M2
M3
N1
N2
N3
O1
O2
O3
P1
P2
P3
Q1
Q2
Q3
R1
R2
R3
M4 N4 O4 P4 Q4 R4
PB Audio Signal
PB Video Signal
PB Audio Signal (Digital)
REC Audio Signal (Analog)
REC Video Signal (Analog)
REC Audio Signal (Digital)
AV 3/4 Schematic Diagram
1-2-3 1-2-4 E6550SCAV3
AV 3/4
Ref No. Position
IC4301 Q-1
IC4401 O-4
IC4421 N-2
Q4301 P-1
Q4424 P-2
Q4425 O-2
Q4426 P-2
Q4451 M-3
ICS
TRANSISTORS

20040914 1-3-1 E6550PL
Different parts from original model (DVR90DE)
Ref. No. Description Parts No.
MECHANICAL PARTS
A1X FRONT ASSEMBLY E6550UD 1VM220240
A2 TOP COVER E6550UD 1VM320548
A3 REAR PANEL E6550UD 1VM220228
A6 TRAY PANEL E6550UD 1VM220146
A11 LABEL,TELEPHONE NO.(SYMPHE9411UD ----------
A13 LABEL, BAR CODE HB400UD or ----------
BAR CODE LABEL E6550UD ----------
A14 CAUTION LABEL E6550UD ----------
2L021 S-TIGHT SCREW 3X6 BIND + BLACK GBKS3060
S1 GIFT BOX, CARTON E6550UD 1VM320496
X1 REMOTE CONTROL UNIT DVD REMOCON NA816UD
X6 QUICK USE GUIDE E6550UD 1VMN20269
X10#OWNER'S MANUAL E6550UD 1VMN20268
ELECTRICAL PARTS
DVD BE MAIN CBA UNIT N78F4AUP
AV CBA ASSEMBLY 1VSA10711
AV CBA ----------
C4303 ELECTROLYTIC CAP. 22µF/10V M H7 CE1AMASSL220
C4304 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104
CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
IC4201 IC(CPU) M38039MC-209HP QSZAA0RHT054
IC4301 FIBER OPTIC TRANS.MODULE 0C-0805T*002 JWHHA00JD002
R4306 CHIP RES.(1608) 1/10W J 120 ΩRRXAJR5Z0121

FDR-90E
E6550UD
2004-09-17
