• Before installing this TV set, make sure your outlet voltage corresponds to the
voltage stated on the appliance rating label of the power adaptor being used..
• Do not overload the power outlet.
• CAUTION
the power supply cord, plug and antenna cable to rain or moisture; do not use it
anywhere near water; do not touch the power plug with wet hands.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not allow anything to rest on or roll over the power cord and antenna cable.
Protect the cord and run all cables so that no one steps on or trips over them.
• Do not run the cord near heatproducing appliances such as radiators, stoves or
irons. The excessive heat could melt the insulation and expose live wires.
• When not in use, disconnect the power cord from the outlet. Hold the plug, not
the cord, when disconnecting the unit. Pulling the cord can damage the internal
wires and may cause a fire.
• Never touch the TV screen, antenna or cord during thunderstorms. Stop use
during thunderstorms; unplug the unit when a thunderstorm is approaching.
• Only use this TV with the power adaptors supplied. If either plug does not
fit into your outlets, consult your dealer or an RV service center for
replacement of the outlet.

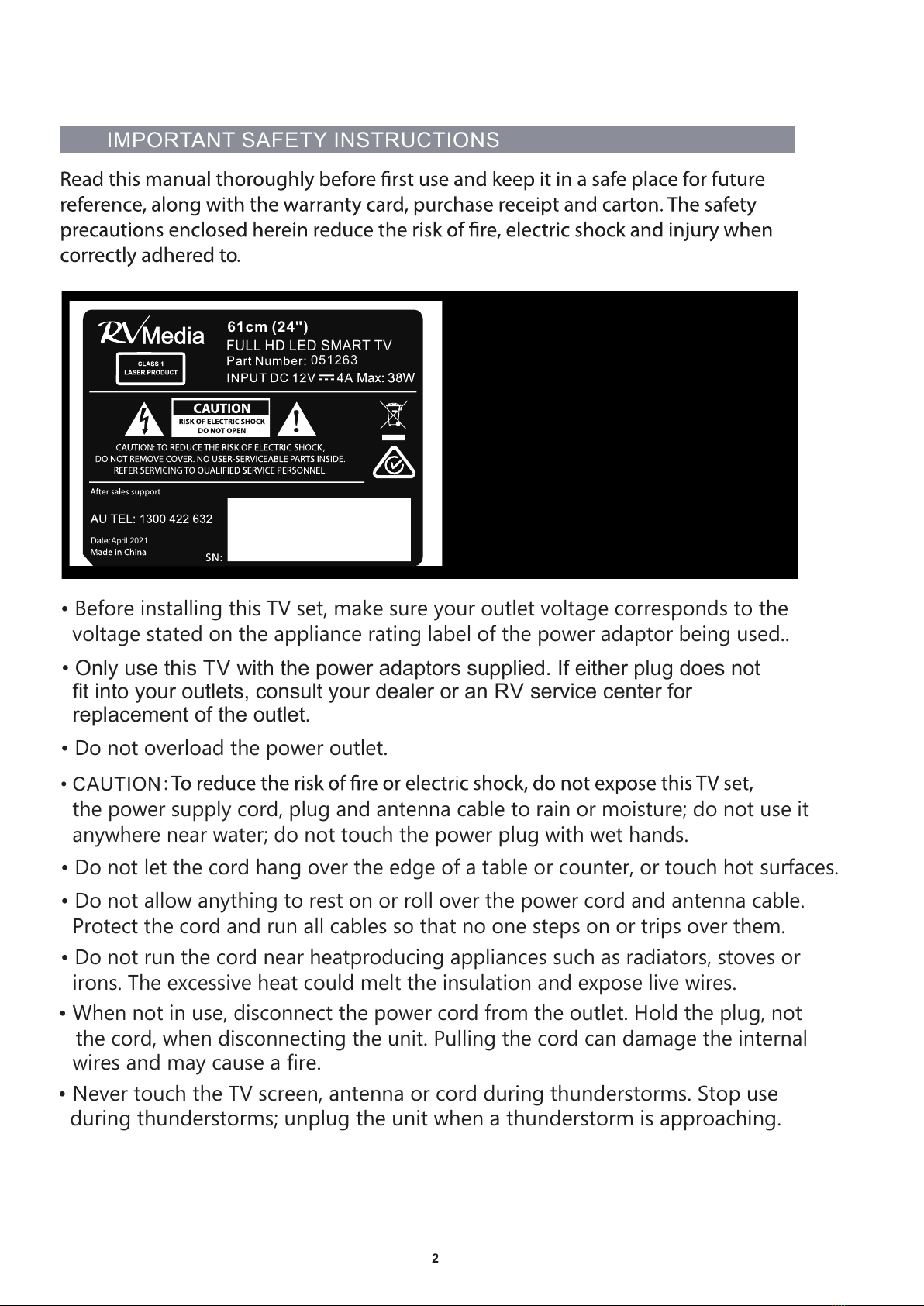

IMPORTANT SAFETY INSTRUCTIONS
2
April 2021
051263
61cm (24")
FULL HD LED SMART TV
www.caravansplus.com.au

Position
• If a television is not positioned in a sufficiently stable location, when stand
mounted, it can potentially be hazardous if it falls. Many injuries, particularly to
children, can be avoided by taking simple precautions such as:
• Using cabinets, shelves or stands that provide a sturdy support for the TV and are
not in areas where the TV can be accidently knocked or bumped .
• Only using furniture that can safely support the television.
• Ensuring the TV is not overhanging the edge of the supporting furniture.
• Not placing the TV on tall furniture (for example, cupboards or bookcases)
without anchoring both the furniture and the TV to a suitable support.
• Educating children about the dangers of climbing up to reach the TV controls.
• Not standing the TV on cloth or other materials placed between the TV and
supporting furniture.
Usage conditions and restrictions
• Follow the instructions in this manual when installing and adjusting the TV set.
Only adjust those controls that are covered in this instruction manual; improper
adjustment of other controls may result in damage. If this happens, unplug the TV
and have it serviced by appropriately qualified personnel.
• Do not change or modify the TV set in any way. Only use the attachments/
accessories specified.
• Do not cover the ventilation openings with items such as newspapers, tablecloths,
curtains etc., as this could impede ventilation.
• Do not insert any objects of any kind into this unit through the ventilation slots or
DVD slot, as they could touch the currentcarrying parts or shortcircuit parts,
resulting in fire, electric shock or damage to the unit.
• Do not touch the screen with fingers, as this may scratch or smudge the TV screen.
• Do not expose the batteries to excessive heat such as sunshine, fire or the like.
• Unplug the TV set in all of the following circumstances:
• If it has been subject to impact or has been dropped and is damaged.
• If its voltage adaptor plugs, or the wall socket, are damaged.
• The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Young children should be supervised to ensure they do not play with the TV.
IMPORTANT SAFETY INSTRUCTIONS Cont’d
www.caravansplus.com.au

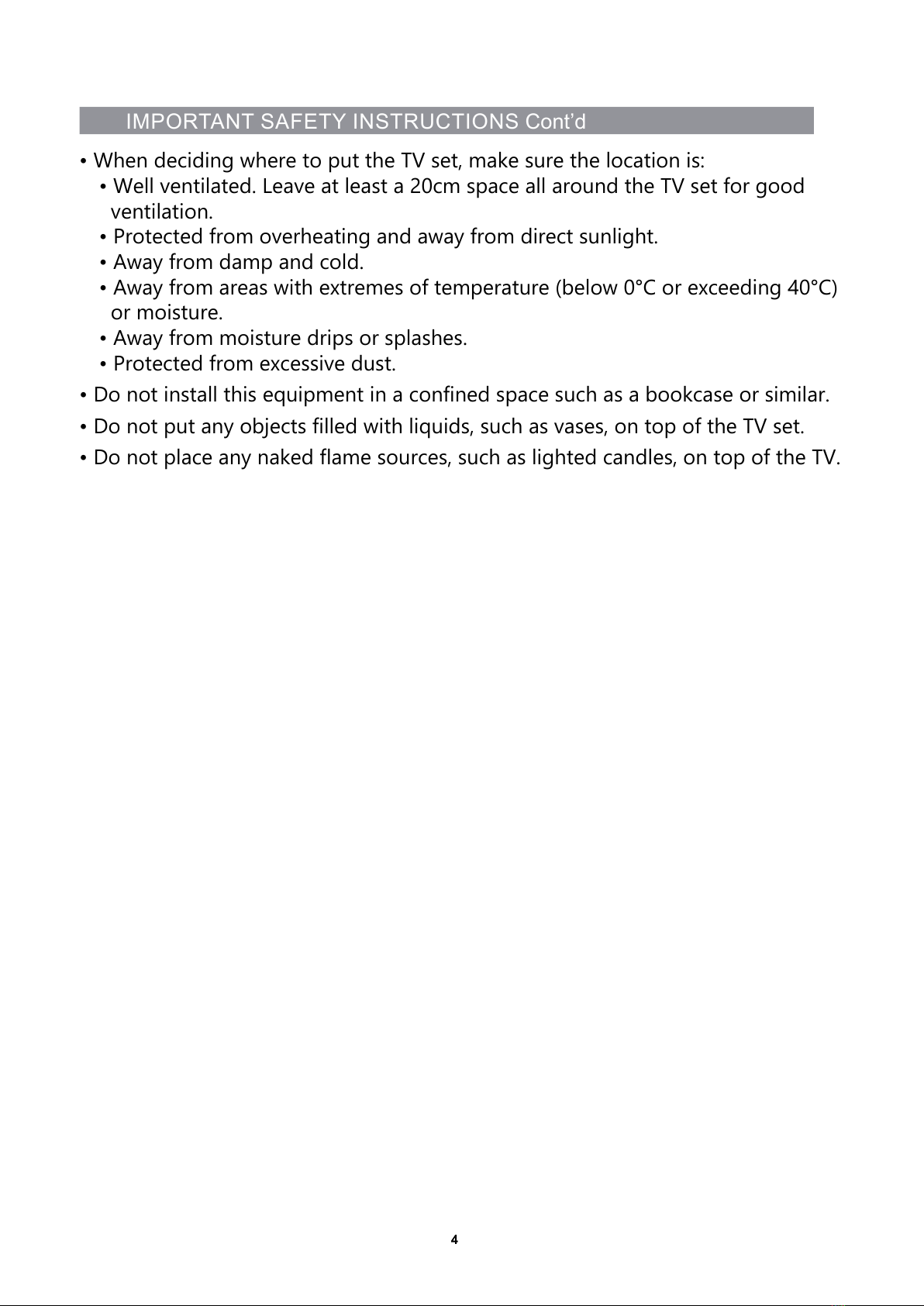

• When deciding where to put the TV set, make sure the location is:
• Well ventilated. Leave at least a 20cm space all around the TV set for good
ventilation.
• Protected from overheating and away from direct sunlight.
• Away from damp and cold.
• Away from areas with extremes of temperature (below 0°C or exceeding 40°C)
or moisture.
• Away from moisture drips or splashes.
• Protected from excessive dust.
• Do not install this equipment in a confined space such as a bookcase or similar.
• Do not put any objects filled with liquids, such as vases, on top of the TV set.
• Do not place any naked flame sources, such as lighted candles, on top of the TV.
IMPORTANT SAFETY INSTRUCTIONS Cont’d
www.caravansplus.com.au

Backlit Remote Control Smart Remote
240V Plugpack Kit
TV with inbuilt DVD Player
WHAT’S IN THE BOX
-/--
RADIO
MOUSE
12/24V FULL HD LED withSMART TV
EVO LUTI ON
SUPER SL IM
BEZEL DESIGN
051263 24" SMART TV WITH BLUETOOTH
AND DVD player
BLUETOOTH
®
®
SUPE R SLIM
BE ZE L DE SIGN
www.caravansplus.com.au

It is recommended that this TV be removed
NOTES:
Wall-Mounting

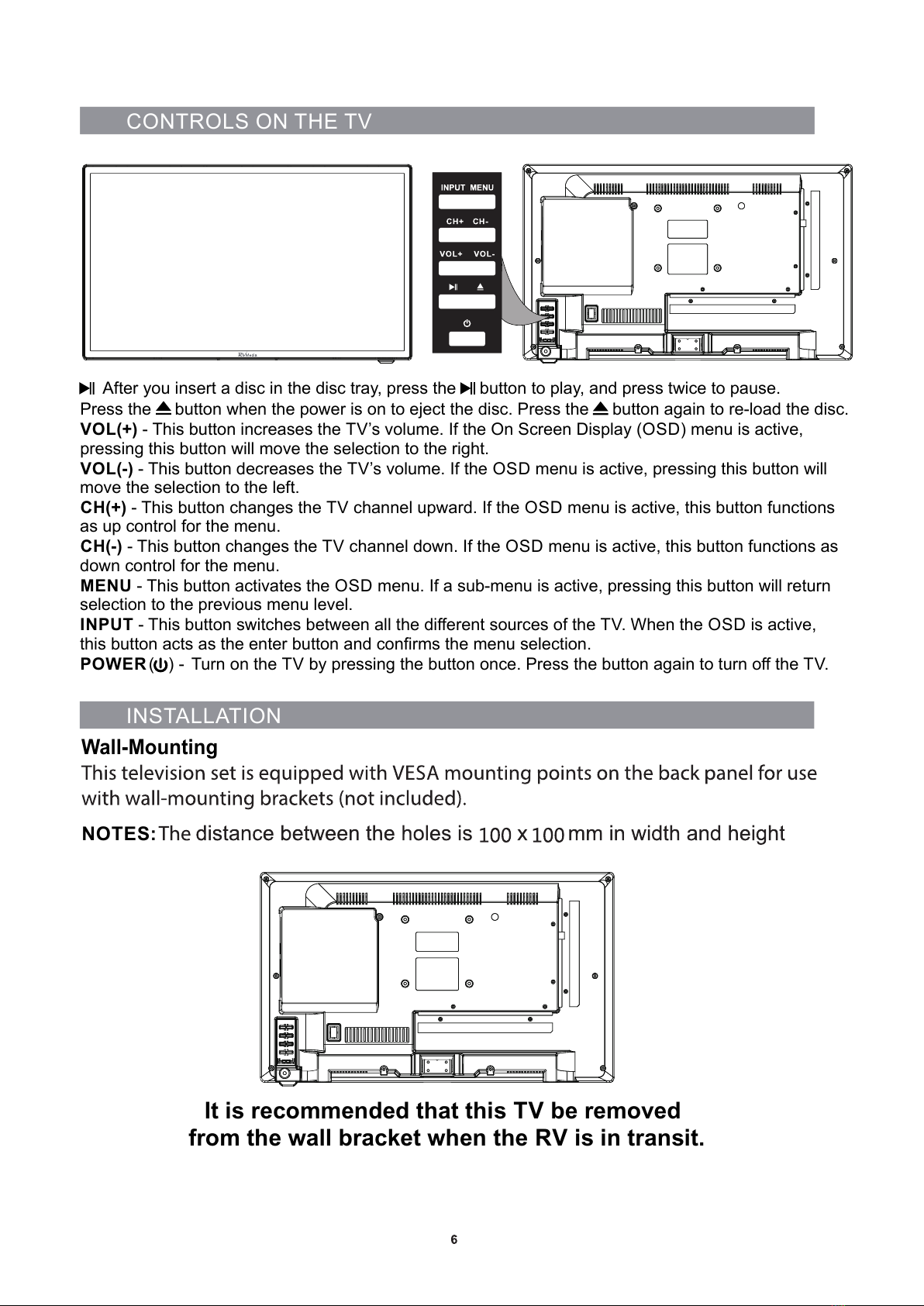

TV CONTROLSCONTROLS ON THE TV
INSTALLATION
1. After you insert a disc in the disc tray, press the button to play, and press twice to pause.
2. Press the button when the power is on to eject the disc. Press the button again to re-load the disc.
3. VOL(+) - This button increases the TV’s volume. If the On Screen Display (OSD) menu is active,
pressing this button will move the selection to the right.
4. VOL(-) - This button decreases the TV’s volume. If the OSD menu is active, pressing this button will
move the selection to the left.
5. CH(+) - This button changes the TV channel upward. If the OSD menu is active, this button functions
as up control for the menu.
6. CH(-) - This button changes the TV channel down. If the OSD menu is active, this button functions as
down control for the menu.
7. MENU - This button activates the OSD menu. If a sub-menu is active, pressing this button will return
selection to the previous menu level.
8. INPUT - This button switches between all the different sources of the TV. When the OSD is active,
this button acts as the enter button and confirms the menu selection.
9. POWER
( ) - Turn on the TV by pressing the button once. Press the button again to turn off the TV.
from the wall bracket when the RV is in transit.
www.caravansplus.com.au

10
11
NOTE
1. DC IN: POWER (DC12/24V or plugpack) input
2. RJ45 Network Cable In (24" only): For internet connection via a modem or router.
3. CVBS Out: This mirrors the Video Signal from Input 12 (A/V) ONLY. The output is
Video only; not audio.
4. Line Out: Audio output for external devices such as Head Units, amplifiers etc.
5. HDMI 1 Input: HDMI in.
6. HDMI 2 Input: HDMI in.
7. RF Input(DVB-T2): Connect to external antenna to receive DTV signal in DTV mode.
8. Coaxial Out: Digital Audio output for surround sound/sound bars etc.
9. AV Input: Composite Video & Audio in (A/V)
10. Headphone Jack: Headphone output jack.
11. USB: Use for mouse or keyboard connection; Install apps; For media playback when
Media is the TV’s selected source.
: Please, make sure the inputs and outputs have solid connections before
connecting power.
14
25 37
8
6

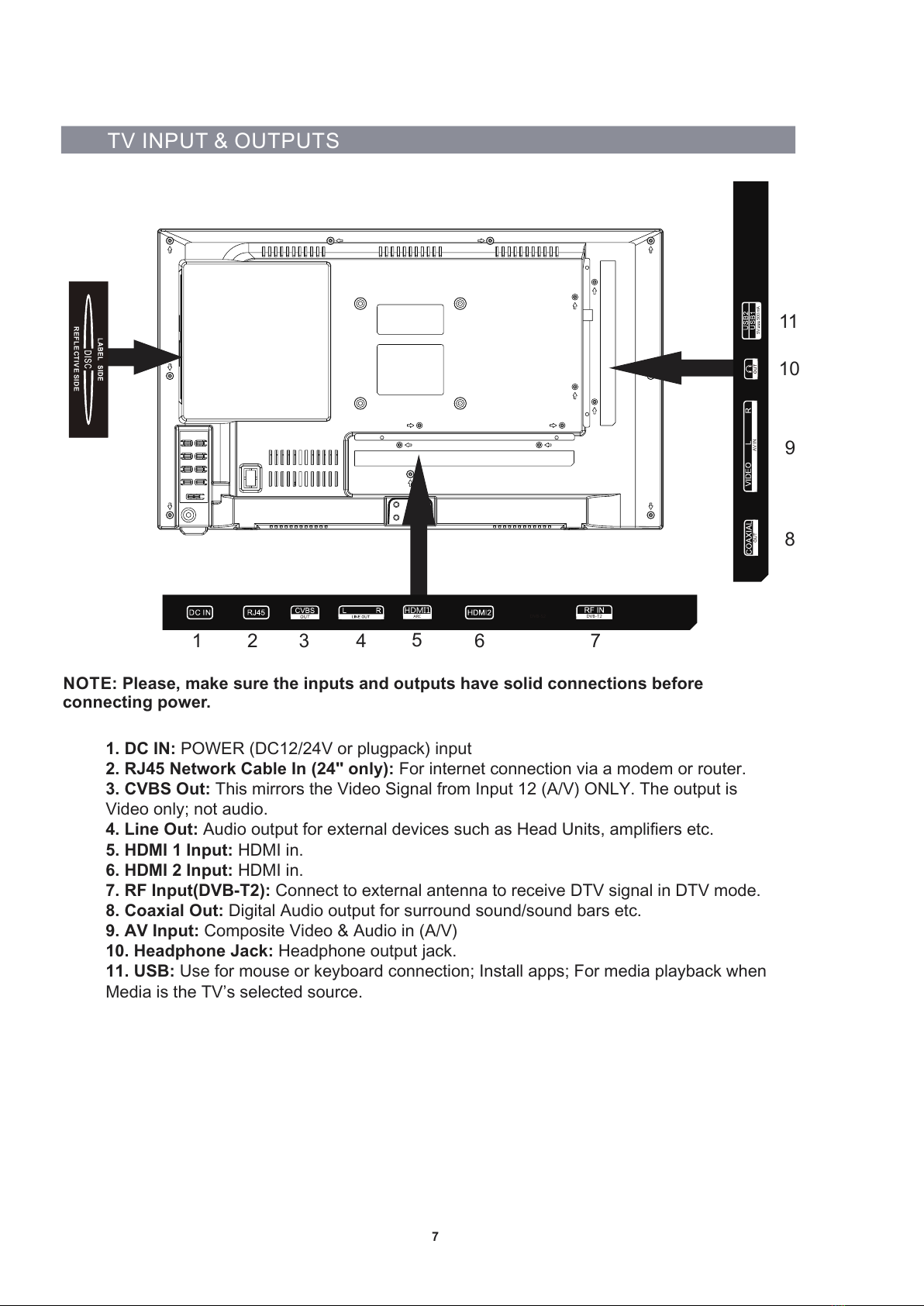

TV INPUT & OUTPUTS
7
9
REFLECTIVE SIDE
HDMI1
5V 500mA
AV IN
DVB-S2 DVB-T2
ARC
www.caravansplus.com.au

-/--
RADIO
MOUSE
REMOTE CONTROL FUNCTIONS
8
www.caravansplus.com.au

REMOTE CONTROL FUNCTIONS
9
Switch the program digit
-/--
30
31
32
33
34
35
36
37
EPG Press to display EPG (Electronic Program informa or TV.
SUBTITLE
MOUSE
Smart TV - return to home screen.
Smart TV - Open Web Browser.
Smart TV delete text.
turning on/off the mouse in your browser and applica ons
39
40
42
43
44
38
Play and Pause control for the Media-Player and DVD.
41 Press to record the current TV program to USB.
REC/
RADIO Change between TV and Radio Modes.
www.caravansplus.com.au

Installing Batteries
1Open the battery compartment
cover on the back side.
2Insert two 1.5V AAA size Alkaline*
batteries in the correct polarity. Don´t
mix old or used batteries with new.
3Replace the cover.
Battery
Cover
2 x size AAA 1.5V
Battery
Cover
To use the remote control, point
it towards the special remote sensor
slightly below the television. The
remote has a range of up to seven
meters from the TV at an angle of
up to 170 degrees! - depending on the
the RV’s interior layout.
- Batteries should not be exposed to excessive heat such as direct
sunlight, fire or the like.
- If not being used for a period of time, please remove the batteries
from the remote in case of leakage.
- Do not mix old & new batteries together.
*Due to the additional power required for the
backlight function, we recommend the use of quality
Alkaline batteries for best results.
170 170
REMOTE CONTROL BATTERIES AND RANGE
10
REMOTE CONTROL FUNCTIONS
www.caravansplus.com.au

REMOTE CONTROL FUNCTIONS
11
www.caravansplus.com.au

GETTING STARTED - POWER CONNECTION
12
Power Connection Options
Power Adaptors
Your RV Media TV with inbuilt DVD & USB functionality can operate from two
different power sources allowing you to use your TV in a multitude of applications:
- Caravans, Campers & RV’s
- Trucks (12V or 24V operation)
- Marine (12V or 24V operation)
- Store Demonstrations
- Home use
- Kitchens
- Bedrooms
- Garage
- PC Monitor
- Security systems etc.
12/24V operation
Your TV is supplied with a 12V style accessory lead (cigarette lighter plug) which
can be connected to 12V or 24V sources. This power method also ensures
that in 12V applications, your TV is protected from voltage spikes from Charges
and Solar Systems etc up to 30V
Note this lead is also available as a spare part should you require a second
power connection point or if it gets lost - Part Number: 044575
240V Mains Operation
The TV can also operate on 240V. This is done via an optional 240V adaptor.
If you require a 240V adaptor, please order a RV Media TV Accessory Pack (which
includes the Adaptor and Table-top stand) from your local Camec dealer or online :
19" TV p/n: 044571
22" & 24" TV’s p/n: 044572
www.caravansplus.com.au

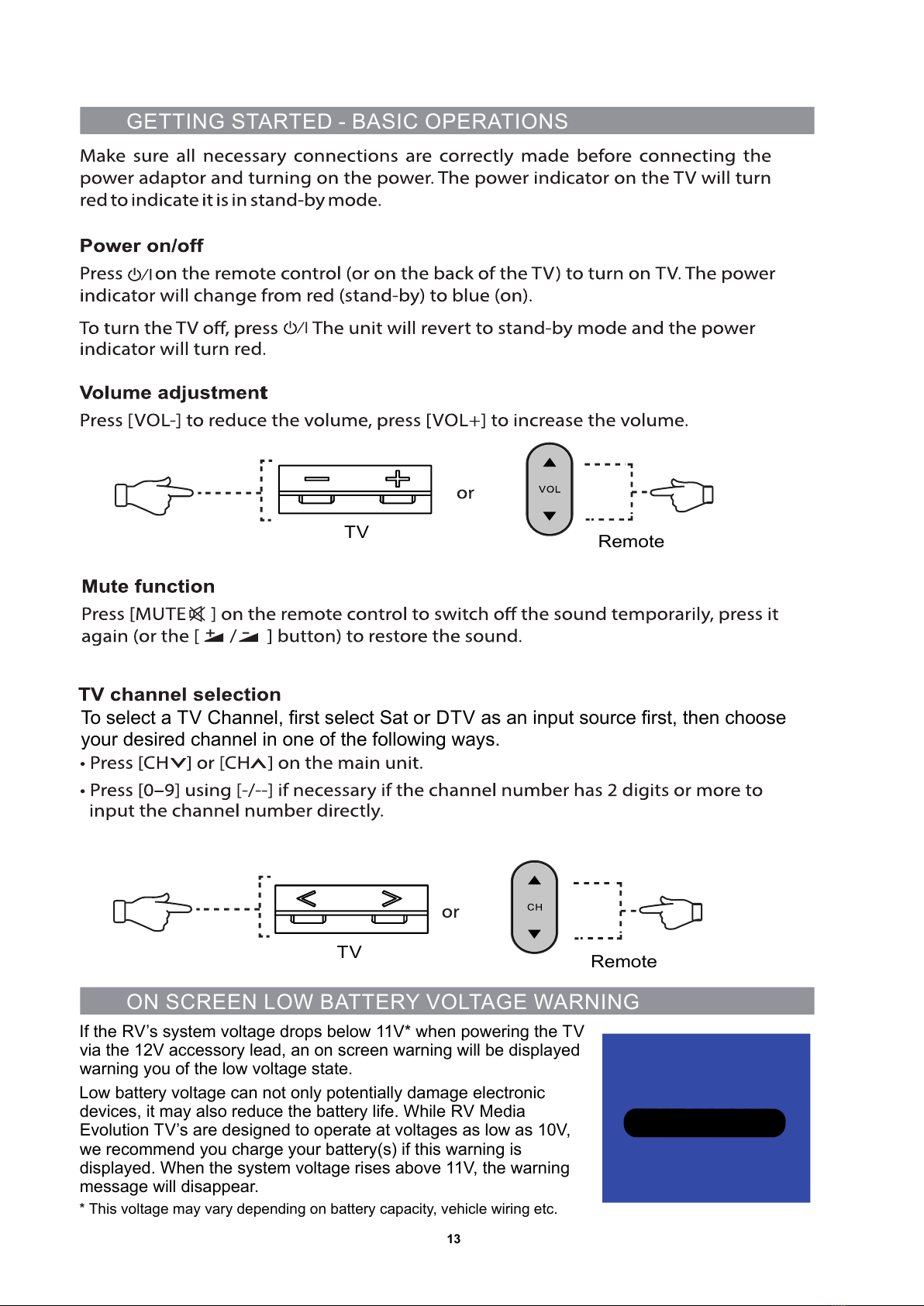

GETTING STARTED - BASIC OPERATIONS
13
TV Remote
ON SCREEN LOW BATTERY VOLTAGE WARNING
If the RV’s system voltage drops below 11V* when powering the TV
via the 12V accessory lead, an on screen warning will be displayed
warning you of the low voltage state.
Low battery voltage can not only potentially damage electronic
devices, it may also reduce the battery life. While RV Media
Evolution TV’s are designed to operate at voltages as low as 10V,
we recommend you charge your battery(s) if this warning is
displayed. When the system voltage rises above 11V, the warning
message will disappear.
* This voltage may vary depending on battery capacity, vehicle wiring etc.
To select a TV Channel, first select Sat or DTV as an input source first, then choose
your desired channel in one of the following ways.
TV Remote
www.caravansplus.com.au

14
First Time Installation
The Startup Wizard menu contains language settings and network settings.
Language settings: you can set the TV operating language.
Network settings: you can set according to the connection,wireless network settings WIFI connection,wired
connection is to set the local area network.
www.caravansplus.com.au

15
Select Input Source
Press the “Source” button to display the input source menu,press the left or right button to select the corresponding
input source,and press the OK button to enter the relevant source.
SCHEDULE RECORDING & REMINDERS
Press the EPG button on the Remote control to access the Electronic Program Guide
(DTV only)
Use the ▼/▲ keys on the remote to select a channel. The current programme on that channel
will be displayed in the box on the right. You can then use the ▼/▲ keys to scroll up or down
to select a programme. Note programmes will be displayed until midnight of the current day.
You need to move to the next day by pressing the blue button on the remote to view
after midnight and for the next day. To view programmes from the previous day, press the
yellow button on the remote.
Record
Press the RED button on the remote control to enter the Recording sub-menu. You can set the
channel, start and end times of the program you want to record using the ▼/▲◄ / ► and
buttons. A USB drive must be inserted in the TV to record.
Info
Press the GREEN button on the remote to display detailed information about the program.
Schedule
Press the YELLOW button on the remote to display the Schedule List to display the
programmes you have scheduled to record or be reminded of.
Remind
Press the BLUE button on the remote control to set a reminder for a program you would like
to watch at a later date. Note this reminder which consists of a popup on the screen will only be
displayed if the TV is on and the source is DTV.
NOTE 1: If you select a channel in the EPG and the available programmes are not displayed,
briefly exit the EPG and quickly tune in to the channel. This will ensure the programme is
downloaded for that channel.
NOTE 2: The EPG for a particular channel will only work if you can tune in to the Channel
based on your location and TV signal area.
www.caravansplus.com.au

TV MENU
Press the “menu” button to display the menu, press the up and down keys to select the appropriate settings, press the
right button to enter the relevant settings.
16
Picture Mode: Use the menu button to call up the menu,then right click to select the "Image Mode" option,press
the left and right button to switch the image mode to Standard /Movie/Vivid/User.
Color temperature: Select the "Color Temperature" option according to the method mentioned above,and then use
the left and right keys to adjust the color temperature to cool/normal/warm.
Noise Reduction: Press up/down key to select "Noise Reduction" option. Press left/right key to select "Off","Low",
"Medium","High" and "Auto”to improve the picture sharpness.
Aspect Ratio: You can select ZOOM1, ZOOM2, 16:9 or 4:3 with left and right keys when the option of Aspect
Ratio is picked.The aspect ration will automatically change in auto mode.
HDMI Mode: Switch the image mode when play picture/video in HDMI mode.
www.caravansplus.com.au

17
Sound
Sound mode: Use the up and down keys to select the sound menu,then press the right button to select the “Sound
Mode” option,press the left and right button to switch the sound mode to Standard/Sports/Music/Movie/User.
Equalizer: Through the up and down keys selected "equalizer" option,and then press the OK key system will
appear different bandwidth frequency level.
Balance: If the volumes of the left speaker and the right speaker are notthesame
,you can adjust the "Balance" to
suit your personal preference.
Auto Volume/Surround: Select the “Auto Volume”option,then turn the “Auto Volume” function on or off with the left
and right buttons. This method is also suitable for surround sound adjustment.
SPDIF Mode: This is used to convert the digital audio output mode. There are Auto,PCM,RAW,OFF.
AD Switch: Select the “AD Switch” option, then turn the “AD Switch” function on or off with the left and right buttons
AD Volume: You can adjust the "AD Volume" to suit your personal preference.
www.caravansplus.com.au

18
Channel
Select option of Auto Tuning under the up and down keys .
T
Auto Tuning can also be activated by pressing the“QT” button
on the remote control while in DTV mode.
hen press OK button and the auto tuning will begin.
To sim ulate manual search,select the Channel you need
to store,and also select the color and sound system.
Press the up and down keys to select the “Search” option,
press the left and right button to search,and you can
modify the frequency by fine tuning,choose the best frequency.
Channel Edit
You can use different color buttons or function buttons to
delete,hide,move,edit,and set program preferences.
DVBT
Auto Search
DTV Manual Search
www.caravansplus.com.au
