Toshiba 43LL3C63DB User manual
Please visit www.toshiba-tv.com to download the full user manual.
43LL3C63DB
QUICK START GUIDE
English - 1 -

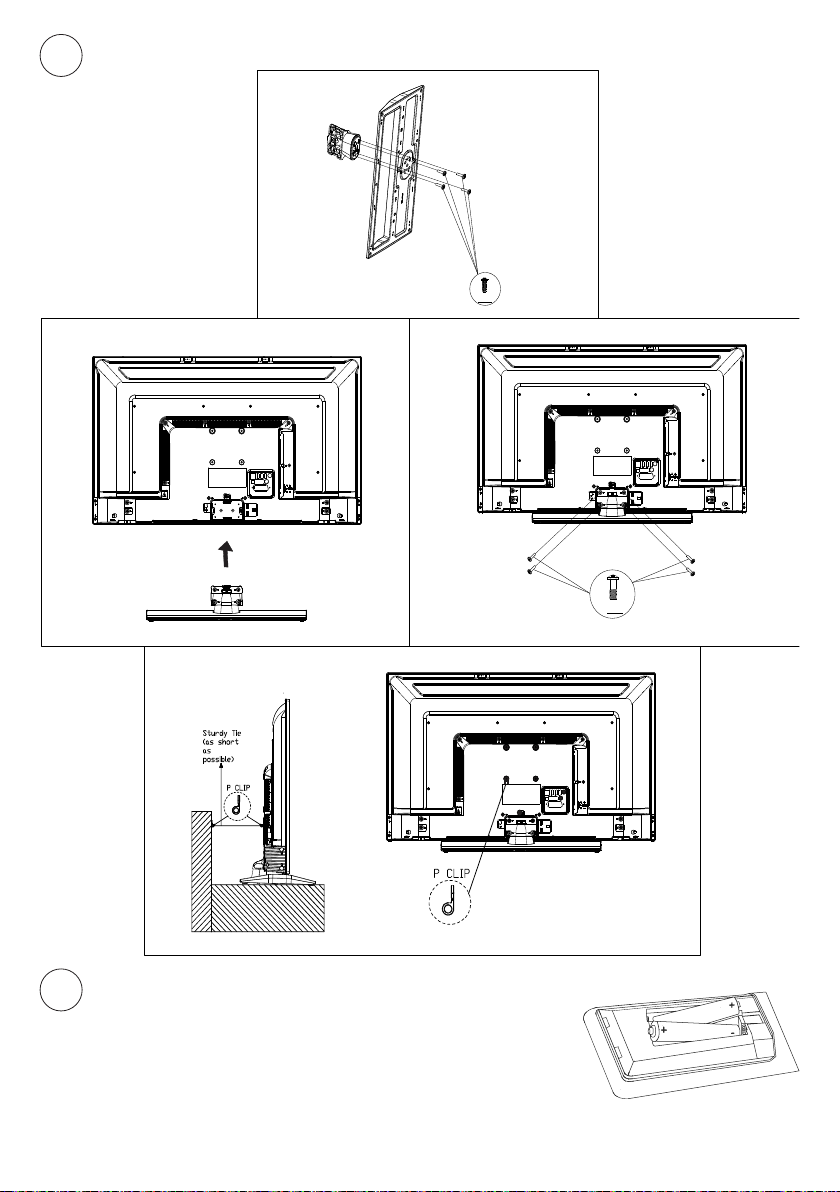

1Building and tting stand
x 4
x 4
2Inserting the batteries into the remote
Remove the back cover to reveal the battery compartment. Insert two 1.5V
size AAA batteries. Make sure the (+) and (-) signs match (observe correct
polarity). Do not mix old and new batteries. Replace only with same or
equivalent type. Place the cover back on. A message will be displayed on
the screen when the batteries are low and must be replaced.
In order to prevent injury and maintain
stability of this TV, secure it to a wall(or to
another immovable structure), as shown
in the illustration, using a sturdy strap
and the P clips. Make sure the strap is
English - 2 -
3Connections
Antenna
Connect the antenna cable/s to your TV.
satellite
dish
aerial /
cable TV
HDMI connection
rear side or rear-left
side of TV
External Devices
PLEASE ENSURE BOTH UNITS ARE
SWITCHED OFF BEFORE CONNECTING
Use the proper cable to connect two units together.
To select the desired input source, press the Source
button on the remote control. Or press the control
button to display the function options menu and then
press the button consecutively to move the focus to
Source option. Press and hold the button for about 2
seconds to activate this option. The icon colour of the
option changes when activated. Then press the button
once again to display the Sources list. Scroll through
the available sources by pressing the button.
Power
After unpacking, allow the TV set to reach the ambient room temperature before you
connect the set to the mains. Plug the power cord to the mains socket outlet.
socket on.
IMPORTANT: The TV set is designed to operate on a 220-240V AC, 50 Hz supply.
Switching on the TV
4
In order to turn the TV on from standby mode:
Press the Standby button, a numeric button,
Programme +/- button, Guide button, button
or Freeview Play button on the remote control
Press the control button on the TV
Internet connection
5
You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired
or wireless connection. Refer to full user manual for detailed instructions.
Wired Wireless
wireless
modem/router
Note: The gures are for representation only
English - 3 -
Remote control
6
1. Standby
2. Source
3. Numeric buttons
4. Language
5. Menu
6. Volume +/-
7. Info
8. Directional buttons
9. OK
10. Back/Return
11. Coloured Buttons
12. Prime Video
13. Rewind
14. Record
15. Pause
16. Play
17. Stop
18. Fast Forward
19.
20. Freeview Play
21. Exit
22. Guide
23. Programme +/-
24. Text
25. Mute
First time installation
7
OK. Follow the on screen instructions to setup your TV and install channels. The installation wizard will guide
you through the setup process. You can perform First Time Installation anytime using the related option in
the Settings>Installation menu.
Accessing E-Manual and the full user manual
8
Settings menu, select Manuals and press OK. For quick access to E-Manual press
Menu “ ” button and then Info “ ” button.
this QR code or visit https://toshiba-tv.com
If you like to register your Toshiba TV, please visit the Toshiba support website as per link above and select
“Register”.
English - 4 -
High Dynamic Range (HDR) / Hybrid
Log-Gamma (HLG)
Using this feature the TV can reproduce greater
dynamic range of luminosity by capturing and then
promises better picture quality thanks to brighter, more
realistic highlights, more realistic colour and other
intended to achieve, showing the hidden areas of
dark shadows and sunlight with full clarity, colour and
detail. HDR/HLG contents are supported via native
and market applications, HDMI, USB inputs and over
DVB-S broadcasts.
Accessories Included
Remote Control
Batteries: 2 x AAA
Quick Start Guide
P-clip x2
Stand x1
Screw x8
Feature Overview
Media Browser
Browse the media content stored on USB devices that
are connected to your TV
Common Interface
Decode encrypted digital TV channels with a Condi-
tional Access Module(CAM) and a card provided by
a digital TV service operator
USB Recording
Record your favourite TV and radio programmes
Electronic Programme Guide
Display the scheduled digital TV and radio programmes
CEC
Control basic functions of the connected HDMI-CEC
compatible audio/video devices with the remote
control of the TV
Audio Video Sharing
Access your media files stored on media server
connected to your home network
HbbTV
Access to HbbTV services (services are dependant
on broadcast)
Apps
Access the applications installed on your TV, add
more from the market
Open Browser
Browse the internet from the comfort of your sofa
Wireless Display
Wirelessly stream video and sound content and use
your TV as a second screen for your compatible PC
or handheld device
Smart Center
Use the Smart Center application installed on your
mobile device to launch your applications, control your
Virtual Remote
Control your TV via a wireless handheld device
Bluetooth®
Connect audio devices or remote controllers
wirelessly to your TV.
/uk-uk/support
English - 5 -
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
Note: Follow the on screen instructions for operating the
related features.
In extreme weather (storms, lightning) and long inactivity
periods (going on holiday) disconnect the TV set from the
mains.
The mains plug is used to disconnect TV set from the mains
and therefore it must remain readily operable. If the TV set is
not disconnected electrically from the mains, the device will
still draw power for all situations even if the TV is in standby
IMPORTANT - Please read these
instructions fully before installing or
operating
WARNING: This device is intended to be
used by persons (including children) who are
capable / experienced of operating such a device
unsupervised, unless they have been given
supervision or instruction concerning the use of
the device by a person responsible for their safety.
Use this TV set at an altitude of less than 2000
metres above the sea level, in dry locations and in
regions with moderate or tropical climates.
The TV set is intended for household and similar
general use but may also be used in public places.
For ventilation purposes, leave at least 5cm of free
space around the TV.
The ventilation should not be impeded by covering
or blocking the ventilation openings with items, such
as newspapers, table-cloths, curtains, etc.
The power cord/plug should be easily accessible. Do
not place the TV, furniture, etc. on the power cord.
you an electric shock. Handle the power cord by the
plug, do not unplug the TV by pulling the power cord.
Never touch the power cord/plug with wet hands
as this could cause a short circuit or electric shock.
Never make a knot in the power cord or tie it with
other cords. When damaged it must be replaced,
Do not expose the TV to dripping or splashing of
such as vases, cups, etc. on or over the TV (e.g. on
shelves above the unit).
Do not expose the TV to direct sunlight or
on the top of or near the TV.
Do not place any heat sources such as electric
heaters, radiators, etc. near the TV set.
Do not place the TV on the floor and inclined
surfaces.
out of the reach of babies, children and domestic
animals.
Carefully attach the stand to the TV. If the stand is
prevent the TV from tilting. Do not over-tighten the
screws and mount the stand rubbers properly.
Do not dispose of the batteries in fire or with
WARNING
Batteries must not be exposed to excessive heat
Excessive sound pressure from earphones or
headphones can cause hearing loss.
ABOVE ALL - NEVER let anyone, especially chil-
dren, push or hit the screen, push anything into
holes, slots or any other openings in the case.
Caution Serious injury or death risk
Risk of electric shock Dangerous voltage risk
Maintenance Important maintenance
component
Markings on the Product
The following symbols are used on the product as
a marker for restrictions and precautions and safety
instructions. Each explanation shall be considered
where the product bears related marking only. Note
such information for security reasons.
Class II Equipment: This appliance is
designed in such a way that it does not require
a safety connection to electrical earth.
Hazardous Live Terminal: The marked
terminal(s) is/are hazardous live under normal
operating conditions.
iCaution, See Operating Instructions: The
marked area(s) contain(s) user replaceable
coin or button cell batteries.
CLASS 1
LASER PRODUCT
Class 1 Laser Product: This
product contains Class 1 laser
source that is safe under reason-
ably foreseeable conditions of
operation.
English - 6 -
WARNING
-
lead to death.
If the battery compartment does not close secu-
-
– – – – – – – – – – – –
A television may fall, causing serious personal injury
or death. Many injuries, particularly to children, can
be avoided by taking simple precautions such as:
ALWAYS use cabinets or stands or mounting
methods recommended by the manufacturer of
the television set.
ALWAYS use furniture that can safely support the
television set.
ALWAYS ensure the television set is not overhang-
ing the edge of the supporting furniture.
ALWAYS educate children about the dangers of
climbing on furniture to reach the television set
or its controls.
ALWAYS route cords and cables connected to
your television so they cannot be tripped over,
pulled or grabbed.
NEVER place a television set in an unstable
location.
NEVER place the television set on tall furniture
(for example, cupboards or bookcases) without
anchoring both the furniture and the television set
to a suitable support.
NEVER place the television set on cloth or other
materials that may be located between the tele-
vision set and supporting furniture.
NEVER place items that might tempt children
to climb, such as toys and remote controls, on
the top of the television or furniture on which the
television is placed.
The equipment is only suitable for mounting at
If the existing television set is going to be retained
and relocated, the same considerations as above
should be applied.
– – – – – – – – – – – –
-
-
-
Using the special functions to change the size of the
displayed image (i.e. changing the height/width ratio)
for the purposes of public display or commercial gain
may infringe on copyright laws.
The LCD display panels are manufactured using an
extremely high level of precision technology; however,
sometimes some parts of the screen may be missing
picture elements or have luminous spots. This is not
a sign of a malfunction.
Mains Supply
The set should be operated only from a 220-240 V
AC 50 Hz outlet. Make sure the TV or its stand are
not placed on the power cord
mains plug from this equipment, this incorporates a
special Radio Interference Filter, the removal of which
will impair its performance.
in this plug is approved by ASTA or BSI to BS1362.
It should only be replaced by a correctly rated and
approved type. IF IN DOUBT PLEASE CONSULT A
COMPETENT ELECTRICIAN.
WALL MOUNTING WARNINGS
Read the instructions before mounting your TV
on the wall.
The wall mount kit is optional. You can obtain from
your local dealer, if not supplied with your TV.
Do not install the TV on a ceiling or on an inclined
wall.
accessories.
the TV from fall. Do not over-tighten the screws.
Figures and illustrations in this user manual are
the actual product appearance. Product design
English - 7 -
Licences
Interface, and the HDMI Logo are trademarks
or registered trademarks of HDMI Licensing
Administrator, Inc.
Manufactured under licence from Dolby Laboratories.
Dolby, Dolby Audio, and the double-D symbol
are trademarks of Dolby Laboratories Licensing
Corporation.
YouTube and the YouTube logo are trademarks of
Google Inc.
For DTS patents, see http://patents.dts.com.
Manufactured under licence from DTS Licensing
Limited. DTS, the Symbol, DTS and the Symbol
together, DTS-HD, and the DTS-HD logo are
registered trademarks or trademarks of DTS, Inc. in
the United States and/or other countries. © DTS, Inc.
All Rights Reserved.
For DTS patents, see http://patents.dts.com.
Manufactured under licence from DTS Licensing
Limited. DTS, the Symbol, DTS and the Symbol
together, Virtual:X, and the DTS Virtual:X logo are
registered trademarks or trademarks of DTS, Inc. in
the United States and/or other countries. © DTS, Inc.
All Rights Reserved.
The Bluetooth®word mark and logos are registered
trademarks owned by the Bluetooth SIG, Inc. and
any use of such marks by Vestel Elektronik Sanayi ve
Ticaret A.S. is under licence. Other trademarks and
trade names are those of their respective owners.
DVB is a registered trademark of the DVB Project.
[1] EIA/CEA-861-D compliance covers the
transmission of uncompressed digital video with high-
bandwidth digital content protection, which is being
signals. Because this is an evolving technology, it is
possible that some devices may not operate properly
with the television.
This product contains technology subject to certain
intellectual property rights of Microsoft. Use or
distribution of this technology outside of this product
is prohibited without the appropriate licence(s) from
Microsoft.
Content owners use Microsoft PlayReady™ content
access technology to protect their intellectual property,
including copyrighted content. This device uses
PlayReady technology to access PlayReady-protected
content and/or WMDRM-protected content. If the
device fails to properly enforce restrictions on content
usage, content owners may require Microsoft to revoke
content. Revocation should not affect unprotected
content or content protected by other content access
technologies. Content owners may require you to
upgrade PlayReady to access their content. If you
decline an upgrade, you will not be able to access
content that requires the upgrade.
The “CI Plus” Logo is a trademark of CI Plus LLP.
This product is protected by certain intellectual
property rights of Microsoft Corporation. Use or
distribution of such technology outside of this product
is prohibited without a licence from Microsoft or an
authorised Microsoft subsidiary.
Frequency Ranges Max Output
Power
2400 - 2483,5 MHz (CH1-CH13) < 100 mW
5150 - 5250 MHz (CH36 - CH48) < 200 mW
5250 - 5350 MHz (CH52 - CH64) < 200 mW
5470 - 5725 MHz (CH100 - CH140) < 200 mW
Country Restrictions
all EU countries (and other countries following the
relevant EU directive) without any limitation except
for the countries mentioned below.
Country Restriction
Bulgaria General authorisation required for outdoor
use and public service
Italy If used outside of own premises, general
authorisation is required
Greece In-door use only for 5470 MHz to 5725
MHz band
Luxembourg General authorisation required for network
and service supply(not for spectrum)
Norway
Radio transmission is prohibited for the
geographical area within a radius of 20 km
from the centre of Ny-Ålesund
Russian
Federation In-door use only
Israel 5 GHz band only for 5180 MHz-5320 MHz
range
The requirements for any country may change at
local authorities for the current status of their national
English - 8 -
TV Broadcasting PAL BG/I/DK
SECAM BG/DK
Receiving Channels VHF (BAND I/III) - UHF
(BAND U) - HYPERBAND
Digital Reception
TV(DVB-T-C-S)
Number of Preset
Channels 11000
Channel Indicator On Screen Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio DTS Virtual:X
DTS-HD
Audio Output Power
(WRMS.) (10% THD) 2x8
Power Consumption (W) 75 W
Networked Standby
Power Consumption (W) < 2
Weight (kg) 9.5
TV Dimensions DxLxH
(with foot) (mm) 249 x 973 x 602
TV Dimensions DxLxH
(without foot) (mm) 81 x 973 x 567
16:9 43”
Operation temperature
and operation humidity
0ºC up to 40ºC, 85% humidi
ty max
Disposal...
The following information is only for EU-member states:
Disposal of products
The crossed out wheeIed dust bin symbol
indicates that products must be collected and
disposed of separately from household waste.
Integrated batteries and accumulators can
be disposed of with the product. They will be
separated at the recycling centres.
The black bar indicates that the product was placed on the
market after August 13, 2005.
By participating in separate collection of products and
batteries, you will help to assure the proper disposal of
products and batteries and thus help to prevent potential
negative consequences for the environment and human
health.
For more detailed information about the collection and
recycling programmes available in your country, please
contact your local city office or the shop where you
purchased the product.
Disposal of batteries and/or accumulators
The crossed out wheeled dust bin symboI
indicates that batteries and/or accumulators
must be collected and disposed of separately
from household waste.
If the battery or accumulator contains more
Directive, then the chemical symbols for lead (Pb), mercury
(Hg) and/or cadmium (Cd) will appear below the crossed out
wheeled dust bin symbol.
By participating in separate collection of batteries, you will
help to assure the proper disposal of products and batteries
and thus help to prevent potential negative consequences
for the environment and human health. For more detailed
information about the coIIection and recycling programmes
or the shop where you purchased the product.
REACH information
The European Union (EU) chemical regulation,
REACH (Registration, Evaluation, Authorisation
and Restriction of Chemicals), entered into force
on 1 June 2007.
Toshiba will meet all REACH requirements and
is committed to provide our customers with
information about the presence in our articles of
substances included on the candidate list according
to REACH regulation.
Please consult the following website www.toshiba-
tv.com for information about the presence in our
articles of substances included on the candidate
list according to REACH in a concentration above
0.1 % weight by weight.
English - 9 -
This product is carrying the CE-Mark in accordance
with the related European Directives.
Responsible for CE-Marking is Vestel UK, Langley,
Berkshire, SL3 6EZ.
This product is labeled with the CE Mark in
accordance with the related European Directives,
notably RoHS Directive 2011/65/EU. Furthermore
the product complies with the Ecodesign Directive
2005/32/EC (EuP) and 2009/125/EC (ErP) and its
related implementing measures.
Find out all you need to know about the latest,
trend-setting TV technology on our website.
www.toshiba-tv.com
You can download the full manual, watch support
videos, learn latest FAQs, stick your head into
the forum, or register your TV in the support
section.
Hereby, VESTEL Elektronik Sanayi ve Ticaret
in compliance with Directive 2014/53/EU. The full
text of the EU declaration of conformity is available
at the following internet address: doc.vosshub.com
English - 10 -
Product Fiche
Commercial Brand: TOSHIBA
Model No. 43LL3C63DB
Energy eciency class A+
Visible screen size
(diagonal,approx.) (inch/cm) 43 inches 108 cm
On mode average power
consumpon (Wa) 54.0 W
A n n u a l e n e r g y c o n s u m p o n
(kWh/annum)(*) 78.0 kWh
S t a n d b y p o w e r c o n s u m p o n
(Wa) 0.50 W
O m o d e p o w e r c o n s u m p o n
(Wa) N/A
Display resoluon (px) 1920x1080
(*)Energy consumption kWh per year, based on the power consumption of the television operating 4 hours per day for 365
days. The actual energy consumption will depend on how the television is used.
AVESA WALL MOUNT MEASUREMENTS
BHole Paern
Sizes (mm)
WH
100 100
CScrew Sizes
D Length (X) min. (mm) 7
max. (mm) 8
E Thread (Y) M4
W
H
Table of contents
Other Toshiba Smart TV manuals
