Cameo CLPST64TRI3W User manual

STUDIO PAR 64 CAN
3W TRI LED CAN CLPST64TRI3W
USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D´UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D‘USO

2
3
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
Thank you for choosing Cameo Light!
We have designed this product to give you reliable operation over many years.
Please, take a few moments to read these instructions carefully, as we want you to enjoy your new Cameo Light
products quickly and to the fullest.
Further information about Cameo Light check our website WWW.CAMEOLIGHT.COM

STUDIO PAR 64 CAN
3W TRI LED CAN CLPST64TRI3W
2
3
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

PREVENTIVE MEASURES:
4
5
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
• Never let the AC cable come into contact with other cables. Handle the AC cable and all mains voltage connec
tions with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the system’s life.
• Only use the equipment indoors.
• Do not expose to flammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before cleaning! Only handle the
AC cable by the plug. Never pull out the AC plug by pulling the AC cable.
• Make sure that the available voltage is between 100 V AC - 250 V AC.
• Make sure that the AC cable is never crimped or damaged. Check the equipment and the AC cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualified engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch
it on immediately. The arising condensation might damage the equipment. Leave the equipment switched off
until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit securely (preferably in the
original packing material), and return it to your Cameo dealer for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualified technician. THIS UNIT CON
TAINS NO USER SERVICEABLE PARTS.
• Never use any accessories or modifications not authorized by the manufacturer of this unit.
• Choose a location for operation where the unit is protected from vibration and where a fixed mounting position
is provided. In case of overhead-mounting, follow appropriate rigging rules and your country’s regulations for
rigging safety.
• Before plugging the AC cable in the wall outlet, check whether the AC mains voltage and frequency is the same
as this product is specified for. Whenever your AC plug should not match the wall outlet, contact your dealer
immediately.
• If fluids have spilled into the unit or small parts have intruded the unit, immediately switch off the unit and
hand it over to the authorized service for a security check.
• Disconnect the unit from AC supply by pulling the AC plug out of the wall outlet or the unit’s AC socket during a
thunder-storm in order to avoid any damage on the unit due to AC voltage peaks.
• In cause of not correct function of this unit or damaged AC cable or other damaged parts, pull immediately the
AC plug out of the wall outlet and hand the unit over to the authorized service for a security check.
• To meet all aspects of functionality and security during maintenance work to be preformed on this unit, all
parts should be replaced by genuine spare parts. Consequently, take care of your dealer or maintenance
company to be authorized by the manufacturer.

SAFETY:
4
5
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual, the product may suffer
damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks, lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
WARNING!
1. Do not look into the beam from a distance of less than 40 cm (16 inches).
2. Do not stare into the beam for extended periods at a short distance.
3. Do not view the beam directly with optical instruments such as magnifiers.
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of uninsulated “dangerous voltage” within the product´s enclosure that may be of
sufficient magnitude to constitute a risk to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of im-
portant operating and maintenance (servicing) instructions in the literature accompanying the appliance.
The product has been developed for professional use in the field of event technology and is not suitable as house-
hold lighting.
CAUTION
RISK OF ELECTRIC S HOCK
DO NOT OPEN

INTRODUCTION:

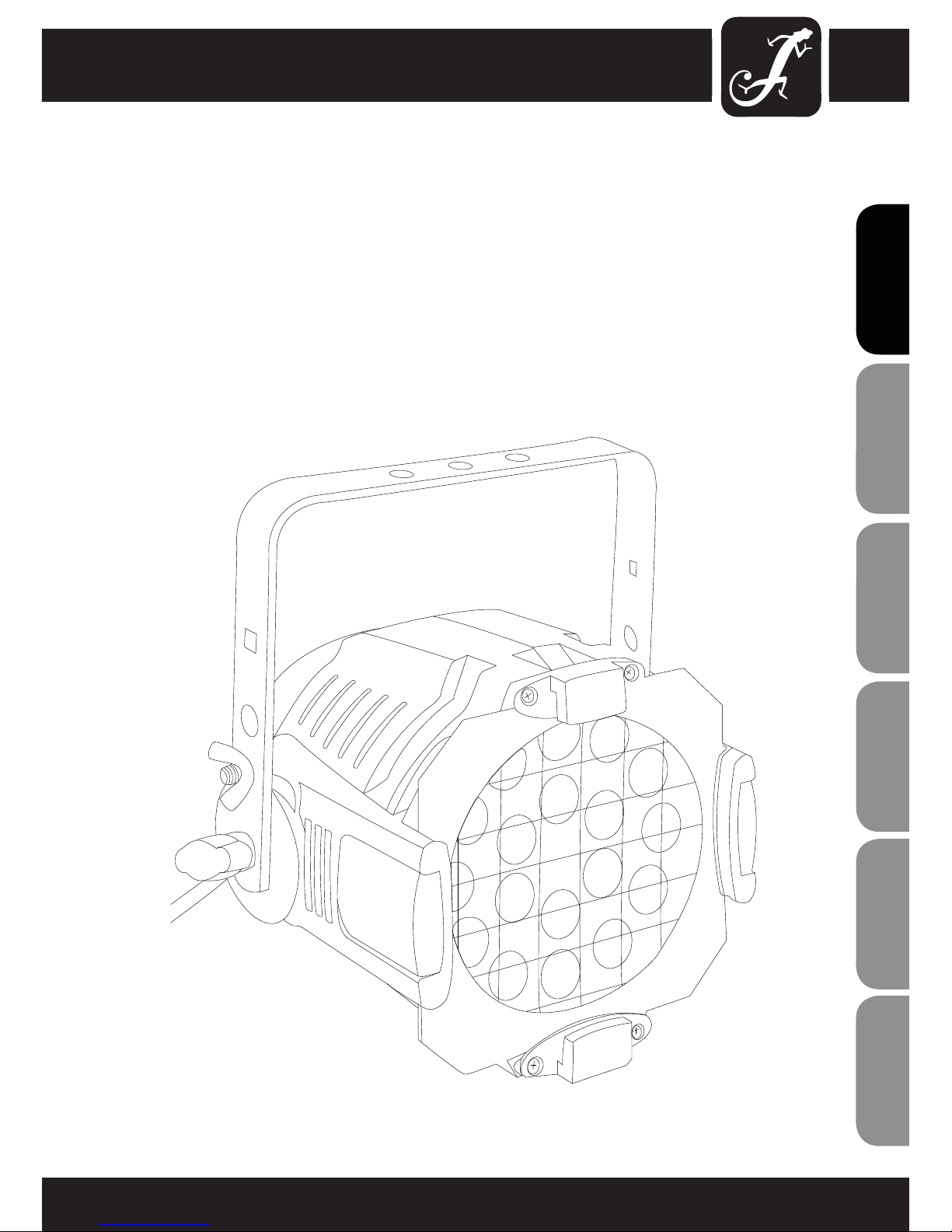

Thanks for choosing the STUDIO PAR 64 CAN. This is the innovative LED application for professi-
onal lightings. Since the RGB ultra bright LED lamps, the unit can combine more than 16.7
million soft color effects. It meets to use for the entertainment stage, dancing halls, clubs etc..
STUDIO PAR 64 CAN
(CLPST64TRI3W)
• 6-channel DMX
• Individual control of Red, Green and Blue LEDs
FEATURES
• 18 TRI colour LEDss
• Ultra Bright 400Hz flicker free 3W TRI LEDs
• Sound control via internal microphone
• Colour change speed and strobe effect adjustable
via control panel
• Multi-colour changes
• Master/Slave functions
• Rugged compact housing
• Power consumption: 60 W
• Long life LEDs
6
7
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

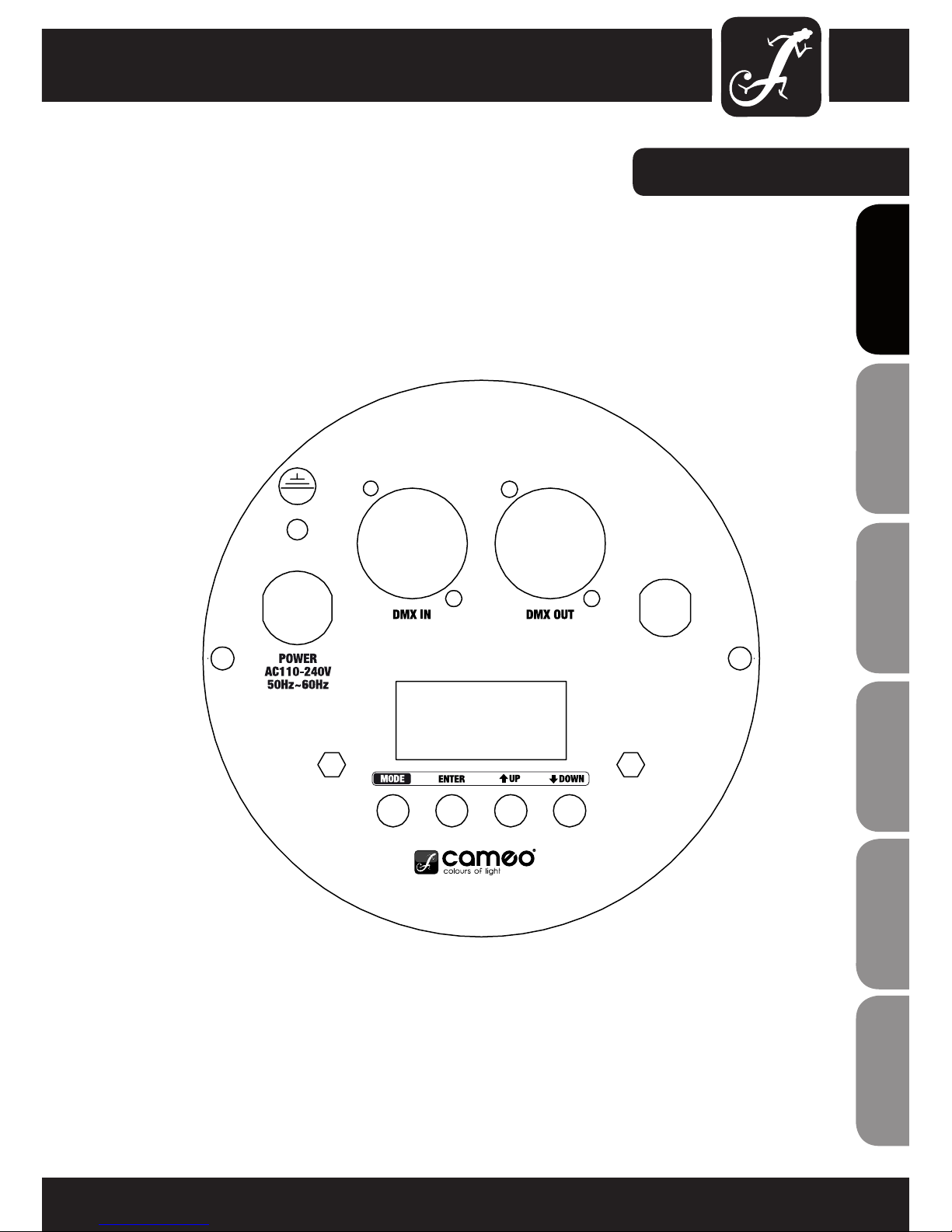

BACK PANEL:
6
7
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

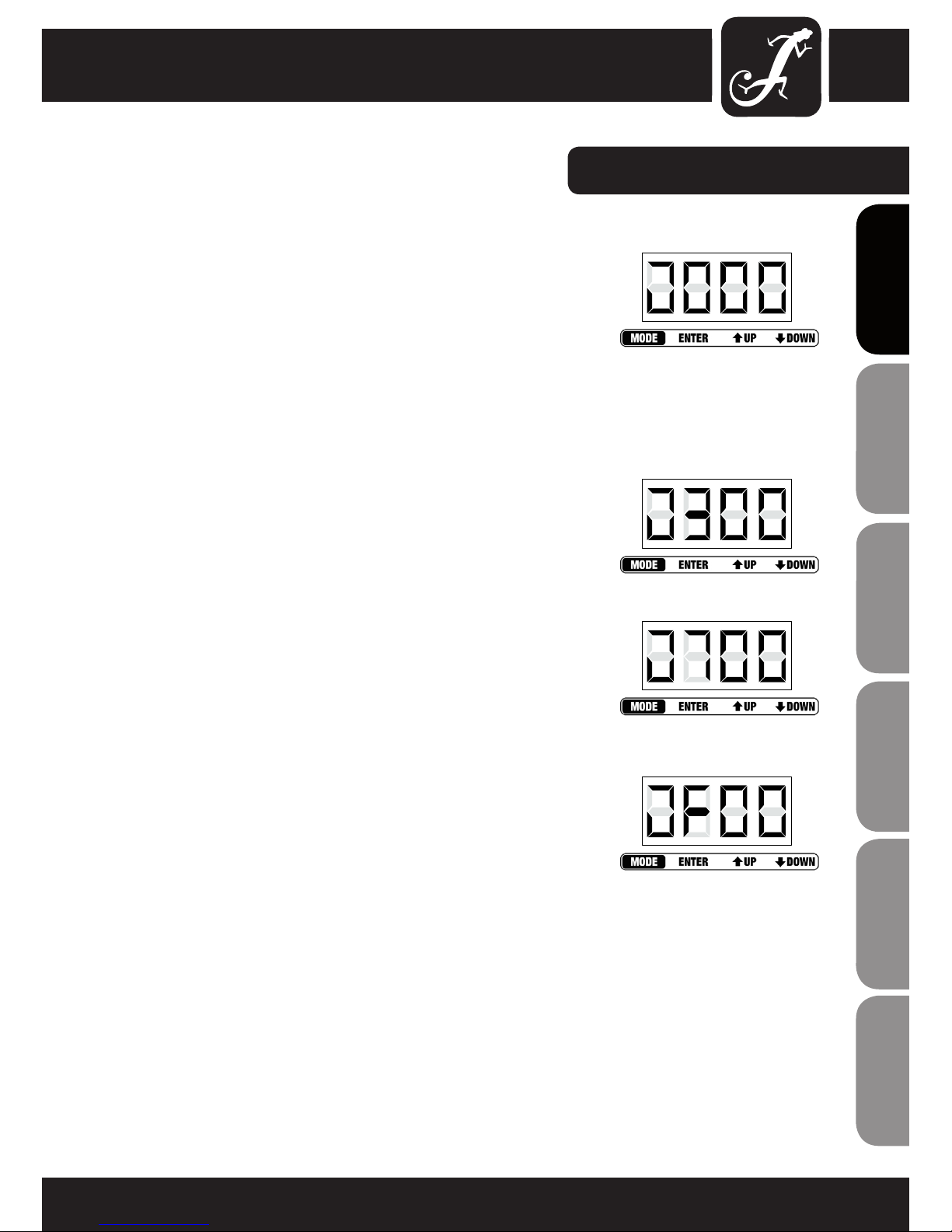

MODE SELECTION:
STATIC COLOUR MODE
Press the “MODE” button to select the Static Colour Mode. “C000”, then
press the “ENTER” button to choose one of the static colours using the “UP”
and “DOWN” buttons. The “C1” represents Red, “C2” = Green, “C3” = Blue
and “CF” = strobe. Press ENTER (first 3. and then 4. digits blinks) again to
adjust brightness ( C1, C2, C3, 00-99 ) or strobe speed ( CF, 00-99) by using
UP and DOWN buttons. Examples: If you set C1, C2 and C3 to zero, the Tri Par
will have no LEDs on (blackout). If you set C1 to 99 and C2 and C3 to zero,
the Tri Par will be 100% Red.
RED
00 - 99 beam brightness adjustable.
GREEN
00 - 99 beam brightness adjustable.
BLUE
00 - 99 beam level adjustable.
STROBE
00 - 99 speed adjustable.
8
9
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

MODE SELECTION:
COLOUR JUMPING MODE
Press the mode button to select the Colour Jumping Mode.Press
ENTER ( 2. digit blinks ) to select RGB or 7 Colour by using UP and
DOWN buttons. Press ENTER ( first 3. and then 4. digit blinks ) again
to adjust jumping speed ( 00-99 ) by using UP and DOWN buttons.
RGB
00 - 99 speed adjustable.
7COLOR
00 - 99 speed adjustable.
STROBE
00 - 99 speed adjustable.
8
9
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

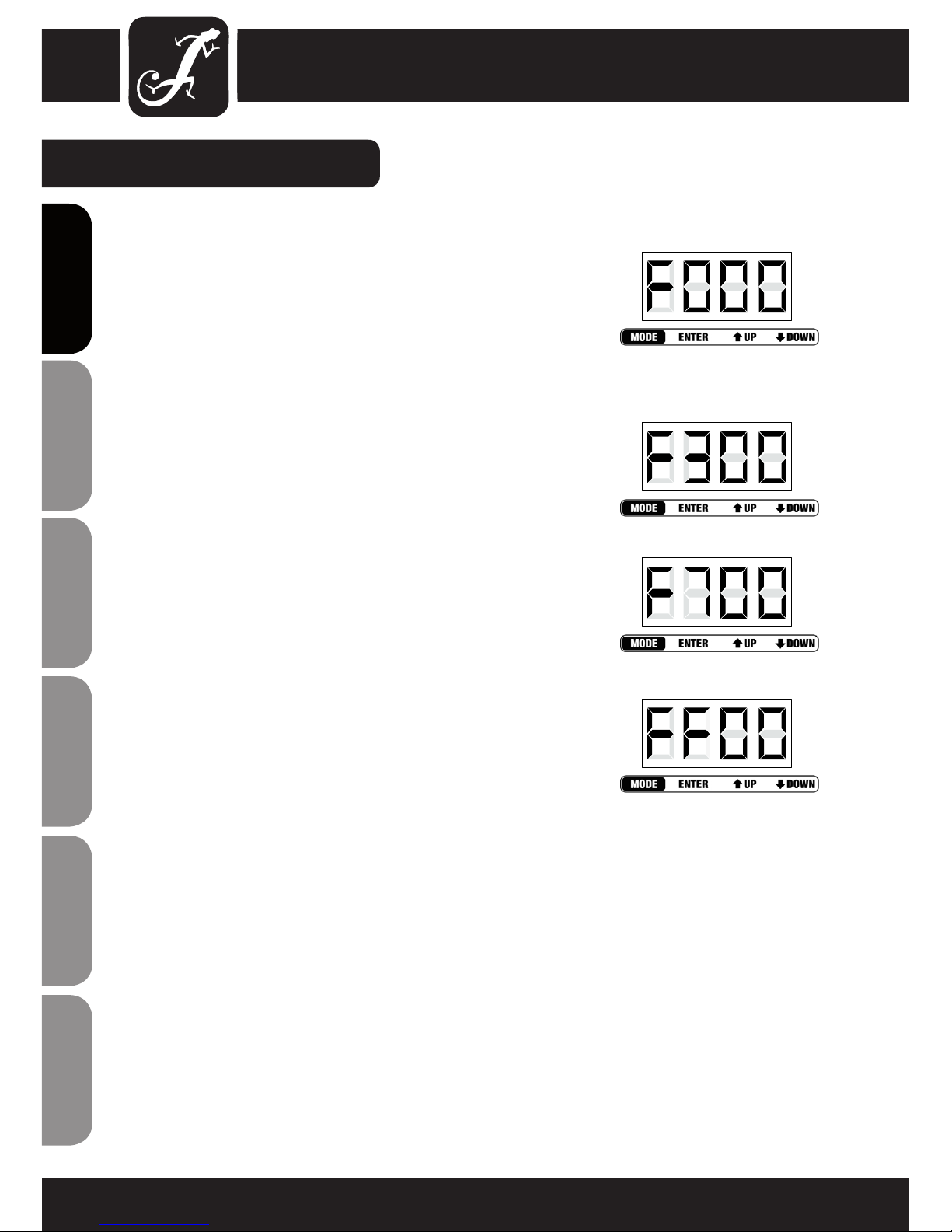

COLOUR FADING MODE
Press the mode button to select Colour Fading Mode. Press ENTER (
2. digit blinks ) to select RGB or 7 Colour by using UP and DOWN but-
tons. Press ENTER ( first 3. and then 4. digit blinks ) again to adjust
jumping speed ( 00-99 ) by using UP and DOWN buttons.
RGB
00 - 99 speed adjustable.
7COLOR
00 - 99 speed adjustable.
STROBE
00 - 99 speed adjustable.
MODE SELECTION:
10
11
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

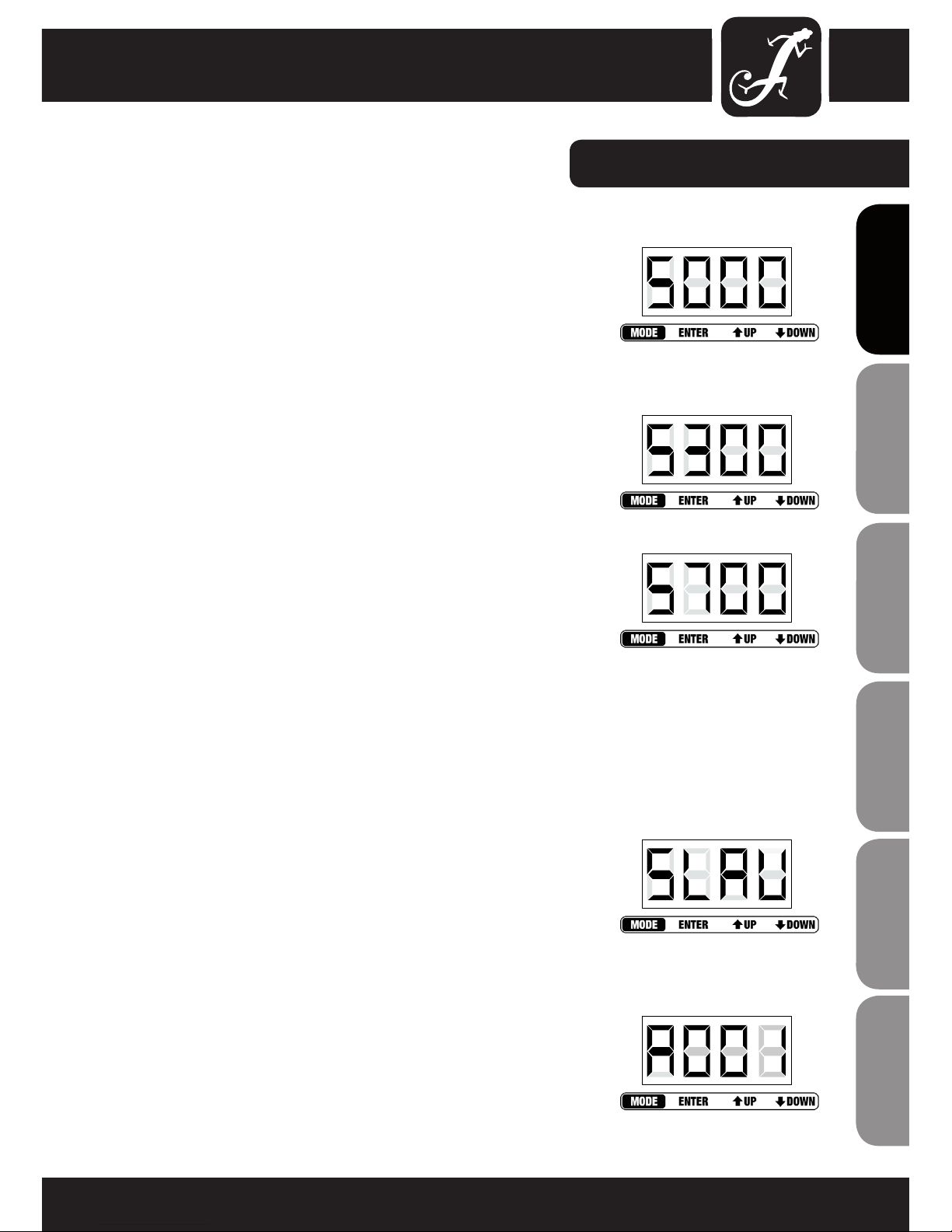

SOUND CONTROL MODE
Press the mode button to select Sound Control Mode. The unit will then
run via the built in microphone. Press Enter ( 2. digit blinks ) to select
RGB or 7 Colour by using UP and DOWN buttons. Press ENTER ( first 3.
and then 4. digit blinks ) again to adjust jumping speed ( 00-99 ) by using
UP and DOWN buttons.
RGB
00 - 99 sound sensitivity adjustable.
7COLOUR
00 - 99 sound sensitivity adjustable.
SLAVE MODE
Press the MODE button to enter SLAVE MODE.
Link the slave unit and the master unit via DMX cable. The slave unit
will follow in sequence with the master unit.
DMX ADDRESS SETTING MODE
Press the MODE button to enter DMX ADDRESS SETTING MODE.
Press ENTER to access edit mode (the last 3 figures will blink). Use the
UP and DOWN buttons to set the DMX address (A001 - A512).
Press ENTER to confirm.
MODE SELECTION:
10
11
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

DMX CONTROL MODE:
CHANNEL VALUE FUNCTION
CH1 000 - 255 Master dimmer (0-100 %)
CH2 000 - 255 RED (0-100%)
CH3 000 - 255 GREEN (0-100%)
CH4 000 - 255 BLUE (0-100%)
CH5 000 - 004
005 - 084
085 - 169
170 - 255
No function
Colour macro
Colour ( speed )
Colour fade
CH6 000 - 255 Strobe ( speed )
12
13
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

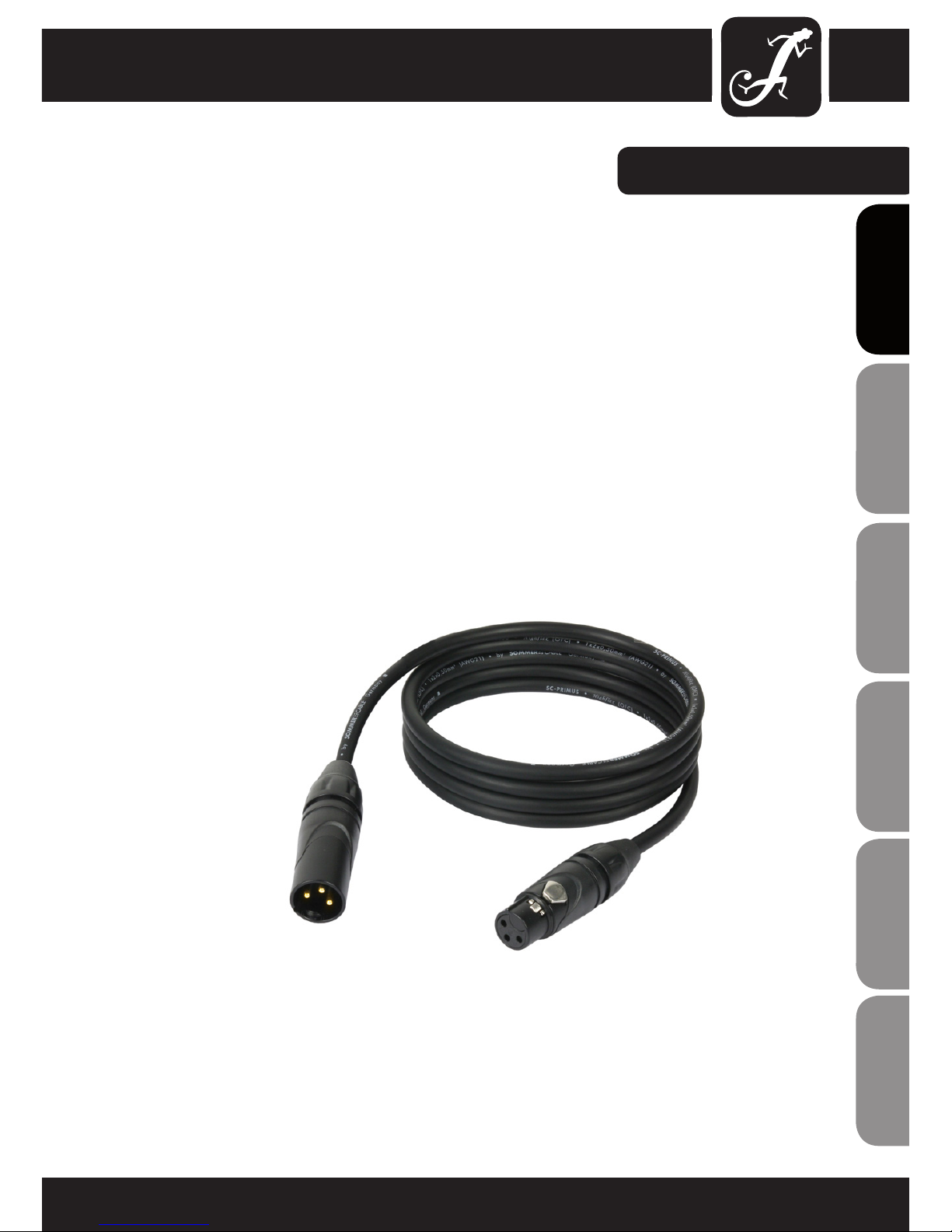

DMX LINKING:
DMX-512
DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data
are sent as serial data that travel from fixture to fixture via the “DATA IN“ and “DATA OUT” XLR terminals
located on all DMX fixtures (most controllers only have a “DATA OUT” terminal).
DMX LINKING:
DMX is a language allowing all makes and models of different manufactures to be linked together and ope-
rate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper
DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example a
fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to
send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.
Please check out our comprehensive DMX cable choices out of our Adam Hall product lines 3 STAR, 4 STAR
and 5 STAR
Also remember that DMX cable must be daisy chained and cannot be split.
12
13
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

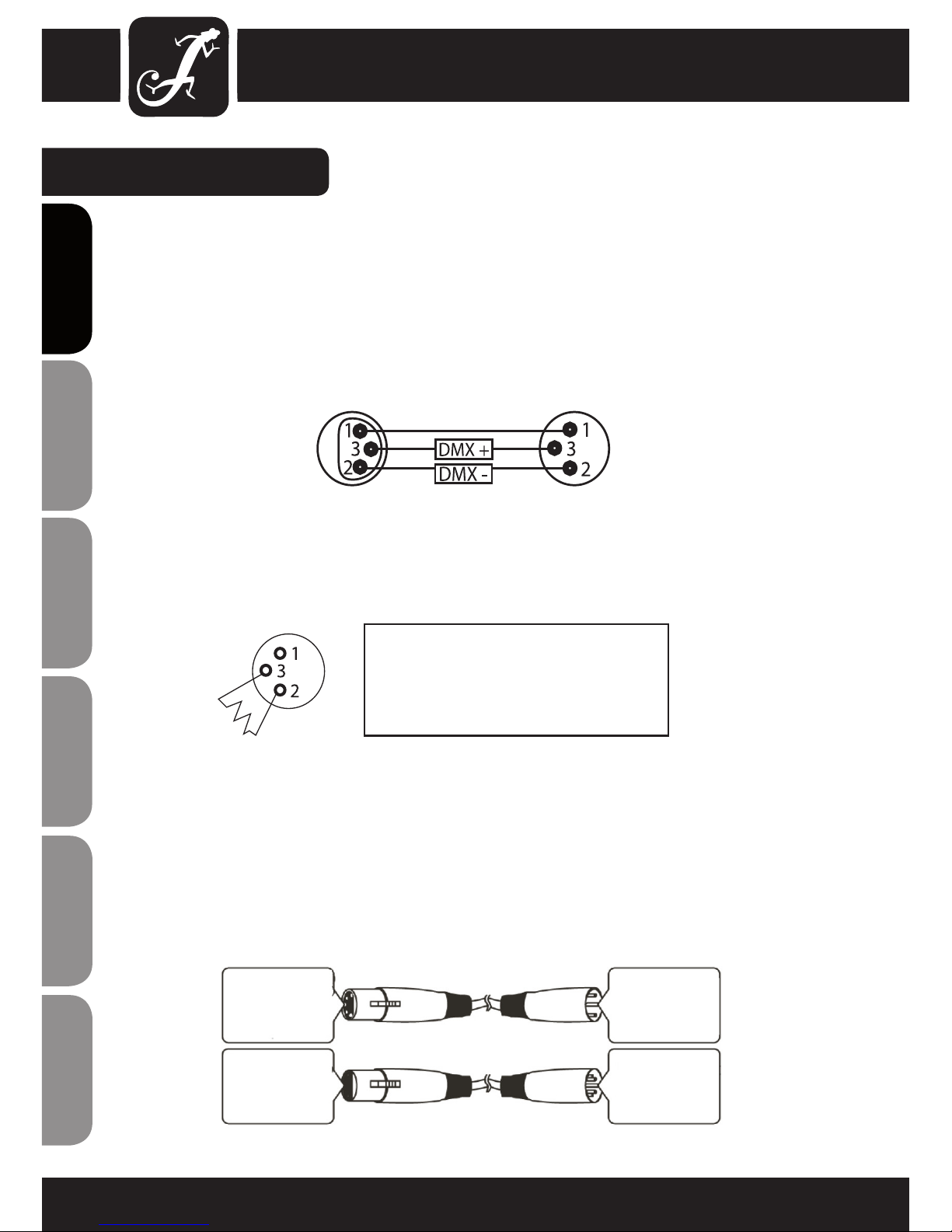

DMX CABLES:
NOTICE:
• Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to
the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield
could cause a short circuit and erratic behaviour.
SPECIAL NOTE: LINE TERMINATION:
• When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behaviour.
Using a cable terminator (Art. No. K3DMXT3) will decrease the possibilities of erratic behaviour.
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin XLR fixtures may
be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable
adaptor must be used. The chart below details the correct cable conversion.
Termination reduces signal transmission prob-
lems and interference. It is always advisable to
connect a DMX terminator, (resistance 120 Ohm
1/4 W) between pin 2 (DMX-) and pin 3 (DMX+)
of the last fixture.
common
DMX-512 out
3-pin XLR
DMX-512 in
3-pin XLR
5-Pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
5-Pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
3-Pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
14
15
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

SPECIFICATIONS:
STUDIO PAR 64 CAN WEIGHT & DIMENSIONS (WITHOUT BRACKET)
Depth 255 mm
Width 230 mm
Height 220 mm
Weight 4.6 kg
Beam angle 25 °
POWER
Power consumption 60 W
AC input 100 V AC - 250 V AC . 60Hz - 50Hz
FUSE
Main 20 mm Glass 0.5 A Fast Blow
CONTROL & PROGRAMMING
Data input Locking 3-pin XLR male socket
Data output Locking 3-pin XLR female socket
Protocols DMX-512 USITT
DMX channels 6 channel: ( Dimmer, R, G, B, Colour Macro / Jump / Fade, Strobe
14
15
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

16
17
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
LIMITED WARRANTY
This Limited Warranty applies to the Adam Hall, LD Systems, Defender, Palmer, Cameo and Eminence branded
products.
The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional
independent warranty claims towards Adam Hall.
Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall autho-
rized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years from
the date of purchase.
The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required
to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your
proof of the purchase date. Should products of the brands named above be in need of repair within the limited war-
ranty period, you are entitled to warranty services according to the terms and conditions stated in this document.
This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not trans-
ferable to anyone who obtains ownership of the Adam Hall branded product from the original purchaser. During
the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. All
component parts or hardware products removed under this Limited Warranty become the property of Adam Hall.
In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to
provide you with a replacement unit of Adam Hall´s choice that is at least equivalent to your Adam Hall branded
product in hardware performance.
Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not
responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam
Hall branded product.
This Limited Warranty does not apply,
- to wear parts (e.g. accumulator)
- to any product from which the serial number has been removed or that has been damaged or rendered defecti-
ve as the result of an accident
- in case of, misuse, abuse, or other external causes
- by operation outside the usage parameters stated in the user´s documentation shipped with the product by use
of spare parts not manufactured or sold by Adam Hall
- by modification or service by anyone other than Adam Hall
These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam
Hall regarding the Adam Hall branded product you have purchased.
MANUFACTURER´S DECLARATIONS:

16
17
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
LIMITATION OF LIABILITY
If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy
shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited
to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware
components that malfunction in conditions of normal use.
Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost
profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by
a third party or made by you for a third party.
This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty
or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limi-
tation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if
you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages.
This limitation of liability however, will not apply to claims for personal injury.
This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to
state or from country to country. You are advised to consult applicable state or country laws for a full determina-
tion of your rights.
REQUESTING WARRANTY-SERVICE
To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which
you purchased the product.
EC DECLARATION OF CONFORMITY
These devices meet the essential requirements and further relevant specifications of Directives 2004/108/EC
(EMC) and 2006/95/EC (LVD). For more information, see www.adamhall.com.
CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncon-
trolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an enviromentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal.
MANUFACTURER´S DECLARATIONS:

18
19
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
WEEE-DECLARATION
Your LD-Systems product was developed and manufactured with high quality materials and components wich
can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed
of separately from normal waste at the end of its operational lifetime.
Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment.
This will help to protect the environment in which we all live.
BATTERIES AND ACCUMULATORS
The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or
return them to your specialist dealer. In order to protect the environment, only dispose exhausted batteries.
Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject
to modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integral-
ity of this user’s manual is prohibited.
MANUFACTURER´S DECLARATIONS:

18
19
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
20
21
Wir freuen uns, dass Sie sich für ein Produkt von Cameo Light entschieden haben!
Dieses Gerät wurde unter hohen Qualitätsanforderungen entwickelt und gefertigt, um viele Jahre einen
reibungslosen Betrieb zu gewährleisten.
Bitte lesen Sie diese Bedienungsanleitung sorgfältig, damit Sie Ihren neuen Scheinwerfer von Cameo Light
schnell optimal einsetzen können.
Weitere Informationen über Cameo Light erhalten Sie auf unserer Website WWW.CAMEOLIGHT.COM.
