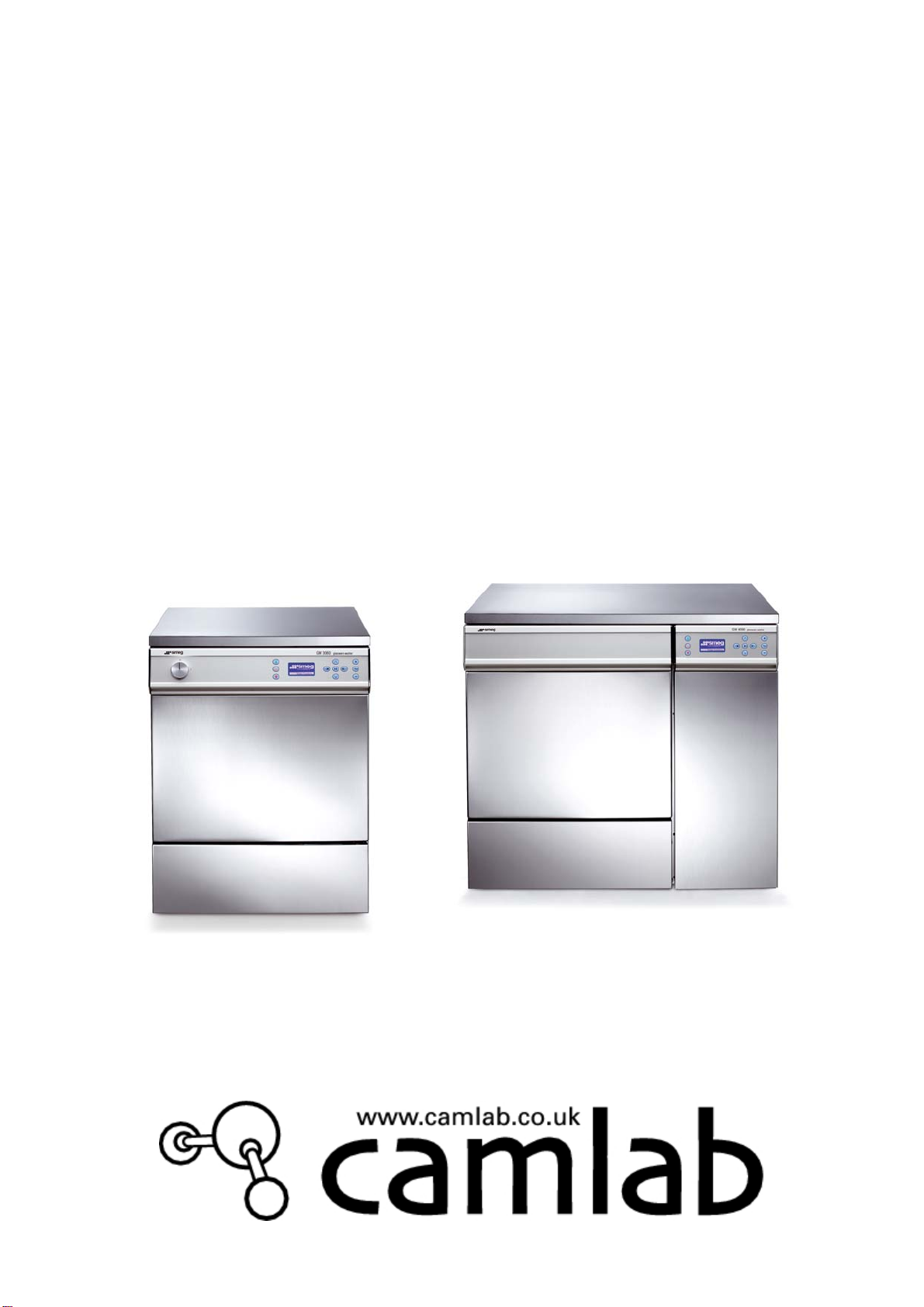

Camlab CAMLAB CUB User manual

CAMLAB CUB
GW3060
CAMLAB CUB EXTRA
GW4090
GLASSWARE WASHER
USER MANUAL

READ THIS INSTRUCTION MANUAL CAREFULLY
Failure to read or fully understand the instruction manual, or incorrect
interpretation of the instructions herein may cause damage to the appliance as well
as being a source of danger for the operator and may considerably reduce
the performance provided by the machine.
The manufacturer declines all liability for uses differing from those listed below.
2
The appliance must only be installed, serviced and repaired by
trained personnel.
The warranty provided will immediately become void if the machine is used in
a way that FAILS TO CONFORM to the instructions given by the manufacturer.
This manual is for informational purposes only. The contents of this manual and the
appliance described herein may be liable to modification without prior notice. In no case
may CAMLAB be held liable for any direct or accidental damages deriving from or
concerning the use of this manual.
-

Do you need information or Assistance for this appliance?
Please contact us from 8:30 to 17:30 hrs on the following numbers and
addresses:
TEL [phone]
FAX [phone]
WWW www.camlab.co.uk
Email [email protected]
Our Sales Department staff will provide information about prices
and offers. You can view our entire product range at
www.camlab.co.uk
Our Technical Support Department can tell you anything you
need to know about how to use your appliance in the proper way and
can also arrange on-site service support.
International customers, please contact our Export Department on
[phone]
3

4
TABLE OF CONTENTS
1. KEY TO THE SYMBOLS USED IN THE MANUAL AND ON THE MACHINE 6
2. INTRODUCTION 6
3. GENERAL RECOMMENDATIONS 7
4. GENERAL OPERATING INSTRUCTIONS 8
4.1 Switching on 8
4.2 Controls 10
5. BRIEF DESCRIPTION OF THE OPERATING CYCLE 13
5.1 HOW TO CARRY OUT A WASHING CYCLE 13
5.2 HOW TO CARRY OUT A SEPARATE DRYING CYCLE 15
5.3 PRINTING THE LAST CYCLE EXECUTED 16
5.4 HOW TO SELECT A WASHING CYCLE 17
5.5 DEFERRED CYCLE START 17
5.6 HOW TO OPEN THE WASHING CHAMBER DOOR AND SIDE CABINET DOOR 18
5.7 SECURITY POLICY, USER PASSWORD, TECHNICAL AND SUPER USER 19
5.8 BUILT-IN SOFTENER 21
5.8.1 How to add salt 21
5.8.2 Use of the appliance with softened mains water 22
5.8.3 Forced resin regeneration 23
5.9 HOW TO REGULATE THE WASHING PRESSURE IN THE SPRAYING ARMS 24
5.10 HOW TO FILL THE TRAYS/JET RACKS 24
5.11 DETERGENT DISPENSING SYSTEM 25
6. PREPARATION FOR WASHING 26

5
7. WASHING PROGRAMS - DESCRIPTION 27
7.1 WASHING PROGRAMS 27
7.2 EFFICIENCY OF THE WASHING ACTION AND DETERGENTS 28
7.2.1 Arrangement of the glassware in the washing trays and jet racks 28
7.2.2 Quality and quantity of water 28
7.2.3 Water pressure 28
7.2.4 Washing temperature 29
7.2.5 Detergents used 29
7.2.6 First-aid measures for use of detergents 30
7.2.7 Table of programs 31
7.3 THE THERMAL DISINFECTION PROCESS EXPLAINED 33
8. ALARM MESSAGES 35
9. CLEANING AND SERVICING 39
9.1 ROUTINE INSPECTIONS 39
9.2 HOW TO CLEAN THE SPRAYING ARMS 39
9.3 HOW TO CLEAN THE FILTERS 39
9.4 HOW TO CLEAN THE INLET FILTERS 40
9.5 INSPECTION 40
9.6 LONG IDLE PERIODS 40
9.7 DRYING AIR FILTER 41
9.8 EXTERNAL CLEANING 41
9.9 WHEN TO SERVICE THE APPLIANCE 41
10. INSTALLED MACHINE SET-UP 41
11. NOTES 42

6
1. KEY TO THE SYMBOLS USED IN THE MANUAL AND ON THE
MACHINE
Read with the utmost care
Warning, danger
Warning, hot surfaces
2. INTRODUCTION
This manual is an integral part of the machine
It must be kept in a good condition and ready to hand for the entire life cycle of the machine.
You are advised to carefully read this manual and all the instructions it contains before using the
machine.
This appliance conforms to directives currently in force and to the applicable reference standards.
This appliance has been built for the following function:
- Washing Laboratory glassware of various types.
- The appliance cannot be used for sterilization.
Any other use is considered improper.
The manufacturer declines all liability for uses differing from those indicated.
CAMLAB declines all liability for damage caused by washing glassware for which
the relative manufacturers have not explicitly authorized automatic cleaning and
decontamination.

7
3. GENERAL RECOMMENDATIONS
Never use alcohol or solvents such as turpentine in the appliance as they could
cause explosions. Do not place materials dirtied with ash, wax or paint in the
appliance.
Do not lean or sit on the open door of the glassware washer as this could cause the appliance
to tip over and endanger persons.
Never ever touch the heating elements in the chamber immediatly after a washing program has
terminated.
The heating elements may become slightly discoloured after the glassware washer has been
used. This is normal and depends on the operating mode. It will in no way impair the way the
appliance operates.
Discarded appliances must be rendered unusable. Cut off the mains cable after having
detached it from the electrical supply. After this, the appliance must be consigned to an
authorised waste collection centre.
If the appliance develops a recurring fault, isolate it from the electricity supply and shut off the
water supply taps. After doing this contact the Camlab Service Department.
The machine must only be used by specifically trained persons.
Camlab declines any liability for malfunction or accidents due to the appliance
having been used by untrained persons.

8
4. GENERAL OPERATING INSTRUCTIONS
4.1 Switching on
CAMLAB CUB GW3060. Switch on by turning the knob on the front panel to the right.

9

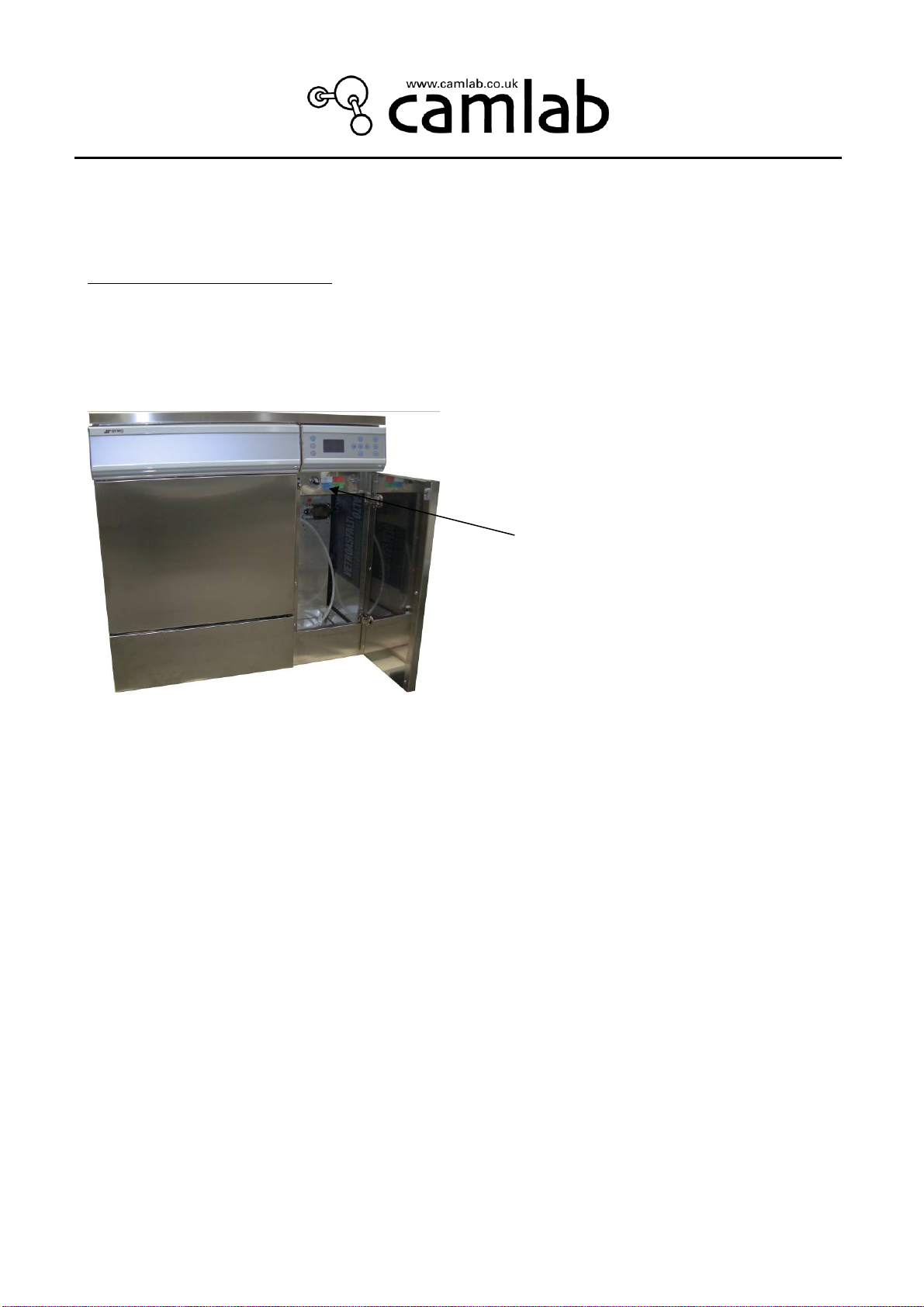

CAMLAB CUB EXTRA GW4090
Switch S1 that turns on the GW4090 is situated in the cabinet at the side and can only be
accessed after the door of the side compartment has been opened. The door to the side
compartment is opened by pressing on the top left-hand side.
S1

10

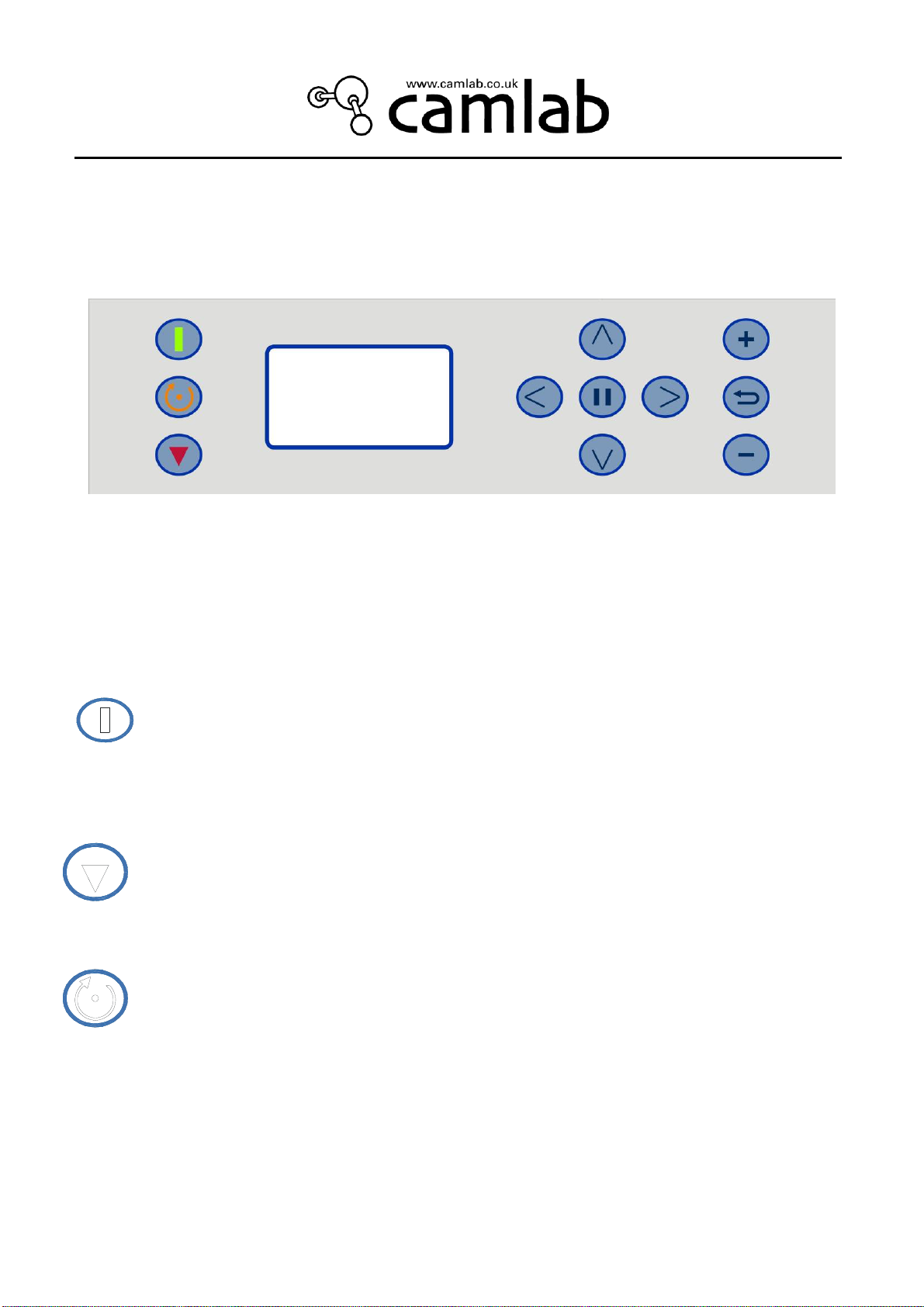

4.2 CONTROLS
The keyboard is divided into two separate sections:
. The left-hand part of the display with keys for starting and stopping a program, and for the reset
process;
. The right-hand part of the display, contains the keys used for selecting/editing programs,
selecting the machine parameters and the various functions/adjustments.
A complete list of the keys and their relative functions is given below:
START: starts the selected program
STOP: stops the current program
RESET: forces the machine to run through a reset procedure (both in the
case of a stalled program and in other situations, such as after an alarm has
occurred)

11

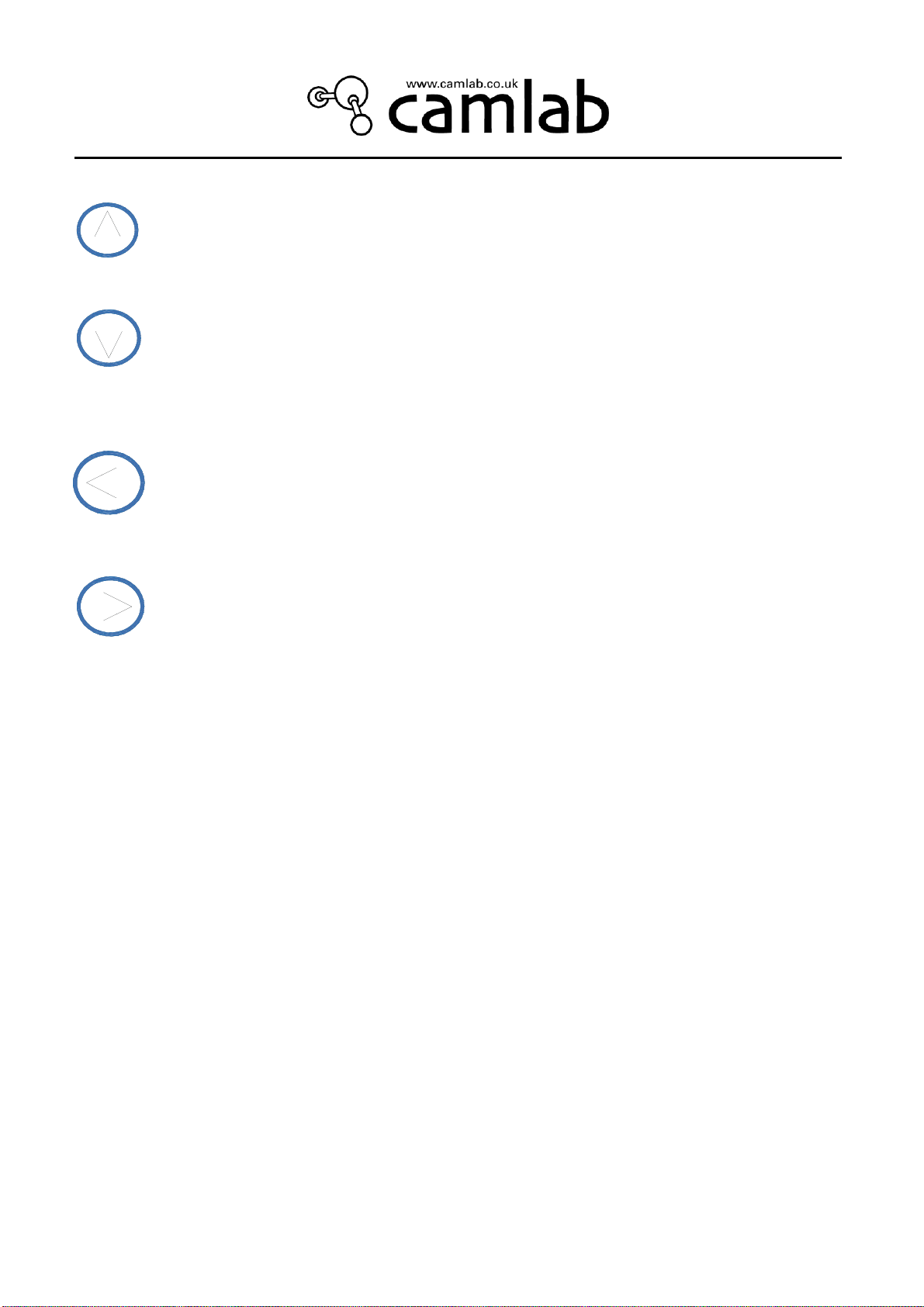

ARROW UP: selection key
ARROW DOWN: selection key
ARROW LEFT – DRYER ON: key used to start the separate drying
cycle;(GW4090); it is also used for moving to the left in each menu
ARROW RIGHT – DRYER OFF: selection key for deactivating the drying cycle for
the program chosen; (GW4090) it is also used for moving to the right in each menu.

12
ENTER: confirms the selection made/program selection; door opening
INC: increases the value in question/selects yes
ESC: quits the current screen and goes back to the previous step
DEC: decreases the value in question/selects no
The keys that are available to use appear on the bottom line of the display.

13
5. BRIEF DESCRIPTION OF THE OPERATING CYCLE
5.1 HOW TO CARRY OUT A WASHING CYCLE
Once the appliance has been installed correctly, connect the Camclean and Camacid containers,
load the trays or racks, then proceed in the following way to conduct a washing cycle:
. turn the switch to position 1 (ON);
.after 2-3 seconds the logo will be shown: wait 15 seconds, to allow the system to initialize;
. the display will show the last chosen program. To change, press then make choice.
(e.g. “Light DI Wash”);
in this menu, various keys will appear on the bottom line of the display:
to begin the cycle (once the door has been shut);
to conduct a reset cycle;
to stop the current cycle; print the last cycle conducted; (If a printer is connected)
to deselect (or re-select) the drying phase; (GW4090)
Pr:4 LIGHT DI WASH +Dy
(000016)
Phase : 1
Duration: 0:45:00
<Dryer ON>
05/02/10 09:30:17
to start the separate drying cycle;(GW4090)
to open the door to the washing chamber;
to enter the deferred starting function (max 24 h);

14
to go back to the program selector menu.
Pr4 LIGHT DI WASH +Dy
Phase 0 – Pre Loading
TL 15.2
(TC 60)
RunT:0:01:17
This menu displays the following information:
. the name and number of the program activated; with or without
drying
. the phase in which the machine is operating (phase 0 and the
machine is being filled with water in the example. Water filling is in
two parts called “preloading” & “loading”);
. the temperature in the washing chamber (TL);
.(the target temperature (TC); (when on a heating phase)
. the time that has elapsed since the program began (RunT).
The screen will display similar information during the whole cycle.
When a program is running, the only key that can be pressed is STOP.
Once this key has been pressed, either the door can be opened (if the temperature is no higher
than 40°C) to add, remove or adjust the glassware or the cycle can be continued by pressing
START.
(To terminate a program, press STOP then RESET. After 2mins, OPEN DOOR? will be displayed.
Press ENTER).
The following message will appear once the cycle has ended:
Pr4 LIGHT DI WASH
Program ended
Open the door?
The door can now be opened by pressing and the cleaned glassware removed.
The machine is now ready to begin another wash cycle.
It is advisable to wait a few minutes between one cycle and the next, with the
door of the appliance open: this allows the washing chamber and glassware
to cool down.

15
5.2 HOW TO CARRY OUT A SEPARATE DRYING CYCLE (GW4090)
The drying phase is a default setting in each program.
To select a separate drying cycle, press the key
confirm the selection with . The drying cycle will begin and the following message will
appear:
PR: DRYING
DRYING
TA1 76.7
TT 110
RunT:0:02:08
DRYING
Confirm?
The drying cycle will commence with the blower on slow speed
initially before increasing to full speed and the temperature is a
default 110C.
Once the 30 min drying cycle has terminated, leave the door open for a few minutes to allow the
chamber and the glassware to cool (even though the drying phase always terminates with a
cooling phase).

16
5.3 PRINTING THE LAST CYCLE EXECUTED
A printout can be made of the last cycle executed when the machine is in standby mode
(If a printer is attached) Proceed as follows.
Pr.4 LIGHT DI WASH
Press the STOP button. The following screen will appear:
LAST CYCLE PRINTOUT
<Y>
At this point, press the ENTER key to print out the data regarding the last cycle executed.

17
5.4 HOW TO SELECT A WASHING CYCLE
Access the initial menu:
Pr.4 LIGHT DI WASH
(000016)
Duration: 0:45:00
<Dryer ON>
05/02/10 9:30:17
press to move to the list of programs.
scroll down with key
<1 Prewash>
<2 Light Wash No DI >
<3 Std Wash No DI>
<4 Light DI Wash>
<5 Std DI Wash>
<6 Intense DI Wash>
<7 Engineer Test>
When the cursor has reached the required program, confirm the selection with key
The system will now access the menu of the selected program.
5.5 DEFERRED CYCLE START
Pr.4 LIGHT DI WASH
(000016)
Phase N. 1
Duration: 0:45:00
<Dryer ON>
05/02/10 09:30:17
Press to access the screen where a deferred starting time can be selected for the chosen
cycle.

18
Pr.4 postponed Use “PLUS” key to enter the delay time. Use “Right Arrow” key to
move the cursor from ‘hour’ to ‘min’, then press “ENTER” to confirm.
<4 LIGHT DI WASH>
Type in the length
Hour <00> Min <00>
The display will show a countdown timer.
Starting can be postponed for up to 24 hours.
(Press to terminate countdown if required.)

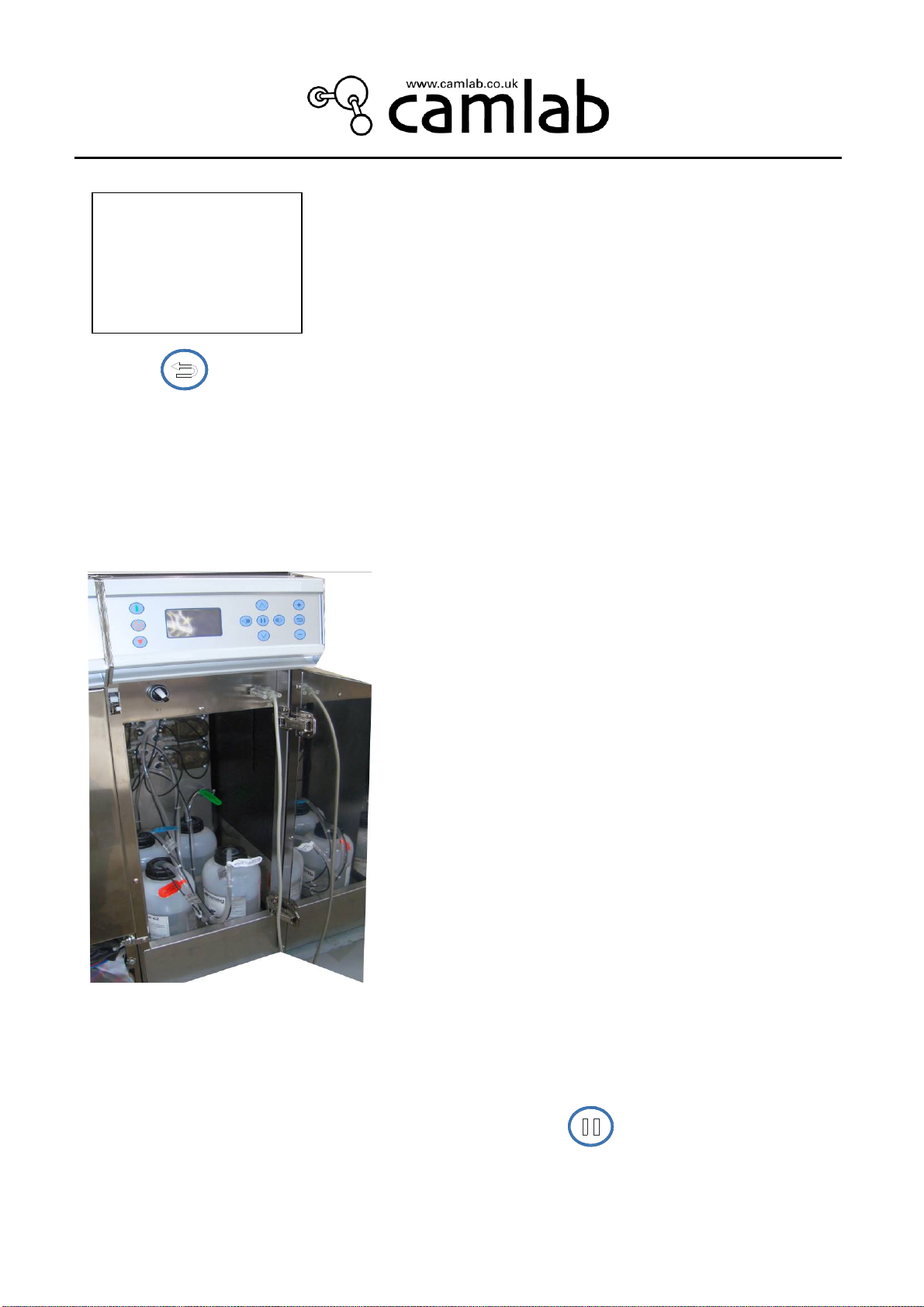

5.6 HOW TO OPEN THE WASHING CHAMBER DOOR AND SIDE CABINET DOOR
The steel door of the GW4090 side compartment is held closed by a latch: lightly press on the top
left-hand side of the door to open it. This will access the switch that powers the machine.
(NB: The detergent and acid containers are normally external to the machine!)
Fig. 5.6.1
The washing chamber door can only be opened by using the button

19
In an emergency, the door can be opened by hand using a rod or screwdriver at least 15 cm in
length, with a diameter of 2-3mm. Proceed as described below to open the door:

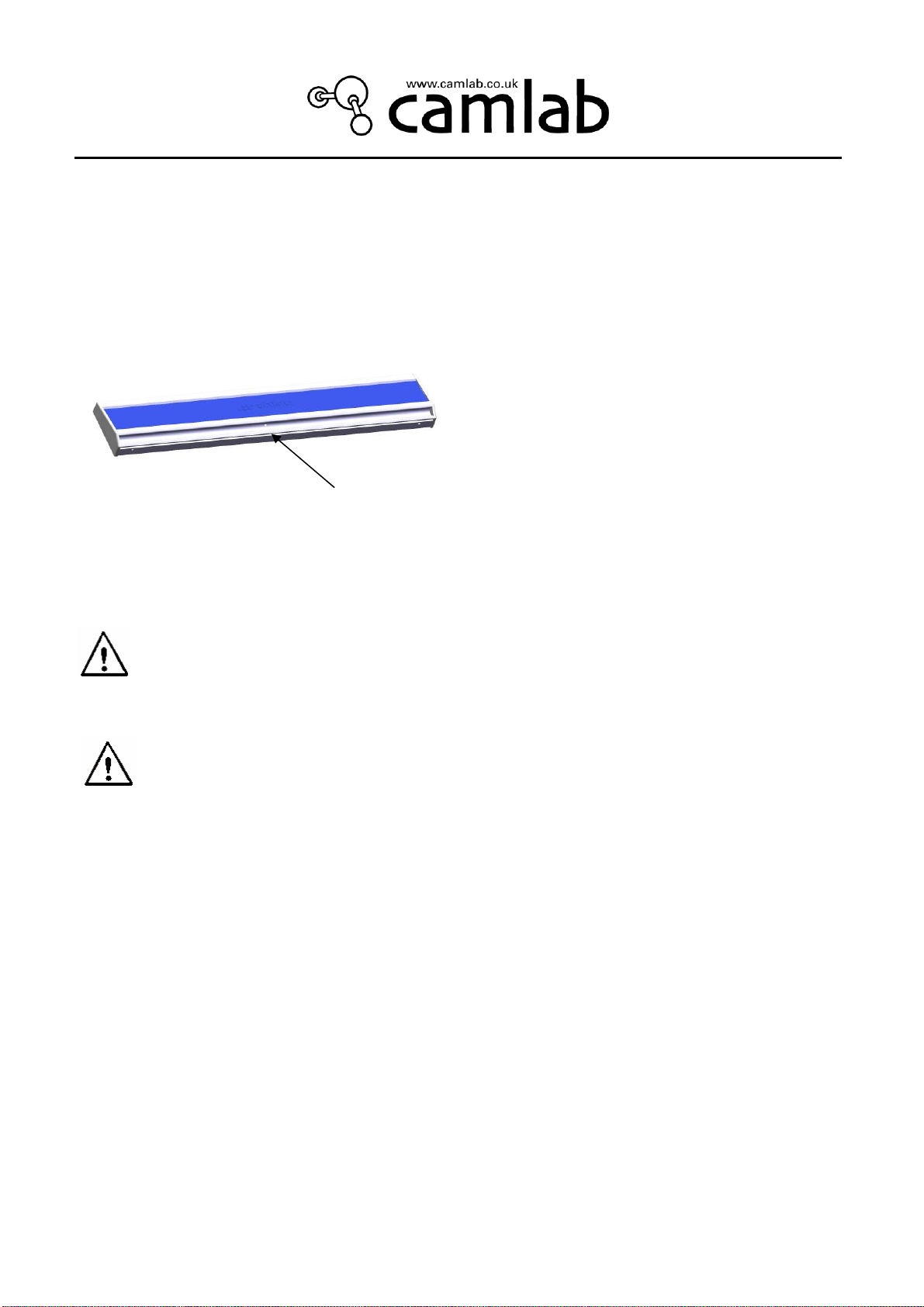

. find the hole under the lower profile of the door;
fig 5.6.1.1
. insert the rod/screwdriver into the hole;
. push up the rod/screwdriver delicately without forcing until you hear the locking mechanism
release.
The door may be opened during a cycle only if the temperature inside the washing
chamber has not exceeded 45°C. Use the keyboard to open the door.
Depending on the settings chosen for the system, a password may be required to
open the door during a washing cycle. However, it is always advisable to wait until the cycle
finishes before opening the door.
It can be potentially dangerous to open the door when the temperature inside the
washing chamber exceeds 70°C due to the escape of steam!
Camlab declines all liability for damage to persons or property caused by forcing the
door open during a wash cycle.
5.7 SECURITY POLICY, USER, SUPER USER & TECH PASSWORDS
For safety reasons, There is a security policy with four password levels that enable or disable
access to the menus of the machine. These are, in increasing order:
. user level: For people who actually operate the machine. This password enables access to
“program selection” and “change password” menus only. (This password level may be disabled.)
. superuser level: For the person in charge of the machine (supervisor,department head, etc.).
This password can be used to access the following menus:
. PROGRAMMING -> Loading Programs;
. PROGRAM EDITING -> only in relation to volumes of detergent and the drying
parameters;
. COPY
. NEW PROGRAM
. UTILITY -> accesses all the sub-menus (can also change the user passwords)
. WASHING PARAMETERS -> only certain sub-menus, as listed below:

20
. WATER CONNECTION
. WATER TRAP WASH
. REGENERATION
. DRAINING
. tech level: For Camlab engineers.
All the menus in the lower levels as well as other “WASHING PARAMETERS” submenus can be
accessed from this level, i.e.:
. EXTRA FILLING TIME
. DRAINED WATER RECOVERY
. CONDENSER ACTIVATION
. DETERGENT DISPENSERS
. FLOWMETER
. CONDUCTIVITY SENSOR
. DWP ACTIVATION
. TEMPERATURE ADJUSTMENT
. MAINTENANCE
. Top level: Restricted to the manufacturer.
The appliance leaves the factory with the following passwords:
USER PASSWORD USER PASSWORD
User 1 1 User 11 B
User 2 2 User 12 C
User 3 3 User 13 D
User 4 4 User 14 E
User 5 5 User 15 F
User 6 6 User 16 G
User 7 7 User 17 H
User 8 8 User 18 I
User 9 9 User 19 J
User 10 A User 20 K
SuperUser ZZZ
Remember to change the password when the appliance is used for the first time so
as to be certain of who is enabled to access the machine (see 6.2 Technical Manual).
(The password can be enabled or disabled as desired).
The “User Control Activation” option can be activated to make sure that the
appliance is operated only by authorized users (see 6.7 Technical Manual).
