CamOne Infinity User manual

Manual
(Download – CamOneTec.com)
Version: 1.05

turn on video & images
DiveBox Battery Manual Pouch
Ten-2-Ten Adaptor USB-Cable USB-AV-Cable
M-Mount Handlebar Mount Extension long Extension short
Helmet Mount with belt Flat Mount Curved Mount Adhesive pad big & small
Content of the Box
Please check the completeness before using the product.
CamOne infinity

turn on video & images
Index
Content of the Box 2
Preparation 4
Insert/replace Battery 4
Charging the Battery 4
Functional Diagram 5
Main Functions 6
Compatible Memory Cards 7
Inserting/Removing the micro SD Card 7
Switching on the Camera 7
Icons (Camera Status) 8
Setup Menu 8
Using the DiveBox and different Mounts 10
Photo / Video Recording 11
Underwater Recordings 11
Video Timelapse 11
Photo Interval 12
Photo Serial Recording 12
Zoom 12
Playback of Videos and Photos 12
Copy/Transfer Video Files (MS Windows) 13
Firmware Update 13
Using external Modules 14
Exchanging the Lens (optional) 15
Liability 15
Maintenance 15
Technical Data 16
FAQ 17
Accessories 18
Safety Advice 19
Service & Support 19

turn on video & images
4
Preparation
Compensation for recorded content
CamOne Tec will not be responsible in any case for any consequential or direct problems that
will lead to a loss of recorded or edited data. Furthermore, CamOne Tec will not guarantee the
content in case the recording or saving is not working properly. The above limitations are also
valid in case the unit has been repaired. Do not remove the micro SD Card while recording
or saving. Do not switch off or take out the battery before the recording has been nished or
as long as there is access to the memory, indicated by a rotating circle. Protect the unit from
extreme temperatures. Do not record at temperatures lower than minus 10°C or higher than
50°C. Remove the camera from the windshield/sucking pad in case extreme temperatures
can be expected!
It is known that forged accumulators which remarkably look like the original product are
offered for sale repeatedly. Some of these accumulators are not equipped with a proper
protection circuit which would satisfy the regulations of the prevailing safety regulations.
These accumulators might lead to res or explosions. We take no liability for accidents,
damages or failures which result from the use of a forged accumulator.
Insert/replace Battery
1. Push the locker to the front (lens direction)
2. Pull out the battery cover.
3. Remove the cover, below you will nd the battery case.
4. Align the battery’s contacts with the golden contacts inside the
cam and insert battery.
! Only use the original battery (Art-No.: COIN08). Batteries
of other suppliers may have different polarities and cause
damages!
Charging the Battery
The enclosed battery is not fully charged when being purchased. Please charge the battery
before using the CamOne innity for the rst time!
Connect the camera with your computer using the included USB-cable. The charging process
is indicated by the red LED light which switches to green as soon as charging is nished.
Charging takes about 3 hours. You can alternatively use the 5V USB-Power adaptor (Art.
No.: FCHD43).
1
2

turn on video & images
5

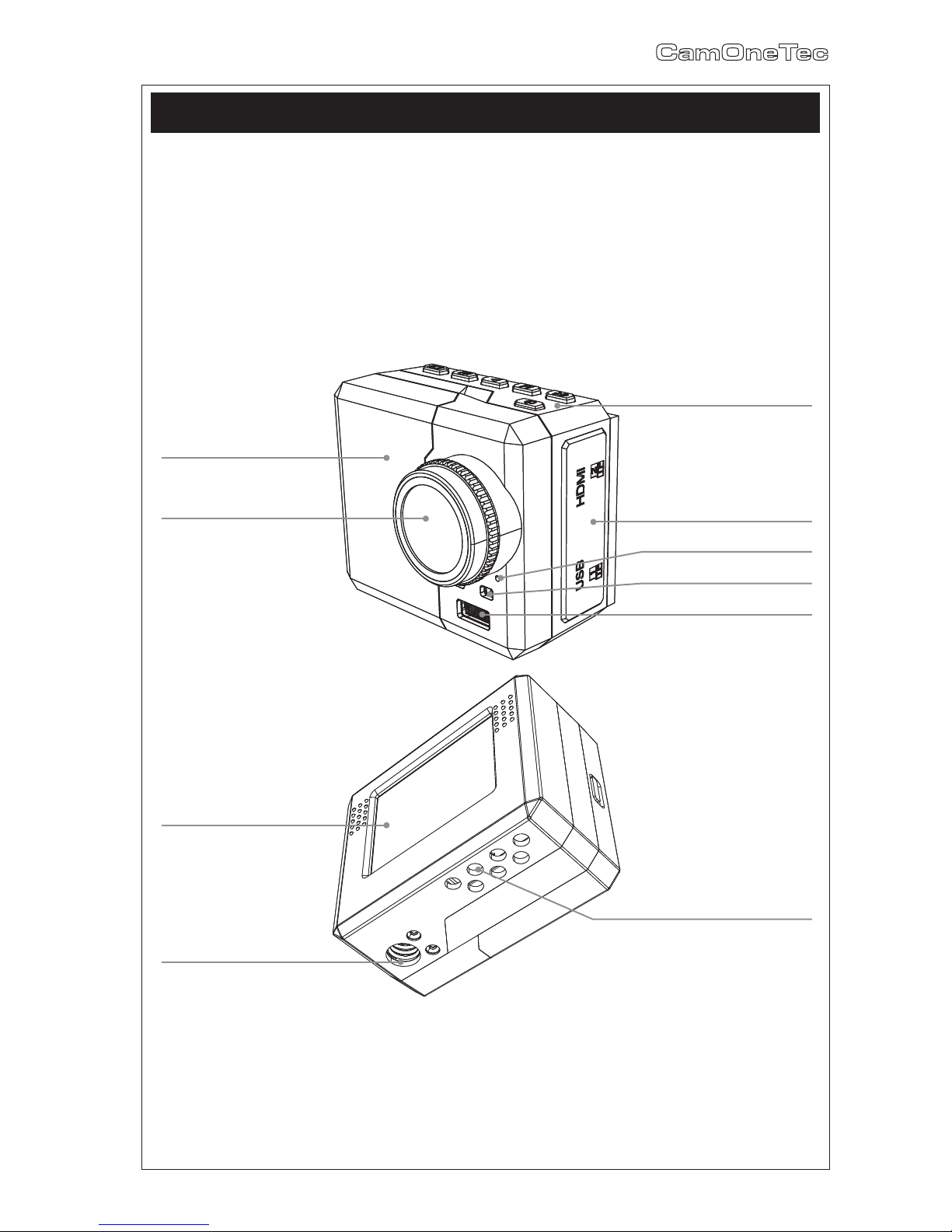

Functional Diagram
The USB comport has the following setup:
»AV-Out
»5V IN
»Data input
»Signal IN
Due to limitations in the technology of the display production, single or few dark
or light dots might appear. This is not a defect and will not have any impact on the
recorded video or photo!
Key Panel
Port Cover
Microphone
Status LEDs
Front LED
OCB-Contacts
Wi/2,4 GHz Module
Battery cover
Screen
Tripod thread
Lens

turn on video & images
6
Main Functions
! The buttons of the CamOne innity are multifunctional
Play button Photo button Video button
Replay
Switching through submenus
Conrming chosen options
Photo function
Switching through submenus
Zoom In
Video function
Switching through submenus
Zoom Out
On/Off
Light button
Menu button
Switching through
3 submenus
Micro SD Card slot 2
Micro SD Card slot 1
HDMI Port
10-Pin Port Mini USB 2.0

turn on video & images
7
Compatible Memory Cards
Only use Micro-SDHC-Cards ranked "Class4" or
higher. The camera can be used with cards up
to 32 GB. The recommended cards are "FCO
Rapid Rush" cards at a minimum size of 8 GB.
Using a 32 GB card allows a recording time of
4,5 hours at highest resolution.
Inserting/Removing the micro SD Card
»Remove the comport cover protecting the sockets and the
card slot.
»Slide in the card upside down – printed side to the
bottom – until it clicks in.
»Use Slot 1 rst. If you are using 2 cards, the cam
automatically switches to the second card as soon as the
memory is full. To remove press the visible edge of the
card, which will initiate the spring mechanism.
! Firmware Updates are only possible using Slot 1.
Switching on the Camera
On/Off
Press the power button on the top until the cam is
activated.
Micro SD
Card slot 2
Micro SD
Card slot 1
Capacity Art. Nr.
8 GB FC3008
16 GB FCHD16
32 GB FCHD32
On/Off

turn on video & images
8

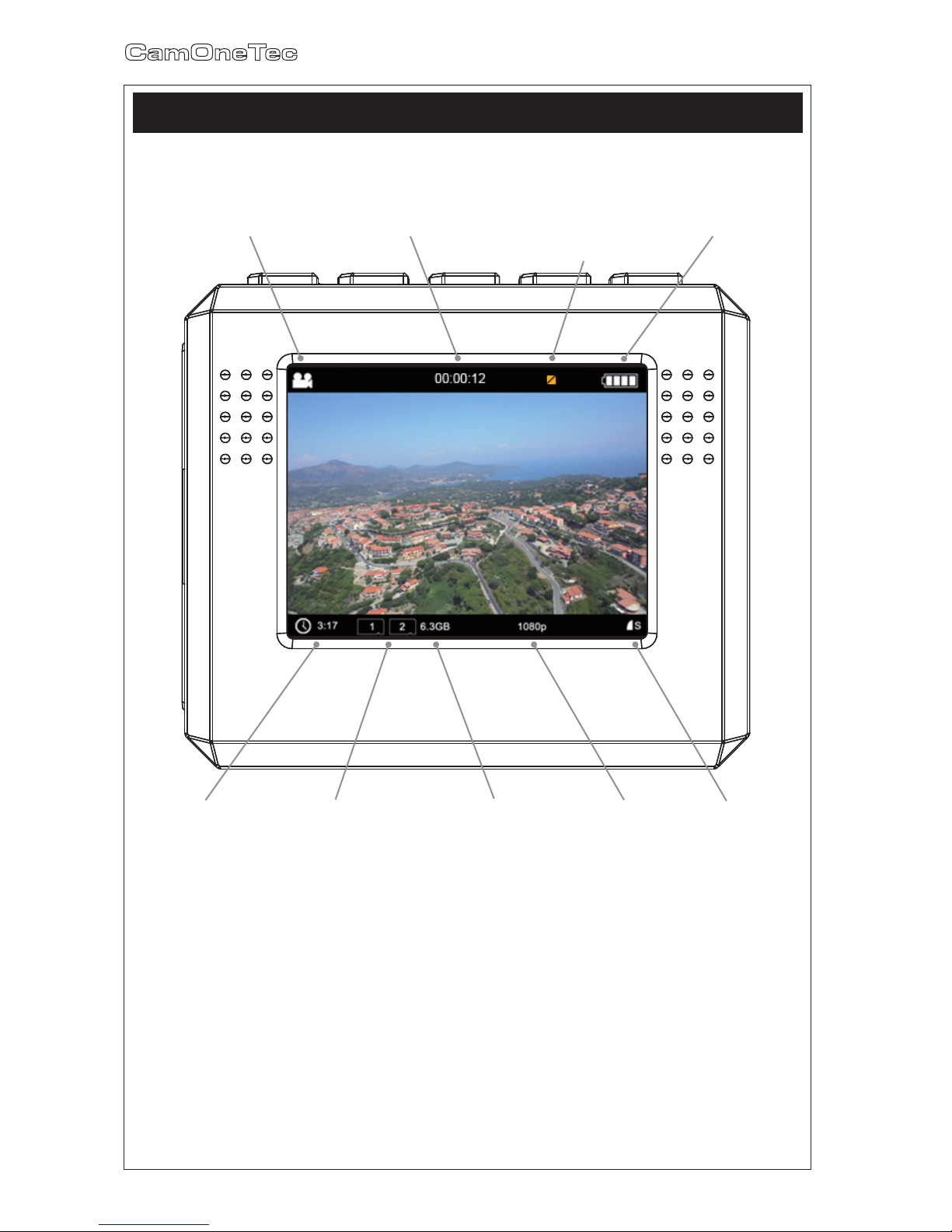

Icons (Camera Status)
According to the congurations, different icons will appear on the display:
The Timestamp is available in Photo and Video mode.
The card slot in use is indicated by a blinking icon.
An empty slot is indicated by the symbol of a crossed out card.
Video/Photo recording Duration Timestamp Battery status
Photo/Video
System time Memory cards Remaining capacity Resolution Quality

turn on video & images
9
Setup Menu
Please press the M-Button for 3 seconds to enter the setup. The menu is divided into 3
categories that can be selected by the different tabs (Photo, Video and System settings). By
pressing the M-Button you will enter the next tab. To exit the menu, press the M-Button for
several seconds.
Photo-Menu
Here you can select all necessary settings for photo recordings.
Picture quality: 3, 5 or 8 MPix
Photo Intervals: Off; quick recording of 3 or 5 pictures directly after one another
Serial Picture: Off; shoot pictures every 3, 5, 10, 30 or 60 Sec.
Time stamp: On or Off (Date & Time are embedded in the picture)
Video-Menu
Here you can select all necessary settings for video recordings.
Video Format:
Quality: Low, Medium or High (Data rate)
Recording: 5, 10, 15, 20 or 30 Min.
Due to the data volumes a longer recording is not possible and the
camera automatically starts a new video.
Timestamp: ON or OFF (embedded in the video)
Timelapse: OFF; 1 frame per second (FPS); 1, 2 or 6 frames per minute (FPM)
Loop: Overwriting older recordings on or off (when storage space maximum
is reached)
Videoformat: MPEG4 or MOV
Microphone: AN or AUS
Video Format
Resolution
(Pixel)
Standard (in FPS)
NTSC PAL
480pH 720 x 480 60 50
720p 1280 x 720 30 25
720pH 1280 x 720 60 50
1080pS 1440 x 1080 30 25
1080p 1920 x 1080 30 25

turn on video & images
10
System Settings
Here you can perform the main settings.
Languages: Choose between German, English, French, Spanish, Italian, Dutch,
Norwegian or Russian
Date: Year-Month-Day. Switch through menu using the M-Button
Time: Hour:Minute. Switch through menu using the M-Button
Auto Screen Off: Screen will be switched off to save battery: Off, 30, 60 or 120 Sec.
Auto Power Off: Select the Auto off function: Off, 60 Sec., 120 Sec. or 300 Sec.
Motion detection: Off, low, medium or high
Flip picture: Off or ipped by 180°
Image mirroring: Off or mirrored
Light Frequency: Before you start recording indoors, make sure to set the correct
Hz-frequency of your electricity grid:
Europe, Asia and Australia – 50 Hz
America – 60 Hz
Japan – 50 or 60 Hz (depending on the area)
Video System: NTSC or PAL
OSD: Display icons ON or OFF
Status LED: Switch front LEDs On or Off
Card formatting: Slot 1 or Slot 2 (All recorded data will be deleted!)
Factory setting: Resets the camera
Firmware: Information about current rmware and update
! Please note that some functions are only available after a rmware/software update.
Using the DiveBox and different Mounts
Put the camera into the front side of the DiveBox at rst and lock it. Please make sure that the
fastener of the box is properly locked. The cam can still be operated though the buttons. The
rubber seal has to be clean and undamaged. Please also make sure that the camera lens and
the interior of the DiveBox are clean as well. A high air moisture can condense on the interior
side of the lens. Use anti-mist pads to reduce or avoid that.
! When using the bike or helmet mount, please make sure that the adjusting screws are
xed tightly. Mounts that use the adhesive pads must have a clean and non- lipid surface.

turn on video & images
11
Photo / Video Recording
Right after switching on the Cam it is possible to take
pictures or videos by pressing the "record" button. Press
the button again to stop the recording.
! Never remove the SD-card or the battery whilst
the cam is saving data. (indicated by a rotating
circle on the display).
Underwater Recordings
For optimal recordings underwater turn the lens
counterclockwise by 95° (see picture)
By turning the lens the CamOne innity is adjusted to
the refraction of the water. This makes the recordings
brighter and more brilliant.
Video Timelapse
»Press the "M-Button" to enter the setup menu.
»Choose the video menu and then "Time lapse". You can choose between: Off, 1 FPS, 1
FPM, 2 FPM or 6 FPM.
»Conrm the requested function.
»Leave the menu.
By pressing the record button you can start the video. By pressing this button again the
recording is stopped and will be saved to the memory card. If you are planning to record for a
longer time, we recommend to turn off the screen to save battery (Menu: "Auto Screen Off").
0°
95°
Video
Recording
Recording

turn on video & images
12
Photo Interval
»Press the "M-Button" to enter the Setup Menu
»Choose the photo menu and then "Photo Interval". You can choose between: Off, 3 or
5 photos.
»Conrm the requested function
»Leave the menu.
By pressing the record button the camera will release the intervals. The photos will be saved
on the card in JPEG.
Photo Serial Recording
»Press the "M-Button" to enter the Setup Menu.
»Choose the photo menu and then "Serial Picture". You can choose between: Off, every 3,
5, 10, 30 or 60 Sec.
»Conrm the requested function
»Leave the menu.
By pressing the record button photos will be shot. Pressing the button again stops shooting,
the photos will be saved as JPEG on the memory card.
Zoom
During the recording (Video) in mode 480pH and 720p you can Zoom In and Out. The zoom
will be shown by a status bar on the display. Zooming in
1080p and PAL mode is not possible. By pressing the Video or
Photo button you can choose the zoom factor.
Playback of Videos and Photos
To watch your recorded data, press the "Play" button. You have the choice between photos
and videos. Choose by using either the Photo or the Video button. Conrm your choice by
pressing the Play button.
To playback the recordings, press "Play". The display shows the name of the les.
To go back, press the M-Button for a longer time.
Playback on TV

turn on video & images
13
Connect the camera to your TV by using an HDMI Cable or the supplied USB-AV Cable and
switch to the corresponding channel. Enter the Playback Mode on the camera to watch your
videos. The icons (camera status) can be switched off by entering the OSD- option in the
menu.
Copy/Transfer Video Files (MS Windows)
The videos can be watched easily on your PC. We recommend the free VLC- Player. It can be
downloaded on vlc-player.org
Copying les from the CamOne innity to your computer:
»Connect the camera with the USB-Cable.
»Connect the USB-Cable with your PC.
»Switch on the camera.
»Choose the connection using the "Photo" and the
"Video" buttons.
»Conrm with "Play" button.
»The camera will be recognized as a hard drive.
»The camera display will show "Connect to PC".
Firmware Update
To get the most out of your camera, install the latest software (Firmware) from
camonetec.com.
The rmware version of your camera is shown in the system settings.
»First, download the ZIP le from our homepage.
»Unzip the downloaded folder
»Copy the contained BIN le into the main root of the memory card (e. g. F:/).
»Enter the system settings of the camera and choose Firmware Update
»Choose "Yes" and conrm with the "Play" button. The process takes about 1 minute. The
display shows the procedure.
»Do not turn off the cam whilst updating!
»Afterwards, restore the default settings.
! Make sure the battery is fully charged.

turn on video & images
14
Using external Modules
With the supplied Ten2Ten Adaptor you can easily connect the camera with many
accessories of the FlyCamOne HD family. Make sure to always Plug in the adaptor to the
USB plug of the cam and connect the accessories.
Following accessories are compatible with the CamOne innity:
Picture Functions Art. No.
GPS Module
Indication of several GPS- data and G- forces. FCHD15
2,5” (63,5 mm) external Screen
Cable-connected video picture on separate screen e.g.
on your wrist, the handlebar or with 5,8 GHz Video
Transmission Set.
FCHD02
5.8 GHz Video Transmission
Transmission of the video on 5,8 GHz for up to 300 m to
an external screen or the V-Eyes video goggles. FCHD03
V-Eyes Video goggles
Showing the video on 2 video cubes in 3x 640x480
Pixel. The goggles work with a 2-axis head tracker
movement.
Easy connection of other video sources (3,5 mm jack
input). In-Ear-Stereo headphones included.
FCHD08

turn on video & images
15
LinX Digital Video-System 2,4 GHz
In connection with the LinX Digital Video System you
are able to control the camera and watch the picture in
a distance of up to 300 m.
COIN10
Wi-Module
The Wi-Module enables you to control the CamOne
innity completely with a smartphone. The live picture
is showing on the phone display. By using your own
access point the module is working in the nature as
well.
COIN27
Exchanging the Lens (optional)
To exchange the lens, twist off the adjusting ring from the lens. Please pay attention that
no dust or dirt gets into the cam. Screw in the replacement lens. Check the sharpness with
a TV. Fix the cam with the two screws.
! Please note! Inappropriate opening may damage the camera head and ports. Perform this
work very carefully and take your time!
Liability
The manufacturer is not liable for the loss of recordings due to malfunction or defects of the
device, the storage device or accessories.
! The privacy of others is protected by law and should be taboo. The recording of a third
party can be an illegal act. You are responsible for your actions.
Maintenance
Observe the following instructions to avoid damage to the product:
»Use only recommended accessories.
»Do not disassemble the device. Inside, there are no parts that can be serviced by the user.
»Maintenance work needs to be carried out by skilled customer service employees

turn on video & images
16
Technical Data
Operating Voltage: 5 V (USB) / 3,7 V (LiPo-Battery, 800 mAh)
Consumption: 250 – 450 mAh (depending on camera settings)
Size: 49 x 42 x 34 mm
Weight: 77 g, incl. battery
Battery: 3,7 V 800 mAh LiPo
Format: MPEG4 or MOV
Sensor: CMOS, 5 MPix
Lens (exchangeable): 170° > 720p
127° > 1080p
Zoom: Digital 4times (only NTSC)
Screen: 1,5" (38 mm) TFT
Microphone: Mono, 48 kHz (built-in)
Ports: 10 Pin Mini USB 2.0
HDMI
Open Connector Board (OCB, bottom of the cam)
Remote (optional): LinX- Digital Video System 2,4 GHz / Wi
Operating-/Storagetemp.: 10° C till 50° C
Memory: 2x Micro SD/SDHC ≤ 32 GB (Class 4 or higher)
White balance: Automatically

turn on video & images
17
FAQ
Error Reason Solution
The camera switches itself off
after start.
The battery is not charged. Charge the camera with USB for at
least 3 hours.
Unable to switch ON the
camera.
The battery is not inserted
correctly.
Check the contacts.
The battery is defective. Replace the battery.
The video is ipped by 180°. Wrong menu setting. Change menu setting.
Date and Time are not
displayed correctly.
Wrong menu setting. Change date and time in the setup.
Display shows "SD Error" Faulty memory card. Format or replace the memory card.
The video jerks when playing
on PC.
The USB connection is too slow. Save the le on the PC rst and
play then.
The memory card is not writing
fast enough.
Use one of the recommended cards.
The computer is too slow. Plug the camera to a TV.
The data rate is too high for the
computer.
Reduce the data rate to „Standard”.
The camera does not react
while working.
The software has crashed. Remove the battery for about 10
seconds.

turn on video & images
18
Accessories
Art.-Nr.: EAN Article
COIN08 4260033041975 CamOne innity Battery LiPo 3,7 V 800mAh
COIN10 4260033041968 CamOne innity LinX Digital Video-System 2,4 GHz
COIN11 4260033041975 CamOne innity DiveBox
COIN12 4260033041982 CamOne innity Handlebar Mount
COIN13 4260033041999 CamOne innity Ten-2-Ten Adaptor
COIN14 4260033042545 CamOne innity Connector 1x long / 1x short
COIN16 4260033042569 CamOne innity M-Mount
COIN17 4260033042576 CamOne innity Helmet Mount
COIN18 4260033042583 CamOne innity Flat Mount
COIN09 4 260033 041951 CamOne innity Curved Mount
COIN19 4260033042590 CamOne innity Adhesive Pad small 5x
COIN20 4260033042606 CamOne innity Adhesive Pad big 5x
COIN21 4260033042613 CamOne innity USB-AV Cable
COIN32 4 260033 042828 CamOne innity Lens 96°
COIN31 4 260033 042811 CamOne innity Lens 142°
COIN22 4260033042620 CamOne innity Lens 170°
COIN23 4260033042637 CamOne innity Lens cap
COIN25 4260033042750 CamOne innity Mono pod
COIN26 4260033042767 CamOne innity Surfmount 360°
COIN28 4 260033 042781 CamOne innity Chest Mount
COIN27 4260033042774 CamOne innity Wi Module
COIN29 4260033042798 CamOne innity Release Button
COIN30 4260033042804 CamOne innity Bullet Time Cable
FCHD02 4260033049520 FlyCamOne HD externeral screen 2,5” (63,5 mm)
FCHD03 4260033049537 FlyCamOne HD 5.8 GHz Video Transmission Set
FCHD15 4260033049650 FlyCamOne HD GPS-Module with X-Cable
FCHD16 4260033049667 FCHD Rapid Rush 16 GB Micro SD-Memory card
FCHD32 4260033049827 FCHD Rapid Rush 32 GB Micro SD-Memory card
FCHD43 4260033048578 USB Power adaptor 110-220 V (Charging with socket)

turn on video & images
19
Safety Advice
Before you start using the camera please read the manual and safety advices carefully.
WARNING Li-Po BATTERY
! Mishandling the battery may cause an explosion, re and smoke including damage of
health or goods. It will also reduce battery performance. Never charge a damaged Li-Po
battery pack. Stop charging if the Li-Po battery pack is deformed (blown up). Charge and
store the battery pack at a temperature between 0° C and 40° C – avoid a temperature
higher than 60° C when discharging. Do not shortcut – Risk of explosion and re!
LiPo-Battery < 50° C
This product uses Li-Po batteries. Li-Po batteries are recyclable, and a valuable
resource. To dispose of the battery, remove it and take it to a resource recovery
facility.
Herewith we declare that this item is in accordance with the essential requirements
and other relevant regulations of the directive 2004/108/EC. A copy of the original
declaration of conformity can be obtained at the address below.
Information for disposal of crossed Bin marked products
This symbol is marked on a product or packaging, it means that the product
including the batteries must not be disposed of with your general household
waste. Only discard electrical/electronic items in separate collection schemes,
which cater for the recovery and recycling of materials contained within. Your
co-operation is vital to ensure the success of these schemes and for the protection
of the environment.
Service & Support
from October 2012
CamOneTec by ACME CamOneTec by ACME
Industriestr. 10a Boikweg 24
33397 Rietberg 33129 Delbrück
Germany Germany
Phone: [phone] (until October 2012)
E-Mail: [email protected]
camonetec.com
A list of worldwide service stations is available at camonetec.com/service
DE6989527

turn on video & images
CamOneTec.com
