Campomatic TL13MA User manual

OWNER’S MANUAL
Washing Machine
Read This Manual
Use all instructions and explanations of the installation
before use.
Follow the instructions carefully.
Keep the operation instructions handy for later use.
If the application is sold or passed on then ensure
that the new owner always receives those operation
instructions.
TL13MA

1
CONTENTS
SAFETY INSTRUCTIONS
Safety instructions ................................................. ....
INSTALLATION
Product description .............................................. .....
Unpacking the washing machine ..............................
Levelling the washing machine ..................................
Selection of tap .................................................... ......
Connection of inlet hose, tap and washing machine...
Preparation before washing.......................................
Washing .......................................................... ...........
After washing................................................. .............

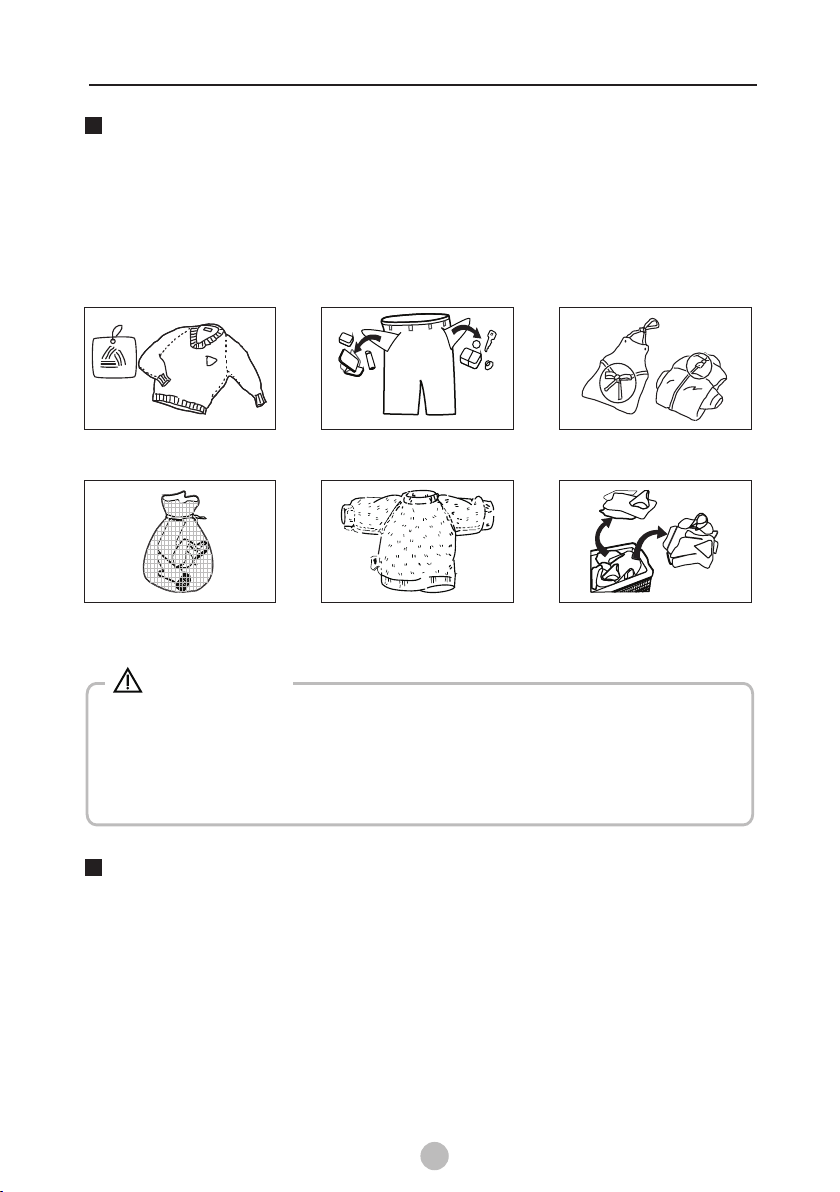

Washing matters needing attention ...........................
The usage of detergent and washing powder.............

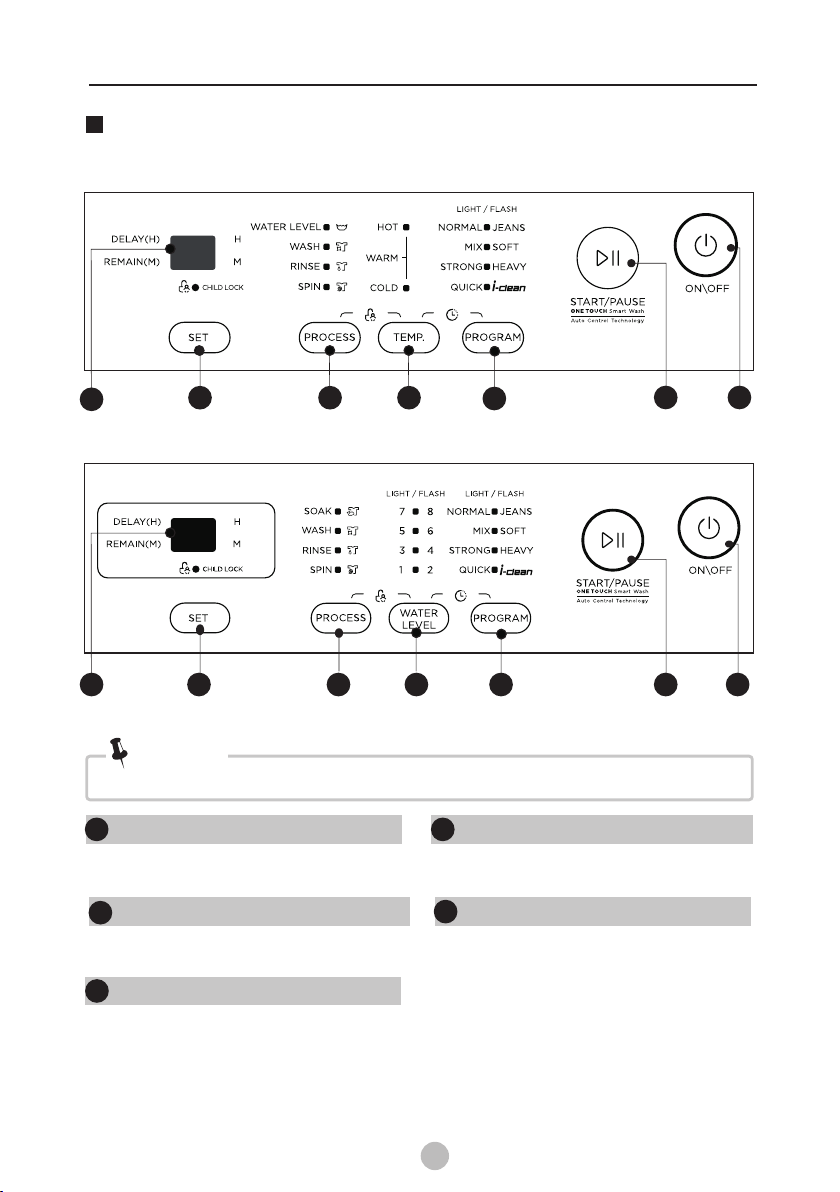

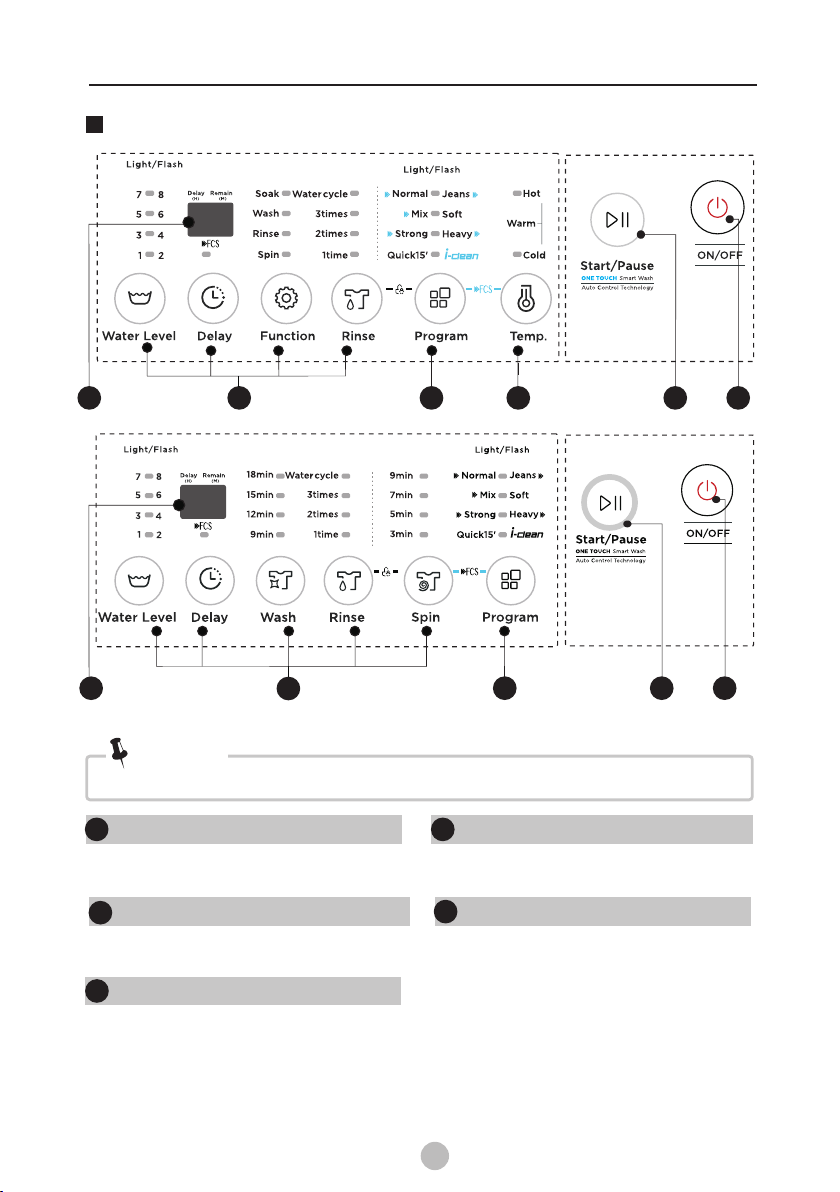

Control pane .............................................................l
Option............................................................ .............

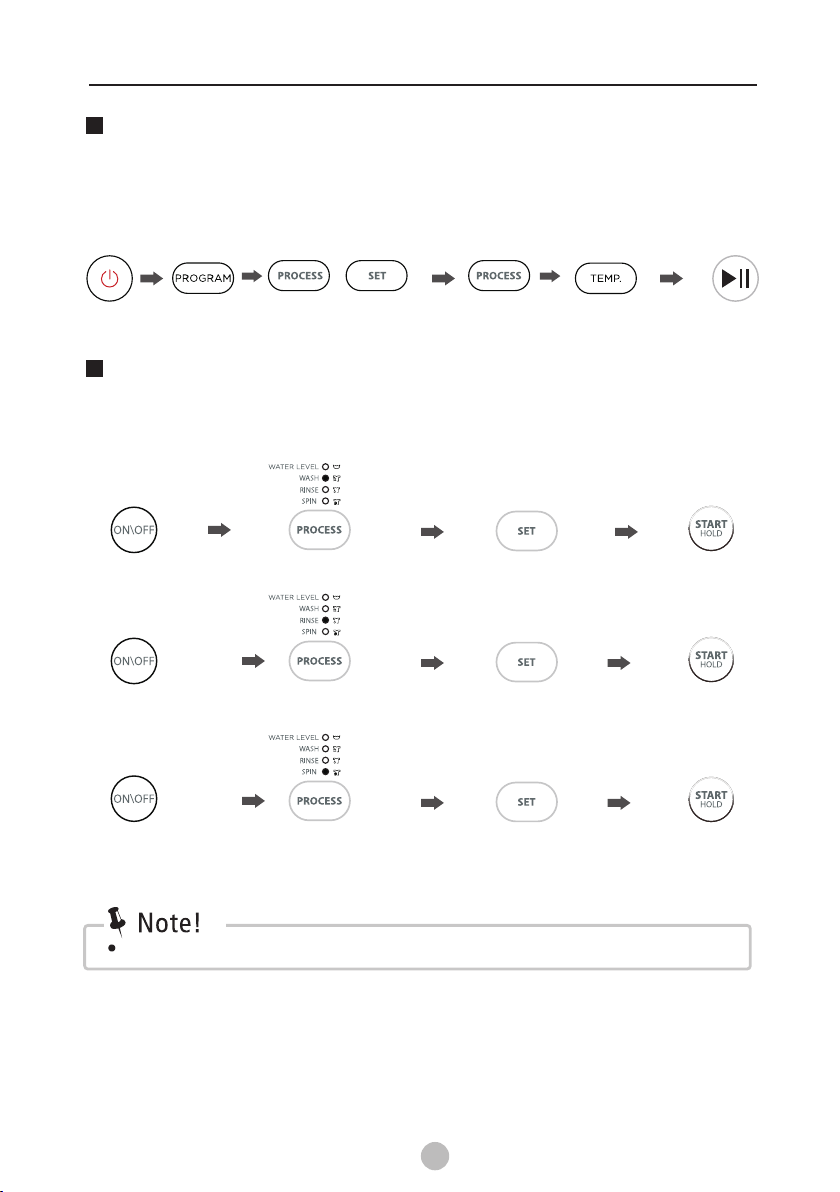

Personalized setting of washing program...................
Operations of washing process....................................
Washing program table .............................. ................
MAINTENANCE
Cleaning and care .............................................. ........
Cleaning the cabinet............................................ ........
Cleaning drain pump filter .........................................
Trouble shooting..................................................... .....
Technical information ...................................... ...........
2
8
9
9
10
11
11
12
12
12
13
13
14
16
17
17
21
22
22
23
24
25
OPERATIONS
8
Accessories..................................................................
....................... .......The installation of drain hose ...... 10
Cleaning the inlet filter..................................... 22
9
Installation area ................................................. .......
Packing the washing machine...........................

SAFETY INSTRUCTIONS
For your safety, the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
2
Safety instructions
• This appliance is not intended for use by persons(including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge unless they have
been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•
•
•
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household and similar
applications such as:
− staff kitchen areas in shops, offices and other working environments;
− farm houses;
− by clients in hotels, motels and other residential type environments;
− bed and breakfast type environments;
− areas for communal use in blocks of flats or in launderettes.
Children should be supervised to ensure that they do not
play with the appliance.
The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
Model Washing Capacity Standard Water Pressure
13.0kg 0.03MPa~0.8MPa
TL13MA

SAFETY INSTRUCTIONS
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Caution!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight
or minor injuries or damage to property and the environment.
Warning!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in death
or serious injuries unless it’s avoided.
Explanation of the symbols:
3

4
SAFETY INSTRUCTIONS
The electric shock!
Warning!
•
•
• Hands shall not be inserted into running spin-dry tub .
• If the spin-dry tub does not stop within 15 seconds after
opening the cover , please stop using the machine and
have it repaired.
• Before any maintenance the device, unplug the appliance
from the mains.
• Always unplug the machine and turn off the water supply
after use. The max. inlet water pressure, in pascals. The
min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make sure
that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be
connected by a qualified technician in accordance with the
manufacturer's instructions and local safety regulations.
Do not put washing machine at humid place.
This appliance is for indoor use only.

5
• EN countries: the appliance can be used by children aged
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Young children should be supervised that they do not play
with the appliance.
• Machine may be very hot during the operation. Keep kids
and pets far away from the machine during the operation
• Plug must be accessible after installation.
very wet rooms as well as in the rooms with explosive or
caustic gas.
•
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product
inlet valves should be correctly connected to the hot water
and cold water supply.
with double
Remove all packages before using the appliance. Otherwise,
serious damage may result.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
SAFETY INSTRUCTIONS
Risk to children!

6
• This washing machine is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or very
wet rooms as well as in the rooms with explosive or caustic gases.
• Remove all packages and transport bolts before using the
appliance. Otherwise, serious damage may result.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with double
inlet valves should be correctly connected to the hot water
and cold water supply.
• Plug must be accessible after installation.
• Do not wash, spin, or dry water-proof seats,
mats, or clothing. Do not wash thick, hard mats even if the
washer mark is on the care label. This may result in injury or
damage to the washer, walls, floor, or clothing due to abnormal
vibrations.
down-filled coat ,
Risk of damaging appliance!
SAFETY INSTRUCTIONS
Caution
Installing the product!
• Your product is only for home use and is only designed for
the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during handling machine:
1.Transport bolts shall be reinstalled to the machine by a
specialized person.
2.The accumulated water shall be drained out of the machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can not
be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.

Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin, brooch, nail, screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
This marking indicates that this product should not be disposed
with other household wastes throughout the EU.To prevent
possible harm to the environment or human health from
uncontrolled waste disposal,recycle it responsibly to promote
the sustainable reuse of material resources.To return your used
device,please use the collection systems or contact the retailer
where the product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/Old appliance
SAFETY INSTRUCTIONS
• Please do not close the door with excessive forces.
• It is forbidden to wash carpets.
7

INSTALLATION
Product description
• The product line chart is for reference only, please refer to real product as
standard.
Note!
Accessories
Spring clamper Drain hoseInlet hose ass Manual Screw
Cabinet baseboard
• Note: If the drain hose is already installed on the machine, then there is no
spring clamper and drain hose in the accessories.
Note!
Or
Frame
Top lid
Drain hose
Handle
Power case and plug
Control panel
Cabinet
Adjustable foot knob
Water inlet valve
Or
8

9
Installation area
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from the heat resources such as coal or gas.
as
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
•
•
Stability is important to prevent the product from
wandering!
Make sure that the product should not stand on
the power cord.
Warning!
！
• dangerous for children.
• well away from children.
Packaging material (e.g. Films, Styrofoam) can be
There is a risk of suffocation ! Keep all packaging
Warning!
！
INSTALLATION
L
w
W> 20mm L> 45mm
Packing the washing machine

9
10
There are two ways to place the end of drain hose:
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
Trough
Hose
Retainer
Bind
Min.86cm
Max.100cm
Warning!Warning!
Water
trough
Under3m
Under 15cm
Min.86cm
100cm
Max.
1.For lower drain system
2.For upper drain system
1.Check if the legs are closely attached
the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Check alignment of the product with a
spirit level and if required, correct.
3.Loosen the lock nut and turn the feet
until it closely contacts with
to
the floor.
4.After being locked properly, press four
corners again to make sure that they has
been adjusted properly.
• The lock nuts on all four feet must be screwed tightly against the housing.
Levelling the washing machine
Warning!
INSTALLATION
Lock nut foot
Right
Wrong
Raise Lower
Lock
Loosen
The installation of drain hose
Clamping spring
Drain inserted
hose into the drain

1011
Wall
1:Connection between ordinary tap and inlet hose.
2:connection between screw tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .
!
• water inlet hose
Warning!
Selection of tap
Please select
tap.
appropriate
Connection of inlet hose, tap and washing machine
Clamp nut
Tap
1.Loosen clamp nut to
show 5mm thread
2.Loosen four bolts 3.Set connecting base
on tap and tighten
bolts evenly
4.Tighten clamp nut
inlet valve
inlet hose
slide bushing
5.Press slide bushing,
insert inlet hose into
connecting base
6.Connection finished 7.After connection and installation,
check if there is water leakage
Tap with threads and inlet hose Special tap for washing machine
Screw tap Special washing
machine tap
Ordinary faucet
INSTALLATION

Caution!
Before washing, please make sure it’s installed properly.
Before washing it at first time, the washing machine shall be operated in one
of the whole procedures without clothes in as follows.
•
•
round
Open tap
Plug in Add detergent
After washing
1 2 3 4
Washing
Power on Start up
1 2
• , If default is selected, step 2 3 can be skipped.
Note!
1012
Load and close door
Buzzer will beep after washing finished and the power supply will be cut off automatically
Then unload the laundry.
.
3 4
Select program Select level
Preparation before washing
OPERATIONS

Knot the long strips,zip or
button
• When washing a single piece of clothing, it may easily cause great eccentricity
and give alarm due to great unbalance. Therefore it is suggested to add one or
two more clothes to be washed together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline, alcohol and other
flammable materials.
• The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet
valve and draining system may be damaged. If the machine is placed under condition
of 0℃or less, then it should be transferred to normal ambient temperature to ensure
the water supply hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Washing matters needing attention
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
1013
• As for the agglomerated or ropy detergent or additive, before they are poured
the detergent box, it is suggested to use some water for dilution to prevent
inlet of detergent box from being blocked and overflowing while filling water.
•
into
the
Please choose suitable type of detergent for the various washing temperature to
get the best washing performance with less water and energy consumption.
The usage of detergent and washing powder
OPERATIONS

Control panel
10
14
OPERATIONS
On/Off
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Program
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
Note!
The chart is for reference only, Please refer to real product as standard.•
1
1
4
1
2
3
53 1
2
4 4
51
2
43
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
When LED flashing it means the time that delay to start the machine. When LED lighting it means
the program time that remaining
, ,
.

Control panel
OPERATIONS
On/Off
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Program
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
Note!
The chart is for reference only, Please refer to real product as standard.•
1
1
4
1
2
3
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
When LED flashing it means the time that delay to start the machine. When LED lighting it means
the program time that remaining
, ,
.
1
2
3
444
5
1
2
3444 3
5
1015

Option
16
OPERATIONS
Child Lock
To avoid misoperation by children.
Start Press Child Lock
Power on
Select water level according to clothing categories, degree of soiling and washing
habits of customers.
Washing time, rinsing times, spinning time and other settings can
be selectable.
FCS
Start
ON/OFF
Delay
1. Select a program
2.Press the Delay button to choose the time
3.Press [Start/Pause] to commence the delay operation
Choose the Program Start
On Setting time
Delay
It should be pressed before
starting the program. If the program already started, should press the [On/Off]
button to reset the program.
Press the [Delay] button until the Delay light is off .
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected program and when the power is restarted.
Function
Combination of soaking, washing, rinsing and spinning light is available.
Press the button to regulate the Hot, warm, cold water for wash.
Only for washers having these function.
• Press the two button also to be released the function.
• The “ Child Lock” will lock all buttons except [ On/Off ].
Caution!
Temp.
Water level
Wash /Rinse /Spin
The FCS light
or
Set the delay function
Cancel the delay function

1017
OPERATIONS
Wash Spin+Rinse+
Only spin
Water Level
Program
Personalized setting of washing program
Customers can select washing program according to actual demand, and set washing
time rinsing times spinning time water volume and appointment time, , ,
customers can set single process or combinations of washing,rinsing and spinning
freely according to demand. Detailed operations as follows for different models:
Note: other process combinations are just like above.
Operations of washing process
Only wash
On Start
Set washing
time
Set washing time Set spin timeSet rinse times
Spin
Start
Start
On
On
StartOn
Wash SpinRinse Delay
One Touch Smart Wash
On Start
All the rinse light
is off if no rinse
time is set.
All the spin light
is off if no spin
time is set.

OPERATIONS
Water Level
Program
Personalized setting of washing program
Customers can select washing program according to actual demand, and set rinsing
times water volume and appointment time,
Customers can set single process or combinations of washing,rinsing and spinning
freely according to demand. Detailed operations as follows for different models:
Note: other process combinations are just like above.
Operations of washing process
StartOn
Rinse Delay Function Temp.
Wash Spin+Rinse+
keep pressing function key until
spinning light is on only
Keep pressing function key until
washing, rinsing,spinning lights are on
Press rinse separately,
set parameters
On
On
Start
Start
One Touch Smart Wash
On Start
10 18
Only wash

OPERATIONS
Program
Personalized setting of washing program
Customers can select washing program according to actual demand, and set rinsing
times water volume and appointment time,
Customers can set single process or combinations of washing,rinsing and spinning
freely according to demand. Detailed operations as follows for different models:
Note: other process combinations are just like above.
Operations of washing process
StartOn
10
19
Wash
On Start
Rinse
On Start
Press the PROCESS button Press the SET button
Set washing time
Press the PROCESS button
Spin
On Start
Press the PROCESS button Press the SET button
Set spinning time
+
Set soak/washing/spinning
time,rinsing times Temp.
Press the SET button
Set times of rinsing
