C&T Solution ACO-3000-4L-5350U User manual

ACO-3000 Series
Vehicle Applied Fanless System

ACO-3000 l User’s Manual
Table of Contents
Prefaces …………………………………………………….……………………………………………. 04
Revision …………………………………………………………………………………………..……………….……….. 04
Disclaimer ………………………………………………………..…….…….………………………….……………….. 04
Copyright Notice …………………………………….…………………….…………………………………………… 04
Trademarks Acknowledgment …………..………………………………………………………...................04
Environmental Protection Announcement …………………………….………………….……………….. 04
Safety Precautions ………………………………………….……………………………….…………….………….. 05
Technical Support and Assistance …………………………………….…………….…………….…………….06
Conventions Used in this Manual ………………………………………………………………….….………..06
Package Contents …………………………………………………………………………………………….…………07
Ordering Information …………………………………….……………………………………….……….………… 08
Optional Accessory …………...……………………………………..................................................... 11
Chapter 1 Product Introductions ………………………………………………………..… 12
1.1 Overview ……………………….………………………………..………….…………………………..13
1.1.1 Key Feature ………….……………………………………….……….…..…………….......13
1.2 Hardware Specification ….………………………….....…………….…………..………………14
1.3 System I/O ……………………………..……………………..…………………………………………15
1.3.1 ACO-3000 ………………….…………......................……………………………………15
1.3.2 ACO-3000-4L(P) …………………………………….…….……………….………………...17
1.3.3 ACO-3000-4L(P)-M12 ……..…………………….…….……………….………………...19
1.3.4 ACO-3011E(P) …….…………..…………………….…….……………….………………...21
1.3.5 ACO-3011E-4L(P) / ACO-3011P-4L(P) ……………..…………...………………... 23
1.3.6 ACO-3011E-4L(P)-M12 / ACO-3011P-4L(P)-M12 ……….…………………... 25
1.3.7 ACO-3022EE(PP) …….…………..…………………….……………….…..……………... 27
1.3.8 ACO-3022EE-4L(P) / ACO-3022PP-4L(P) …………..……….….………………...29
1.3.9 ACO-3022EE-4L(P)-M12 / ACO-3022PP-4L(P)-M12 ……….…..…………...31
1.4 Mechanical Dimension …………………………..…………………………..………….………. 33
1.4.1 ACO-3000 / ACO-3000-4L(P) / ACO-3000-4L(P)-M12 ..………………….…33
1.4.2 ACO-3011E(P) / ACO-3011E(P)-4L(P) / ACO-3011E(P)-4L(P)-M12 ..….34
1.4.3 ACO-3022EE(PP) / ACO-3022EE(PP)-4L(P) /
ACO-3022EE(PP)-4L(P)-M12 ………………………………………………………..….35
Chapter 2 Jumpers and Connectors ……………………………………………………….36
2.1 Switch and connector Locations ………………………………………..…….……………....37
2.1.1 Top View ………………………………………………………………………..……………… 37
2.1.2 Bottom View ………………………………………………………………………..………..38
2.2 Connector / Switch Definition ……………………………….……….…….……….............39
2.3 Switch Definitions ………….……………...............................................................40
2.4 Connector Definitions ………………………….......................................................42
Chapter 3 System Setup …………………………..…………………………………………… 52
3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and
unscrewing …………………………………………………………………………………………….. 53
3.2 Removing chassis bottom cover ……...……………..……………………..………..……... 53
3.3 Removing chassis top cover ……….….…………………….……………….……………….… 54
3.4 Installing SODIMM ……………………………………………….…………………….…………....55
3.5 Installing Mini PCIe card / mSATA …….…………………….……..….……………….……..56
3.6 Installing antenna ………………..……………………………………………………..…………... 57
3.7 Assemble chassis top cover …..……………………………………………………...............59
2

ACO-3000 l User’s Manual
3
3.8 Installing HDD on internal SATA HDD bay……………..…………………..………..….... 61
3.9 Installing HDD on removable SATA HDD bay……………..……….……..………..….... 63
3.10 Assemble chassis bottom cover …….…...…..….………………………………………….. 65
3.11 Installing SIM card …….…………..….……………..….………………………………………….. 66
3.12 To Configure Power Ignition Settings …….…………..….…..…...…………………..….. 67
3.13 Installing Wall Mount Kit ….…………..….…..…...………………………………………….. 68
3.14 Installing DIN rail holder …….…………..….…..…...…………………………………………..69
Chapter 4 BIOS Setup …………………………………………………………………………… 70
4.1 BIOS Introduction …….……….……………………………………..….…….…..….…………...71
4.2 Main Setup ……..……….………………….…………………………..…….….………………......72
4.2.1 System Language …….……………………………………..……..…………………….... 72
4.2.2 System Date …….……………………………………………..……..……………………....72
4.2.3 System Time ………..…………………………………………..……….…………………... 72
4.3 Advanced Setup ………………………………………………………..…………………………….. 73
4.3.1 CPU Configuration …………………………………………….…………..………………. 73
4.3.2 ACPI Settings …………………………….………..………………………………….……... 74
4.3.3 AMT Configuration ………..……………………………….………………………..….... 75
4.3.4 Super IO Configuration ……………..………………………………....……..…….....76
4.3.5 Hardware Monitor ……………………………….…………….………….….…….….... 79
4.3.6 Serial Port Console Redirection .…………………………..…………..………..... 79
4.3.7 SATA Configuration ……..………………………………..………………………….......80
4.3.8 Network Stack Configuration ……….…………………………………..………….... 81
4.3.9 CSM Configuration ………………………………………………..………………………. 82
4.3.10 USB Configuration …………………………………………………………………..……..83
4.3.11 Intel(R) Ethernet Connection I218-LM-XX:XX:XX:XX:XX:XX ……..…….. 84
4.3.12 Intel(R) I210 Gigabit Network Connection- XX:XX:XX:XX:XX:XX …….. 85
4.4 Chipset …………...……….………………….…..….…..………………………………………..…....86
4.4.1 System Agent (SA) Configuration ………………………………..…………………..86
4.4.2 PCI-IO Configuration ………………………………………………..……………………..88
4.5 Security …………...……….………………….…..….…..………………………………..…………...91
4.5.1 Administrators Password …….…………………………………..…………………….. 91
4.5.2 Users Password …….……………………………….………………..…………………….. 91
4.6 Boot …………...……….….………………….…..…………………………..…………..……………...92
4.6.1 Setup Prompt Timeout ………………………..…………..……………………………..92
4.6.2 Bootup NumLock State ………………………………………………..………………… 92
4.6.3 Full Screen Logo Show ………………………….…………………………..…...……… 92
4.6.4 Fast Boot ……………………………….……………..………………………..……………... 92
4.6.5 Hard Driver BBS Priorities ……………………..………………………..……………...92
4.7 Save & Exit …...……….….………………….…..….…..……………………………..…………..... 93
4.7.1 Save Changes and Reset ……………..………………………………..……..……......93
4.7.2 Discard Changes and Reset …………………………………............……………….93
4.7.3 Restore Defaults ……………………………………………………………..……………...93
4.7.4 Launch EFI Shell from filesystems device ………………………………..……… 93
Appendix WDT & GPIO …………………………………………………………………………… 94
WDT Sample Code …….……………………….……………….……………..….…….…….…………... 95
GPIO Sample Code ………………………………………………………..…………………………………. 96

ACO-3000 l User’s Manual
4
Revision
Disclaimer
All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T
Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading.
The information in this document is subject to change without notice and does not represent a
commitment on the part of C&T Solution Inc.
C&T Solution Inc. disclaims all warranties, express or implied, including, without limitation, those of
merchantability, fitness for a particular purpose with respect to contents of this User’s Manual. Users must
take full responsibility for the application of the product.
Copyright Notice
All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying, recording, or information storage and retrieval systems,
without the prior written permission of C&T Solutions Inc. Copyright © C&T Solutions Inc.
Trademarks Acknowledgment
Intel®, Celeron® and Pentium® are trademarks of Intel Corporation.
Windows® is registered trademark of Microsoft Corporation.
AMI is trademark of American Megatrend Inc.
IBM, XT, AT, PS/2 and Personal System/2 are trademarks of International Business Machines Corporation
All other products and trademarks mentioned in this manual are trademarks of their respective owners.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. Please recycle to minimize pollution
and ensure environment protection.
Prefaces
Revision
Description
Date
1.0
Manual Released
2016/07/04
1.1
Model
Revised
2016/09/23
1.2
Switches and Connectors Revised
2017/10/26
1.3
Power Connector Definition
Revised
2017/11/02

ACO-3000 l User’s Manual
5
Safety Precautions
Before installing and using the equipment, please read the following precautions:
Put this equipment on a reliable surface during installation. Dropping it or letting it fall could
cause damage.
The power outlet shall be installed near the equipment and shall be easily accessible.
Turn off the system power and disconnect the power cord from its source before making any
installation. Be sure both the system and the external devices are turned OFF. Sudden surge
of power could ruin sensitive components. Make sure the equipment is properly grounded.
When the power is connected, never open the equipment. The equipment should be opened
only by qualified service personnel.
Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
Disconnect this equipment from the power before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.
Avoid the dusty, humidity and temperature extremes.
Do not place heavy objects on the equipment.
If the equipment is not used for long time, disconnect it from the power to avoid being
damaged by transient over-voltage.
The storage temperature shall be above -40°C and below 85°C.
The computer is provided with a battery-powered real-time clock circuit. There is a danger of
explosion if incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer.
If one of the following situation arises, get the equipment checked be service personnel:
•The power cord or plug is damaged.
•Liquid has penetrated into the equipment.
•The equipment has been exposed to moisture.
•The equipment does not work well or it cannot work according the user’s manual.
•The equipment has been dropped and damaged.
•The equipment has obvious signs of breakage.
Preface

ACO-3000 l User’s Manual
6
Technical Support and Assistance
1. Visit the C&T Solution Inc website at www.candtsolution.com where you can find the latest
information about the product.
2. Contact your distributor, our technical support team or sales representative for technical support if
you need additional assistance. Please have following information ready before you call:
Model name and serial number
Description of your peripheral attachments
Description of your software (operating system, version, application software, etc.)
A complete description of the problem
The exact wording of any error messages
Conventions Used in this Manual
Preface
This indication alerts operators to an operation that, if not strictly observed,
may result in severe injury.
WARNING
This indication alerts operators to an operation that, if not strictly observed,
may result in safety hazards to personnel or damage to equipment.
CAUTION
This indication provides additional information to complete a task easily.
NOTE

ACO-3000 l User’s Manual
7
Package Contents
Before installation, please ensure all the items listed in the following table are included in the package.
Item
Description
Q’ty
1
ACO
-3000 Series Vehicle Applied Fanless System 1
2
Utility DVD Driver
1
3
Wall Mount Kit
1
4
Accessory Kit
1
5
DVI to VGA Adapter
1
Preface

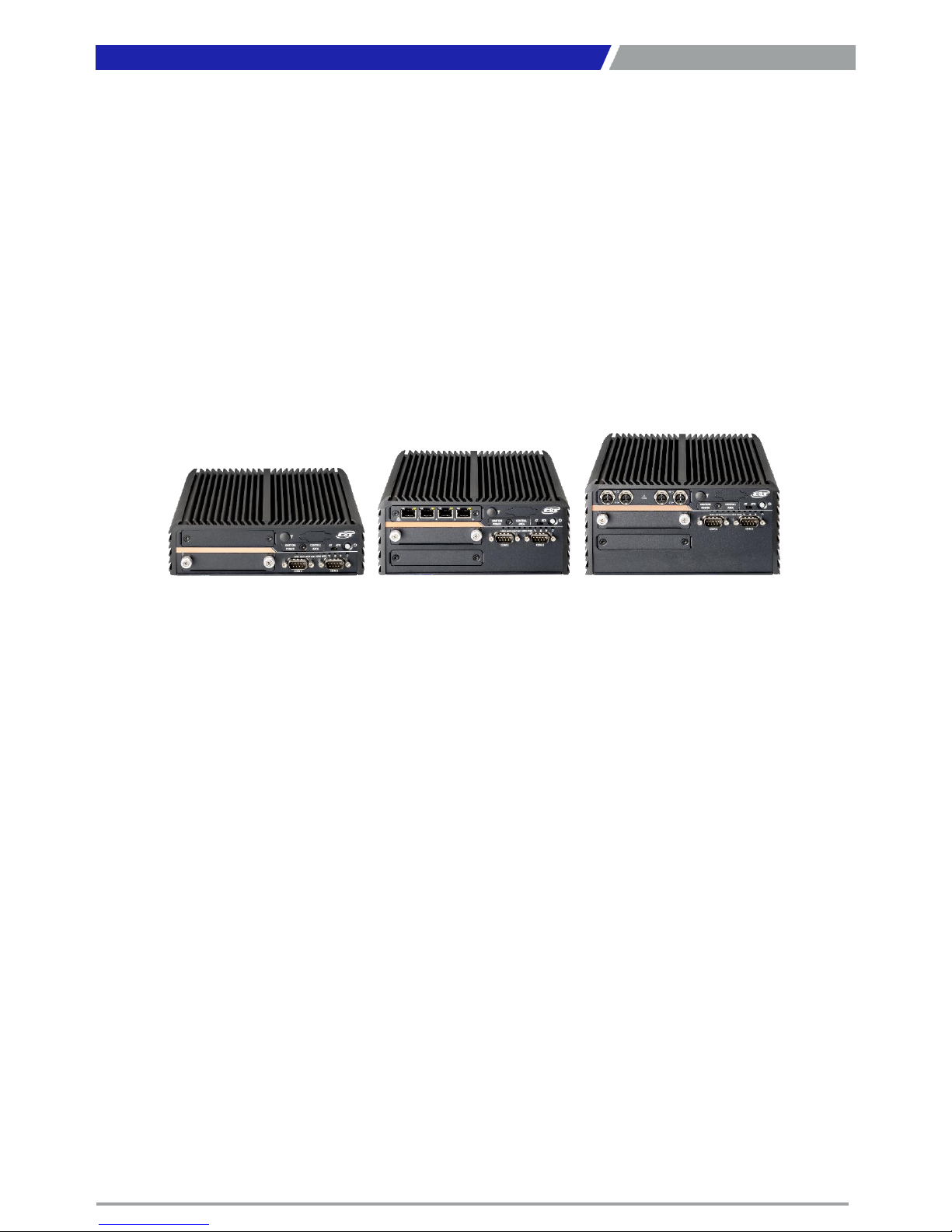

Ordering Information
Model No. Product Description
ACO-3000-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN
ACO-3000-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN
ACO-3000-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN
ACO-3000-4L-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 6x LAN
ACO-3000-4L-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 6x LAN
ACO-3000-4L-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 6x LAN
ACO-3000-4L-M12-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x M12 LAN
ACO-3000-4L-M12-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x M12 LAN
ACO-3000-4L-M12-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x M12 LAN
ACO-3000-4P-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x PoE
ACO-3000-4P-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x PoE
ACO-3000-4P-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x PoE

ACO-3000 l User’s Manual
8
Model No. Product Description
ACO-3000-4P-M12-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x M12 PoE
ACO-3000-4P-M12-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x M12 PoE
ACO-3000-4P-M12-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x M12 PoE
ACO-3011E-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 1x PCIe x4 expansion
ACO-3011E-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 1x PCIe x4 expansion
ACO-3011E-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 1x PCIe x4 expansion
ACO-3011E-4L-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 6x LAN, 1x PCIe x4 expansion
ACO-3011E-4L-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 6x LAN, 1x PCIe x4 expansion
ACO-3011E-4L-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 6x LAN, 1x PCIe x4 expansion
ACO-3011E-4L-M12-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x M12 LAN, 1x PCIe x4 expansion
ACO-3011E-4L-M12-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x M12 LAN, 1x PCIe x4 expansion
ACO-3011E-4L-M12-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x M12 LAN, 1x PCIe x4 expansion
ACO-3011E-4P-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x PoE, 1x PCIe x4 expansion
ACO-3011E-4P-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x PoE, 1x PCIe x4 expansion
ACO-3011E-4P-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x PoE, 1x PCIe x4 expansion
ACO-3011E-4P-M12-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x M12 PoE, 1x PCIe x4 expansion
ACO-3011E-4P-M12-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x M12 PoE, 1x PCIe x4 expansion
ACO-3011E-4P-M12-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x M12 PoE, 1x PCIe x4 expansion

ACO-3000 l User’s Manual
9
Model No. Product Description
ACO-3011P-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 1x PCI expansion
ACO-3011P-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 1x PCI expansion
ACO-3011P-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 1x PCI expansion
ACO-3011P-4L-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 6x LAN, 1x PCI expansion
ACO-3011P-4L-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 6x LAN, 1x PCI expansion
ACO-3011P-4L-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 6x LAN, 1x PCI expansion
ACO-3011P-4L-M12-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x M12 LAN, 1x PCI expansion
ACO-3011P-4L-M12-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x M12 LAN, 1x PCI expansion
ACO-3011P-4L-M12-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x M12 LAN, 1x PCI expansion
ACO-3011P-4P-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x PoE, 1x PCI expansion
ACO-3011P-4P-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x PoE, 1x PCI expansion
ACO-3011P-4P-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x PoE, 1x PCI expansion
ACO-3011P-4P-M12-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x M12 PoE, 1x PCI expansion
ACO-3011P-4P-M12-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x M12 PoE, 1x PCI expansion
ACO-3011P-4P-M12-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x M12 PoE, 1x PCI expansion
ACO-3022EE-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 2x PCIe x4 expansion
ACO-3022EE-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 2x PCIe x4 expansion
ACO-3022EE-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 2x PCIe x4 expansion

ACO-3000 l User’s Manual
10
Model No. Product Description
ACO-3022EE-4L-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 6x LAN, 2x PCIe x4 expansion
ACO-3022EE-4L-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 6x LAN, 2x PCIe x4 expansion
ACO-3022EE-4L-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 6x LAN, 2x PCIe x4 expansion
ACO-3022EE-4L-M12-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x M12 LAN, 2x PCIe x4 expansion
ACO-3022EE-4L-M12-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x M12 LAN, 2x PCIe x4 expansion
ACO-3022EE-4L-M12-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x M12 LAN, 2x PCIe x4 expansion
ACO-3022EE-4P-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x PoE, 2x PCIe x4 expansion
ACO-3022EE-4P-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x PoE, 2x PCIe x4 expansion
ACO-3022EE-4P-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x PoE, 2x PCIe x4 expansion
ACO-3022EE-4P-M12-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x M12 PoE, 2x PCIe x4 expansion
ACO-3022EE-4P-M12-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x M12 PoE, 2x PCIe x4 expansion
ACO-3022EE-4P-M12-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x M12 PoE, 2x PCIe x4 expansion
ACO-3022PP-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 2x PCI expansion
ACO-3022PP-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 2x PCI expansion
ACO-3022PP-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 2x PCI expansion
ACO-3022PP-4L-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 6x LAN, 2x PCI expansion
ACO-3022PP-4L-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 6x LAN, 2x PCI expansion
ACO-3022PP-4L-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 6x LAN, 2x PCI expansion

ACO-3000 l User’s Manual
11
Preface
Model No. Product Description
ACO-3022PP-4L-M12-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x M12 LAN, 2x PCI expansion
ACO-3022PP-4L-M12-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x M12 LAN, 2x PCI expansion
ACO-3022PP-4L-M12-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x M12 LAN, 2x PCI expansion
ACO-3022PP-4P-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x PoE, 2x PCI expansion
ACO-3022PP-4P-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x PoE, 2x PCI expansion
ACO-3022PP-4P-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x PoE, 2x PCI expansion
ACO-3022PP-4P-M12-5350U Vehicle applied fanless embedded system with Intel® i5-5350U
processor, 2x LAN, 4x M12 PoE, 2x PCI expansion
ACO-3022PP-4P-M12-5010U Vehicle applied fanless embedded system with Intel® i3-5010U
processor, 2x LAN, 4x M12 PoE, 2x PCI expansion
ACO-3022PP-4P-M12-3765U Vehicle applied fanless embedded system with Intel® Celeron®
3765U processor, 2x LAN, 4x M12 PoE, 2x PCI expansion
Optional Accessories
Model No. Product Description
1
-E09A06002
Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch,
GSM60A12
-CT
1
-E09A22101
Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch,
GST220A24
-CT
SFICBL022
Power Cord, 3
-pin US Type, 180cm
1
-TPCD00002
Power Cord, European Type, 180cm
1
-TPCD00001
Power Cord, 3
-pin UK Type, 180cm
3
-DINR-0003
DIN
-Rail Mount Kit

Chapter 1
Product Introductions

ACO-3000 l User’s Manual
13
1.1.1 Key Features
Onboard Intel® Core ™ i5-5350U (2.9GHz) / Core™ i3-5010U (2.1GHz) / Celeron ® 3765U (1.9GHz) Dual
Core processor
1x DDR3L SO-DIMM Max. up to 8GB
Triple Independent Display from 1x DVI-I and 1x DisplayPort
2x Intel® GbE Port, Support Wake-on-LAN and PXE (ACO-3000, ACO-3011, ACO-3022 Series Only)
6x Intel® GbE Port, Support Wake-on-LAN and PXE (ACO-3000-4L, ACO-3000-4L-M12, ACO-3011-4L, ACO-
3011-4L-M12, ACO-3022-4L, ACO-3022-4L-M12 Series Only)
6x Intel® GbE Port with 4x PoE Function, Support Wake-on-LAN, 2x Support PXE (ACO-3000-4P, ACO-3000-
4P-M12, ACO-3011-4P, ACO-3011-4P-M12, ACO-3022-4P, ACO-3022-4P-M12 Series Only)
2x USB 3.0, 2x USB 2.0
4x RS232/422/485 Port
4x Isolated DI, 4x Isolated DO
1x Removable 2.5" SATA HDD Bay and 1x Internal 2.5” SATA SSD/HDD Bay
2x mSATA (Shared by 2x Mini-PCIe Socket) and 2x SIM Card Socket
9~48VDC Power Input, support AT/ATX Mode
2x Mini-PCIe Socket for Wi-Fi, GSM, or I/O Expansion
1x PCIe x4 Expansion (ACO-3011E Series Only)
1x PCI Expansion (ACO-3011P Series Only)
2x PCIe x4 Expansion (ACO-3022EE Series Only)
2x PCI Expansion (ACO-3022PP Series Only)
Power Ignition Sensing
Remote Power On/Off Switch
1.1 Overview
Based on 5th Gen. Intel®Core™ i5-5350U (2.9GHz) / i3-5010U (2.1GHz) or Celeron®3765U (1.9GHz) Dual Core
processor, ACO-3000 series is an extreme features integration, outstanding system performance, versatile I/O
connections, and rugged reliability fanless embedded systems. Compliant with E-Mark and EMC Conformity with
EN50155 & EN50121-3-2 certification, as well as support up to 6x LAN or 4x PoE versions and power ignition
function, ACO-3000 series is dedicated to use for in-vehicle applications. It offers modularize expansion I/O, rich
connectivity interfaces, wide range (9~48V) DC power input, and high reliability even operating in temperature
extremes (-40 ° C~+70 ° C).
Featuring with completely cable-less designed, high functional, one-piece housing design, and anti-vibration,
ACO-3000 series are ruggedized systems that can operate in harsh environments and easy to install and maintain.
A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC
power input makes ACO-3000 series are safety system for all industrial applications.
Chapter 1: Product Introductions
ACO-3000 Series ACO-3022 SeriesACO-3011 Series

ACO-3000 l User’s Manual
14
1.2 Hardware Specification
Chapter 1: Product Introductions
Processor System
•Onboard Intel® Core ™ i5-5350U / Core™ i3-5010U /
Celeron ® 3765U Dual Core Processor, 2.9 / 2.1 / 1.9GHz
with AMI 64Mbit SPI BIOS
Memory
•1x 204-Pin DDR3L-1066 / 1333MHz SO-DIMM
(un-buffered and non-ECC), Max. up to 8GB
Display
Triple Display
•1x DVI -D, 1x VGA, and 1x DisplayPort
Expansion
•ACO-3011E Series: 1x PCIe x4
•ACO-3011P Series: 1x PCI
•ACO-3022EE Series : 2x PCIe x4
•ACO-3022PP Series: 2x PCI
•2x Full-size Mini PCIe Socket for Wi-Fi / GSM / Expansion
Module
•1x Universal I/O Bracket (ACO-3000, ACO-3011E-4L/4P, ACO-
3011E-4L/4P-M12, ACO-3011P-4L/4P, ACO-3011E-4L/4P-M12, ACO-
3022EE-4L/4P, ACO-3022EE-4L/4P-M12, ACO-3022PP-4L/4P, ACO-
3022PP-4L/4P-M12 Only)
•2x Universal I/O Bracket (ACO-3011E/P, ACO-3022EE/PP, Only)
Ethernet
•2x Intel® i210-AT GbE LAN Port, Support Wake-on-LAN
and PXE (ACO-3000, ACO-3011E/P,ACO-3022E/P Only)
•6x Intel® i210-AT GbE LAN Port, LAN1 and LAN2 Support
Wake-on-LAN (ACO-3000-4L, ACO-3000-4L-M12, ACO-3011E/P-4L,
ACO-3011E/P-4L-M12, ACO-3022EE/PP-4L, ACO-3022EE/PP-4L-M12
Only)
•4x 802.3at Compliant PoE Port, The Maximum DC Power
Delivery on Each PoE is 25.5W (ACO-3000-4P, ACO-3000-4P-
M12, ACO-3011E/P-4P, ACO-3011E/P-4P-M12, ACO-3022EE/PP-4P,
ACO-3022EE/PP-4P-M12 Only)
Audio
•Codec: Realtek ALC888S
•1x Mic-in and 1x Speak-out
Watchdog Timer
•Software Programmable Supports 1~255 sec. System
Reset
Storage
•1x Removable 2.5" SATA HDD Bay
•1x Internal 2.5" SATA HDD Bay
•2x mSATA Socket (Shared by 2x Mini-PCIe Socket)
•2x External SIM Card Socket
•Support RAID 0, 1, 5, 10
I/O Ports
•2x USB 3.0 Port
•2x USB 2.0 Port
•4 Isolated DI and 4 Isolated DO Port
•4x DB9 Flow Control for COM1~4, Support
RS232/422/485 with Auto Flow Control
•3x Antenna Hole
•1x Power Switch
•1x AT/ATX Switch
•1x Remote Power on/off Connector
Digital Input & Output
•4x Digital Input (Source Type)
- Input Voltage (Dry Contact):
Logic 0: Close to GND
Logic 1: Open
- Input Voltage:
Logic 0: 3V max.
Logic 1: 5V min. (DI to COM-)
•4x Digital Output
- Supply Voltage: 5~30VDC
- Sink Current: 200 mA Max. Per Channel
Power
•Support AT, ATX Mode
•1x 3-pin Terminal Block Connector with Power Input
9~48VDC
•Power Ignition Sensing
•1x Optional AC/DC 12V/5A, 60W Power Adapter
•1x Optional AC/DC 24V/9.2A, 220W Power Adapter
(ACO-3000-4P, ACO-3000-4P-M12, ACO-3011-4P, ACO-
3011-4P-M12, ACO-3022-4P, ACO-3022-4P-M12 Series
Only)
Environment
•Operating Temperature: Ambient with Air Flow:
-40°C to 70°C (with Industrial Grade Peripherals)
•Storage Temperature: -40°C to 85°C
•Relative humidity: 10%~95% (non-condensing)
Physical
•ACO-3000 Series
Dimension (WxDxH, mm): 185 x 197 x 57.4 mm
Weight: 2.16 kg ~ 2.54 kg
•ACO-3011 Series
Dimension (WxDxH, mm): 185 x 197 x 85 mm
Weight: TBD
•ACO-3022 Series
Dimension (WxDxH, mm): 185 x 197 x 105 mm
Weight: TBD
•Construction: Extruded Aluminum with Heavy Duty
Metal
•Mounting: Wall/ DIN-Rail Mounting
Operating System
•Windows® 7
•WES7
•Windows® 8.1
•WES8.1
•Windows 10
•Linux kernel 3.X
Certifications
•CE
•FCC Class A
•E-Mark
•EMC Conformity with EN50155 & EN50121-3-2

ACO-3000 l User’s Manual
15
1.3 System I/O
1.3.1 ACO-3000
Chapter 1: Product Introductions
Front Panel
ATX power on/off switch
Press to power-on or power-off the system
Reset switch
Press to reset the system
AT/ATX mode select switch
Used to select AT or ATX power mode
12V/24V power input select switch
Used to car mode select 12V or 24V power input
PC/Car mode select switch
Used to select PC or Car mode
Delay time select switch
Used to select car mode PC turn off delay time
SIM card
Used to insert SIM card
COM port
COM1 ~ COM2 support RS232/422/485 serial
device
Universal I/O Bracket
Used to customized I/O output
HDD port
Removable 2.5" SATA HDD Area
Power LED
Indicates the power status of the system
HDD LED
Indicates the status of the hard drive
Temperature LED
Indicates the temperature status of the system
Watchdog LED
Indicates the status of the watchdog active
GPIO LED
Indicates the status of the customer define
Ethernet LEDs
Indicates the status of the LAN active

ACO-3000 l User’s Manual
16
Chapter 1: Product Introductions
Rear Panel
DC IN
Used to plug a DC power input with terminal
block
DVI-I port
Used to connect a DVI monitor or connect
optional split cable for dual display mode
DisplayPort
Used to connect a DisplayPort monitor
USB 3.0 port
Used to connect USB 3.0/2.0/1.1 device
USB 2.0 port
Used to connect USB 2.0/1.1 device
LAN port
Used to connect the system to a local area
network
COM port
COM3 ~ COM4 support RS232/422/485 serial
device
Mic-in
Used to connect a microphone
Speaker-out
Used to connect a speaker
Digital I/O Terminal Block
The Digital I/O terminal block supports 4 digital
input and 4 digital output
Remote Power on/off Terminal Block
Used to plug a remote power on/off terminal
block
Antenna hole
Used to connect an antenna for optional Mini-
PCIe WiFi module

ACO-3000 l User’s Manual
17
1.3.2 ACO-3000-4L(P)
Chapter 1: Product Introductions
Front Panel
ATX power on/off switch
Press to power-on or power-off the system
Reset switch
Press to reset the system
AT/ATX mode select switch
Used to select AT or ATX power mode
12V/24V power input select switch
Used to car mode select 12V or 24V power input
PC/Car mode select switch
Used to select PC or Car mode
Delay time select switch
Used to select car mode PC turn off delay time
SIM card
Used to insert SIM card
COM port
COM1 ~ COM2 support RS232/422/485 serial
device
LAN Port
Used to connect the system to a local area
network (ACO-3000-4L Only)
PoE Port
Used to connect the system to a local area
network with power over Ethernet (ACO-3000-4P
Only)
HDD port
Removable 2.5" SATA HDD Area
Power LED
Indicates the power status of the system
HDD LED
Indicates the status of the hard drive
Temperature LED
Indicates the temperature status of the system
Watchdog LED
Indicates the status of the watchdog active
GPIO LED
Indicates the status of the customer define
Ethernet LEDs
Indicates the status of the LAN active

ACO-3000 l User’s Manual
18
Chapter 1: Product Introductions
Rear Panel
DC IN
Used to plug a DC power input with terminal
block
DVI-I port
Used to connect a DVI monitor or connect
optional split cable for dual display mode
DisplayPort
Used to connect a DisplayPort monitor
USB 3.0 port
Used to connect USB 3.0/2.0/1.1 device
USB 2.0 port
Used to connect USB 2.0/1.1 device
LAN port
Used to connect the system to a local area
network
COM port
COM3 ~ COM4 support RS232/422/485 serial
device
Mic-in
Used to connect a microphone
Speaker-out
Used to connect a speaker
Digital I/O Terminal Block
The Digital I/O terminal block supports 4 digital
input and 4 digital output
Remote Power on/off Terminal Block
Used to plug a remote power on/off terminal
block
Antenna hole
Used to connect an antenna for optional Mini-
PCIe WiFi module

ACO-3000 l User’s Manual
19
1.3.3 ACO-3000-4L(P)-M12
Chapter 1: Product Introductions
Front Panel
ATX power on/off switch
Press to power-on or power-off the system
Reset switch
Press to reset the system
AT/ATX mode select switch
Used to select AT or ATX power mode
12V/24V power input select switch
Used to car mode select 12V or 24V power input
PC/Car mode select switch
Used to select PC or Car mode
Delay time select switch
Used to select car mode PC turn off delay time
SIM card
Used to insert SIM card
COM port
COM1 ~ COM2 support RS232/422/485 serial
device
M12 LAN Port
Used to connect the system to a local area
network (ACO-3000-4L-M12 Only)
M12 PoE Port
Used to connect the system to a local area
network with power over Ethernet (ACO-3000-
4P-M12 Only)
HDD port
Removable 2.5" SATA HDD Area
Power LED
Indicates the power status of the system
HDD LED
Indicates the status of the hard drive
Temperature LED
Indicates the temperature status of the system
Watchdog LED
Indicates the status of the watchdog active
GPIO LED
Indicates the status of the customer define
Ethernet LEDs
Indicates the status of the LAN active

ACO-3000 l User’s Manual
20
Chapter 1: Product Introductions
Rear Panel
DC IN
Used to plug a DC power input with terminal
block
DVI-I port
Used to connect a DVI monitor or connect
optional split cable for dual display mode
DisplayPort
Used to connect a DisplayPort monitor
USB 3.0 port
Used to connect USB 3.0/2.0/1.1 device
USB 2.0 port
Used to connect USB 2.0/1.1 device
LAN port
Used to connect the system to a local area
network
COM port
COM3 ~ COM4 support RS232/422/485 serial
device
Mic-in
Used to connect a microphone
Speaker-out
Used to connect a speaker
Digital I/O Terminal Block
The Digital I/O terminal block supports 4 digital
input and 4 digital output
Remote Power on/off Terminal Block
Used to plug a remote power on/off terminal
block
Antenna hole
Used to connect an antenna for optional Mini-
PCIe WiFi module
