C&T BCO-2000-V1605B User manual

BCO-2000-V1605B
Fanless Mini Computer with AMD Ryzen™Embedded
R1000/V1000 Series

BCO-2000-V1605B l User’s Manual
Table of Contents
2
Prefaces …………………………………………………….……………………………………………. 04
Revision …………………………………………………………………………………………..……………….……….. 04
Disclaimer ………………………………………………………..…….…….………………………….……………….. 04
Copyright Notice …………………………………….…………………….…………………………………………… 04
Trademarks Acknowledgment …………..………………………………………………………...................04
Environmental Protection Announcement …………………………….………………….……………….. 04
Safety Precautions ………………………………………….……………………………….…………….………….. 05
Technical Support and Assistance …………………………………….…………….…………….…………….06
Conventions Used in this Manual ………………………………………………………………….….………..06
Package Contents …………………………………………………………………………………………….………… 07
Ordering Information …………………………………….……………………………………….……….………… 07
Optional Accessory …………...……………………………………..................................................... 07
Chapter 1 Product Introductions ………………………………………………………..… 08
1.1 Overview ……………………….………………………………..………….…………………………..09
Key Feature ………….……………………………………….……….…..……………………........ 09
1.2 Hardware Specification ….………………………….....…………….…………..………..…… 10
1.3 System I/O ……………………………..……………………..…………………………………………12

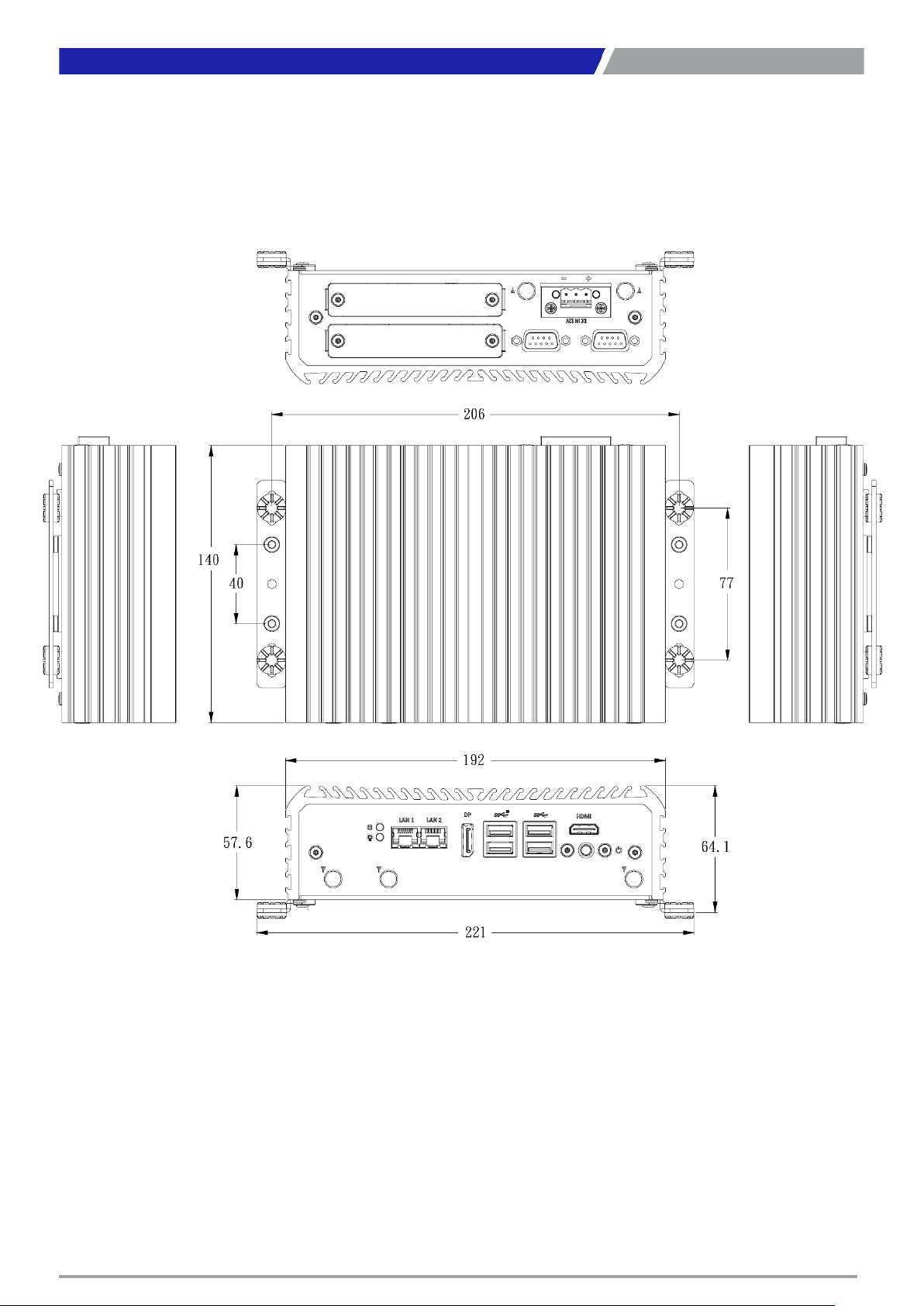

1.4 Mechanical Dimension …………………………..…………………………..………….………. 14
Chapter 2 Mechanical Specifications………………………………………………….…. 15
2.1 Switch and connector Locations ………………………………………..…….……..…….... 16
2.1.1 Top View ………………………………………………………………………..……..……… 16
2.1.2 Bottom View ………………………………………………………………………….…….. 17
2.2 Connector / Switch Definition ……………………………….……….…….………............ 18
2.3 I/O Interface Descriptions ………….……………................................................. 19
Chapter 3 System Setup …………………………..…………………………………………… 44
3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and
unscrewing ……………………………………………………………………………………..…..….. 45
3.2 Removing chassis bottom cover ……...……………………………………..……....……... 45
3.3 Installing SODIMM……….………………….…..…….………………………….……………….…47
3.4 Installing Mini PCIe card / mSATA………………………..……………….…..............……48
3.5 Installing antenna..……………………………………………….…………………….…………... 49
3.6 Removing HDD bracket……………..…….…………………….……..….……………………...51
3.7 Installing SATA HDD……………..……………………………………………………..…………... 52
3.8 Installing SIM card………………..……………………………………………………................54
3.9 Installing Desktop mount kit……..……………………..….………………………..………....55
Chapter 4 BIOS Setup …………………………………………………………………………… 57
4.1 BIOS Introduction …….……….……………………………………..….…….…..….…………...58
4.2 Main Setup ……..……….………………….…………………………..…….….………………......59
4.3 Advanced Setup ………………………………………………………..…………………………….. 58
4.3.1 Trusted Computing ……………………………….…..…..…...........................…… 61
4.3.2 ACPI Settings …………………………….………..……………………………..…..…....... 62
4.3.3 IDE Configuration …………..……………………………………..…………………….….. 63

BCO-2000-V1605B l User’s Manual
3
4.3.4 Super IO Configuration ……….………………………….............………….....…... 64
4.3.5 Hardware Monitor ……………………………..………………….………….….……….. 67
4.3.6 Serial Port Console Redirection ……………………….…………..…………………. 69
4.3.7 CPU Configuration ..………………………………..…….….…………..………………… 71
4.3.8 USB Configuration …………………………………………….…..…………..…………... 72
4.3.9 Network Stack Configuration …………………………................……………….. 73
4.3.10 CSM Configuration ……………………….….......................………………..……. 74
4.3.11 AMD CBS …………………….….......................……………………………………..… 75
4.4 Chipset …………...……….………………….…..….…..………………………………………..…....76
4.4.1 SB USB Configuration ………………..………………………………..………………….. 76
4.4.2 North Bridge Configuration …………………………….………..…………………….. 77
4.5 Security …………...……….………………….…..….…..………………………………..…………...78
4.6 Boot …………...……….….………………….…..…………………………..…………..……………...81
4.7 Save & Exit …...……….….………………….…..….…..……………………………..…………..... 82
Appendix WDT & GPIO …………………………………………………………………………… 83
WDT Sample Code …….……………….………….…….……………………..….…….…….…………... 84
GPIO Sample Code ………………………………..…………………………………………………………. 85

BCO-2000-V1605B l User’s Manual
4
Revision
Disclaimer
All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T
Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading.
The information in this document is subject to change without notice and does not represent a
commitment on the part of C&T Solution Inc.
C&T Solution Inc. disclaims all warranties, express or implied, including, without limitation, those of
merchantability, fitness for a particular purpose with respect to contents of this User’s Manual. Users must
take full responsibility for the application of the product.
Copyright Notice
All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying, recording, or information storage and retrieval systems,
without the prior written permission of C&T Solution Inc. Copyright © C&T Solution Inc.
Trademarks Acknowledgment
Intel®, Celeron® and Pentium® are trademarks of Intel Corporation.
Windows® is registered trademark of Microsoft Corporation.
AMI is trademark of American Megatrend Inc.
IBM, XT, AT, PS/2 and Personal System/2 are trademarks of International Business Machines Corporation
All other products and trademarks mentioned in this manual are trademarks of their respective owners.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. Please recycle to minimize pollution
and ensure environment protection.
Prefaces
Revision
Description
Date
1.0
Manual Released
2023/02/15

BCO-2000-V1605B l User’s Manual
5
Safety Precautions
Before installing and using the equipment, please read the following precautions:
⚫Put this equipment on a reliable surface during installation. Dropping it or letting it fall could
cause damage.
⚫The power outlet shall be installed near the equipment and shall be easily accessible.
⚫Turn off the system power and disconnect the power cord from its source before making any
installation. Be sure both the system and the external devices are turned OFF. Sudden surge
⚫of power could ruin sensitive components. Make sure the equipment is properly grounded.
⚫When the power is connected, never open the equipment. The equipment should be opened
only by qualified service personnel.
⚫Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
⚫Disconnect this equipment from the power before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.
⚫Avoid the dusty, humidity and temperature extremes.
⚫Do not place heavy objects on the equipment.
⚫If the equipment is not used for long time, disconnect it from the power to avoid being
damaged by transient over-voltage.
⚫The storage temperature shall be above -30°C and below 85°C.
⚫The computer is provided with a battery-powered real-time clock circuit. There is a danger of
explosion if incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer.
⚫If one of the following situation arises, get the equipment checked be service personnel:
•The power cord or plug is damaged.
•Liquid has penetrated into the equipment.
•The equipment has been exposed to moisture.
•The equipment does not work well or it cannot work according the user’s manual.
•The equipment has been dropped and damaged.
•The equipment has obvious signs of breakage.
Preface

BCO-2000-V1605B l User’s Manual
6
Technical Support and Assistance
1. Visit the C&T Solution Inc website at https://www.candtsolution.com where you can find the latest
information about the product.
2. Contact your distributor, our technical support team or sales representative for technical support if
you need additional assistance. Please have following information ready before you call:
⚫Model name and serial number
⚫Description of your peripheral attachments
⚫Description of your software (operating system, version, application software, etc.)
⚫A complete description of the problem
⚫The exact wording of any error messages
Conventions Used in this Manual
Preface
This indication alerts operators to an operation that, if not strictly observed,
may result in severe injury.
WARNING
This indication alerts operators to an operation that, if not strictly observed,
may result in safety hazards to personnel or damage to equipment.
CAUTION
This indication provides additional information to complete a task easily.
NOTE

BCO-2000-V1605B l User’s Manual
7
Package Contents
Before installation, please ensure all the items listed in the following table are included in the package.
Item
Description
Q’ty
1
BCO
-2000-AMD Series BOX PC Series Embedded System 1
3
Desktop mount kit
1
4
Accessory Kit
1
Ordering Information
Preface
Model No. Product Description
BCO-2000-V1605B Basic Fanless Embedded System with AMD Ryzen™Embedded V1605B,
2xLAN, 4x USB, 2x LAN
BCO-2000-R1606G Basic Fanless Embedded System with AMD Ryzen™Embedded R1606G,
2xLAN, 4x USB, 2x LAN
Optional Accessories
Model No. Product Description
1
-E09A06007
Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
SFICBL022
Power Cord, 3
-pin US Type, 180cm
1
-TPCD00002
Power Cord, European Type, 180cm
1
-TPCD00001
Power Cord, 3
-pin UK Type, 180cm
3
-SIDE-0003
Side Mount Kit
3
-BC2000CMKIT-S0
Module Kit with 4x COM for BCO
-2000 Series
3
-BC2000U2KIT-S0
Module Kit with 2x USB 2.0 for BCO
-2000 Series
3
-BC2000U31IT-S1
Module Kit with 2x USB 3.0 for BCO
-2000 Serie

Chapter 1
Product Introductions

BCO-2000-V1605B l User’s Manual
9
Key Features
⚫Support AMD Ryzen™Embedded R1000/V1000 Series
⚫2x 260-pin DDR4 2400 MHz SODIMM. Max. up to 32GB
⚫2x Intel® GbE (Support Wake-on-LAN and PXE)
⚫Triple Independent Display by 1x DisplayPort, 1x LVDS, 1x HDMI (Optional)
⚫1x M.2 B Key for 4G/5G Communications & Storage
⚫1x full-size Mini PCIe for expansion modules
⚫2x USB 3.2 Gen 2 (10Gbps), 2x USB 2.0, 2x RS-232/422/485
⚫1x Internal 2.5" SATA HDD Bay, 1x inernal SIM socket
⚫Watchdog timer 1-255s system reset
⚫TPM 2.0 Supported
1.1 Overview
C&T Basic Fanless Embedded Systems are designed for entry-level applications and basic needs. The
BCO series can oversee connected devices and manage the collection, storage, and transmission of
sensor data, and is capable of distilling unexplored value in data. It is not only robust and can
withstand dust, shock, and vibration, but also can suitable for industrial automation, industrial control,
kiosk & retail, and digital signage.
Chapter 1: Product Introductions

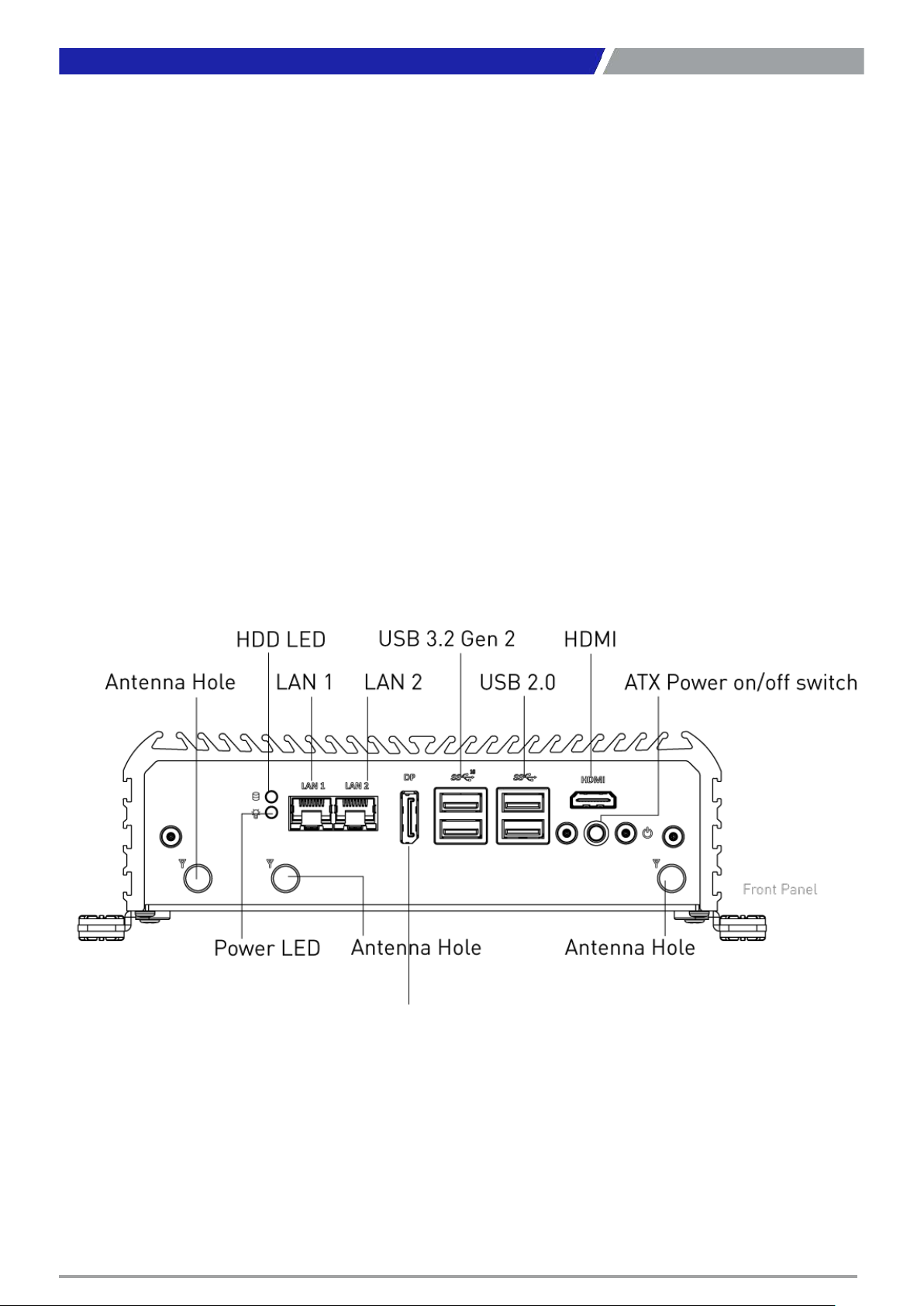

Front Panel
Rear Panel

BCO-2000-V1605B l User’s Manual
10
Chapter 1: Product Introductions
1.2 Hardware Specification
System
Processor
Support AMD Ryzen™Embedded R1000/V1000 Series
•AMD Ryzen™Embedded V1605B with Radeon™Vega 8 Graphics,
4M Cache, 4 Cores, 8 Threads, Up to 3.6 GHz
•AMD Ryzen™Embedded R1606G with Radeon™Vega 3 Graphics,
4M Cache, 2 Cores, 4 Threads, Up to 3.5 GHz (Optional)
System
Chipset SoC integrated
LAN Chipset
•GbE1: Intel i210
(Support Wake-on-LAN and PXE)
•GbE2: Intel i210
(Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System
Memory
2x 260-Pin DDR4 2400 MHz SODIMM.
Max 32 GB
BIOS AMI uEFI 64 Mbit SPI flash
Watchdog Software Programmable Supports 1~255
Sec. System Reset
TPM TPM 2.0
Display
DisplayPort 1x DisplayPort 1.4, DP++,
Support resolution 3840 x 2160
@60 Hz
HDMI
1x HDMI 2.0b,
Support resolution 3840 x 2160
@60 Hz (Optional)
LVDS
1x 24-bit dual channel LVDS,
Support resolution up to 1920x1200
@60Hz
Multiple Display Triple Display
Storage
M.2 1x M.2 B Key, 3042, Support SATA
SIM Socket 1x inernal SIM socket
(M.2 B Key attached)
SSD/HDD 1x Internal 2.5" SATA HDD Bay
(support H=9.5mm)
I/O
COM 2x RS-232/422/485
DIO 4 in / 4 out (Isolated)
LAN 2x RJ45
Universal I/O Bracket 2x Universal I/O Bracket (By mini PCIe/M.2 interface)
USB 2x USB 3.2 Gen 2 (10 Gbps)
4x USB 2.0 (2x internal)
Others
5x WiFi Antenna Holes
1x 4-Pin FAN Connector
1x RTC battery by cable
Expansion
M.2 1x M.2 B Key (PCIe x1 & USB 3.0, 3042/3052, SATA, USIM, Support 4G/5G)
Mini PCIe 1x Full-Size Mini PCIe for expansion modules
Operating System
Windows Windows 10
Linux Linux Kernel 5.x (Fedora 30 or above / Ubuntu 19.04 or above)

BCO-2000-V1605B l User’s Manual
11
Chapter 1: Product Introductions
Environment
Operating Temperature -20°C to 55°C (25W CPU)
Storage Temperature -30 °C to 85 °C
Relative Humidity 10% to 95% (non-condensing)
Certification CE, FCC Class A
Vibration With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 50G, half sine, 11ms
Physical
Construction Extruded Aluminum with Heavy Duty Metal
Dimension 140 (D) x 192 (W) x 57.6 (H) mm
Weight 1.5 Kg
Mounting Desktop Mounting
Power
Power Adaptor Optional AC/DC 12V/5A, 60W,
Power Mode AT, ATX 12VDC
Power Protection Reserve Protection

BCO-2000-V1605B l User’s Manual
12
1.3 System I/O
Chapter 1: Product Introductions
Front Panel
ATX power on/off switch
Press to power-on or power-off the system
Power LED
Indicates the power status of the system
HDD LED
Indicates the status of the hard drive
USB 3.2 Gen 2 port (10 Gbps)
Used to connect USB 3.2 device
USB 2.0
Used to connect USB 2.0 device
LAN port
Used to connect the system to a local area
network
Antenna hole
Used to connect an antenna for optional Mini-
PCIe WiFi module
HDMI
Used to connect a DisplayPort monitor
DisplayPort
Used to connect a DisplayPort monitor
DisplayPort

BCO-2000-V1605B l User’s Manual
13
Rear Panel
DC IN
Used to plug a DC power input with terminal
block
COM port
COM1 ~ COM2 support RS232/422/485 serial
device
Antenna hole
Used to connect an antenna for optional Mini-
PCIe WiFi module
Expandable I/O bracket
•COM Port：
COM2 or COM4 Support RS232/422/485 serial
device
•USB 2.0/ 3.0 Port
Used to connect USB 3.0/2.0 (Support 1x
Universal Slot Only)
Chapter 1: Product Introductions
COM

BCO-2000-V1605B l User’s Manual
14
1.4 Mechanical Dimensions
Unit: mm
Chapter 1: Product Introductions

Chapter 2
Mechanical Specifications

BCO-2000-V1605B l User’s Manual
16
2.1 Switch and Connector Locations
Chapter 2: Mechanical Specifications
2.1.1 Top View
CN1 JP4 JP3 GPIO1 JP5 JP6 DC_IN1
RJ1
DP1
CN4
CN3
HDMI1
FAN1
CN2 MINI_PCIE1
BZ1
BAT1
SODIMM1 SODIMM2
JP1
LVDS1
COM1
COM2
SIM2
SATA1
SATA1_PWR1
USB_1

BCO-2000-V1605B l User’s Manual
17
Chapter 2: Mechanical Specifications
2.1.2 Bottom View
2.1.3 Rear I/O
CN5

BCO-2000-V1605B l User’s Manual
18
2.2 Connector / Switch Definition
Chapter 2: Mechanical Specifications
Connector Location Definition
JP1 Clear CMOS
JP3 Panel PWR setting
JP4 Backlight PWR setting
JP5 Front Panel
JP6 AT/ATX setting
CN1 Panel Control
CN2 M.2 B key
CN3 USB 2.0 port
CN4 USB 3.2 Gen 2
CN5 Expansion I/O
COM1 COM Port
COM2 COM Port
GPIO1 4IN/4OUT GPIO header
SATA1 SATA Port 1 signal connector
SATA1_PWR SATA Port 1 power connector
LVDS1 LVDS connector
USB_1 USB 2.0 header
MINI_PCIE1 Mini PCI Express slot 1
DC_IN1 4 PIN Power connector
FAN1 FAN Power connector
RJ1 Dual LAN ports
HDMI1 HDMI signal connector
DP1 DP signal connector
BAT1 Battery
SIM2 SIM Card
BZ1 Buzzer
SODIMM1 / SODIMM2 Memory

BCO-2000-V1605B l User’s Manual
19
2.3 I/O Interface Descriptions
Chapter 2: Mechanical Specifications
2.3.1 Clear CMOS
JP1
Pin Signal
1NC
2 RTCRST#
3 GND
JP3
2.3.2 Panel Power setting
Pin Signal
1 +V3.3A
2P3P5V
3 +V5A
1
2
3
1
2
3

BCO-2000-V1605B l User’s Manual
20
2.3 I/O Interface Descriptions
Chapter 2: Mechanical Specifications
2.3.3 Backlight Power setting
JP4
Pin Signal
1 +V12A
2P5P12V
3 +V5A
1
2
3
