C&T PC311E User manual

PC300 Series
PC Module

PC300 / PC311E(P) l User’s Manual
Table of Contents
Prefaces …………………………………………………….……………………………………………. 04
Revision …………………………………………………………………………………………..……………….……….. 04
Disclaimer ………………………………………………………..…….…….………………………….……………….. 04
Copyright Notice …………………………………….…………………….…………………………………………… 04
Trademarks Acknowledgment …………..………………………………………………………...................04
Environmental Protection Announcement …………………………….………………….……………….. 04
Safety Precautions ………………………………………….……………………………….…………….………….. 05
Technical Support and Assistance …………………………………….…………….…………….…………….06
Conventions Used in this Manual ………………………………………………………………….….………..06
Package Contents …………………………………………………………………………………………….…………07
Ordering Information …………………………………….……………………………………….……….………… 07
Optional Accessory …………...……………………………………..................................................... 07
Chapter 1 Product Introductions ………………………………………………………..… 08
1.1 Overview ……………………….………………………………..………….………………..……….. 09
1.1.1 Key Feature ………….……………………………………….……….…..………..…....... 09
1.2 Hardware Specification ….………………………….....…………….…………..…..………… 10

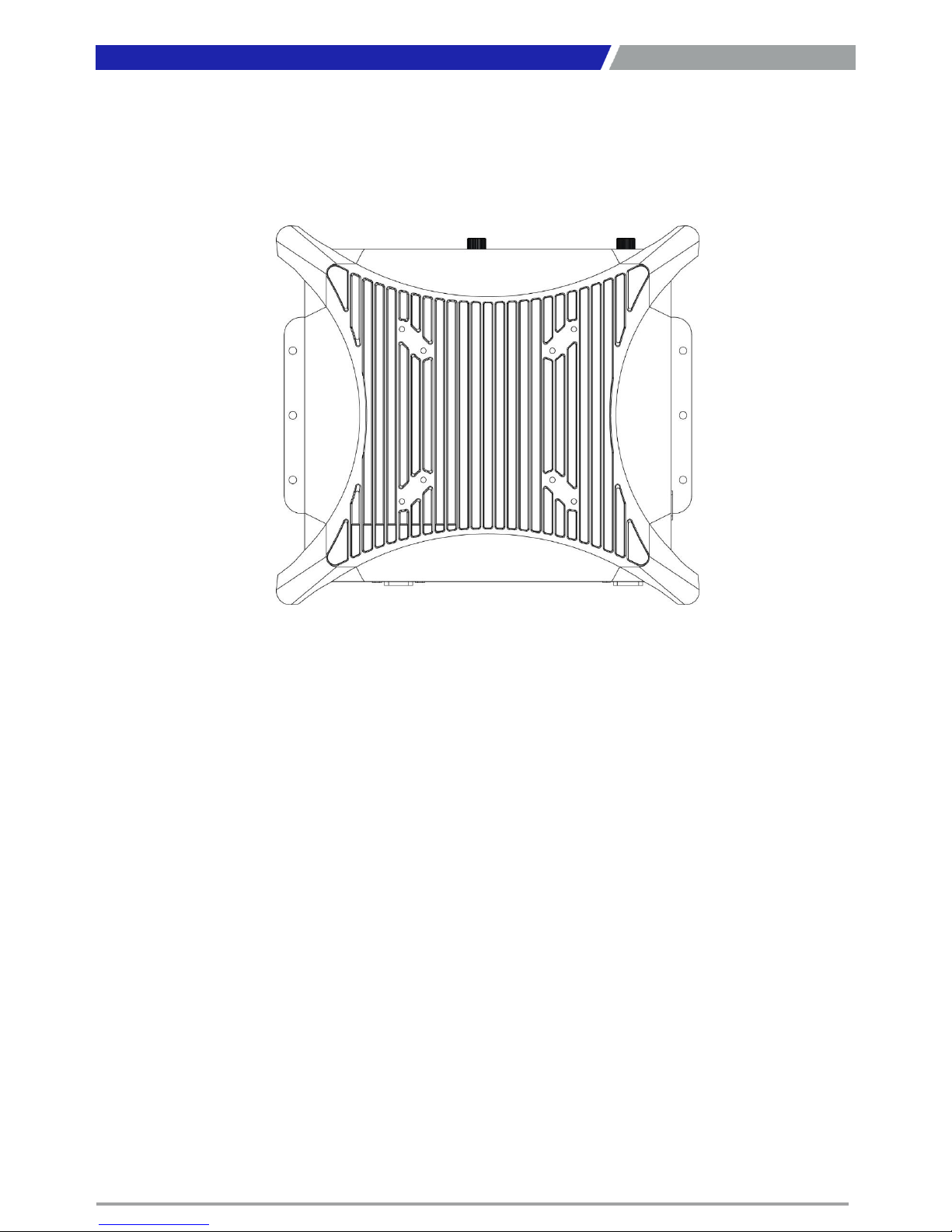

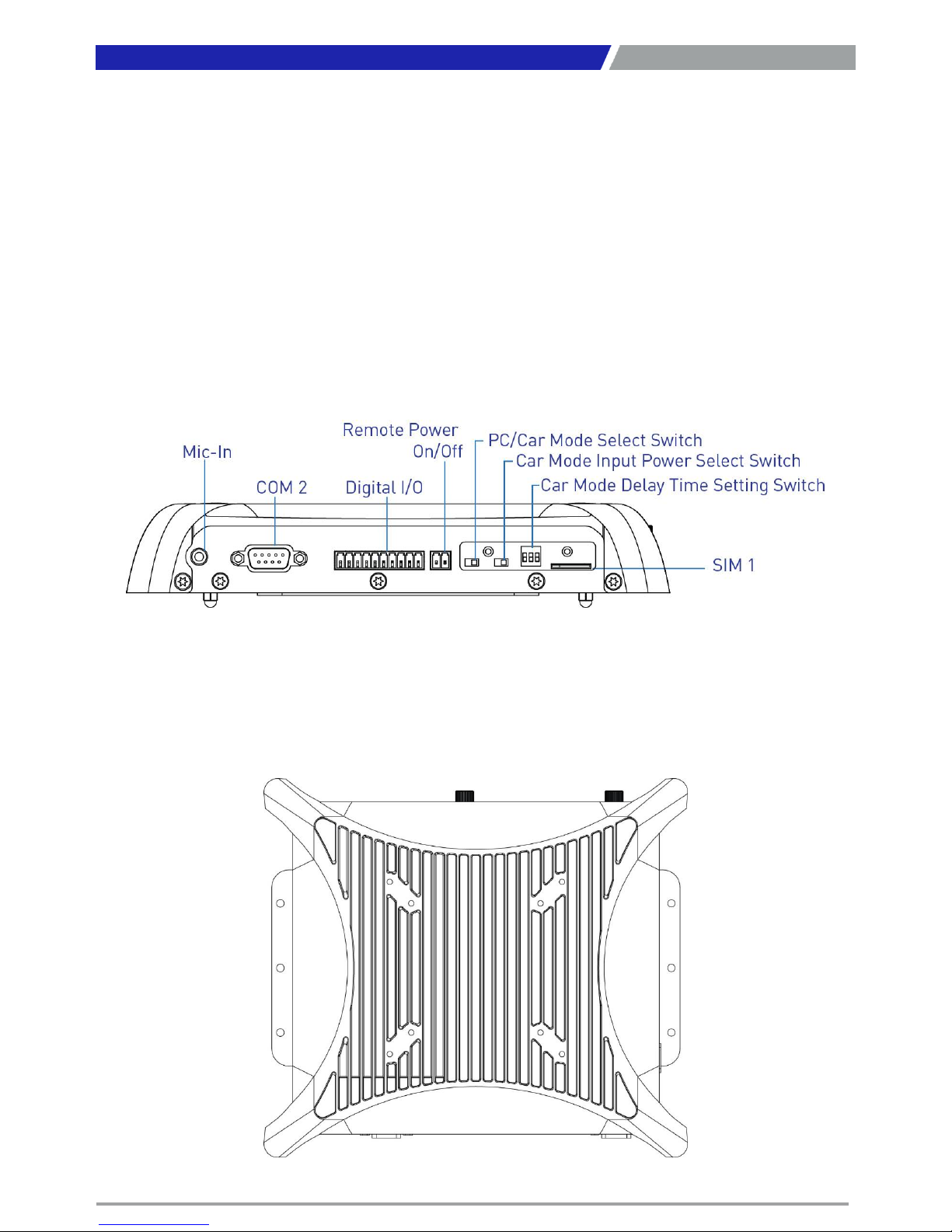

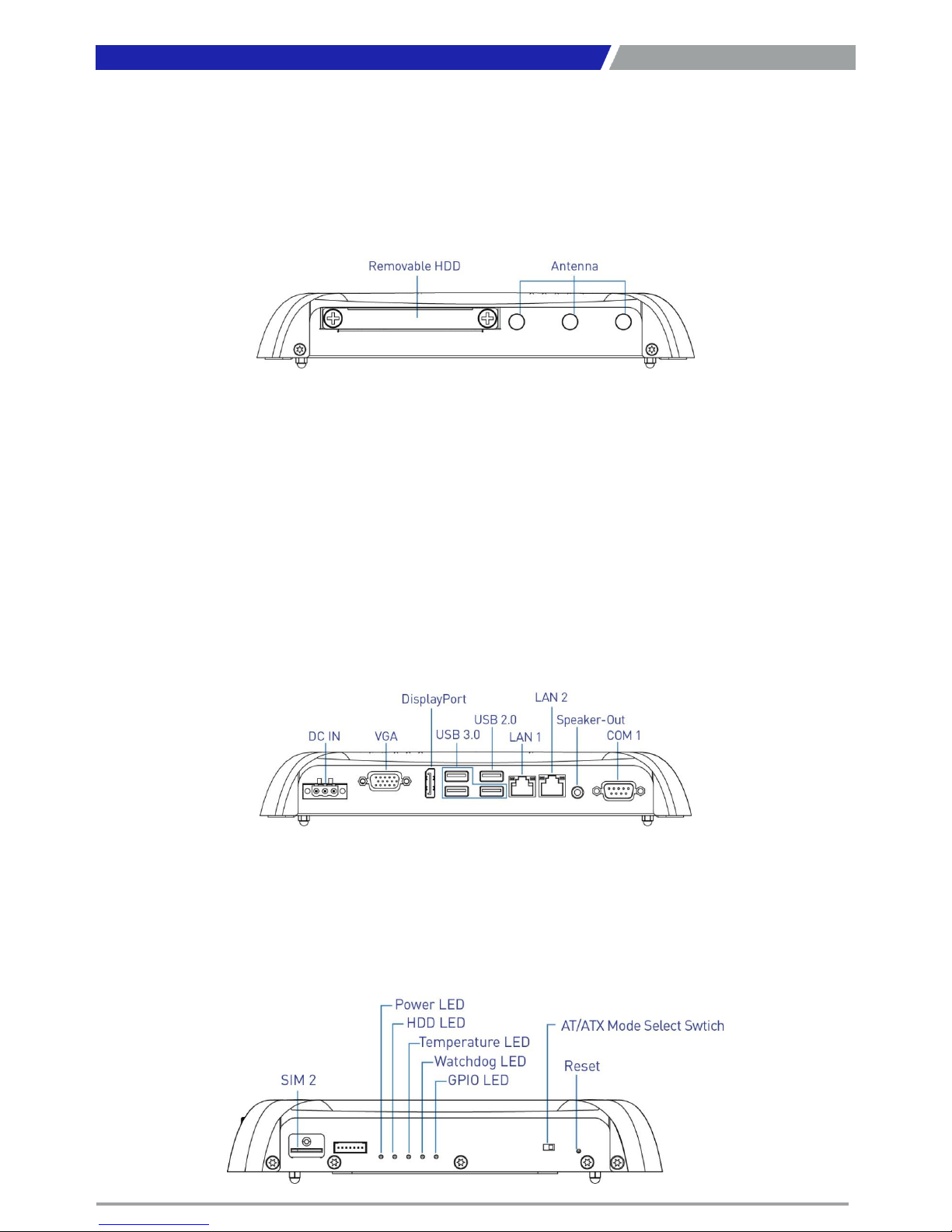

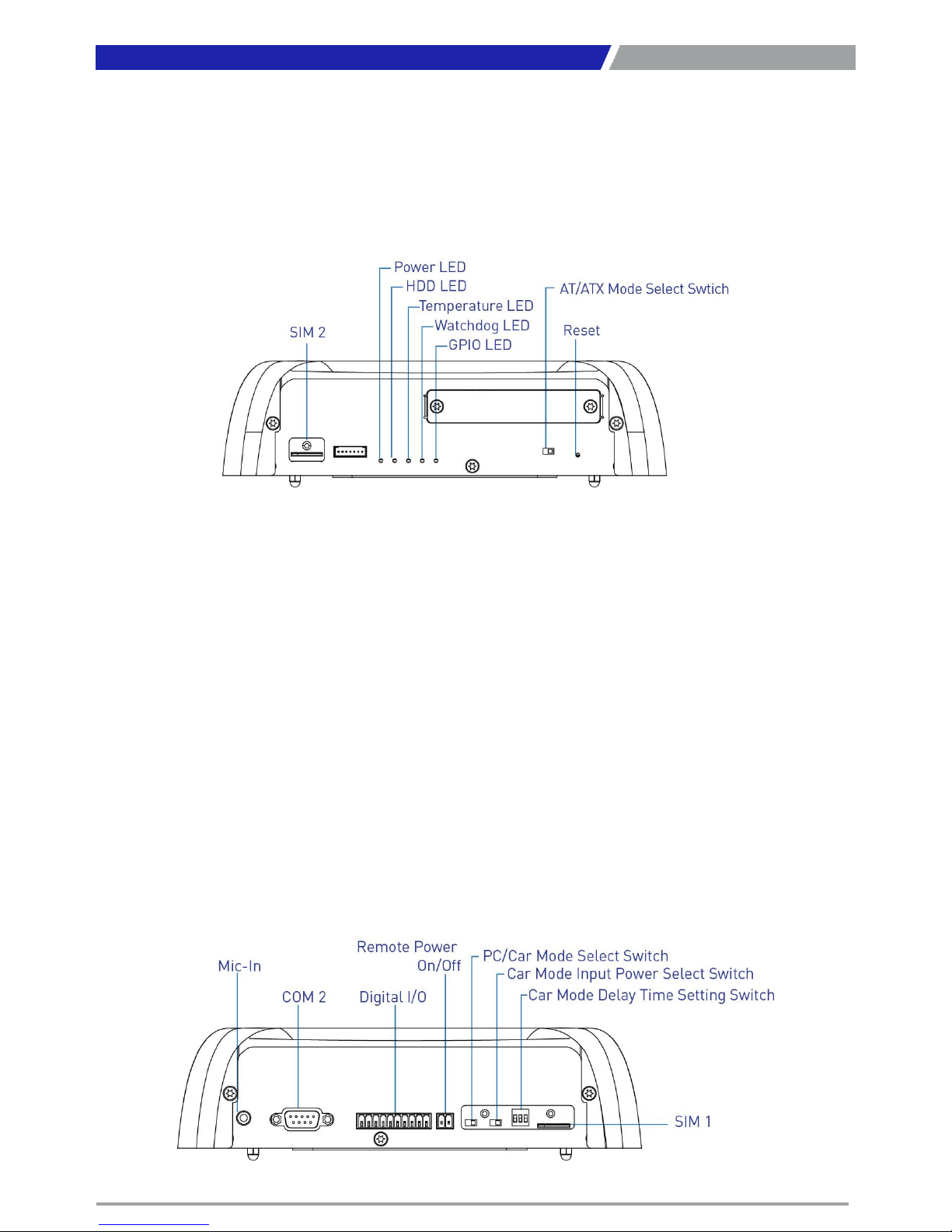

1.3 System I/O ……………………………..……………………..…………………………………..…… 11
1.3.1 PC300 …………………………………......................……………………………….…… 11
1.3.2 PC311E / PC311P …………….………………………………………………..…………... 13

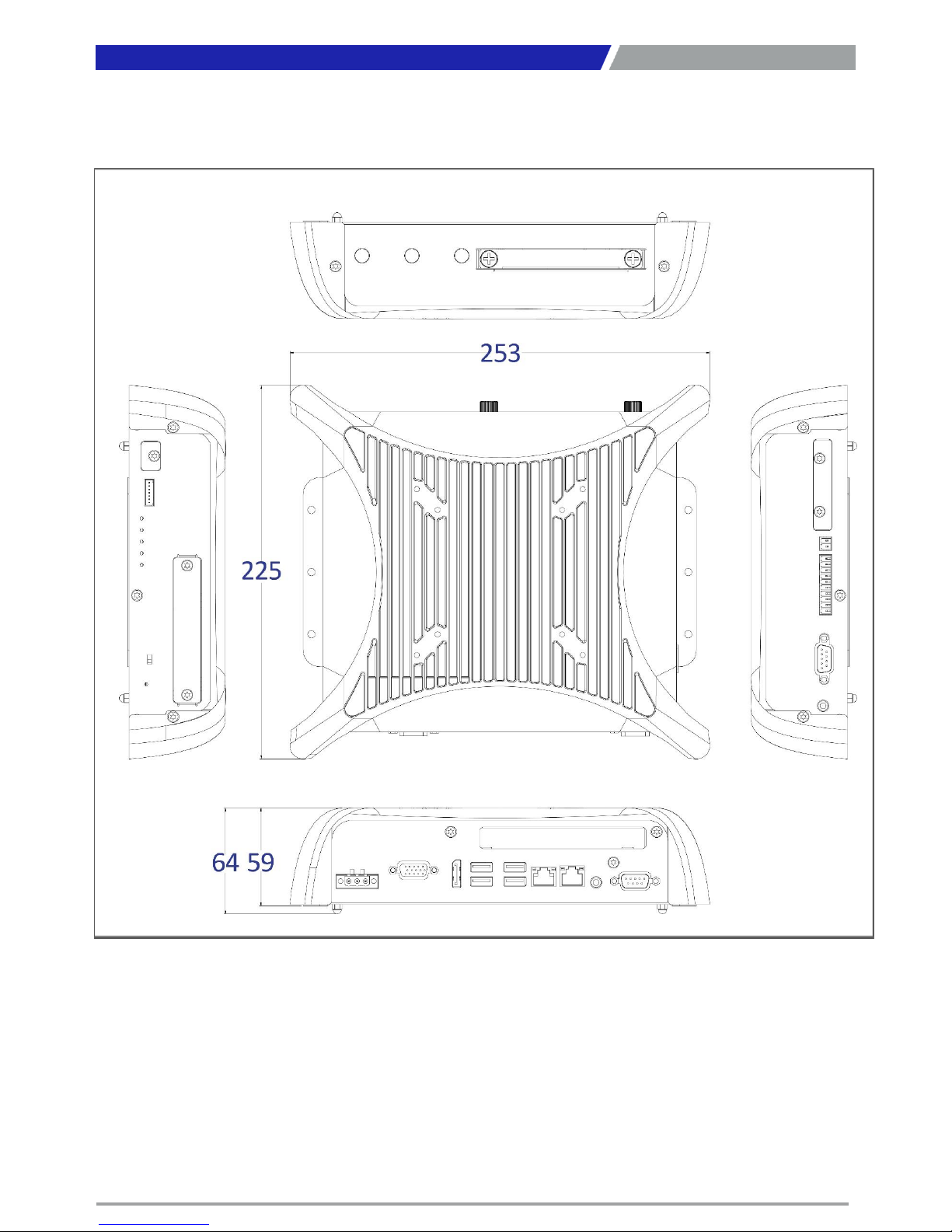

1.4 Mechanical Dimension …………………………..…………………………..………….………. 16
1.4.1 PC300 …………………………………......................…………………………………… 16
1.4.2 PC311E / PC311P …………….………………………………………………..…………... 17
Chapter 2 Switches and Connectors ……..…………………………………………..…. 18

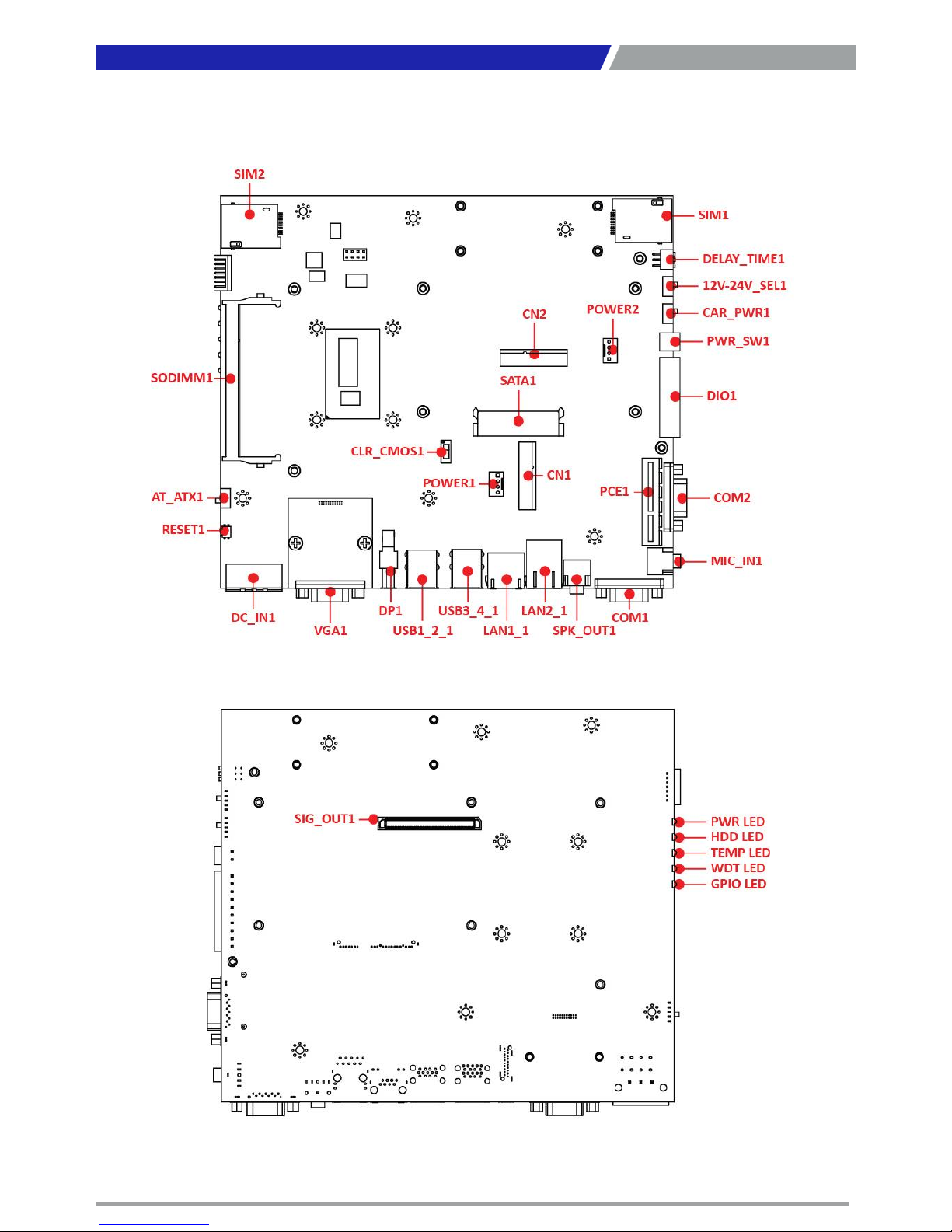

2.1 Switch and Connector Locations ……………………………………..…….…..……..….... 19
2.1.1 Top View ……………………………………………………………………....……………… 19
2.1.2 Bottom View ……………………………………………………………………....……….. 19
2.2 Connector / Switch Definition ……………………………….……….…….………............ 20
2.3 Switch Definitions ………….…………….............................................................. 21
2.4 Connector Definitions …………………………...................................................... 23
Chapter 3 System Setup ……………………..………………………………………..……… 32
3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and
unscrewing. ……….………………………………………………………………………………….... 33
3.2 Removing chassis top cover …………………………………………………..………………... 33
3.3 Installing SODIMM …………………………………………………………………………………...34
3.4 Installing mini PCIe card / mSATA ……………………………………….…………………... 35
3.5 Installing antenna ……………………………………………………………….…………………...36
3.6 Installing PCIe/PCI expansion card (Only for PC311E & PC311P) ………..…... 38
3.7 Assembly chassis top cover ………………………………………………..…………………...40
3.8 Installing HDD on removable SATA HDD bay …………………………….……………... 41
3.9 Installing SIM card ……………………………………………………………….…………………...43
3.10 Connecting PC module with VIO display module ……………………..……………... 45
3.11 Screw location for PC311 series top cover …………………………….………………... 46
2

PC300 / PC311E(P) l User’s Manual
Chapter 4 BIOS Setup ……………………..……………………………………..……………. 47
4.1 BIOS Introduction ………………………………………..…….…………………………..…….... 48
4.2 Main Setup ………………………………………..…….…………….…………………………….... 49
4.2.1 System Language …….……………………………………..……..…………..……….... 49
4.2.2 System Date …….……………………………………………..……..………….……….... 49
4.2.3 System Time ………..…………………………………………..……….………..………... 49
4.3 Advanced Setup ………………………………………………………..…………………..……….. 50
4.3.1 CPU Configuration……..…………………………………………………..…..…………. 50
4.3.2 Trusted Computing (Option) ……………..…….………..…..……………..……... 51
4.3.3 ACPI Settings ……………….………..…………………………….………………..……... 52
4.3.4 Super IO Configuration ……………….………..………………..……………..……... 52
4.3.5 Hardware Monitor ……………….………..………………………….……..…..……... 55
4.3.6 Serial Port Console Redirection ……………….………..……………..…..……... 56
4.3.7 SATA Configuration ……………….………..…………………..………..……..……... 56
4.3.8 Network Stack Configuration ……………….……..…..…………………..……... 57
4.3.9 CSM Configuration ……………….………..………………………..…………..……... 58
4.3.10 USB Configuration ……………….………..…………………….……………..……... 59
4.3.11 Intel(R) Ethernet Connection I218-LM-XX:XX:XX:XX:XX:XX ….……... 60
4.3.12 Intel(R) I210 Gigabit Network Connection- XX:XX:XX:XX:XX:XX …... 61
4.4 Chipset …………...……….………………….…..….…..…………..…………………………..….... 62
4.4.1 System Agent (SA) Configuration ………………….…………..………………….. 62
4.4.2 PCH-IO Configuration ………….…………………………………..…………………….. 64
4.5 Security …………...……….………………….…..….…..………………………..……..…………... 67
4.5.1 Administrator Password …….…………………………………..…………………….. 67
4.5.2 User Password …….……………………………….………………..…………………….. 67
4.6 Boot …………...……….….………………….…..…………………………..…………..……………...68
4.6.1 Setup Prompt Timeout ………………………..…………..……………………………..68
4.6.2 Bootup NumLock State ………………………………………………..………………… 68
4.6.3 Quiet Boot ………………………….……………………….…………………..…...………. 68
4.6.4 Fast Boot …………………………..…………………………………………………………... 68
4.6.5 Hard Driver BBS Priorities …………………………..……………………….………... 68
4.7 Save & Exit …………...……….….………………………………………..…………..……………... 69
4.7.1 Save Changes and Reset …………………..…………..…………………………….. 69
4.7.2 Discard Changes and Reset ……………………………………..………………… 69
4.7.3 Restore Defaults ………………………….…………….…………………..…...………. 69
4.7.4 Launch EFI Shell from filesystem device ………………………………………... 69
Appendix WDT & GPIO …………………………………………………………………………… 70
WDT Sample Code …….……………………….……………….……………..….…….…….…………... 71
GPIO Sample Code ………………………………………………………..…………………………………. 72
3

PC300 / PC311E(P) l User’s Manual
4
Revision
Disclaimer
All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T
Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading.
The information in this document is subject to change without notice and does not represent a
commitment on the part of C&T Solution Inc.
C&T Solution Inc. disclaims all warranties, express or implied, including, without limitation, those of
merchantability, fitness for a particular purpose with respect to contents of this User’s Manual. Users must
take full responsibility for the application of the product.
Copyright Notice
All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying, recording, or information storage and retrieval systems,
without the prior written permission of C&T Solutions Inc. Copyright © 2015 C&T Solutions Inc.
Trademarks Acknowledgment
Intel®, Celeron® and Pentium® are trademarks of Intel Corporation.
Windows® is registered trademark of Microsoft Corporation.
AMI is trademark of American Megatrend Inc.
IBM, XT, AT, PS/2 and Personal System/2 are trademarks of International Business Machines Corporation
All other products and trademarks mentioned in this manual are trademarks of their respective owners.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. Please recycle to minimize pollution
and ensure environment protection.
Prefaces
Revision
Description
Date
1.0
Manual Released
2017/09/12
1.1
GPIO Sample Code Revised
2018/02/09
Preface

PC300 / PC311E(P) l User’s Manual
5
Safety Precautions
Before installing and using the equipment, please read the following precautions:
Put this equipment on a reliable surface during installation. Dropping it or letting it fall could
cause damage.
The power outlet shall be installed near the equipment and shall be easily accessible.
Turn off the system power and disconnect the power cord from its source before making any
installation. Be sure both the system and the external devices are turned OFF. Sudden surge
of power could ruin sensitive components. Make sure the equipment is properly grounded.
When the power is connected, never open the equipment. The equipment should be opened
only by qualified service personnel.
Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
Disconnect this equipment from the power before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.
Avoid the dusty, humidity and temperature extremes.
Do not place heavy objects on the equipment.
If the equipment is not used for long time, disconnect it from the power to avoid being
damaged by transient over-voltage.
The storage temperature shall be above -40°C and below 80°C.
The computer is provided with a battery-powered real-time clock circuit. There is a danger of
explosion if incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer.
If one of the following situation arises, get the equipment checked be service personnel:
•The power cord or plug is damaged.
•Liquid has penetrated into the equipment.
•The equipment has been exposed to moisture.
•The equipment does not work well or it cannot work according the user’s manual.
•The equipment has been dropped and damaged.
•The equipment has obvious signs of breakage.
Preface

PC300 / PC311E(P) l User’s Manual
6
Technical Support and Assistance
1. Visit the C&T Solution Inc website at www.candtsolution.com where you can find the latest
information about the product.
2. Contact your distributor, our technical support team or sales representative for technical support if
you need additional assistance. Please have following information ready before you call:
Model name and serial number
Description of your peripheral attachments
Description of your software (operating system, version, application software, etc.)
A complete description of the problem
The exact wording of any error messages
Conventions Used in this Manual
Preface
This indication alerts operators to an operation that, if not strictly observed,
may result in severe injury.
WARNING
This indication alerts operators to an operation that, if not strictly observed,
may result in safety hazards to personnel or damage to equipment.
CAUTION
This indication provides additional information to complete a task easily.
NOTE

PC300 / PC311E(P) l User’s Manual
7
Package Contents
Before installation, please ensure all the items listed in the following table are included in the package.
Item
Description
Q’ty
1
PC300 Series PC Module
1
2
Utility DVD Driver
1
3
Screw Pack
1
Preface
Ordering Information
Model No. Product Description
PC300-5350U PC Module for Industrial Display System with Intel® i5-5350U Processor
PC300-5010U PC Module for Industrial Display System with Intel® i3-5010U Processor
PC300-3765U PC Module for Industrial Display System with Intel® Celeron® 3765U
Processor
PC311E-5350U PC Module for Industrial Display System with Intel® i5-5350U Processor,
1x PCIe x4 Expansion
PC311E-5010U PC Module for Industrial Display System with Intel® i3-5010U Processor,
1x PCIe x4 Expansion
PC311E-3765U PC Module for Industrial Display System with Intel® Celeron® 3765U
Processor, 1x PCIe x4 Expansion
PC311P-5350U PC Module for Industrial Display System with Intel® i5-5350U Processor,
1x PCI Expansion
PC311P-5010U PC Module for Industrial Display System with Intel® i3-5010U Processor,
1x PCI Expansion
PC311P-3765U PC Module for Industrial Display System with Intel® Celeron® 3765U
Processor, 1x PCI Expansion
Optional Accessories
Model No. Product Description
1
-E09A06002
Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
SFICBL022
Power Cord, 3
-pin US Type, 180cm
1
-TPCD00002
Power Cord, European Type, 180cm
1
-TPCD00001
Power Cord, 3
-pin UK Type, 180cm

Chapter 1
Product Introductions

PC300 / PC311E(P) l User’s Manual
9

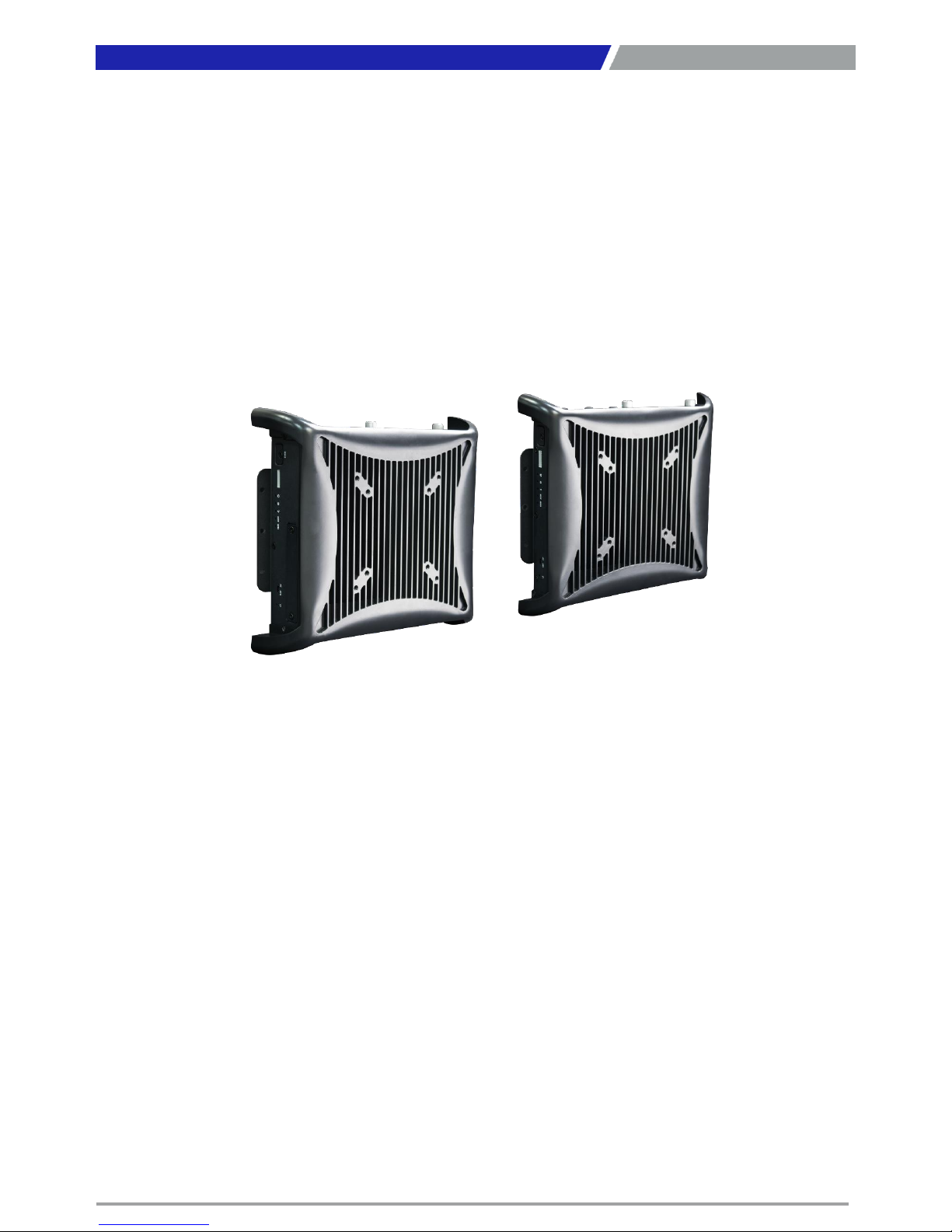

1.1 Overview
The PC300 series PC module is based on 5th Gen. Intel® Core™ i5-5350U (2.9GHz) / i3-5010U (2.1GHz)
or Celeron® 3765U (1.9GHz) Dual Core processor. It supports Multi-Mode Display Module (MDM)
technology which makes it more flexible in system maintaining and upgrading. It also offers modularize
expansion I/O, rich connectivity interfaces, wide range (9~48V) DC power input, and high reliability
even operating in temperature extremes (-40~+70 ° C).
Featuring with completely cable-less designed and high functional, PC300 series are ruggedized display
systems that can operate in harsh environments and easy to install and maintain. A build in over
voltage protection (OVP), over current protection (OCP), reserve voltage protection, and wide range DC
power input makes PC300 series are safety system for all industrial applications.
Chapter 1: Product Introductions
1.1.1 Key Features
Intel® Core™ Processor i5-5350U, up to 2.9GHz / i3-5010U, 2.1GHz or Celeron® 3765U, 1.9GHz
1x 204-pin DDR3L SODIMM. Max up to 8GB
1x 2.5” Removable SATA HDD bay support RAID 0,1, 5, 2x mSATA, 2x SIM socket
2x Full-size mini PCIe for communication or expansion modules
1x PCIe x4 (PC311E Only)
1x PCI (PC311P Only)
2x LAN
1x LVDS, 1x VGA, 1x DisplayPort
1x LVDS, 1x DVI-D, 1x DisplayPort (Optional)
2x External RS-232/422/485, 2x Internal RS-232/422/485
3x USB 3.0, 1x USB 2.0
4x Isolated Digital Input, 4x Isolated Digital Output
9 to 48VDC wide range power input
-40°C to 70°C extended operating temperature
PC300
PC311E / PC311P

PC300 / PC311E(P) l User’s Manual
10
1.2 Hardware Specification
Chapter 1: Product Introductions
Processor System
•Onboard Intel® Core ™ i5-5350U / Core™ i3-5010U /
Celeron ® 3765U Dual Core Processor, 2.9 / 2.1 / 1.9GHz
with AMI 64Mbit SPI BIOS
Memory
•1x 204-Pin DDR3L-1333 / 1600MHz SO-DIMM
(un-buffered and non-ECC), Max. up to 8GB
Display
Triple Display
•1x LVDS, 1x VGA, and 1x DisplayPort
Expansion
•1x PCIe X4 (PC311E Only)
•1x PCI (PC311P Only)
•2x Full-size Mini PCIe Socket for Wi-Fi / GSM / Expansion
Module
•1x Universal I/O Bracket (PC311E, PC311P Only)
Ethernet
•1x Intel® i210-AT GbE LAN Port, Support Wake-on-LAN
and PXE
•1x Intel® I218-LM GbE LAN Port, Support Wake-on-LAN
and PXE
Audio
•Codec: Realtek ALC888S
•1x Mic-in and 1x Speaker-out
Watchdog Timer
•Software Programmable Supports 1~255 sec. System
Reset
Storage
•1x Removable 2.5" SATA HDD Bay
•2x Internal mSATA Slot (Shared by 2x Mini-PCIe Socket)
•2x External SIM Card Socket
•Support RAID 0, 1, 5
I/O Ports
•3x USB 3.0 Port
•1x USB 2.0 Port
•4x Isolated DI and 4x Isolated DO Port
•2x External DB9 for COM1~2, Support RS232/422/485
with Auto Flow Control
•2x Internal COM3~4, Support RS232/422/485 with Auto
Flow Control
•3x Antenna Hole
•1x AT/ATX Switch
•1x Remote Power on/off Connector
Digital Input & Output
•4x Digital Input (Source Type)
- Input Voltage (Dry Contact):
Logic 0: Close to GND
Logic 1: Open
- Input Voltage:
Logic 0: 3V max.
Logic 1: 5V min. (DI to COM-)
•4x Digital Output
- Supply Voltage: 5~30VDC
- Sink Current: 200 mA Max. Per Channel
Power
•Support AT, ATX Mode
•1x 3-pin Terminal Block Connector with Power Input
9~48VDC
•Power Ignition Sensing
•1x Optional AC/DC 12V/5A, 60W Power Adapter
Environment
•Operating Temperature: Ambient with Air Flow:
-40°C to 70°C (with Industrial Grade Peripherals)
•Storage Temperature: -40°C to 80°C
•Relative humidity: 10%~95% (non-condensing)
Physical
•PC300 Series
- Dimension (WxDxH, mm): 246 x 220 x 42mm
- Weight: 1.68kg
•PC311E / PC311P Series
- Dimension (WxDxH, mm): 246 x 220 x 59mm
- Weight: 2.21kg
•Construction: Extruded Aluminum with Heavy Duty
Metal
•Mounting: VESA Mounting Holes 75 x 75mm, 100 x
100mm
Operating System
•Windows® 7
•WES7
•Windows® 8.1
•WES8.1
•Windows 10
•Linux kernel 3.X
Certifications
•CE
•FCC Class A

PC300 / PC311E(P) l User’s Manual
11
1.3 System I/O
1.3.1 PC300
Chapter 1: Product Introductions
Rear Panel
DC IN
Used to plug a DC power input with terminal
block
VGA
Used to connect an analog VGA monitor
DisplayPort
Used to connect a DisplayPort monitor
USB 3.0 port
Used to connect USB 3.0/2.0/1.1 device
USB 2.0 port
Used to connect USB 2.0/1.1 device
LAN port
Used to connect the system to a local area
network
Speaker-out
Used to connect a external speaker
COM port
COM1 support RS232/422/485 serial device
Front Panel
Removable HDD Bay
Used to inserts a 2.5” HDD device
Antenna hole
Used to connect an antenna for optional Mini-
PCIe WiFi module
Side (Right)
SIM card
Used to insert SIM card
ATX power on/off switch
Press to power-on or power-off the system
Reset switch
Press to reset the system

PC300 / PC311E(P) l User’s Manual
12
Chapter 1: Product Introductions
Side (Left)
Mic-in
Used to connect a microphone
COM port
COM2 support RS232/422/485 serial device
Digital I/O Terminal Block
The Digital I/O terminal block supports 4 digital
input and 4 digital output
Remote power on/off switch
Used to plug a power on/off switch with terminal
block
PC/CAR mode select switch
Used to select PC or CAR power mode
12V/24V mode select switch
Used to select Car power input voltage
DELAY TIME switch
Used to select Car power turn off delay-time
SIM card
Used to insert SIM card
Top
VESA Mounting Hole
These are mounting holes for VESA mount (75x75mm and 100x100mm)

PC300 / PC311E(P) l User’s Manual
13
Chapter 1: Product Introductions
1.3.2 PC311E / PC311P
Front Panel
Removable HDD Bay
Used to inserts a 2.5” HDD device
Antenna hole
Used to connect an antenna for optional Mini-
PCIe WiFi module
Rear Panel
DC IN
Used to plug a DC power input with terminal
block
VGA
Used to connect an analog VGA monitor
DisplayPort
Used to connect a DisplayPort monitor
USB 3.0 port
Used to connect USB 3.0/2.0/1.1 device
USB 2.0 port
Used to connect USB 2.0/1.1 device
LAN port
Used to connect the system to a local area
network
Speaker-out
Used to connect a external speaker
COM port
COM1 support RS232/422/485 serial device
Expansion Area
Used to plug PCI or PCIe Card

PC300 / PC311E(P) l User’s Manual
14
Chapter 1: Product Introductions
Side (Left)
Mic-in
Used to connect a microphone
COM port
COM2 support RS232/422/485 serial device
Digital I/O Terminal Block
The Digital I/O terminal block supports 4 digital
input and 4 digital output
Remote power on/off switch
Used to plug a power on/off switch with terminal
block
PC/CAR mode select switch
Used to select PC or CAR power mode
12V/24V mode select switch
Used to select Car power input voltage
DELAY TIME switch
Used to select Car power turn off delay-time
SIM card
Used to insert SIM card
Side (Right)
SIM card
Used to insert SIM card
ATX power on/off switch
Press to power-on or power-off the system
Reset switch
Press to reset the system
Universal I/O Bracket
Used to customized I/O output

PC300 / PC311E(P) l User’s Manual
15
Chapter 1: Product Introductions
Top
VESA Mounting Hole
These are mounting holes for VESA mount (75x75mm and 100x100mm)

PC300 / PC311E(P) l User’s Manual
16
1.4 Mechanical Dimensions
1.4.1 PC300
Unit: mm
Chapter 1: Product Introductions

PC300 / PC311E(P) l User’s Manual
17
1.4.2 PC311E / PC311P
Unit: mm
Chapter 1: Product Introductions

Chapter 2
Switches and Connectors

PC300 / PC311E(P) l User’s Manual
19
2.1 Switch and Connector Locations
2.1.1 Top View
Chapter 2: Switches and Connectors
2.1.2 Bottom View

PC300 / PC311E(P) l User’s Manual
20
2.2 Connector / Switch Definition
List of Connector / Switch
Chapter 2: Switches and Connectors
Connector Location Definition
AT_ATX
1
AT
/ ATX Power Mode Switch
CLR_CMOS
1
Clear
BIOS Switch
CAR_PWR
1
PC
/ CAR Power Mode Switch
12
-24V_SEL1
Car
Power input voltage Switch
DELAY_TIME
1
Car power turn off delay
time Switch
PWR_SW
1
Remote
Power Switch
RESET
1
Reset
Switch
USB
1_2_1
USB 3.0 Port
USB
3_4_1
USB 3.0 / USB 2.0 Port
SIM
1, SIM2
SIM
Card Socket
COM1_1
, COM2_1
RS232
/ RS422 / RS485 Connector
COM3_1
, COM4_1
RS232
/ RS422 / RS485 Connector
LAN
1_1, LAN2_1
LAN Port
DC_IN
1
3
-pin DC 9~48V Power Input Connector
VGA
1
VGA Connector
DP1
DisplayPort
Connector
SPK_OUT
1
Speaker
-out Jack
MIC_IN
1
Mic
-in Jack
DIO1
4DI
/ 4DO Connector
CN
1, CN2
Mini PCI
-Express / mSATA Socket
SATA
1
SATA
with Power Connector
SATA
2
SATA Connector
POWER1, POWER2, POWER3
Power Connector
PCIE1
PCI
-Express X4 Slot
PWR_LED
1
Power LED Status
HDD_LED
1
HDD Access LED Status
TEMP_LED
1
Temperature LED Status
WDT_LED
1
Watchdog LED Status
GPIO_LED
1
GPIO LED Status
