Candy CDIH 1L952 User manual

User Manual
Dishwasher
CDIH 1L952／CDIH 1L949
CDIH 2L1047
CDIH 1D952/CDIH 2D949
CDIH 2T1047

Thank you for purchasing a Candy product
Please read these instructions carefully before using this appliance. The
instructions contain important information which will help you get the best out of the
appliance and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe
and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house,
make sure you also pass on this manual so that the new owner can become
familiar with the appliance and safety warnings.
Safety and warnings ......................................................................................
Installation instructions ..................................................................................
Product Description .......................................................................................
Overview of programmes...............................................................................
Content
1
4
21
22
Water softening system................................................................................. 25
Using rinse aid............................................................................................... 27
Utensils.......................................................................................................... 28
Loading utensils............................................................................................. 29
Adding detergent............................................................................................
Before first Use..............................................................................................
32
33
Daily Use........................................................................................................
Care and cleaning..........................................................................................
Troubleshooting.............................................................................................
Technical Data...............................................................................................
35
37
40
44

1
Your dishwasher has been carefully designed to operate safely during normal
dishwashing procedures. Please keep the following instructions in mind when you
are using your dishwasher.
●Read all instructions before using the dishwasher.
●The information in this manual must be followed to minimise the risk of fire or
explosion or to prevent property damage, personal injury or loss of life.
●Use the dishwasher only for its intended function as described in this user guide.
●This appliance is intended to be used in household and similar applications such
as:
– staff kitchen areas in shops, offices and other working environments;
– farm houses;
– by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments.
Electrical shock hazard
Cut Hazard
When using your dishwasher, follow basic
precautions, including the following:
Safety and warnings
WARNING
WARNING
WARNING
Before installing the dishwasher, remove the house fuse or open the circuit breaker.
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of electric shock by providing a path of least resistance
for electric current. This appliance is equipped with a cord having an equipment-
earthing conductor and an earthing plug. The plug must be plugged into an
appropriate outlet that is installed and earthed in accordance with all local codes
and ordinances.
WARNING - Improper connection of the equipment-earthing conductor can result in
a risk of electric shock. Check with a qualified electrician or service representative
if you are in doubt as to whether the appliance is properly earthed.
Do not modify the power supply plug provided with the appliance - if it will not fit
the outlet, have a proper outlet installed by a qualified electrician. Do not use an
extension cord, adapter plug or multiple outlet box.
Failure to follow this advice may result in electrical shock or death.
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.

2
●Use only detergents or rinse aid recommended for use in a domestic dishwasher
and keep them out of reach of children.
●Check that the detergent dispenser is empty after the completion of each wash
program.
●When loading items to be washed, locate sharp items so that they are not likely
to damage the dishwasher and load sharp knives with the handle up to reduce the
risk of cut-type injuries.
●Do not touch the filter plate (the metal disc in the dishwasher base) during or
immediately after use, as it may be hot from the heater plate underneath.
●Do not tamper with the controls.
●Do not abuse, sit in, stand on the door or dish rack of the dishwasher.
●Do not lean on the adjustable racks or use them to support your body weight.
●To reduce the risk of injury, do not allow children to play in or on the dishwasher.
●Under certain conditions, hydrogen gas may be produced in a hot water heater
system that has not been used for two weeks or more. Hydrogen gas is explosive.
If the hot water system has not been used for such a period, before using the
dishwasher, turn on all hot water taps and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas. As the gas is flammable,
do not smoke or use an open flame during this time.
●Remove the door to the washing compartment when removing an old dishwasher
from service or discarding it.
●Some dishwasher detergents are strongly alkaline. They can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes and keep children
away from the dishwasher when the door is open. Check that the detergent
receptacle is empty after completion of the wash cycle.
●Certified residential dishwashers are not intended for licensed food
establishments.
Maintenance safety instructions
●Disconnect the appliance from the power supply before any cleaning or
maintenance.
●When disconnecting the appliance，pull the plug rather than the power supply
cord or junction of cord to avoid damage.
●Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in this user guide.
●Keep the floor around your appliance clean and dry to reduce the possibility of
slipping.
Safety and warnings

3
●Keep the area around/underneath your appliance free from the accumulation of
combustible materials, such as lint, paper, rags and chemicals.
Operational safety instructions
●Open the door very carefully if the dishwasher is in operation. There is a risk of
being sprayed with hot water. Do not open the door fully until the spray arms have
stopped rotating.
●The door should not be left in the open position as this could present a tripping
hazard.
●The water inside the dishwasher is not suitable for drinking.
●The dishwasher must be used with the filter plate, drain filter and spray arm(s) in
place. To identify what these parts are, see drawings in section ‘‘Care and Cleaning’
of this user guide.
●Do not operate this dishwasher if it is damaged, malfunctioning, partially
disassembled or has missing or broken parts, including a damaged power supply
cord or plug.
●Household appliances are not intended to be played with by children. Children of
less than 8 years old must be kept away from the appliance unless continuously
supervised. This appliance can be used by children aged from 8 years and
above, and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge, if they have been given supervision or instruction
concerning the use of the appliance in a safe way and they understand the hazards
involved.
●Cleaning and user maintenance shall not be done by children without supervision.
●Do not allow children to play inside, on or with this appliance or any discarded
appliance.
●If a dishwasher cleaner is used, we would strongly recommend a wash program
with detergent should be run immediately afterward, to prevent any damage to the
dishwasher.
●The dishwasher is designed for washing normal household utensils. Items that
are contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline
chemicals are not to be washed in the dishwasher.
●If the dishwasher is not being used for long periods of time, turn the electricity
and water supply to the dishwasher off.
safety and warnings

4
Installation instructions
Parts supplied
Prior to installation
Unpacking and handling
Connections and services
●Check packaging and dishwasher for signs of transport damage. If the
dishwasher is in any way damaged, do not install it. Contact the dealer the
dishwasher was purchased from.
●Disposal of packaging: some of the packaging is recyclable. Check the symbols
and labels and recycle if possible.
●Never lift the dishwasher from the door handle or the top panel. Doing so may
cause damage.
●Always be careful with the hoses and power cord at the back of the dishwasher.
Careful handling will prevent damage and malfunction from squashing, kinking or cuts.
●While installing the dishwasher, check the drain hose is not restricted or kinked.
●Check that the power cord is long enough to reach the outlet. If it isn’t, it must be
replaced by a haier authorised technician. Extension cords or multi-outlet power
boards should not be used to connect the dishwasher to the power supply.
●Check that the hoses are long enough to reach the services. If a hose needs
extending, ensure that the extension hose is new and of equal quality and diameter
●The dishwasher should not be connected to a water system where the
temperature exceeds 60oC.
●The dishwasher must not be connected to an undersink high-pressure “push-
through” type hot water system, as damage to the system will result.
Drain hose
support (1)
Installation and
User Instructions
Inlet hose (1)
Ø4 x 25mm
screws (4)
Brackets for
toekick (2)Hex key (1)
Ø3.5 x 44mm
screws (4)
Ø3.5 x 13mm
screws (10)
Moisture protection
tape (1) (to prevent
moisture damage to
cabinetry)
Installing the
fixings (2)
Plastic
spacers (2)
Salt funnel

5
Installation instructions
1Product dimensions
e
D
g
h
i
j
k
B
A
F
C
3.5-5kg

6
Installation instructions
MMSNOISNEMIDTCUDORP
A Overall height of product* 816 - 876
B Overall width of product (excl. side seals) 448
C Overall depth of product (excl. custom panel & handle) 559
D Depth of toekick 30 - 95
E Height from floor to bottom of custom panel 100 - 153
F Depth of open door
(measured from front of chassis) (excl. custom panel)
606
* depending on adjustment of levelling feet
CUSTOM PANEL DIMENSIONS (custom made) MM
G Height of custom door panel 660 - 713
444lenaproodmotsucfohtdiWH
I Depth of custom door panel 16 - 20
lenapkcikeotmotsucfohtdiWJ
140-
75 ***lenapkcikeotmotsucfothgieHK
* depending on cabinetry dimensions
2
N
L
Cabinetry dimensions
PLAN
444

7
Installation instructions
M
Minimum clearances from adjacent cabinetry
min. 13 mm
clearance
from a corner
cupboard
min. 1 mm
clearance
to adjacent
cupboard door
PROFILE
MMSNOISNEMIDYRTENIBAC
L452ytivacfohtdiwedisnI
M818 - 878*ytivacfothgiehedisnI
N775.nimytivacfohtpededisnI
* depending on adjustment of levelling feet

3
8
Installation instructions
Cavity preparation
IMPORTANT!
The power outlet must be located
in a cabinet adjacent to the
dishwasher cavity.
Services can be located either
side of the dishwasher.
Ensure that any services hole has
a minimum diameter of 50mm.
Positioning and stabilising the dishwasher
Do not lift the dishwasher from the door handle.
As you push product in, pull through hoses and cord, ensuring they don’t get kinked or twisted.
Plastic spacers can now be inserted at the side of the dishwasher next to the hinge to improve
stabilitysee step 7 for details on fitting spacers
After sliding the dishwasher into position, adjust back foot with a 6mm Allen key.
The front feet can be adjusted manually also.
We recommend that you adjust the feet so that the dishwasher sits securely under the
bench top so that it doesn’t tip.
Dia. 50mm

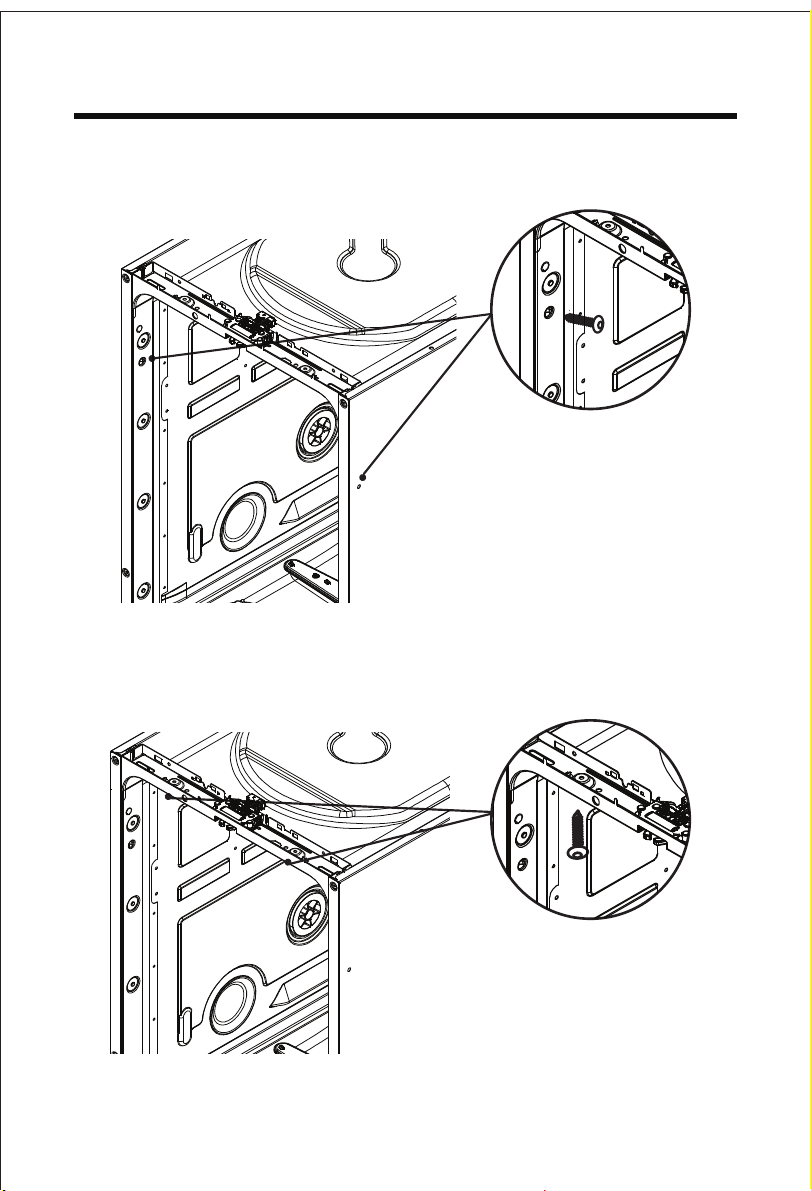

Apply moisture protection
tape to the underside
of the benchtop.
IMPORTANT!
To prevent possible steam damage to the cabinetry, ensure that any bare wood surrounding
the dishwasher is sealed with an oil-based paint or moisture-proof polyurethane.
1
3
4
2
Back foot of the
dishwasher can be
adjusted by using
a 6mm Allen key
(not supplied)
Front feet of
dishwasher can
be adjusted as
shown

4
9
Installation instructions
Front panel material specifications
The front of the dishwasher can be fitted with a front panel with the following specifications:
Adequately sealed to withstand moisture (50°C @ 80% RH). Because of it being a hot and wet
environment generally, the back and sides of the panel should be completely sealed with a
waterproof vapor barrier (ie polyurethane) to prevent damage to the panel.
Custom door panel preparation

5
10

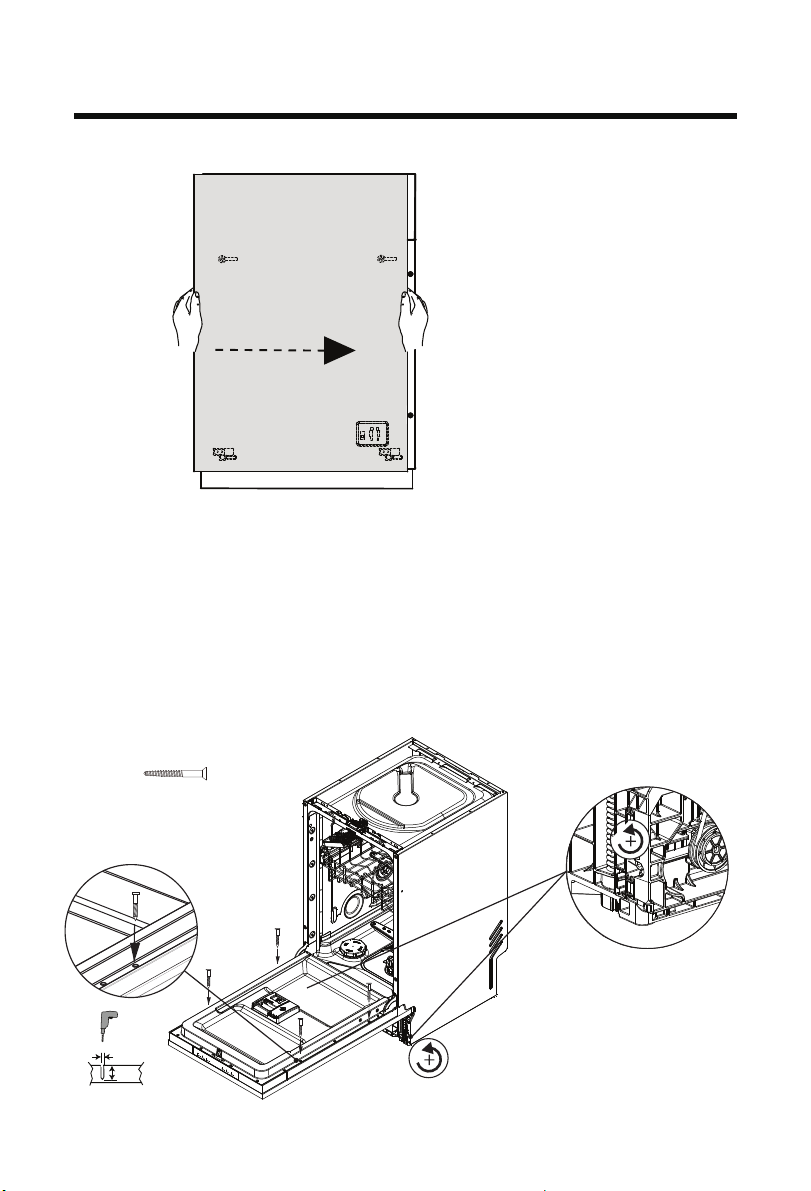

Attaching custom door panel
Installation instructions
Insert Ø3.5 x 13mm
screws through pilot
holes and attach the
small slider bracket
to panel.
Close the door of the
dishwasher, then hang
the custom panel onto
the front of the door.
2 mm
1
2

11
Installation instructions
Door balancing
IMPORTANT!
5
4
The door balance can be
adjusted via two screws
accessed through two
holes at the front.Adjust
both sides at the same
time, alternating between
the sides so that even
balance is achieved.
Adjust these using the
SUPPLIED HEX KEY
ONLY until the door just
remains open under its
own weight.
Open the door and remove
screws before replacing
them with Ø3.5 x 44mm
screws to fix panel into
place.
3
Adjust the placement of
the door to the correct
position.
12 mm
2 mm
[08] X4
(3.5x44
m m)

12
Installation instructions
Slide toe kick firmly into
the spaces on either side
of the chasis to attach.
Fix brackets to panel using Ø3.5 x 13mm
screws. Insert toekick into product and
mark the desired alignment depth on
the bracket. Remove panel. Using a
screwdriver, bend the marked tabs out
on both brackets to prevent toekick from
receding into product further.
153
65
30
100
A
toekick depth range
4
Mark out the pilot hole locations for each
bracket. To establish the height in which
the bracket will be fixed, measure the
distance from the floor to the lowest hole
of the bracket. Remove bracket from the
product and plot the location of the other
holes relative to this measurement. Note
door overhang and swing range.
1
2
Toe kick installation
A
180.9 Centre
3
6
Separate panel

13
Installation instructions
Fit continuous panel to
surrounding cabinetry
Align the toekick to desired position and
mark out the point in which the toekick
meets the base of the door panel. Cut
back excess.
153
65
30
100
A
toekick depth range
3
Note door overhang and swing range
relative to height and depth of toekick
panel. As the panel is continuous, cutting
back panel is likely to be necessary to
ensure seamless integration.
1
Continuous panel
IMPORTANT!
Toe kick can protrude no more than
90mm out from the dishwasher to
ensure that the visibility of the floor
light is not obstructed.
2

14
Installation instructions
Securing product
IMPORTANT!
Ensure top of door is installed flush
with surrounding cabnetry
As you push product
in, pull through hoses
and cord, ensuring
they don’t get kinked
or twisted.
Plastic spacers can be
cut to size then taped
to the sides of the
dishwasher to improve
overall stability.
It is recommended that
the spacers are placed
on both sides near
the hinges in identical
positions.
cut path
example
Centre product
7

A
B
Secure to the cabinetry on the sides
Secure product to cabinetry
through on both sides of
the chasis using Ø4 x 25mm
screws.
15
Installation instructions
Optionally secure to the cabinetry above
Secure product to the bench
through top of the chasis
using Ø4 x 25mm screws.

16
Installation instructions
1
2
Plumbing and drainage options. Determine which is
more suitable
If space is limited
for fixing, push
hose through drain
hose support
to required height
min. radius
200 mm
min. 750 mm
step 9

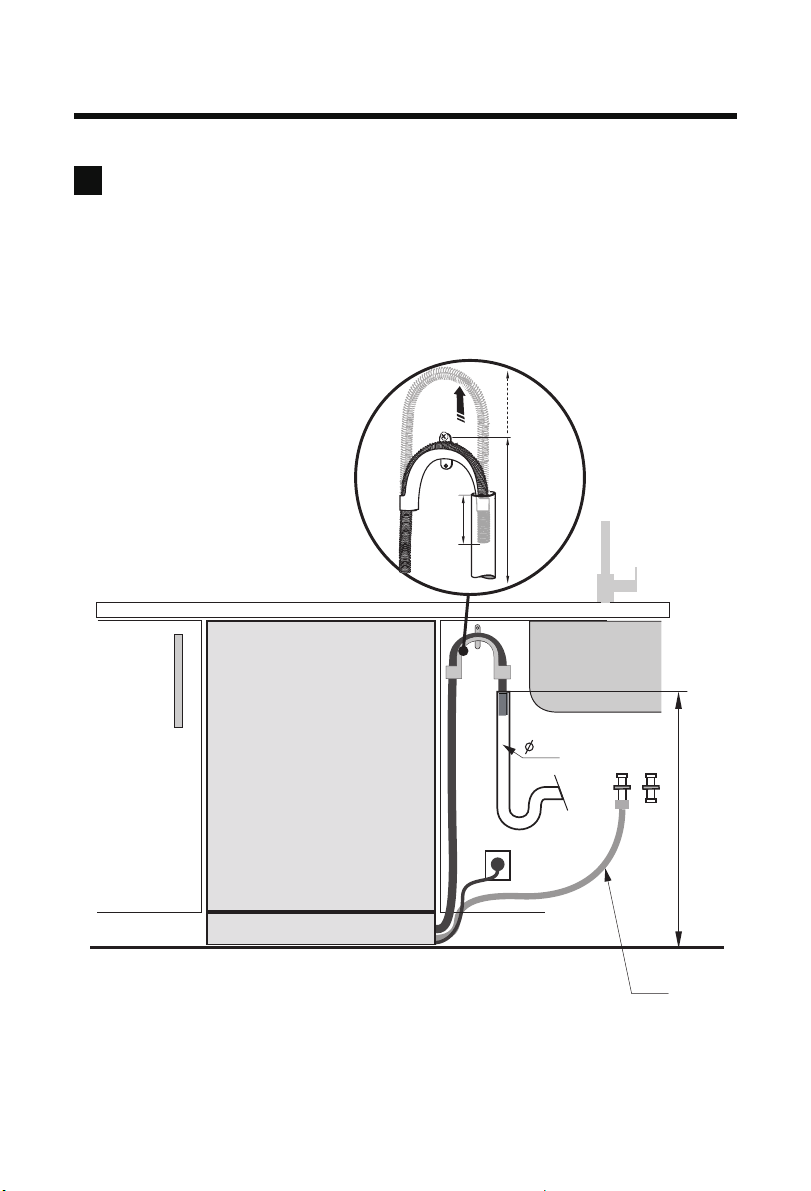

Dishwasher and Ø 38 mm Standpipe
750-882.5 mm
min.
120mm
38mm
8

17
Installation instructions
1
2
3
If space is limited
for fixing, push
hose through drain
hose support
to required height

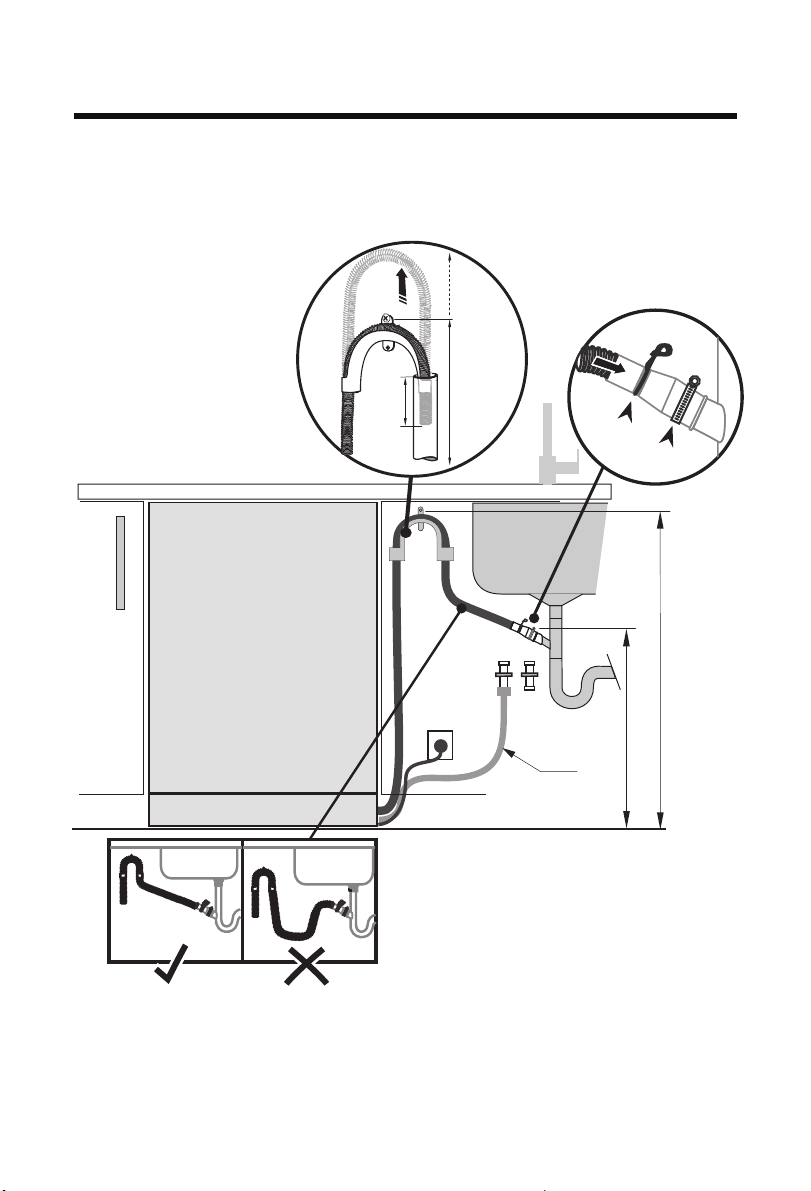

Dishwasher using drain hose joiner
onto sink trap/waste tee
min. 500 mm
min. radius
200 mm
step 9
Installer to provide
drain hose joiner to suit
min. 15mm waste tee
Ensure drain hose is routed
straight to joiner. Remove excess
drain hose material if necessary.
Do not shorten the inlet hose.
IMPORTANT!
Do not connect the drain hoses
to a Waste Disposal Unit, as this
type of connection may lead to a
blockage in the drain hoses.
750-882.5 mm
750 - 882.5 mm

18

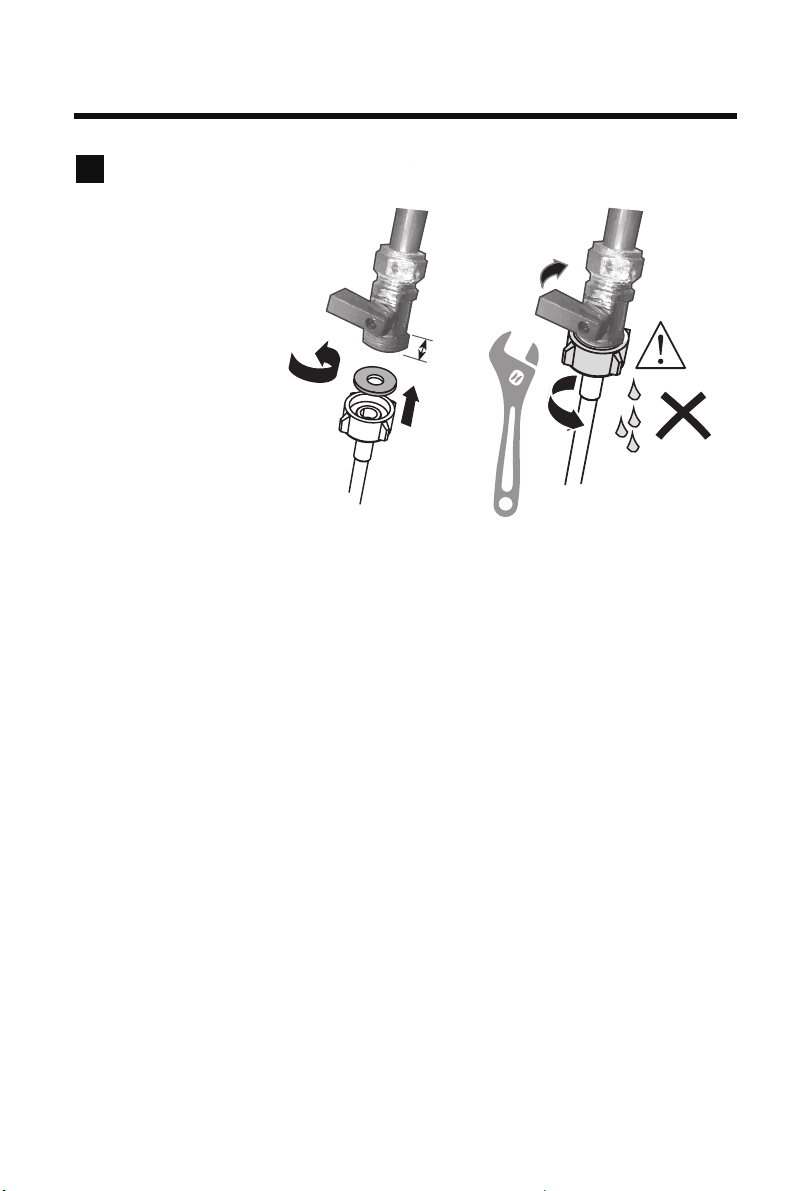

Ensure the supplied rubber
washer is fitted inside the
coupling. Tighten coupling
with spanner.
180o
No leaks!
12
Plumbing -- Water inlet connection
IMPORTANT!
●
●
●
●
●
●
●
●
●
●
●
The appliance should be connected to the water main using the new water
inlet hose supplied.Old hoses should not be used.
Do not shorten the inlet hose.
1.Take note of water connection requirements.
The dishwasher has a single valve water connection.
We recommend a cold water connection for best performance and energy efficiency.
The incoming water temperature should not exceed 25oC.
2.Take note of the permitted water pressure extremes.
Lowest: 0.3 bar = 3 N/cm2 = 30kPa
Where pressure is below 1 bar, contact a qualified plumber.
Highest: 10 bar = 100 N/cm2 = 1MPa
Where pressure is above 10 bar, a pressure reduction valve must be installed.
Contact a qualified plumber.
3.Connect the water inlet hose to an accessible water tap with a 3/4” BSP connector.
Ensure that there is no kink in the inlet hose that could restrict the flow of water. A
90obend requires a minimum height of 200mm for a kink-free curve.
Ensure incoming water is clear. If the water pipes have not been used for a long
period of time, let the water run to make sure it is clear with no impurities. Not
doing so may result in the water inlet hose getting blocked and damaging the appliance.
If required, use a filter insert to filter out deposits from the piping. The filter insert is
available from your Authorised Service Centre or Customer Care.
4.Tighten the hose coupling a further half turn after seal contact.
5.Check that the connection does not leak.
min.
10mm
3/4” BSP connector
Connect inlet hose to cold water
Installation instructions
9
