Candy CDPH 2L952W-08 User manual

User Manual
●
Dishwasher
CDPH 2L952W-08
●
CDPH 2L952X-08
●

Thank you for purchasing a Candy product
Please read these instructions carefully before using this appliance. The
instructions contain important information which will help you get the best out of the
appliance and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe
and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house,
make sure you also pass on this manual so that the new owner can become
familiar with the appliance and safety warnings.
Safety and warnings ..............................
●
........................................................
Installation instructions ..................................................................................
Product Description .......................................................................................
Overview of programmes.........................
●
......................................................
Content
1
4
14
15
Water softening system................................................................................. 18
Using rinse aid
●
............................................................................................... 20
Utensils...................................................
●
....................................................... 21
Loading utensils............................................................................................. 22
How to make savings..................................................................................... 25
Adding detergent............................................................................................
Before first Use..............................................................................................
26
27
Daily Use........................................................................................................
Care and cleaning..........................................................................................
Troubleshooting.............................................................................................
Technical Data...........................................
●
....................................................
29
31
34
38

1
Your dishwasher has been carefully designed to operate safely during normal
dishwashing procedures. Please keep the following instructions in mind when you
are using your dishwasher.
Read all instructions before using the dis
●
hwasher.
The information in this manual must be followed to minimise the risk of fire or
explosion or to prevent property damage, personal injury or loss of life.
Use the dishwasher only for its intended function as described in this user guide.
This appliance is intended to be used in household and similar applications such
as:
– staff kitchen areas in shops, offices and other working environments;
– farm houses;
– by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments.
Electrical shock hazard
Cut Hazard
When using your dishwasher, follow basic
precautions, including the following:
Safety and warnings
WARNING
WARNING
WARNING
Before installing the dishwasher, remove the house fuse or open the circuit breaker.
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of electric shock by providing a path of least resistance
for electric current. This appliance is equipped with a cord having an equipment-
earthing conductor and an earthing plug. The plug must be plugged into an
appropriate outlet that is installed and earthed in accordance with all local codes
and ordinances.
WARNING - Improper connection of the equipment-earthing conductor can result in
a risk of electric shock. Check with a qualified electrician or service representative
if you are in doubt as to whether the appliance is properly earthed.
Do not modify the power supply plug provided with the appliance - if it will not fit
the outlet, have a proper outlet installed by a qualified electrician. Do not use an
extension cord, adapter plug or multiple outlet box.
Failure to follow this advice may result in electrical shock or death.
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.

2
Use only detergents or rinse aid recommended for use in a domestic dishwasher
and keep them out of reach of children.
Check that the detergent dispenser is empty after the completion of each wash
program.
When loading items to be washed, locate sharp items so that they are not likely
to damage the dishwasher and load sharp knives with the handle up to reduce the
risk of cut-type injuries.
Do not touch the filter plate (the metal disc in the dishwasher base) during or
immediately after use, as it may be hot from the heater plate underneath.
Do not tamper with the controls.
Do not abuse, sit in, stand on the door or dish rack of the dishwasher.
●
Do not lean on the adjustable racks or use them to support your body weight.
To reduce the risk of injury, do not allow children to play in or on the dishwasher.
Under certain conditions, hydrogen gas may be produced in a hot water heater
system that has not been used for two weeks or more. Hydrogen gas is explosive.
If the hot water system has not been used for such a period, before using the
dishwasher, turn on all hot water taps and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas. As the gas is flammable,
do not smoke or use an open flame during this time.
Remove the door to the washing compartment when removing an old dishwasher
from service or discarding it.
●
Some dishwasher detergents are strongly alkaline. They can be extremely
dangerous if s
●
wallowed. Avoid contact with the skin and eyes and keep children
away from the dishwasher when the door is open. Check that the detergent
receptacle is empty after completion of the wash cycle.
Certified r
●
esidential dishwashers are not intended for licensed food
establishments.
Maintenance safety instructions
Disconnect the appliance from the power supply before any cleaning or
maintenance.
When disconnecting the appliance, pull the plug rather than the power supply
cord or junction of cord to avoid damage.
Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in this user guide.
Keep the floor around your appliance clean and dry to reduce the possibility of
slipping.
Safety and warnings

3
Keep the area around/underneath your appliance free from the accumulation of
combustible materials, such as lint, paper, rags and chemicals.
Operational safety instructions
Open the door very carefully if the dishwasher is in operation. There is a risk of
being sprayed with hot water. Do not open the door fully until the spray arms have
stopped rotating.
The door should not be left in the open position as this could present a tripping
hazard.
The water inside the dishwasher is not suitable for drinking.
The dishwasher must be used with the
●
filter plate, drain filter and spray arm(s) in
place. To identify what these parts are, see drawings in section ‘‘Care and Cleaning’
of this user guide.
Do not operate this dishwasher if it is damaged, malfunctioning, partially
disassembled or has missing or broken parts, including a damaged power supply
cord or plug.
Household appliances are not intended to be played with by children. Children of
less than 8 years old must be kept away from the appliance unless continuously
supervised. This appliance can be used by children aged from 8 years and
above, and persons with reduced physical, sensory or mental capabilities or lack
of experience a
●
nd knowledge, if they have been given supervision or instruction
concerning the use of the appliance in a safe way and they understand the hazards
involved.
Cleaning and
●
user maintenance shall not be done by children without supervision.
Do not allow children to play inside, on or with this appliance or any discarded
appliance.
If a dishwasher cleaner is used, we wo
●
uld strongly recommend a wash program
with detergent should be run immediately afterward, to prevent any damage to the
dishwasher.
The dishwasher is designed for washing normal household utensils. Items that
are contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline
chemicals are not to be washed in the dishwasher.
If the dishwasher is not being used for long periods of time, turn the electricity
and water supply to the dishwasher off.
Safety and warnings

4
Installation instructions

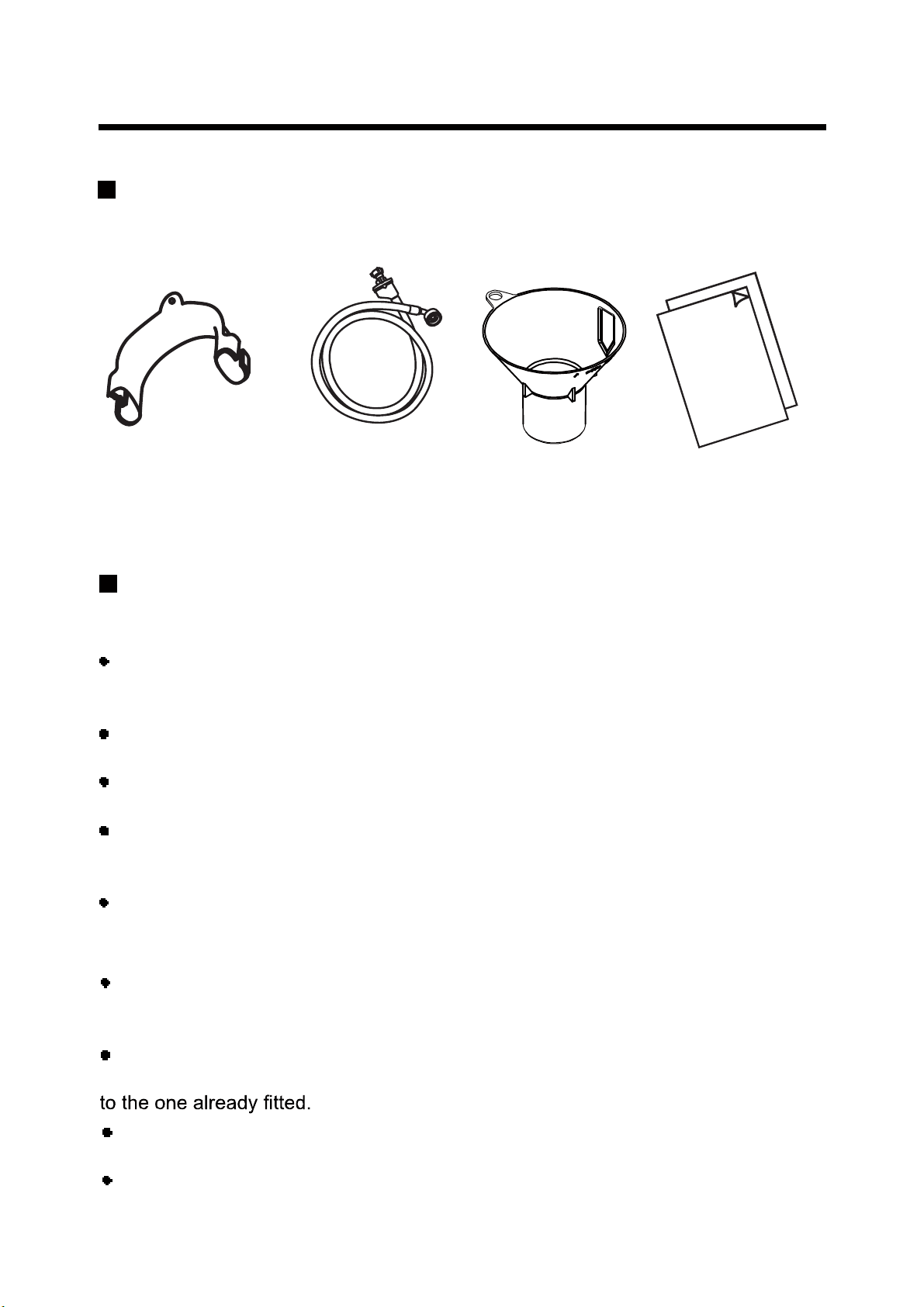

Parts supplied
Prior to installation
Unpacking and handling
●
Connections and services
●
Check packaging and dishwasher for signs of transport damage. If the
dishwasher is in any way damaged, do not install it. Contact the dealer the
dishwasher was purchased from.
Disposal of packaging: some of the packaging is recyclable. Check the symbols
and labels and recycle if possible.
Never lift the dishwasher from the door handle or the top panel. Doing so may
cause damage.
Always be careful with the hoses and power cord at the back of the dishwasher.
Careful handling will prevent damage and malfunction from squashing, kinking or
cuts.
While installing the dishwasher, check the drain hose is not restricted or kinked.
Check that the power cord is long enough to reach the outlet. If it isn’t, it must be
replaced by a haier authorised technician. Extension cords or multi-outlet power
boards should not be used to connect the
●
dishwasher to the power supply.
Check that the hoses are long enough to reach the services. If a hose needs
extending, ensure
●
that the extension hose is new and of equal quality and diameter
The dishwasher should not be connected to a water system where the
temperature exceeds 60
●
oC.
The dishwasher must not be connected to an undersink high-pressure “push-
through” type hot water system, as damage to the system will result.
Drain hose
support (1)
Installation and
User Instructions
Inlet hose (1) Salt funnel(1)

5
Installation instructions
1Product dimensions
F
●
G
●
E
C
A
C
D
●
B

6
MM SNOISNEMID TCUDORP
AOverall height of product
with top panel in place
with top panel removed*
846 - 866**
816 - 836**
B448tcudorp fo htdiw llarevO
C605tcudorp fo htped llarevO
DDepth of open door (measured from front of kickstrip) 595
MMSNOISNEMID YRTENIBAC
EInside height of cavity
with top panel in place
with top panel removed*
850 - 870**
825 - 845**
F054ytivac fo htdiw edisni muminiM
G506ytivac fo htped edisni muminiM
* The top panel may be removed to suit und
●
erbench cavity height. See instructions opposite.
**Depending on feet height adjustment.
Installation instructions

7
S
●
lide backward (2)
20-30mm, then
lift off (3)
Unscrew the top
panel at the rear
either side

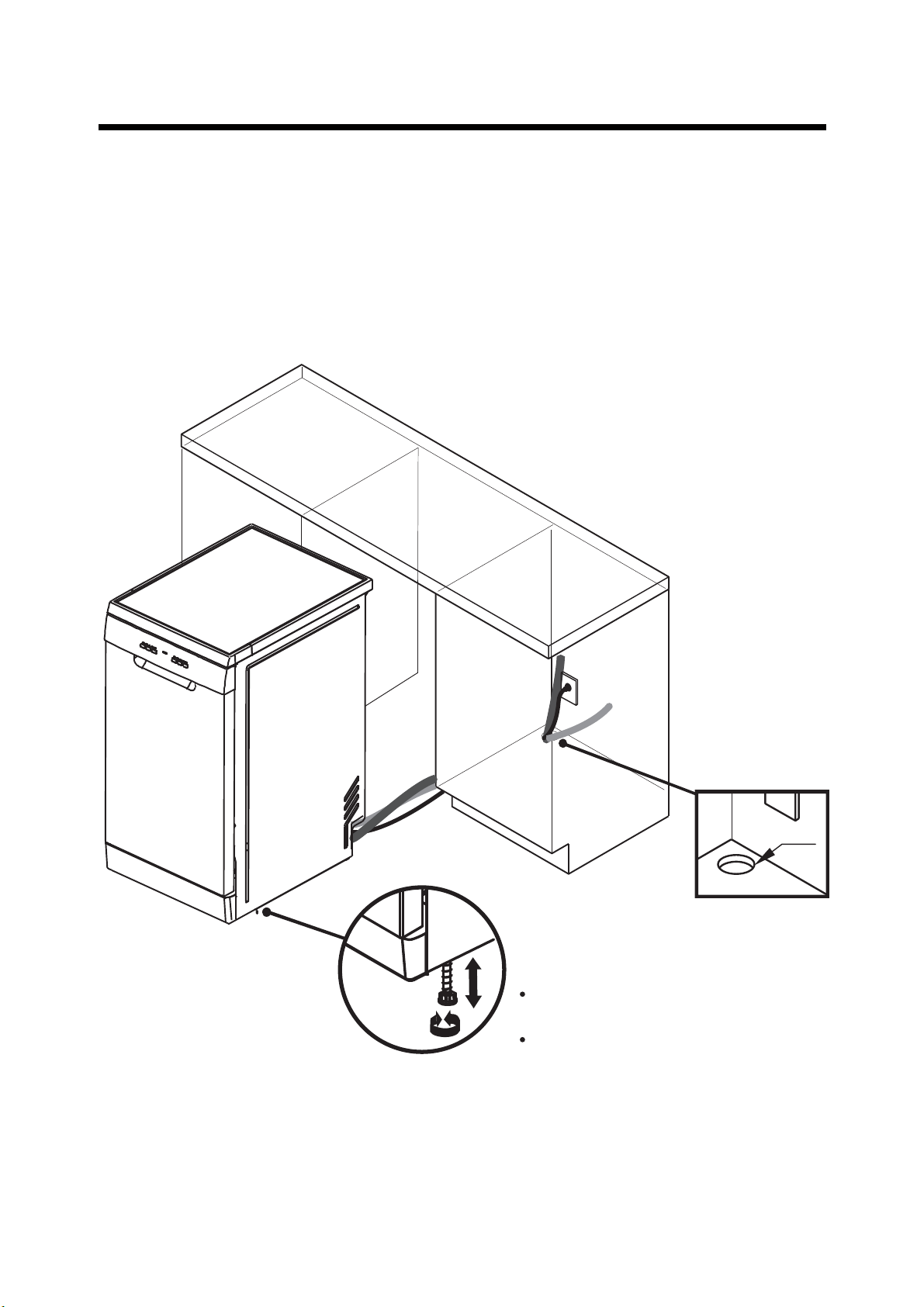

Preparing the product and cabinetry
The top panel may be removed to suit underbench cavity height. See the illustrations
below.


Cavity preparation
2
Installation instructions

8
I
●
MPORTANT!
Services can be located either
●
side of the dishwasher.
Ensure that any services hole
has a minimum diameter of 50mm.
Dia. 50mm
IMPORTANT!


To prevent possible steam damage to the cabinetry, ensure that any bare wood
surrounding the dishwasher is sealed with an oil-based paint or moisture-proof
polyurethane.
The power outlet must be
located in a cabinet
adjacent to the dishwasher
cavity.
Installation instructions

3
9



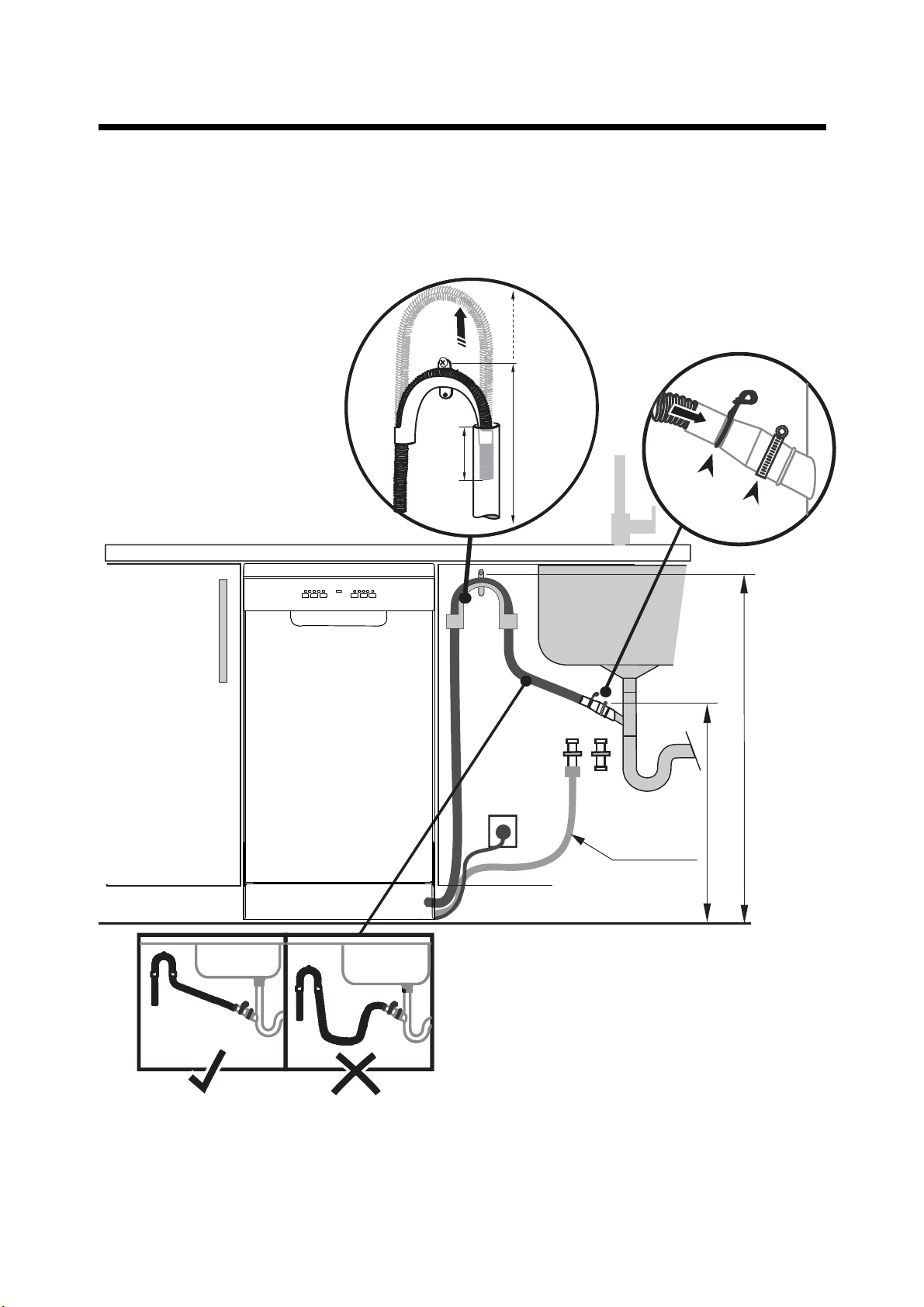

Plumbing and drainage options. Determine which is
more suitable
If space is limited
for fixing, push
●
hose through drain
hose support
to required height
min. radius
●
200 mm
step 4
Dishwasher and Ø 38 mm Standpipe
38mm
Installation instructions

10



If space is limited
for fixing, push
hose through drain
hose support
to requi
●
red height
Dishwasher using drain hose joiner
onto sink trap/waste tee
min. 500 mm
●
min. radius
200 mm
step 4
Installer to provide
drain hose joiner to suit
min. 15mm waste tee
Ensure drain
●
hose is routed
straight to joiner. Remove excess 
drain hose material if necessary.
Do not shorten the inlet hose.
IMPORTANT!
Do not connect the drain hoses
to a Waste Disposal Unit, as this
type of connection may lead to a
blockage in the drain hoses.
750-882.5 mm
750 - 882.5 mm
Installation instructions

4
11

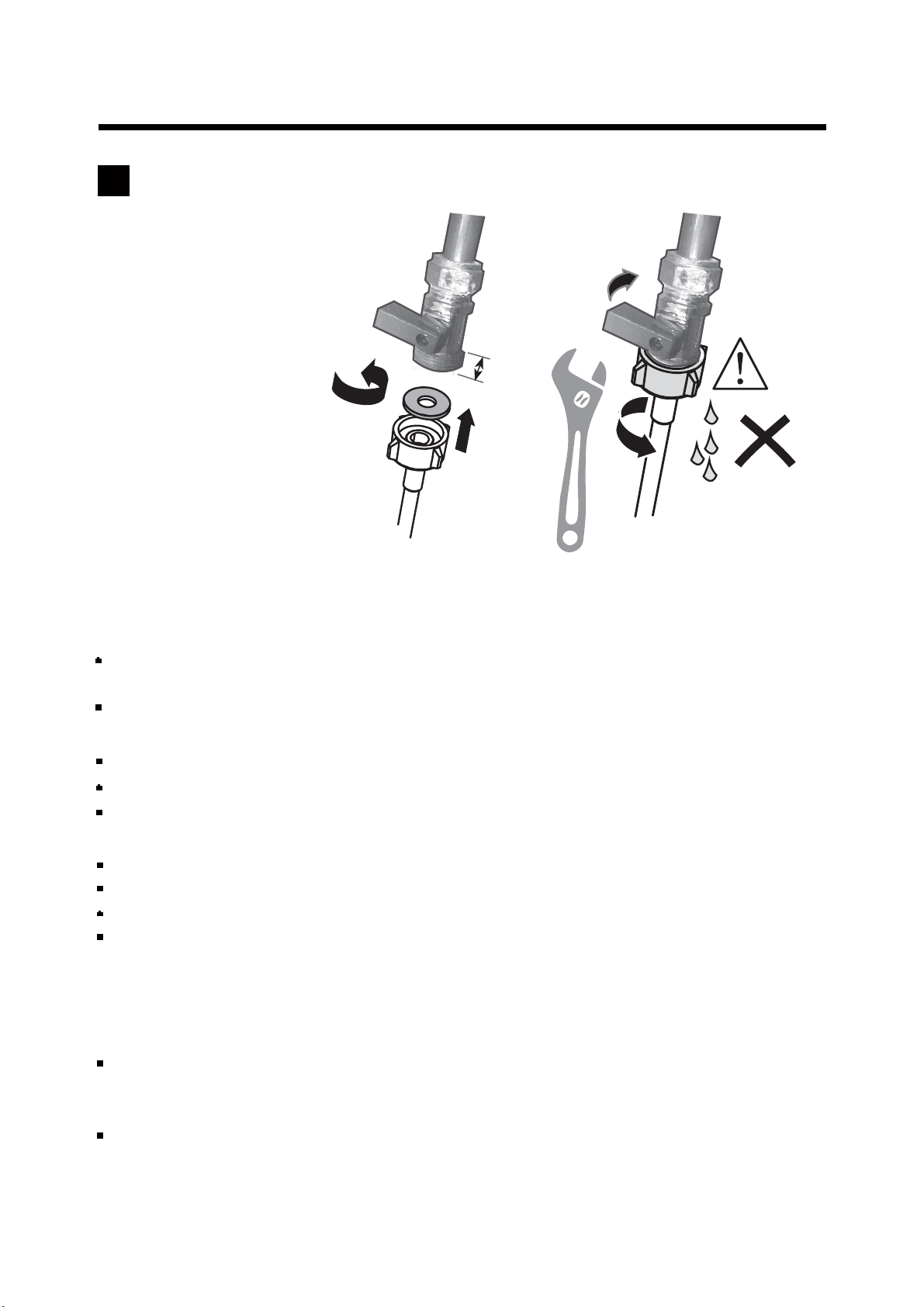

Ensure the supplied rubber
●
washer is fitted inside the
coupling. Tighten coupling
●
with spanner.
180
No leaks!

Plumbing -- Water inlet connection
IMPORTANT!
The appliance should be connected to the water main using the new water
inlet hose supplied.Old hoses should not be used.
●
Do not shorten the inlet hose.
●
1.Take note of water connection requirements.
The dishwasher has a single valve water connection.
We recommend a cold water connection for best performance and energy efficiency.
The incoming water temperature should not exceed 25
2.Take note of the permitted water pressure extremes.
Lowest: 0.3 bar = 3 N/cm2 = 30kPa
●
Where pressure is below 1 bar, contact a qualified plumber.
Highest: 10 bar = 100 N/cm2 = 1MPa
Where pressure is above 10 bar, a pressure reduction valve must be installed.
Contact a qualified plumber.
3.Connect the water inlet hose to an accessible water tap with a 3/4 BSP connector.
Ensure that there is no kink in the inlet hose that could restrict the flow of water. A
90o bend requires a minimum height of 200mm for a kink-free curve.
Ensure incoming water is clear. If the water pipes have not been used for a long
period of time, let the water run to make sure it is clear with no impurities. Not
doing so may result in the water inlet hose getting blocked and damaging the appliance.
If required, use a filter insert to filter out deposits from the piping. The filter insert is
available from your Authorised Service Centre or Customer Care.

4.Tighten the hose coupling a further half turn after seal contact.
5.Check that the connection does not leak.
min.
10mm
3/4 BSP connector
Connect inlet hose to cold water
Installation instructions

5
12
Plug product in
Electrical connection
●
The dishwasher must not be connected to the electrical supply while installation is
●
being carried out. Ensure all domestic wiring is properly earthed.
Check the rating label (located on the left-hand side of the dishwashers stainless
steel inner door) and ensure that the voltage and frequency values for the current
●
in the house correspond to those on the rating label.
Insert the plug into a properly earthed power outlet that has a disconnection switch.
IMPORTANT!
●
The earthing of the appliance is a safety requirement mandated by law.
If the power cord is not long enough to reach the outlet or the outlet to which the
appliance must be connected is not appropriate for the plug, the entire dishwasher
power cord must be replaced. This should only be done by a Haier authorised technician.
Do not modify or cut the plug. Do not use an adaptor, extension cord, or multi-outlet
power board to connect the dishwasher to the power supply, as these could cause
overheating and create a fire hazard.
The outlet into which the dishwasher is plugged must remain easily accessible(e.g.
in an adjacent cabinet) even when the appliance is installed. This is to ensure that the
dishwasher can be disconnected from the power supply for safe cleaning and
●
maintenance.
Installation instructions

13
Final checklist
To be completed by the installer
●
Check all parts are installed.
●
Ensure that all panels and parts thereof are secure and final electrical tests have
been conducted in accordance with local electrical regulations.
Check that the dishwasher is level. If necessary, adjust the levelling feet slightly.
To ensure optimum performance, the dishwasher should not be inclined more than
1o. Check with a spirit level.
Ensure inlet hose to water supply has supplied rubber washer fitted, and that its
tightened a further half turn after seal contact.
Ensure any knockouts or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material. Keep
drain hose as fully extended as possible to prevent sagging. Any excess length of
drain hose should be kept on the dishwasher side of the highloop.
If connecting the drain hose to the sink trap, ensure the Highloop is a minimum
150mm higher than the drain hose joiner.
Ensure any packaging or tape securing the racks is removed from the dishwasher.
Check that the door opens and closes freely without resistance to adjacent cabinetry.
●
Check that the electrical outlet is accessible and located in an adjacent cupboard.
●
Check the operation of the dishwasher:
If a fault code appears, see the Fault codes section of the User guide for advice.
Installation instructions

14
Product Description
1.
●
8.
●
Detergent dispenser
2.
9.
Rating label
3.
Cutlery basket
4.
Filters
10.
Salt container
Lower basket5.
6.
Rinse aid dispenser
7.
Upper basket
Upper spray arm
Lower spray arm
12
45 6 7 8 9 10
3

15
Overview of programmes
12
●
4 5
12
1087 9 11
36
1. ON / OFF button
●
PROGRAMME SELECT button
●
Lack Salt and Rinse Aid reset button
●
Additional function button
START DELAY button
START / RESET button
3.
5.
4.
6.
2.
7. Rinse Aid indicator
PROGRAMME indicator
Additional function indicator
START DELAY/Status Indicators
Salt Aid indicator
9.
11.
Child Lock
12.
10
8.
On some models without Digital
*
*
*
Exp Acceleration Additional function It can only be used with P1(ECO) P2(Universal) P3(Intensive)
Child Lock:To activate or cancle Child lock,press button and button 5 seconds while the right three LED
flash 3 seconds,the child lock comes on or turn off.

16
Overview of programmes
12
●
4 5
10
8
79
3611
1. ON / OFF button
●
PROGRAMME SELECT button
START DELAY button
Additional function button
Lack Salt and Rinse Aid reset button
●
START / RESET button
●
3.
5.
4.
6.
2.
7. Time & Info Display
Speed Up function Indicator
Multi-tab function Indicator
Add dish Indicator 1/2 function Indicator
9.
10.
Child Lock
11.
8.
Time & Info display
During any selection the display shows by flashing related information like
Programme cycle time
Programme start delay time
Error codes and service information
A
●
fter start of an operation it displays without flashing:
Remaining time in hours of a delayed programme starts, e.g.
Remaining programme cycle time in minutes, e.g.130
While running it may vary due to local conditions and daily working load.
On some models with Digital
*
Exp Acceleration Additional function It can only be used with P1(ECO)
Child Lock:To activate or cancle Child lock,press button and button 5 seconds while the right three LED
flash 3 seconds,the child lock comes on or turn off.
*
*

17
AUTO
●
WASH
45-70°C 148min
Overview of programmes
Programmes
Programmes Type of food residue Type of load
1)
The appliance senses the type of soil and the quantity of items in the baskets. It
automatically
●
adjusts the temperature and quantity of water, energy consumption
and programme duration.
2)
Use this programme to quickly rinse the dishes. T his prevents the remaining food
to bond on the dishes and bad odours to come out from the appliance. Do not use
detergent with this program!
Intensive
70°C 130min
Zoom
32min
Prewash
45°C 20min
Universal
60°C 115min
Glass
45°C 98min
Special
45°C 72min
ECO
50°C 298min
P1
P2
P3
P4
P5
P6
P7
P8
Models with Digit also have the following programs:
1)
2)
Programme for normally soiled tableware (the most efficient in terms of its combined
●
energy and water consumption for that type of tableware).
Programme standardised to EN 50242
The values given for programmes other than the eco programme are indicative only
For translations we shall refer to translation agency

18
To ensure good washing results,the dishwasher requires soft water.Hard water can
be detrimental to the performance of your dishwasher. Over time,glassware washed
in hard water will become opaque and dishes will become spotted or covered in a
white film. Using very hard water can cause dishwasher parts to fail over time.Salt
can improve the situation.
The amount of salt dispensed can be set i
●
n S1 and S6 stages,depending on the
hardness of your water.
1.Find out about the hardness value of your tap water.Your water utility company
will help you with this.
2.Setting can be found in the water hardness table.
Adjusting the water softening system
Identify the local water hardness
●
Water softening system
* Remark
1) Factory default setting for powder de
●
tergent.
2) Recommended setting for combi detegent tablets.
3) Indicator for Salt is off.
Water hardness
Water softener
adjustment
German
degrees(°dH)
French
degrees(°fH)
Mmol/l Clarke
degrees
electronic
31-50 55-89 5.5. -8.9 39-63 S6
17-30 30-54 3.0-5.4 21-38 S5
13-16 23-29 2.3-2.9 16-20 S4
9-12 16-22 1.6-2.2 11-15 S3
0-8 0-15 0-1.5 0-10 S2
- - - - S1
1) *
2) *
3) *
