Candy CMICN 5184XN User manual

USER MANUAL
REFRIGERATOR FREEZER

2
LANGUAGES
English…………………………………………………………..3
Deutsch………………………………………………………..22
Ελληνικά……………………………………………………...43
Español………………………………………………………..65
Français……………………………………………………….87
Italiano………………………………………………………109
Português…………………………………………………..131

3
SUMMARY
SAFETY INFORMATION .........................................................................................................................................4
Scrapping old appliances...............................................................................................................................11
Conformity....................................................................................................................................................11
Guarantee.....................................................................................................................................................11
Energy Saving................................................................................................................................................11
PRODUCT OVERVIEW..........................................................................................................................................12
INSTALLATION INSTRUCTIONS............................................................................................................................13
Door Space Requirements.............................................................................................................................13
Levelling the Unit ..........................................................................................................................................13
USE .....................................................................................................................................................................14
Temperature control of fresh food storage compartment............................................................................14
Temperature control of freezing chamber....................................................................................................14
Tips for keeping food perfect in the Fridge...................................................................................................14
Food storage.................................................................................................................................................15
WATER DISPENSER..............................................................................................................................................15
Filling of drinking water: ...............................................................................................................................16
Water taking and drinking: ...........................................................................................................................16

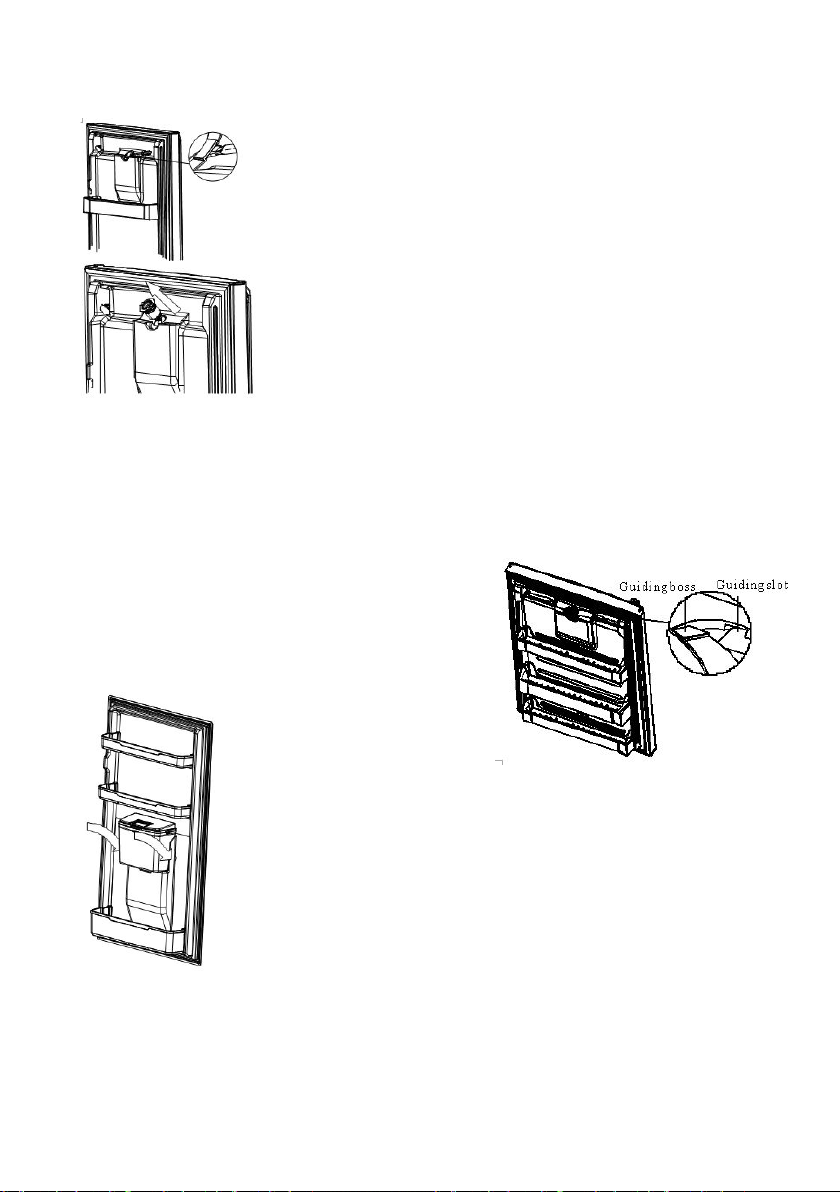

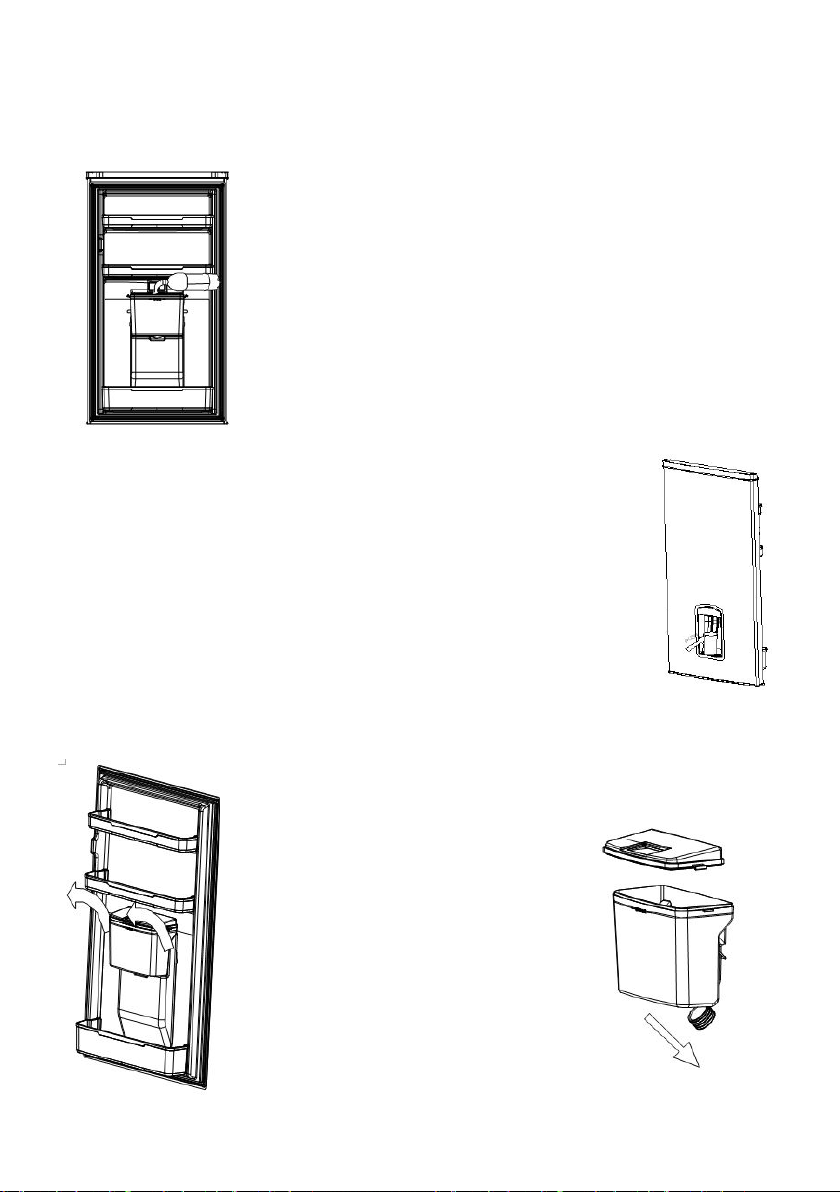

Instructions for water dispenser disassembly and cleaning..........................................................................16
Disassembly.............................................................................................................................................16
Cleaning ..................................................................................................................................................17
Installation ..............................................................................................................................................17
DOOR REVERSIBILITY ..........................................................................................................................................18
CLEANING AND MAINTENANCE..........................................................................................................................20
Cleaning before use ......................................................................................................................................20
Cleaning the Interior and the Exterior of the Unit.........................................................................................20
Changing the lamp ........................................................................................................................................20
If you're not at home for a long time ............................................................................................................20
Availability of spare parts..............................................................................................................................21
TROUBLESHOOTING ...........................................................................................................................................21
Technical assistance......................................................................................................................................21

4
Thankyou forpurchasingthisproduct.
Before using your refrigerator, please carefully read this instruction manual in order to maximize its
performance. Store all documentation for subsequent use or for other owners. This product is intended solely
forhouseholduseor similarapplicationssuch as:
- thekitchenareaforpersonnelinshops,officesandotherworkingenvironments
- onfarms,byclienteleofhotels,motels andotherenvironmentsofaresidentialtype
- atbed andbreakfasts(B&B)
- forcatering servicesandsimilarapplicationsnotfor retailsale.
This appliance must be used only for purposes of storage of food, any other use is considered dangerous and
the manufacturer will not be responsible for any omissions.Also, it is recommended that you take note of the
warrantyconditions.
SAFETY INFORMATION
Please read the operating and installation instructions carefully!
They contain important information on how to install, use and maintain the appliance.
The manufacturer is not liable if you fail to comply with the instructions and warnings.
Retain all documents for subsequent use or for the next owner.
•Do not connect the appliance to the electricity
supply until all packing and transit protectors
have been removed. Keep children away from
packaging and its parts.
Danger of suffocation from folding cartons and
plastic film!
•Leave to stand for at least 4 hours before
switching on the product, to allow compressor oil
to settle if transported horizontally.
•Make sure there is no transport damage.
•Do not damage the refrigerant circuit.
•Maintain the ventilation openings in the
appliance enclosure or in the built-in structure,
free of obstruction.
•Never use water to wash the compressor position,

5
wipe it with a dry cloth thoroughly after cleaning
to prevent rust.
•Handle the appliance always with at least two
persons because it is heavy.
•Install and level the appliance in an area suitable
for its size and use.
•Make sure that the electrical information on the
rating plate agrees with the power supply. If it
does not, contact an electrician.
•The appliance is operated by a 220-240 VAC/50
Hz power supply. Abnormal voltage fluctuation
may cause the appliance to fail to start, or damage
to the temperature control or compressor, or
there may be an abnormal noise when operating.
In such case, an automatic regulator shall be
mounted.
•Only for UK: The appliance’s power cable is fitted
with 3-cord (grounding) plug that fits a standard
3-cord (grounded) socket. Never cut off or
dismount the third pin (grounding). After the
appliance is installed, the plug should be
accessible.
•Make sure that mains cable is not caught under
the appliance during and after carrying/moving
the appliance, to avoid the mains cable becoming
cut or damaged. If the supply cord is damaged, it
must be replaced by the manufacturer, its service
agent or similarly qualified person in order to
avoid a hazard.

6
•Do not install the appliance in humid, oily or
dusty places, nor expose it to direct sunlight and
to water.
•Do not install the appliance near heaters or
inflammable materials.
•FOR appliances with a freezer compartment: if
there is a power failure do not open the lid.
Frozen food should not be affected if the failure
lasts for less than the hours indicated on the
rating label (Temperature rise time). If the failure
is longer, then the food should be checked and
eaten immediately or cooked and then refrozen.
•If you find that the lid of the appliance is difficult
to open just after you have closed it, don’t worry.
This is due to the pressure difference which will
equalize and allow the lid to be opened normally
after a few minutes.
•Do not store medicines, bacteria or chemical
agents in the appliance. This appliance is a
household appliance, it is not recommended to
store materials that require strict temperatures.
•Do not excessively pull or fold the power cord or
touch the plug with wet hands.
•Do not store products which contain flammable
propellant (e.g. spray cans) or explosive
substances in the appliance. Risk of explosion!
•Do not place unstable articles (heavy objects,
containers filled with water) on top of the

7
refrigerator, to ovoid personal injury caused by
falling or electric shock caused by contact with
water.
•Do not use electrical appliances inside the food
storage compartments, unless they are of the type
recommended by the manufacturer.
•Do not touch internal cooling elements, especially
with wet hands, to avoid cracks or injuries.
•At risk here are children, people who have
limited physical, mental or sensory abilities, as
well as people who have inadequate knowledge
concerning safe operation of the appliance.
•Check that children and vulnerable people have
understood the hazards. A person responsible for
safety must supervise or instruct children and
vulnerable people who are using the appliance.
Only children aged 8 years and above may use the
appliance.
•Children should not play with the appliance.
•Children aged from 3 to 8 years are allowed to
load and unload this appliance.
•FOR appliances with a freezer compartment: do
not store bottled or canned liquids (especially
carbonated drinks) in the freezer compartment.
Bottles and cans may burst!
•FOR appliances with a freezer compartment:
never put frozen food straight from the freezer
compartment in your mouth. Risk of low-

8
temperature burns!
•Keep plastic parts and the door seal free of oil
and grease. Otherwise, plastic parts and the door
seal will become porous.
•Before performing any operation, unplug the
power cord from the power socket.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than
those recommended by the manufacturer.
•Do not use pointed or sharp-edged objects such
as knives or forks to remove the frost.
•Never use hairdryers, electrical heaters or other
such electrical appliances for defrosting.
•It is recommended to keep the plug clean, any
excessive dust residues on the plug can be the
cause fire.
•Do not try to repair, disassemble or modify the
appliance by yourself. In case of repair please
contact always our customer service.
•Supervise children while the appliance is being
cleaned or maintained.
•Do not clean the cold glass shelves with hot water.
Sudden temperature change may cause the glass
to break.
•WARNING: The tubes of the refrigeration circuit
convey a small quantity of an environmentally
friendly but flammable refrigerant (R600a) and
insulating gas (cyclopentane). It does not damage

9
the ozone layer and does not increase the
greenhouse effect. If refrigerant escapes, it may
injure your eyes or ignite.
•If the refrigerant circuit should be damaged:
- Switch off the appliance and pull out the mains
plug,
- Keep naked flames and/or ignition sources
away from the appliance,
- Thoroughly ventilate the room for several
minutes,
- Inform customer service.
•WARNING: Do not damage the plug and/or the
power cord; this could cause electrical shocks or
fires.
•WARNING: Do not use multiple portable socket-
outlets or portable power supplies. We do not
recommend the use of extension leads and multi-
way adapters.
•Do not attempt to sit or stand on the top of the
appliance. You could injure yourself or damage it.
This appliance is not designed for stacking with
any other ones.
•The product is designed and built for domestic
household use only.
•Only original parts supplied by the manufacturer
may be used. The manufacturer guarantees that
only these parts satisfy the safety requirements.
•Opening the door for long periods can cause a
significant increase of the temperature in the

10
compartments of the appliance.
- Clean regularly surfaces that can come in contact
with food and accessible drainage systems.
- Clean water tanks if they have not been used for
48h; flush the water system connected to a water
supply if water has not been drawn for 5 days.
- Store raw meat and fish in suitable containers in
the refrigerator, so that it is not in contact with or
drip onto other food.
- Two-star frozen-food compartments(if they are
presented in the appliance) are suitable for
storing pre-frozen food, storing or making ice-
cream and making ice cubes.
- One-, two- and three -star compartments, if
present in the appliance, are not suitable for the
freezing of fresh food.
- If the appliance is left empty for long periods,
switch off, defrost, clean, dry and leave the door
open to prevent mould developing within the
appliance.
•FOR Wine Coolers: this appliance is intended to
be used exclusively for the storage of wine
•FOR a free standing appliance: this refrigerating
appliance is not intended to be used as a built-in
appliance
•FOR appliances without a 4-star compartment:
this refrigerating appliance is not suitable for
freezing foodstuffs
