W.MACHINE/WASHER-DRYER
31000970 CY2104-16S
Service Manual
31000970 CY2104-16S 0512 (17/03/2005)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2007 Gias S.r.L.
2 Programs disc 41014633 0648 (01/12/2006)
2 Programs disc 41015946 0648 (01/12/2006)
14h Therm/potent. knob spring 41013044 0648 (01/12/2006)
15 Cam disc 91602569 0648 (01/12/2006)
19a Button 0/1 41013656
31 Control panel 41015446
32 Dispenser drawer front 41014566
40 Insert 41013917
47 Table top front frame 91602091
48 R/H side frame 91601694
48a L/H side frame 91601695
49 Top rear frame 91601681
51 Work top 90489680
60 Hinge 91700102
62 Door surround 41013807
65a Door catch with spring service pack 49005361
67 Glass door with frame 41014742
67d Counter ring 41013808
76 Cabinet assy 41003254
77 Rear panel 90481367
78 Socle 41006148
79 Rear foot 90481375
80 Front foot 91671122
94d Filter w/knob without screw 41004157
97c Stopper x drain/recycle pump 91941774
97d Filt hous w/filter cartridge 49002227
101 Dispenser drawer 41000142 0648 (01/12/2006)
101 Dispenser drawer 41021547 0648 (01/12/2006)
103 Rack 91602943 0648 (01/12/2006)
109 Dispenser bottom section assy 91671224
109b Dispenser bottom section 41021545 0648 (01/12/2006)
110 Dispenser top section 41021549 0648 (01/12/2006)
31000970 CY2104-16S 0512 (17/03/2005)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2007 Gias S.r.L.
112 Distribution connecting rod 92884212 0648 (01/12/2006)
113 Lever 91602939 0648 (01/12/2006)
114 Driving lever 41000950 0648 (01/12/2006)
114a Hose clip 92470061
116 Cam 92621614 0648 (01/12/2006)
118 Spring 92483148 0648 (01/12/2006)
131 Hose clip 90249756
132 Valve hose cold water 90482365 0648 (01/12/2006)
132 Valve hose cold water 41021552 0648 (01/12/2006)
134 Solenoid valve 90450750 0648 (01/12/2006)
134 Solenoid valve 41021555 0648 (01/12/2006)
138 Drain hose 92693373
138a Drain house elbow 92689587
138b Hose clamp 92895051
142 Fill hose 92250869
151b Motorized selector 22 settings 41003735 0648 (01/12/2006)
151g selector 22 settings 41014503 0648 (01/12/2006)
153 Pressure switch 41008943 0541 (03/10/2005)
153 Pressure switch 41016044 0541 (03/10/2005)
157 Harness 41014812 0648 (01/12/2006)
157 Harness 41022622 0648 (01/12/2006)
157u 16 Way flat cable 41012505
161d Drain/recycle pump complete 41005956
162 Door safety device 91201208 0527 (01/07/2005)
162 Door safety device 41016879 0527 (01/07/2005)
164 Anti jamming filter radio 91212795 0648 (01/12/2006)
164 Anti jamming filter radio 91200098 0648 (01/12/2006)
202 Drum 91750615
203 Tub 41005500
204a Front flange 41006951
205 Drum shaft assy 92994862
211 Bolt 92419498
213a Spring 92436781
215 Tub gasket 92131689
31000970 CY2104-16S 0512 (17/03/2005)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2007 Gias S.r.L.
217 Seal retainer 92445600
218 Bearing 92440171
219 Bolt 92418714
221 Nut 90319153
224 Bearing 92440197
225a Gasket 92445626
230 Tub gasket clip 91750626
230a Tub gasket clip 90488603
232 Heater holder 92736586
242 Support spring. 92484492
242b L/H support spring 90481433
244 Washer 92430206
244a Counter weight washer 92430214
245a Asbestos washer 90318015
246 Bolt 90319336
246b Slide 04110150
247 Upper balance weight 41005511 0648 (01/12/2006)
247 Upper balance weight 41021554 0648 (01/12/2006)
248 Lower balance weight 90482423
250 Damper pads 92697838
251 Shoch absorber spring 92483049
256 Clamp 92851302
257 Damper slide 92863976
259 Support 92673961
271 Door gasket 90489151
272 Discharge pipe 41005510
273 Fill pipe 90440397
274 Pressure switch air chamber 91611202
275 5x8 hose 90416454
276 Steam hose 92604123
277 Hose spring 90386137
31000970 CY2104-16S 0512 (17/03/2005)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2007 Gias S.r.L.
279 Hose clip 92470285
281 Shock Absorder grommet 92606227
286 Heater 41009027
287m NTC probe 92743616
290 Drum pulley 41005509
292 Drive belt 41003164
292b Bottom panel 90489155
292c Clips 92473636
328 Control panel electronic module 41013732
328a Electronic module container 41014492
328f Pcb protection 41013672
422 Circlip 91941775
473a Commutator motor SOLE-ACC 41006952
479i Coreboard 32K programmed 49006361 0648 (01/12/2006)
479i Coreboard 32K programmed 49009943 0648 (01/12/2006)
479m Electronic control 32K not programmed 41014792 0648 (01/12/2006)
479m Electronic control 32K not programmed 41021513 0648 (01/12/2006)
483a Brush with brush holder 49000466
487 Special bolt 92419548
488 Rivet 92466655
491 Mains cable 91200194
535 Knob handle 41013665
547 Module protection 41003583
547a Module protection cover 91601843
556 Electric valve support 92883925 0648 (01/12/2006)
558a Press/timer bracket 92880814
571 Top sleeve 92730159
588 Siphon 41013613 0648 (01/12/2006)
622 Stopper D.12 90415761
630a Stopper drain hose 90434853
631 Stopper 90415951
632 Control support plate 41001410 0648 (01/12/2006)
31000970 CY2104-16S 0512 (17/03/2005)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2007 Gias S.r.L.
632 Control support plate 41013659 0648 (01/12/2006)
643 Door handle assembly 41013809
643a Handle plate 41014004
734 Timer protection 41009649
806 Door upper hinge 41013810
807 Door lower hinge 41013811
809 Cabinet hole stopper 90415753
828b Tach.coil 49000464
832 Discharge pipe circlip 91408004
833 Upper counterweight support 92898915
834 Lower counterweight supp. 92898923
835a Magnet 49000465
840 Drum paddle 91607697
841 Drum paddle fixing screw 92419555
856 Upper front crosspiece 90481151

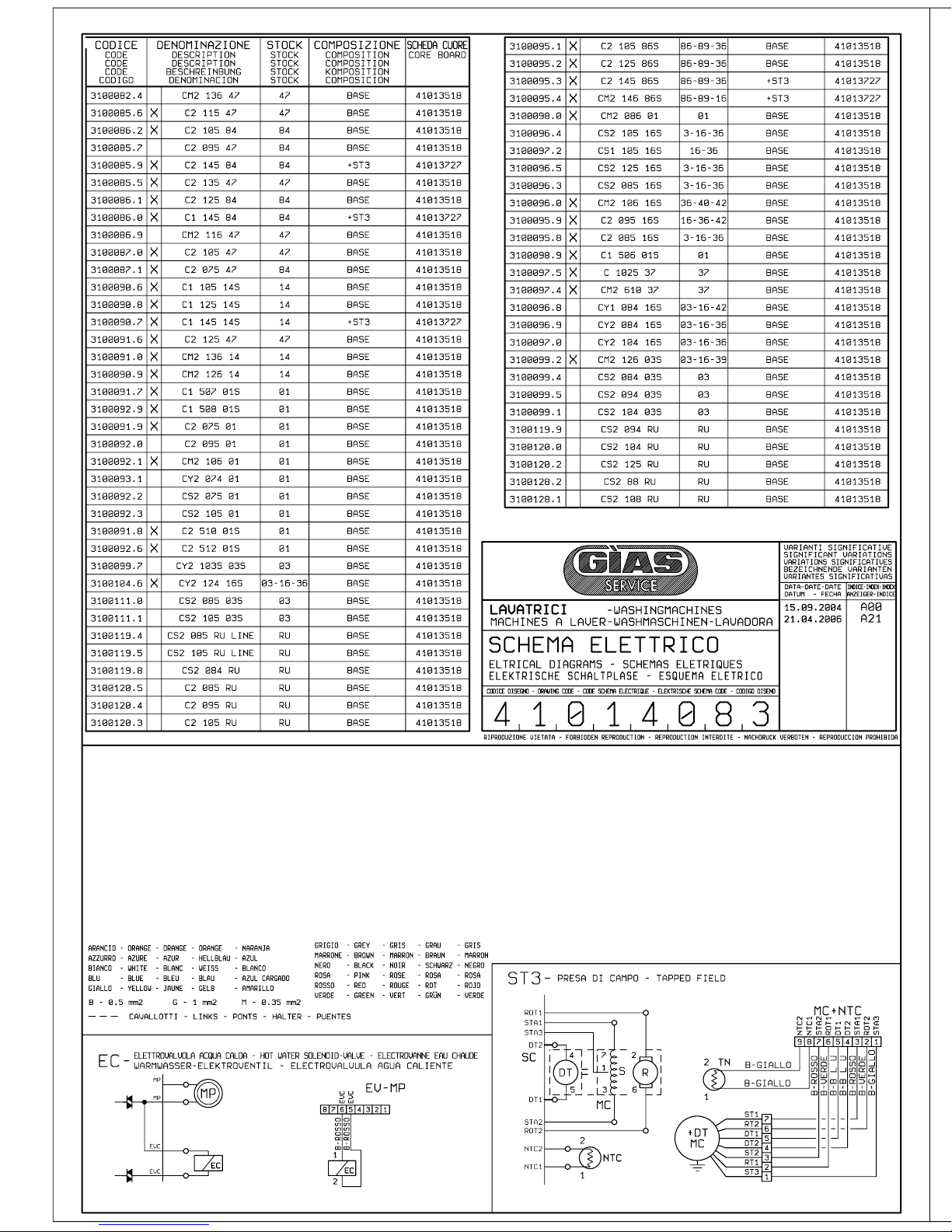

999 Wiring diagram 41014083 0648 (01/12/2006)
999 Wiring diagram 41019172 0648 (01/12/2006)
1147 Transit bolt kit 49003280
