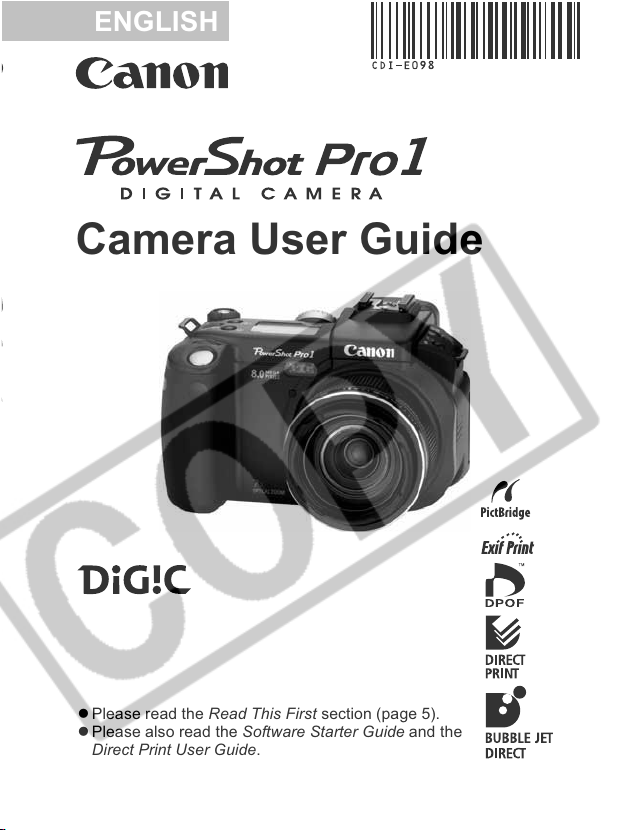

Canon PC1057 User manual

ENGLISH
Camera User Guide
zPlease read the Read This First section (page 5).
zPlease also read the Software Starter Guide and the
Direct Print User Guide.

(i)
Flowchart and Reference Guides
Use of genuine Canon accessories is recommended.
This product is designed to perform optimally when used with
genuine Canon accessories. Canon shall not be liable for any
damage to this product and/or accidents such as fire, etc., caused
by the malfunction of non-genuine Canon accessories (e.g., a
leakage and/or explosion of a battery pack). Please note that this
warranty does not apply to repairs arising out of the malfunction of
non-genuine Canon accessories, although you may request such
repairs on a chargeable basis.
This Guide
Shooting with the Camera
Software Starter Guide
This Guide
Software Starter Guide
Installing the Software
Connecting the Camera to a Computer
Downloading Images to a Computer
Printer User Guide
Using the Printer and Printing
Direct Print User Guide

(ii)

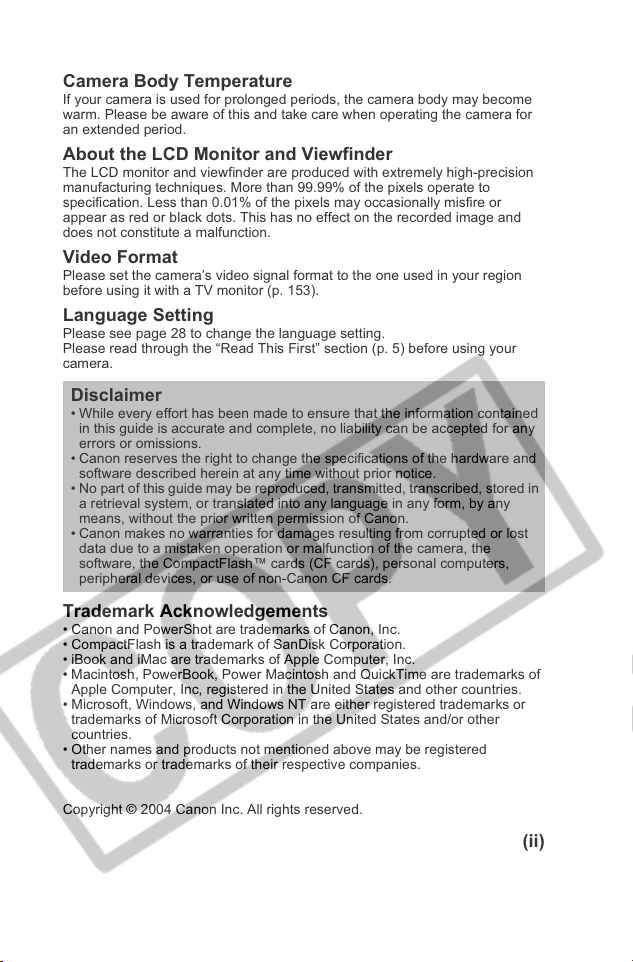

Camera Body Temperature
If your camera is used for prolonged periods, the camera body may become
warm. Please be aware of this and take care when operating the camera for
an extended period.
About the LCD Monitor and Viewfinder
The LCD monitor and viewfinder are produced with extremely high-precision
manufacturing techniques. More than 99.99% of the pixels operate to
specification. Less than 0.01% of the pixels may occasionally misfire or
appear as red or black dots. This has no effect on the recorded image and
does not constitute a malfunction.
Video Format
Please set the camera’s video signal format to the one used in your region
before using it with a TV monitor (p. 153).
Language Setting
Please see page 28 to change the language setting.
Please read through the “Read This First” section (p. 5) before using your
camera.
Trademark Acknowledgements
• Canon and PowerShot are trademarks of Canon, Inc.
• CompactFlash is a trademark of SanDisk Corporation.
• iBook and iMac are trademarks of Apple Computer, Inc.
• Macintosh, PowerBook, Power Macintosh and QuickTime are trademarks of
Apple Computer, Inc, registered in the United States and other countries.
• Microsoft, Windows, and Windows NT are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other
countries.
• Other names and products not mentioned above may be registered
trademarks or trademarks of their respective companies.
Copyright © 2004 Canon Inc. All rights reserved.
Disclaimer
• While every effort has been made to ensure that the information contained
in this guide is accurate and complete, no liability can be accepted for any
errors or omissions.
• Canon reserves the right to change the specifications of the hardware and
software described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in
a retrieval system, or translated into any language in any form, by any
means, without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or lost
data due to a mistaken operation or malfunction of the camera, the
software, the CompactFlash™ cards (CF cards), personal computers,
peripheral devices, or use of non-Canon CF cards.

(iii)
Symbols Used
Question? Look Here First.
The above sections are shaded on the right edges to make them
easy to find.
About this Camera User Guide
: This mark denotes issues that may affect the camera’s
operation.
: This mark denotes additional topics that complement the
basic operating procedures.
What settings are available under each function?
Will my settings remain in effect even after I’ve turned
the camera off?
Functions Available in Each Shooting Mode (p. 202)
What functions are available through the menus?
FUNC. Menu (p. 43)
Rec. Menu (p. 46)
Play Menu (p. 48)
Set up Menu (p. 49)
My Camera Menu (p. 51)
What do the icons listed in the Camera User Guide
mean?
Information Displayed on the LCD Monitor/Viewfinder (p. 35)
Selecting Menus and Settings (p. 43)

1
Thumb Index
Preparing the
Camera, Basic
Functions
Shooting
Playback, Erasing
Print Order,
Transferring
Connecting
My Camera
Settings
Appendix
Introduces you to all of the camera components, and
explains how to load batteries and use the shutter button,
among other basic functions.
Explains how to make DPOF print settings, and how to
select images for transferring to e-mail.
Refer to the Direct Print User Guide for printing
instructions.
Explains how to review recorded images or select
playback settings, how to protect images or erase them,
and how to edit movies.
Describes shooting with the camera, from each shooting
mode to using the camera’s various shooting features.
Shows the error messages. Also explains how to use the
wireless controller and various separately sold
accessories such as the power kit, externally mounted
flash units and conversion lenses.
Explains how to transfer images to a computer. Also
explains how to use a TV set for shooting and playing
back images.
You must read this section before connecting your
camera to a computer.
Explains how to customize the camera using My Camera
settings and how to set the camera’s start-up image, and
start-up, shutter and operation sounds.

2

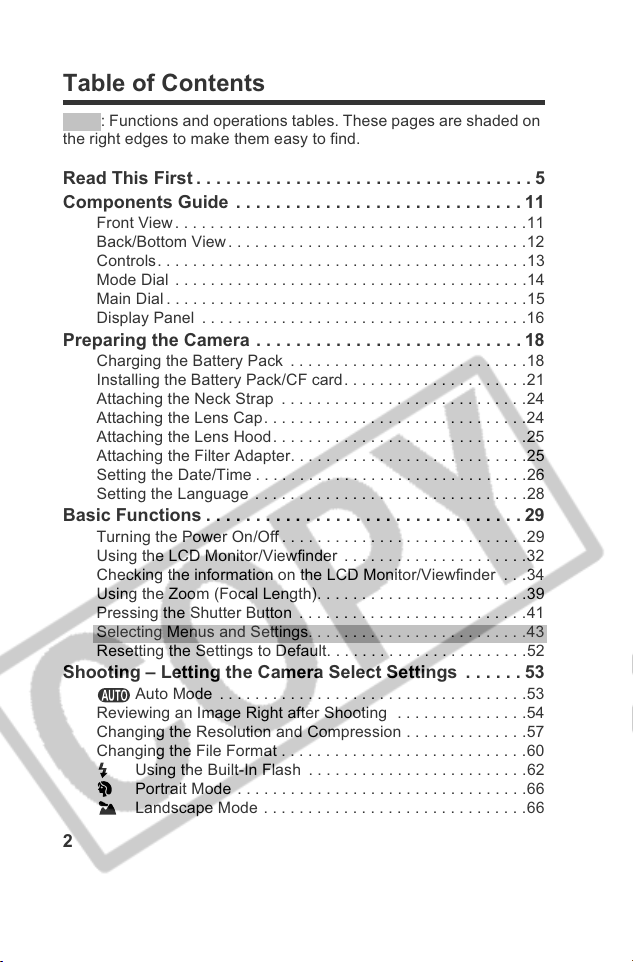

Table of Contents
: Functions and operations tables. These pages are shaded on
the right edges to make them easy to find.
Read This First . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Components Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

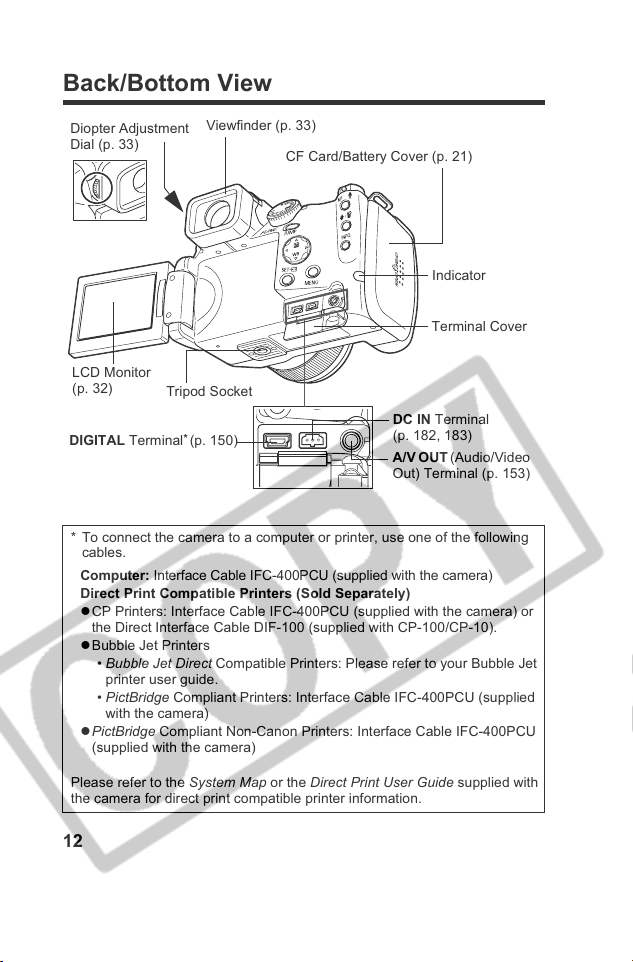

Back/Bottom View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

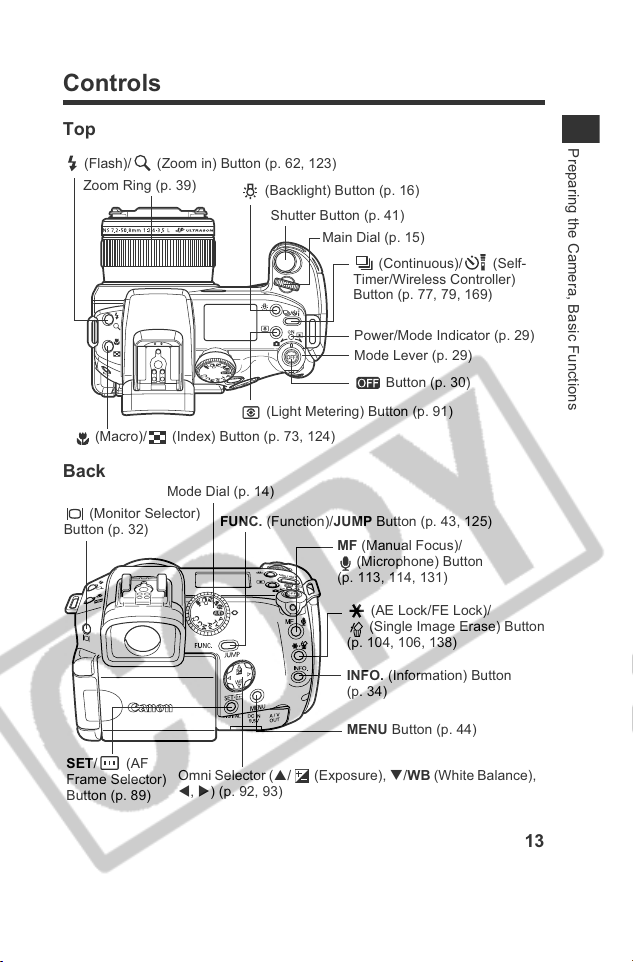

Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Mode Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Main Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Preparing the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Charging the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Installing the Battery Pack/CF card. . . . . . . . . . . . . . . . . . . . .21
Attaching the Neck Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Attaching the Lens Cap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Attaching the Lens Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Attaching the Filter Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . .25
Setting the Date/Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Setting the Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Basic Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Turning the Power On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Using the LCD Monitor/Viewfinder . . . . . . . . . . . . . . . . . . . . .32
Checking the information on the LCD Monitor/Viewfinder . . .34
Using the Zoom (Focal Length). . . . . . . . . . . . . . . . . . . . . . . .39
Pressing the Shutter Button . . . . . . . . . . . . . . . . . . . . . . . . . .41
Selecting Menus and Settings. . . . . . . . . . . . . . . . . . . . . . . . .43
Resetting the Settings to Default. . . . . . . . . . . . . . . . . . . . . . .52
Shooting – Letting the Camera Select Settings . . . . . . 53
Auto Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Reviewing an Image Right after Shooting . . . . . . . . . . . . . . .54
Changing the Resolution and Compression . . . . . . . . . . . . . .57
Changing the File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Using the Built-In Flash . . . . . . . . . . . . . . . . . . . . . . . . .62
Portrait Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Landscape Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

3

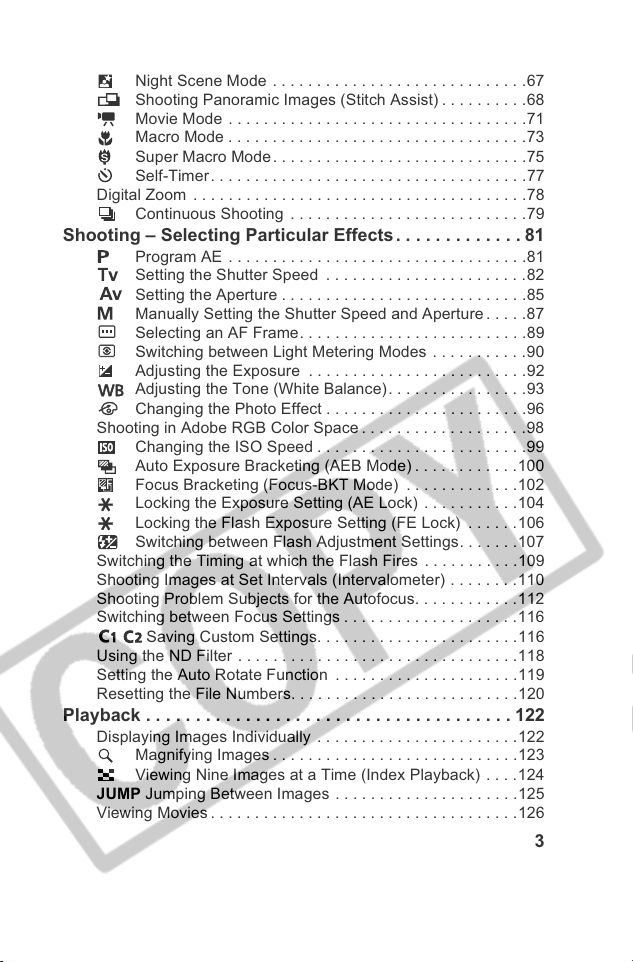

Night Scene Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Shooting Panoramic Images (Stitch Assist) . . . . . . . . . .68
Movie Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Macro Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Super Macro Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Self-Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Digital Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Continuous Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Shooting – Selecting Particular Effects. . . . . . . . . . . . . 81
Program AE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Setting the Shutter Speed . . . . . . . . . . . . . . . . . . . . . . .82
Setting the Aperture . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Manually Setting the Shutter Speed and Aperture . . . . .87
Selecting an AF Frame. . . . . . . . . . . . . . . . . . . . . . . . . .89
Switching between Light Metering Modes . . . . . . . . . . .90
Adjusting the Exposure . . . . . . . . . . . . . . . . . . . . . . . . .92
Adjusting the Tone (White Balance). . . . . . . . . . . . . . . .93
Changing the Photo Effect . . . . . . . . . . . . . . . . . . . . . . .96
Shooting in Adobe RGB Color Space . . . . . . . . . . . . . . . . . . .98
Changing the ISO Speed . . . . . . . . . . . . . . . . . . . . . . . .99
Auto Exposure Bracketing (AEB Mode) . . . . . . . . . . . .100
Focus Bracketing (Focus-BKT Mode) . . . . . . . . . . . . .102
Locking the Exposure Setting (AE Lock) . . . . . . . . . . .104
Locking the Flash Exposure Setting (FE Lock) . . . . . .106
Switching between Flash Adjustment Settings. . . . . . .107
Switching the Timing at which the Flash Fires . . . . . . . . . . .109
Shooting Images at Set Intervals (Intervalometer) . . . . . . . .110
Shooting Problem Subjects for the Autofocus. . . . . . . . . . . .112
Switching between Focus Settings . . . . . . . . . . . . . . . . . . . .116
Saving Custom Settings. . . . . . . . . . . . . . . . . . . . . . .116
Using the ND Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Setting the Auto Rotate Function . . . . . . . . . . . . . . . . . . . . .119
Resetting the File Numbers. . . . . . . . . . . . . . . . . . . . . . . . . .120
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Displaying Images Individually . . . . . . . . . . . . . . . . . . . . . . .122
Magnifying Images . . . . . . . . . . . . . . . . . . . . . . . . . . . .123
Viewing Nine Images at a Time (Index Playback) . . . .124
JUMP Jumping Between Images . . . . . . . . . . . . . . . . . . . . .125
Viewing Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

4
Editing Movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128
Rotating Images in the Display . . . . . . . . . . . . . . . . . . . . . . .130
Attaching Sound Memos to Images . . . . . . . . . . . . . . . . . . .131
Automated Playback (Slide Show) . . . . . . . . . . . . . . . . . . . .133
Protecting Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137
Erasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Erasing Images Individually . . . . . . . . . . . . . . . . . . . . . . . . .138
Formatting a CF Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139
Print Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
About Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140
Print Settings (DPOF Print Settings). . . . . . . . . . . . . . . . . . .142
Image Transmission Settings (DPOF Transfer Order) . . 147
Selecting Images for Transferring . . . . . . . . . . . . . . . . . . . . .147
Downloading Images to a Computer . . . . . . . . . . . . . . 149
Connecting the Camera to a Computer Via the USB Cable .149
Downloading Directly from a CF Card. . . . . . . . . . . . . . . . . .152
Viewing Images on a TV Set . . . . . . . . . . . . . . . . . . . . . 153
Customizing the Camera (My Camera Settings) . . . . . 154
Changing My Camera Settings . . . . . . . . . . . . . . . . . . . . . . .154
Registering the My Camera Settings . . . . . . . . . . . . . . . . . .156
List of Error/Message Codes . . . . . . . . . . . . . . . . . . . . 159
List of Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Using the Wireless Controller . . . . . . . . . . . . . . . . . . . . . . . .168
Using an Externally Mounted Flash (Sold Separately) . . . . .171
Using the Tele-converter (Sold Separately)/Close-up Lens
(Sold Separately) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177
Using a Compact Power Adapter (Sold Separately) . . . . . . .182
Using a Battery Charger (Sold Separately) and Car Battery
Cable (Sold Separately) . . . . . . . . . . . . . . . . . . . . . . . . . . . .183
Replacing the Date Battery . . . . . . . . . . . . . . . . . . . . . . . . . .184
Camera Care and Maintenance . . . . . . . . . . . . . . . . . . . . . .185
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Functions Available in Each Shooting Mode . . . . . . . 202

5
Test Shots
Before you try to photograph important subjects, we highly
recommend that you shoot several trial images to confirm that the
camera is operating and being operated correctly.
Please note that Canon, its subsidiaries and affiliates, and its
distributors are not liable for any consequential damages arising
from any malfunction of a camera or accessory, including
CompactFlash™ cards, that results in the failure of an image to be
recorded or to be recorded in a format that is machine readable.
Warning Against Copyright Infringement
Please note that Canon digital cameras are intended for personal
use and should never be used in a manner that infringes upon or
contravenes international or domestic copyright laws and
regulations. Please be advised that in certain cases the copying of
images from performances, exhibitions, or commercial properties by
means of a camera or other device may contravene copyright or
other legal rights even if the image was recorded for personal use.
Warranty Limitations
This camera’s warranty is only effective in the country of sale. If a
problem arises while the camera is in use abroad, please convey it
back to the country of sale before proceeding with a warranty claim
to a Canon Customer Support Help Desk.
For Canon Customer Support contacts, please see the Canon Limited
Warranty supplied with your camera.
zBefore using the camera, please ensure that you read and
understand the safety precautions described below. Always
ensure that the camera is operated correctly.
zThe safety precautions noted on the following pages are intended
to instruct you in the safe and correct operation of the camera and
its accessories to prevent injuries or damage to yourself, other
persons and equipment.
zIn the next few pages, the term “equipment” refers primarily to the
camera, its power supply accessories and a separately sold
compact power adapter.
Read This First
Please Read
Safety Precautions

6
Warnings
zDo not aim the camera directly into the sun or at other intense
light sources which could damage your eyesight.
zDo not trigger the flash in close proximity to human or animal
eyes. Exposure to the intense light produced by the flash may
damage eyesight. In particular, remain at least one meter
(39 inches) away from infants when using the flash.
zStore this equipment out of the reach of children and infants.
Accidental damage to the camera or batteries by a child could
result in serious injury. In addition, placement of the strap around
the child’s neck could result in asphyxiation.
zBe particularly careful to keep the date battery used in the
camera away from children. Seek medical assistance
immediately if a child swallows a battery.
zDo not attempt to disassemble or alter any part of the
equipment that is not expressly described in this guide.
Disassembly or alteration may result in high voltage electrical
shock. Internal inspections, alterations and repairs should be
conducted by qualified service personnel authorized by your
camera distributor or a Canon Customer Support Help Desk.
zTo avoid the risk of high-voltage electrical shock, do not
touch the flash portion of the camera if it has been damaged.
Similarly, never touch internal portions of the equipment that
become exposed as a result of damage. There is a risk of high
voltage electrical shock. Please take the first opportunity to consult
your camera distributor or a Canon Customer Support Help Desk.
zStop operating the equipment immediately if it emits smoke
or noxious fumes. Failure to do so may result in fire or electrical
shock. Immediately turn the camera’s power off, remove the
camera battery or unplug the power cord from the power outlet.
Confirm that smoke and fume emissions have ceased.
Please consult your camera distributor or the closest Canon
Customer Support Help Desk.
z
Stop operating the equipment if it is dropped or the casing is
damaged.
Failure to do so may result in fire or electrical shock.
Immediately turn the camera’s power off, remove the camera battery
or unplug the power cord from the power outlet. Please consult your
camera distributor or the closest Canon Customer Support Help Desk.

7
zDo not allow the equipment to come into contact with, or
become immersed in, water or other liquids. Do not allow
liquids to enter the interior. The camera has not been
waterproofed. If the exterior comes into contact with liquids or salt
air, wipe it dry with a soft, absorbent cloth. In the event that water
or other foreign substances enter the interior, immediately turn the
camera’s power off and remove the camera battery or unplug the
power cord from the power outlet. Continued use of the equipment
may result in fire or electrical shock. Please consult your camera
distributor or the closest Canon Customer Support Help Desk.
zDo not use substances containing alcohol, benzene, thinners
or other flammable substances to clean or maintain the
equipment. The use of these substances may lead to fire.
zRemove the power cord on a regular periodic basis and wipe
away the dust and dirt that collects on the plug, the exterior of
the power outlet and the surrounding area. In dusty, humid or
greasy environments, the dust that collects around the plug over
long periods of time may become saturated with humidity and
short-circuit, leading to fire.
zDo not cut, damage, alter or place heavy items on the power
adapter cord. Any of these actions may cause an electrical short
circuit, which may lead to fire or electrical shock.
zDo not handle the power cord if your hands are wet. Handling
it with wet hands may lead to electrical shock. When unplugging
the cord, ensure that you hold the solid portion of the plug. Pulling
on the flexible portion of the cord may damage or expose the wire
and insulation, creating the potential for fires and electrical shocks.
zUse only the recommended power accessories. Use of power
sources not expressly recommended for this equipment may lead
to overheating, distortion of the equipment, fire, electrical shock or
other hazards.
zDo not place the batteries near a heat source or expose them
to direct flame or heat. Neither should you immerse them in
water. Such exposure may damage the batteries and lead to the
leakage of corrosive liquids, fire, electrical shock, explosion or
serious injury.

8
zDo not attempt to disassemble, alter or apply heat to the
batteries. There is serious risk of injury due to an explosion.
Immediately flush with water any area of the body, including the
eyes and mouth, or clothing, that comes into contact with the inner
contents of a battery. If the eyes or mouth contact these
substances, immediately flush with water and seek medical
assistance.
z
Avoid dropping or subjecting the batteries to severe impacts
that could damage the casings.
It could lead to leakage and
injury.
zDo not short-circuit the battery terminals with metallic
objects, such as key holders. It could lead to overheating, burns
and other injuries. Use the supplied terminal cover to transport or
store the battery pack.
zBefore you discard a battery, cover the terminals with tape or
other insulators to prevent direct contact with other objects.
Contact with the metallic components of other materials in waste
containers may lead to fire or explosions. Discard the batteries in
specialized waste facilities if available in your area.
zUse only recommended batteries and accessories. Use of
batteries not expressly recommended for this equipment may
cause explosions or leaks, resulting in fire, injury and damage to
the surroundings.
zDisconnect the compact power adapter from both the camera
and power outlet after recharging and when the camera is not
in use to avoid fires and other hazards. Continuous use over a
long period of time may cause the unit to overheat and distort,
resulting in fire.
zThe camera terminal of the separately sold compact power
cord is designed for exclusive use with your camera. Do not
use it with other products or batteries. There is a risk of fire and
other hazards.
zExercise due caution when screwing on the separately sold
tele-converter lens, close-up lens and conversion lens
adapter. If they loosen, fall off and shatter, the glass shards may
cause an injury.

9
Cautions
zAvoid using, placing or storing the equipment in places
subject to strong sunlight or high temperatures, such as the
dashboard or trunk (boot) of a car. Exposure to intense sunlight
and heat may cause the batteries to leak, overheat or explode,
resulting in fire, burns or other injuries. High temperatures may
also cause deformation of the casing. Ensure that there is good
ventilation when using the compact power adapter to charge the
battery pack or power the camera.
zDo not store the equipment in humid or dusty areas. Storage
in such areas could lead to fire, electrical shock or other damage.
zBe careful not to bang the camera or subject it to strong
impacts or shocks that could lead to injury or damage the
equipment when wearing or holding it by the strap.
zBe careful not to cover the flash with your fingers or clothing
when shooting. The flash may be damaged and emit smoke or
noise. In addition, do not touch the surface of the flash after taking
several pictures in rapid succession. Either action could result in
burns.
zDo not operate the flash with dirt, dust or other items stuck to
its lens. The resulting heat build-up could damage the flash.
zEnsure that the battery charger is plugged into a power outlet
of the specified rating, not over the specified rating. The plug
of the battery charger varies according to region.
zDo not use the battery charger or compact power adapter if
the cable or plug is damaged, or if the plug is not fully
inserted into the power outlet.
zDo not allow metal objects (such as pins or keys) or dirt to
contact the charger terminals or plug.
zIf your camera is used for prolonged periods, the camera
body may become warm. Please take care when operating the
camera for an extended period as your hands may experience a
burning sensation.

10
Avoid Strong Magnetic Fields
Never place the camera in close proximity to electric motors or
other equipment generating strong electromagnetic fields.
Exposure to strong magnetic fields may cause malfunctions or
corrupt image data.
Avoid Condensation Related Problems
Moving the equipment rapidly between hot and cold temperatures
may cause condensation (water droplets) to form on its external
and internal surfaces.
You can avoid this by placing the equipment in an airtight,
resealable plastic bag and letting it adjust to temperature changes
slowly before removing it from the bag.
If Condensation Forms Inside the Camera
Stop using the camera immediately if you detect condensation.
Continued use may damage the equipment. Remove the CF card,
and battery or a household power source, from the camera and
wait until the moisture evaporates completely before resuming
use.
Extended Storage
When not using the camera for extended periods of time, remove
the battery from the camera or battery charger and store the
equipment in a safe place. Storing the camera for extended
periods with batteries installed will run down the battery. (Do not
remove the date battery.)
Preventing Malfunctions

11
Preparing the Camera, Basic Functions
Front View
Components Guide
Self-timer
Lamp (p. 77)
Hot Shoe (p. 171)
Built-in Flash (p. 62)
Display Panel (p. 16)
Strap Mount (p. 24)
Speaker
Ring Release Button
(p. 174, 179)
Lens
Remote Sensor (p. 169)
Microphone (p. 131)
Strap Mount (p. 24)
Red-eye Reduction Lamp (p. 62)
AF Sensor

12
Back/Bottom View
* To connect the camera to a computer or printer, use one of the following
cables.
Please refer to the System Map or the Direct Print User Guide supplied with
the camera for direct print compatible printer information.
Viewfinder (p. 33)
Diopter Adjustment
Dial (p. 33)
LCD Monitor
(p. 32)
CF Card/Battery Cover (p. 21)
Tripod Socket
DC IN Terminal
(p. 182, 183)
DIGITAL Terminal*(p. 150)
A/V OUT (Audio/Video
Out) Terminal (p. 153)
Terminal Cover
Indicator
Computer: Interface Cable IFC-400PCU (supplied with the camera)
Direct Print Compatible Printers (Sold Separately)
zCP Printers: Interface Cable IFC-400PCU (supplied with the camera) or
the Direct Interface Cable DIF-100 (supplied with CP-100/CP-10).
zBubble Jet Printers
•Bubble Jet Direct Compatible Printers: Please refer to your Bubble Jet
printer user guide.
•PictBridge Compliant Printers: Interface Cable IFC-400PCU (supplied
with the camera)
zPictBridge Compliant Non-Canon Printers: Interface Cable IFC-400PCU
(supplied with the camera)

13
Preparing the Camera, Basic Functions
Controls
Top
Back
Power/Mode Indicator (p. 29)
Button (p. 30)
Mode Lever (p. 29)
Shutter Button (p. 41)
Zoom Ring (p. 39)
Main Dial (p. 15)
(Flash)/ (Zoom in) Button (p. 62, 123)
(Backlight) Button (p. 16)
(Continuous)/ (Self-
Timer/Wireless Controller)
Button (p. 77, 79, 169)
(Light Metering) Button (p. 91)
(Macro)/ (Index) Button (p. 73, 124)
MF (Manual Focus)/
(Microphone) Button
(p. 113, 114, 131)
Omni Selector (S/ (Exposure), T/WB (White Balance),
W,X) (p. 92, 93)
MENU Button (p. 44)
FUNC. (Function)/JUMP Button (p. 43, 125)
SET/ (AF
Frame Selector)
Button (p. 89)
INFO. (Information) Button
(p. 34)
(AE Lock/FE Lock)/
(Single Image Erase) Button
(p. 104, 106, 138)
(Monitor Selector)
Button (p. 32)
Mode Dial (p. 14)

14
Mode Dial
Use the mode dial to switch between the shooting modes.
z: Auto (p. 53)
The camera automatically selects settings.
zImage Zone
The camera automatically selects settings
according to the image composition type.
zCreative Zone
The user selects exposure, aperture or
other settings to achieve special effects.
Creative Zone
Image Zone
Auto
: Portrait (p. 66)
: Landscape (p. 66)
: Night Scene (p. 67)
: Stitch Assist (p. 68)
: Movie (p. 71)
: Program AE (p. 81)
: Shutter Speed-Priority AE (p. 82)
: Aperture-Priority AE (p. 85)
: Manual Exposure (p. 87)
: Custom 1 (p. 116)
: Custom 2 (p. 116)

15
Preparing the Camera, Basic Functions
Main Dial
The main dial is used for selecting certain menus and for displaying
images. You can easily and swiftly select, confirm and switch
menus.
Turning the Main Dial
Clicking the Main Dial
zIn Shooting Mode
zSelects aperture value and shutter
speed (p. 82, 85, 87)
zSelects menu settings by pressing the
FUNC. button (p. 43)
zSelects exposure compensation and
white balance (p. 92, 93)
zIn Playback Mode
zDisplays the previous and next image
(p. 122)
zIn Shooting Mode
zFixes menu items set by pressing the
FUNC. button (p. 43)
zSwitches between shutter speeds and
aperture values in Mmode (p. 87)
Turn
Click

16
Display Panel
The display panel shows the camera settings, the remaining image
capacity, movie shooting time, battery charge and other information.
In Shooting mode (p. 29), you can turn on the backlight of the
display panel for six seconds by pressing the button. To turn off
the backlight within six seconds, press the button again.
Icons Indication Reference
pages
c
// Evaluative Metering/Spot Metering/
Center-Weighted Average Metering
90
Shutter Speed/Movie Shooting Time/
White Balance/ISO Speed/Photo Effect/
Bracket/Resolution Setting Value (for
each function setting)
57, 71, 82,
87, 93, 96,
99, 100, 102
Aperture Setting 85, 87
d
Compression 57
Resolution (Not displayed with RAW
images)
57
Flash On/Flash Off (Not displayed with
Auto)
62
ND filter 118
//
Single Shot/Standard Continuous
Shooting/High-speed Continuous
Shooting
79
ISO speed 99
Battery Charge State 22
Macro Mode*73
button
